2ATAZ-MWI3000W4PIntelligent Wireless Access Point

i Contents 1 Product Overview ............................................................................................................................... 1 1.1 About the TS-MWI3000W4P ..................................................................................................... 1 1.2 Product Appearance .................................................................................................................. 1 1.3 Package Contents...................................................................................................................... 5 1.4 Technical Specifications ............................................................................................................ 5 1.4.1 Dimensions and Weight ................................................................................................. 5 1.4.2 Radio Specifications ...................................................................................................... 6 1.4.3 Port Specifications ......................................................................................................... 7 1.4.4 Power Supply and Consumption ................................................................................... 8 1.4.5 Environment and Reliability ........................................................................................... 8 1.5 LEDs and Reset Button ............................................................................................................. 8 2 Preparing for Installation .................................................................................................................. 10 2.1 Safety Precautions ................................................................................................................... 10 2.1.1 General Safety Precautions ......................................................................................... 10 2.1.2 Handling Safety ............................................................................................................ 10 2.1.3 Electric Safety .............................................................................................................. 10 2.1.4 Storage Security .......................................................................................................... 11 2.2 Installation Environment Requirements ................................................................................... 11 2.2.1 Bearing Requirements ................................................................................................. 11 2.2.2 Ventilation Requirements ............................................................................................. 11 2.2.3 Space Requirements ................................ ................................................................... 11 2.2.4 Temperature/Humidity Requirements .......................................................................... 11 ii 2.2.5 Cleanliness Requirements ........................................................................................... 12 2.2.6 Anti-interference Requirements ................................................................................... 13 2.2.7 Installation Site Requirements ..................................................................................... 13 2.3 Tools ........................................................................................................................................ 13 3 Installing the Access Point ............................................................................................................... 14 3.1 Installation Flowchart ............................................................................................................... 14 3.2 Before You Begin ..................................................................................................................... 14 3.3 Precautions .............................................................................................................................. 15 3.4 Installing the Access Point ....................................................................................................... 16 3.4.1 Installing the AP on a Wall ........................................................................................... 16 3.4.2 Installing the AP on an 86 mm Junction Box ............................................................... 18 3.4.3 Removing the Access Point ......................................................................................... 22 3.5 Connecting Cables................................................................................................................... 24 3.6 Bundling Cables ....................................................................................................................... 24 3.6.1 Precautions .................................................................................................................. 24 3.6.2 Steps ............................................................................................................................ 24 3.7 Checklist After Installation ....................................................................................................... 24 3.7.1 Checking the AP .......................................................................................................... 24 3.7.2 Checking Cable Connection ........................................................................................ 24 3.7.3 Checking the Power Supply ......................................................................................... 24 4 Verifying Operating Status ............................................................................................................... 25 4.1 Establishing the Configuration Environment ........................................................................... 25 4.2 Powering on the AP ......................................................................…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: TECHNITY SOLUTIONS USA INC FRN: 0028473106 Contact Name: Jerry Kao Address: 155 FEDERAL ST STE 700 BOSTON, MA 02110 Telephone No: +1(905) 948-8828 Email: [email protected] Applicant: Company name: Technity Solutions Inc. Product Description: Intelligent Wireless Access Point Grantee code: 2ATAZ FCC ID: 2ATAZ-MWI3000W4P FRN： 0028473106 Contact Name: Jerry Kao Address: 500 Cochrane Dr. Unit 1, Markham, Canada, L3R 8E2 Telephone No: 9059488828 Email: [email protected] [Technity Solutions Inc.] certifies that, as of the date of this filing of the application with the TCB, [TECHNITY SOLUTIONS USA INC] is our designated US agent for service of process for the above referenced FCC ID. [Technity Solutions Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [TECHNITY SOLUTIONS USA INC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/09/21 Applicant’s Name: Jerry Kao US Agent’s Name: Jerry Kao Title: Director Title: Director Signature: Signature:

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Technity Solutions Inc. Grantee code: 2ATAZ FCC ID: 2ATAZ-MWI3000W4P Contact Name: Jerry Kao Address: 500 Cochrane Dr. Unit 1, Markham, Canada, L3R 8E2 Telephone No: 9059488828 Fax No: 9059488828 Email: [email protected] i. [Technity Solutions Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Technity Solutions Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Technity Solutions Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 09.21.2023 Applicant’s Name: Jerry Kao Title: Director Signature: 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist FRN:0028473106

C5266091_X10_Ed.2 1/1 <TechnitySolutionsInc.> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023/09/21 Subject:RequestforConfidentiality FCCID:2ATAZ-MWI3000W4P ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☒ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof_180daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:JerryKao Title:Director ☐

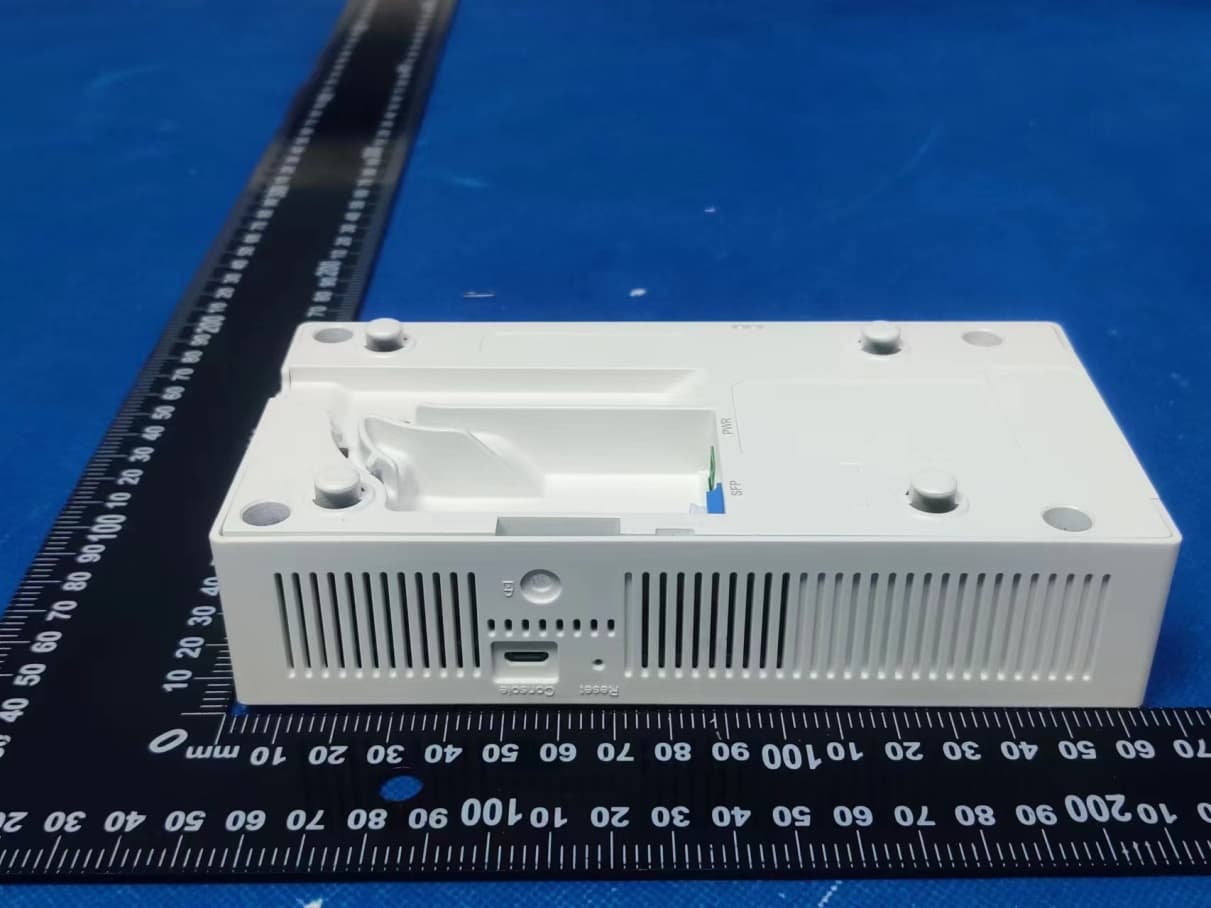

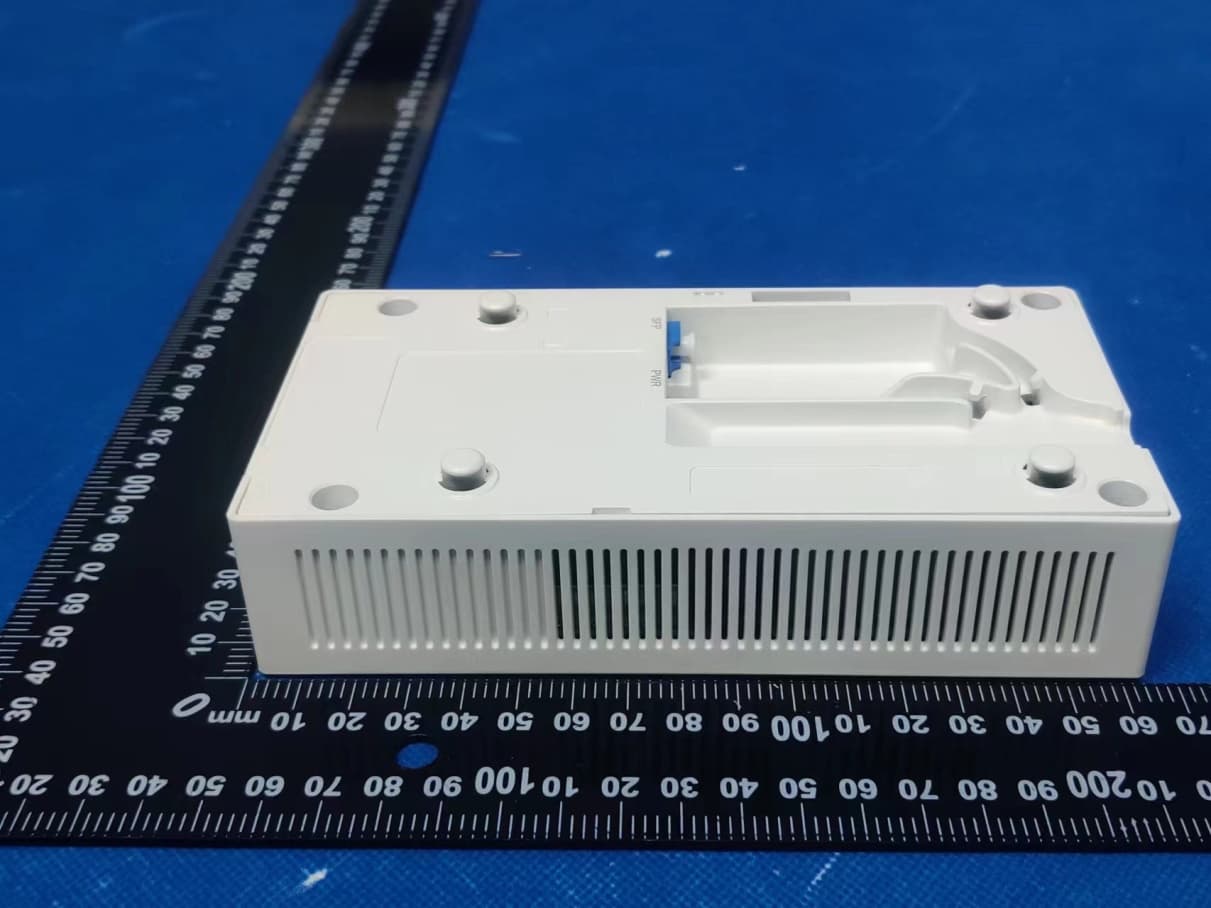

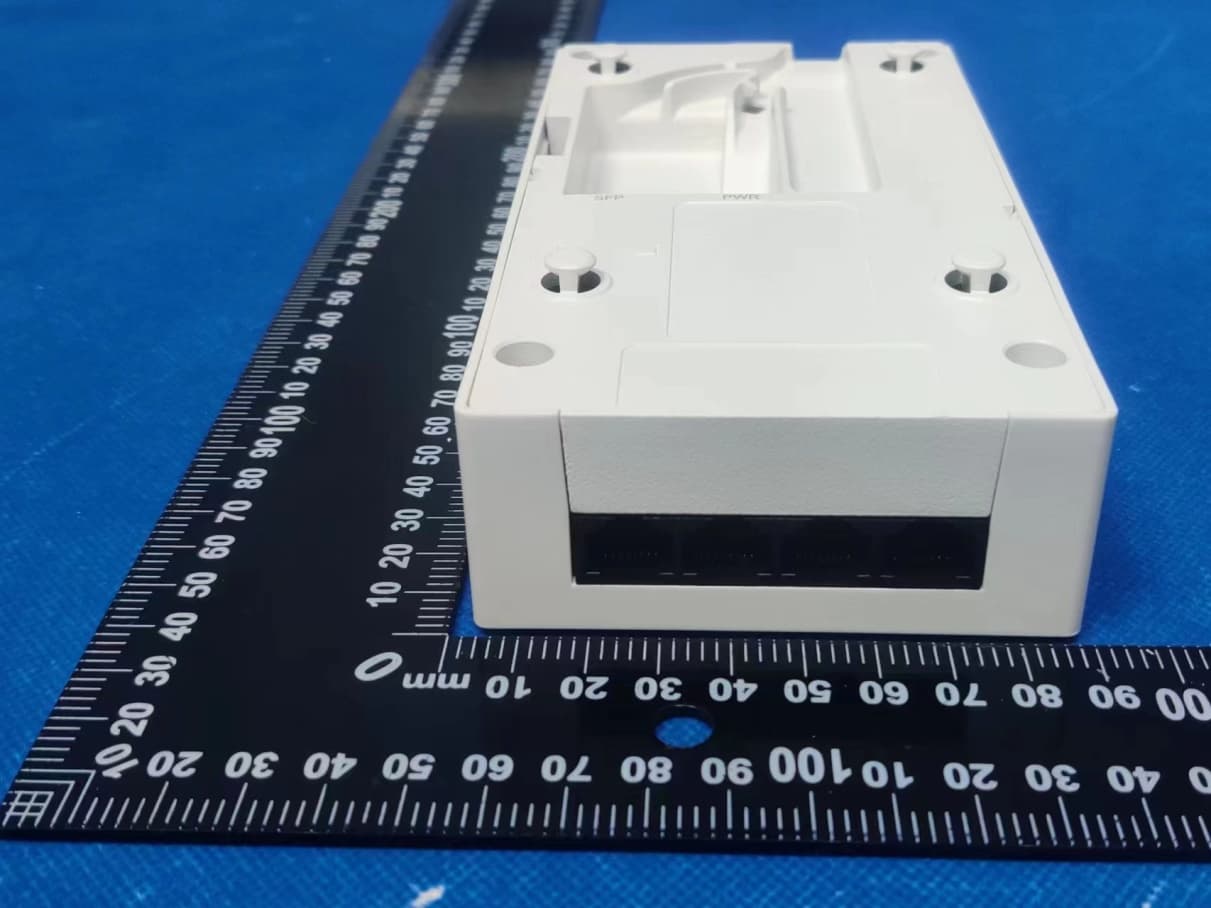

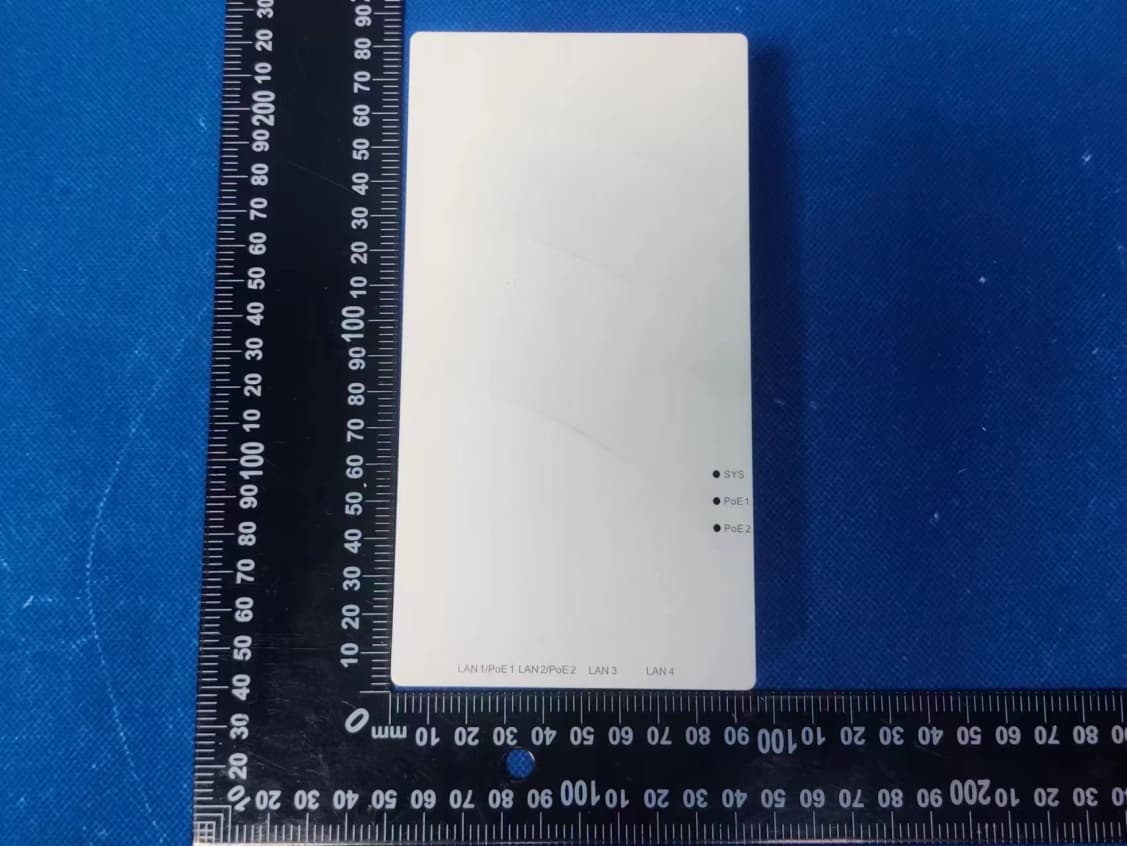

FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 1 / 3 EUT EXTERNAL PHOTO EUT Photo EUT Photo FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 2 / 3 EUT Photo EUT Photo FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 3 / 3 EUT Photo EUT Photo

FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 1 / 6 EUT INTERNAL PHOTOS EUT Photo EUT Photo 2.4G&5G WIFI Antenna1 2.4G&5G WIFI Antenna2 FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 2 / 6 EUT Photo EUT Photo BLE Antenna FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 3 / 6 EUT Photo EUT Photo FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 4 / 6 EUT Photo EUT Photo FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 5 / 6 EUT Photo EUT Photo FCC ID: 2ATAZ-MWI3000W4P IC: 27069-MWI3000W4P Page 6 / 6 EUT Photo EUT Photo

HY-FCC 2.1091 Ver.1.0 Page 1 of 5 Report No.: RF230525001-02-006 FCC RF EXPOSURE REPORT FCC ID: 2ATAZ-MWI3000W4P Equipment : Intelligent Wireless Access Point Model No. : TS-MWI3000W4P, 1LAN-WAP-6W Trade mark : Product No. : POC230817006-S001 Applicant : Technity Solutions Inc. Address : 500 Cochrane Drive, Unit 1, Markham, ON, Canada, L3R 8E2 Manufacturer : Technity Solutions Inc. Address : 500 Cochrane Drive, Unit 1, Markham, ON, Canada, L3R 8E2 Receipt Date : 2023.08.17 Issued Date : 2023.09.13 Test Sample : Final Sample Standard(s) : CFR47 FCC Part 1: Section 1.1310 CFR47 FCC Part 2: Section 2.1091 FCC KDB Publication 447498 v06 FCC KDB Publication 865664 D02 v01r02 Prepared By: Checked By: Approved By: Black ding Tim zhang Misue Su Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Haiyun Standard Technical Co., Ltd. This document may be altered or revised by Shenzhen Haiyun Standard Technical Co., Ltd. Personnel only, and shall be noted in the revision section of the document. The test results of this report relate only to the tested sample identified in this report. HY-FCC RF EXPOSURE Ver.1.0 Page 2 of 5 Report No.: RF230525001-04-006 History of this test report Original Report Issue Date: 2023.09.13 ● No additional attachment ○ Additional attachments were issued following record Attachment No. Issue Date Description HY-FCC RF EXPOSURE Ver.1.0 Page 3 of 5 Report No.: RF230525001-04-006 1. TEST FACILITY Company: Shenzhen Haiyun Standard Technical CO., Ltd. Address: No. 110-113, 115, 116, Block B, Jinyuan Business Building, Bao'an District, Shenzhen, China CNAS Registration Number: CNAS L18252 CAB identifier: CN0145 A2LA Certificate Number: 6823.01 Telephone: 0755-26024411 2. MPE CALCULATION METHOD  Product Classification This device defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at 20 cm is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. Max 1.8 dBi for Bluetooth, Max 6.61 dBi for 2.4GHz Wi-Fi MIMO mode, Max 7.41 dBi for 5GHz Wi-Fi MIMO mode, Max 6.56 dBi for WiFi 6e Wi-Fi MIMO mode  Radio Frequency Exposure Limit Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm²) 300-1,500 -- -- f/1500 1,500-100,000 -- -- 1.0  Radio Frequency Exposure Calculation Formula HY-FCC RF EXPOSURE Ver.1.0 Page 4 of 5 Report No.: RF230525001-04-006  Table for Filed Antenna For BLE Ant. Brand Antenna Type Connector Gain (dBi) 1 N/A multilayer chip N/A 1.5 For 2.4G WIFI Ant. Brand Antenna Type Connector Gain (dBi) 1 N/A PCB N/A 3.76 2 N/A PCB N/A 3.98 For 5G WIFI Ant. Brand Antenna Type Connector Gain (dBi) 1 N/A PCB N/A 5.86 2 N/A PCB N/A 6.36 HY-FCC RF EXPOSURE Ver.1.0 Page 5 of 5 Report No.: RF230525001-04-006 3. TEST RESULTS Worse case data: Operating Mode Freq. Maximum conducted output power Directional Antenna Gain Calculated maximum EIRP MPE Limit MPE Value (MHz) (dBm) (dBi) (dBm) (mW) (mW/cm 2 ) BLE 2402-2480 1.74 1.5 3.24 2.11 1 0.0004 2.4G Wifi ant1 2412-2462 15.57 3.76 19.33 85.70 1 0.0171 2.4G Wifi ant2 2412-2462 16.22 3.98 20.20 104.71 1 0.0208 5G Wifi ant1 5180-5825 15.03 5.86 20.91 123.31 1 0.0245 5G Wifi ant2 5180-5825 15.73 6.36 22.09 161.81 1 0.0322 Note: 1. The calculated distance is 20 cm. 2. The 2.4G Wifi function can not transmit at the same time with the 5G Wifi function, the wifi function can transmit at the same time with the BLE function. Simultaneous transmitting consideration(worst case) The ratio= MPE5G Wifi ant1/limit+MPE5G Wifi ant2/limit+ MPEBLE/limit =0.0245/1+0.0322/1+0.0004/1=0.0571<1.0 Result: Complies （END OF REPORT）

文档编码： FRKF-0007 版本： 1.2 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 地址:福建省福州市台江区富力中心C1-1425 电话：0591-83714556传真：0591-837155510 邮箱：[email protected]网址：www.fzjielei.com 规格书 Specification 客户名称： CUSTOMER： 客户料号： CUSTOMERP/N: 客户品名： DESCRIPTION： 捷雷料号： JLP/N: C168-JL-6271 捷雷品名： PARTNO： NDS-WIFI双频天线_ANT1 版本： Revision： V1.2 核准审核编制 FrankWensenLyra 2023.06.012023.06.012023.06.01 ©2020-2030FuZhouJieLeiCorporation.Allrightsreserved. Allcontent,materials,andprogramsinthisdocument,includingallcode,text, graphics,andlogos,unlessotherwisenoted,arethepropertyofJieLeiCorporationand cannotbereproducedortransmittedinanyformorbyanymeans,electronicor mechanical,foranypurpose,withouttheexpresswrittenpermissionofJieLei Corporation. JieLeiCorporationmayhavepatentsorpendingpatentapplications,trademarks, copyrights,orotherintellectualpropertyrightscoveringsubjectmatterinthisdocument. Thefurnishingofthisdocumentdoesnotgiveyouanylicensetothesepatents, trademarks,copyrights,orotherintellectualpropertyrightsexceptexpresslyprovidedin anywrittenlicenseagreementfromJieLei. 1 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 目录 1.ProductPerformance..........................................................................................................2 2.EnvironmentalPerformanceTest.......................................................................................3 3.MechanicalDimensionDrawing......................................................................................13 4.UL......................................................................................................................................14 5.PackingSpecification........................................................................................................18 版本描述 日期批准版本描述 2023-06-01 V1.2增加一个单面胶 2023-03-29 V1.1补充客户料号、双面胶资料、UL资料等 2023-02-16 V1.0初版 2 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 1.ProductPerformance 电性能指标/Electricalspecifications 天线类型/ AntennatypeWIFI 双频天线 天线编号（见图纸） 0011019V1.2 频率范围(MHz)/Frequency range (MHz) 2400~2500 5150~5850 电压驻波比/VSWR 2.2@2400-2500 MHz 2.2@5150~5850 MHz 输入阻抗 (Ohm)/Impedance(Ohm) 50 增益 (dBi)/PeakGain(dBi) 3.76@2400-2500MHz 5.86@5150~5850MHz 机械指标/Mechanicalspecifications 天线尺寸（mm） /Dimensions(mm) 29.93*9.3*1.0 连接器类型 /ConnectorTypeRF 一代端子接 1.13 电缆类型 /CableType1.13 ， L=26mm ，白色 工作温度（°C）/Operation Temperature（°C） -40~85 存储温度（°C）/Storage Temperature（°C） -40~85 3 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 2.EnvironmentalPerformanceTest NO 项目Item测试条件TestCondition规格要求Requirement结论 1 外观 Appearance 目测 Visualbyeye 视力 Light: ＞ 1.0 照明 Lamp:200~300Lx 目测距离 Space:0.3~0.6m 1、塑胶件表面无明显疤痕、凹陷、开裂及 影响使用变形。 Plasticpart:smoothandflatsurface withoutdiscolor,broken,crackdistortion defectsisacceptable 2、金属件表面无明显机械损伤等缺陷。 Metalpart:Noobviousmechanicaldamage andotherdefectsonthesurface 3、线路板(或柔性线路板）表面无脏污、破 损、氧化、无明显的机械损伤等缺陷， 丝印清晰。 PCB(orFPCB)：Thesurfaceisfreeof dirt,damage,oxidation,noobvious mechanicaldamageandotherdefects, screenprintingclear. 4、导线表面清洁、无破损等缺陷。 Wire:clearingsurfacewithout discolor,brokendefects. 合格/Pass 不合格/Fail 不适用/NA 2 端子固定力 /Terminal Retention Force 固定连接器或测力计，在连 接器轴线方向施加规定的拉 力，速度不大于25mm/min。 Applyaxialpulloutforceat thespeedrateofnotmore 25mm/minonthepin assembledinthehousing. 12NMIN 合格/Pass 不合格/Fail 不适用/NA 3 焊接固定力 /Solder Retention Force 固定连接器或测力计，在连 接器轴线方向施加规定的拉 力，速度不大于25mm/min。 Applyaxialpulloutforceat thespeedrateofnotmore 25mm/minonthepin assembledinthehousing. 15NMIN 合格/Pass 不合格/Fail 不适用/NA 4 耐盐雾测试 /Saltspray test 参考GB-T2423.17规范，浓 度5％之氯化钠(NaCl)溶液； PH值6.5-7.2；温度35°C， 测试时间24H。 RefertoGB-T2423.17,NACL 静置常温干燥后，检查外观，样品表面无明 显腐蚀等异常现象或依图面规格需求。 Afterdryingatroomtemperature,check appearance,thesamplesurfacenoobvious corrosionandotherabnormalphenomenaor 合格/Pass 不合格/Fail 不适用/NA 4 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. solutionwith5% concentration,PH6.5-7.2, temperature35°C,testtime 24hours. accordingtothedrawingspecifications. 5 高温测试 /High temperatur etest 参考GB-T2423.2规范，温度 70°C，测试时间28小时。 RefertoGB-T2423.2,the temperatureis70°Cand thetimeis28hours. 静置常温干燥后，检查外观，样品无变形、 剥离、裂纹、皱纹异色、鱼鳞纹。 Afterdryingatroomtemperature,check appearance,sampleswithoutdeformation, stripping,cracks,wrinkles,differentcolor,fish scalelines. 合格/Pass 不合格/Fail 不适用/NA 6 低温测试 /Low temperatur etest 参考GB-T2423.1规范，温度 -40°C，测试时间28小时。 RefertoGB-T2423.1,the temperatureis-40°Cfor28 hours. 静置常温干燥后，检查外观，样品无变形、 剥离、裂纹、皱纹异色、鱼鳞纹。 Afterdryingatroomtemperature,check appearance,sampleswithoutdeformation, stripping,cracks,wrinkles,differentcolor,fish scalelines. 合格/Pass 不合格/Fail 不适用/NA 7 高温高湿测 试 /High temperatur eandhigh humidity test 参考 GB-T2423.3 规范，温度 70 °C，湿度 95% ，测试时间 48 小时。 RefertoGB-T2423.3 specification,temperature 70 °C ,humidity95%,time 48H. 静置常温干燥后，检查外观，样品无变形、 剥离、裂纹、皱纹异色、鱼鳞纹。 Afterdryingatroomtemperature,check appearance,sampleswithoutdeformation, stripping,cracks,wrinkles,differentcolor,fish scalelines. 合格/Pass 不合格/Fail 不适用/NA 8 温度冲击测 试 /Temperatu reshock test 参考 GB-T2423.3 规范，温度 -30 °C， 1 小时，温度 75 °C， 1 小时，共 22 循环。 RefertoGB-T2423.3 specification, temperature-30 °C ,1hour, temperature75 °C ,1hour, total22cycles. 静置常温干燥后，检查外观，样品无变形、 剥离、裂纹、皱纹异色、鱼鳞纹。 Afterdryingatroomtemperature,check appearance,sampleswithoutdeformation, stripping,cracks,wrinkles,differentcolor,fish scalelines. 合格/Pass 不合格/Fail 不适用/NA 9 跌落试验 /Droptest 一角、三棱、六面1M高空 自由跌落。 Onecorner,threeedges,six sides,freefallatanaltitude of1M. 电气机械性能正常。 Electricalandmechanicalpropertiesare normal. 合格/Pass 不合格/Fail 不适用/NA 10 模拟运输振 动 依据ISTA标准测试。 TestingaccordingtoISTA standards 电气机械性能正常。 Electricalandmechanicalpropertiesare normal. 合格/Pass 不合格/Fail 不适用/NA 11 天线拉拔力 /Drawing Force PCB天线用双面海绵胶贴在 支架上，固定PCB或测力计， 在PCB轴线方向施加拉力 >20N 合格/Pass 不合格/Fail 不适用/NA 5 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 2-1双面海绵胶规格 6 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. 3.MechanicalDimensionDrawing 7 福州捷雷电子科技有限公司 FuzhouJieLeiElectronicTechnologyCo.,Ltd. Ant1 RadiationPattern 2.4G(频率：2450MHz）5G（频率：5150MHz） 5G(频率：5500MHz）5G（频率：585…

Text truncated - open the document above for the full version.

HY- FCC Part 15, Subpart E Ver.1.0 Page 181 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5280 11N20MIMO_Ant2_5280 HY- FCC Part 15, Subpart E Ver.1.0 Page 182 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5320 11N20MIMO_Ant2_5320 HY- FCC Part 15, Subpart E Ver.1.0 Page 183 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5500 11N20MIMO_Ant2_5500 HY- FCC Part 15, Subpart E Ver.1.0 Page 184 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5580 11N20MIMO_Ant2_5580 HY- FCC Part 15, Subpart E Ver.1.0 Page 185 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5700 11N20MIMO_Ant2_5700 HY- FCC Part 15, Subpart E Ver.1.0 Page 186 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5745 11N20MIMO_Ant2_5745 HY- FCC Part 15, Subpart E Ver.1.0 Page 187 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5785 11N20MIMO_Ant2_5785 HY- FCC Part 15, Subpart E Ver.1.0 Page 188 / 480 Report No.: RF230817006-01-002 11N20MIMO_Ant1_5825 11N20MIMO_Ant2_5825 HY- FCC Part 15, Subpart E Ver.1.0 Page 189 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5190 11N40MIMO_Ant2_5190 HY- FCC Part 15, Subpart E Ver.1.0 Page 190 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5230 11N40MIMO_Ant2_5230 HY- FCC Part 15, Subpart E Ver.1.0 Page 191 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5270 11N40MIMO_Ant2_5270 HY- FCC Part 15, Subpart E Ver.1.0 Page 192 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5310 11N40MIMO_Ant2_5310 HY- FCC Part 15, Subpart E Ver.1.0 Page 193 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5510 11N40MIMO_Ant2_5510 HY- FCC Part 15, Subpart E Ver.1.0 Page 194 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5550 11N40MIMO_Ant2_5550 HY- FCC Part 15, Subpart E Ver.1.0 Page 195 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5670 11N40MIMO_Ant2_5670 HY- FCC Part 15, Subpart E Ver.1.0 Page 196 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5755 11N40MIMO_Ant2_5755 HY- FCC Part 15, Subpart E Ver.1.0 Page 197 / 480 Report No.: RF230817006-01-002 11N40MIMO_Ant1_5795 11N40MIMO_Ant2_5795 HY- FCC Part 15, Subpart E Ver.1.0 Page 198 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5180 11AC20MIMO_Ant2_5180 HY- FCC Part 15, Subpart E Ver.1.0 Page 199 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5200 11AC20MIMO_Ant2_5200 HY- FCC Part 15, Subpart E Ver.1.0 Page 200 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5240 11AC20MIMO_Ant2_5240 HY- FCC Part 15, Subpart E Ver.1.0 Page 201 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5260 11AC20MIMO_Ant2_5260 HY- FCC Part 15, Subpart E Ver.1.0 Page 202 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5280 11AC20MIMO_Ant2_5280 HY- FCC Part 15, Subpart E Ver.1.0 Page 203 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5320 11AC20MIMO_Ant2_5320 HY- FCC Part 15, Subpart E Ver.1.0 Page 204 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5500 11AC20MIMO_Ant2_5500 HY- FCC Part 15, Subpart E Ver.1.0 Page 205 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5580 11AC20MIMO_Ant2_5580 HY- FCC Part 15, Subpart E Ver.1.0 Page 206 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5700 11AC20MIMO_Ant2_5700 HY- FCC Part 15, Subpart E Ver.1.0 Page 207 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5745 11AC20MIMO_Ant2_5745 HY- FCC Part 15, Subpart E Ver.1.0 Page 208 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5785 11AC20MIMO_Ant2_5785 HY- FCC Part 15, Subpart E Ver.1.0 Page 209 / 480 Report No.: RF230817006-01-002 11AC20MIMO_Ant1_5825 11AC20MIMO_Ant2_5825 HY- FCC Part 15, Subpart E Ver.1.0 Page 210 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5190 11AC40MIMO_Ant2_5190 HY- FCC Part 15, Subpart E Ver.1.0 Page 211 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5230 11AC40MIMO_Ant2_5230 HY- FCC Part 15, Subpart E Ver.1.0 Page 212 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5270 11AC40MIMO_Ant2_5270 HY- FCC Part 15, Subpart E Ver.1.0 Page 213 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5310 11AC40MIMO_Ant2_5310 HY- FCC Part 15, Subpart E Ver.1.0 Page 214 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5510 11AC40MIMO_Ant2_5510 HY- FCC Part 15, Subpart E Ver.1.0 Page 215 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5550 11AC40MIMO_Ant2_5550 HY- FCC Part 15, Subpart E Ver.1.0 Page 216 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5670 11AC40MIMO_Ant2_5670 HY- FCC Part 15, Subpart E Ver.1.0 Page 217 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5755 11AC40MIMO_Ant2_5755 HY- FCC Part 15, Subpart E Ver.1.0 Page 218 / 480 Report No.: RF230817006-01-002 11AC40MIMO_Ant1_5795 11AC40MIMO_Ant2_5795 HY- FCC Part 15, Subpart E Ver.1.0 Page 219 / 480 Report No.: RF230817006-01-002 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 HY- FCC Part 15, Subpart E Ver.1.0 Page 220 / 480 Report No.: RF230817006-01-002 11AC80MIMO_Ant1_5290 11AC80MIMO_Ant2_5290 HY- FCC Part 15, Subpart E Ver.1.0 Page 221 / 480 Report No.: RF230817006-01-002 11AC80MIMO_Ant1_5530 11AC80MIMO_Ant2_5530 HY- FCC Part 15, Subpart E Ver.1.0 Page 222 / 480 Report No.: RF230817006-01-002 11AC80MIMO_Ant1_5610 11AC80MIMO_Ant2_5610 HY- FCC Part 15, Subpart E Ver.1.0 Page 223 / 480 Report No.: RF230817006-01-002 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 HY- FCC Part 15, Subpart E Ver.1.0 Page 224 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5180 11AX20MIMO_Ant2_5180 HY- FCC Part 15, Subpart E Ver.1.0 Page 225 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5200 11AX20MIMO_Ant2_5200 HY- FCC Part 15, Subpart E Ver.1.0 Page 226 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5240 11AX20MIMO_Ant2_5240 HY- FCC Part 15, Subpart E Ver.1.0 Page 227 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5260 11AX20MIMO_Ant2_5260 HY- FCC Part 15, Subpart E Ver.1.0 Page 228 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5280 11AX20MIMO_Ant2_5280 HY- FCC Part 15, Subpart E Ver.1.0 Page 229 / 480 Report No.: RF230817006-01-002 11AX20MIMO_Ant1_5320 11AX20MIMO_Ant2_5320 HY- FCC…

Text truncated - open the document above for the full version.

HY- FCC Part 15, Subpart E Ver.1.0 Page 241 / 480 Report No.: RF230817006-01-002 11AX40MIMO_Ant1_5550 11AX40MIMO_Ant2_5550 HY- FCC Part 15, Subpart E Ver.1.0 Page 242 / 480 Report No.: RF230817006-01-002 11AX40MIMO_Ant1_5670 11AX40MIMO_Ant2_5670 HY- FCC Part 15, Subpart E Ver.1.0 Page 243 / 480 Report No.: RF230817006-01-002 11AX40MIMO_Ant1_5755 11AX40MIMO_Ant2_5755 HY- FCC Part 15, Subpart E Ver.1.0 Page 244 / 480 Report No.: RF230817006-01-002 11AX40MIMO_Ant1_5795 11AX40MIMO_Ant2_5795 HY- FCC Part 15, Subpart E Ver.1.0 Page 245 / 480 Report No.: RF230817006-01-002 11AX80MIMO_Ant1_5210 11AX80MIMO_Ant2_5210 HY- FCC Part 15, Subpart E Ver.1.0 Page 246 / 480 Report No.: RF230817006-01-002 11AX80MIMO_Ant1_5290 11AX80MIMO_Ant2_5290 HY- FCC Part 15, Subpart E Ver.1.0 Page 247 / 480 Report No.: RF230817006-01-002 11AX80MIMO_Ant1_5530 11AX80MIMO_Ant2_5530 HY- FCC Part 15, Subpart E Ver.1.0 Page 248 / 480 Report No.: RF230817006-01-002 11AX80MIMO_Ant1_5610 11AX80MIMO_Ant2_5610 HY- FCC Part 15, Subpart E Ver.1.0 Page 249 / 480 Report No.: RF230817006-01-002 11AX80MIMO_Ant1_5775 11AX80MIMO_Ant2_5775 HY- FCC Part 15, Subpart E Ver.1.0 Page 250 / 480 Report No.: RF230817006-01-002 11AX160MIMO_Ant1_5250 11AX160MIMO_Ant2_5250 HY- FCC Part 15, Subpart E Ver.1.0 Page 251 / 480 Report No.: RF230817006-01-002 11AX160MIMO_Ant1_5570 11AX160MIMO_Ant2_5570 HY- FCC Part 15, Subpart E Ver.1.0 Page 252 / 480 Report No.: RF230817006-01-002 3.3.5.2 Occupied channel bandwidth Test Mode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A-CDD Ant1 5180 16.946 5171.4456 5188.3916 --- --- Ant2 5180 17.012 5171.4461 5188.4581 --- --- Ant1 5200 17.036 5191.4734 5208.5094 --- --- Ant2 5200 16.795 5191.6148 5208.4098 --- --- Ant1 5240 16.862 5231.5440 5248.4060 --- --- Ant2 5240 16.940 5231.5269 5248.4669 --- --- Ant1 5260 16.941 5251.5399 5268.4809 ---…

Text truncated - open the document above for the full version.
