2ATBS-AKOIHRT30AKOiHeart

TPNET CO., LTD
AKOiHeart - FCC ID 2ATBS-AKOIHRT30 - TPNET CO., LTD
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 08, 2022
Application Purpose
Original Equipment
Date of Application
Nov 08, 2022
Equipment Note
AKOiHeart
Frequency Range
2402.00000000 - 2480.00000000
Company
TPNET CO., LTD
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

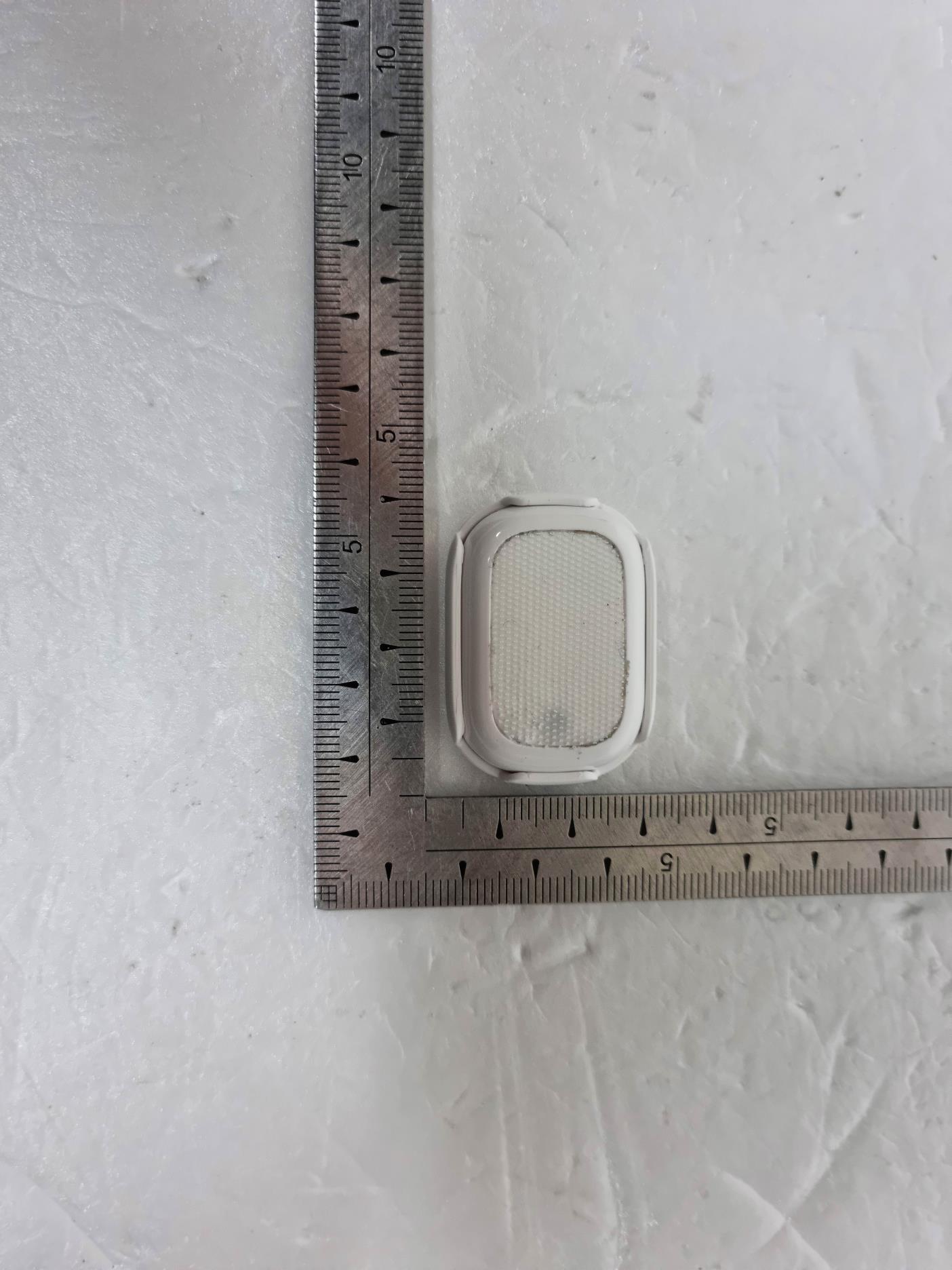

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Model No. Warranty Period Manufactured Date Manufacturer Made in Purchase Date AKOIHRT20 / AKOIHRT30 1 year from purchase date Marked separately TPNET Co., Ltd. Republic of KOREA Prevent the moisture such as water or urine from penetrating inside of the device. Use the genuine charging adaptor with certification. Prevent the baby from putting this device into mouth. Do not put the conductive objects (pin. wire, screw, etc.) inside of device. Do not dissemble, repair, modify the device without authorization. AKOiHeart may be disconnected depending on the surrounding environment with certain low-power wireless devices . Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Your AKOiHeart product is a baby care aid, not a medical device, and it is not intended to diagnose, treat, cure or prevent any disease, including Sudden Infant Death Syndrome (SIDS). Power Bluetooth Test Frequency Battery Voltage Characteristics Certifications Configuration Dimension AKOiHeart, User Manual, USB cable Rechargeable Battery LIR2032 BLE 4.2 or higher, Android & IOS 2402~2480 MHz 3.6V Movement Detection, Rollover Detection, Diaper Detection, Embedded Rechargeable Battery, Charge Indicator. Charge Weight Material Color USB 5V 500mA 0.39oz (11g) ABS White 1.53in(3.9cm) 1.10 in (2.8cm) 0.35in (0.9cm) Charging indicator : Red LED turns on during charging and turns off when charging is completed Charge Terminal: Micro USB 5V charging terminal This is used to fix the device to the clothes when detecting the movement and rollover Velcro Area is used to detect the diaper Movement and Rollover Detection Put it on your baby's diaper or pants using AKOiHeart's clip. Diaper Condition Detection Attach AKOiHeart's Velcro to the outside of the diaper where urine collects (Twist it slightly so that it is firmly fixed). Charging of AKOiHeart While charging AKOiHeart, the sensor detection is not working When it is connected to the power with USB charger, it is turned on. Install APP after searching AKOIHEART in the Google Play Store, Apple App Store. Turn the device on by connecting to the USB charger. Run AKOiHeart App and touch the Bluetooth Tab at the bottom. When AKOI_HEART is touched in the available device list, it will be connected automatically. When Bluetooth is connected, Bluetooth icon on the Status Bar is turned on. When you install AKOiHeart, it is provided online in the User Manual Tab. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Website www.akois.net Email [email protected] - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC ID 2ATBS-AKOIHRT20 / AKOIHRT30 This marking on the Product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This product is ROHS compliant. This marking on the battery manual or packing indicates that the batteries in this product should not be disposed of with other household waste.
