2ATE8-W80-WAutomatic Pet Feeder

User Manual 4L Automatic Pet Feeder Specification Product Features Battery power alone lasts for up to 30 days. To prevent food jams, the grain size should not exceed 15mm.Batteries are not included. Programming: up to 8 meals per day. portionable in 5g increments, max. filling 200g. Product Weight: 1.5kg (without batteries and food) Product Size: L206mm x W341mm x H321mm Capacity: 4L (dry food pellets between 2-15mm only ) Dual Power Supply: Output DC power adapter, 5V - 1A // 3 x D battery. 2 4 5 6 Desiccant valve keeps kibble dry and fresh.Top lid to protect kibble from pet access.Transparent food canister to check filling status.Detachable body for easy maintenance.Separate 304 stainless steel food bowl.Dual power supply, works through power loss. 2 4 5 6 2 Setting up the Feeder 1 Assemble the food bucket, lid and food trays as shown below pictures.Dual power mode: Connect the USB cable to the machine and plug in the power adapter. If you do not wish to use the power adapter for power supply, install 3 D-type batteries on the bottom of the machine. Dual power supply is recommended. Ensure the battery poles are correctly directed. 3 Open the lid as shown below and lock after food is added. Operating the Touch Panel Operation Guide Rotate counterclockwise to open Rotate clockwise to lock Insert the food bucket into the slot and rotate clockwise to lock. Rotate clockwise to fix the lid. Insert the feeding tray into the bottom slot. Recording buttonStandby status: Long Press-Record or cancel recording.Short Press-Play record.MicrophoneWhen you press and hold the recording button on the device or click the recording button on the App, please speak loudly into the device microphone,not the mobile phone.Status IndicatorFlashing green light: It means reset successfully and enter the Wireless Access Point Mode.Steady red light: It is only battery powered or the device is offline.Steady green light: Connection succeeded. Red and green lights appear at the same time: Device is locked or unlocked.Setting buttonStandby status: Short Press-Manual feeding. Setting status: Long Press-Enter Wireless Access Point Mode and waiting for connections.Please follow the instructions on the App. 2 3 41 34 12 When using battery power alone, the device will automatically disconnect from the network, but it will feed at the previously set time.On battery supply only,the feeder works up to 30 days. ( 1 ) Testing before use Ensure the feeder is normally powered.Short Press the setting button , the feeder instantly release one portion. Repeat this step for 3 times to make sure the feeder work normally. Download and install the App Scan the QR code on the right to enter the APP download page and follow the instructions on the page to download and install. ( 2 )Distribution Network Guidelines Add device On the main interface of the App, click the "Add device" button to enter the Add Device Wizard. Registration Follow the wizard to complete the registration and login. Wi Fi Note: Another Way To Download The App Mobile phone brandsAppleHUAWEIAn Android phone except HUAWEI phones Where To Download The AppThe Apple StoreThe Huawei App GalleryThe Google Play Please go to the app store to update the app and upgrade the device regularly to get a better experience. If you want to lock or unlock the equipment, you can long press and hold the “ ” and the “ ” at the same time. Note: If you cannot download the app by scanning the code, pls follow another way to download the app. ( 2 ) FAQs Answer Warning Do not put your fingers into the food outlet or try to touch the rotor. This product requires 3 D-type batteries.This unit is made for dry food only.In order to prevent food jams, the pellet size should not exceed 15mm. If the device is powered by batteries only,the batteries will last up to 30 days under normal usage.Batteries are not included in the package.When you fail to connect and follow the steps to reconnect, please reset the device so that the green light keeps flashing quickly. Unable to feed The mouth is blocked, please clean the mouth in time Network connection failed Please check whether it is powered by USB. The network cannot be connected under battery power supply.The device is too far away from the router, please keep the device as close as possible to the router.Please confirm whether the network is a 2.4 G band network. This product does not support a 5G band network.Long press the "Settings" button to restore factory settings and reconnect. The device restarts automatically The battery is low, please replace the battery.The plug is in poor contact and the power supply is insufficient. Please insert the USB plug properly.(Note: When using battery power alone, the device will automatically disconnect from the network, but it will feed at the previously set time. Unable to record The recording on the mobile phone only supports saving one recording content. Moreover, when recording on a mobile phone, only when speaking into the microphone of the device will the sound be recorded.There is no microphone on the phone. Cannot control the same device with two phones We support up to 8 mobile phones (sharing 1 email account) to control the same device; 1 email account can be connected to up to 10 devices.However, only 1 email account can be used to connect to the same device. V1.5 20210520 Important Notes Do not submerge the main unit in water as this will damage the electronic components and void the warranty. Turn off the power and unplug the adapter before cleaning.The food tray, food buckets, and lid can be removed for washing with a soft cloth. Avoid submerging the main unit in water, simply clean with a damp cloth. ( 1 ) Cleaning and maintenance Warning Food bowl, stainless steel bowl, food bucket and lid can be washed in the sink. Warning: The main unit can not be submerged in water. Device networking Follow the instructions of the App wizard to connect the device to the network; if the network fails, please re…

Text truncated - open the document above for the full version.

Modeldifferencedeclarationletter DifferencesDescription WeLinsunSmartTechnologyCo.,LTDstate: Product：AutomaticPetFeeder ModelName：W80-W,W80-B Theaboveproductwithsamecircuit,PCBlayout,electricalparts,materialsand wiringstructures,Appearanceshape,thematerialsofdecorativeaccessoriesis same,onlydifferentcolor. Signatory Date:06-22-2021 <Signature> Name：JianglinXiao Title：Manager Company：LinsunSmartTechnologyCo.,LTD Address:3/F,BlockA,No.48,FirstRingRd,Guangmingcommunity,DongchengDistrict,Dongguancity, Guangdong,china.

C5266091_X8_Ed.1 1/1 LetterofAuthorization LinsunSmartTechnologyCo.,LTD Company:LinsunSmartTechnologyCo.,LTD Address:3/F,BlockA,No.48,FirstRingRd,Guangming community,DongchengDistrict,Dongguancity,Guangdong,china. ProductName:AutomaticPetFeeder ModelNumber:W80-W,W80-B FCCIdentifier:2ATE8-W80-W WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:JianglinXiaoDate:Jun22,2021 Title:Manager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 LinsunSmartTechnologyCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:Jun22,2021 Subject:RequestforConfidentiality FCCID: 2ATE8-W80-W ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: JianglinXiao Title: Manager

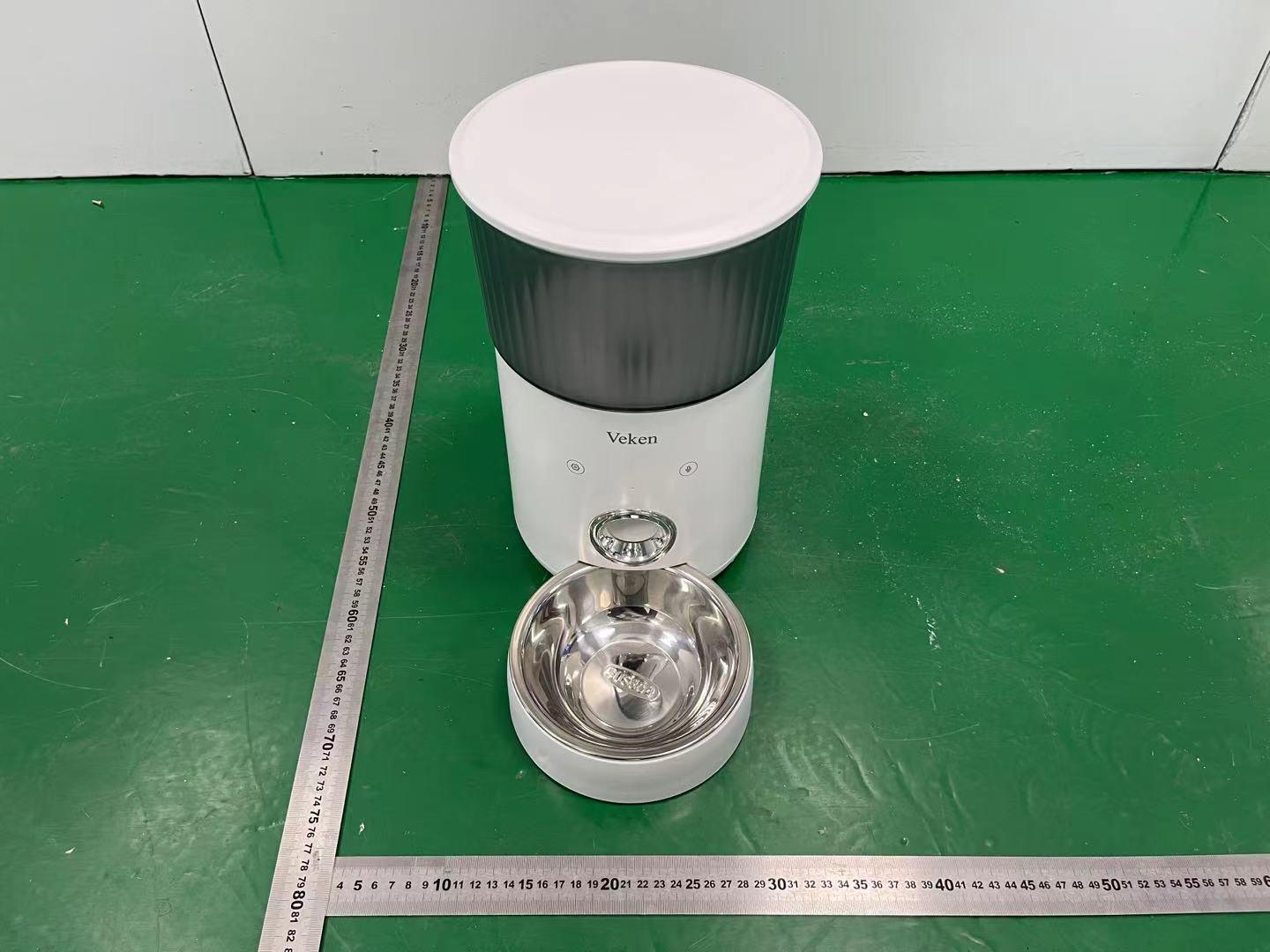

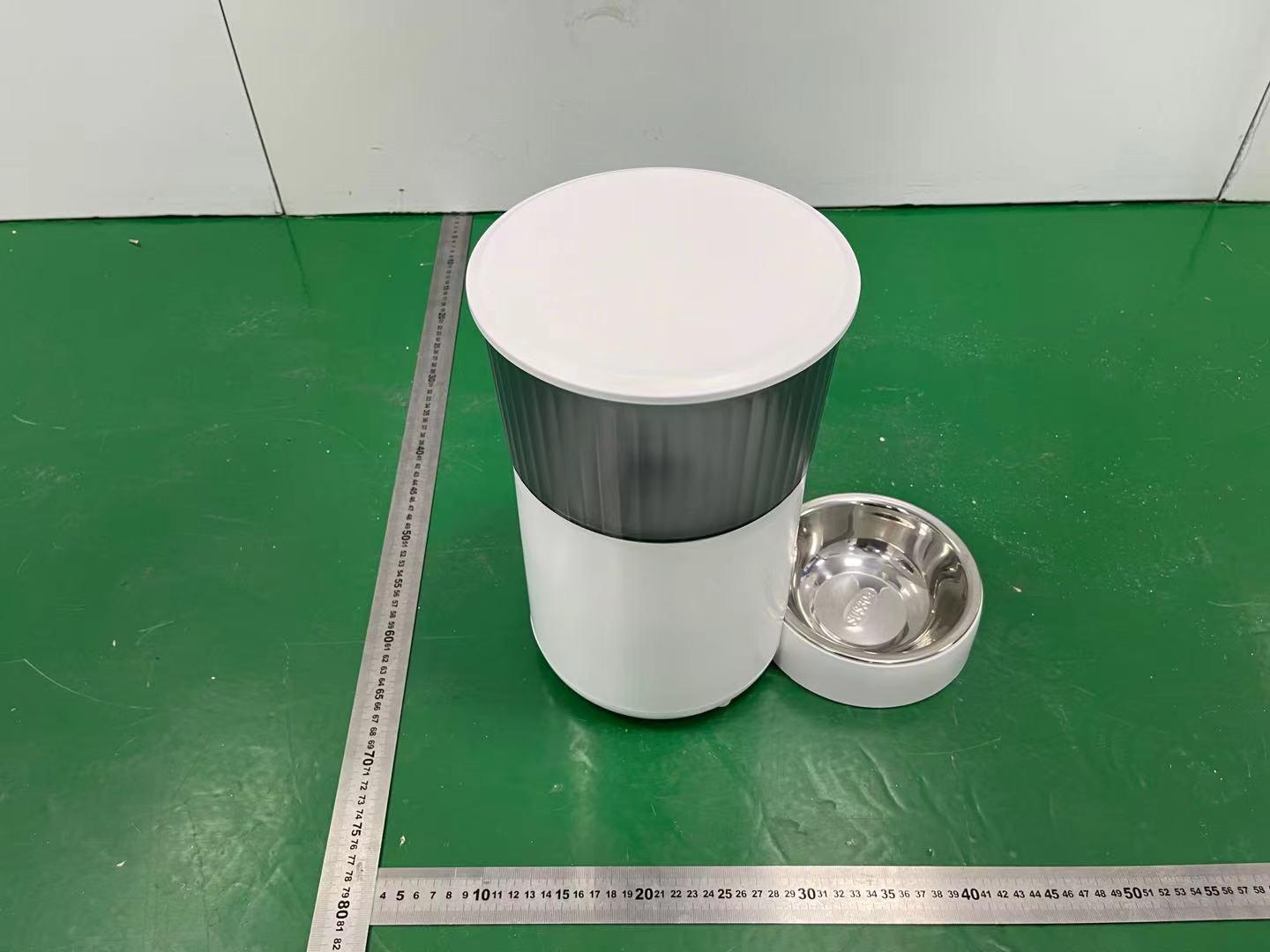

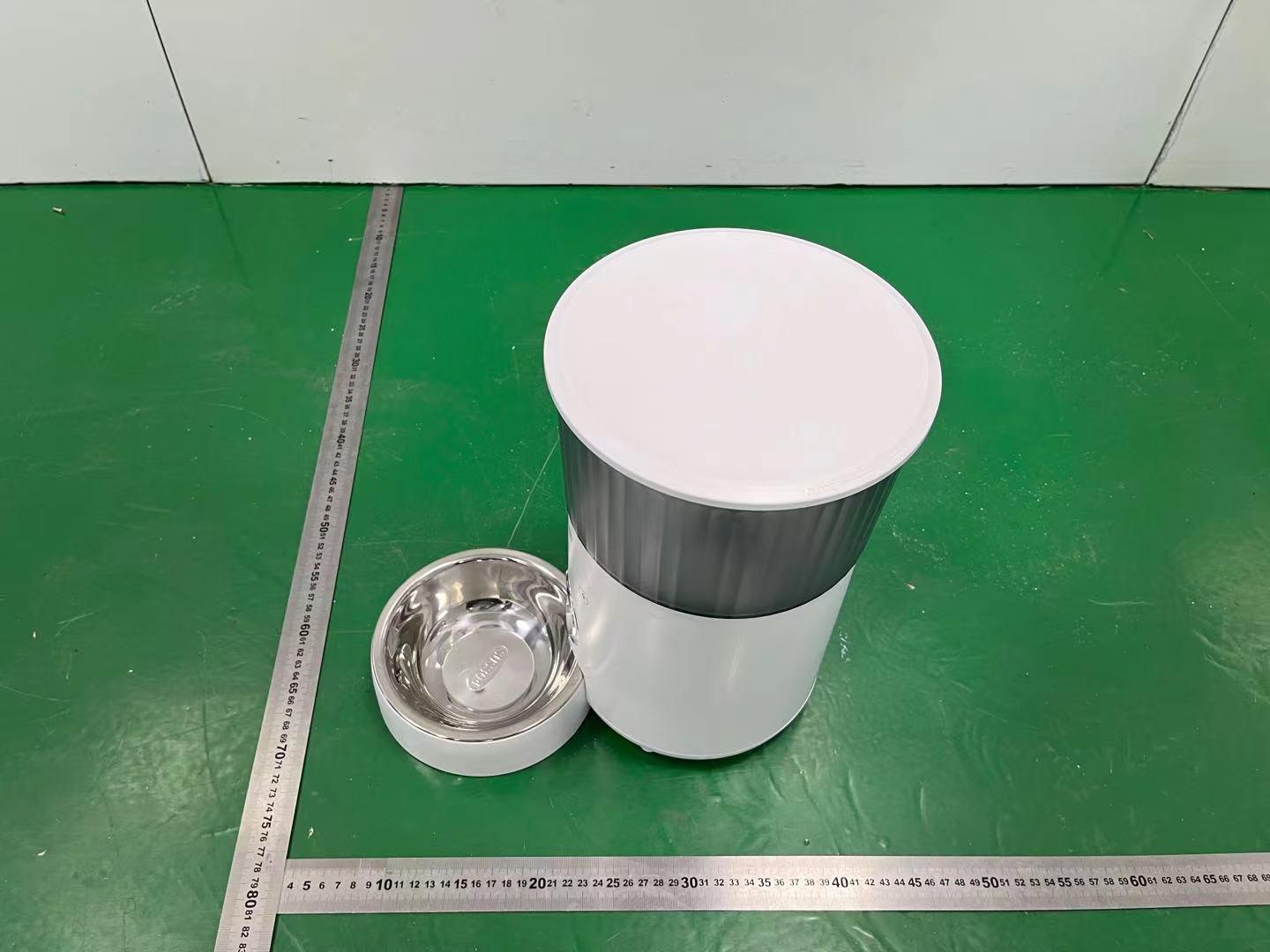

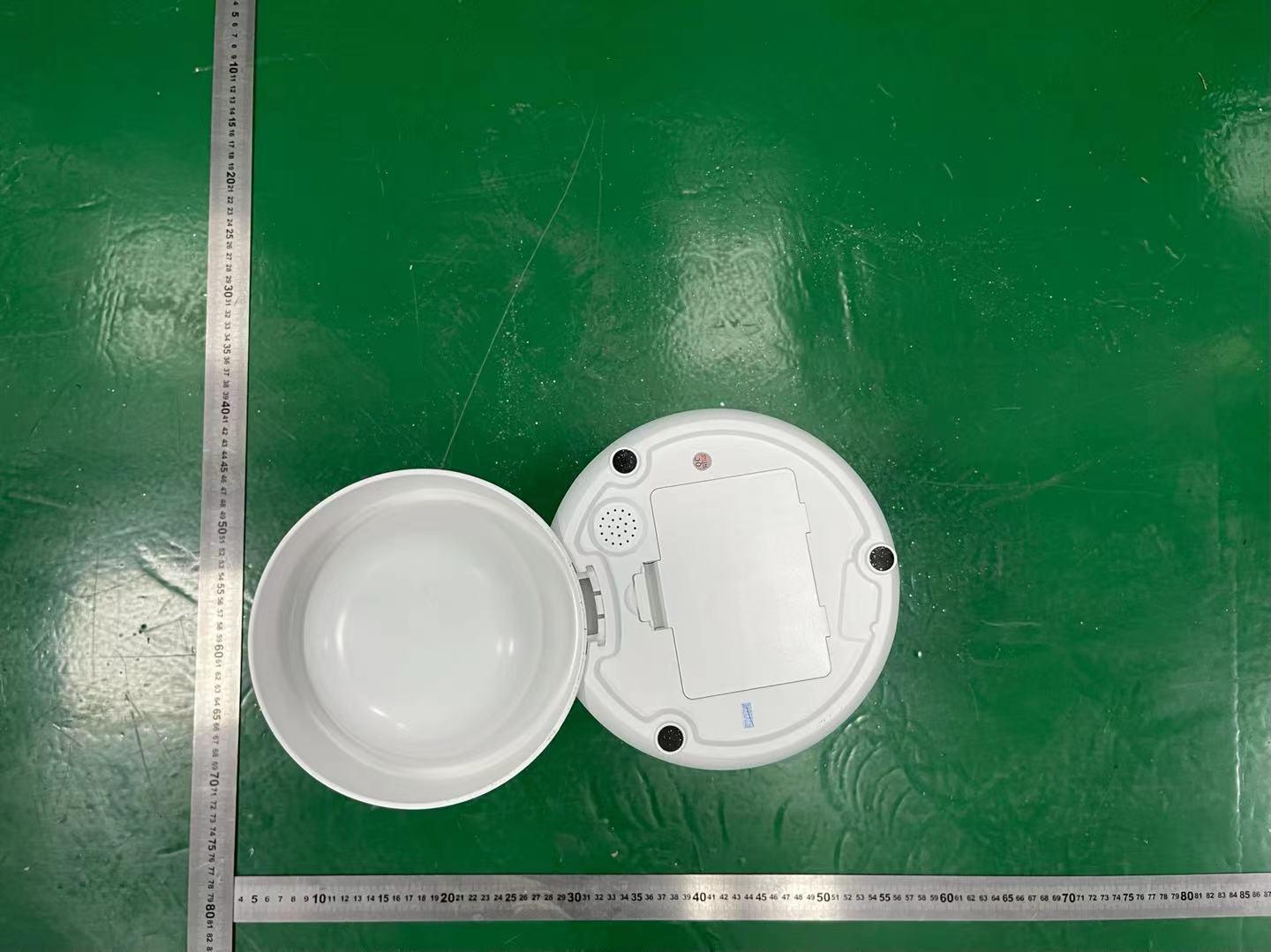

Page1of3ReportNo.:FCS202106029 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202106029 Photo3 Photo4 Page3of3ReportNo.:FCS202106029 Photo5 Photo6
