2ATFL-BAA1001BABI Angel Alarm

BABI ANGEL ALARM USER MANUAL Product NameBABI ANGEL ALARM Product CodeBAA1001 Alarm Dimensions82*78*33mm Operating Temperature -20°C to +70°C Charger InputDC 5V 0.5A Communication TechnologyBluetooth Low Energy V4.2 Transmission Power3.5mW Alarm Input (Rechargeable) 3.7V Li-Po Battery, 750mAh, 2.775Wh Operating RangeUp to 75m (Open Spaces) High Quality Speaker4Ω 3W Product Specification: Note: Please read this manual carefully before using the device, and observe the safety rules listed and keep it for future reference. 1 What is in the Box: 1 x BABI Angel Alarm 1 x USB to Micro USB Cable 1 x Power Adapter USB Charger 1 x User Manual Booklet 2 Product Description: BABI Angel Alarm is an accessory device designed to be used with a BABI Angel Monitor Bracelet. For those who do not want to use a smart phone App, this product works directly with the Babi Angel Monitor bracelet as the primary alarm. For those using the BabiCare mobile phone App, this device can be used as a secondary primary alarm. Note : One BABI Angel Alarm can will work with up to 4 Babi Angel monitor bracelets. The Angel Alarm will receive alerts from the angel monitor bracelet directly when: 1. The infants Body Temperature is out of range; 2. The Blood Oxygen Level is ou t of range; 3. The Heart Beat Rate is out of range; 4. The connection with the bracelet is lost; 5. The bracelet is removed; 6. The infant awake (continual movement is registered). The Angel Alarm will sound some audio alert sounds followed by a verbal message advising the relative problem or notification. A Red LED light will flash as a visual alert. These alerts will continue until any button is pressed on top of the alarm device. Modes of Operation: 1. Stand Alone Mode: The device is used without a mobile phone App and is the primary alarm source. Note: Up to 2 Babi Angel Alarm units can be used at the same time per bracelet. 2. Dual Use Mode: The device is used together with a mobile phone App by which both the device and App will both be primary alarms. 3 Using the BABI Angel Alarm: Setting up and using the BABI Angel Alarm is the same for both modes of operation. 1) First charge the device for a minimum 2 hours. Plug the USB cable into the back on the device and into the power adapter. 2) While charging, a Green LED light will flash. 3) When the Green LED light stops flashing and is fixed Green, the device will be fully charged and ready to use. 4) Ensure the device is switched on by pressing the button until the Green LED light appears and a verbal confirmation is heard. 5) When the device is used for the first time, when disconnected from the charger, the LED light will flash Blue, this indicates the device needs to be paired with the Babi Angel Monitor Bracelet so they communicate together. (Note: 1 Babi Angel Alarm device can be used with up to 4 B abi Angel Monitor bracelets) 4 Power On and Off switch Button Increase Volume control Button Decrease Volume control Button Language Selection Button +Press Together for Pairing the Devices + Press Together for Activating and Deactivating the Audio “Listen In” function + Press Together for Activating and Deactivating the movement sensor function / / / Press Any Button to Turn Off an Alarm raised 5 Setup the Babi Angel Alarm: 1. When the device has a flashing Blue LED light, the device pairing is required, press the Power and Language Buttons at the same time, the Blue LED light will flash faster until the devices are paired and are communicating. There will be a verbal confirmation message given when the device is connected. 2. The LED light will return to a fixed Green to confirm the device battery is charged and power is on. 3. Select the required language: Press and depress the Language button until the required language is communicated verbally. 4. To Enable or Disable the Audio “Listen In” function, press the Power and +VOL buttons together. Until a verbal confirmation message is received: Baby Audio Monitor is ON or Baby Audio Monitor is OFF 5. To Enable or Disable the Movement sensor function, press the Power and -VOL buttons together. Until a verbal confirmation message is received: Baby Movement Sensor is ON or Baby Movement Sensor is OFF. 6. To set the alarm device volume: a) Press +VOL button to increase volume b) Press -VOL button to decrease the volume 6 + + + Using the Babi Angel Alarm: 1. Once the device is paired and setup and ready to use . The alarm device can be left connected to the power adapter which will keep the device batteries charged at all times. 2. The Babi Angel Alarm will now connected to the angel monitor bracelet will communicate with each other. The Angel alarm will be on standby waiting for instruction from the angel monitor bracelet which is continously monitoring the infant. 3. When the health parameters monitored are normal, the battery level is ok and power is on, the bracelet is fitted or no movement is sensed. The Alarm unit will not sound any audio alerts, not communicate any notifications verbally or give any visual LED light flashing alert. Until there is a situation that requires an alarm or a verbal notification. 4. When the Body Temperature goes out of the prefix safety range the Red LED light at front of the alarm will flash continuously, three loud sounding alerts are sounded, followed by a verbal notification: «Temperature out of range» followed by 3 loud alerts. This will repeat until the user presses any one of the 4 buttons on the device as an acknowledgement that the alarm has be received and a preventive action will be taken. 7 5. When the Heart Rate goes out of the prefix safety range the Red LED light at front of the alarm will flash continuously, three loud sounding alerts are sounded followed by a verbal notification: «Heart Beat Rate Out of Range» followed by 3 loud alerts. This will repeat until the user presses any one of the 4 buttons on the device as an acknowledgement that the alarm has be received and a preventive action will be taken.…

Text truncated - open the document above for the full version.

BABILimited AgentAuthorization Company:FujianNewlandAuto-IDTechCo.,Ltd. Address:Unit906,9/FProsperityCenter,No.25ChongYipStreet,Kwun Tong,Kowloon,HongKong,China ProductName:BABIAngelAlarm TradeMark:BABI ModelNumber(s):BAA1001 FCCID:2ATFL-BAA1001 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-04-07 Name:GeLi Title:GeneralManager Company:BABILimited

BABILimited OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-04-07 Subject;RequestforConfidentiality FCCID:2ATFL-BAA1001 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:GeLi Title:GeneralManager

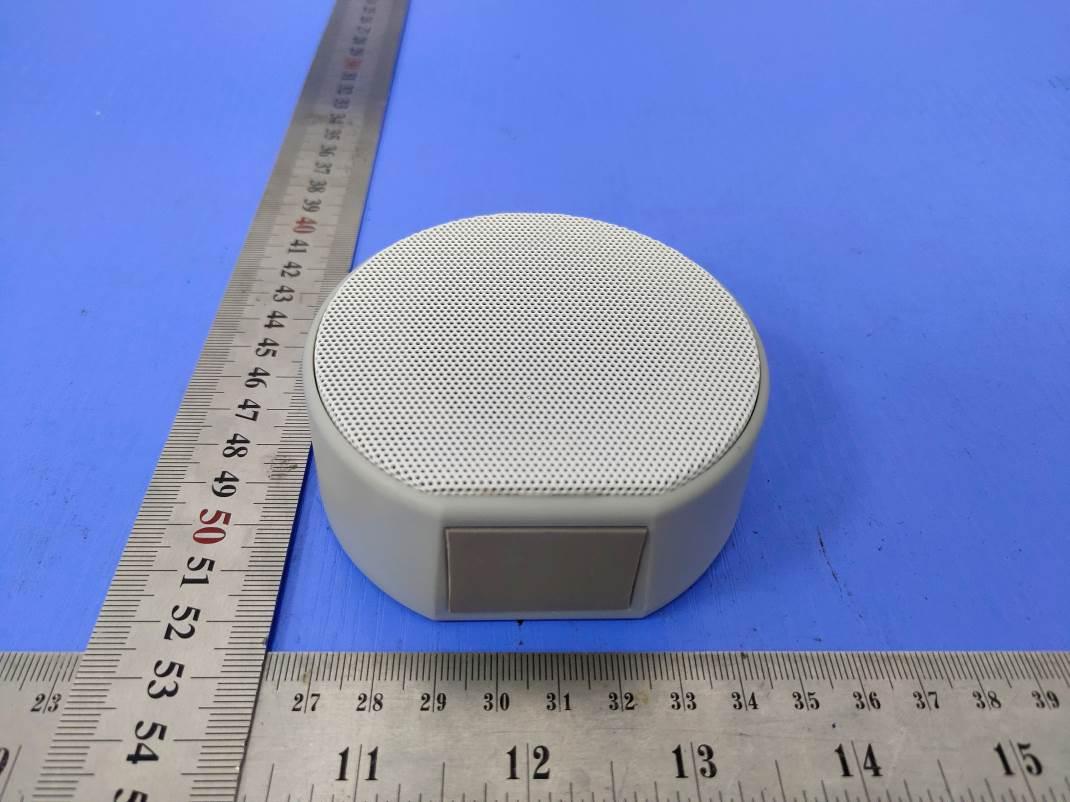

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 EXTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 Fig.5 Fig.6

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L1.5cm*W0.5cm LabelLocation BABIAngelAlarm ModelNo.:BAA1001 FCCID:2ATFL-BAA1001 IC:26215-BAA1001

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 INTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 Fig.3 Fig.4 BTAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 Fig.7 Fig.8

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 4 FCCRFExposureEvaluation 1.ProductInformation FCCID: 2ATFL-BAA1001 Productname: BABIAngelAlarm TestModel: BAA1001 Powersupply: Input:5.0V1000mAh DC3.7VbyRechargeableLi-ionBattery,750mAh Operationfrequency:2402MHz-2480MHz ChannelNumber: 79ChannelsforBluetoothV4.2(DSS) 40channelsforBluetoothV4.2(DTS) ChannelSpacing: 1MHzforBluetoothV4.2(DSS) 2MHzforBluetoothV4.2(DTS) ModulationType: GFSK,π/4-DQPSK,8-DPSKforBluetoothV4.2(DSS) GFSKforBluetoothV4.2(DTS) BluetoothVersion:V4.2 AntennaType:PCBAntenna AntennaGain:-0.5dBi(Max.) Hardwareversion: 1.0.0 Softwareversion: 1.0.0 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiating structuresoroutersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsand platformrequirements,toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1). ToqualifyforSARtestexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustified bytheoperatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequiredpublished RFexposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,astatementof justificationandcompliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,to qualifyfortheSARtestexclusion.Whenrequired,thedevicespecificconditionsdescribedintheother publishedRFexposureKDBproceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusion provisions;forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 4 •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingtof)insection4.1isappliedtodetermineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsofsimultaneous transmissionconfigurations,furtherequipmentapprovalisnotrequiredtoincorporatetransmitter modulesinhostdevicesthatoperateinthemixedmobileandportablehostplatformexposureconditions. ThegranteeisresponsiblefordocumentingthisaccordingtoClassIpermissivechangerequirements. AntennasthatqualifyforstandaloneSARtestexclusionmustapplytheestimatedstandaloneSARto determinesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration,adjusted formaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairsoperatingin portabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BT> ModeChannelFrequency(MHz) PeakConducted OutputPower(dBm) GFSK 024025.438 3924413.587 782480-2.765 π/4DQPSK 024020.413 3924411.183 782480-1.060 8DPSK 024020.828 3924411.495 782480-0.578 <BTLE> ModeChannelFrequency(MHz) ConductPeakPower (dBm) GFSK 02402-2.138 192440-1.387 392480-3.481 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 4 5.ManufacturingTolerance <BT> GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)5.03.02.0 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)01.0-1.0 Tolerance±(dB)1.01.01.0 8DPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)01.00 Tolerance±(dB)1.01.01.0 <BTLE> GFSK–BTLE(Peak) ChannelChannel0Channel39Channel78 Target(dBm)-2.0-1.0-3.0 Tolerance±(dB)1.01.01.0 6.EvaluationResults 6.1StandaloneEvaluation <BT> Band/Modef(GHz) AntennaDistance (mm) RFoutputpower SARTestExclusion Threshold SARTest Exclusion dBmmW GFSK2.40256.03.98111.2589<3.0Yes π/4DQPSK2.44152.01.58490.5012<3.0Yes 8DPSK2.44152.01.58490.5012<3.0Yes <BTLE> Band/Modef(GHz) AntennaDistance (mm) RFoutputpower SARTestExclusion Threshold SARTest Exclusion dBmmW GFSK2.44050…

Text truncated - open the document above for the full version.

SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 1 of 47 AppendixA RF Test Data for BT V4. 2(BDR/EDR)(ConductedMeasurement) ProductName:BABI AngelAlarm TradeMark:BABI Test Model:BAA1001 EnvironmentalConditions Temperature: 24.4  C RelativeHumidity:52.1 % ATMPressure:10 0.0 kPa Test Engineer:Jay Li Supervisedby:Li Huan A.1 MaxmumConductedPeak OutputPower ModeChannel.MaximumPeak OutputPower[dBm]Limit [dBm]Verdict GFSK LCH5.43821PASS MCH3.58721PASS HCH-2.76521PASS π/4DQPSK LCH0.41321PASS MCH1.18321PASS HCH-1.06021PASS 8DPSK LCH0.82821PASS MCH1.49521PASS HCH-0.57821PASS SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 6 of 47 8DPSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 7 of 47 A.2 20dB Bandwidth ModeChannel.20dB Bandwidth[MHz]Limit [MHz]Verdict GFSK LCH0.9460Not SpecifiedPASS MCH0.9465Not SpecifiedPASS HCH0.9441Not SpecifiedPASS π/4DQPSK LCH1.289Not SpecifiedPASS MCH1.289Not SpecifiedPASS HCH1.289Not SpecifiedPASS 8DPSK LCH1.301Not SpecifiedPASS MCH1.300Not SpecifiedPASS HCH1.300Not SpecifiedPASS Test Graphs GFSK/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 12 of 47 A.3 CarrierFrequencySeparation ModeChannel.CarrierFrequencySeparation[MHz]Limit [MHz]Verdict GFSK LCH1.0010.631PASS MCH1.1820.631PASS HCH1.1340.6 29PASS π/4DQPSK LCH1.0420.859PASS MCH1.3240.859PASS HCH0.9620.859PASS 8DPSK LCH1.0700.867PASS MCH0.9960.867PASS HCH1.1200.867PASS Test Graphs GFSK/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 17 of 47 A.4 HoppingChannelNumber ModeChannel.Numberof HoppingChannel[N]Limit [N]Verdict GFSKHop79>=15PASS π/4DQPSKHop79>=15PASS 8DPSKHop79>=15PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 18 of 47 8DPSK/Hop SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 19 of 47 A.5 DwellTime ModePacketChannel Burst Width [ms/hop/ch] Total Hops[hop*ch] DwellTime[s]Limit [s]Verdict GFSK DH5LCH 2.89106.70.3080.4 PASS DH5MCH 2.89106.70.3080.4 PASS DH5HCH 2.89106.70.3080.4 PASS π/4DQPSK 2DH5LCH 2.8 8106.70.3070.4 PASS 2DH5MCH 2.8 8106.70.3070.4 PASS 2DH5HCH 2.8 8106.70.3070.4 PASS 8DPSK 3DH5LCH 2.8 8106.70.3070.4 PASS 3DH5MCH 2.8 8106.70.3070.4 PASS 3DH5HCH 2.8 8106.70.3070.4 PASS Test Graphs GFSK_DH5/LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 21 of 47 π/4DQPSK _2DH5/ LCH π/4DQPSK _2DH5/MCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 22 of 47 π/4DQPSK _2DH5/ HCH 8DPSK_3DH5/ LCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 23 of 47 8DPSK_3DH5/MCH 8DPSK_3DH5/ HCH SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 24 of 47 A.6 RF ConductedSpuriousEmissions ModeChannelPref [dBm]Max. Level [dBm]Limit [dBm]Verdict GFSK LCH5.218 -37.600-14.782 PASS MCH3.329-19.727-16.671PASS HCH-3.075-38.414-23.075PASS π/4DQPSK LCH-2.025-37.691-22.025PASS MCH-1.103-34.646-21.103PASS HCH-3.784-37.504-23.784PASS 8DPSK LCH-1.743-38.097-21.743PASS MCH-1.167-38.393-21.167PASS HCH-3.196-38.103-23.196PASS GFSK_LCH_Graphs Pref SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 25 of 47 Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 29 of 47 π/4DQPSK_MCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 30 of 47 π/4DQPSK_HCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 31 of 47 8DPSK_LCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 32 of 47 8DPSK_MCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID: 2ATFL-BAA1001IC: 26215-BAA1001 Page 33 of 47 8DPSK_HCH_Graphs Pref Puw SHENZHENLCS COMPLIANCETESTINGLABORATORYLTD.FCC ID:…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001ReportNo.:LCS210121065AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of35 FCCTESTREPORT FOR BABILimited BABIAngelAlarm TestModel:BAA1001 Preparedfor:BABILimited Address: Unit906,9/FProsperityCenter,No.25ChongYipStreet,Kwun Tong,Kowloon,HongKong,China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:March02,2021 Numberoftestedsamples:1 Serialnumber:Prototype DateofTest:March02,2021~March08,2021 DateofReport:March10,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001ReportNo.:LCS210121065AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of35 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS210121064AEA DateofIssue.......................................:March10,2021 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: BABILimited Address................................................: Unit906,9/FProsperityCenter,No.25ChongYipStreet,Kwun Tong,Kowloon,HongKong,China TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:BABIAngelAlarm TradeMark..........................................:BABI TestModel...........................................:BAA1001 Ratings.................................................: Input:5.0V500mAh DC3.7VbyRechargeableLi-ionBattery,750mAh Result..................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu/Administrators JinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001ReportNo.:LCS210121065AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of35 FCC--TESTREPORT TestResult Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210121064AEA March10,2021 Dateofissue TestModel...........................:BAA1001 EUT.........................................:BABIAngelAlarm Applicant...............................:BABILimited Address..................................: Unit906,9/FProsperityCenter,No.25ChongYipStreet,Kwun Tong,Kowloon,HongKong,China Telephone...............................:/ Fax..........................................:/ Manufacturer........................:BABILimited Address...................................: Unit906,9/FProsperityCenter,No.25ChongYipStreet,Kwun Tong,Kowloon,HongKong,China Telephone...............................:/ Fax..........................................:/ Factory...................................: / Address...................................: / Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001ReportNo.:LCS210121065AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of35 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000March10,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001ReportNo.:LCS210121065AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of35 TABLEOFCONTENTS DescriptionPage 1.GENERALINFORMATION........................................................................................................6 1.1DescriptionofDevice(EUT).............................................................................................................6 1.2SupportequipmentList.....................................................................................................................7 1.3ExternalI/OCable..............................................................................................................................7 1.4DescriptionofTestFacility...............................................................................................................7 1.5StatementoftheMeasurementUncertainty..................................................................................8 1.6MeasurementUncertainty.................................................................................................................8 1.7DescriptionofTestModes................................................................................................................8 2.TESTMETHODOLOGY............................................................................................................9 2.1EUTConfiguration..…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 _______________________________________________________________________________________________ TESTSETUPPHOTOGRAPHS PhotoofRadiatedEmissionsMeasurement Below1GHz Above1GHz SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2ATFL-BAA1001IC:26215-BAA1001 _______________________________________________________________________________________________ PowerLineConductedEmission
