2ATG8YD1288-1Remote control car series

Howtoplay？ frequency：27mhz BatteryparametersRemotecontrol2x1.5VAA Car4x1.5VAA Type：YD1288-1 FCCID:2ATG8YD1288-1 Manufacturer：Yudatoysfactory Address：Chenghaidistrict,Shantoucity, Guangdongprovince Thepackaginghastobekeptsinceitcontainsimportantinformation. Quadrotor 1.Removethebatterycompartmentcover. 2.Placefourgrainof1.5VAAbatteryinthecorrectpositionwhenusing. 3.Replacebatterycompartmentcover. RemoteControl 1.Removethescrew. 2.Removethebatterycompartmentcover. 3.Placetwograinof1.5VAAbatteryinthecorrectpositionwhenusing. 4.Replacebatterycompartmentcoverandscrew. NOTE:Thisequipmenthasbeentestedandfoundtocomplywith thelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCC Rules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.This equipmentgeneratesusesandcanradiateradiofrequencyenergy and,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrect theinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthat towhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthoritytooperate theequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

YU DA TOYS FACTORY July 30, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2ATG8YD1288-1 Model Number: YD1288-1, YD988-1, YD988-2, YD988-3, YD988-4, YD988-5, YD988-6, YD1088-1, YD1088-2, YD1088-3, YD1088-4, YD1088-5, YD1088-6, YD1188-1, YD1188-2, YD1288-2, YD1388-1A, YD1388-2A, YD1388-1, YD1388-2, YD1488-1, YD1488-2, YD1588-1, YD1588-2, 388, 488, 588, 688, 788, 888, MT1215, PT2015 To Whom It May Concern: We, The YU DA TOYS FACTORY hereby declare that the models are identical except the model names and the color of appearance. Except for the different above, no other modification is performed. Sincerely, Signature: YU DA TOYS FACTORY Contact person: DU YONG

YU DA TOYS FACTORY Agent Authorization Company: YU DA TOYS FACTORY Address: LIANXIA INDUSTRIAL PARK, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, CHINA Product Name: Remote control car series Model Number(s): YD1288-1, YD988-1, YD988-2, YD988-3, YD988-4, YD988-5, YD988-6, YD1088-1, YD1088-2, YD1088-3, YD1088-4, YD1088-5, YD1088-6, YD1188-1, YD1188-2, YD1288-2, YD1388-1A, YD1388-2A, YD1388-1, YD1388-2, YD1488-1, YD1488-2, YD1588- 1, YD1588-2, 388, 488, 588, 688, 788, 888, MT1215, PT2015 Product Description: Remote control car series We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-30 Name: DU YONG Company: YU DA TOYS FACTORY

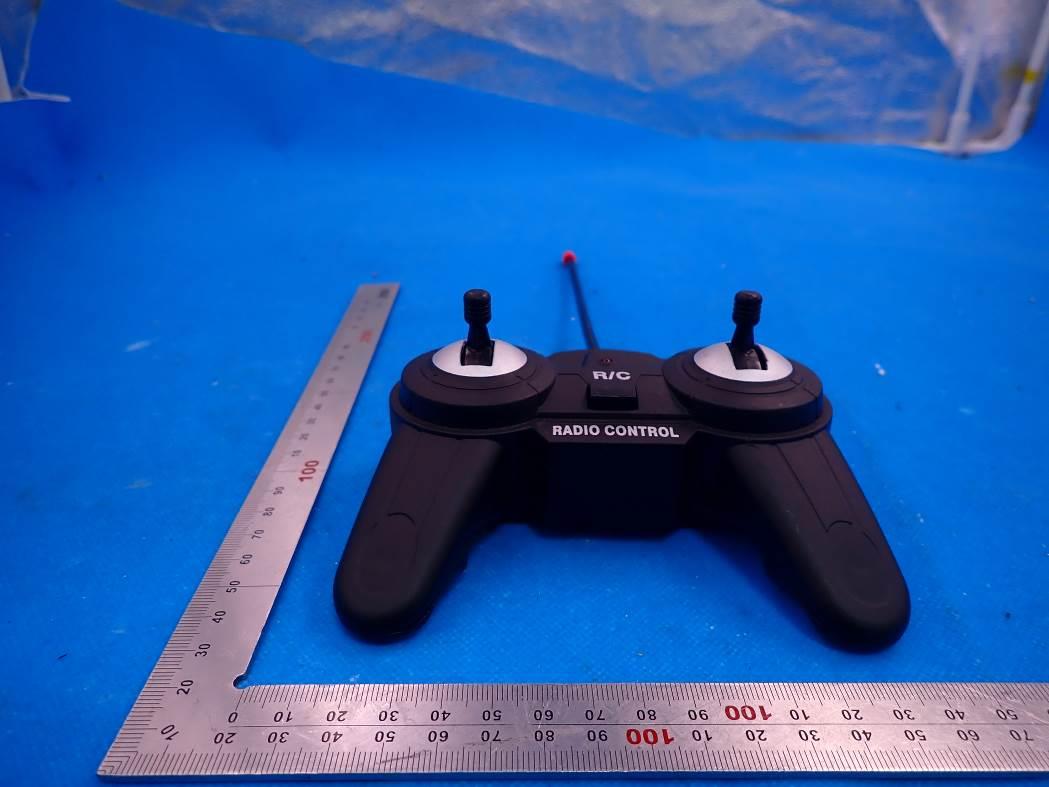

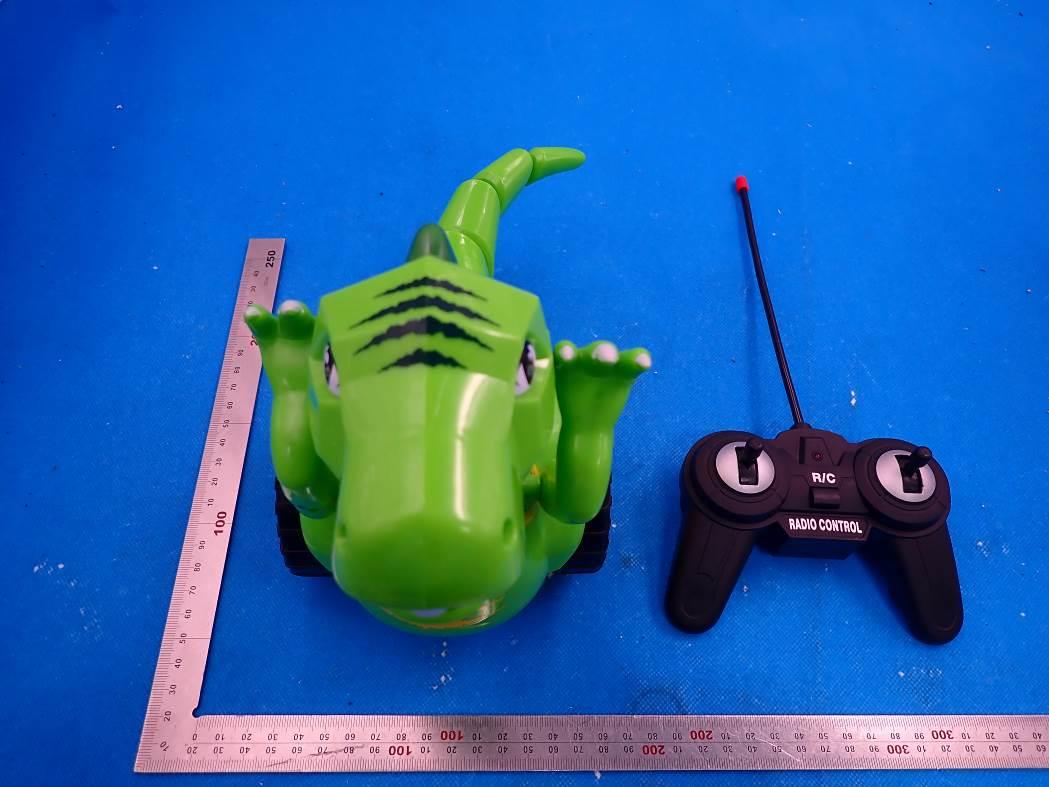

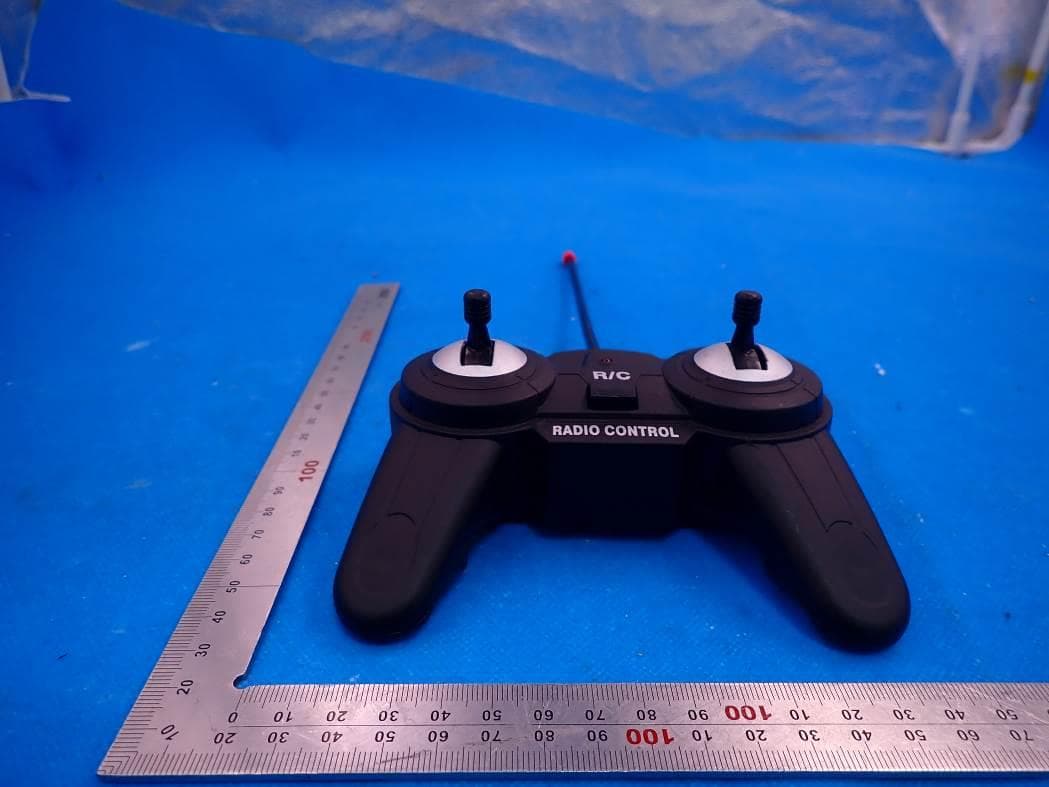

External Photos ALL VIEW OF EUT OUTSIDE VIEW-1 OF EUT OUTSIDE VIEW-2 OF EUT OUTSIDE VIEW-3 OF EUT OUTSIDE VIEW-4 OF EUT OUTSIDE VIEW-5 OF EUT OUTSIDE VIEW-6 OF EUT

FCC ID Label Location

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT Sending Antenna

Page 1 of 23 FCC Test Report Report No.: AGC12797210601FE03 FCC ID : 2ATG8YD1288-1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Remote control car series BRAND NAME : N/A MODEL NAME : YD1288-1, YD988-1, YD988-2, YD988-3, YD988-4, YD988-5, YD988-6, YD1088-1, YD1088-2, YD1088-3, YD1088-4, YD1088-5, YD1088-6, YD1188-1, YD1188-2, YD1288-2, YD1388-1A, YD1388-2A, YD1388-1, YD1388-2, YD1488-1, YD1488-2, YD1588-1, YD1588-2, 388, 488, 588, 688, 788, 888, MT1215, PT2015 APPLICANT : YU DA TOYS FACTORY DATE OF ISSUE : Jul. 28, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Subpart C Section 15.227 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC12797210601FE03 Page 2 of 23 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 28, 2021 Valid Initial release Report No.: AGC12797210601FE03 Page 3 of 23 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ........................................................................................................................... 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4. DESCRIPTION OF TEST MODES ................................................................................................................ 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 7 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 7 6. TEST FACILITY ............................................................................................................................................. 8 7. TEST EQUIPMENT LIST ............................................................................................................................... 8 8. RADIATED EMISSION .................................................................................................................................. 9 8.1. MEASUREMENT PROCEDURE ............................................................................................................ 9 8.2. TEST SETUP..........................................................................................................................................11 8.3. TEST RESULT ....................................................................................................................................... 12 9. BANDWIDTH ............................................................................................................................................... 15 9.1. MEASUREMENT PROCEDURE .......................................................................................................... 15 9.2. TEST SETUP......................................................................................................................................... 15 9.3. TEST RESULT ....................................................................................................................................... 16 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ....................................................................................... 17 APPENDIX B: PHOTOGRAPHS OF EUT ...................................................................................................... 18 Report No.: AGC12797210601FE03 Page 4 of 23 1. VERIFICATION OF CONFORMITY Applicant YU DA TOYS FACTORY Address LIANXIA INDUSTRIAL PARK, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, CHINA Manufacturer YU DA TOYS FACTORY Address LIANXIA INDUSTRIAL PARK, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, CHINA Factory YU DA TOYS FACTORY Address LIANXIA INDUSTRIAL PARK, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, CHINA Product Designation Remote control car series Brand Name N/A Test Model YD1288-1 Series Model YD988-1, YD988-2, YD988-3, YD988-4, YD988-5, YD988-6, YD1088-1, YD1088-2, YD1088-3, YD1088-4, YD1088-5, YD1088-6, YD1188-1, YD1188-2, YD1288-2, YD1388-1A, YD1388-2A, YD1388-1, YD1388-2, YD1488-1, YD1488-2, YD1588-1, YD1588-2, 388, 488, 588, 688, 788, 888, MT1215, PT2015 Difference description All the series models are the same as the test model except for the model names and the color of appearance. Date of test Jul. 01, 2021 to Jul. 28, 2021 Deviation None Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Prepared By Eddy Liu (Project Engineer) Jul. 28, 2021 Reviewed By Max Zhang (Reviewer) Jul. 28, 2021 Approved By Forrest Lei (Authorized Officer) Jul. 28, 2021 Report No.: AGC12797210601FE03 Page 5 of 23 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 27.12MHZ Field Strength(3m) 48.96dBuV/m(Peak)@3 Modulation 27MHz: ASK Number of channels 1 Channels Hardware Version YX-5R213 Software Version N/A Antenna Designation Integral Antenna Antenna Gain 0dBi Power Supply Remote control: DC 3V by battery…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP
