Wireless Stand Features SAVE THESE INSTRUCTIONS Warranty At Ubio Labs, we are dedicated to designing and manufacturing products with superior performance and 100% customer satisfaction. All of our products come with a 1 year limited warranty from date of purchase. We are always improving our products’ features and functionality. We reserve the right to change product specifications at any time without notice. DO NOT RETURN TO THE STORE Our customer service team is here to help. Model: AWC1110 Important Safety Instructions Technical Specifications Technical Specifications Wall Adapter Features Folding Wall Prongs 6 ft. Cable User Manual and Safety Instructions Wireless Charging Stand For iPhone ® , Apple Watch ® , and AirPods ® iPhone, AirPods, AirPods Pro, Wireless Charging Case, and Apple Watch are trademarks of Apple Inc., registered in the U.S. and other countries. Model: AWC1110 Input: 18V⎓, 3.5A Output 1 (Wireless): Qi (15W / 10W / 7.5W / 5W) Output 2 (Wireless) Qi (10W / 7.5W / 5W) Output (USB-C): 9V⎓, 2.22A, 20W Charge Indicators: White/amber* LED indicator Dimensions: 115 x 56 x 99 mm (4.5 x 2.2 x 3.9 in) Weight: 200 g (7.1 oz) Your wireless stand is designed to provide optimal power delivery for your wireless device: • 15W Qi certified fast charging for Samsung Galaxy S6 and later, Samsung Note5 and later, Motorola, LG • 10W wireless charging for iPhone 8 and later • 7.5W wireless charging for other compatible devices • All Apple Watch Models • Wireless Charging Case for AirPods and AirPods Pro IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement The device has been evaluated to meet general RF exposure requirement. To maintain compliance with RSS102 — Radio Frequency (RF) Exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition de rayonnement d'IC RSS-102 déterminées pour un environnement non contrôlé. Cet équipement devrait être installé et actionné avec la distance minimum 20 cm entre le radiateur et votre corps. This device is incompatible with the following products: HUAWEI MatePad Pro (MRX-AL09, MRX-AL19) * A blinking amber LED indicates a foreign object has been detected (metal objects like keys, coins, magnets, etc.) and the device is automatically turned o to ensure safety. Removal of foreign object and proper alignment of phone will result in normal operation. Model: CHG1147SG Input: 110-240V AC, 50-60 Hz, 1.3 A Output: 63W, DC 18V, 3.5A Max Dimensions: 79.7 x 77.5 x 28.5 mm (3.14 x 3.1 x 1.1 in) Weight: 110 g (3.9 oz) www.ubiolabs.com [email protected] 1-866-642-4428 (Monday - Friday 9am - 4:30pm PST) 2821 Northup Way, Suite 250 Bellevue, WA 98004 1 2 3 4 6 5 1 ) Apple Watch Charging Module 2 ) Watch Band Loop 3 ) Wireless Charging Surfaces 4 ) LED Charge Indicators 5 ) DC Power In 6 ) USB-C Output Features AWC1110 User Manual Material 80G woodfree paper Process: 1c/1c k=100 This equipment compli es with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed a nd operated with minimum distance 20cm between the radiator & your body.
UBIO LABS, INC. Address: 2821 Northup Way, Suite 250, Bellevue, Washington 98004, United States Tel.: +86 0769-2201 3615 Fax: +86 0769-2201 3615 E-mail: [email protected] FCC Confidential Authorization Date: 2021-01-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ATGY-AWC1110 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, UBIO LABS, INC. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Name: Jesse Li Title: Compliance Manager

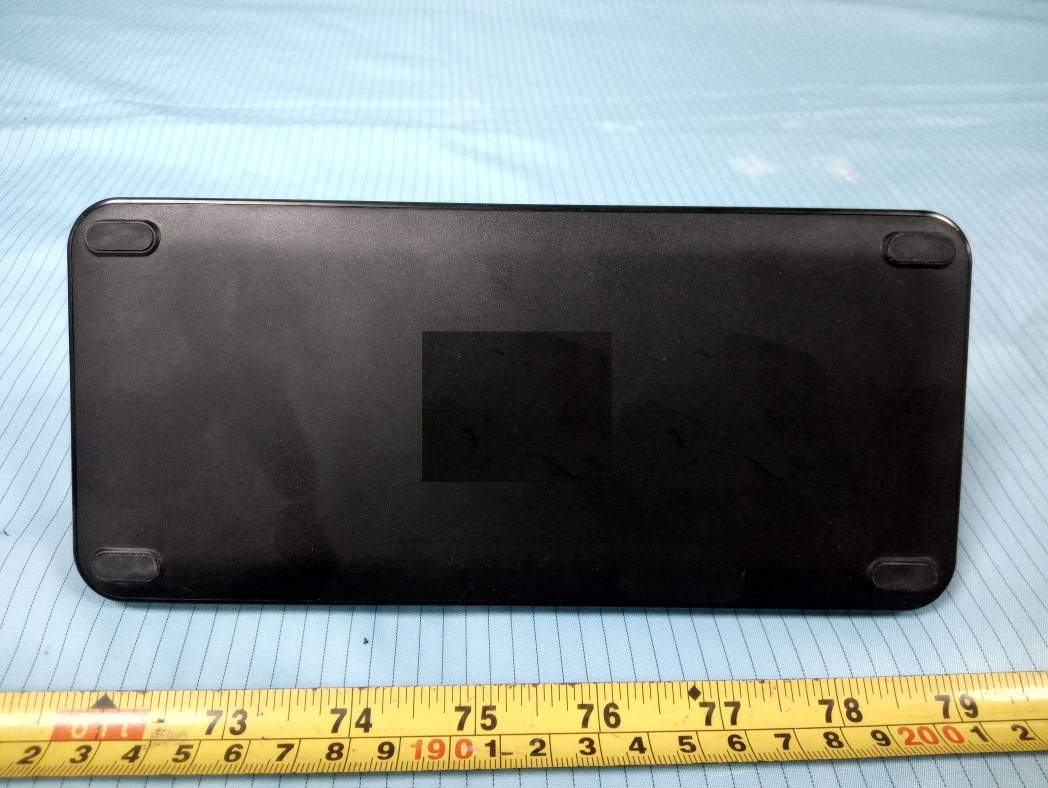

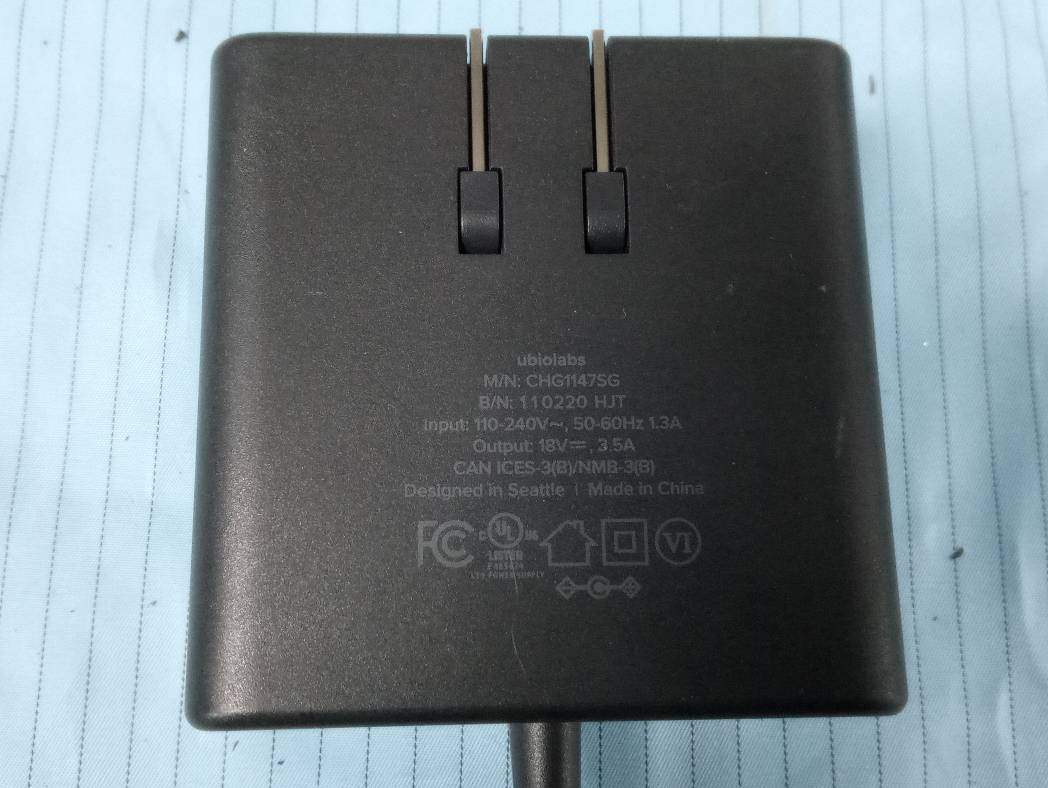

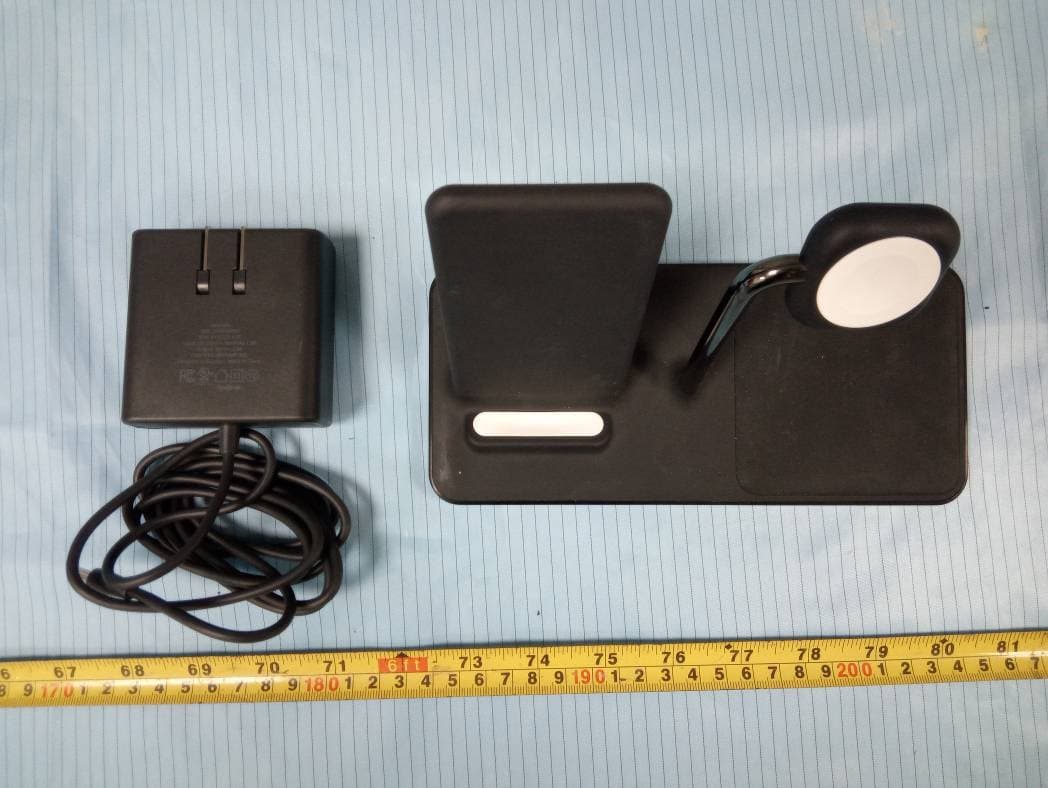

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 5 of 5
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 1 of 7 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 6 of 7 Coil 1 Coil 2 Coil 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 7 of 7 Coil 4
Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RTZ201222004-00 FCC Part 15C Page 9 of 21 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 clause 3 c) According to KDB 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RTZ201222004-00 FCC Part 15C Page 10 of 21 Block Diagram of Test Setup Note: 20 cm for Top test. Test Data Environmental Conditions Temperature:25°C Relative Humidity: 65 % ATM Pressure: 101.0 kPa The testing was performed by Blaker Zhang on 2020-12-30. Test mode: Wireless Charging (Full Load) 15cm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RTZ201222004-00 FCC Part 15C Page 11 of 21 H-Filed Strength Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Test (A/m) 120-205 0.672 0.52 1.2392 0.608 1.0896 0.815 1.63 E-Filed Strength Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Test (V/m) 120-205 1.191 1.329 1.285 1.273 1.334 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top test. Result: Pass Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 120-205 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of primary coil is 15 Watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes four coil to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes, the test result for H and E-filed strength less than 50% of the MPE limit.
Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. FCC PART 15C TEST REPORT For UBIO LABS, INC. 2821 Northup Way, Suite 250, Bellevue, Washington 98004, United States FCC ID: 2ATGY-AWC1110 Report Type: Original Report Product Type: Wireless Charging Stand Re port Number: RTZ201222004-00 Re port Date: 2021-01-25 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RTZ201222004-00 FCC Part 15C Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.203 – ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 12 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 17 APPLICABLE STANDARD ........................................................................................................................................…
Text truncated - open the document above for the full version.
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 1 of 7 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 2 of 7 Radiated Emissions View (9 kHz ~ 30 MHz) Radiated Emissions View (30 MHz ~ 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 3 of 7 H-Filed Strength View Position A (Distance 15cm) Position B (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 4 of 7 Position C (Distance 15cm) Position D (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 5 of 7 Position E (Distance 20cm) E-Filed Strength View Position A (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 6 of 7 Position B (Distance 15cm) Position C (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RTZ201222004-RF Page 7 of 7 Position D (Distance 15cm) Position E (Distance 20cm)
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.12 MHz - 0.205 MHz | - |

Wireless Charging Stand
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Wireless Charging Pad
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Power Bank
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Wireless Charging Stand
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Wireless Charging Pad
Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
