2ATHM-CAW23A3014G Wireless Data Terminal

User Manual Product Overview Product appearance Layout 1. Secondary Microphone2. Touchscreen 3. LED Indicator4. Volume Key 5. Speaker6 . Primary Microphone 7. S IM card rubber plug8.Power Button 9 . T YPE-C rubber plug It is recommended to use 5V 2A charger Pr oduct Introduction User Interface Home Screen 1. Battery Indicator2. Network Signal Strength 3. More4. Connected Devices 5. Data Usage6. Hotspot 7. Me Please note that the information in the user manual depending on the software version. Product Introduction Technical Specification • LTE FDD: Band 2/4/5/7/12/13/25/26/66 • LTE TDD: Band 41 • WCDMA: Band 2/4/5 • GSM: 850/1900 MHz • Max Upload Speed: 50Mbps • Max Download Speed: 150Mbps • Wi-Fi: IEEE 802.11 a/b/g/n/ac • Wi-Fi Frequency: 2.4GHz • Display Size: 5 inch • Charger/accessory Jack: USB Type-C • Battery Capacity: 3900mAh (3.8V 14.82Wh) • Input: DC 5V 2A • Dimensions: 140*76.5*12mm • Weight: 195g • SIM Slot: 1 x Nano SIM（outside） Note: Listed wireless data transfer rates are the theoretoical maximum. The actual data transfer rate may vary depending on the network environment and carrier’s coverage. Qu ick Start Guide 1.Power On Press and hold the Power button for 3 seconds until the device turns on. To bind the device, tap Bind Now button, and scan the QR code displayed in “Scan to bind” page. 2.Sign Up To download the GlocalMe APP and sign up, use your phone to scan the QR code or search for “GlocalMe” in the APP Store. Notes: If you can’t download iOS version after scanning, tap ... icon at the top right corner of the screen, and choose to open Safari to complete the download. Quick Start Guide 3. Bind Device Login to your GlocalMe account on the phone, go to My device > Bind device, and then scan the QR code on the screen (Go to More > QR Code on the device). 4. Connect to Wi-Fi Networks Reboot the device, and then turn on Wi-Fi and you will see a list of wireless networks. Find and select the Wi-Fi network name (GlocalMe_XXXXX). When prompted, enter the Wi-Fi password displayed on the screen. Notes: 1. Reboot your device after it is bound successfully. 2. Recharge your account on GlocalMe App as soon as possible before the initial data package runs out. There are various payment methods available, such as Alipay, PayPal, etc. For more information on topping up, visit the top-up page. Other Instruction Account 1. Unable to receive the SMS verification code or link for account activation when resetting password. Step 1: If registered via email, check the Trash folder if the mailbox is full. If registered via phone number, verify whether the messages are intercepted or roaming services are not enabled while traveling abroad. Step 2: If the problem still persists, contact customer service. 2. If you want to use one account across multiple devices, you’ll need to unbind your account from the original K5, and then bind with another K5. Reboot the K5 after it is bound successfully. If you want more than one device to work at the same time, you need more than one different GlocalMe accounts to activate each device. Power Bank Function Connect the OTG cable to the USB port (output) of device, and connect the other end to the smart phone, the powerbank will work automatically (the battery level should be above 30%) when the device is on. If the device works properly, while the powerbank does not work, the reasons may be: 1. The OTG cable is not recognized by device. Please try with the original charging cable of device; 2. The OTG cable is not working. Please try with a new charging cable.If it still does not work, please contact customer service for warranty. Change the Wi-Fi name and Wi-Fi password From the K5 home screen, tap the hotspot information and then you can change the Wi-Fi name and Wi-Fi password in “Wi-Fi Manager” page. Local SIM Guide 1. Local SIM is supported by device, which has two SIM slots (both are Nano SIM Slots). 2. Open the SIM card tray with a needle, and insert the SIM card as shown in the picture below. Please contact customer service if any issue encountered. 3. Please remove the PIN of the SIM before you insert the SIM, as the SIMs with PIN are not supported by device. Standard SIM Micro SIM Nano SIM Other Instruction TIPS: Common SIM card type includes: Standard SIM card, Micro SIM card and Nano SIM card. APN Settings To set up APN on your K5, follow the steps as below: 1. Insert SIM card, and go to SIM Manager to select the SIM card slot 2. Go to Home screen > My SIM 3. Tap “Data Connection” (first option) and enable it 4. Tap on Access Point Name (APN) and configure it. When those settings are complete, you're good to go. FAQs 1. How long does it take to fully charge K5? It takes approximately 4 hours to charge. 2. How long will K5 last after it's been fully charged? Depending on usage, you can expect a fully charged battery to last 12 hours approximately. 3. How many devices can be connected to K5 simultaneously? Up to 10 devices. But too many connections will quickly consume data. 4. How far does Wi-Fi reach? It has a range of about 10 meters (no barriers in between). It is recommended that you use it within 5 meters. 5. How do I update K5 while connecting to Wi-Fi? Go to Home screen > More > Update, and then turn on Wi-Fi and select the Wi-Fi you wish to connect to and enable Update. Notes: Turning on Wi-Fi will suspend hotspot service temporarily. Please turn off Hotspot service before you update K5. If you cannot connect to the K5 Wi-Fi, make sure Wi-Fi is turned on. 6. How do I reset K5 to factory settings? Go to Home screen > More > About > Factory Reset. 7. What do I do if the K5 is lost? To keep your account safe, please login to your account immediately on GlocalMe App, change your password and unbind the device. And you may also report your lost or stolen device by calling the Customer Service team on 400-699-1314 as soon as possible. 8. How do I check the data usage? Login to GlocalMe App or www.glocalme.com 9. How long does K5 connect to …

Text truncated - open the document above for the full version.

Rev 1/26/2023 AIR-U Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-05-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2ATHM-CAW23A301 [AIR-U Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Signature: Name: Tanaka Kounosuke Phone: 03-6277-6692 Fax: 03-6277-6693 Email: [email protected] Rev 1/26/2023 AIR-U Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-05-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2ATHM-CAW23A301 [AIR-U Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signature: Name: Tanaka Kounosuke Phone: 03-6277-6692 Fax: 03-6277-6693 Email: [email protected]

AIR-U Co., Ltd. Certification Designating a U.S. Agent for Service of Process Date: 22. Aug, 2023 Ref: Section 2.911(d)(7) filing FCC ID: 2ATHM-CAW23A301 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA AIR-U Co., Ltd. (“the applicant”), FRN: 0028520476 as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Contact Person: Fang Liu Company Name: EMCTEK FRN: 0033401829 Company Address: 11788 Big Canyon Ln, San Diego, CA 92131 USA Email: [email protected] Sincerely yours, Signature: Signature: Name: Tanaka Kounosuke Name: Fang Liu Phone: 03-6277-6692 Phone: / E-Mail: [email protected] Email: [email protected]

AIR-U Co., Ltd Date: 2023.08.12 FCC ID: 2ATHM-CAW23A301 Dear Sir/Madam, We, AIR-U Co., Ltd. Hereby declares the Product name: 4G Wireless Data Terminal, Model no.: CAW23A301, Have done SDOC certification. Sincerely, Signature: Name: Tanaka Kounosuke Phone: 03-6277-6692 Fax: 03-6277-6693 Email: [email protected]

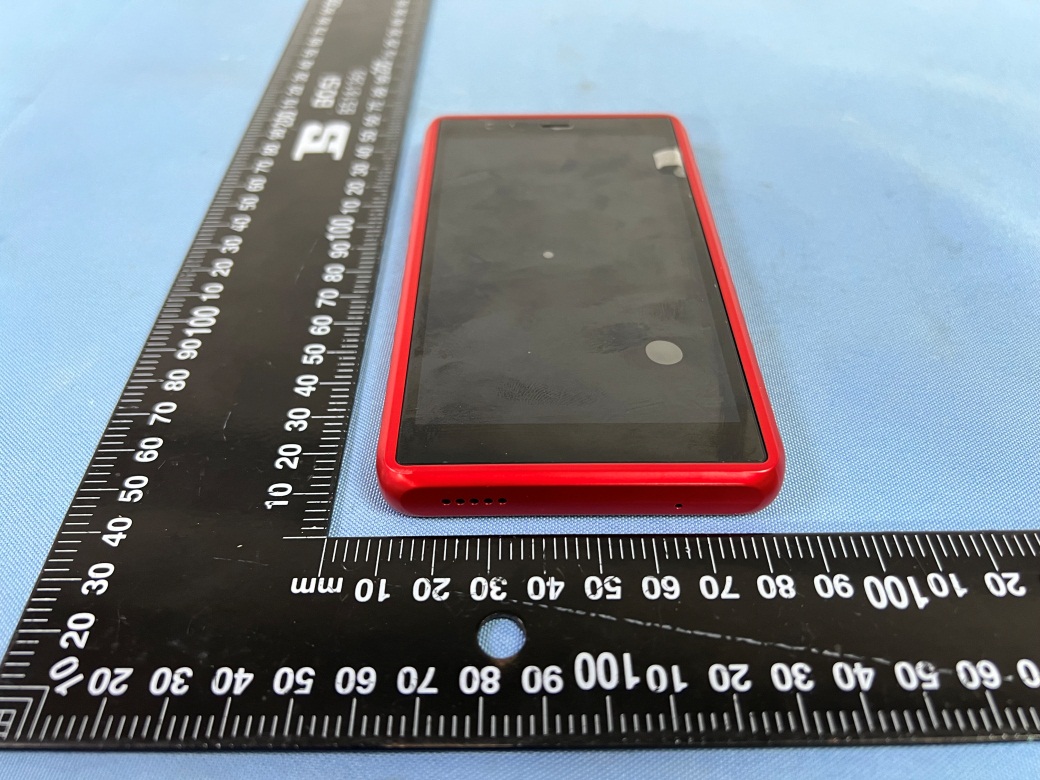

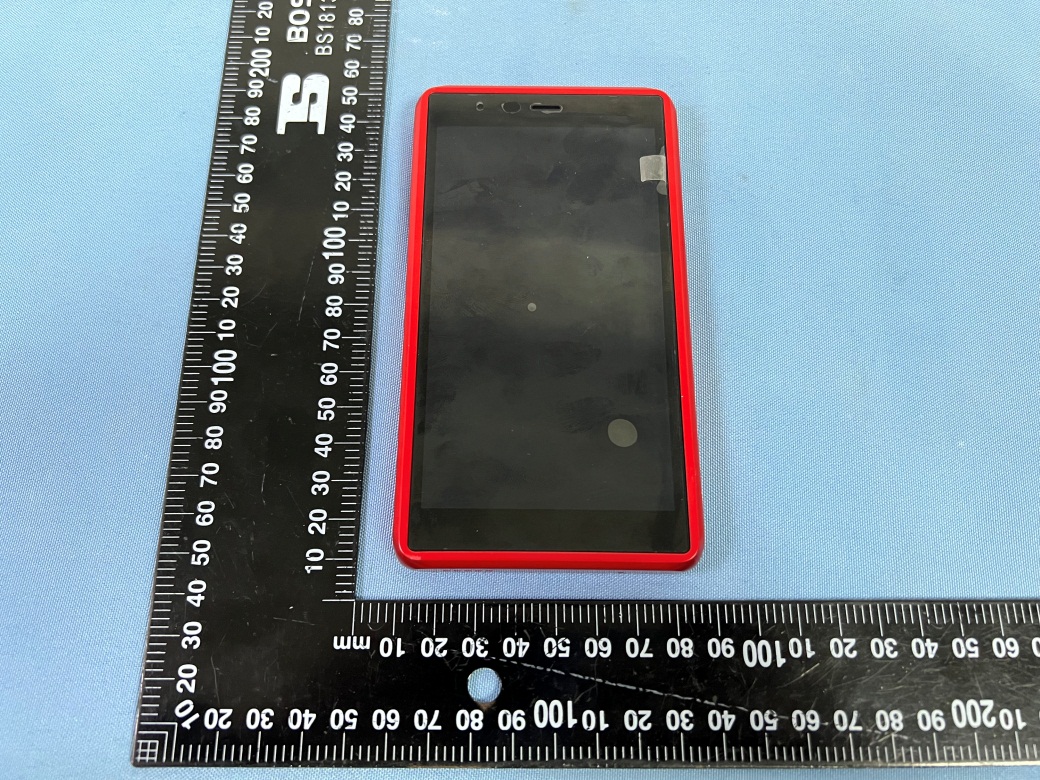

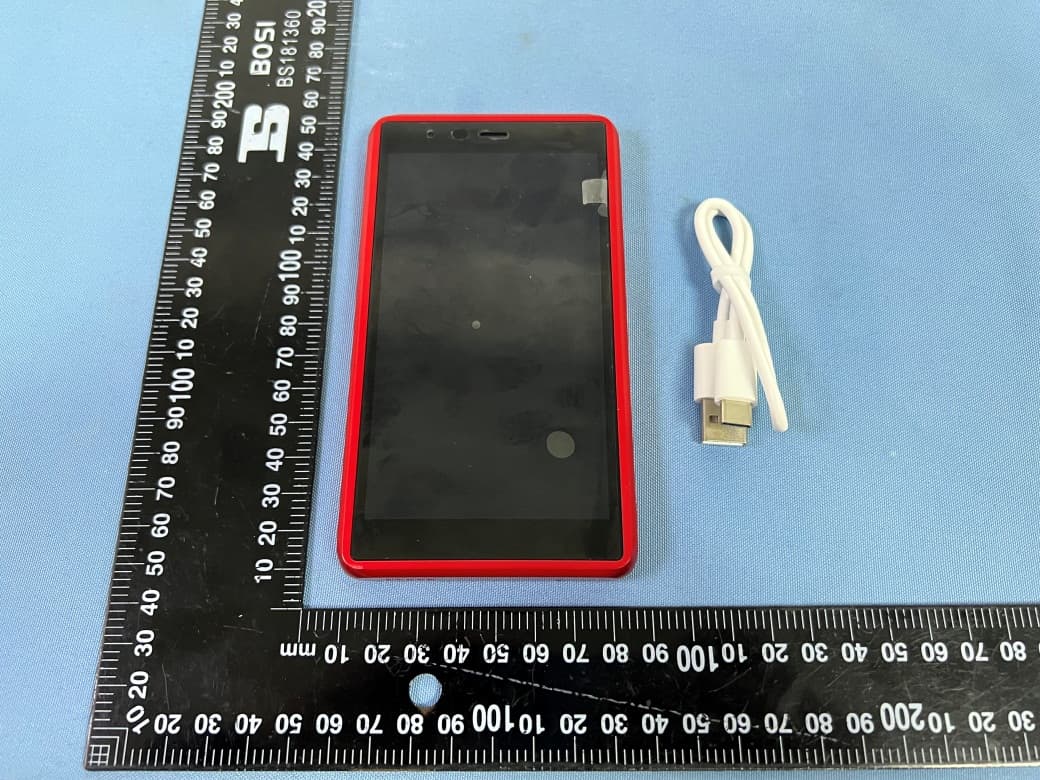

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 4 External Photographs Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 6 Internal Photographs GSM/ WCDMA/ LT E Main Ant WIFI Antenna Diversity Ant Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF23002 Page 1 of 103 SAR TEST REPORT for AIR-U Co., Ltd. 4G Wireless Data Terminal Model No.: CAW23A301 Brand: CLOUD AiR-WiFi FCC ID: 2ATHM-CAW23A301 The MAX SAR(1g) Body SAR 1.579W/Kg Note: The Max. SAR=power back of umts CH1413 + power back of Wi-Fi5g CH48 Test distance: 5mm Prepared for : AIR-U Co., Ltd. Yamaki 2nd BLDG, 8F, 3-4-2, Nishishinbashi, Minato-ku, Tokyo, Japan Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Kefeng Road, Science & Technology Park, Nan shan District, Shenzhen, Guangdong, China Tel: (0755) 26639496 Fax: (0755) 26632877 Report Number ： ACS-SF23002 Date of Test ： Aug.01~09, 2023 Date of Report ： Aug.11, 2023 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF23002 Page 2 of 103 TABLE OF CONTENTS Description Page SAR Test Report....................................................................................3 1. GENERAL INFORMATION ........................................................................................................ 5 1.1. Description of Equipment Under Test ............................................................................................... 5 2. GENERAL DESCRIPTION........................................................................................................... 6 2.1. Product Description For EUT............................................................................................................ 6 2.2. Applied Standards ............................................................................................................................. 6 2.3. Device Category and SAR Limits ..................................................................................................... 6 2.4. Test Conditions ................................................................................................................................. 6 2.5. Exposure Positions Consideration ..................................................................................................... 7 2.6. Standalone SAR Test Exclusion Considerations ............................................................................... 8 2.7. Block Diagram of connection between EUT and simulators ............................................................ 8 2.8. Test Equipments ................................................................................................................................ 9 2.9. Laboratory Environment ................................................................................................................. 10 2.10. Measurement Uncertainty ............................................................................................................... 10 3. MEASURE PROCEDURES ........................................................................................................ 12 3.1. General description of test procedures ............................................................................................ 12 4. SAR MEASUREMENTS SYSTEM ............................................................................................ 13 4.1. SAR Measurement Set-up ............................................................................................................... 13 4.2. ELI Phantom ................................................................................................................................... 14 4.3. Device Holder for SAM Twin Phantom .......................................................................................... 15 4.4. DASY5 E-field Probe System ......................................................................................................... 16 4.5. E-field Probe Calibration ................................................................................................................ 17 4.6. Scanning procedure ......................................................................................................................... 18 5. DATA STORAGE AND EVALUATION ................................................................................... 20 5.1. Data Storage .................................................................................................................................... 20 5.2. Data Evaluation by SEMCAD ........................................................................................................ 20 6. SYSTEM CHECK ........................................................................................................................ 22 7. TEST RESULTS .......................................................................................................................... 24 7.1. Output power ................................................................................................................................... 24 7.2. System Check & Tissue simulating liquid ...................................................................................... 82 7.3. Test Results ..................................................................................................................................... 92 APPENDIX A (Graph Result-GSM & UMTS & E-UTRA) APPENDIX B (Graph Result- WIFI 2.4GHz & WIFI 5GHz) APPENDIX C (Calibration Certificate) APPENDIX D (Test Photos) APPENDIX E (EUT Photos) AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-SF23002 Page 3 of 103 SAR TEST REPORT Applicant : AIR-U Co., Ltd. Manufacturer : AIR-U Co., Ltd. Product : 4G Wireless Data Terminal Model No. : CAW23A301 Brand : CLOUD AiR-WiFi Test Voltage : DC 3.85V Measurement Standard Used: • FCC 47 CFR Part 2 (2.1093) • IEEE C95.1-1999 • IEC/IEEE 62209-1528: 2020 • IEC62209-1:2016 • IEC62209-2:2010 • FCC OET Bulletin 65 Supplement C (Edition 01-01) • FCC KDB 447498 D01 v06 • FCC KDB 447498 D04 v01 • FCC KDB 865664 D01/D02 • FCC KDB 248227 D01 v02r02 The device de…

Text truncated - open the document above for the full version.

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 1 of 105 APPENDIX A Graph Results (GSM & UMTS & E-UTRA) AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 2 of 105 Test Mode: GSM850 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 3 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 4 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 5 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 6 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 7 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 8 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 9 of 105 Test Mode: GSM1900 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 10 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 11 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 12 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 13 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 14 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 15 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 16 of 105 Test Mode: UMTS Band 2 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 17 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 18 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 19 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 20 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 21 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 22 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 23 of 105 Test Mode: UMTS Band 4 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 24 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 25 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 26 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 27 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 28 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 29 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 30 of 105 Test Mode: UMTS Band 5 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 31 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 32 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 33 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 34 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 35 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 36 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 37 of 105 Test Mode: E-UTRA Band 2 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 38 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 39 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 40 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 41 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 42 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 43 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 44 of 105 Test Mode: E-UTRA Band 4 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 45 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 46 of 105

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 47 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 48 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 49 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 50 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 51 of 105 Test Mode: E-UTRA Band 5 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 52 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 53 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 54 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 55 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 56 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 57 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 58 of 105 Test Mode: E-UTRA Band 7 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 59 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 60 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 61 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 62 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 63 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 64 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 65 of 105 Test Mode: E-UTRA Band 12 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 66 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 67 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 68 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 69 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 70 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 71 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 72 of 105 Test Mode: E-UTRA Band 13 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 73 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 74 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 75 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 76 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 77 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 78 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 79 of 105 Test Mode: E-UTRA Band 25 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 80 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 81 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 82 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 83 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 84 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 85 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 86 of 105 Test Mode: E-UTRA Band 26 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 87 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 88 of 105 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX A Page 89 of 105

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 1 of 22 APPENDIX B Graph Results (WIFI 2.4GHz & WIFI 5GHz) AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 2 of 22 Test Mode: WIFI 2.4GHz: AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 3 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 4 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 5 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 6 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 7 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 8 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 9 of 22 Test Mode: WIFI 5GHz-Band 1: AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 10 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 11 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 12 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 13 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 14 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 15 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 16 of 22 Test Mode: WIFI 5GHz- Band 3: AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 17 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 18 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 19 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 20 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 21 of 22 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd.. APPENDIX B Page 22 of 22

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 1 of 57 APPENDIX C DASY Calibration Certificate AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 2 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 3 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 4 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 5 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 6 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 7 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 8 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 9 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 10 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 11 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 12 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 13 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 14 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 15 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 16 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 17 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 18 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 19 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 20 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 21 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 22 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 23 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 24 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 25 of 57

AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 26 of 57 AUDIX Technology (Shenzhen) Co., Ltd. Audix Technology (Shenzhen) Co., ltd. APPENDIX C Page 27 of 57 AUDIX Tec…
