2ATIH-EP-N12Bluetooth Wireless Headphones

Model Technology Driver Sound Pressure Level Frequency Range Impedance Microphone Type Microphone Sensitivity Microphone Frequency Range Charging Time Battery Life Battery Type Operating Range Weight EP-N12 BT 5, SBC, AAC 40 ±0.3mm 100dB ±3dB 20Hz - 20kHz 32 ohm ±15% ECM (microphone chip) -42dB ±3dB 100Hz - 10kHz 2 hours 40 hours / 33 hours (with Active Noise Cancellation on) Li-polymer (500mAh) 10m / 33ft 253g / 8.92oz - 09 -- 08 -- 07 -- 06 -- 05 -- 04 -- 03 -- 02 -- 01 - User Manual Active Noise Cancelling Wireless Headphones English Italiano Deutsch Français Español 01 ~ 09 38 ~ 46 10 ~ 18 19 ~ 27 28 ~ 37 Contents Aukey Technology Co., Ltd. www.aukey.com | [email protected] Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, 518111, China FCC ID: 2ATIH-EP-N12 Model: EP-N12 Thank you for purchasing the AUKEY EP-N12 Active Noise Cancelling Wireless Headphones. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number. Package Contents Active Noise Cancelling Wireless Headphones USB-A to C Cable 3.5mm to 3.5mm AUX Cable Headphones Dust Bag User Manual Quick Start Guide Warranty Card Product Diagram Getting Started Charging Fully charge your headphones before first use. Before charging, make sure the headphones are turned off. To charge, simply connect one end of the USB-A to C cable to a USB charging port and the other end to the input port of the headphones. When the red LED indicator light turns off, your headphones are fully charged and ready for use. Charging takes approximately 2 hours. Pairing Starting with the headphones powered off Press and hold the multi-function button for 5 seconds, the LED indicator flashes red and blue alternately Music and Calls Control Streaming Audio Once connected, you can wirelessly stream audio from your device to the headphones. Music will automatically pause when you receive an incoming phone call and resume once the call has ended. Powering On / OffSpecifications Status Headphones charging Headphones fully charged LED Status Indicator Solid red Red off Function Pairing Mode Connection Status Disconnection Status LED Status Indicator Flashing red and blue Flashing blue twice every 5 seconds Flashing red and blue ( Re-enter pairing mode) Play / pause Next track Previous track Volume up Volume down Press the multi-function button once Press and hold “ + ” Press and hold “ - ” Press “ + “ once Press “ - “ once Answer / end a call Reject an incoming call Press the multi-function button once Press and hold the multi-function button for 1 second Function OperationLED Status Indicator Press and hold the multi-function button for 2 seconds Press and hold the multi-function button for 4 seconds Press and hold the multi-function button for 5 seconds Press the active noise cancelling button once Press the active noise cancelling button once Flashing red and blue Solid red for 3 seconds and turn off Flashing red and blue Solid green Green off Power On Power Off Pairing Mode Active Noise Cancelling On Active Noise Cancelling Off Turn on BT on the device that you want to pair with the headphones In the list of available devices, find and select “AUKEY EP-N12” If a code or PIN is required for pairing, enter “0000” 1. 2. 3. When you power on the headphones, they will automatically reconnect to the last paired device or enter pairing mode if no paired device is found. The wireless operating range is 10m (33ft). If you exceed this range, the headphones will disconnect from your paired device. The connection will be re-established if you re-enter the wireless range within 5 minutes. The headphones will automatically reconnect to the last-paired device. To connect with other devices, repeat the previous pairing steps. • • Making Calls Use Siri / other voice assistants With the device connected, triple- press the multi-function button Voice Assistant Reset headphones Note: Resetting the headphones can help you clear the pairing history In pairing mode, press and hold "+" and "-" at the same time for 5 seconds Reset Headphones Note Keep away from liquids and extreme heat. Don’t use the headphones at high volume for extended periods, as this may cause permanent hearing damage or loss. • • Product Care & Use Warranty & Customer Support For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number. Amazon US orders: [email protected] Amazon EU orders: [email protected] Amazon CA orders: [email protected] *Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues. CE Statement Max RF power level: BT classic (2402–2480MHz): 2.1dBm RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation (1999/519/EC). CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Excessive sound pressure from earphones and headphones can cause hearing loss. Hereby, Aukey Technology Co., Ltd. declares that the radio equipment type (Active Noise Cancelling Headphones, EP-N12) is in compliance with Directive 2014/53/EU. Notice: This device may be used in each member state of the EU. FAQ The headphones are on, but not connecting to my device For the headphones and your device to establish a connection, you need to put them both in pairing mode. Please follow the instructions in the “Pairing” section of this manual. I’ve established a connection with my smart phone but I can’t hear any sound Double-check the volume level on your smart phone and the headphones. Some smart phone…

Text truncated - open the document above for the full version.

Aukey Technology Co., Ltd. Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, China Agent Authorization Company: Aukey Technology Co., Ltd. Address: Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, China Product Name: Wireless Headphones Model Number(s): EP-N12 Product Description: Bluetooth Wireless Headphones We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 01, 2021 Name: Jiaguang Zhou Title: General Manager Company: Aukey Technology Co., Ltd.

AukeyTechnologyCo.,Ltd. Room102,BuildingP09,SouthChinaCityElectronictradingcenter,LonggangDistrict, Shenzhen,518111China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:Apr.01,2021 Subject;RequestforConfidentiality FCCID:2ATIH-EP-N12 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:JiaguangZhou Title:GeneralManager

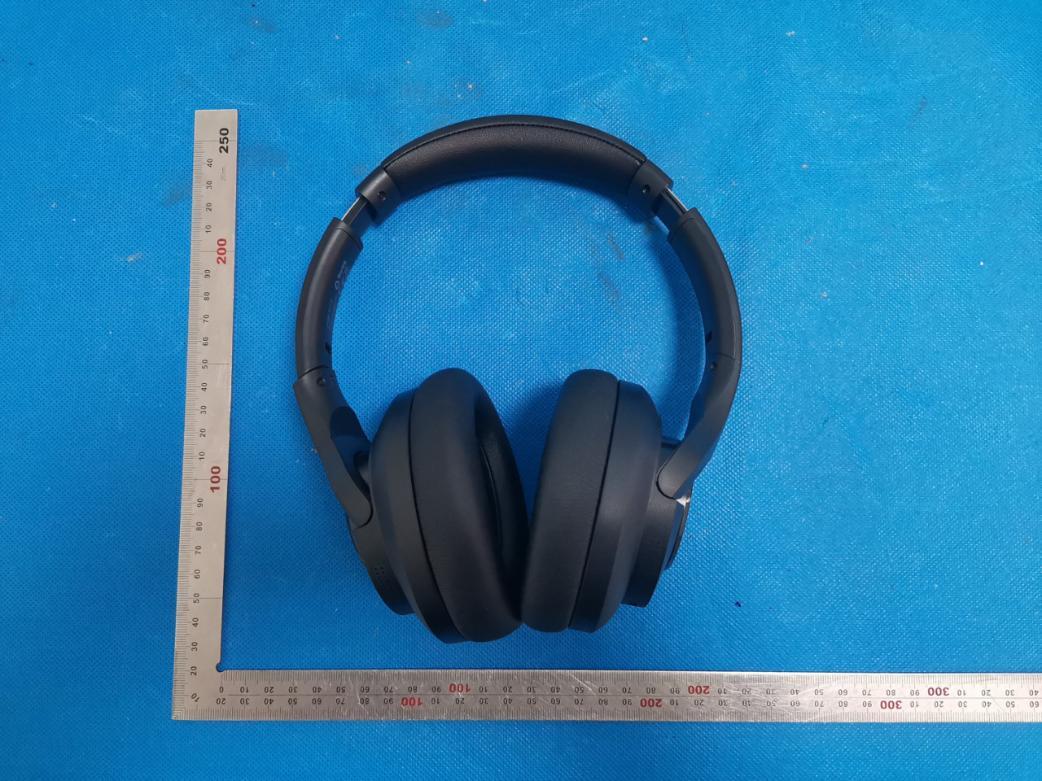

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 VIEW OF EUT(PORT)-2

LR LOGO 18*3.48mm LOGO 18*3.48mm AUKEY EP-N12 LOGO 20201217 AUKEY EP-N12 20201217 R Model: EP-N12In: 5VCapacity: 500mAhMade in China FCC ID: 2ATIH-EP-N 12 IC ： 24100-EPN12 10.2*29.3mm PANTONE Cool Gray 9C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Headphones Model Name EP-N12 FCC ID 2ATIH-EP-N12 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t = -2.339dBm=0.58mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.58mW /5mm) .[√2.441GHz)]=0.18<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 70 FCC Test Report Report No.: AGC08574210305FE03 FCC ID : 2ATIH-EP-N12 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Headphones BRAND NAME : AUKEY MODEL NAME : EP-N12 APPLICANT : Aukey Technology Co., Ltd DATE OF ISSUE : Mar. 30, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC08574210305FE03 Page 2 of 70 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 30, 2021 Valid Initial Release Report No.: AGC08574210305FE03 Page 3 of 70 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC08574210305FE03 Page 4 of 70 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY ..............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC08574210305FE03 Page 61 of 70 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC08574210305FE03 Page 62 of 70 CONDUCTED TEST SETUP Report No.: AGC08574210305FE03 Page 63 of 70 APPENDIX B: PHOTOGRAPHS OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT Report No.: AGC08574210305FE03 Page 64 of 70 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC08574210305FE03 Page 65 of 70 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC08574210305FE03 Page 66 of 70 RIGHT VIEW OF EUT VIEW OF EUT(PORT)-1 Report No.: AGC08574210305FE03 Page 67 of 70 VIEW OF EUT(PORT)-2 OPEN VIEW OF EUT Report No.: AGC08574210305FE03 Page 68 of 70 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC08574210305FE03 Page 69 of 70 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC08574210305FE03 Page 70 of 70 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- BT Antenna Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
