2ATIH-EP-N6Rwireless earbuds

Aukey Technology Co.,Ltd.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 24, 2021
Application Purpose: Original Equipment
Date of Application: May 24, 2021
Equipment Note: wireless earbuds
Frequency Range: 2402.00000000 - 2480.00000000
Company: Aukey Technology Co.,Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

材质：105g 铜版纸尺寸：75*75mm 骑马钉印刷颜色：单黑 *封面背面留白 - 01 - English Deutsch Français Español Italiano 01~09 09~17 18~26 27~35 36~43 Contents User Manual True Wireless Earbuds Model: EP-N6 - 02 - - 03 -- 04 -- 05 -- 06 -- 07 -- 08 - Thank you for purchasing the AUKEY EP-N6 True Wireless Earbuds. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number. Package Contents True Wireless Earbuds Charging Case USB-A to C Cable Three Pairs of Ear-Tips (S/M/L) User Manual Quick Start Guide Warranty Card Product Diagram Getting Started Charging Charging Case LED Indicator Earbuds LED Indicator Touch-Sensitive Panel (Pinching) Charging Contacts Microphone Noise Reduction Microphone Pickup Mikrofonaufnahme mit Rauschreduzierung Specifications Earbuds Charging Case Model Technology Driver (each channel) Sensitivity Frequency Range Impedance Microphone Type Microphone Sensitivity Microphone Frequency Range Charging Time Battery Life Battery Type Operating Range IP Rating Weight EP-N6 A2DP, AVRCP, HFP, HSP 1x 10mm /0.39 ‘’ speaker driver 103±3dB 20Hz – 20kHz 16ohm ± 15% MEMS (microphone chip) -7dB±4dB (at 1kHz) 1Pa 100Hz10KHz 2 hours Up to 5 hours Li-polymer2×50mAh 15m / 50ft IPX5 9gpair/ 0.31oz Charging Input Charging Time Battery Type Number of Earbuds Recharges Weight DC 5V 2 hours Li-polymer (380mAh) 4 times (pair) 28g / 0.99oz Turning On / Off Turn On Turn Off Open the lid of the charging case, or press and hold the touch-sensitive panels on both earbuds for 2 seconds whilst they are turned off Return both earbuds to the charging case or touch and hold on the touch-sensitive panels on both earbuds for 10 seconds when they are turned on Ein-/Ausschalten Einschalten Öffnen Sie den Deckel des Lade-Case oder halten Sie die berührungssensitiven Bereiche an beiden Ohrhörern 2 Sekunden lang gedrückt, wenn sie ausgeschaltet sind. Legen Sie beide Kopfhörer wieder in dem Lade-Case, oder halten Sie die berührungssensitiven Bereiche an beiden Ohrhörern 10 Sekunden lang gedrückt, wenn sie ausgeschaltet sind. Pairing Earbuds Begin with the earbuds in their case: Using the Left/Right Earbud Only Starting with the earbuds in the case: Use After Pairing Once the earbuds have been successfully paired to your device, they can be switched on and off as follows: Open the charging case. They will turn on automatically and connect within 5 seconds Turn on the pairing function on the device you want to pair with the earbuds From the list of available devices, find and select “AUKEY EP-N6” If a code or PIN is required for pairing, enter “0000” 1. 2. 3. 4. Fully charge earbud case before initial use. To charge, connect the case to a USB charger or a charging port with the included USB-A to C cable The LED indicator will turn red whilst the case is charging. The case is fully charged when the indicator turns green Charging takes around 2 hours. After being fully charged, it can recharge the earbuds up to 4 times The earbuds should be stored in the case when not in use 1. 2. 3. 4. Laden Sie den Ladekoffer vor dem ersten Gebrauch vollständig auf. Schließen Sie den Ladekoffer mit dem mitgelieferten USB-A-C-Kabel an ein USB-Ladegerät oder einen Ladeanschluss an. Die LED-Anzeige leuchtet rot während das Lade-Case aufgeladen wird. das Lade-Case ist vollständig aufgeladen, wenn die Anzeige grün leuchtet Der Ladevorgang dauert ungefähr 2 Stunden und nachdem das Case vollständig geladen ist, können Sie die Ohrhörer damit 4-mal vollständig aufladen. Wenn Sie die Ohrhörer gerade nicht verwenden, sollten Sie diese im Case aufbewahren. 1. 2. 3. 4. Take the left/right earbuds out Turn on the pairing function on the device to pair with the earbuds From the list of available devices, select “AUKEY EP-N6” 1. 2. Open the charging case – they will turn on and sync automatically To power off – put the earbuds back into the charging case and close the lid, they will begin charging Pairing Die Kopfhörer befinden sich im Lade-Case: Normale Verwendung nach dem Pairing Wenn die Kopfhörer mit Ihrem Gerät erfolgreich verbunden sind, können Sie wie folgt ein- und ausgeschaltet werden: Öffnen Sie den Deckel des Lade-Case. Beide Ohrhörer schalten sich automatisch ein und verbinden sich automatisch miteinander von 5 Sekunden Aktivieren Sie die Pairing-Funktion an dem Gerät, das Sie mit der Kopfhörern koppeln wollen Wählen Sie in der Liste verfügbarer Geräte „AUKEY EP-N6“ aus Falls ein Code oder eine PIN für das Pairing erforderlich ist, geben Sie „0000“ ein 1. 2. 3. 4. 1. 2. Öffnen Sie den Deckel des Ladek-Cases, und beide Ohrhörer schalten sich ein und verbinden sich automatisch miteinander Zum Ausschalten legen Sie die Kopfhörer in das Lade-Case zurück, worauf diese geladen werden 1. 2. 3. Verwendung nur des linlen/rechten Kopfhörers Nehmen Sie den linken/rechten Kopfhörer heraus Aktivieren Sie die Pairing-Funktion an dem Gerät, das Sie mit dem Kopfhörern koppeln wollen Wählen Sie in der Liste verfügbarer Geräte “AUKEY EP-N6” 1. 2. 3. Ear buds will automatically reconnect to the last-paired device once they have been switched on In pairing mode, the earbuds will automatically turn off after 5 minutes if no device is synced To clear the pairing list, take the earbuds out of the charging case and press both earbuds for 10 seconds to turn them off, then press the touch-sensitive panels on both earbuds for 10 seconds. If one of the earbuds has no sound, return earbuds to the charging case, leave them for a moment – then take them out again and reconnect The range on these wireless earbuds is 15m (50ft). If you exceed this range, the earbuds will disconnect from your paired device. The connection will be re-established if you re-enter the wireless range within 10 minutes. The earbuds will automatically reconnect to the last paired device. To connect with other devices, follow the previous pairing steps • • • • • Keep away from liquids and…

Text truncated - open the document above for the full version.

Attestation Statements

ProductName:wirelessearbuds ModelNo.:EP-N6,EP-N6R FCCID:2ATIH-EP-N6R Allmodelsareelectricallyidentical TheFCCID:2ATIH-EP-N6Risonlyfortherightearphone Date:Apr12,2021 <Signature> NameJiaguangZhou TitleManager CompanyAukeyTechnologyCo.,Ltd

External Photos

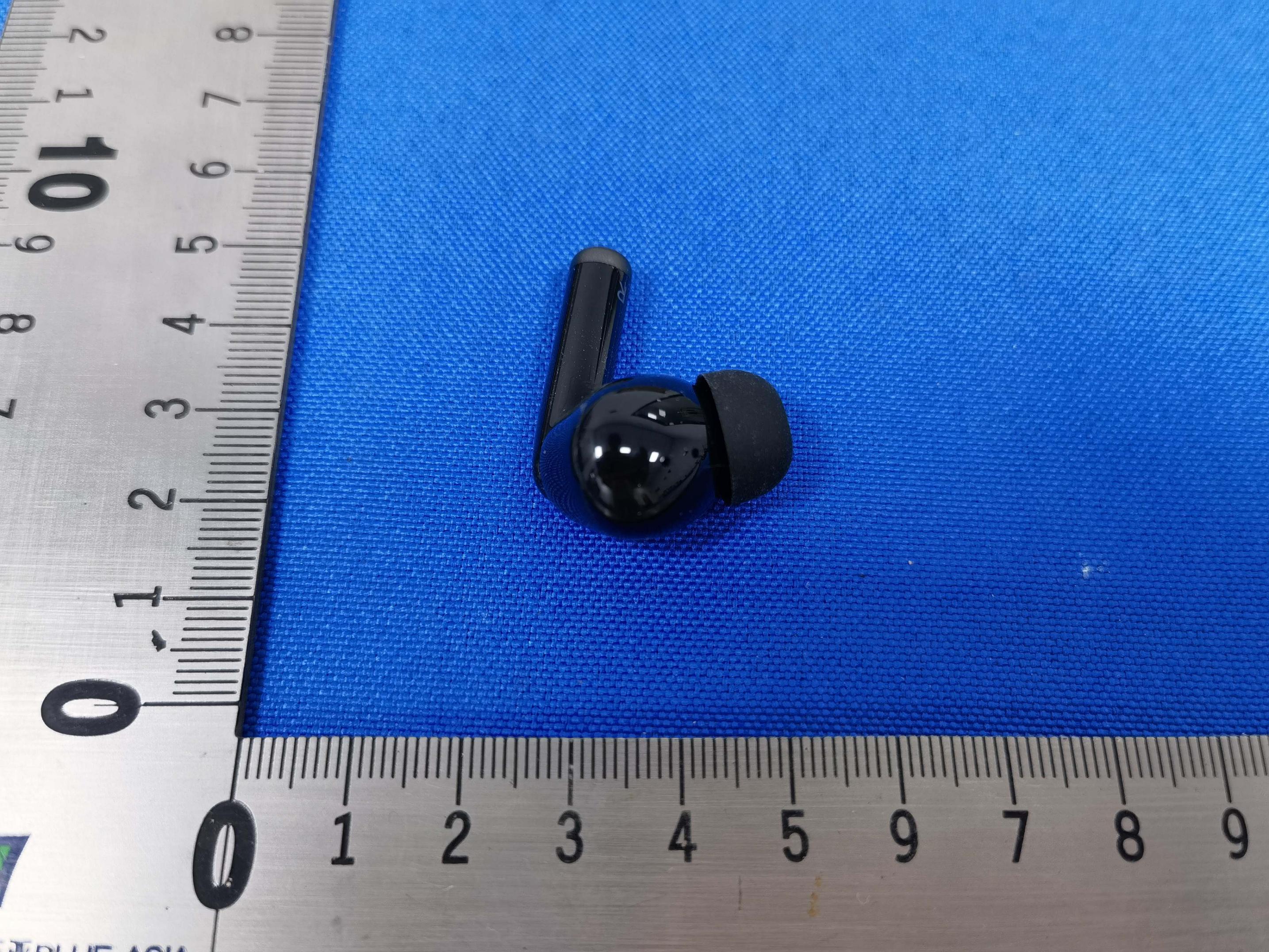

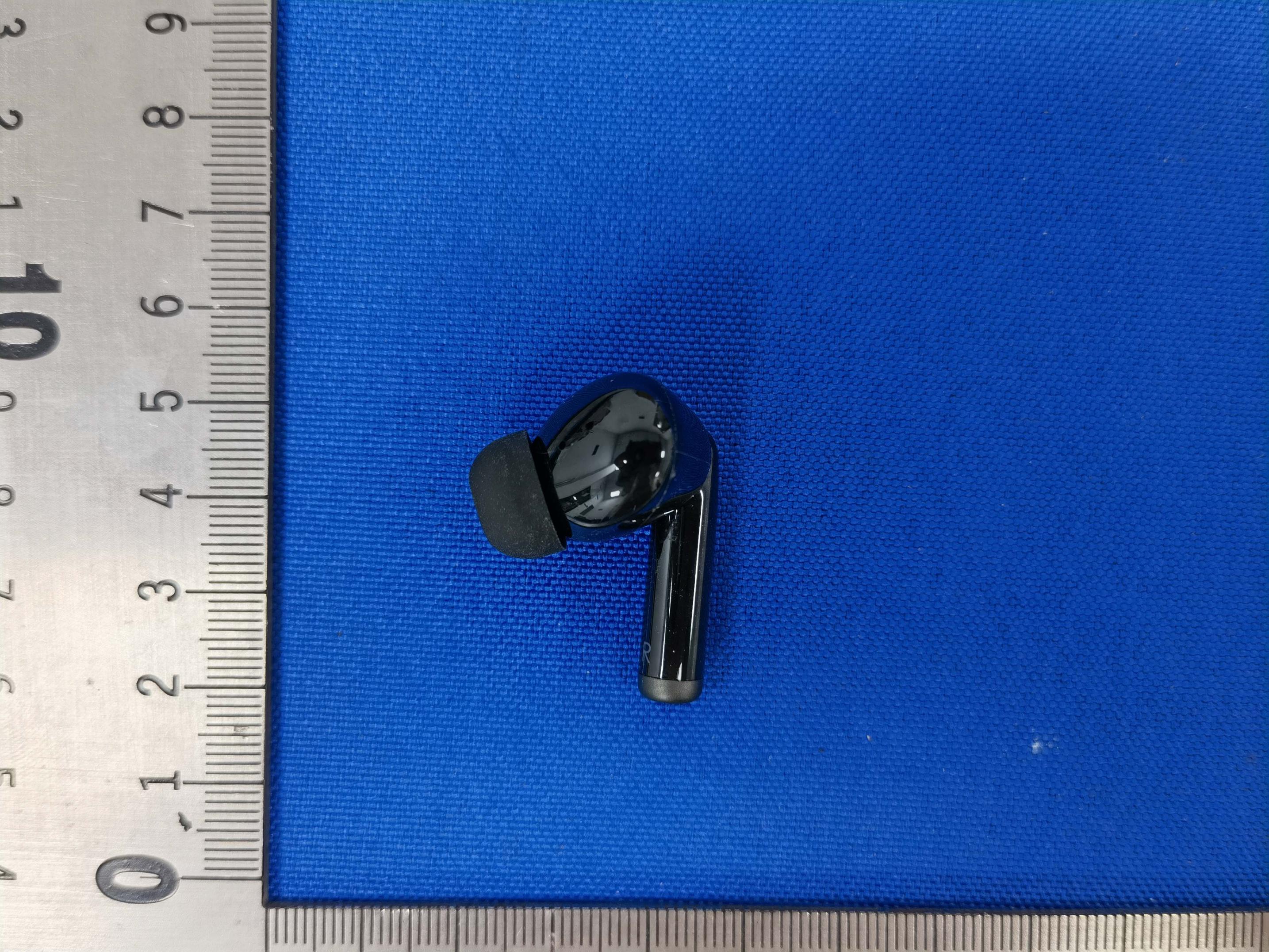

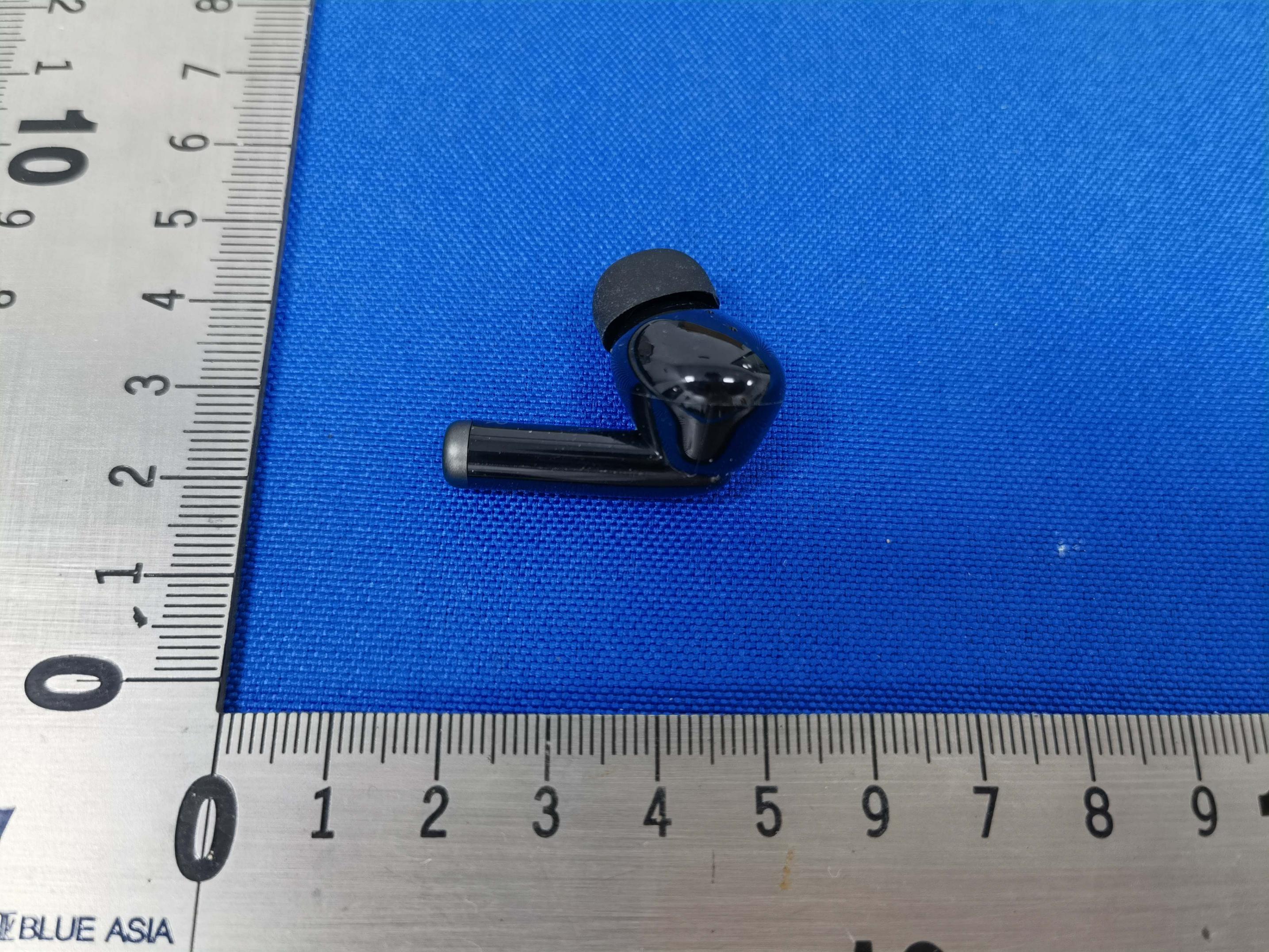

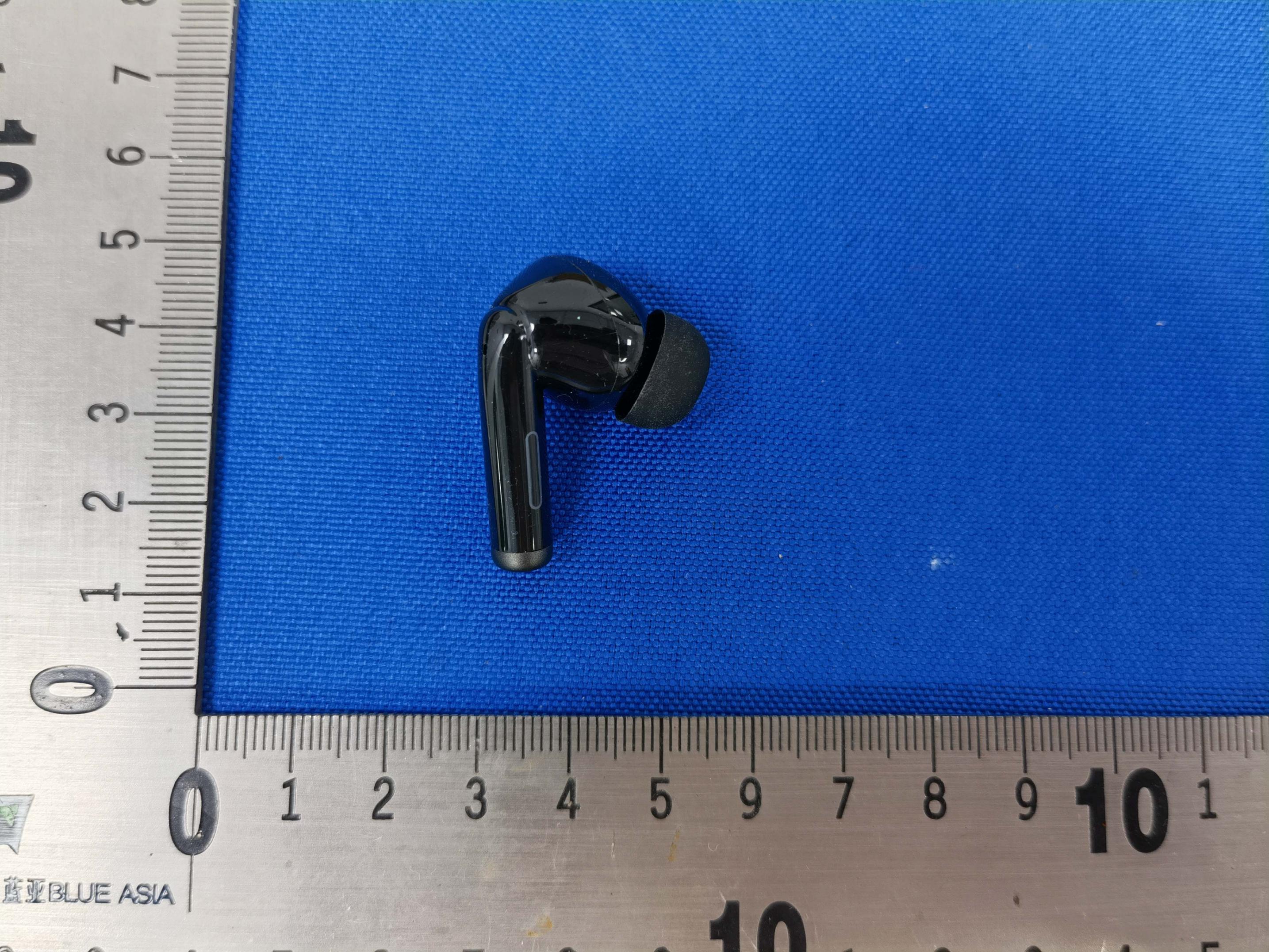

ModelNo.:EP-N6

Internal Photos

ModelNo.:EP-N6

RF Exposure Info

Page1of1 RF Exposure Evaluation Report 1 RF EXPOSURE Pr oduct Name Model No. Test Mode FCC ID wireless earbuds EP-N6, EP-N6R TX 2ATIH-EP-N6R 1.1 LIMITS The1- g and 10- g SAR test exclus ion thr eshol ds for 100MHz to 6 GHz at test sepa ration di stanc es ≤ 50 mm are de termine d by : [(max. power of cha nnel, inc ludi ng tune-up tol eranc e, mW) / (min. test sepa ration di stanc e, mm)] · [√f(GHz)] ≤ 3.0for 1- g SAR and ≤ 7.5for 10- g extremity SAR, whe re f(GHz) is the RF cha nnel trans mit frequenc y in GHz Pow er and di stanc e are rounded to the ne arest mW and mm be for e calcul ation 17 Theresul t is rounded to onede cimal pl ace for com pa riso n Thetest exclus ionsare appl icabl e onl y whe n the mini mumtest sepa ration di stanc e is ≤ 50 mm and for trans mission frequenc ies be tween 100MHz and 6 GHz. Whe n the mini mumtest sepa ration di stanc e is < 5 mm, a di stanc e of 5 mm is appl ied to de termine SAR test exclus ion 1.2 EU T RF EXP OSU RE EVA LUATION Ope rationa l Mode : EDR Channel Maximum Peak Conduct ed Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power (dBm) Maximum tune-up Power (mW) Calcu lated value Excl usi on thresh old 2402MHz0.82 ±1 1.821.520.473 2442MHz1.21 ± 1 2.211.660.523 2480MHz1.55 ± 1 2.551.800.573 Concl usi on: the ca lcu lated value ≤ 3.0, SAR is exempted.

Test Report

ReportNo.:BLA-EMC-202103-A8402 Page 48 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10APPENDIX 10.1APPENDIX:20DBEMISSIONBANDWIDTH TestResult TestModeAntennaChannel 20db EBW[MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict DH1Ant1 24021.0982401.5142402.612---PASS 24411.1072440.5112441.618---PASS 24801.0982479.5142480.612---PASS 2DH1Ant1 24021.3592401.3732402.732---PASS 24411.3652440.3732441.738---PASS 24801.3592479.3762480.735---PASS 3DH1Ant1 24021.3322401.4002402.732---PASS 24411.3322440.4032441.735---PASS 24801.3322479.4032480.735---PASS ReportNo.:BLA-EMC-202103-A8402 Page 49 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 50 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 51 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 52 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.2APPENDIX:MAXIMUMCONDUCTEDOUTPUTPOWER TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict DH1Ant1 2402-1.41<=20.97PASS 2441-1.03<=20.97PASS 2480-0.71<=20.97PASS 2DH1Ant1 24020.22<=20.97PASS 24410.69<=20.97PASS 24801.01<=20.97PASS 3DH1Ant1 24020.82<=20.97PASS 24411.21<=20.97PASS 24801.55<=20.97PASS ReportNo.:BLA-EMC-202103-A8402 Page 53 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 54 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 55 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 ReportNo.:BLA-EMC-202103-A8402 Page 56 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.3APPENDIX:CARRIERFREQUENCYSEPARATION TestResult TestModeAntennaChannelResult[MHz]Limit[MHz]Verdict DH1Ant1Hop0.998>=0.738PASS 2DH1Ant1Hop1>=0.910PASS 3DH1Ant1Hop1.002>=0.888PASS ReportNo.:BLA-EMC-202103-A8402 Page 57 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop ReportNo.:BLA-EMC-202103-A8402 Page 58 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.4APPENDIX:TIMEOFOCCUPANCY TestResult FrequencyPacketDwelltime(ms)Limit(ms)Result 2441MHzDH1/2-DH1/3-DH1 121.600 400Pass 2441MHzDH3/2-DH3/3-DH3 262.400 400Pass 2441MHzDH5/2-DH5/3-DH5 307.200 400Pass Thetestperiod:T=0.4Second/Channelx79Channel=31.6s Testchannel:2441MHzasblow DH1/2-DH1/3-DH1timeslot=0.38(ms)*(1600/(2*79))*31.6= 121.600 ms DH3/2-DH3/3-DH3timeslot=1.64(ms)*(1600/(4*79))*31.6= 262.400 ms DH5/2-DH5/3-DH5timeslot=2.88(ms)*(1600/(6*79))*31.6= 307.200 ms ReportNo.:BLA-EMC-202103-A8402 Page 59 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop ReportNo.:BLA-EMC-202103-A8402 Page 60 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.5APPENDIXF:NUMBEROFHOPPINGCHANNELS TestResult TestModeAntennaChannelResult[Num]Limit[Num]Verdict DH1Ant1Hop79>=15PASS 2DH1Ant1Hop79>=15PASS 3DH1Ant1Hop79>=15PASS ReportNo.:BLA-EMC-202103-A8402 Page 61 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop ReportNo.:BLA-EMC-202103-A8402 Page 62 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.6APPENDIX:BANDEDGEMEASUREMENTS TestResult TestModeAntennaChNameChannel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1Ant1 Low2402-1.82-56.31<=-21.82PASS High2480-1.14-55.05<=-21.14PASS LowHop_2402-2.39-55.9-22.39PASS HighHop_2480-1.42-55.16-21.42PASS 2DH1Ant1 Low2402-1.44-55.86<=-21.44PASS High2480-0.67-55.3<=-20.67PASS LowHop_2402-1.51-56.24-21.51PASS HighHop_2480-0.74-55.51-20.74PASS 3DH1Ant1 Low2402-1.38-55.15<=-21.38PASS High2480-0.64-55.04<=-20.64PASS LowHop_2402-2.18-55.81-22.18PASS HighHop_2480-0.69-54.92-20.69PASS ReportNo.:BLA-EMC-202103-A8402 Page 63 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402

Test Report

ReportNo.:BLA-EMC-202103-A8402 Page 64 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 ReportNo.:BLA-EMC-202103-A8402 Page 65 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 ReportNo.:BLA-EMC-202103-A8402 Page 66 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 ReportNo.:BLA-EMC-202103-A8402 Page 67 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 10.7APPENDIX:CONDUCTEDSPURIOUSEMISSION TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1Ant1 2402 Reference-1.88-1.88---PASS 30~100030~1000-67.198<=-31.884PASS 1000~265001000~26500-53.647<=-31.884PASS 2441 Reference-1.56-1.56---PASS 30~100030~1000-66.58<=-31.556PASS 1000~265001000~26500-52.624<=-31.556PASS 2480 Reference-1.14-1.14---PASS 30~100030~1000-65.877<=-31.136PASS 1000~265001000~26500-52.672<=-31.136PASS 2DH1Ant1 2402 Reference-1.47-1.47---PASS 30~100030~1000-67.027<=-31.466PASS 1000~265001000~26500-51.969<=-31.466PASS 2441 Reference-1.07-1.07---PASS 30~100030~1000-67.535<=-31.07PASS 1000~265001000~26500-49.221<=-31.07PASS 2480 Reference-0.65-0.65---PASS 30~100030~1000-67.404<=-30.651PASS 1000~265001000~26500-51.243<=-30.651PASS 3DH1Ant1 2402 Reference-1.40-1.40---PASS 30~100030~1000-67.063<=-31.399PASS 1000~265001000~26500-53.859<=-31.399PASS 2441 Reference-1.11-1.11---PASS 30~100030~1000-67.221<=-31.112PASS 1000~265001000~26500-53.734<=-31.112PASS 2480 Reference-1.16-1.16---PASS 30~100030~1000-65.372<=-31.159PASS 1000~265001000~26500-52.99<=-31.159PASS ReportNo.:BLA-EMC-202103-A8402 Page 68 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TestGraphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 69 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 70 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 71 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 72 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 73 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 74 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 75 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 76 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 ReportNo.:BLA-EMC-202103-A8402 Page 77 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXA:PHOTOGRAPHSOFTESTSETUP ConductedEmissionsatACPowerLine(150kHz-30MHz) RadiatedSpuriousEmissions ReportNo.:BLA-EMC-202103-A8402 Page 78 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202103-A8402 Page 79 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXB:PHOTOGRAPHSOFEUT ReferencetothetestreportNo.BLA-EMC-202103-A8401 ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbe reproducedexceptinfull.

Test Report

Page 1 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: wirelessearbuds BrandMark: AUKEY ModelNo.: EP-N6,EP-N6R FCCID: 2ATIH-EP-N6R ReportNumber: BLA-EMC-202103-A8402 DateofSampleReceipt: 2021/3/24 DateofTest: 2021/3/24to2021/4/12 DateofIssue: 2021/4/12 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: AukeyTechnologyCo.,Ltd Room102,BuildingP09,SouthChinaCityElectronictradingcenter,LonggangDistrict, Shenzhen Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2021/4/12 ReportNo.:BLA-EMC-202103-A8402 Page 2 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002021/4/12Original ReportNo.:BLA-EMC-202103-A8402 Page 3 of 79 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY ....................................................................................................................................................... 6 2GENERALINFORMATION ...................................................................................................................................... 7 3GENERALDESCRIPTIONOFE.U.T. .................................................................................................................... 7 4TESTENVIRONMENT .............................................................................................................................................. 8 5TESTMODE ............................................................................................................................................................... 8 6MEASUREMENTUNCERTAINTY .......................................................................................................................... 8 7DESCRIPTIONOFSUPPORTUNIT ...................................................................................................................... 9 8LABORATORYLOCATION ..................................................................................................................................... 9 9TESTINSTRUMENTSLIST .................................................................................................................................. 10 1ANTENNAREQUIREMENT .................................................................................................................................. 14 1.1CONCLUSION .............................................................................................................................................................. 14 2CONDUCTEDPEAKOUTPUTPOWER ............................................................................................................. 15 2.1LIMITS ..................................................................................................................................................................... 15 2.2BLOCKDIAGRAMOFTESTSETUP ........................................................................................................................... 15 2.3ESTDATA .................................................................................................................................................................. 16 3CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ) ........................................................... 17 3.1LIMITS ..................................................................................................................................................................... 17 3.2BLOCKDIAGRAMOFTESTSETUP ........................................................................................................................... 17 3.3PROCEDURE ............................................................................................................................................................ 17 3.4TESTDATA ................................................................................................................................................................ 19 4RADIATEDSPURIOUSEMISSIONS ................................................................................................................... 21 4.1LIMITS ..................................................................................................................................................................... 21 4.2BLOCKDIAGRAMOFTESTSETUP ........................................................................................................................... 22 4.3PROCEDURE ............................................................................................................................................................ 22 4.4TESTDATA ................................................................................................................................................................ 24 5RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS ....................................................... 32 5.1LIMITS ..................................................................................................................................................................... 32 5.2BLOCKDIAGRAMOFTESTSETUP ........................................................................................................................... 33 5.3PROCEDURE ............................................................................................................................................................ 33 5.4TESTDATA ............................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

ModelNo.:EP-N6 RadiatedSpuriousEmissions ConductedEmissionsatACPowerLine(150kHz-30MHz)
