2ATIH-LC-A3Aircore 3-in-1 Wireless Charging Station

Thank you for purchasing this AUKEY product. Please read this user manual carefully and keep it for future reference. 3-in-1 Wireless Charging Station USB-A to C Cable (1.2m) User Manual Warranty Card Package Contents Product Diagram a. Charging coil b. Wireless charging surface c. Apple Watch charger mount d. LED indicator e. USB-C input port Specifications Model Technology USB-C input Stand wireless output Secondary wireless output USB-A output Dimensions Weight 5W Assembly *If you don’t have an Apple Watch, please skip ①③④⑤⑥⑦. Getting Started Standby Charging Foreign Object Detected Blue Green Flashing blue & green Connect the wireless charging station to a wall charger via the USB-C port Place a Qi compatible mobile device on the phone stand Place an AirPods wireless charging case on the secondary charging surface Place an Apple Watch on the detachable mount When the devices are fully charged, you can remove them 1. 2. 3. 4. 5. Warranty & Customer Support For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number. Amazon US orders: [email protected] Amazon EU orders: [email protected] Amazon CA orders: [email protected] Amazon JP orders: [email protected] *Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. Product Care Keep away from liquids and extreme heat Use only certified chargers that support QC 3.0 fast charging (5V / 3A, 9V / 2A). Unauthorized chargers may cause damage or the wireless charger may malfunction. Do not place foreign objects, particularly metallic or magnetic objects, between the device and wireless charger. The wireless charger is compatible with Wireless Power Consortium (WPC) certified devices. Note If your device isn't charging properly, try adjusting the position to better align the charging coils. Cases under 3mm thick can be kept on, but thick cases or cases made of metal need to be removed. The maximum operating temperature of this product is 40. LED Indicator Status Merci d’avoir acheté ce produit AUKEY. Veuillez lire attentivement ce manuel d’utilisation et le conserver pour référence ultérieure. Station de charge sans fil 3 en 1 Câble USB-A vers USB-C (1,2 m) Manuel de l'Utilisateur Carte de garantie Contenu du paquet Schéma du produit a. Bobine de charge sans fil b. Surface de chargement sans fil c. Support de chargeur pour Apple Watch d. Indicateur LED e. Port d’entrée USB-C Caractéristiques Modèle Technologie Entrée USB-C Sortie sans fil du support Sortie sans fil secondaire Sortie USB Dimensions Poids LC-A3 Qi, Quick Charge 3.0 5 V/3 A, 9 V/2 A (Max) 10 W/7,5 W/5 W 5 W 5 W 193 × 93 × 130 mm 270 g Assemblage * Si vous ne possédez pas d’Apple Watch, veuillez ignorer ①③④⑤⑥⑦. Commencer En veille En charge Corps étranger détecté Bleu Vert Clignotant bleu et vert Connectez la station de charge sans fil à un chargeur mural via le port USB-C Placez un appareil mobile compatible Qi sur le support du téléphone Placez un boîtier de chargement sans fil AirPods sur la surface de chargement secondaire Placez une Apple Watch sur le support amovible Lorsque les appareils sont complètement chargés, vous pouvez les retirer 1. 2. 3. 4. 5. Garantie et support client Pour toute question, assistance ou demande de garantie, contactez-nous à l’adresse ci-dessous qui correspond à votre région. Veuillez inclure votre numéro de commande Amazon et le numéro de modèle du produit. Commandes Amazon aux États-Unis : [email protected] Commandes Amazon EU : [email protected] Commandes Amazon CA : [email protected] Commandes Amazon JP : [email protected] * Veuillez noter qu’AUKEY ne peut fournir un service après-vente que pour les produits achetés directement auprès d’AUKEY. Si vous avez acheté auprès d’un autre vendeur, veuillez les contacter directement pour des problèmes de service ou de garantie. Entretien du produit Tenir à l’écart des liquides et de la chaleur extreme Utilisez uniquement des chargeurs certifiés prenant en charge la charge rapid…

Text truncated - open the document above for the full version.

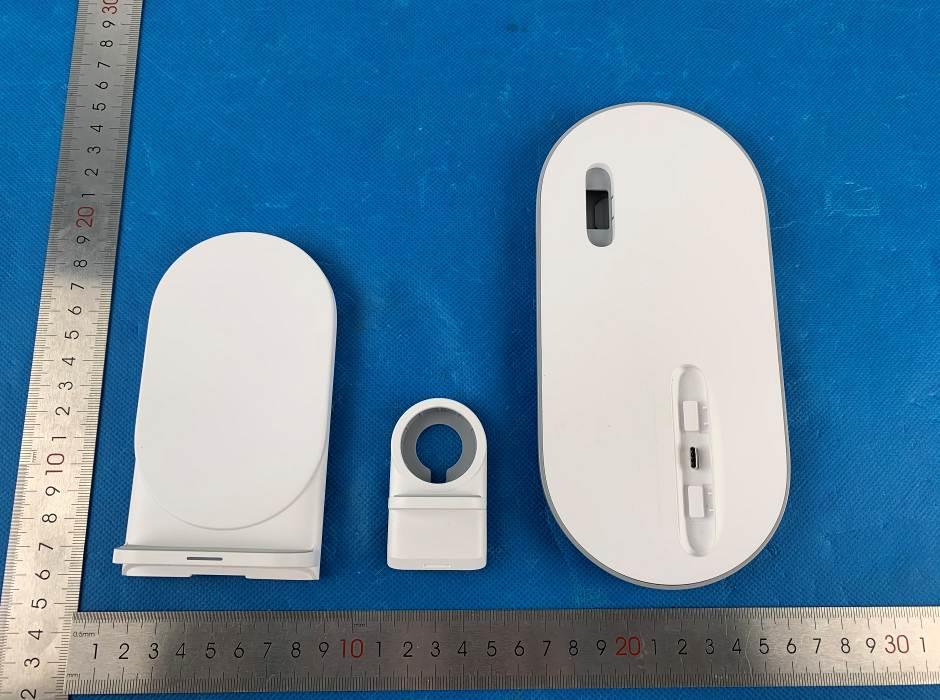

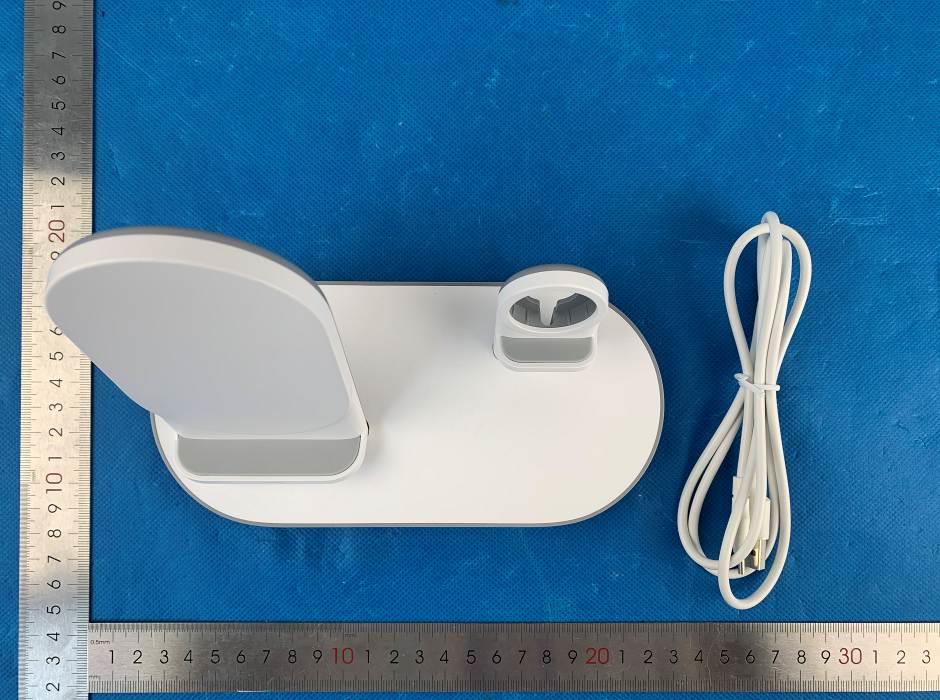

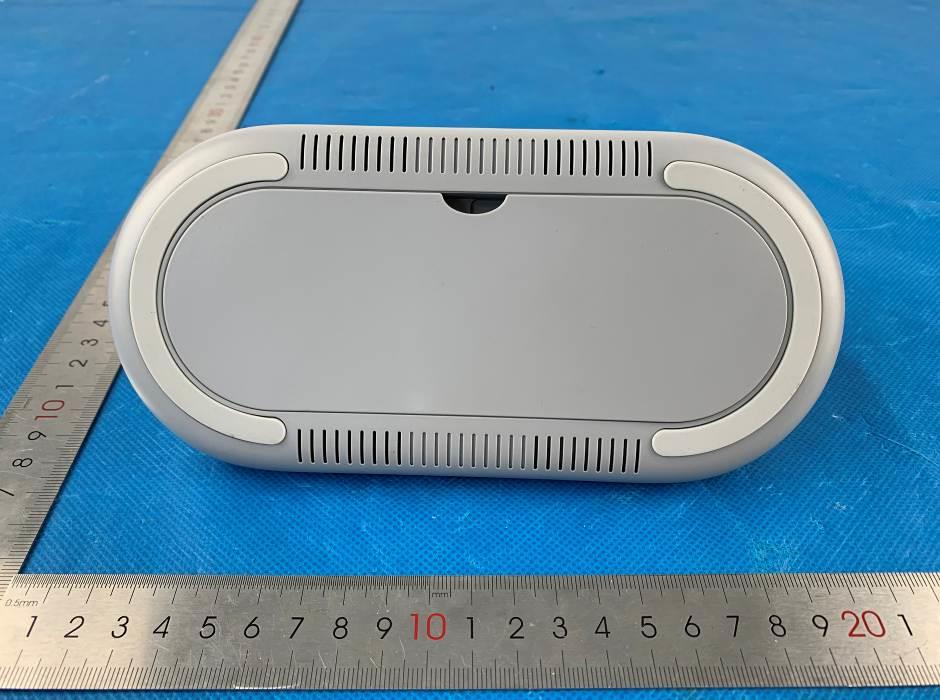

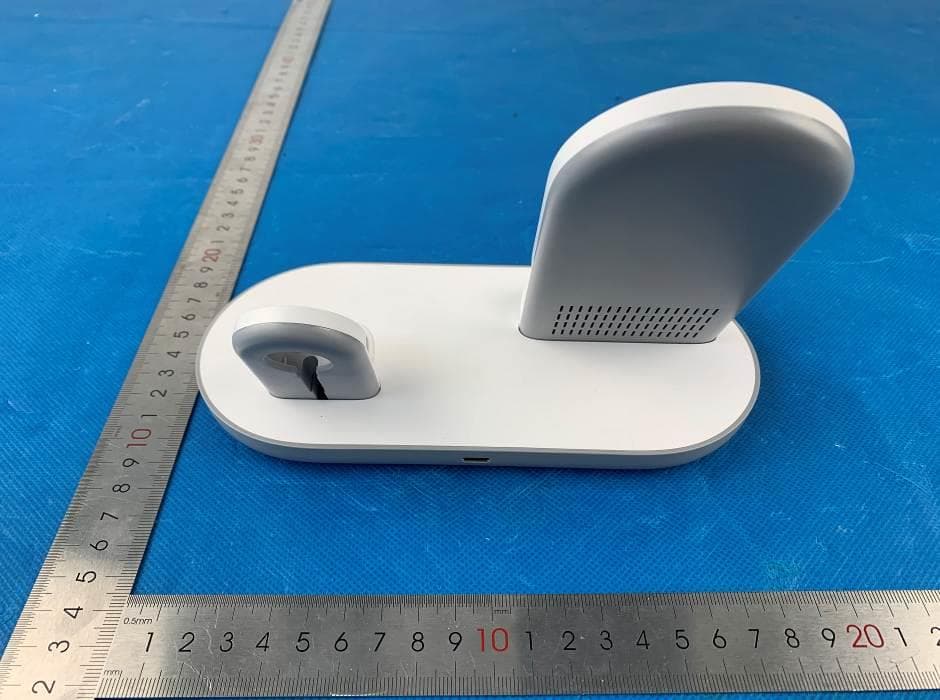

1 - Page 1 of 5 - Report No.: MTi20072903-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model LC-A3) Photo 2 1 - Page 2 of 5 - Report No.: MTi20072903-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 5 - Report No.: MTi20072903-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 1 - Page 4 of 5 - Report No.: MTi20072903-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 1 - Page 5 of 5 - Report No.: MTi20072903-7E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 9 ----END OF REPORT----
