2ATIHEPT27Bluetooth wireless earbuds

User Manual True Wireless Earbuds English Deutsch Français Español Italiano 01~13 14~27 28~41 42~55 56~69 Contents Model: EP-T27 Aukey Technology Co., Ltd. www.aukey.com | [email protected] Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, 518111 China FCC ID: 2ATIHEPT27 IC:24100-EPT27 Made in China Thank you for purchasing the AUKEY EP-T27 True Wireless Earbuds. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number. True Wireless Earbuds Charging Case Three Pairs of Ear-Tips (S/M/L) USB-A to C Cable User Manual Quick Start Guide Warranty Card Package Contents Product DiagramSpecifications Earbuds Getting StartedTurning On / Off Pairing Charging Fully charge the charging case before first use. To charge, connect the case to a USB charger or charging port with the included USB-A to C cable. When the charging indicator light on the outside of the case is blue, the case is fully charged. Charging takes around 2 hours, and after being fully charged, the case can fully charge the earbuds 4 times. The earbuds should be stored in the case when not in use. Starting with the earbuds in the case: 1. 2. 3. 4. Open the lid of the charging case. Both earbuds will turn on automatically and connect with each other Turn on the pairing function on the device you want to pair with the earbuds From the list of available devices, find and select “AUKEY EP-T27” If there is a pop-up asking you to confirm the connection, tap “Pair” Using the Left/Right Earbud Only Starting with the earbuds in the case: 1. 2. 3. Take the left/right earbud out Turn on the pairing function on the device you want to pair with the earbud From the list of available devices, find and select “AUKEY EP-T27” Regular Use After Pairing Once the earbuds are successfully paired with your device, they can be switched on and off as follows: ● ● Open the lid of the charging case, and both earbuds will turn on and connect with each other automatically To power off, put the earbuds back in the charging case and close the lid, and they will begin charging Notes ● ● ● ● Once paired, you can wirelessly stream audio from your device to the earbuds. Music will automatically pause when you receive an incoming phone call and resume once the call has ended. When you turn on the earbuds, they will automatically reconnect to the last-paired device or enter pairing mode if no paired device is found In pairing mode, the earbuds will automatically turn off after 5 minutes if no devices are paired If one of the earbuds has no sound output, put both earbuds back into the charging case and close the lid, then follow the steps to clear the previous pairing list to reset The wireless operating range is 10m (33ft). If you exceed this range, the earbuds will disconnect from your paired device. The connection will be re-established if you re-enter the wireless range within 2 minutes Clearing the Pairing List Starting with the earbuds in the case: 1. 2. Take both earbuds out of the charging case, and the earbuds will turn on. Touch and hold on the touch-sensitive panels on both earbuds for 6 seconds to turn them back off Touch and hold on the touch-sensitive panels on both earbuds for 10 seconds. The earbuds will turn on, clear their pairing list, and then enter pairing mode Löschen der Pairing-Liste Die Kopfhörer befinden sich im Lade-Case: 1. 2. Nehmen Sie beide Ohrhörer aus dem Lade-Case. Diese schalten sich daraufhin ein. Halten Sie die berührungssensitiven Bereiche beider Ohrhörer 6 Sekunden lang gedrückt, um sie wieder auszuschalten Halten Sie die berührungssensitiven Bereiche beider Ohrhörer 10 Sekunden lang gedrückt. Die Ohrhörer schalten sich ein, die Pairing-Liste wird gelöscht und der Pairing-Modus wird aktiviert. Effacer la liste de jumelage En commençant par les écouteurs dans le boîtier: 1. 2. Retirez les deux écouteurs de l’étui de chargement et les écouteurs s’allumeront. Appuyez de manière prolongée sur les panneaux tactiles des deux écouteurs pendant 6 secondes pour les eteindres. Appuyez de manière prolongée sur les panneaux tactiles des deux écouteurs pendant 10 secondes. Les écouteurs s’allumeront, effaceront leur liste de couplage, puis entreront en mode de couplage Eliminar la lista de emparejamiento Comience con los auriculares en el estuche: 1. 2. Saca ambos auriculares del estuche de carga para encenderlos. Mantén presionados los paneles táctiles de ambos auriculares durante 6 segundos para apagarlos Mantén presionados los paneles táctiles de ambos auriculares durante 10 segundos. Los auriculares se encenderán, borrarán tu lista de emparejamiento y luego activarán el modo de emparejamiento Cancellazione dell'elenco degli accoppiamenti Iniziare dagli auricolari nel case: 1. 2. Togliere entrambi gli auricolari dalla custodia di ricarica e gli auricolari si accenderanno. Tenere premuti i pannelli sensibili al tatto di entrambi gli auricolari per 6 secondi per riaccenderli. Toccare e tenere premuti i pannelli sensibili al tatto di entrambi gli auricolari per 10 secondi. Gli auricolari si accenderanno, cancelleranno la loro lista di accoppiamento e poi entreranno in modalità di accoppiamento Controls & LED Indicators Streaming Audio Taking Calls For the earbuds and your device to establish a connection, you need to put them both in pairing mode. Please follow the instructions in the Pairing section of this manual. I’ve connected the earbuds with my smartphone but can’t hear any sound Double-check the volume level on your smartphone and the earbuds. Some smartphones require you to set up the earbuds as an audio output device before the audio can be transmitted. If you’re using a music player or other device, please make sure it supports the A2DP profile. The sound isn’t very clear or the caller can’t hear my voice clearly Adjust the volume on your smartphone and the ear…

Text truncated - open the document above for the full version.

Aukey Technology Co., Ltd. Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, 518111 China Agent Authorization Company: Aukey Technology Co., Ltd. Address: Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, 518111 China Product Name: wireless earbuds Model Number(s): EP-T27 Product Description: Bluetooth wireless earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr.16, 2021 Name: Jiaguang Zhou Title: General Manager Company: Aukey Technology Co., Ltd.

Aukey Technology Co., Ltd. Room 102, Building P09, South China City Electronic trading center, Longgang District, Shenzhen, 518111 China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr.16, 2021 Subject; Request for Confidentiality FCC ID: 2ATIHEPT27 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jiaguang Zhou Title: General Manager

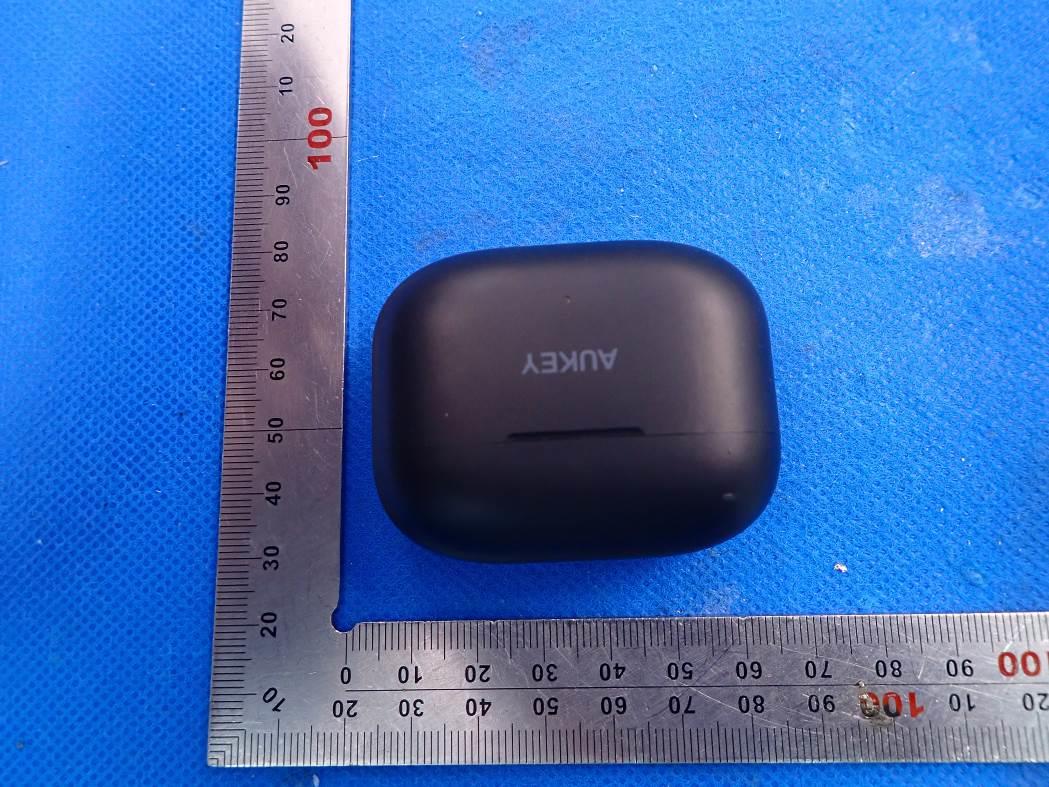

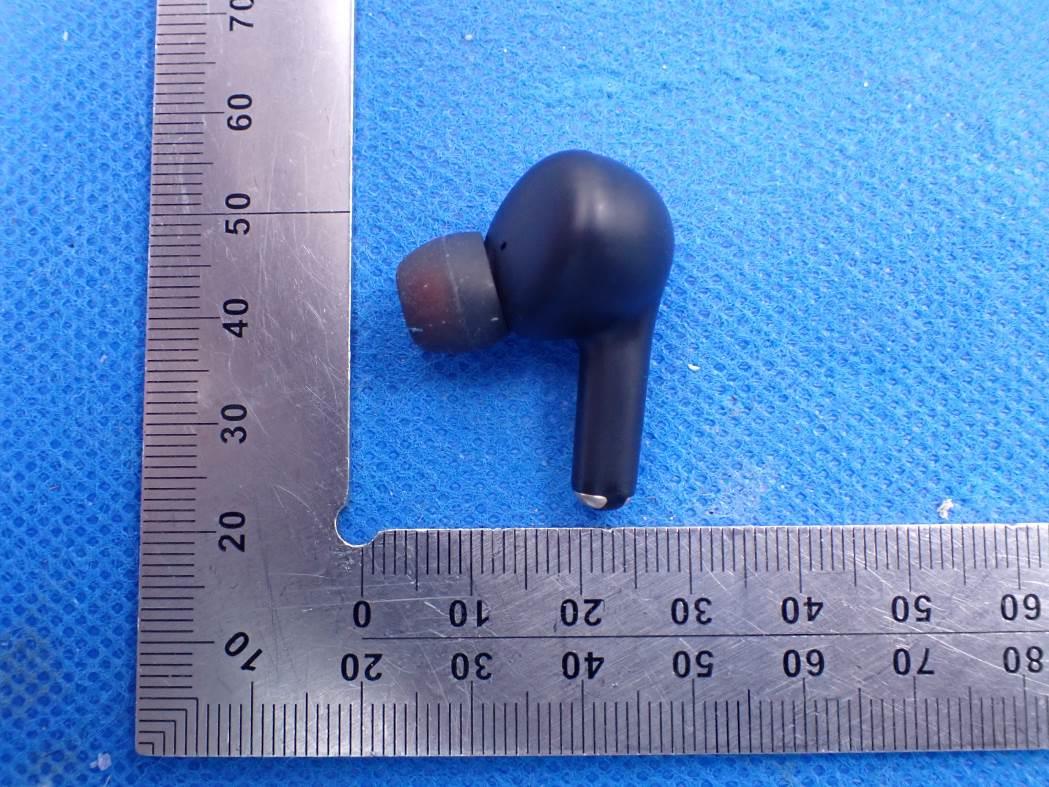

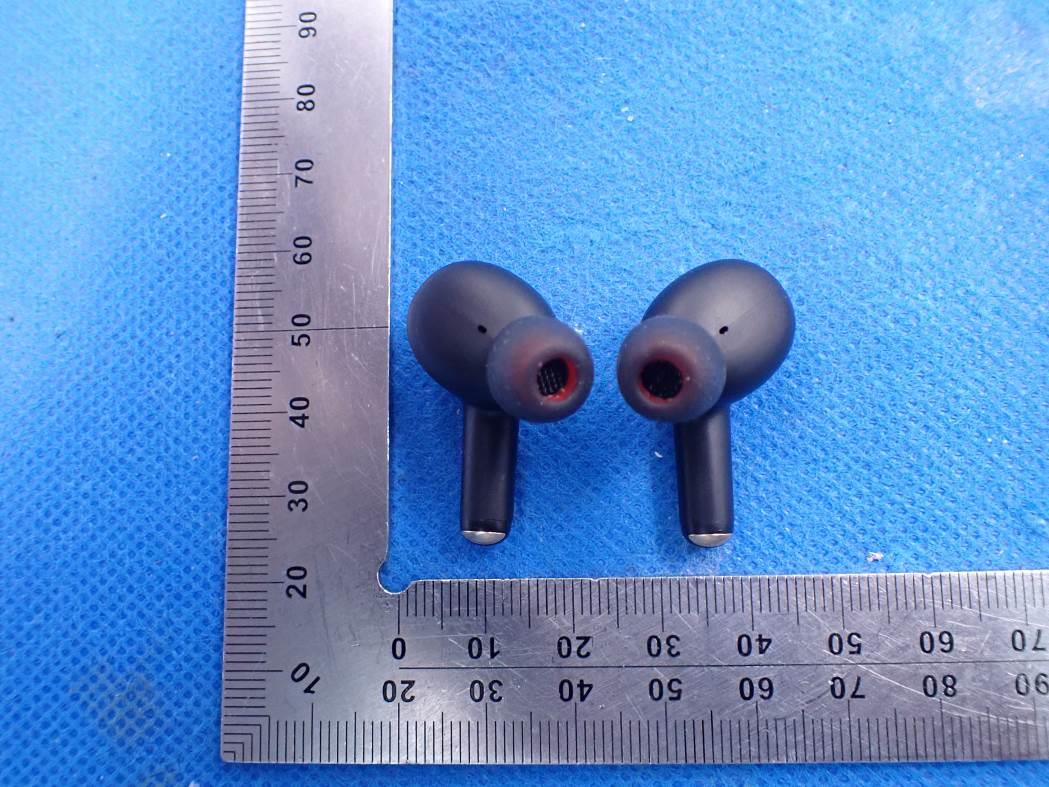

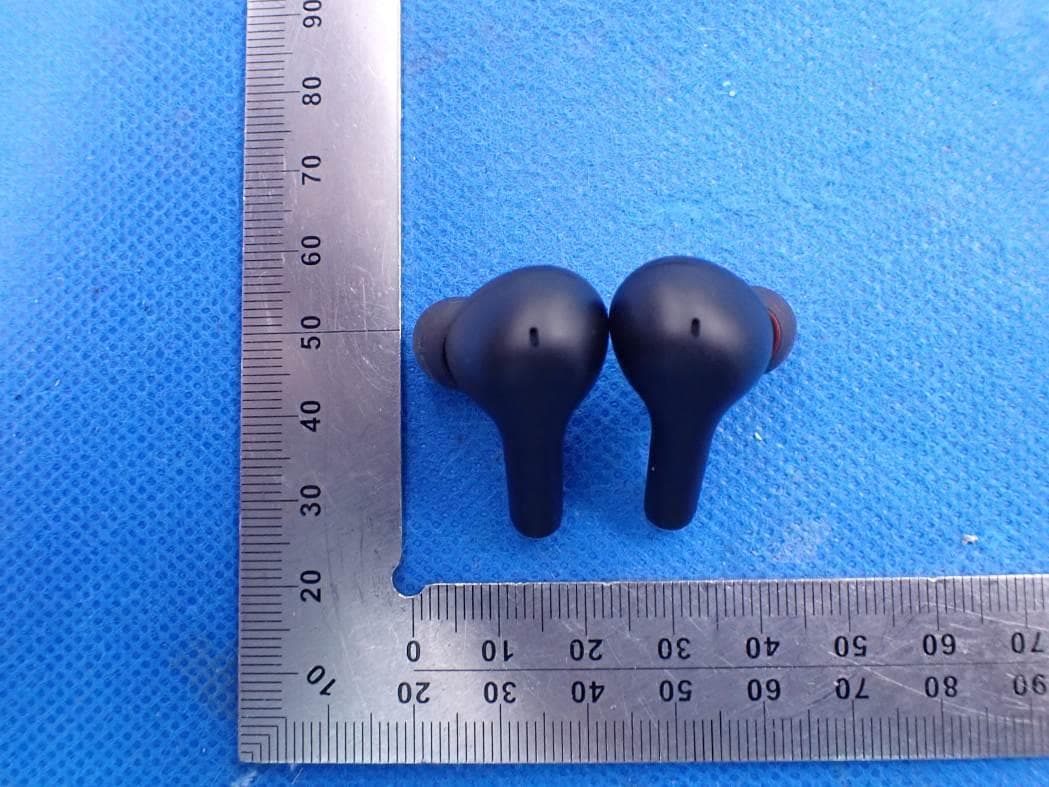

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Right VIEW OF EUT(PORT) Charging Dock TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(port)-1 VIEW OF EUT(port)-2

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Charging Dock OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description wireless earbuds Model Name EP-T27 FCC ID 2ATIHEPT27 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =3.272dBm=2.12mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.12mW /5mm) .[√2.480GHz)]=0.67<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required. Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Page 1 of 83 FCC Test Report Report No.: AGC08574210402FE03 FCC ID : 2ATIHEPT27 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : wireless earbuds BRAND NAME : AUKEY MODEL NAME : EP-T27 APPLICANT : Aukey Technology Co., Ltd DATE OF ISSUE : Apr. 16, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC08574210402FE03 Page 2 of 83 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 16, 2021 Valid Initial Release Report No.: AGC08574210402FE03 Page 3 of 83 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 26 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 26 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 26 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 27 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 33 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 33 Report No.: AGC08574210402FE03 Page 4 of 83 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 33 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 33 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 33 10. RADIATED EMISSION ................................................................................................................................. 46 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 46 10.2. TEST SETUP ......................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 49 10.4. TEST RESULT........................................................................................................................................ 49 11. NUMBER OF HOPPING FREQUENCY ...................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC08574210402FE03 Page 56 of 83 EUT wireless earbuds Model Name EP-T27 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC08574210402FE03 Page 57 of 83 EUT wireless earbuds Model Name EP-T27 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC08574210402FE03 Page 58 of 83 EUT wireless earbuds Model Name EP-T27 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08574210402FE03 Page 59 of 83 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08574210402FE03 Page 60 of 83 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.885 29*4 334.660 400 Middle 2.885 27*4 311.580 400 High 2.885 27*4 311.580 400 Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08574210402FE03 Page 61 of 83 TEST PLOT OF LOW CHANNEL Report No.: AGC08574210402FE03 Page 62 of 83 TEST PLOT OF MIDDLE CHANNEL Report No.: AGC08574210402FE03 Page 63 of 83 TEST PLOT OF HIGH CHANNEL Report No.: AGC08574210402FE03 Page 64 of 83 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT CHANNEL CHANNEL SEPARATION LIMIT RESULT MHz Pass Hopping mode 1.001 20 dB BW TEST PLOT FOR FREQUENCY SEPARATION Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08574210402FE03 Page 65 of 83 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC08574210402FE03 Page 66 of 83 CONDUCTED TEST SETUP Report No.: AGC08574210402FE03 Page 67 of 83 APPENDIX B: PHOTOGRAPHS OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT Report No.: AGC08574210402FE03 Page 68 of 83 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC08574210402FE03 Page 69 of 83 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC08574210402FE03 Page 70 of 83 RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Report No.: AGC08574210402FE03 Page 71 of 83 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC08574210402FE03 Page 72 of 83 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.…

Text truncated - open the document above for the full version.

Report No.: AGC08574210402FE03 Page 77 of 83 INTERNAL VIEW OF EUT-4 Charging Dock TOP VIEW OF EUT BT Antenna Report No.: AGC08574210402FE03 Page 78 of 83 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC08574210402FE03 Page 79 of 83 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC08574210402FE03 Page 80 of 83 RIGHT VIEW OF EUT VIEW OF EUT(port)-1 Report No.: AGC08574210402FE03 Page 81 of 83 VIEW OF EUT(port)-2 OPEN VIEW OF EUT Report No.: AGC08574210402FE03 Page 82 of 83 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC08574210402FE03 Page 83 of 83 INTERNAL VIEW OF EUT-2 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under …
