2ATJZ-WSU43Wireless solar rear view system

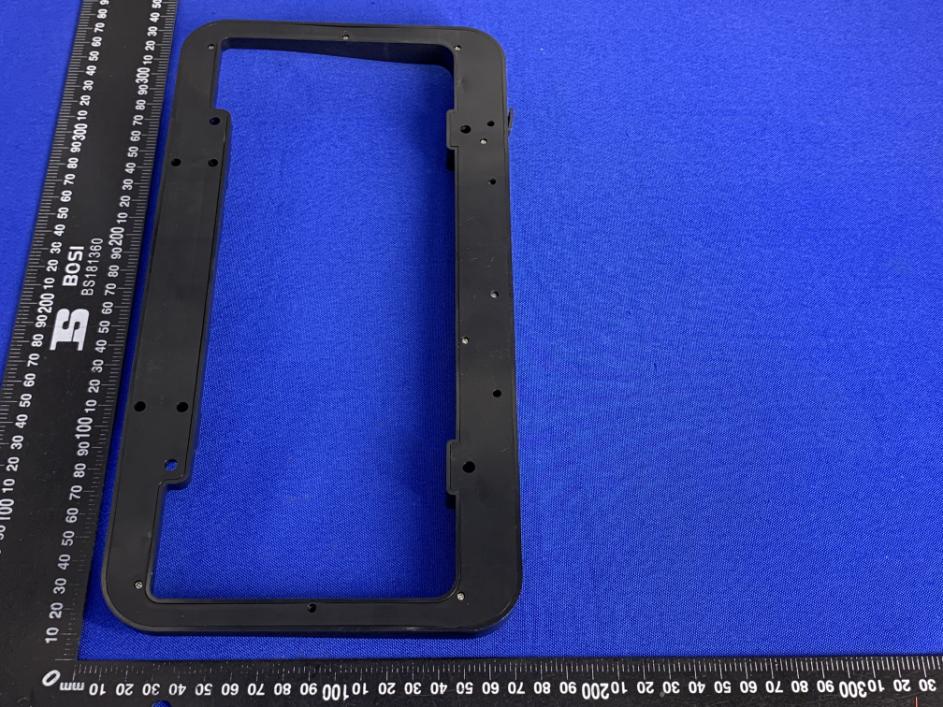

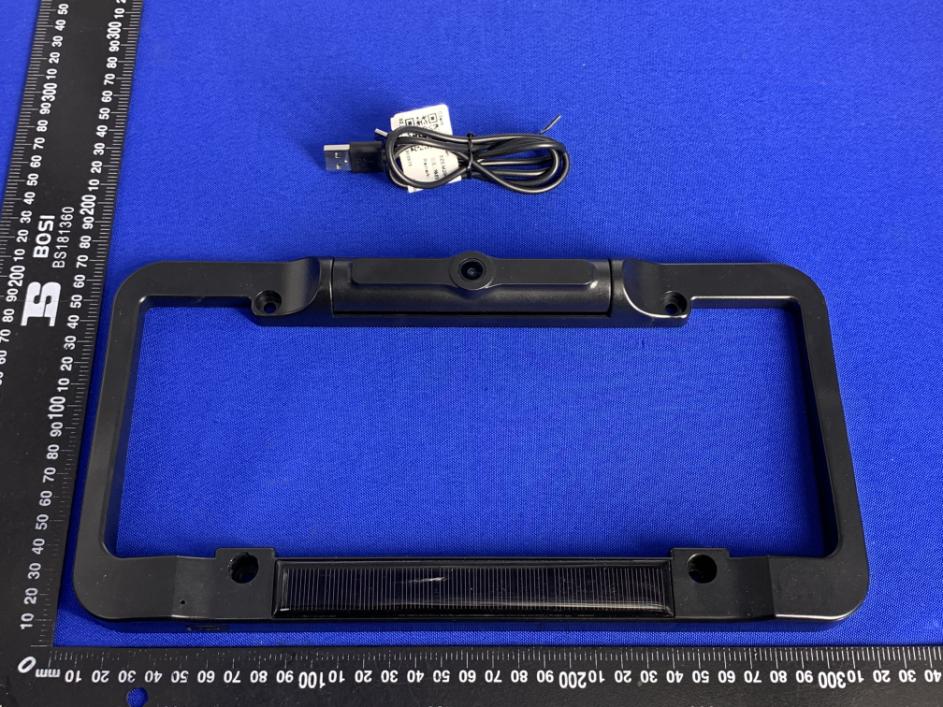

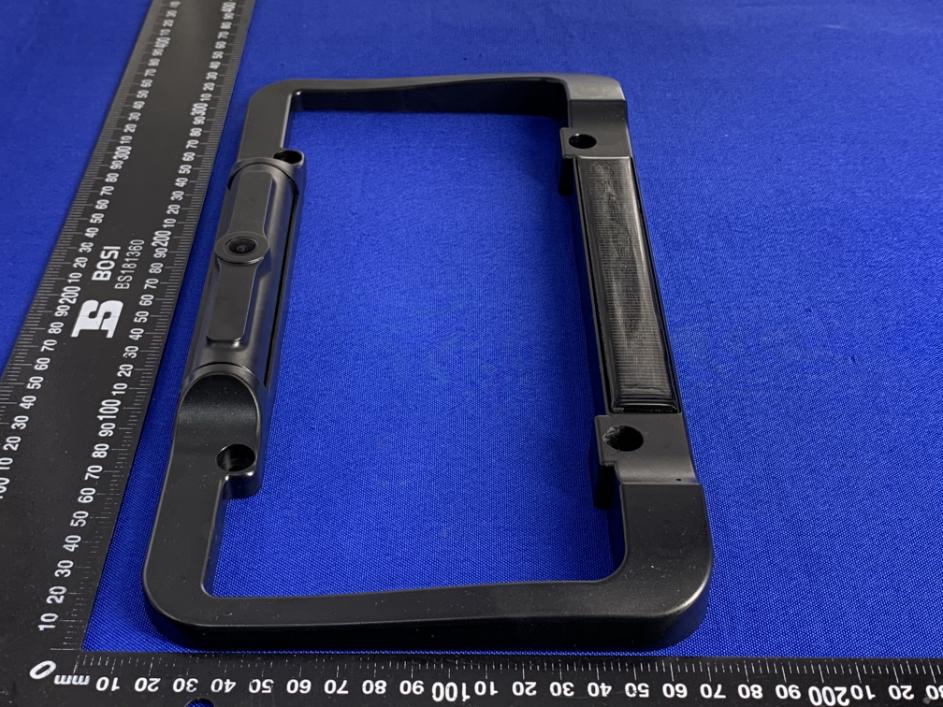

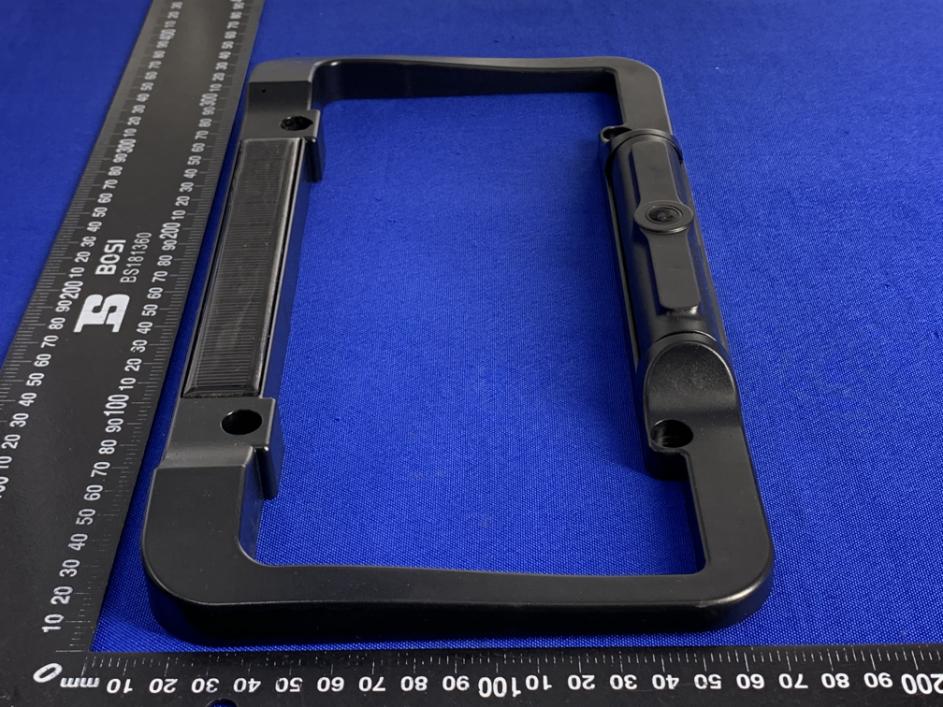

User Manual WSU43 Wireless solar rear view system SUNWAYI 100% DIY, intalls in minutes User Manual Version 1.0 (neutral) NO DRILLING / NO SPLICING No Wire / All-in-One Wireless Solar Charging Wireless SolarPower RearVision Low Power Consumption INTRODUCTION Welcome Thanks for your choosing WSU43 product, which provides value and quality. Please read this User Manual carefully before using the product. Wireless SolarPower RearVision can display image behind the vehicle and can be used when backing up or any time you want to view behind the vehicle (even while your vehicle is in park). TABLE OF CONTENT 01.CONPONENTS 1. All-in-one camera with built-in battery and solar panel 2. 4.3 inch monitor 4. power cord with a Touch 5. USB cord 6. screw & plate washer & hex/nut (4pcs) 12 Table of Content 01 Components ----------------------------------------2 02 Getting Started ------------------------------------3 03 Installation ------------------------------------------4 04 Monitor Mount --------------------------------------5 05 Operation -------------------------------------------5 06 Buttons & Setting ----------------------------------6 08 Information ------------------------------------------9 09 Specification ---------------------------------------10 10 Disclaimer ------------------------------------------11 11 Warranty Info --------------------------------------12 12 Trouble Shooting ---------- -----------------------13 13 Care & Maintenance -----------------------------14 07 Interface Icon --------------------------------------8 Botton for Rearview (as standby reversing trigger) 3. holder of monitor 7. Screw & Tool 02. GETTING STARTED Remove the whole Wireless SolarPower RearVision WSU43 packing or assembly and make sure all components are included. 4 Charge the All-in-one camera’s built-in battery 1. Connect the supplied USB cord to the micro USB port of the All-in-one camera. 2. Plug the USB cable into any standard USB charger with an output rating of 500mA or higher. 3. Charge 2 to 5 hours. Under normal use, the All-in-one camera maintains a charge with exposure to sunlight. A battery status indicator is provided on the monitor when the camera is in use. If you’re storing your vehicle in a garage ( or not exposing the camera to sunlight on a regular basis) for more than one month, you may need to recharge it via the micro USB port. Camera Installation 1. Check the wireless function 1. Shake the camera in the air. 2. Touch the Monitor buttom quickly and check the image after the monitor is powered. Or touch the “Touch for Rearview” button on the car charge adapter to trigger the monitor to work, check the image after the monitor is powered. 03. INSTALLATION 3 Hex Nut PM6x30mm Plate Washer ø13xM6x1mm X4 Hex/Nut(female)ø10xM6x5.8mm X4 A B C 110° Note All-in-one camera has to be waken up from sleeping status by little vibtation. * In the process of use, there is wireless interference from outside. If no connection normally, the device will shut off automatically 10 seconds later. Then please touch the “Touch for Rearview” button go turn it on. * Camera Angle To adjust the camera angle for ideal angle if the default angle (such as position A) is not good, just use your fingers to hold the camera house and move the Lens to position B, position C, or other angle. 70° 50° 90° A B C 90° 55° 55° B Position 35° 145° 70° 55° 55° A Position 125° 15° 50° 50° 55° C Position 0° 105° Note Please note when rotating the lens: hold the license plate holder with one hand, and the outer frame of the camera with the other hand and rotate up or down to make the best Angle. * 05.OPERATION Using the RearVision WSU43 1. Switch your 12-volt DC power port on with your ignition, the monitor wil start work accordingly, the video signal will be sent from camera and will be displayed on the monitor. The image is set to time out in 30 seconds. However if you wish to shut the image off manually, just touch the “Touch for Rearview” Button on the monitor again anytime to stop at once. 2. If you want to see the backup image when driving your car , just touch the “Touch for Rearview” Button on the top of monitor (see figure 1), or touch the “Touch for Rearview” button of the cigarette lighter adapter(see figure 2). 3. When the vehicle is shut off, power is removed from the monitor and the monitor will shut off automatically, and the camera will stop work. Note: After you have been staying inside vehicle quietly (eg. sleeping) with vehicle engine stopping, you want to see the backup image but only put your vehicle key on the ACC -ON position (no starting the engine), there will have no image on the monitor after touching the starting button. So you have to give the vehicle a light vibration (such as re-open and shut vehicle door, or tap somewhere lightly), then touch “Touch for Rearview” button to start work. If you want the RearVision WSU43 to keep working after 30 seconds (for example, you cannot finish reversing your vehicle during 30 seconds), you have to touch the “Touch for Rearview” button on the monitor or the cigarette lighter adapter for another 30 seconds. * * 6 05.OPERATION 04.MONITOR MOUNT 1. Two way to mount the monitor 1) Stick on the dash board: Fix holder bracket A (see figur 1) to the install position of monitor via screw tool, choose and clean a right place on the dash board, tear the paper of the monitor holder’s sticky tape, put and press the holder on the dash board. 2) Socket on the window shield: Fix holder bracket B (see figur 2) to the monitor via screw tool, choose and clean a right place on the window shield. With the suction lever in the released position, press the suction cup against the windshield. Press the suction lever toward the suction cup to lock the mount. To adjust the angle of monitor, loosen the collar on the ball joint, retighten in the desired position. 06.BUTTON & SETTING Function of the monitor backup buttons 1.The middle button: Short Press to enter monitor menu setting. Long Press …
