2ATKO-BAR800Soundbar

CINEMA 800 SOUND BAR 1 INSIDE CONTENU • CONTENIDO • INHALT • CONTENUTO • CONTEÚDO • ⡗♦ Sound Bar Subwoofer RemoteWall-Mount Template MODE HDMI 1HDMI 2 Sound Bar Barre de son Barra de sonido Sound Bar Sound Bar Barra sonora 㙣䀀䈦㤨 Subwoofer Caisson de graves Subwoofer Subwoofer Subwoofer Subwoofer ᑡ䈦⥸ Wall-Mount Template Gabarit de montage mural Plantilla de montaje en la pared Wandbefestigungsschablone Dima per il fissaggio a parete Modelo para instalação na parede ᡂ႘⠩ပ Remote Télécommande Control remoto Fernbedienung Telecomando Controle remoto 䅅␒㄁ Wall Mount Brackets Supports pour montage mural Soportes de montaje en la pared Wandhalterungen Staffe per montaggio a parete Suportes para montagem em parede ߑКж߫ૼ Wall Mount Screws vis pour montage mural Tornillos de 1/4 plg. 1/4” Schrauben Viti per montaggio a parete Parafusos 1/4” 1/4” ᅯఖ Power Cord Cordon d’alimentation Cordón de alimentación Gleichstromkabel Cavo di alimentazione Cabo de alimentação ˢȸǗ۷Ϟ HDMI Cable Câble HDMI Cable de HDMI HDMI-Kabel Cavo HDMI Cabo HDMI HDMI Ǘᣑ Power Cord (2)HDMI Cable Wall Mount Brackets (2) Wall Mount Screws (2) SOUND BAR CONTROLS BARRE DE SON • BARRA DE SONIDO • SOUND BAR • SOUND BAR • BARRA SONORA • 㙣䀀䈦㤨 VOL —VOL + On / Off Volume Down Source Volume Up On / Off Sous tensio / Hors tension Encendido / Apagado Ein / Aus Acceso / Spento Ligar / Desligar ⍦ᡈ Source Select (Toggle) Sélection de la source (commutation) Selección de fuente (cíclica) Quellenwahl (Umschalten) Selezione segnale (in sequenza ciclica) Seleção da fonte (Alternar) Ǘ۷ ̋Պ졭Нҕ졮 Volume Down Volume bas Bajada de volumen Leiser Riduzione volume Diminuir o volume 䈦╵⅙㥕 Volume Up Volume haut Subida de volumen Lauter Aumento volume Aumentar o volume 䈦╵䐖ᐅ TV MOUNT MOUNTING MONTAGE POUR TÉLÉVISEURS • MONTAJE DEL SOPORTE DEL TELEVISOR • TV-WANDBEFESTIGUNG • MONTAGGIO DEL SUPPORTO DEL TELEVISORE • MONTAGEM EM SUPORTE DE TV • ᒇ㑁ℴ䘨 BRACKET NOT INCLUDED SUPPORT MON INCLUS NO SE INCLUYE EL SOPORTE HALTERUNG NICHT IM LIEFERUMFANG ENTHALTEN STAFFA NON INCLUSA SUPORTE NÃO INCLUÍDO ᅡး⑘䔥ℴ Do not hang this equipment on the wall higher than than two meters. 2 DIRECT WALL MOUNTING MONTAGE MURAL DIRECT • MONTAJE DIRECTO EN LA PARED • DIREKTE WANDBEFESTIGUNG • MONTAGGIO DIRETTO A PARETE • MONTAGEM DIRETA NA PAREDE • 䔵∙ᄃ㍃䘨 2 TV 3 TV SOUND BAR Figure 1Figure 2 SOUND BAR 4 1 { 9/16” 14.2875mm SUBWOOFER PLACEMENT POSITIONNEMENT DU CAISSON DE GRAVES • UBICACIÓN DEL SUBWOOFER • SUBWOOFER-PLATZIERUNG • COLLOCAZIONE DEL SUBWOOFER • POSIÇÃO DO SUBWOOFER • ᑡ䈦⥸ᅢ䕓 A A B B OR Corner placement will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output. Une position en coin augmentera le volume des graves, tandis qu’une position au milieu d’un mur, ou au milieu de la pièce, réduira le volume des graves. Poner el subwoofer en una esquina aumenta el rendimiento de bajos; ponerlo al centro de la pared o fuera de la sala lo disminuye. Platzierung in einer Ecke steigert die Bassleistung, während eine Platzierung an der Mitte einer Wand oder von den Wänden entfernt die Bassleistung verringert. Collocandolo in un angolo si aumenta il livello dell’uscita ai bassi, mentre se lo si colloca presso il centro di una parete o lontano dalle pareti si diminuisce tale livello. Se a unidade for colocada em um canto ela aumentará a reprodução de graves. Se for colocada no meio de uma parede, ou em um espaço aberto no ambiente, a reprodução de graves diminuirá. 㑶vii䈕,ᑡ䈦⥸ᙁ䕓䎈∇✆㞓䕓2䐒もᑡ䈦㑘ጔ╵ ⁅䐖℥9 3 CONNECTING TO POWER PUISSANCE DE CONNEXION • CONEXIÓN PODER • VERBINDUNGSSTROM • COLLEGAMENTO ALLA PRESA DI CORRENTE • PODER DE CONEXÃO • ╖∙ᒇ䍐 Solid Continu Continuo Dauerhaft Luce fissa Constante ሱ╷ Sound Bar - Power On 30 ft. (9m) MAX 1 3 2 SUBWOOFER WIRELESS CONNECTION CONNEXION SANS FIL DU CAISSON DE GRAVES • CONEXIÓN INALÁMBRICA DEL SUBWOOFER • DRAHTLOSE VERBINDUNG ZUM SUBWOOFER • CONNESSIONE WIRELESS CON IL SUBWOOFER • CONEXÃO SEM FIO DO SUBWOOFER • ᑡ䈦⥸㠨㤣╖∙ 4 2 Hold 3 Seconds (Sub) Appuyer pendant 3 secondes (Caisson de Graves) Mantenga oprimido durante 3 segundos (Subwoofer) 3 Sekunden gedrückt halten (Subwoofer) Tenere premuto per 3 secondi (Subwoofer) Manter pressionado por 3 segundos (Subwoofer) ၃ኂ3⠇Cᑡ䈦⥸D 4 1 ANALOG IN OPTICAL IN 3 Hold 3 Seconds (Sound Bar) Appuyer pendant 3 secondes (Barre de Son) Mantenga oprimido durante 3 segundos (Barra de Sonido) 3 Sekunden gedrückt halten (Sound Bar) Tenere premuto per 3 secondi (Sound Bar) Manter pressionado por 3 segundos (Barra Sonora) ၃ኂE⠇C 㙣䀀䈦㤨D Solid Continu Continuo Dauerhaft Luce fissa Constante ሱ╷ Flashing Clignotant Destello Blinkt Lampeggiante Intermitente ㌩㔈 SUBWOOFER RECONNECT RECONNECTER • RECONECTAR • ERNEUT VERBINDEN • RICONNESSIONE • RECONECTAR • 䕴㦈╖∙ CONNECTING WIRED SUBWOOFER CONNEXION CÂBLÉE DU CAISSON DE GRAVES • CONEXIÓN DE SUBWOOFER DE CABLE • KABELANSCHLUSS EINES SUBWOOFERS • COLLEGAMENTO A UN SUBWOOFER CABLATO • CONEXÃO DO SUBWOOFER COM FIO • ╖∙䊄㤣ᑡ䈦⥸ ANALOG IN OPTICAL IN LFE IN CROSSOVER / LOW PASS 125 Hz Connecting an additional wired sub to your Cinema 800 sound bar will NOT mute the included wireless sub if connected. If you wish to replace the included wireless sub with a wired sub, be sure to disconnect the included wireless sub from AC power. Le fait de connecter un caisson de graves câblé supplémentaire à la barre de son de votre Cinéma 800 ne mettra pas sur mode silencieux le caisson de graves sans fil inclus s’il est connecté. Si vous désirez remplacer le caisson de graves sans fil inclus par un caisson de graves câblé, assurez-vous d’avoir déconnecté de l’alimentation électrique le caisson de graves sans fil inclus. Si el subwoofer inalámbrico incluido está vinculado, conectar a la barra de sonido Cinema 800 un subwoofer de cable NO silencia el subwoofer inalámbrico. Si desea cambiar el subwoofer inalámbrico incluido por un subwoofer de cable, desenchufe el subwoofer inalámbrico de la red de alimentación de CA. Wenn …

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Soundlab Technology Company Limited Address: No.101,202,Building 1, Microlab Industrial Park, No.2 Baozi South Road, Kengzi, Pingshan District, ShenZhen, China Product Name: Soundbar Model Number: Klipsch Cinema 800 Sound Bar FCC Identifier: 2ATKO-BAR800 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: kenny xie Date: 8/27/2020 Title: Certification Engineer Signature of applicant:

C5266091_X10_Ed.1 1/1 Soundlab Technology Company Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/27/2020 Subject: Request for Confidentiality FCC ID: 2ATKO-BAR800 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: kenny xie Title: Certification Engineer

C5266091_X13_Ed.1 1/1 Soundlab Technology Company Limited FCC Software Configuration Control Declaration Date: 08/27/2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Klipsch Cinema 800 Sound Bar Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Signature of applicant Name: kenny xie Title: Certification Engineer

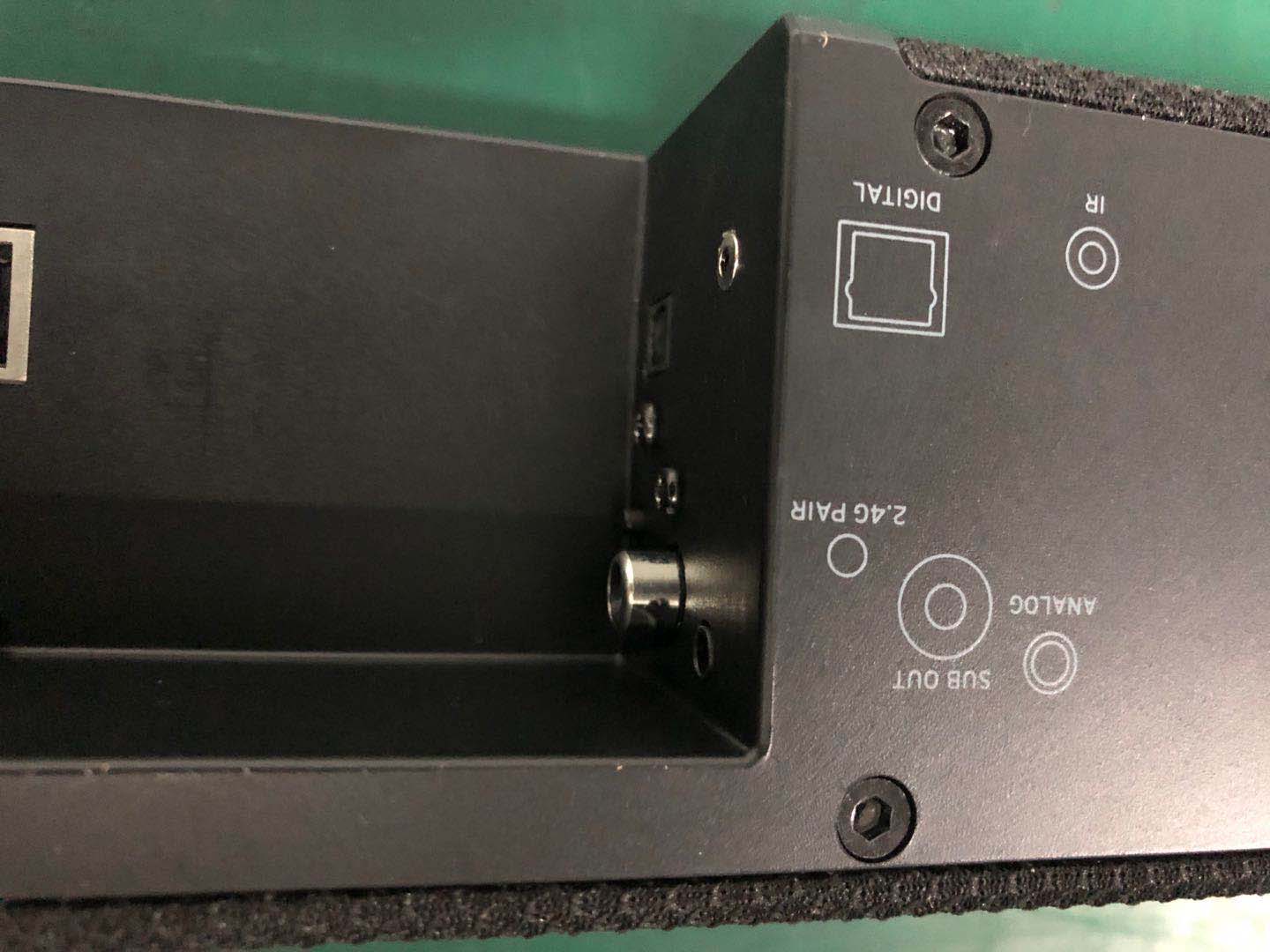

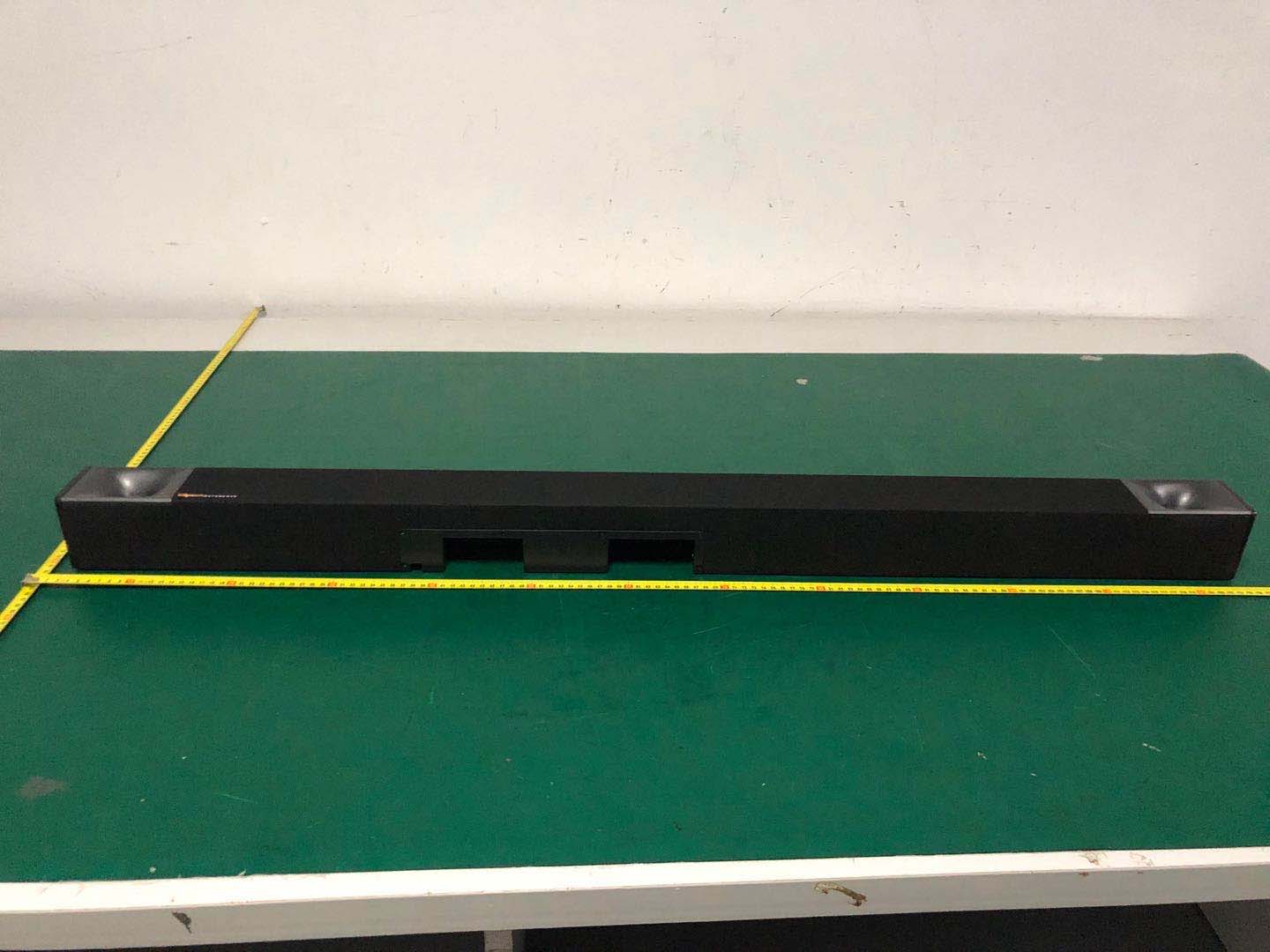

External Photos M/N: Klipsch Cinema 800 Sound bar External Photos M/N: Klipsch Cinema 800 Sound bar External Photos M/N: Klipsch Cinema 800 Sound bar External Photos M/N: Klipsch Cinema 800 Sound bar External Photos M/N: Klipsch Cinema 800 Sound bar

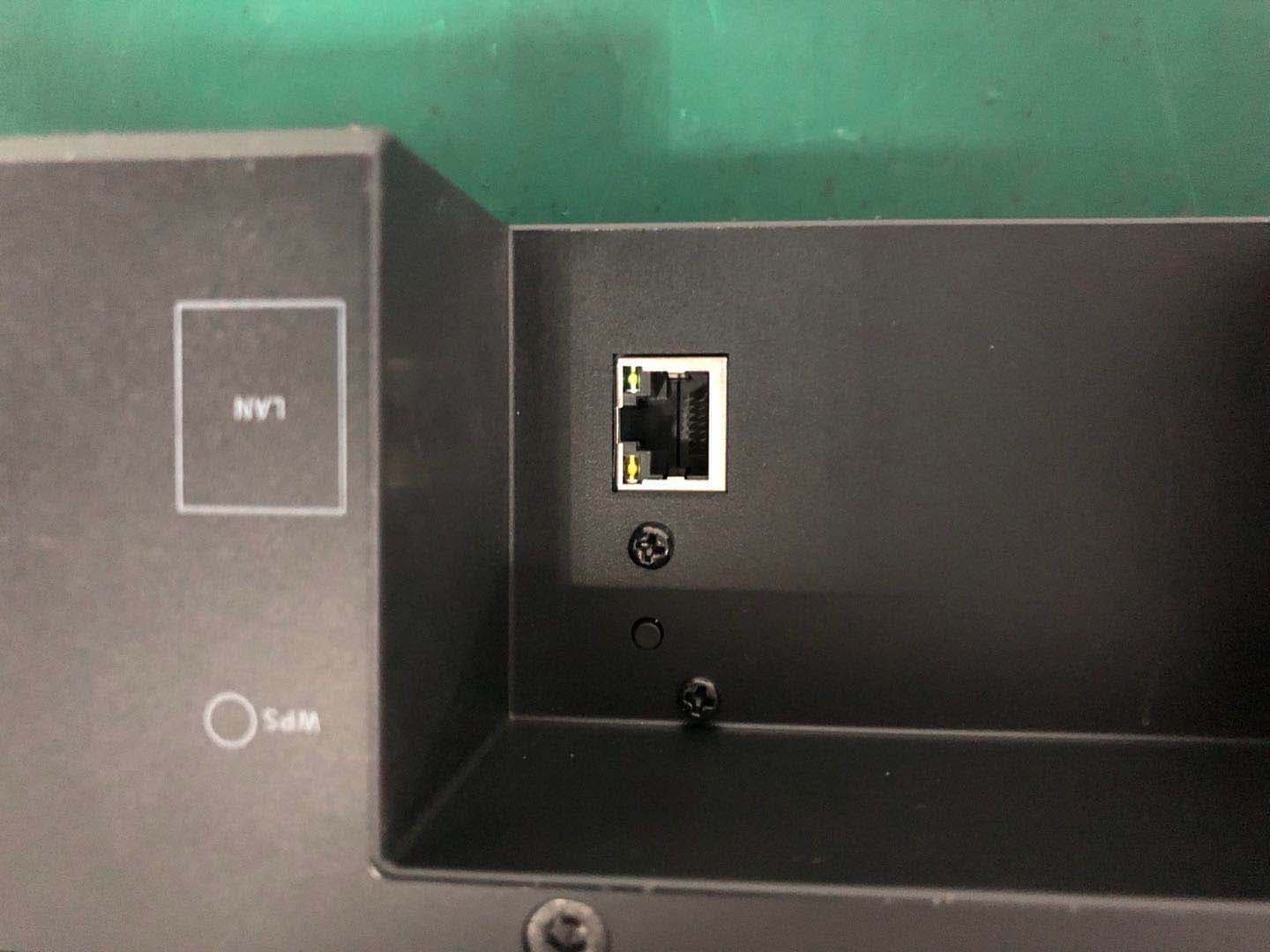

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: FCC ID: 2ATKO-BAR800 IC: 25133-BAR800 Klipsch Cinema 800 Klipsch Cinema 800 Sound Bar LAN WPS AC IN
(
输入

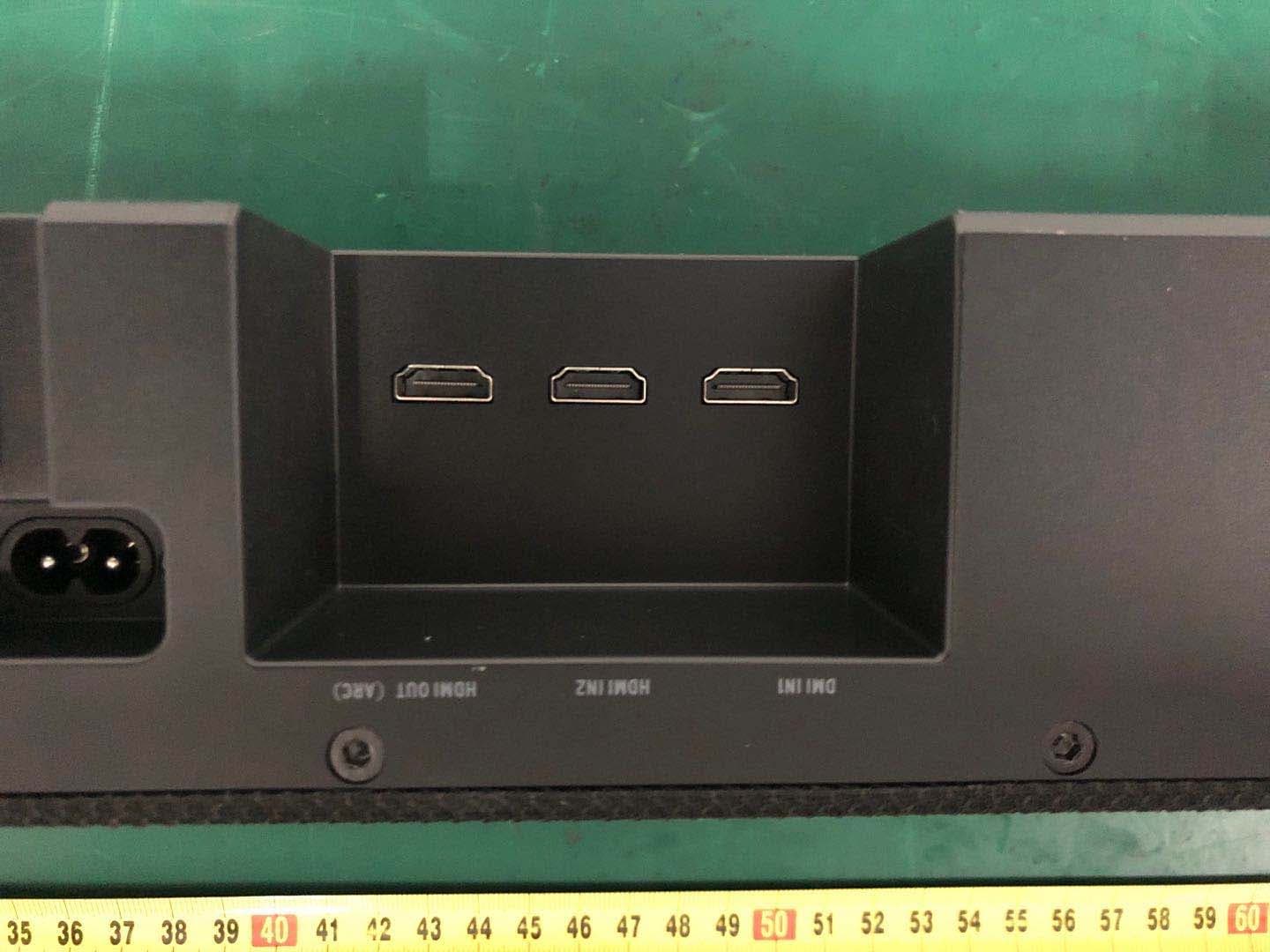

) 100-240V~50/60Hz, 1A HDMI IN1HDMI IN2 HDMI OUT（ARC) Cinema 800 2.4G PAIR RXD TXD Label Location

Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar 2.4G Wireless ANT Connecto r Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar BT/Wi-Fi ANT 2 Connector BT/Wi-Fi ANT 1 Connector Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar Internal Photos M/N: Klipsch Cinema 800 Sound bar

FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 1 of 13 FCC 47 CFR MPE REPORT Soundlab Technology Company Limited Soundbar Model Number: Klipsch Cinema 800 Sound bar FCC ID: 2ATKO-BAR800 Prepared for: Soundlab Technology Company Limited No.101,202,Building 1, Microlab Industrial Park, No.2 Baozi South Road, Kengzi, Pingshan District, ShenZhen, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2008102 Date of Test: Jul. 14~Aug. 18, 2020 Date of Report: Aug. 19, 2020 FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 2 of 13 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 3 of 13 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 4 of 13 2. Conducted Power Result Antenna 1 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 3.68 2.333 3 ±2 2.34 1.71 2441 3.62 2.301 3 ±2 2.34 1.71 2480 3.44 2.208 3 ±2 2.34 1.71 8-DPSK 2402 6.49 4.457 6 ±2 2.34 1.71 2441 6.38 4.345 6 ±2 2.34 1.71 2480 6.20 4.169 6 ±2 2.34 1.71 BLE(1M) 2402 3.65 2.317 3 ±2 2.34 1.71 2440 3.53 2.254 3 ±2 2.34 1.71 2480 3.31 2.143 3 ±2 2.34 1.71 BLE(2M) 2402 3.66 2.323 3 ±2 2.34 1.71 2440 3.54 2.259 3 ±2 2.34 1.71 2480 3.30 2.138 3 ±2 2.34 1.71 IEEE 802.11b 2412 15.45 35.075 15 ±2 2.34 1.71 2437 15.21 33.189 15 ±2 2.34 1.71 2462 14.82 30.339 14 ±2 2.34 1.71 IEEE 802.11g 2412 18.73 74.645 18 ±2 2.34 1.71 2437 18.50 70.795 18 ±2 2.34 1.71 2462 18.12 64.863 18 ±2 2.34 1.71 IEEE 802.11n HT20 2412 19.00 79.433 19 ±2 2.34 1.71 2437 18.89 77.446 18 ±2 2.34 1.71 2462 18.56 71.779 18 ±2 2.34 1.71 IEEE 802.11n HT40 2422 19.79 95.280 19 ±2 2.34 1.71 2437 19.74 94.189 19 ±2 2.34 1.71 2452 19.64 92.045 19 ±2 2.34 1.71 IEEE 802.11a 5180 10.22 10.520 10 ±2 3.28 2.13 5200 11.04 12.706 11 ±2 3.28 2.13 5240 11.10 12.882 11 ±2 3.28 2.13 5260 11.46 13.996 11 ±2 3.28 2.13 5300 11.53 14.223 11 ±2 3.28 2.13 5320 11.59 14.421 11 ±2 3.28 2.13 5500 15.52 35.645 15 ±2 3.28 2.13 5580 15.06 32.063 15 ±2 3.28 2.13 5700 12.87 19.364 12 ±2 3.28 2.13 FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 5 of 13 5745 10.41 10.990 10 ±2 3.28 2.13 5785 11.27 13.397 11 ±2 3.28 2.13 5825 10.72 11.803 10 ±2 3.28 2.13 FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 6 of 13 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11n HT20 5180 10.28 10.666 10 ±2 3.28 2.13 5200 10.15 10.351 10 ±2 3.28 2.13 5240 11.22 13.243 11 ±2 3.28 2.13 5260 11.59 14.421 11 ±2 3.28 2.13 5300 11.65 14.622 11 ±2 3.28 2.13 5320 11.69 14.757 11 ±2 3.28 2.13 5500 15.61 36.392 15 ±2 3.28 2.13 5580 15.15 32.734 15 ±2 3.28 2.13 5700 12.98 19.861 12 ±2 3.28 2.13 5745 10.58 11.429 10 ±2 3.28 2.13 5785 11.42 13.868 11 ±2 3.28 2.13 5825 10.88 12.246 10 ±2 3.28 2.13 IEEE 802.11ac VHT20 5180 10.65 11.614 10 ±2 3.28 2.13 5200 10.49 11.194 10 ±2 3.28 2.13 5240 11.53 14.223 11 ±2 3.28 2.13 5260 11.88 15.417 11 ±2 3.28 2.13 5300 11.93 15.596 11 ±2 3.28 2.13 5320 14.50 28.184 14 ±2 3.28 2.13 5500 14.69 29.444 14 ±2 3.28 2.13 5580 12.84 19.231 12 ±2 3.28 2.13 5700 10.75 11.885 10 ±2 3.28 2.13 5745 11.65 14.622 11 ±2 3.28 2.13 5785 11.11 12.912 11 ±2 3.28 2.13 5825 11.07 12.794 11 ±2 3.28 2.13 FCC ID: 2ATKO-BAR800 EST Technology Co. ,Ltd Report No. ESTE-R2008102 Page 7 of 13 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11n HT40 5190 10.18 10.423 10 ±2 3.28 2.13 5230 11.03 12.677 11 ±2 3.28 2.13 5270 11.57 14.355 11 ±2 3.28 2.13 5310 11.74 14.928 11 ±2 3.28 2.13 5510 15.44 34.995 15 ±2 3.28 2.13 5670 12.43 17.498 12 ±2 3.28 2.13 5755 10.67 11.668 10 ±2 3.28 2.13 5795 11.46 13.996 11 ±2 3.28 2.13 IEEE 802.11ac VHT40 5190 10.30 10.715 10 ±2 3.28 2.13 5230 11.15 13.032 11 ±2 3.28 2.13 5270 11.67 14.689 11 ±2 3.28 2.13 5310 11.84 15.276 11 ±2 3.28 2.13 5510 15.51 35.563 15 ±2 3.28 2.13 5670 12.48 17.701 12 ±2 3.28 2.13 5755 10.76 11.912 10 ±2 3.28 2.13 5795 11.54 14.256 11 ±2 3.28 2.13 IEEE 802.11ac VHT80 5210 10.76 11.912 10 ±2 3.28 2.13 5290 11.81 15.171 11 ±2 3.28 2.13 5530 15.…

Text truncated - open the document above for the full version.

FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 1 of 169 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of Soundlab Technology Company Limited Soundbar Model Number: Klipsch Cinema 800 Sound bar FCC ID: 2ATKO-BAR800 Prepared for: Soundlab Technology Company Limited No.101,202,Building 1, Microlab Industrial Park, No.2 Baozi South Road, Kengzi, Pingshan District, ShenZhen, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2008099 Date of Test: Jul. 14~Aug. 18, 2020 Date of Report: Aug. 19, 2020 FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 2 of 169 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION ........................................................................................................................ 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. The antenna information for EUT .................................................................................................... 6 2. SUMMARY OF TEST ......................................................................................................................... 7 2.1. Summary of test result ...................................................................................................................... 7 2.2. Test Facilities .................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ................................................................ 9 2.4. Assistant equipment used for test ..................................................................................................... 9 2.5. Block Diagram .................................................................................................................................. 9 2.6. Test Mode ....................................................................................................................................... 10 2.7. Channel List .................................................................................................................................... 12 2.8. Power Setting of Test Software ...................................................................................................... 13 2.9. Duty Cycle of Test Signal .............................................................................................................. 14 2.10. Test Equipment List ....................................................................................................................... 18 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ..................................... 20 3.1. Limit ............................................................................................................................................... 20 3.2. Test Setup ....................................................................................................................................... 20 3.3. Spectrum Analyzer Setting ............................................................................................................. 20 3.4. Test Procedure ................................................................................................................................ 21 3.5. Test Result ...................................................................................................................................... 22 3.6. Test Result ...................................................................................................................................... 24 4. MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................... 64 4.1. Limit ............................................................................................................................................... 64 4.2. Test Setup ....................................................................................................................................... 64 4.3. Test Procedure ................................................................................................................................ 64 4.4. Test Result ...................................................................................................................................... 65 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 67 5.1. Limit ............................................................................................................................................... 67 5.2. Test Setup ....................................................................................................................................... 67 5.3. Spectrum Analyzer Setting ............................................................................................................. 67 5.4. Test Procedure ................................................................................................................................ 67 5.5. Test Result ...................................................................................................................................... 68 6. UNWANTED EMISSIONS AND BAND EDGE ..................................................................................... 93 6.1. Limit ............................................................................................................................................... 93 6.2. Test Setup ..........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 47 of 169 U-NII-2C IEEE 802.11n HT20 5580MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11n HT20 5700MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11n HT20 5700MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 48 of 169 U-NII-2C IEEE 802.11ac VHT20 5500MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT20 5500MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT20 5580MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 49 of 169 U-NII-2C IEEE 802.11ac VHT20 5580MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT20 5700MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT20 5700MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 50 of 169 U-NII-2C IEEE 802.11n HT40 5510MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11n HT40 5510MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11n HT40 5670MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 51 of 169 U-NII-2C IEEE 802.11n HT40 5670MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT40 5510MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT40 5510MHz_Ant 2 26dB Bandwidth 26dB Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 52 of 169 U-NII-2C IEEE 802.11ac VHT40 5670MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT40 5670MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT80 5530MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 53 of 169 U-NII-2C IEEE 802.11ac VHT80 5530MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT80 5610MHz_Ant 1 26dB Bandwidth 99% Occupied Bandwidth U-NII-2C IEEE 802.11ac VHT80 5610MHz_Ant 2 26dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 54 of 169 U-NII-3 IEEE 802.11a 5745MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11a 5745MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11a 5785MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 55 of 169 U-NII-3 IEEE 802.11a 5785MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11a 5825MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11a 5825MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 56 of 169 U-NII-3 IEEE 802.11n HT20 5745MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT20 5745MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT20 5785MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 57 of 169 U-NII-3 IEEE 802.11n HT20 5785MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT20 5825MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT20 5825MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 58 of 169 U-NII-3 IEEE 802.11ac VHT20 5745MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT20 5745MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT20 5785MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 59 of 169 U-NII-3 IEEE 802.11ac VHT20 5785MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT20 5825MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT20 5825MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 60 of 169 U-NII-3 IEEE 802.11n HT40 5755MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT40 5755MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11n HT40 5795MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 61 of 169 U-NII-3 IEEE 802.11n HT40 5795MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT40 5755MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT40 5755MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 62 of 169 U-NII-3 IEEE 802.11ac VHT40 5795MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT40 5795MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth U-NII-3 IEEE 802.11ac VHT80 5775MHz_Ant 1 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 63 of 169 U-NII-3 IEEE 802.11ac VHT80 5775MHz_Ant 2 6dB Bandwidth 99% Occupied Bandwidth FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 64 of 169 4. MAXIMUM CONDUCTED OUTPUT POWER 4.1. Limit Band EUT Type Limit U-NII-1 Outdoor Access Point 1W(30dBm) (Max. e.i.r.p≦125mW at any elevation angle above 30 degrees as measured from the horizon) Indoor Access Point 1W(30dBm) Fixed point-to-point Access Point1W(30dBm) Mobile and Portable Client Device250mW(23.98dBm) U-NII-2A All Device 250mW(23.98dBm) or 11dBm+10 log B,Which is lesser. (B is 26dB Bandwidth in MHz) U-NII-2C All Device 250mW(23.98dBm) or 11dBm+10 log B,Which is lesser. (B is 26dB Bandwidth in MHz) U-NII-3 All Device 1W(30dBm) Note: For the Band U-NII-2A and U-NII-2C,the maximum conducted output power limit calculate result refer to sectio…

Text truncated - open the document above for the full version.

FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 82 of 169 U-NII-2C 802.11a IEEE 5500MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11a 5580MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11a 5700MHz ANT 1 ANT 2 FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 83 of 169 U-NII-2C IEEE 802.11n HT20 5500MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11n HT20 5580MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11n HT20 5700MHz ANT 1 ANT 2 FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 84 of 169 U-NII-2C IEEE 802.11ac VHT20 5500MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11ac VHT20 5580MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11ac VHT20 5700MHz ANT 1 ANT 2 FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 85 of 169 U-NII-2C IEEE 802.11n HT40 5510MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11n HT40 5670MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11ac VHT40 5510MHz ANT 1 ANT 2 FCC ID: 2ATKO-BAR800 EST Technology Co., Ltd Report No.ESTE-R2008099 Page 86 of 169 U-NII-2C IEEE 802.11ac VHT40 5670MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11ac VHT80 5530MHz ANT 1 ANT 2 U-NII-2C IEEE 802.11ac VHT80 5610MHz ANT 1 ANT 2 FCC ID: 2ATKO-BAR800 ES…

Text truncated - open the document above for the full version.
