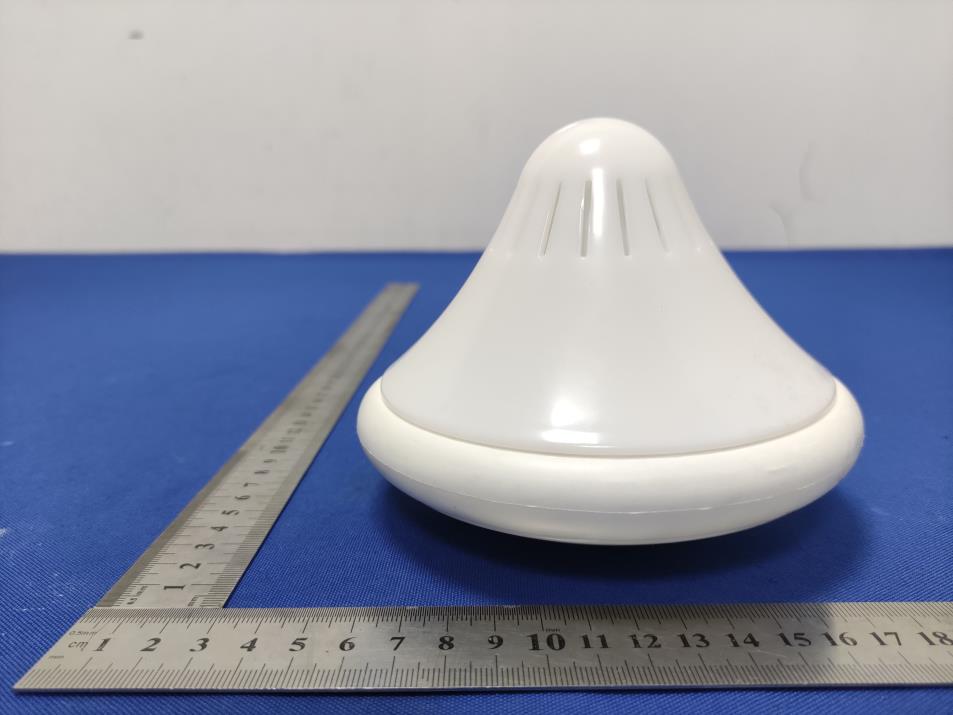

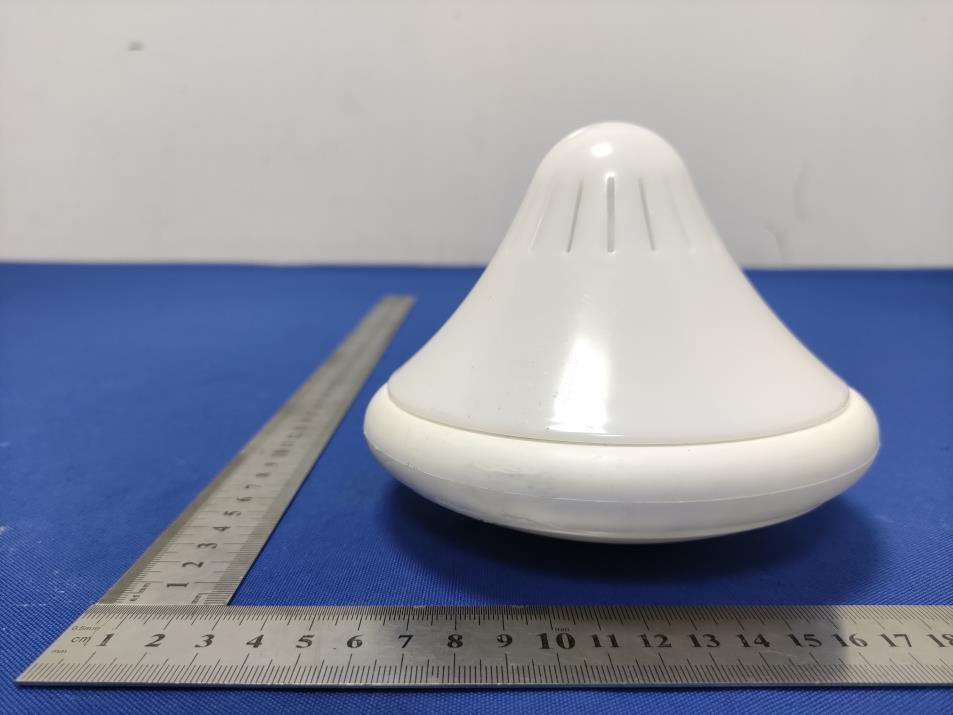

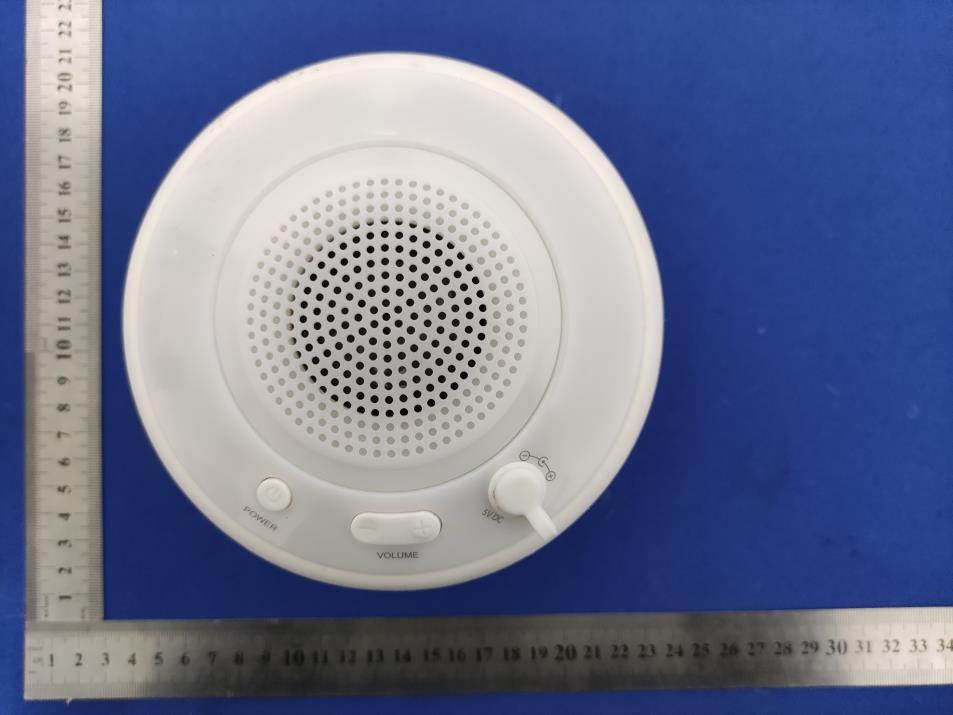

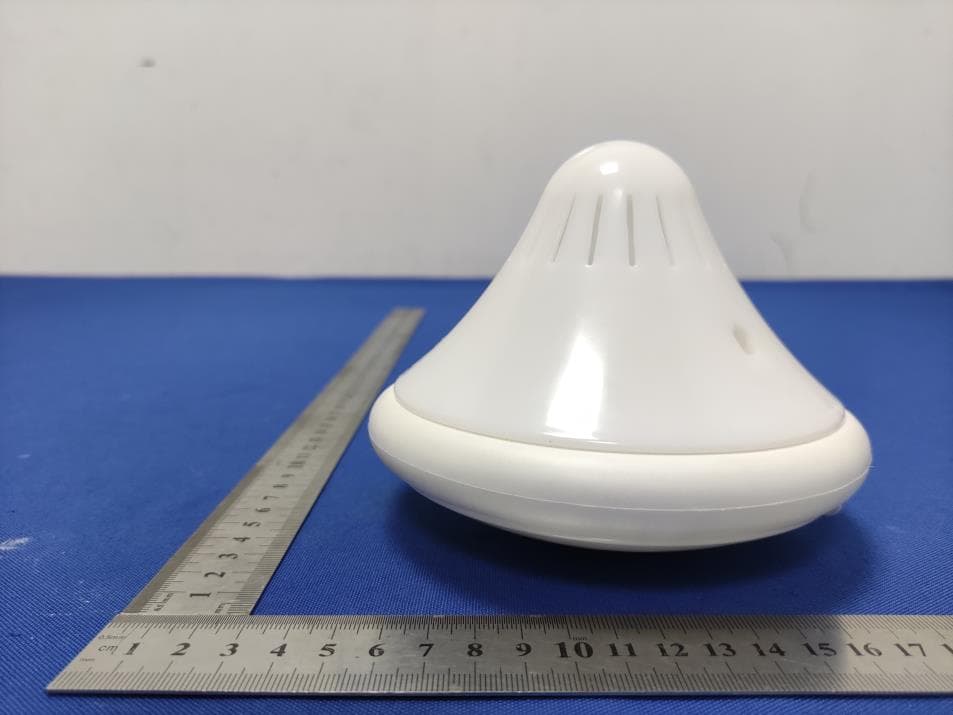

External Photos

Size:30*15mm IPX7 LIGHT UP WATERPROOF FLOATING BLUETOOTH SPEAKER FCC ID: 2ATLK-SP1000 Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2ATLK-SP1000 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low -0.910 21 GFSK Middle -2.203 21 GFSK High -3.448 21 Pi/4 DQPSK Low 1.775 21 Pi/4 DQPSK Middle 0.326 21 Pi/4 DQPSK High -0.982 21 8DPSK Low 2.487 21 8DPSK Middle 0.979 21 8DPSK High -0.345 21 max possible output power (PK,conducted)：2±1dBm 1.3dBi logarithmic terms convert to numeric result is nearly 1.349 3dBm=2mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2.402=0.62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2/5*√2.441=0.62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2.48=0.63≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

No.：BCTC/RF-EMC-005 Page: 1 of 71 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2012863149E Applicant: Hudson Electronics(HK) Limited Product Name: IPX7 LIGHT UP WATERPROOF FLOATING BLUETOOTH SPEAKER Model/Type Ref.: SP1000 Tested Date: 2020-12-23 to 2021-01-06 Issued Date: 2021-01-06 Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 2 of 71 Edition：A.3 FCC ID: 2ATLK-SP1000 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: IPX7 LIGHT UP WATERPROOF FLOATING BLUETOOTH SPEAKER Trademark: N/A Model/Type Ref.: SP1000 BS-0413 Prepared For: Hudson Electronics(HK) Limited Address: 506, LvKai Building, LiuXian 2nd Road, Baoan Dist, ShenZhen, China Manufacturer: Hudson Electronics(HK) Limited Address: 506, LvKai Building, LiuXian 2nd Road, Baoan Dist, ShenZhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2020-12-23 Sample tested Date: 2020-12-23 to 2021-01-06 Issue Date: 2021-01-06 Report No.: BCTC2012863149E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 3 of 71 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................ 13 6.1 Block Diagram Of Test Setup ............................................ 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions ............................................... 14 6.5 Test Result ........................................................... 15 7. RADIATED EMISSIONS .............................................. 17 7.1 Block Diagram Of Test Setup ............................................ 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 19 7.4 EUT operating Conditions ............................................... 21 7.5 Test Result ........................................................... 22 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .................................................. 26 8.1 Block Diagram Of Test Setup ............................................ 26 8.2 Limit ................................................................. 26 8.3 Test procedure ........................................................ 27 8.4 EUT operating Conditions ............................................... 27 8.5 Test Result ........................................................... 28 9. CONDUCTED EMISSION ............................................. 29 9.1 Block Diagram Of Test Setup ............................................ 29 9.2 Limit ................................................................. 29 9.3 Test procedure ........................................................ 29 9.4 Test Result ........................................................... 30 10. 20 DB BANDWIDTH .................................................. 39 10.1 Block Diagram Of Test Setup .......................................... 39 Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 4 of 71 Edition：A.3 10.2 Limit ................................................................ 39 10.3 Test procedure ....................................................... 39 10.4 Test Result .......................................................... 40 11. MAXIMUM PEAK OUTPUT POWER .................................... 45 11.1 Block Diagram Of Test Setup .......................................... 45 11.2 Limit ................................................................ 45 11.3 Test procedure ....................................................... 45 11.4 Test Result .......................................................... 46 12. HOPPING CHANNEL SEPARATION ................................... 51 12.1 Block Diagram Of Test Setup .......................................... 51 12.2 Limit ................................................................ 51 12.3 Test procedure ....................................................... 51 12.4 Test Result .......................................................... 52 13. NUMBER OF HOPPING FREQUENCY .................................. 57 13.1 Block Diagram Of Test Setup .......................................... 57 13.2 Limit ......................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 47 of 71 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 48 of 71 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 49 of 71 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 50 of 71 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 51 of 71 Edition：A.3 12. HOPPING CHANNEL SEPARATION 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 52 of 71 Edition：A.3 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1.004 0.582 PASS GFSK Middle 1.000 0.583 PASS GFSK High 0.998 0.578 PASS Pi/4 DQPSK Low 0.998 0.847 PASS Pi/4 DQPSK Middle 1.000 0.836 PASS Pi/4 DQPSK High 1.000 0.845 PASS 8DPSK Low 1.000 0.833 PASS 8DPSK Middle 1.000 0.814 PASS 8DPSK High 0.996 0.833 PASS Test plots GFSK Low Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 53 of 71 Edition：A.3 GFSK Middle Channel GFSK High Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 54 of 71 Edition：A.3 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 55 of 71 Edition：A.3 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 56 of 71 Edition：A.3 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 57 of 71 Edition：A.3 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 58 of 71 Edition：A.3 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 59 of 71 Edition：A.3 8DPSK Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 60 of 71 Edition：A.3 14. DWELL TIME 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 61 of 71 Edition：A.3 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSK Middle DH1 0.410 0.131 0.4 DH3 1.668 0.267 0.4 DH5 2.940 0.314 0.4 Pi/4DQPSK Middle 2DH1 0.417 0.133 0.4 2DH3 1.680 0.269 0.4 2DH5 2.940 0.314 0.4 8DPSK Middle 3DH1 0.418 0.134 0.4 3DH3 1.674 0.268 0.4 3DH5 2.930 0.313 0.4 Test Plots GFSK DH1 Middle Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 62 of 71 Edition：A.3 GFSK DH3 Middle Channel GFSK DH5 High Middle Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 63 of 71 Edition：A.3 Pi/4DQPSK DH1 Middle Channel Pi/4DQPSK DH3 Middle Channel Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 64 of 71 Edition：A.3 Pi/4DQPSK DH5 Middle Channel 8DPSK DH1 M…

Text truncated - open the document above for the full version.

Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 69 of 71 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Report No.: BCTC2012863149E No.：BCTC/RF-EMC-005 Page: 70 of 71 Edition：A.3
