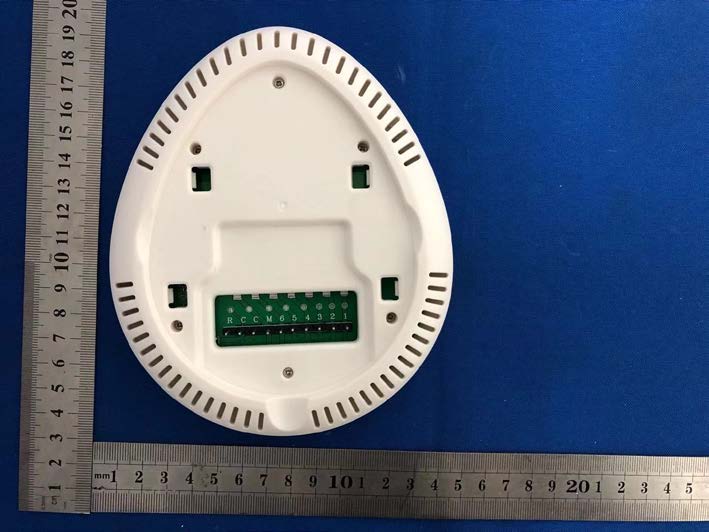

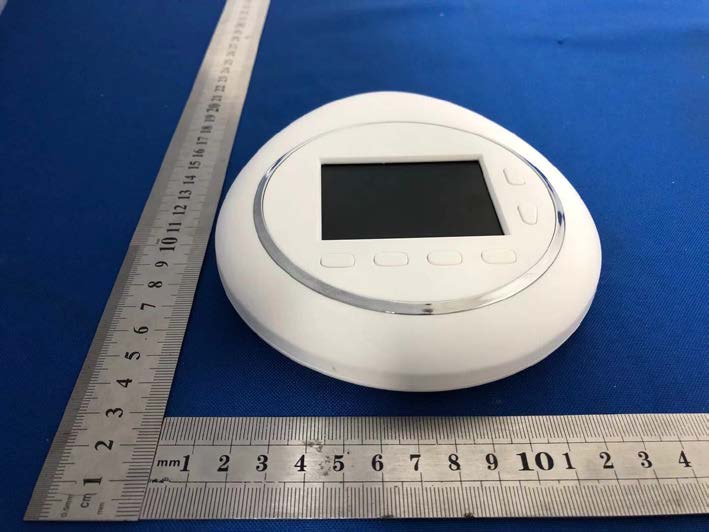

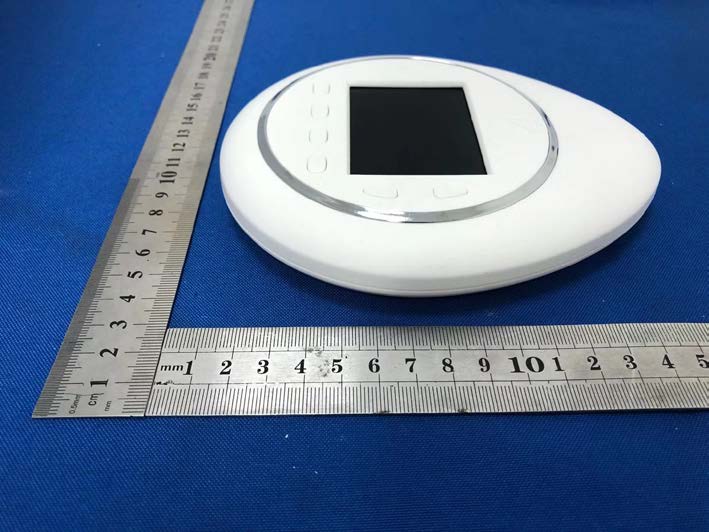

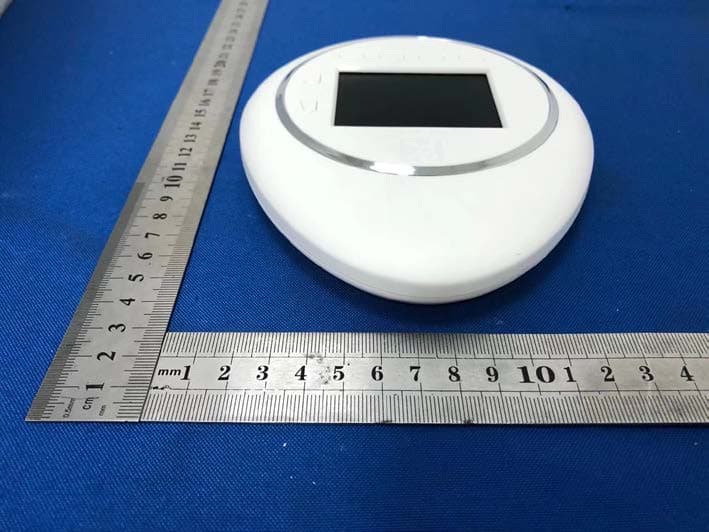

2ATM74102Smart Sprinkler Controller

Smart Sprinkler Controller User Guide YS4102-UC AUTO 00Hrs MODEDALAY MENU ZONE 1 09:35 AM Wednesday 11-01-2019 ZONE 12 3 4 5 6 08:00 A 05:00 P Mon SunSatFri ThuWedTue Contents Product Required···································································2 Features·········································································4····· Set Upmart Sprinkler Controller························· S······················5 What’s In The Box······················1·············································· Using YoLink A with mart Sprinkler ControllerppS···························15 Set the Smart Sprinkler Controller··············································22 Specifications······································································37 Maintainingthe ············· Smart Sprinkler Controller·····················36 Troubleshooting·············································38······················· WARNING···········································································39 Customer Service & Warranty·····························40······················ Introduction·················································3·························· Install the S·············································9mart Sprinkler Controller What’s In The Box 1 Smart Sprinkler Controller * 1 Drywall Anchor * 4 Quick Start Guide * 1 Wall Screw * 4 123456MC C R Backplate * 1 Product Required (not included) 2 A smartphone or tablet running iOS 9.0 or higher; ( Android 4.4 or higher) YoLink Hub (Connecting to internet) Electric Screwdriver OR Screwdriver Introduction YoLink Smart Sprinkler Controller replaces old controller, just a tap of the button on the device or YoLink App lets you remotely access, change or set your watering schedules at anytime anywhere. Only 2 schedules per day in weekly for 4 seasons are allowed. Maximum 6 zones and 1 master valve (not all systems have a master valve) can be connected to Smart Sprinkler Controller. The sprinkler controller will run watering zone by zone from 1 to 6. R: Livewire; C: Common wire M: Master valve; 1-6: Zone wires 12 3 4 5 6 MC C R SWITCH BUTTON ZONE Switch zones' watering progress MODE Switch different mode: Auto, Manual, Off DELAY Delay watering AUTO 00Hrs MODEDALAY MENU ZONE 1 09:35 AM Wednesday 11-01-2019 ZONE 12 3 4 5 6 08:00 A 05:00 P Mon SunSatFri ThuWedTue MENU All settings 3 Features Control from anywhere - Control your Smart Sprinkler Controller remotely via YoLink App on your iOS or Android device. Schedule - Automatic watering at a certain time. Delay - Will not run watering during delay time. Automation - Set up rules for “If this then do that” function via YoLink App. If the triggered condition is met, then action device will run automatically according to the setting. Voice Control - Use Alexa or Google Assistant to control your devices with voice commands. Manual - Manual watering at one time. ECO - Automatically delay watering in rainy days according to the ECO setting. 4 Set Up Smart Sprinkler Controller Follow the steps below to set up your Smart Sprinkler Controller via YoLink App. Step 1: Set up YoLink App Download the YoLink App from the Apple App Store or Google Play. 5 If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account. Open the App. Log in your YoLink account. Step 2: Log in or sign up with YoLink account 6 Step 3: Add device to YoLink App Tap the “ ” in YoLink App. Scan the QR Code on the controller. Tap the “Bind Device” to add the device to your YoLink account. b. Room - Choose a room for Smart Sprinkler Controller. a. Name - Name Smart Sprinkler Controller. You can customize the name, set the room, add to/remove from favourite. c. Favourite - Click “ ” icon to add/remove from Favourite. Please add your Smart Sprinkler Controller to YoLink App first before you install it. Note 7 12 3 4 5 6 MCCR a b c Step 4: Connect to the cloud Power on the Smart Sprinkler Controller and your device will connect to the cloud automatically. Note Make sure your hub is connected to internet either wired or wireless. Cloud Internet AUTO 00Hrs MODEDALAY MENU ZONE 1 09:35 AM Wednesday 11-01-2019 ZONE 12 3 4 5 6 08:00 A 05:00 P Mon SunSatFri ThuWedTue 8 Step 1: Turn off power Install the Smart Sprinkler Controller This protects you and avoids blowing a fuse in your equipment. Press any button on your old sprinkler controller to make sure your system is off. 9 Turn off the power Photograph the wiring inside your existing controller to reference during installation. Remove your old controller from the wall. Step 2: Remove the old Photograph wiringRemove the old 10 Step 3: Mount the backplate Mount the backplate by screwing it onto the wall using the provided screws. Wall anchors are included for drywall. 11 123456MC C R Mount the backplateWall Anchors (Drywall installs) Step 4: Connect your wires While referencing the photo of your previous wiring, insert the wires into the appropriate terminals. Connect the wires in ordered to make sure your controller works well. C - Common Wires. Common wires are often labeled “C” or “Com”. You can insert them into any of the “C” terminals. R - Live Wires. Live Wires are often labeled “R” or “Live”. You can insert them into any of the “R” terminals. 1-6 - Zone Wires. Zone wires correspond to your landscape's zones. Insert them into the numbered terminals. M - Master Valve. Not all systems have a master valve. Master valve wires are often labeled “M,” “MV,” or “Pump.” If you have a master valve, wire it into the “M” terminal. 12 Wiring diagram 13 24V AC Live Wire (R) 123456MC C R 24V AC Common Wire (C) Master Valve (M) Zone 6 (6) Zone 5 (5) Zone 2 (2) Zone 3 (3) Zone 4 (4) Zone 1 (1) Common Wire (C) Common Wire (C) 24V AC Adapter 24V AC Output Step 5: Install the new and turn on power Gently push the new, wired sprinkler controller back onto the backplate and turn power on. 14 Turn on the powerInstall the new Note Only 24V AC power acces…
