2ATM77706Garage Door Sensor 2

SET Garage Door Sensor 2 User Guide YS7706-UC Contents Product Required·····························································2 Introduction··································································1 Features······································································2 Set Up Garage Door Sensor 2··············································3 YoLinkControl ·····························································16 Maintaining the Garage Door Sensor 2································19 Using YoLink App with Garage Door Sensor 2························12 Specifications······························································21 Installation····································································8 Troubleshooting····························································22 Customer Service and Warranty·3·······································2 1 YoLink Garage Door Sensor 2 can detect opening and closing of your Garage Door and send alert or trigger action. LED light can show you the current status. See the explanation below:s Introduction SET BUTTON Red once Alert. Blinking Green Connecting to cloud. Fast Blinking Green Paring with other devices (YoLink Control). Fast Blinking Red Unparing with other devices (YoLink Control). Blinking Red and Green Factory resetting. Slow Blinking Green Updating. SET 2 Features Check Status Anywhere - Monitor the real-time state of garage door via YoLink App. Open Alert - Remind you while the door is open for a set up time. Long Range - Up to 1,000 feet between Hub and device. Battery Status - Update surplus of battery power and send low battery alert. YoLink Control - Trigger an action of certain YoLink devices without internet. Automation - Set up rules for “if this then do that” function via YoLink App. IFTTT - Set up rules for “if this then that” function via IFTTT App. Product Required A YoLink Hub. The smartphone or tablet able to run iOS 9.0 or higher; Android 4.4 or higher. 3 Set Up Garage Door Sensor 2 Follow the steps below to set up your Garage Door Sensor 2 via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play. YoLink 4 If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account. Open the App. Use your YoLink account to log in. Step 2: Log in or sign up with YoLink account 5 Step 3: Add Garage Door Sensor 2 to YoLink App b. Room - Choose a room for your Garage Door Sensor 2. a. Name - Name your Garage Door Sensor 2. You can customize the name, set the room, add to/remove from favourite. Tap the “ ” in YoLink App. Scan the QR Code on the device. c. Favourite - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account. Pair with a controller. Note For better user experience, we suggest you to pair your YoLink Garage Door Sensor 2 with a YoLink Finger or a YoLink Garage Door Controller. After pairing you will get real-time battery status of your Garage Door Sensor 2, signal Intensity between YoLink Finger or Garage Door Sensor 2 and YoLink Hub, and the real-time status of your garage door. If you skip the pairing when adding the device, you can set the pairing on the Detail screen of YoLink Finger. 6 a b c SET YoLink SET Cloud DATA (Internet) DATA (Internet) DATA (YoLink) 7 Step 4: Set up the connection Follow the Installation to install the device first. Press the SET button once on the device, a green blinking light will be shown and the device is ready to use. Note Please note: YoLink Hub is required to set up Garage Door Sensor 2. Please set up your YoLink Hub first. 8 Installation Find an area at the top left in the inside garage door, clean the installation area. Remove the protective layer of the double-side tape; Keep the longer side of the Garage Door Sensor 2 parallel to the floor, stick the finger to the clean area, press it for at least 5 seconds. Remove the protective layer 2 Clean the installation area 1 TOP PANEL 9 Stick and Press for 5 seconds at least 3 TOP PANEL SET SET 10 Re-install the batteries and close the battery cover. You can also mount the Garage Door Sensor 2 to the wall with screws. Keep the longer side of the Garage Door Sensor 2 parallel to the floor, mount Garage Door Sensor 2 to the top left of inside garage door using screws (not included). Remove the battery cover and take out batteries. Remove the battery cover and take out batteries 1 SET Mount the Garage Door Sensor 2 2 TOP PANEL SET SET 11 Re-install the batteries and close the battery cover 3 TOP PANEL SET 12 Using YoLink App with Garage Door Sensor 2 Tap the “Garage Door” in App to go to its controls. Display the real-time battery status of your Garage Door Sensor 2, signal Intensity between Garage Door Sensor 2 and YoLink Hub and the real-time status of your garage door. Control 13 Details a. Name - Name your Garage Door Sensor 2. b. Room - Choose a room for your garage door device. You can customize the name, set the room, set the alert and open alert, add to/ remove from favourite, check device history. d. History - Check the history log for the garage door. c. Favourite - Click Add/Remove the device from Favourite. g. Delete - Current device will be removed from your account. f. Open Alert - Set a time which you will able to receive an alert once your door has been open for that long. e. Alert - Enable or disable alert for Garage Door Sensor 2. 14 Tap the icon for each of the setting you want to personalize. Tap “ ” icon at the top-right corner.the Tap the “Garage Door Sensor 2” in App to go to its controls. g a b c d e f 15 Automation allows you to set up “if this then do that” rules so the devices can act automatically. Automation Tap “Smart” to switch to Smart screen and tap “Automation”. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition. Then, select the response devices…

Text truncated - open the document above for the full version.

YoSmart Inc. Agent Authorization Company: YoSmart Inc. Address: 17165 Von Karman Avenue, Suite 105, Irvine CA, 92614, USA Product Name: Garage Door Sensor 2 Model Number(s ): YS7706-UC, YS7706-UA Product Description: Garage Door Sensor 2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/03/11 Name: Xu Manxiang Title: Manager Company: YoSmart Inc.

YoSmart Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/03/13 Subject; Request for Confidentiality FCC ID: 2ATM77706 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xu Manxiang Title: Manager

YoSmart Inc. Model Difference 2020-03-11 EUT NAME: Garage Door Sensor 2 FCC ID: 2ATM77706 MODEL : YS7706-UC, YS7706-UA All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature Client’s name / title : Xu Manxiang(Manager) Contact information / address: 17165 Von Karman Avenue, Suite 105, Irvine CA, 92614, USA

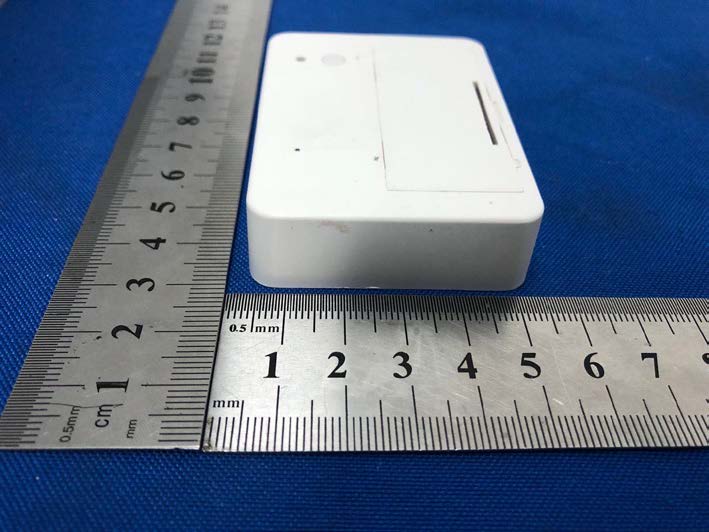

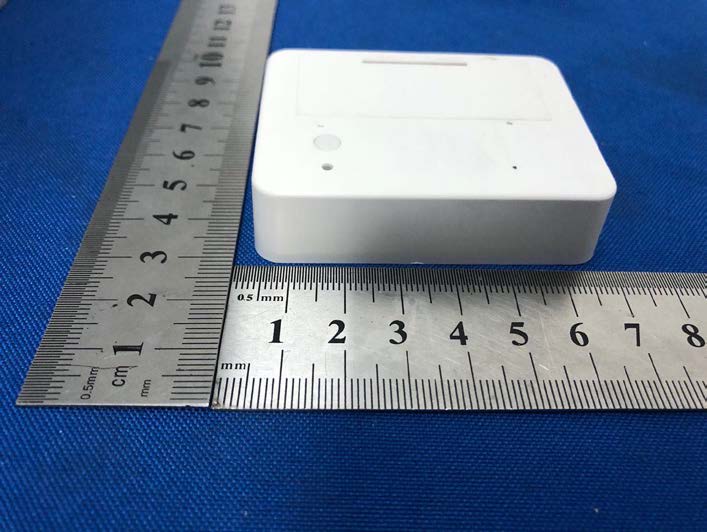

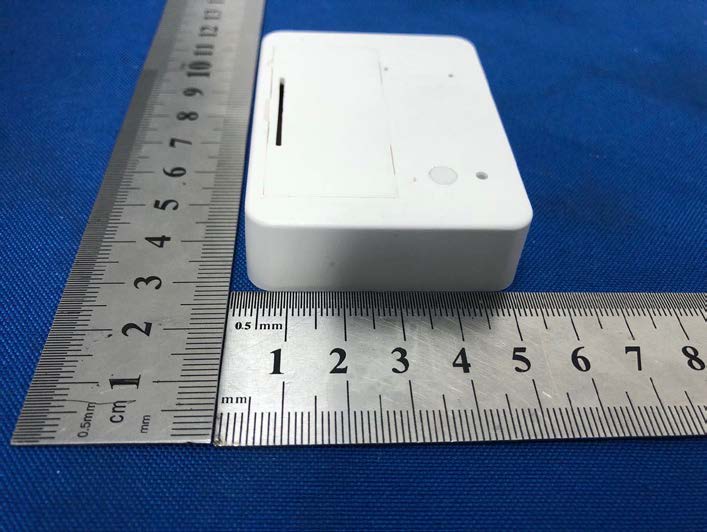

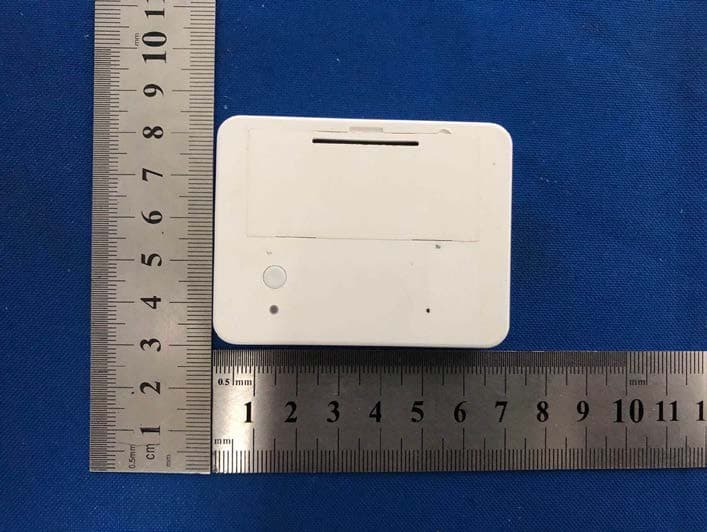

External Photos

Label & label location

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E FCC Part 15C Test Report FCC ID: 2ATM77706 Product Name: Garage Door Sensor 2 Trademark: N/A Model Name : YS7706-UC YS7706-UA Prepared For : YoSmart Inc. Address : 17165 Von Karman Avenue, Suite 105, Irvine CA, 92614, USA Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao'an District, Shenzhen, China Test Date: Mar. 04, 2020 – Mar. 11, 2020 Date of Report : Mar. 11, 2020 Report No.: BCTC2003000202E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-l ab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E TEST RESULT CERTIFICATION Applicant’s name ................. : YoSmart Inc. Address ................................. : 17165 Von Karman Avenue, Suite 105, Irvine CA, 92614, USA Manufacture's Name ............ : YoSmart Inc. Address ................................. : 17165 Von Karman Avenue, Suite 105, Irvine CA, 92614, USA Product description Product name ........................... : Garage Door Sensor 2 Model and/or type reference : N/A Serial Model .............................. : YS7706-UC YS7706-UA Te s t Standards ....................... : FCC Part15.249 ANSI C63.10-2 013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 16 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 18 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 19 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 21 3.2.9 FIELD STRENGTH CALCULATION 22 4 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 24 4.1 DEVIATION FROM STANDARD 24 4.2 TEST SETUP 24 4.3 EUT OPERATION CONDITIONS 24 4.4 TEST RESULTS 24 5 . BANDWIDTH TEST 27 5.1 APPLIED PROCEDURES / LIMIT 27 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E Table of Contents Page 5.1.1 TEST PROCEDURE 27 5.1.2 DEVIATION FROM STANDARD 27 5.1.3 TEST SETUP 27 5.1.4 EUT OPERATION CONDITIONS 27 5.1.5 TEST RESULTS 28 6 . ANTENNA REQUIREMENT 29 6.1 STANDARD REQUIREMENT 29 6.2 EUT ANTENNA 29 7 . EUT TEST PHOTO 30 8 . PHOTO OF THE EUT 31 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 4 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.249) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.215 20dB Bandwidth PASS 15.249 Fundamental &Radiated Spurious Emission Measurement PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 5 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add. : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.576dB 6 Conducted output power uncertainty below 1G U=1.28dB 7 humidity uncertainty U=5.3% 8 Temperature uncertainty U=0.59°C Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 6 of 31 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000202E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Garage Door Sensor 2 Trade Name N/A Model Name YS7706-UC Serial Model YS7706-UA Model Difference All the model are the same circuit and RF module, except model names . Product Description The EUT is a Garage Door Sensor 2 Operation Frequency: 910.3MHz Modulation Type: LoRa Number Of Channel 1CH Antenna Designation: Please see Note 3. Antenna Gain (dBi) 1dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More detai…
