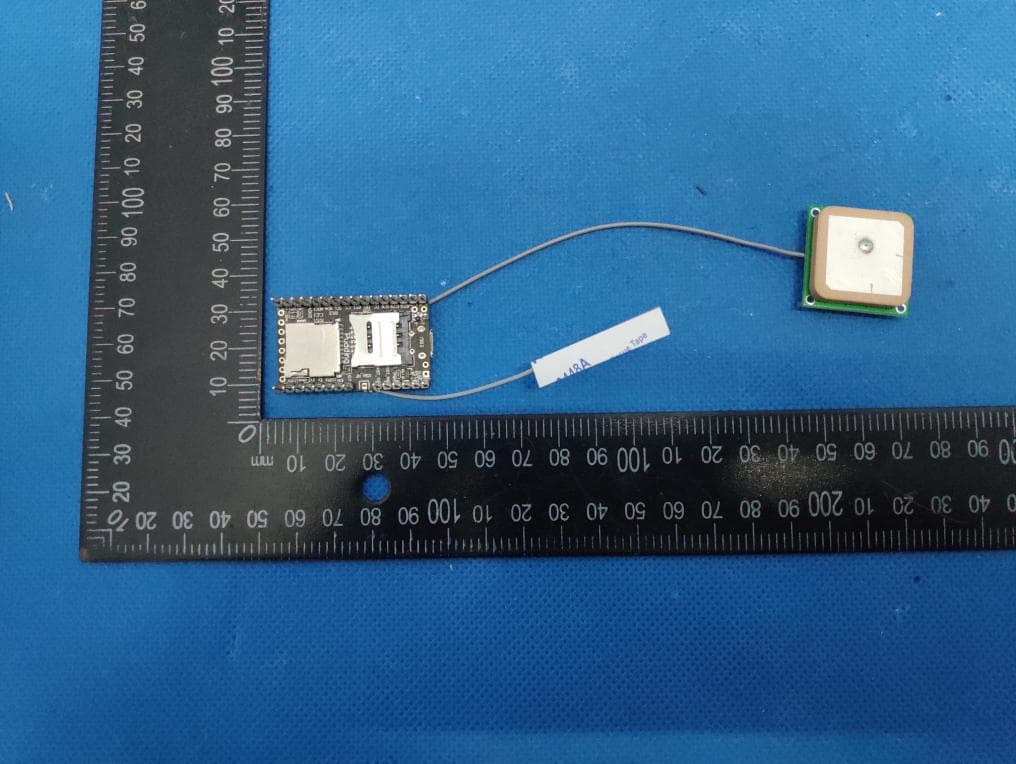

2ATPO-A9GGPRS+GPS Module

A9G GPRS/GSM+GPS/BDS MODULE V1.4 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID:2ATPO-A9G Copyright©2019 ShenzhenAi-ThinkerCo.,LtdAllRightsReserved A9G GPRS/GSM+GPS/BDS MODULE V1.4 Copyright©2019 ShenzhenAi-ThinkerCo.,LtdAllRightsReserved A9G GPRS/GSM+GPS/BDS Module l The A9G development board is a multifunctional development board based on the A9G GPRS / GSM + GPS / BDS module. It can be used to verify the basic communication functions and peripheral f unctions of the A9G module. l A9G development board has basic phone / SMS, GPRS network communication, GPS / BDS dual-mode positioning function. l A9G development board has lithium battery charging management, microphone, speaker interface, USB communication interface, multiple user buttons / led, TF card slot, acceleration sensor, SPI interface, I2C2 interface, ADC interface l A9G development board camera expansion board, which can connect 30W / 200W camera. l A9G development board slot machine expansion board, which can be connected to traditional slot machines. Based on the above functions, A9G can be used for a variety of peripheral prototype development and verification: l Vehicle anti-theft device using GPRS + GPS and acceleration sensor. l Remote monitoring intercom using GSM and microphone / speaker l Smart watch using GPRS / GSM + GPS, 1.54-inch capacitive touch screen l Elderly monitoring watch using GPRS / GSM + GPS, heart rate blood oxygen sensor, 1.54 inch capacitive touch screen l Remote monitoring camera using GPRS + TF + camera expansion board l Wechat payment slot machine solution using slot machine expansion board A9G GPRS/GSM+GPS/BDS MODULE V1.4 Copyright©2019 ShenzhenAi-ThinkerCo.,LtdAllRightsReserved Overview The A9G is a complete quad-band GSM / GPRS module that combines GPRS and GPS / BDS technologies and integrates it in a compact SMD package, saving customers time and money in developing GNSS applications. The A9G can be used in a wide range of IoT applications and is ideal for IoT applications for home automation, industrial wireless control, wearable electronics, wireless location sensing devices, wireless location system signals and other IoT applications. A9G SMD package, through the standard SMT equipment to achieve rapid production of products, especially for automation, large-scale, low-cost modern production methods for the convenience of a variety of Internet of Things hardware terminal applications. - Complete quad-band GSM / GPRS module, 800/900 / 1800 / 1900MHz - SMD package for easy MP & testing - Low power mode, average current 2mA or less -supportGPS,BDS. - Supports digital audio and analog audio, supports HR, FR, EFR, AMR voice coding - Support voice calls and SMS messages - Embedded network service protocol stack - Support standard GSM07.07,07.05AT command and Anxin expandable command set - Support PBCCH - Supports firmware upgrade via serial port Features Ai-Thinker A9G GPRS/GSM+GPS/BDS MODULE V1.4 Copyright©2019 ShenzhenAi-ThinkerCo.,LtdAllRightsReserved ␡ൣᐲᆹؑਟ、ᢰᴹ䲀ޜਨ 410, Building C, Gufeng Huafeng Smart Innovation Port, Xixiang, Baoan District, Shenzhen [email protected] Model NameA9G PackageSMD54 Size19.2*18.8*2.7(±0.2)mm Frenquency850/900/1800/1900MHz GPRS Multi-slotClass 12 GPRS Mobile StationClassB Compatible with GSM Phase 2/2+ Class 4 (2W@850/ 900MHz) Class 1 (1W@1800/1900MHz) Power supply3.8~4.2Vtypicalvalue4.0V Current 1.14mA@DRX=5 1.03mA@DRX=9 AT command3GPP TS 27.007, 27.005 GPRS Class 12Max 85.6kbps (up & down˅ Coding schemeCS 1,2, 3, 4 PBCCHSupport Text Point to point sms send and receive Cellular broadcast message, Text / PDU mode Voice coding mode Half Rate (HR)ǃFull Rate (FR)ǃ Enhanced Full Rate (EFR)ǃ Adaptive Multi-Rate (AMR) Audio processing mechanism Echo Cancellation, Echo suppression, Noise suppression SIM Card1.8V/3V UART 3 pcs ( including firmware upgrade serial port )ˈbaud rate support 2400~1843200bps ͫ default 115200bps AntennaPad˄include GSMǃGPS˅ Communication Interface I2CǃUSBǃUARTǃSDMMCǃGPIOǃADC GPS Sensitivity Cold start: -148 dBm Hot start: -162 dBm Recapture: -164dBm Tracking: -166 dBm GPS boot time Cold start < 27.5s Hot start < 1s Recapture < 1s GPS accuracy Horizontal positioning accuracy˖2.5m High positioning accuracy˖3.5m Working temperature-20°C~+70°C Weight 3.0g Product specificatio…
