2ATPO-ESP13UWi-Fi Module

ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved I ESP-13USpecification Version V1.0 Copyright©2019 ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved II Disclaimer and copyright notice The information in this article, including the URL address for reference, is subject to change without prior notice.The Documentation is provided "as is" without any warranty, including any warranties of merchantability, fitness for a particular purpose, or non-infringement, and any warranties mentioned in the proposal, specification or sample. This document is not responsible for any infringement of any patent rights arising out of the use of the information in this document. No license, express or implied, by estoppel or otherwise, is hereby granted. The test data obtained in this paper are all obtained by Ai-Thinker laboratory , and the actual results may be slightly different.The Wi-Fi alliance membership mark is owned by the WiFi alliance. All trade mark names, trademarks and registered trademarks mentioned herein are the property of their respective owners and are hereby declared. The final interpretation right is owned by Shenzhen Ai-Thinker Technology Co., Ltd. Note The contents of this manual may be changed due to the version upgrade of the product or other reasons. Shenzhen Ai-Thinker Technology Co., Ltd. reserves the right to modify the contents of this manual without any notice. This manual is only used as a guide, and Shenzhen Ai-Thinker Technology Co., Ltd. makes every effort to provide accurate information in this manual, but Shenzhen Ai-Thinker Technology Co., Ltd. does not ensure that the contents of the manual are completely true,, All statements and information in this manual. and the recommendations do not constitute for any warranty, express or implied. ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved III Document development/revision/revocation resume Version Date Revised content Edition Approve V1.0 2020.10.28 First Edition Yuan Nannan ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved IV CONTENT 1. Product Overview ............................................................................................................................... V 2. Electrical parameters .................................................................................................................. VIII 3. Appearance size ................................................................................................................................... X 4. Pin definition ...................................................................................................................................... XII 5. Schematics ............................................................................................................................................. XIV 6. Design Guidance ............................................................................................................................... XIV 7. Reflow Welding Curve ........................................................................................................................ XVII 8. Package Information .......................................................................................................................... XVIII 9. Contacts ............................................................................................................................................... XVIII ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved V 1. Product Overview ESP-13U WiFi module was developed by Ai-Thinker Technology. The core processor of the module ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a smaller package with 16-bit reduced mode. The main frequency supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC / BB / RF / PA / LNA. ESP-13U WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers. The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems. ESP8266 has a complete and self-contained Wi-Fi network function, which can be used independently or run as a slave on other host MCU. When ESP8266 is applied independently, it can be started directly from external flash. The built-in cache memory helps improve system performance and optimizes the storage system. Another case is that ESP8266 can be used as a Wi-Fi adapter only through SPI / SDIO interface or UART interface, and can be applied to any microcontroller-based design. ESP8266 is powerful on-chip processing and storage capabilities make it possible to integrate sensors and other application-specific equipment through the GPIO port, greatly reducing the cost of early development. ESP-13U Specification V1.0 Copyright © 2019 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved VI Features  Complete 802.11b / g / n Wi-Fi SoC module  The core is Tensilica L106 low power 32-bit MCU, frequency supports 80 MHz and 160 MHz, supports RTOS  Built-in 10-bit high-precision ADC  Support UART/GPIO/ADC/PWM/SPI/I2C Interface  Using SMD-18 package  Integrated Wi-Fi MAC/ BB/RF/PA/LNA  Support multiple sleep modes, the standby power consumption as low as 20uA  UART baud speed up to 4Mbps  Embedded Lwip protocol stack  Support STA/AP/STA+AP operation mode  Smart Config (APP) / AirKiss (WeChat) support for Android and IOS  Support UART port local upgrade and remote firmware upgrade（FOTA）  General AT commands can be used easy and quickly  Support for second development, int…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization < Shenzhen Ai-Thinker Technology Co., Ltd > Company: Shenzhen Ai-Thinker Technology Co., Ltd Address: 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Product Name: Wi-Fi Module Model Number(s): ESP-13U Product Description: Wi-Fi Module We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: guan ning Date: 2020/12/10 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < Shenzhen Ai-Thinker Technology Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/12/11 Subject: Request for Confidentiality FCC ID: 2ATPO-ESP13U To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name: guan ning Title: Manager

Shenzhen Ai-Thinker Technology Co., Ltd FCC – Modular Approval Request Rev 2.0 Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD21046 Company name: Shenzhen Ai-Thinker Technology Co., Ltd FCC ID: 2ATPO-ESP13U Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2ATPO-ESP13U has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes,the products have a shield, Physical components and tuning capacitor(s) are assembly to the module and located internal to the shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes,The modulehas buffered modulation/data inputs. The module must contain power supply regulation on the module Yes,The modular transmitter has its own power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes,The module contains a permanently attached FPCB antenna. The module must demonstrate compliance in a stand-alone configuration Yes, The module compliance in a stand- alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements) Yes. The module has its permanently affixed FCC ID labeland the FCC ID label is laser engraved on the shield. The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee The module complies with all specific rules applicable to the transmitter. The module must comply with RF exposure requirements Yes. We provided an MPE report to show the module comply with RF exposure requirements. Name: guan ning Date: Dec. 11. 2020 Title: Manager Signature of applicant:

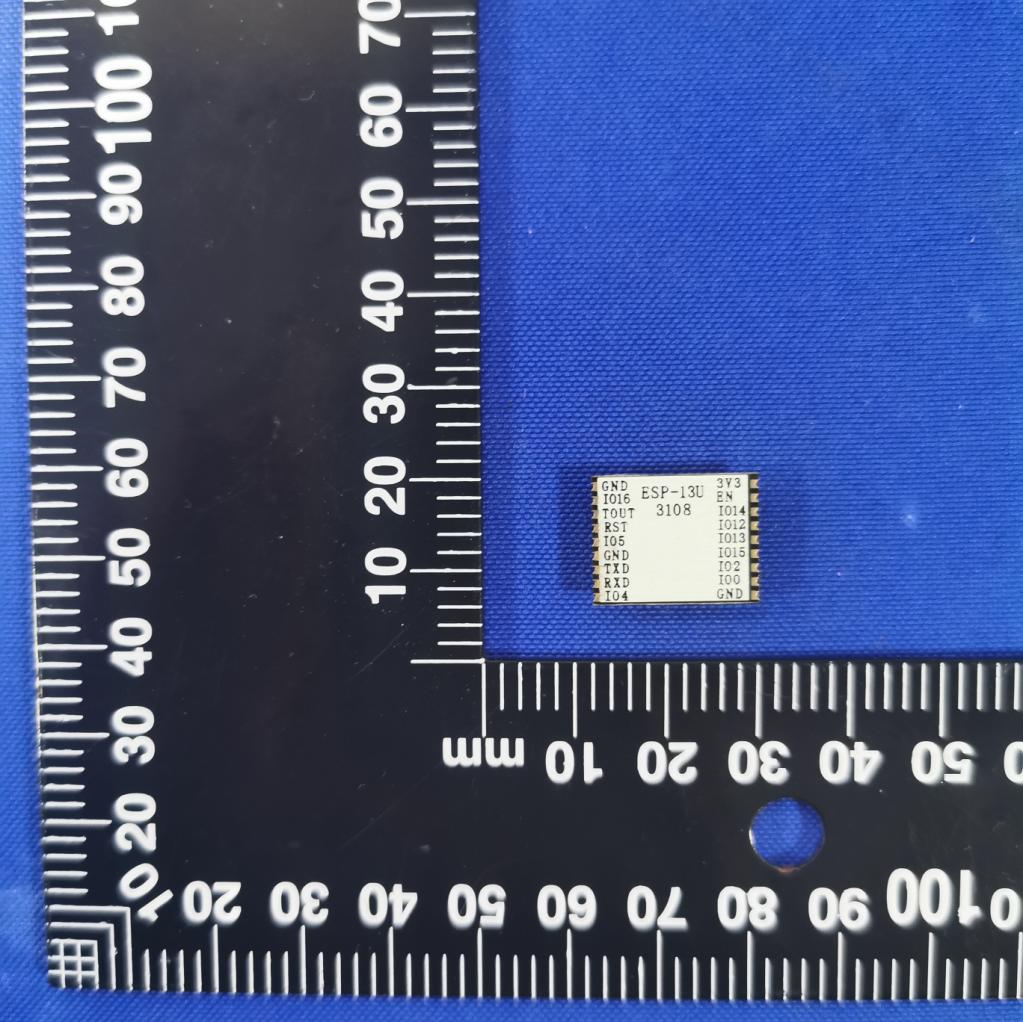

S20102600404 Model: ESP-13U Photo 1 Photo 2 S20102600404 Model: ESP-13U Photo 3

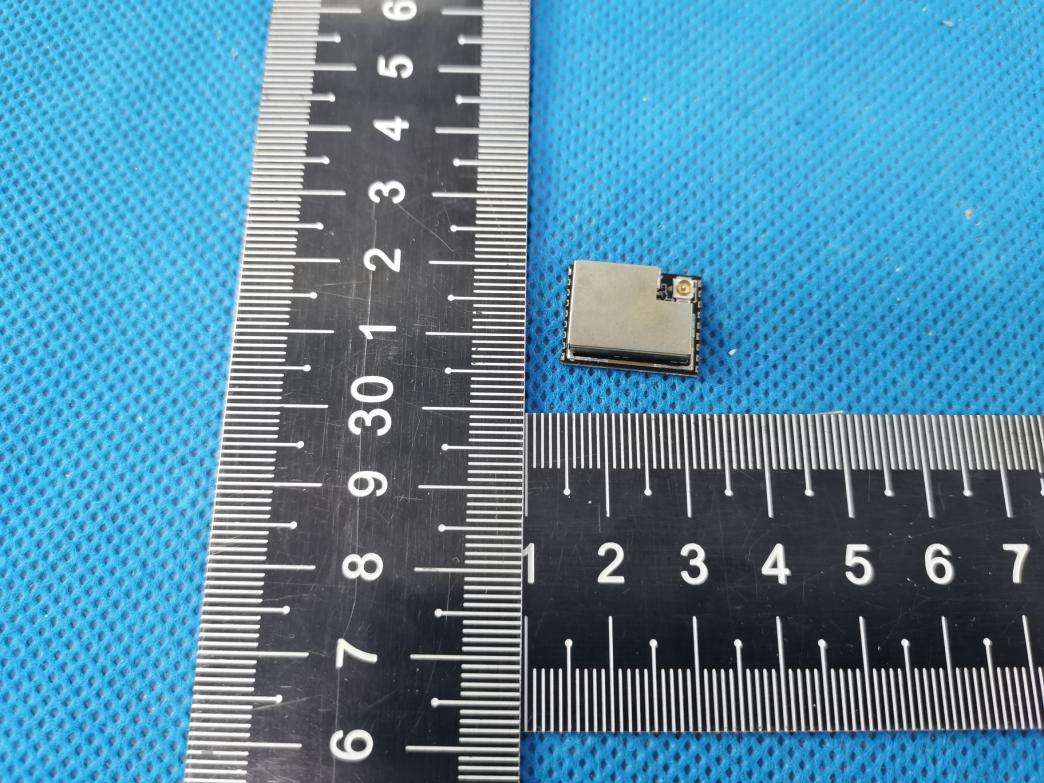

S20102600404 Model: ESP-13U Photo 1 Photo 2 S20102600404 Model: ESP-13U Photo 3 ANT

FCC ID: 2ATPO-ESP13U RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. MAX OUTPUT POWER WIFI Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT 802.11b 2412 Ant 1 14.44 30 Pass NVNT 802.11b 2437 Ant 1 14.68 30 Pass NVNT 802.11b 2462 Ant 1 14.47 30 Pass NVNT 802.11g 2412 Ant 1 13.31 30 Pass NVNT 802.11g 2437 Ant 1 14.03 30 Pass NVNT 802.11g 2462 Ant 1 13.97 30 Pass NVNT 802.11n(HT20) 2412 Ant 1 13.95 30 Pass NVNT 802.11n(HT20) 2437 Ant 1 14.07 30 Pass NVNT 802.11n(HT20) 2462 Ant 1 14.05 30 Pass Measurement Result Operation Frequency: 2412-2462MHz Power density limited: 1mW/ cm 2 Antenna Type: FPCB Antenna Antenna gain:0.5 dBi R=20cm WIFI: conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2412 14.44 14±115 31.6230.501.120.00711 2437 14.68 14±115 31.6230.501.120.00711 2462 14.47 14±115 31.6230.501.120.00711 2412 13.31 14±115 31.6230.501.120.00711 2437 14.03 14±115 31.6230.501.120.00711 2462 13.97 14±115 31.6230.501.120.00711 2412 13.95 14±115 31.6230.501.120.00711 2437 14.07 14±115 31.6230.501.120.00711 2462 14.05 14±115 31.6230.501.120.00711 (mW/cm2) Antenna Gain Max tune-up power 802.11n HT20 (mW/cm2 ) Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 802.11b 802.11g Conclusion: For the max result : 0.0071≤ 1.0 for Max Power Density, compliance RF exposure. Signature: Date: 2020-12-12 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.:S20102600404001 Version.1.3 Page 1 of 64 FCC RADIO TEST REPORT FCC ID: 2ATPO-ESP13U Product: Wi-Fi Module Trade Mark: B&T, Ai-Thinker Model No.: ESP-13U Family Model: N/A Report No.: S20102600404001 Issue Date: 19 Nov.2020 Prepared for Shenzhen Ai-Thinker Technology co., LTD 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.:S20102600404001 Version.1.3 Page 2 of 64 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES ....................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................................... 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 28 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 29 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 31 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 33 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 35 7.9 ANTENNA APPLICATION .......................................................................................................................... 36 8 TEST RESULTS ................................................................................................................................................... 37 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 37 8.2 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 38 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 43 8.4 BAND EDGE .................................................................................................................................................... 48 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 55 Report No.:S20102600404001 Version.1.3 Page 3 of 64 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Ai-Thinker Technology co., LTD Address ....................................... : 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Manufacturer's Name .................. : Shenzhen Ai-Thinker Technology co., LTD Address ....................................... : 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Product description Product name .............................. : Wi-Fi Module Model and/or type reference ..... : ESP-13U Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And …

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
