TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 1 of 21 TG-02FSpecification VersionV1.0.0 Copyright©2022 TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 2 of 21 Documentresume VersionDateDevelop/revisecontentEditionApprove V1.0.02022.5.10FirstEditionShengXinZhouNingGuan TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 3 of 21 Content 1.ProductOverview.....................................................................................................................4 1.1.Characteristic.................................................................................................................5 2.Mainparameters.......................................................................................................................5 2.1.Staticelectricityrequirements.......................................................................................6 2.2.Electricalcharacteristics................................................................................................6 2.3.BluetoothRfPerformance.............................................................................................6 2.4.Power.............................................................................................................................7 3.AppearanceDimensions...........................................................................................................8 4.Pindefinition............................................................................................................................9 5.Schematic................................................................................................................................11 6.Antennaparameters................................................................................................................12 6.1.Testconditionsfortheantenna....................................................................................12 6.2.AntennaSparameter....................................................................................................13 6.3.AntennaGainandEfficiency.......................................................................................13 6.4.AntennaFieldTypeDiagram.......................................................................................14 7.DesignGuidance....................................................................................................................15 7.1.Moduleapplicationcircuit...........................................................................................15 7.2.Antennalayoutrequirements.......................................................................................15 7.3.Powersupply...............................................................................................................16 7.4.GPIO............................................................................................................................17 8.Flowweldingcurvediagram..................................................................................................18 9.Productrelatedmodels...........................................................................................................19 10.Productpackaginginformation............................................................................................20 11.Contactus.............................................................................................................................20 Disclaimerandcopyrightnotice.................................................................................................21 Notice.........................................................................................................................................21 TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 4 of 21 1.ProductOverview TG-02FisabluetoothmoduledevelopedbyShenzhenAi-ThinkerTechnologyCo.,LTD.The coreprocessorchipTG7120B(SOP16)isahighlyintegratedbluetoothSystem-levelchip(SoC) withlowpowerconsumption,designedforInternetofThings(IoT),mobiledevices,wearable electronicdevices,smarthomeandotherapplications. TG-02Fmodulefeaturesahigh-performancelow-power32-bitCK802processor,64KB SRAM,512KBFlash,96KBROM,and256bitEFuse.Inaddition,TG-02Fmodulesupports SECURITYmechanism,applicationandOTAupgradeunderBLEprotocol,hasavarietyof uniquehardwaresecuritymechanism,hardwareencryptionsupportAESalgorithm. TG-02Fmoduleprovidesawealthofperipheralinterfaces,includingUART,PWM,ADC,I2C, SPI,PDM,DMAandupto11IOports. TG-02FmodulesupportslowpowerBluetooth:BLE5.1,BLEMesh.Bluetoothspeedsupport: 125Kbps,500Kbps,1Mbps,2Mbps.Supportbroadcastextension,multi-broadcast,channel selection. Figure1Mainchiparchitecturediagram TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 5 of 21 1.1.Characteristic SupportBLE5.1，SpeedSupport：125Kbps,500Kbps,1Mbps,2Mbps 64KBSRAM，512KBflash,96KBROM，256bitefuse SupportUART/GPIO/ADC/PWM/I2C/SPI/PDM/DMA ThepackageisSMD-20 Multiplesleepmodesaresupportedandthedeepsleepcurrentislessthan1uA FixeduniversalATinstructionforquickuse Supportsecondarydevelopment,integratedWindowsdevelopmentenvironment 2.Mainparameters Table1Descriptionofthemainparameters ModelTG-02F PackageSMD-22 Size24.0*16.0*2.8(±0.2)mm Antennaon-boardantenna Frequency2400~2483.5MHz Operatingtemperature-40°C~85°C Storagetemperature-40°C~125°C,<90%RH PowersupplySupportvoltage2.7V~3.6V,supplycurrent≥200mA InterfaceUART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA IO11 UARTrateDefault115200bps BluetoothBLE5.1 SecurityAES-128 SPIFlash512KB TG-02FSpecificationV1.0.0 Copyright©2022ShenzhenAi-ThinkerTechnologyCo.,LtdAllRightsReserved Page 6 of 21 2.1.Staticelectricityrequirements TG-02Fmoduleisanelectrostaticsensitivedevice.Therefore,youneedtotakespecial precautionswhencarryingit. Figure2ESDpreventivemeasures 2.2.Elec…

Text truncated - open the document above for the full version.

Shenzhen Ai-Thinker Technology Co., Ltd version01 Single Modular Approval Request Letter Date: 2022-06-28 FCC ID: 2ATPO-TG02 Type of Equipment: DTS The following requirements according to FCC Part 15.212 are met: i RF shielding The radio portion has his own shielding (see external photos). ii Buffered modulation/data inputs, has been integrated in the chipset iii Power supply regulation, is integrated iv Antenna requirements section 15.203, 15.204 b and 15.204 c The module comes with permanently attached antennas. The spurious emission requirements are fulfilled (see attached test report). Antenna Type PCB Antenna Antenna Gain 1.5dBi v Stand alone test configuration Please referring to test set up configuration photo vi Labelling The module has its own label. The instruction for labelling rules for the host device has been stated in the users manual vii Compliance on specific rule or operating requirements The required FCC rules has been fulfilled and all instructions for maintaining compliance has been clearly stated in the users manual viii RF Exposure, For portable applications OEM integrators need SAR evaluation and an own FCC ID. Name: guan ning Title: manager Company: Shenzhen Ai-Thinker Technology Co., Ltd RF exposure requirements are fulfilled for portable configuration. The module must be installed in the host equipment such that at least 5mm is maintained between the antenna and users' body; The installation and restriction is clearly stated in the installation instruction of the users manual.

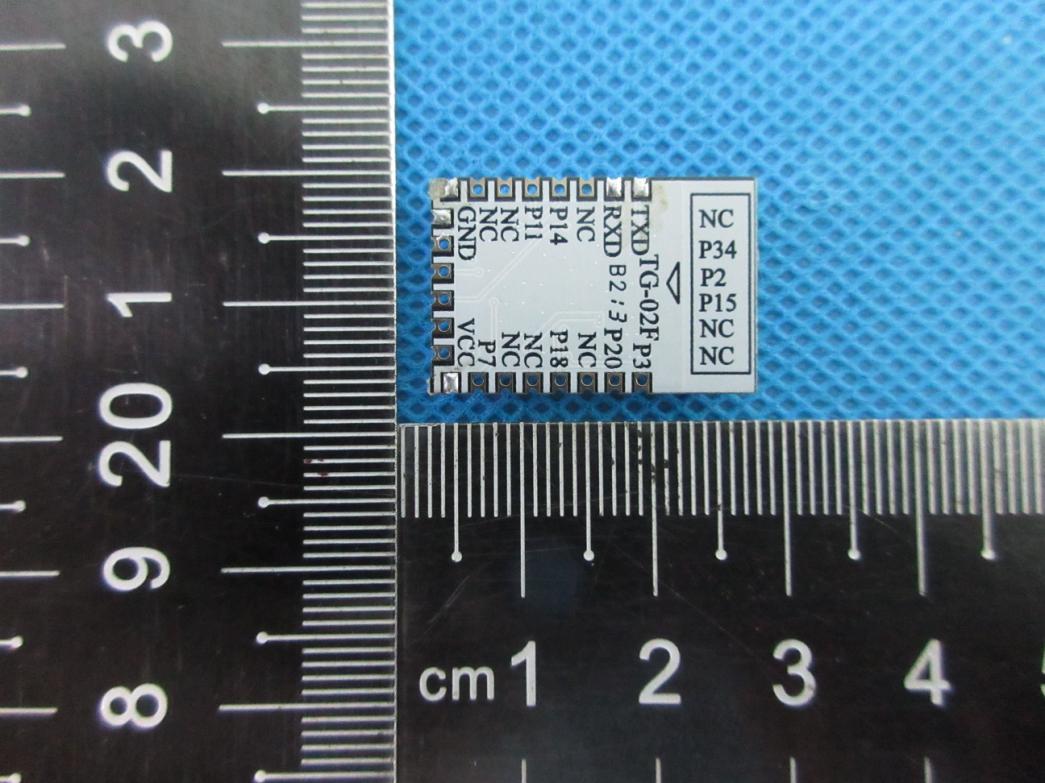

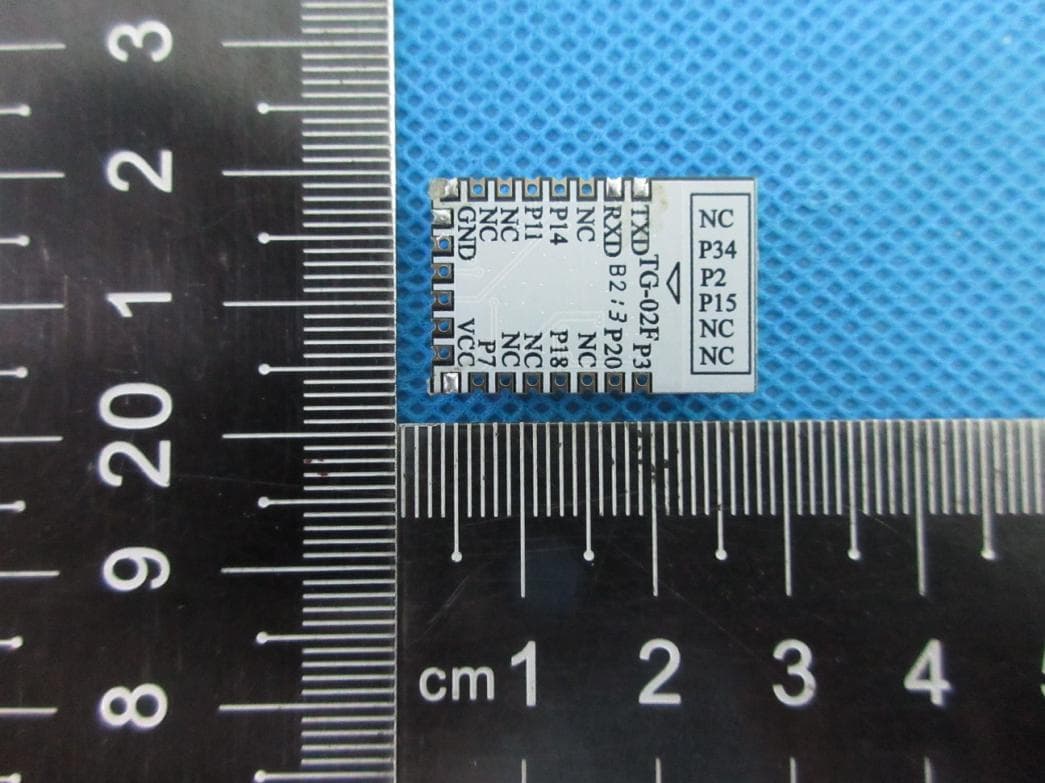

S22051600602 Model: TG-02F ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2

label location

S22051600602 Model: TG-02F Photo 3 Photo 4 ANT

FCC ID:2ATPO-TG02 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Antenna Type: PCB Antenna Antenna Gain:1.5dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.4021.151.3031±12.01.585<50.491273.00YES 2.4401.071.2791±12.01.585<50.495143.00YES 2.4800.641.1591±12.01.585<50.499183.00YES 2.4021.181.3121±12.01.585<50.491273.00YES 2.4400.911.2331±12.01.585<50.495143.00YES 2.4800.61.1481±12.01.585<50.499183.00YES GFSK(1M ) GFSK(2M ) Conclusion: For the max result : 0.49918≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2022-07-01 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S22051600602001 Version.1.3 Page 1 of 55 RADIO TEST REPORT FCC ID:2ATPO-TG02 Product: Bluetooth Module Trade Mark: Ai-Thinker, B&T Model No.: TG-02F Family Model: TG-02,TG-02M Report No.: S22051600602001 Issue Date: Jun 24. 2022 Prepared for Shenzhen Ai-Thinker Technology Co., Ltd 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22051600602001 Version.1.3 Page 2 of 55 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 SUMMARY OF TEST RESULTS.............................................................................................................. 4 3 FACILITIES AND ACCREDITATIONS ..................................................................................................... 5 3.1 FACILITIES ....................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................ 5 3.3 MEASUREMENT UNCERTAINTY .................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT ........................................................................................................ 6 5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................................. 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .............................................................. 9 6.2 SUPPORT EQUIPMENT ................................................................................................................. 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................... 11 7 TEST REQUIREMENTS......................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST .................................................................................................. 13 7.2 RADIATED SPURIOUS EMISSION ................................................................................................ 16 7.3 6DB BANDWIDTH ........................................................................................................................... 25 7.4 DUTY CYCLE .................................................................................................................................. 26 7.5 PEAK OUTPUT POWER ................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ...................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT .............................................................................. 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................... 32 7.9 ANTENNA APPLICATION ............................................................................................................... 33 8 TEST RESULTS ..................................................................................................................................... 34 1M: .............................................................................................................................................................. 34 2M: .............................................................................................................................................................. 45 Report No.: S22051600602001 Version.1.3 Page 3 of 55 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Ai-Thinker Technology Co., Ltd Address ....................................... : 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Manufacturer's Name .................. : Shenzhen Ai-Thinker Technology Co., Ltd Address ....................................... : 410, Block C, Huafeng Smart Innovation Port, Gushu 2nd Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Product description Product name .............................. : Bluetooth Module Model and/or type reference ...... : TG-02F Family Model ............................... : TG-02,TG-02M Test Sample Number ................... : S220516006002 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : May 16. 2022 ~ Jun 24. 2022 Testing Engineer : (Mary Hu) Authorized Signatory : (Alex Li) Report …

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
