2ATRU-BFG2bikefinder Gen2

BikeFinder AS

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jul 12, 2023
Application Purpose: Original Equipment
Date of Application: Jul 11, 2023
Equipment Note: bikefinder Gen2
Frequency Range: 1850.00000000 - 1915.00000000
Company: BikeFinder AS
Country: Norway

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 User Manual BikeFinderGen2tracker BikeFinderGen2tracker UserManual About ThismanualdescribestheproperuseoftheBikeFinder Gen2trackeranditsaccessories.Makesuretoreadthis usermanualbeforeinstallationandactivationofthetracker. Ensurethatallwarningsarereadandunderstoodbefore use. Technicalspecifications Productname:BikeFinderGen2tracker Model:BFG2 Networkfrequency:LTE700-950/1700-2210MHz, WiFi/BLE2.4GHz Satellitesystem:GPS BatteryRechargeable:Detachable650mAhLi-Ionbattery Statusindicator Pushbutton Trackermodule 3 Batterymodule Compatibility Handlebarinnerdiameter: 15.01-19.9mm(mountwithoutexpansionmechanism adapter). 20.0-27.0mm(mountwithexpansionmechanism adapter). Note:Thisdeviceisonlyintendedtobemounted inthehandlebarofabike. ThetrackerrequiresaBikeFinder subscriptiontofunction. Contact Contactglobalcustomerserviceviatheapp [email protected] 4 15mm 145mm 11,2mm 22mm Antenna Limitationsandwarranty GeneralSafetyPrecautions Donotbendthetrackermodule. Donotbendthebatterymodulemorethan45degrees. Donotinserttoolsorpointyobjects,otherthanthose included,intootheropeningsinthetrackerthan explicitlydescribedhere. Donotopenortamperwithanyinternalcomponents. Donotexposethetrackertowatersubmersion orhigh-pressurewaterjets. Donotdropthetrackerontohardsurfacesorexpose ittohigh-energyimpacts. Donotchargethetrackeroutsideoftheallowed chargingtemperature(below0Corhigherthan45C). Keeptrackerandaccessoriesawayfromhighpressure places,potentiallyexplosiveatmospheres,andextreme temperatureconditions(below-20Corhigherthan45C). Keepawayfrommedicalelectronicequipment. Forfulltermsandconditions: www.bikefinder.com/terms BikeFinderprivacypolicy: www.bikefinder.com/privacy Moreinformationandvideoinstructions: www.bikefinder.com/manual Gettingstartedinformation: 5 InstallationSteps Connectthebatterymoduletothe Alignthetrackerandbatterymoduleasshowninthepicture ontheright.Pushthetwomodulestogetheruntilaclick soundisheard.Thebatterymodulemustbeconnected tothetrackermoduleforthetrackertotakecharge andforthetrackertowork. Note:Ifyouneedtodisassemblethebatterymodule fromtracker,usethetool(pincher)thatcomeswiththe productandfollowthestepsbelow: Pinchthetoolatareatoopenthetooltipasshown inpicturea. Slidethetooloverthetwoholes,thenrelease thetool.Thepinchshouldnowsitonthetracker moduleasshowninpictureb. Holdtrackerinonehandandpinchthetool asshowninpicturec,thenpulloutthebattery module. 6 trackermodule picturea picturec 7 picture b 2Chargethetracker Connectchargingcabletoapowersourcewith5V andminimum0.5Aoutput. Removethefrontcover,thenconnectthechargingcable totracker,thetactilemarkeronthechargingcablehead shouldpointtowardstheBikeFinderlogoonthetracker asshowninthepicture. Tip:Chargethebatteryforaminimumof2hours regardlessofbatterylevelindication. 3Buyasubscription Gotowww.bikefinder.comtobuyyoursubscription. BikeFinderhasdifferentsubscriptionofferingsbased onyourcountryofresidence.Someofferingsinclude insuranceinadditiontotracking. lfpurchasinganinsurancesubscription,pleasenotethat theinsurancepolicydependsonyourcountryofresidence. Note:Makesureyoubuyasubscriptionwiththesame e-mailaddressasyouusedwhencreatingalogin intheBikeFinderapp.Seestep4. 4Downloadtheapp YoucandownloadtheBikeFinderappfromAppStore andGooglePlay. Afterdownloadingtheapp,youmustloginwiththesame e-mailusedwhenpurchasingthesubscription.Theapp willguideyouthroughthenecessarystepsforactivation ofthetracker. 8 9 Chargingsocket 9 Activationofthetracker ToactivateyourBikeFindertracker,youmustdo thefollowingsteps: 1.MakesureBluetoothisactivatedonyourphone. 2.Opentheapp. 3.Clickthe+signinthetoprightcorneroftheapp. 4.Selectyourtrackerfromthelistoftrackersnearby. 4.1Ifthetrackerdoesnotshowonthelist, trytoshakethetracker. 5.Afterthetrackerisadded,theappwillautomatically connectittoyourpurchasedsubscription. Whenyourtrackerissuccessfullyconnected toasubscription,thecreditcardsignwillturn greeninyourBikeFinderApp. Tip:lfyourBikeFindertrackerhasaninactive subscription,checkBuyasubscriptionStep3. Mountthetracker lnsertthetrackerintothehandlebar.Ifthehandlebar diameterisbiggerthan20mm,thenseepage12(section 20mm+handlebaradapterset)forfittingexpansion adapterandspacer. Lockthetrackerinplace FastenthescrewsusingtheBikeFindertool.Tighten thetwoscrewsevenlyuntiltrackerislockedinplace. Note:Theexpansionmechanismcandamage theinteriorofthehandlebariftightentohard. Tip:Inspectthefasteningperiodicallyandkeep thetighteningtorquebetween0.4-0.5Nm toachieveoptimalfasteningresult. 10 Inactivesubscription Activesubscription 11 Pluginthefrontcover Pluginthefrontcoverduringnormaluse.YourBikeFinder trackerisnowinstalledandreadytouse. Fortroubleshootingandmoreinformation gotowww.bikefinder.com/manual Warning! Donotcoverthisareawithmetal.Signalstrength willbeaffected. Antennaarea 20mm+handlebaradapterset Usetheadaptersetonthehandlebarswheninnerdiameter islargerthan20mm. 1.Removethetwoexpansionscrewsusingthescrewdriver toolprovidedinthebox. 2.Mountthetwoexpansionadaptersbetweenthehead ofthetrackerandtheexpansionmechanismasshown inthepicture,reinstalltheexpansionsscrews. Thescrewsshouldnowpassthroughthedesignated holesintheexpansionmechanismadapterbefore theyarescrewedintotheexpansionmechanism. 3.Slidethesiliconespacerontothebatterymodule section. 12 Expansionmechanismadapter Siliconespacer 13 FCCWARNINGSTATEMENT Warning!Changesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser ́sauthoritytooperate theequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubject tothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Note:Thisequipmenthasbeentestedandfoundtocomply withthelimitsforaClassBdigitaldevice,pursuanttoPart15 oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,uses,andcanradiateradiofrequency energy,andifnotinstalle…

Text truncated - open the document above for the full version.

Attestation Statements

(BikeFinderAS) (15/06/2023) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(2ATRU-BFG2) [BikeFinderAS](“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (YouhuaFu) (BikeFinderAS) (15/06/2023) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(2ATRU-BFG2) [BikeFinderAS](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Sincerely, (Applicantsignature) (YouhuaFu)

Attestation Statements

AttestationStatements (15/06/2023) TO:FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046,USA RE:AttestationStatementsPart2.911(d)(7)requestfor(2ATRU-BFG2) (BikeFinderAS),theundersigned,herebyauthorize(WeFaSelectionTradeTechnology Co.,LTD)toactasourdesignatedU.S.agentforserviceofprocess,(BikeFinderAS) acceptstomaintainanagentfornolessthanoneyearafterthegranteehasterminated allmarketingandimportationortheconclusionofanyCommission-relatedproceeding involvingtheequipment. (WeFaSelectionTradeTechnologyCo.,LTD)acceptstheresponsibilitytoactas designatedU.S.agentforserviceofprocess. ApplicantInformation： Companyname:BikeFinderAS ContactName:YouhuaFu Address:Veritasveien25,4007Stavanger,Norway TelephoneNo:+4794844918 Email:[email protected] Signature [YouhuaFu] U.S.AgentInformation: CompanyName:WeFaSelectionTradeTechnologyCo.,LTD Address:30N.GOULDST.STENSHERIDANWY,SHERIDAN,WY82801,UnitedStates FRN:0033767856 ContactName:JosonYe TelephoneNo:3023719847 Email:[email protected] Signature [JosonYe]

Cover Letter(s)

BikeFinderAS ( 15/06/2023 ) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(bikefinderGen2/BFG2#2ATRU-BFG2#) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(Blockdiagram,circuitdiagram,operational description,BOM,Tuneupprocedure)requiredtobesubmittedwiththisapplication bepermanentlywithheldfrompublicreview. SPECIFYREASONFORREQUEST(i.e.theabovedocumentsarecompany proprietaryinformationthatcouldnevergetintothepossessionofyour competition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely,

Cover Letter(s)

BikeFinderAS (15/06/2023 ) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(ShenzhenLGTTestServiceCo.,Ltd.)toactonourbehalf inallmattersrelatingtoapplicationforequipmentauthorization,includingthesigningofall documentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely,

External Photos

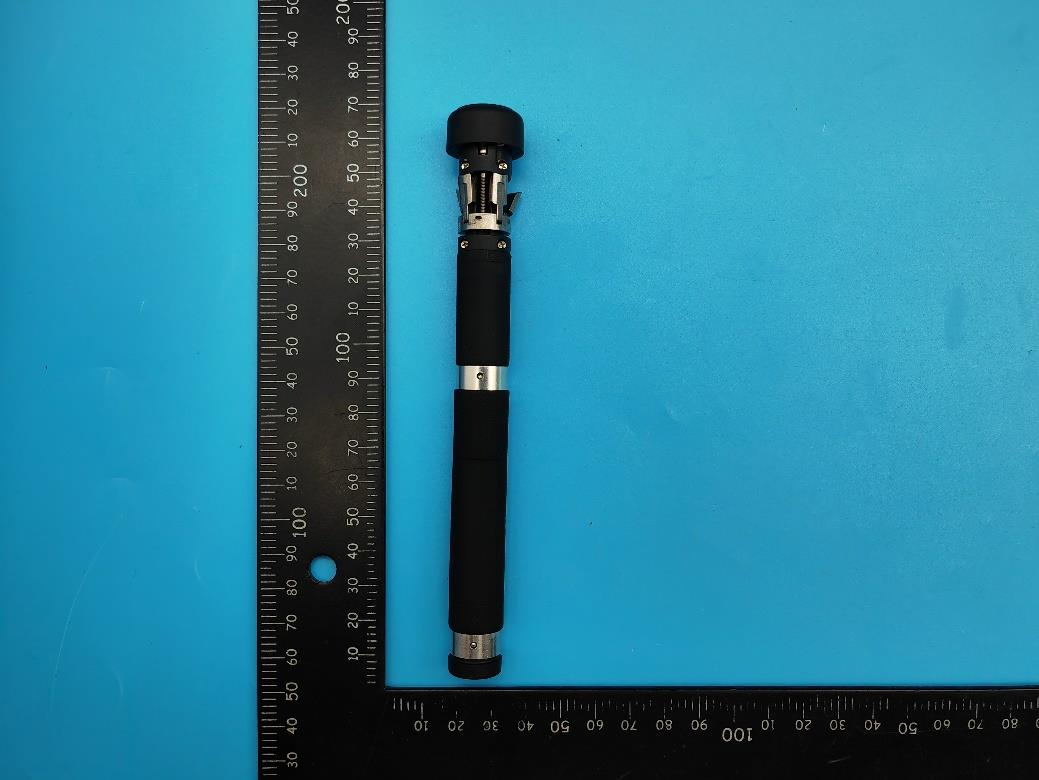

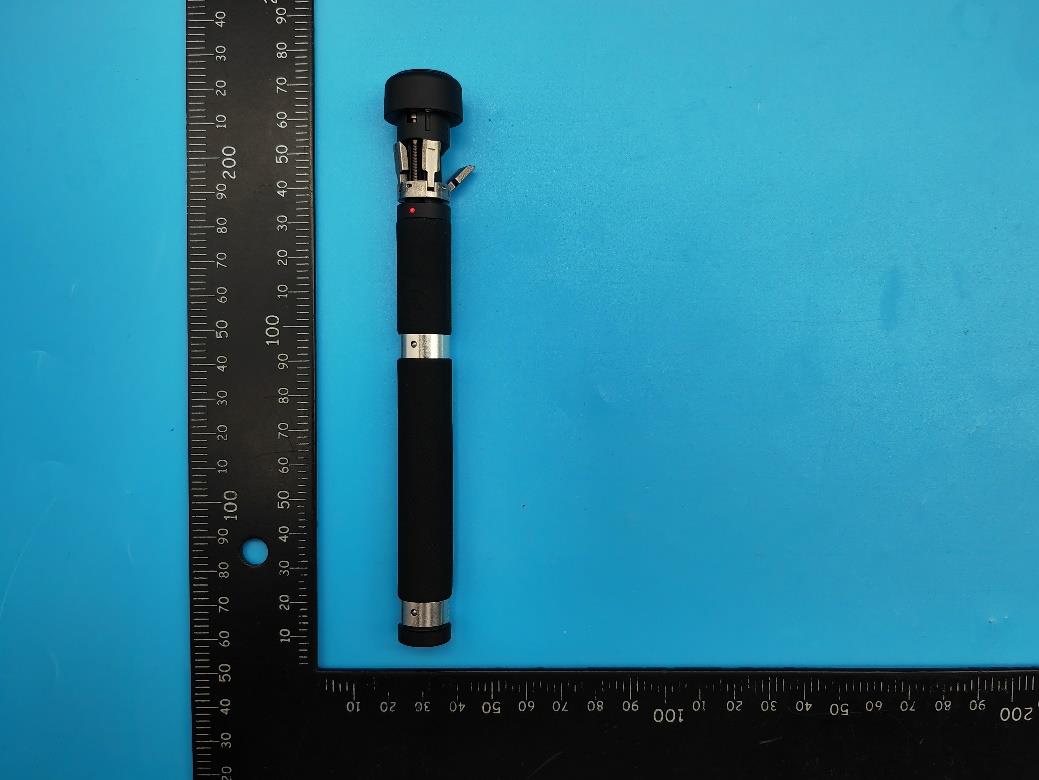

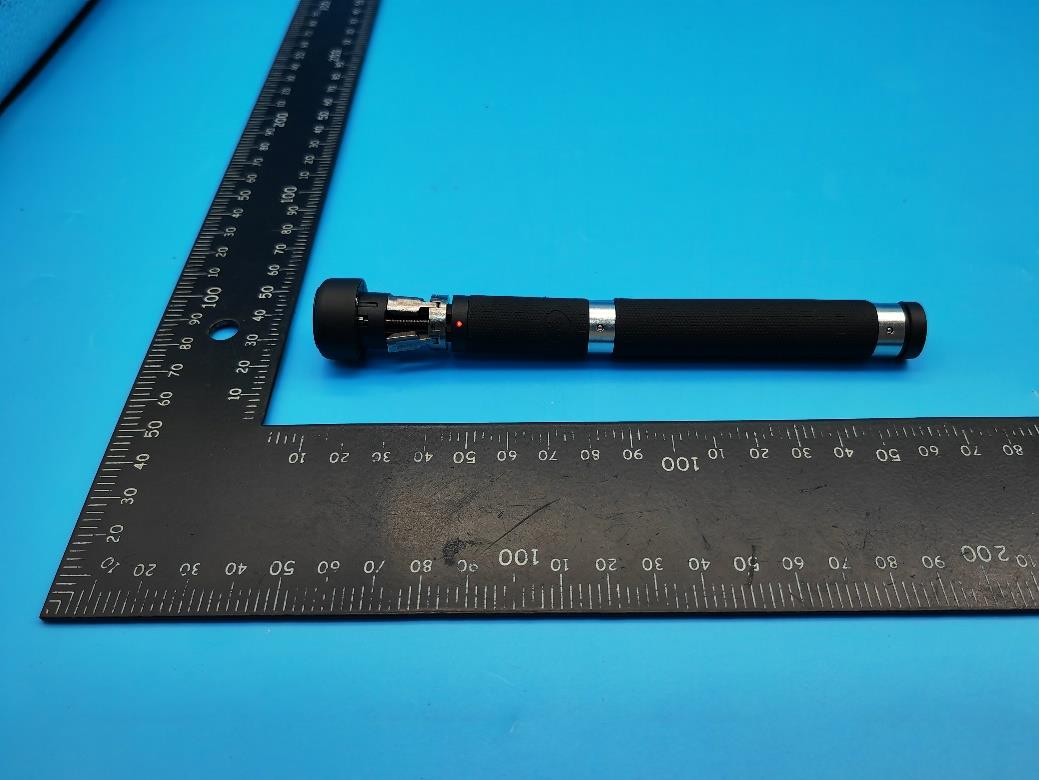

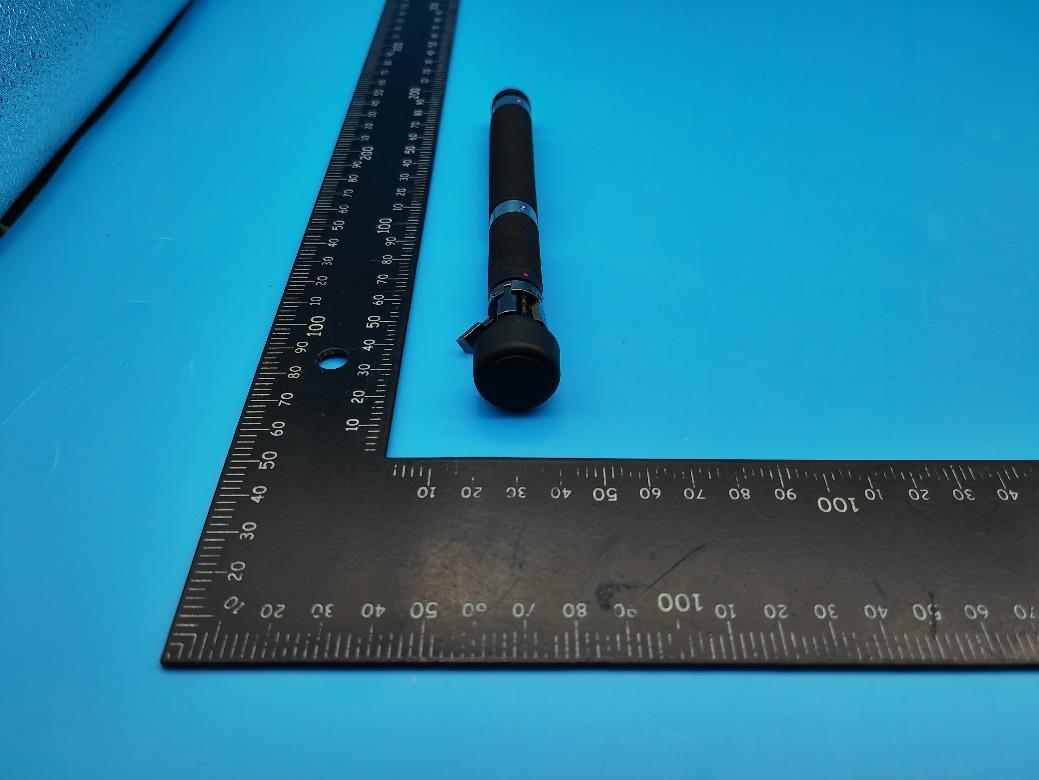

Page 1 of 4 Report No.: LGT23E006 Appendix - External Photographs of EUT Constructional Details Model: BFG2 Photo 1 Photo 2 Page 2 of 4 Report No.: LGT23E006 Photo 3 Photo 4 Page 3 of 4 Report No.: LGT23E006 Photo 5 Photo 6 Page 4 of 4 Report No.: LGT23E006 Photo 7 Photo 8

Internal Photos

Page 1 of 5 Report No.: LGT23E006 Appendix - Internal Photographs of EUT Constructional Details Model: BFG2 Photo 1 Photo 2 Page 2 of 5 Report No.: LGT23E006 Photo 3 Photo 4 BT/WIFI ANT Page 3 of 5 Report No.: LGT23E006 Photo 5 Photo 6 Page 4 of 5 Report No.: LGT23E006 Photo 7 Photo 8 GPS/LTE ANT Page 5 of 5 Report No.: LGT23E006 Photo 9

RF Exposure Info

!! " !#$ %# &'()*+,$!)$ !-%./-0 10/2$!#''/3-3-%%/!0%$ 4-0 !3 3 .-" 2-.)%-/- $1-05%-/- $ $.0%!$ -0 36 !3!0/%!-3/- (7-%1/!) /-0!#8+9:**1!';9 <=>?@<ABC<A36 #-#CB=<DE>FABCGC><?=B BHIFEDJ=B)@BKA-@E>KBL*M,<NBFGB0=BO>KCB/EHIEF *M*P+1!.0(7/0 <=>?@<A>EFC<AB8+*:&+:*+*' QQR STUVUTWXYZ[\]^_ QW` VaVTbVcb WXdddQW RVQ R IBGKBEeAIB Ee@<H?@<FC<FCAIB<HH@BC>A<A>EF@BeB@BFHBK>KD@EI>?>ABCe@Ef<Fg@BD@ECGHA>EF# hijjkl mnTYSWQop XU`R Y XUYUn p UnWSVXSR YobUY RWpVXVQQR STU Sqrq [sT bStRWc QVbTcRVUTWX` R WRp SVUruvwoYTXxUn yzt qU YUc XQnw WRoY dTUnVruvqrq Y{YU pWXb{mn U YUR YobUYQWa R Sc{VQQR STUVUTWXVR URVQ Vcb UWUn zXU RXVUTWXVb{YU pW |XTUY}z~ !3 !0/(7>B=C1@E?B <=>?@<A>EF/BDE@A Ref : ACR.41.6.23.BES.A !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ M"_LNKOGJN` O"aG!N OLR" R"S R"IQ]#bcdefghijiklminopnlnqd uF"Kv"IQ]#bcdefghijiklminopnlnqd wSSRJX"IQ]xnlljyhznmlgn{ydnzyd|}mdizyd uLHOJM"R^ M" `GHORGQLOGJN# g~jklkl jzjiklyoyq| ygz HHL"^ M"` O"YJIGVGK OGJNH bcdefghilmzmnodon Ref: ACR.41.6.23.BES.A 2/10/2023 2/10/2023 2/10/2023 2/10/2023 !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ _`abcdefghi jfkelbi_hbfamiakd ^ndfopqdkfroiakdsssssssssssssssssssssssssssssssssssssssssssssssssssssss t uohlfrdiuivke t^wadofaixssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss tdhaia`aixsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss ttwkyf_ibiakdwaraisssssssssssssssssssssssssssssssssssssssssssssssssssss tqhkifkmxsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss t^kldeofxbissssssssssssssssssssssssssssssssssssssssssssssssssssssssss uohlfrdicdbfioadixz opa{foiakduohlfrdihlpihz ^ dhaia`aixadoafssssssssssssssssssssssssssssssssssssssssssssssssssssssssssz wadofaixssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss| t dhaia`aixadpa}laessssssssssssssssssssssssssssssssssssssssssssssssssssssss~ qhkifkmxsssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss zwahik}lamrdi^ Ref: ACR.41.6.23.BES.A !"#$%&& '()*+,-(./01233324255267892:;;<=.0>6>;/1?@AB(CD EFGHIJKLM"NOHF PPNJOQ"R"SRJILK"IT"UK"SOGNVLPPJRGNS ROTWGOFJLOOF"WRGOO"N SSRJX PJVYZ[\EF"GNVJRM OGJNKJNO GN"IF"R"GNGHOJQ"LH"I J NP]VJROF"SLRSJH"VJRWFGKFGOGHHLQMGOO"I NIGHNJOOJQ"R"P" H"IGNWFJP"JRS ROWGOFJLOWRGOO"N SSRJX PJVYZ[\ ^ _ ` abcdebfghbijbkl mnopqrstutmtvuqvwvxmyt uz{|zp}|~~u u ~oz|~yt y~|p}{o}o{{| w~|{prz{y~ o}z{pq~mosz}{{p}~ mosu mosu mosu ` xvwtuqvt ¡¢£¤¥¦§ ̈©ª«¬¦ª¦¬®¥§ ̄¥°zpp~z{p}}vv±²z{w ³m²m }z{z~ ́μ¶· ̧^¹YZ[º»Y»¼½¾¿JHGM"ORGKÀVG"PIRJQ" y~x{} x{}v{ono|zmos uzÁo|Á}~{zoz}~² y~qosÁ}~{zmoz}~ mo}z{p}{oss~Á}~o}r Â`Ã qvv±²z{w³m²m}z{z~s~no~p{s~zp}op ~ }s~pzo~z}o{Äo{p|o{}s~~z{ppz~zp}~o}opo{}~}z{}rop} z}o~zp}pzo~z}o{z|~{}s~~}}~{}o{}z{z~ xv vqÅ qnz|z}o{}o{z~o}rz{o{~szp|o{}zn|oÄs~~o{zs~ s} pn~}~z{ÆÇ}ÆÇ vqvvqÅ q{o}ono}rzp}~}}~os~}~o{|o{z}}spzo~z}o{}zo~ z {}o|o|z}o{o|o|o{zn|oz|}o{o{}}z{z~ Ref: ACR.41.6.23.BES.A Used …

Text truncated - open the document above for the full version.

RF Exposure Info

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China SAR TEST REPORT Product Name: bikefinder Gen2 Model Name: BFG2 FCC ID: 2ATRU-BFG2 Issued For : BikeFinder AS Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT23E006HA01 Sample Received Date: May. 19, 2023 Date of Test: May 21, 2023 ~ May 22, 2023 Date of Issue: June 05, 2023 Max. SAR (10g): Limbs: 0.299 W/kg Report No.: LGT23E006HA01 Page 2 of 67 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2. Test Standards and Limits 8 3. SAR Measurement System 9 3.1 Definition of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 14 5.1 Validation System 14 5.2 Validation Result 15 6. SAR Evaluation Procedures 16 7. EUT Antenna Location Sketch 17 8. EUT Test Position 19 8.1 Body-worn Position Conditions 19 9. Uncertainty 20 9.1 Measurement Uncertainty 20 10. Conducted Power Measurement 21 10.1 Test Result: 21 11. EUT and Test Setup Photo 35 11.1 EUT Photos 35 11.2 Setup Photos 36 12. SAR Result Summary 37 12.1 Limbs SAR 37 12.2 Simultaneous Multi-band Transmission Evaluation 39 13. Equipment List 40 Appendix A. System Validation Plots 41 Appendix B. SAR Test Plots 51 Appendix C. Probe Calibration and Dipole Calibration Report 67 Report No.: LGT23E006HA01 Page 3 of 67 Revision History Rev. Issue Date Contents 00 June 05, 2023 Initial Issue Report No.: LGT23E006HA01 Page 4 of 67 TEST REPORT CERTIFICATION Applicant BikeFinder AS Address Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Manufacture BikeFinder AS Address Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Product Name BikeFinder AS Trademark ， Model Name BFG2 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 (2.1093) IEEE 1528: 2013 PASS Prepared by: Approved by: Zane Shan Engineer Vita Li Manager Report No.: LGT23E006HA01 Page 5 of 67 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name bikefinder Gen2 Trademark , Model Name BFG2 Series Model N/A Model Difference N/A Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled Hardware Version 1.0.0 Software Version 10.3.2 Frequency Range LTE Cat-M1 TX Frequency: Band 2:1850~1910MHz Band 4:1710~1755MHz Band 5:824~849MHz Band 12:699~716MHz Band 13:777~787MHz Band 25:1850~1915MHz Band 26:814~824/824~849MHz Band 66:1710~1780MHz LTE NB1 TX Frequency: Band 2:1850~1910MHz Band 4:1710~1755MHz Band 5:824~849MHz Band 12:699~716MHz Band 17:704~716MHz Band 25:1850~1915MHz Band 26:814~824/824~849MHz Band 66:1710~1780MHz 2.4G WIFI 802.11b/g/n: 2412~2462MHz BLE: 2402~2480MHz Max. Reported SAR(10g): (Limit: 4W/kg) Test distance:0mm Mode Limbs (W/kg)) Cat-M1 Band 4 0.092 Cat-M1 Band 5 0.108 Cat-M1 Band 12 0.084 Cat-M1 Band 13 0.101 Cat-M1 Band 25 0.071 Cat-M1 Band 26 0.061 Cat-M1 Band 66 0.084 NB1 Band 5 0.299 NB1 Band 12 0.178 NB1 Band 25 0.242 NB1 Band 26 0.158 NB1 Band 66 0.221 Report No.: LGT23E006HA01 Page 6 of 67 2.4G WLAN 0.012 BLE 0.010 10-g Sum SAR 0.309 Battery: Capacity: 650mAh 2.47Wh Rated Voltage: 3.8V Operating Mode: LTE Cat-M1: QPSK, 16QAM LTE-NB1: π/2-BPSK, π/4-QPSK 2.4G WIFI: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM BLE: GFSK Antenna Specification LTE: LDS Antenna 2.4G WIFI/BLE: PCB Antenna Operating Mode Maximum continuous output SIM Card Internal single SIM Card. Hotspot Mode Not Support DTM Mode Not Support NOTE: 1. Cat-M1 Band 2 is completely included in band 25, band 26(824-849) is completely included in band 5, so the channels of band 25 and band 5 were tested to give conformity to the assigned block. 2. NB1 Band 2 is completely included in band 25, Band 4 is completely included in band 66, band 17 is completely included in band 12, band 26(824-849) is completely included in band 5, so the channels of band 25, band 12, band 5 and band 66 were tested to give conformity to the assigned block. 3. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power Report No.: LGT23E006HA01 Page 7 of 67 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate FCC Registration No.: 746540 A2LA Certificate No.: 6727.01 IC Registration No.: CN0136 Report No.: LGT23E006HA01 Page 8 of 67 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Expos…

Text truncated - open the document above for the full version.

Test Report

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: bikefinder Gen2 Model Name: BFG2 FCC ID: 2ATRU-BFG2 Issued For : BikeFinder AS Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT23E006RF03 Sample Received Date: May 06, 2023 Date of Test: May 06, 2023 ~ Jun. 08, 2023 Date of Issue: Jun. 08, 2023 Report No.: LGT23E006RF03 Page 2 of 44 TEST REPORT CERTIFICATION Applicant: BikeFinder AS Address: Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Manufacturer: BikeFinder AS Address: Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Product Name: bikefinder Gen2 Trademark: , Model Name: BFG2 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 2, 22, 24, 27 and 90 KDB 971168 D01 v03r01, ANSI C63.26(2015) PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT23E006RF03 Page 3 of 44 Table of Contents Page 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 3. RADIATED SPURIOUS EMISSION 12 APPENDIX I-PHOTOS OF TEST SETUP 44 Report No.: LGT23E006RF03 Page 4 of 44 Revision History Rev. Issue Date Contents 00 Jun. 08, 2023 Initial Issue Report No.: LGT23E006RF03 Page 5 of 44 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Parameter Uncertainty Occupied Channel Bandwidth ±3.2 % RF Output Power, Conducted ±0.87dB Power Spectral Density, Conducted ±2.11 dB Unwanted Emission, Conducted ±0.86dB All Emissions, Radiated (Below 1GHz) ±3.54dB All Emissions, Radiated (1GHz-18GHz) ±4.22dB All Emissions, Radiated (18GHz-25GHz) ±4.81dB Temperature ±0.5°C Humidity ±2% Note: The measurement uncertainty is not included in the test result. Report No.: LGT23E006RF03 Page 6 of 44 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: bikefinder Gen2 Trademark: , Model Name: BFG2 Series Model: N/A Model Difference: N/A Frequency Bands: U.S. Bands: LTE Cat-M1 FDD Band 2 LTE Cat-M1 FDD Band 4 LTE Cat-M1 FDD Band 5 LTE Cat-M1 FDD Band 12 LTE Cat-M1 FDD Band 13 LTE Cat-M1 FDD Band 25 LTE Cat-M1 FDD Band 26 LTE Cat-M1 FDD Band 66 SIM Card: Internal single SIM Card. Antenna: LDS Antenna Rating: Input: DC 5V, 2A Battery: Capacity: 650mAh 2.47Wh Rated Voltage: 3.8V Extreme Vol. Limits: 2.75V to 4.35V (Nominal 3.8V) Extreme Temp. Tolerance: -0°C to +45°C Hardware version: 1.0.0 Software version: 10.3.2 Note: The antenna information refer the manufacturer provide report, applicable only to the tested sa- mple identified in the report. Report No.: LGT23E006RF03 Page 7 of 44 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Note: Band 2 is completely included in band 25, band 26(824-849) is completely included in band 5, so the channels of band 25 and band 5 were tested to give conformity to the assigned block. Product Specification Subjective To This Standard Tx Frequency Band 2:1850~1910MHz Band 4:1710~1755MHz Band 5:824~849MHz Band 12:699~716MHz Band 13:777~787MHz Band 25:1850~1915MHz Band 26:814~824/824~849MHz Band 66:1710~1780MHz Rx Frequency Band 2: 1930-1990MHz Band 4: 2110-2155MHz Band 5: 869-894MHz Band 12: 729-746MHz Band 13: 746-756MHz Band 26: 859-869/869-894MHz Band 66: 2110-2200MHz Bandwidth Band 2:1.4/3/5/10/15/20MHz Band 4: 1.4/3/5/10/15/20MHz Band 5: 1.4/3/5/10MHz Band 12:1.4/3/5/10MHz Band 13: 5/10MHz Band 25:1.4/3/5/10/15/20MHz Band 26: 1.4/3/5/10/15MHz Band 66: 1.4/3/5/10/15/20MHz Type of Modulation QPSK /16QAM Report No.: LGT23E006RF03 Page 8 of 44 2.1.3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST Antenna port conducted and radiated test items listed below are performed according to KDB 971168 D01 v03r01 and ANSI C63.26 2015 Power Meas. License Digital Systems with maximum output power. Radiated measurements are performed by rotating the EUT in three different orthogonal test planes tofind the maximum emission. Remark: 1. The mark ‘v’means that this configuration is chosen for testing 2. The mark ‘-’means that this bandwidth is not supported. 3. The device is investigated from 30MHz to 10 times of fundamental signal for radiated. Note: The module has been certified and module FCC ID is 2ANPO00NRF9160. In this report, this certified module is same as the original filling. We have tested the new radiation emission. ITEMS Band Bandwidth (MHz) Modulation RB # Test Channel 1.4 3 5 10 15 20 QPSK 16QAM 1 Half Full L M H Radiated Spurious Emission 2 v v v v v v v v v v v 4 v v v v v v v v v v v 5 v v v v v v v v v 12 v v v v v v v v v 13 v v v v v 25 v v v v v v v v v v v 26 v v v v v v v v v 66 v v v v v v v v v v v Report No.: LGT23E006RF03 Page 9 of 44 2.1.4 RELATED SUBMITTAL(S) / GRANT (S) This submittal(s) …

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Youhua Fu

[email protected]+4794844918Fax: +4794841706

Test Firm

Shenzhen LGT Test Service Co., Ltd.Wen Wen

[email protected]0755-89668180

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
17	24E	1.85 GHz - 1.92 GHz	217.77 mW	205KG7W	1 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. Highest reported SAR for Limbs and simultaneous transmission are 0.30W/kg, 0.31W/kg respectively.

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Text truncated - open the document above for the full version.

Attestation Statements

Cover Letter(s)

External Photos

Internal Photos

RF Exposure Info

Text truncated - open the document above for the full version.

RF Exposure Info

Text truncated - open the document above for the full version.

Test Report

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: bikefinder Gen2 Model Name: BFG2 FCC ID: 2ATRU-BFG2 Issued For : BikeFinder AS Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT23E006RF03 Sample Received Date: May 06, 2023 Date of Test: May 06, 2023 ~ Jun. 08, 2023 Date of Issue: Jun. 08, 2023 Report No.: LGT23E006RF03 Page 2 of 44 TEST REPORT CERTIFICATION Applicant: BikeFinder AS Address: Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Manufacturer: BikeFinder AS Address: Veritasveien 25, 4007 Stavanger, Postbox 4004, 4092 Stavanger, Stavanger, Norway Product Name: bikefinder Gen2 Trademark: , Model Name: BFG2 Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 2, 22, 24, 27 and 90 KDB 971168 D01 v03r01, ANSI C63.26(2015) PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT23E006RF03 Page 3 of 44 Table of Contents Page 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 3. RADIATED SPURIOUS EMISSION 12 APPENDIX I-PHOTOS OF TEST SETUP 44 Report No.: LGT23E006RF03 Page 4 of 44 Revision History Rev. Issue Date Contents 00 Jun. 08, 2023 Initial Issue Report No.: LGT23E006RF03 Page 5 of 44 1. TEST FACTORY & MEASUREMENT UNCERTAINTY 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Parameter Uncertainty Occupied Channel Bandwidth ±3.2 % RF Output Power, Conducted ±0.87dB Power Spectral Density, Conducted ±2.11 dB Unwanted Emission, Conducted ±0.86dB All Emissions, Radiated (Below 1GHz) ±3.54dB All Emissions, Radiated (1GHz-18GHz) ±4.22dB All Emissions, Radiated (18GHz-25GHz) ±4.81dB Temperature ±0.5°C Humidity ±2% Note: The measurement uncertainty is not included in the test result. Report No.: LGT23E006RF03 Page 6 of 44 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: bikefinder Gen2 Trademark: , Model Name: BFG2 Series Model: N/A Model Difference: N/A Frequency Bands: U.S. Bands: LTE Cat-M1 FDD Band 2 LTE Cat-M1 FDD Band 4 LTE Cat-M1 FDD Band 5 LTE Cat-M1 FDD Band 12 LTE Cat-M1 FDD Band 13 LTE Cat-M1 FDD Band 25 LTE Cat-M1 FDD Band 26 LTE Cat-M1 FDD Band 66 SIM Card: Internal single SIM Card. Antenna: LDS Antenna Rating: Input: DC 5V, 2A Battery: Capacity: 650mAh 2.47Wh Rated Voltage: 3.8V Extreme Vol. Limits: 2.75V to 4.35V (Nominal 3.8V) Extreme Temp. Tolerance: -0°C to +45°C Hardware version: 1.0.0 Software version: 10.3.2 Note: The antenna information refer the manufacturer provide report, applicable only to the tested sa- mple identified in the report. Report No.: LGT23E006RF03 Page 7 of 44 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Note: Band 2 is completely included in band 25, band 26(824-849) is completely included in band 5, so the channels of band 25 and band 5 were tested to give conformity to the assigned block. Product Specification Subjective To This Standard Tx Frequency Band 2:1850~1910MHz Band 4:1710~1755MHz Band 5:824~849MHz Band 12:699~716MHz Band 13:777~787MHz Band 25:1850~1915MHz Band 26:814~824/824~849MHz Band 66:1710~1780MHz Rx Frequency Band 2: 1930-1990MHz Band 4: 2110-2155MHz Band 5: 869-894MHz Band 12: 729-746MHz Band 13: 746-756MHz Band 26: 859-869/869-894MHz Band 66: 2110-2200MHz Bandwidth Band 2:1.4/3/5/10/15/20MHz Band 4: 1.4/3/5/10/15/20MHz Band 5: 1.4/3/5/10MHz Band 12:1.4/3/5/10MHz Band 13: 5/10MHz Band 25:1.4/3/5/10/15/20MHz Band 26: 1.4/3/5/10/15MHz Band 66: 1.4/3/5/10/15/20MHz Type of Modulation QPSK /16QAM Report No.: LGT23E006RF03 Page 8 of 44 2.1.3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST Antenna port conducted and radiated test items listed below are performed according to KDB 971168 D01 v03r01 and ANSI C63.26 2015 Power Meas. License Digital Systems with maximum output power. Radiated measurements are performed by rotating the EUT in three different orthogonal test planes tofind the maximum emission. Remark: 1. The mark ‘v’means that this configuration is chosen for testing 2. The mark ‘-’means that this bandwidth is not supported. 3. The device is investigated from 30MHz to 10 times of fundamental signal for radiated. Note: The module has been certified and module FCC ID is 2ANPO00NRF9160. In this report, this certified module is same as the original filling. We have tested the new radiation emission. ITEMS Band Bandwidth (MHz) Modulation RB # Test Channel 1.4 3 5 10 15 20 QPSK 16QAM 1 Half Full L M H Radiated Spurious Emission 2 v v v v v v v v v v v 4 v v v v v v v v v v v 5 v v v v v v v v v 12 v v v v v v v v v 13 v v v v v 25 v v v v v v v v v v v 26 v v v v v v v v v 66 v v v v v v v v v v v Report No.: LGT23E006RF03 Page 9 of 44 2.1.4 RELATED SUBMITTAL(S) / GRANT (S) This submittal(s) …

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Rule Parts

Frequency Range

Power Output

Emission

Tolerance

24E

1.85 GHz - 1.92 GHz

217.77 mW

205KG7W

1 ppm
