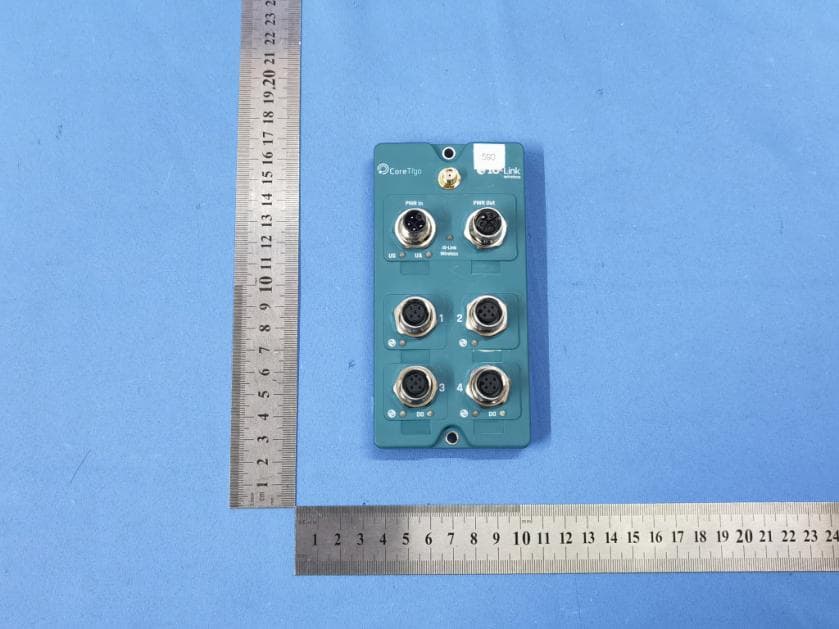

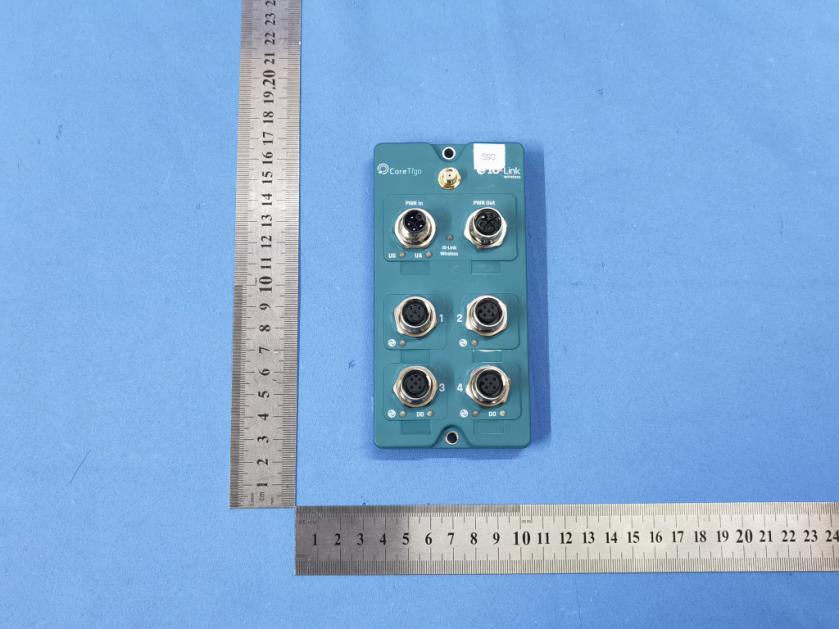

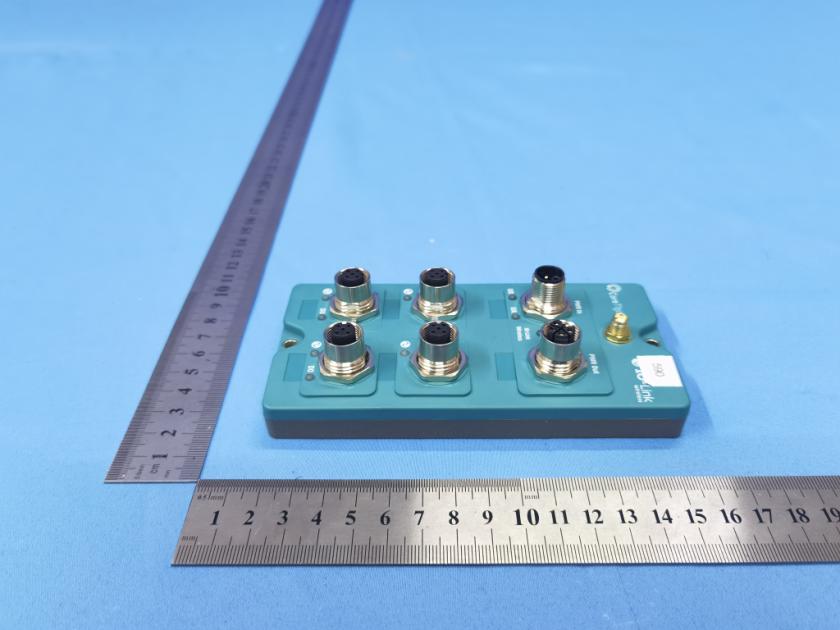

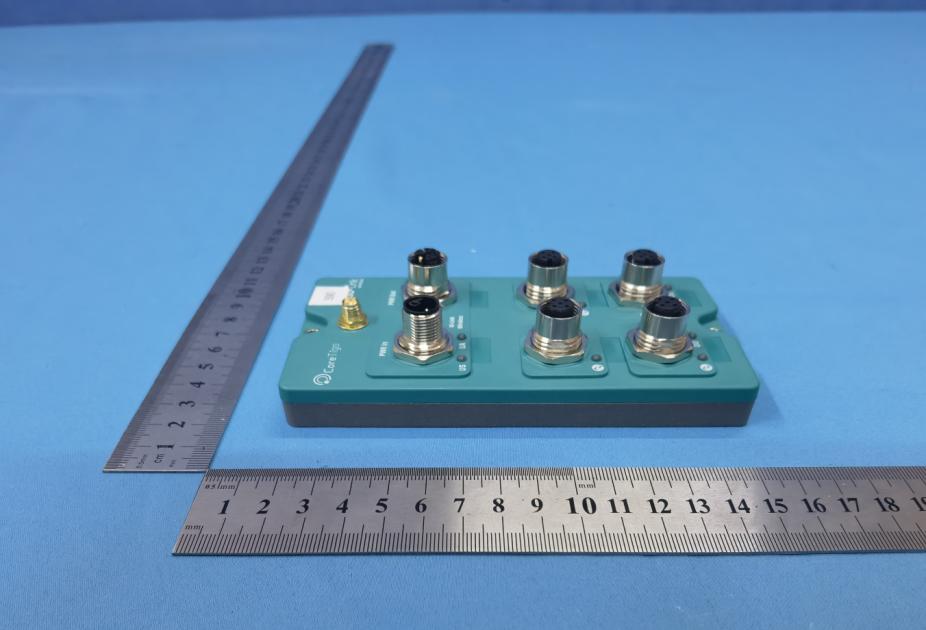

2ATSM-TIGOHUBIO-Link to IO-Link Wireless Multiport Bridge

TigoHubi4UserManual Copyright©2023CoreTigoLtd. CoreTigo TigoHub i4 USERMANUAL TigoHubi4UserManual Page2of41 Copyright©2023CoreTigoLtd. TableofContents TableofContents ....................................................................................................................................................... 2 ListofTables .............................................................................................................................................................. 3 1. Introduction ............................................................................................................................................................ 5 1.1. Structure .......................................................................................................................................................... 6 1.2. TypographicalConventions .............................................................................................................................. 6 1.3. Symbols ........................................................................................................................................................... 6 1.4. DeviatingViews ................................................................................................................................................ 6 2. Safety ...................................................................................................................................................................... 7 2.1. GeneralNote .................................................................................................................................................... 7 2.2. ElectricalConnection ........................................................................................................................................ 7 2.3. IntendedUse .................................................................................................................................................... 7 2.4. PersonnelQualification ..................................................................................................................................... 8 3. Requirements ......................................................................................................................................................... 9 4. Pre-Installation ..................................................................................................................................................... 10 4.1. Description ..................................................................................................................................................... 10 4.2. Overview ........................................................................................................................................................ 10 4.3. FunctionalDiagram ......................................................................................................................................... 11 4.4. LEDS ............................................................................................................................................................. 12 4.5. ElectricalWiring .............................................................................................................................................. 14 4.6. ElectricalConnection ...................................................................................................................................... 15 5. Mounting .............................................................................................................................................................. 16 6. ConfigurationandSetup ....................................................................................................................................... 17 6.1. PD(ProcessData)Configuration ...................................................................................................................... 17 6.2. DeviceConfiguration ....................................................................................................................................... 20 7. FirmwareUpdate ................................................................................................................................................... 31 8. DiagnosticsandTroubleshooting ........................................................................................................................ 32 8.1. PowerSupply LEDs ........................................................................................................................................ 32 8.2. IOLWLED ....................................................................................................................................................... 32 8.3. PortsLEDs ...................................................................................................................................................... 32 9. GuidelinesandRegulations .................................................................................................................................. 33 9.1. RFExposure Warnings ................................................................................................................................... 33 9.2. ClassBWarning .............................................................................................................................................. 33 9.3. ModificationStatements .................................................................................................................................. 33 9.4. FCC,ISEDRegulatoryNotices ......................................................................................................................... 33 TigoHubi4UserManual Page3of41 Copyright©2023CoreTigoLtd. 10. TechnicalData ......................................................................................................…

Text truncated - open the document above for the full version.

CoreTigo Ltd Covered Equipment Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2ATSM-TIGOHUB CoreTigo Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. CoreTigo Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Ofer Blonskey Title: VP RnD Company Name: CoreTigo Ltd Date: 3/28/2023

Core Tigo Ltd U.S. Agent Designation for Service of Process - Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7 435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2ATSM-TIGOHUB Per section 2.911 (d)(7) of the FCC rules, CoreTigo Ltd certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: CoreTigo Inc FCC Registration Number (FRN):0033551847 Physical U.S. Company Address: 400 Ann Street NW, Grand Rapids, Michigan 49504, USA Contact Person: Reid Schook Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: cf: Printed name: Ofer Blonskey Title: VP RnD Company Name: CoreTigo Ltd Date: 3/28/2023 Agent Signed: Printed name: Reid Schook Title: Company Name: Core Tigo Inc Date: 3/28/2023 *the applicant must designate a contact located in the United States for purposes of acting as the applicant's agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. FR N of applicant:0028601680

DATE : 2023-03-28 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with CoreTigo Ltd and Giborey Israel 5, Poleg, Natanya, Israel 4250405 Signature: Name: Ofer Blonskey Title: VP RnD Company: CoreTigo Ltd

CoreTigo Ltd DATE : 2023-03-28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATSM-TIGOHUB Product Name: IO-Link to IO-Link Wireless Multiport Bridge Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: ⚫ Test Setup Photos ⚫ External Photos ⚫ Internal Photos ⚫ User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Signature: Name: Ofer Blonskey Title: VP RnD Company: CoreTigo Ltd

Statement DATE : 2023-05-05 To whom it may concern: The device only be professional installation. Sincerely, Signature: Name: Ofer Blonskey Title: VP RnD Company: CoreTigo Ltd

TigoHub i4 Made in Germany Male Female 4 1 2 3 4 3 2 1 1 - 1L 2 - 2L 3 - 1M (GND1) 4 - IO-Link CQ 5 - 2M (GND2) Class B Female 12 4 5 3 Class B Female 1 - 1L 2 - DO 3 - 1M (GND1) 4 - IO-Link CQ 5 - N.C 2 3 1 5 4 Class A Female 12 4 5 3 Class A Female 2 3 1 5 4 80mm 50mm CT261-0007-4P S/N Proc. Cont. Eq. E520819 R xxx-xxxxxx FCC ID:2ATSM-TIGOHUB IC: 26463-TIGOHUB CAN ICES-3 (A)/NMB-3(A) Refer to Operation Manual Input: 18-32VDC/max. 4A M12L Power 1 - 1L 2 - 2M (GND2) 3 - 1M (GND1) 4 - 2L

TigoHub Lablel Location

FCC ID: 2ATSM-TIGOHUB RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2ATSM-TIGOHUB Test Result of RF Exposure Evaluation 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 2401MHz 9.54 8.99 0.0002 1.0 PASS Remark: antenna gain=-10dBi The max power density is less than MPE exempt limit, so it is compliance.

Global United Technology Services Co., Ltd. Report No.: GTS202205000181F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 33 TEST REPORT Applicant: CoreTigo Ltd Address of Applicant: Giborey Israel 5, Poleg, Natanya, Israel 4250405 Manufacturer/Factory: CoreTigo Ltd Address of Manufacturer/Factory: Giborey Israel 5, Poleg, Natanya, Israel 4250405 Equipment Under Test (EUT) Product Name: IO-Link to IO-Link Wireless Multiport Bridge Model No.: TigoHub i4 Trade Mark: CoreTigo FCC ID: 2ATSM-TIGOHUB Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: May 17, 2022 Date of Test: May 18, 2022-February 23, 2023 Date of report issued: February 23, 2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202205000181F01 Page 2 of 33 2 Version Version No. Date Description 00 February 23, 2023 Original Prepared By: Date: February 23, 2023 Project Engineer Check By: Date: February 23, 2023 Reviewer Report No.: GTS202205000181F01 Page 3 of 33 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED OUTPUT POWER ........................................................................................................... 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 16 7.6 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 17 7.6.1 Conducted Emission Method ..................................................................................................... 17 7.6.2 Radiated Emission Method ........................................................................................................ 18 8 TEST SETUP PHOTO ............................................................................................................................ 33 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 33 Report No.: GTS202205000181F01 Page 4 of 33 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remarks: 1. Pass: The EUT complies with the essential requirements in the standard. 2. Test according to ANSI C63.10:2013 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz-30MHz 3.1dB (1) Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emission 18GHz-40GHz 3.30dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 3.44dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Report No.: GTS202205000181F01 Page 5 of 33 5 General Information 5.1 General Description of EUT Product Name: IO-Link to IO…

Text truncated - open the document above for the full version.

DSTB-01 Copyright © 2022 CoreTigo Ltd. NFA Part Number: CT-ANTNFA1000- EUR Manufacture: CoreTigo Ltd Address: Giborey Israel 5, Poleg, Natanya, Israel 4250405 PRODUCT DATA SHEET TigoNFA is a Near Field Antenna, designed as complementary . (product to a Eupen radiated cable (PN CMC12 TigoNFA is designed to maximize the RF signal power received avinghwhen placed in close proximity to the radiated cable, while ncyelow far field radiation efficiency. The low radiation effici signal,iprovides high immunity to external interferers, such as Wi-F rBluetooth and IO-Link Wireless signals transmitted from othe .master units To read more about IO-Link Wireless solutions click here or log on https://www.coretigo.com/solutions/ Antenna Characteristics Peak Gain (dBi) -10 Far Field Radiation Efficiency <1% Frequency Range (MHz) 2400 - 2500 Maximum input power (W) 1 Mechanical Data Dimensions Units are in mm DSTB-01 Copyright © 2022 CoreTigo Ltd. Weight x [gr] Mounting M4 Mounting holes: - 2x through holes on the top - 2x Insert holes on the back side Color Black Operating Conditions Operating Temperature -25°C to 60°C Storage Temperature -40°C to 80°C IP rating IP67 Interfaces Connector Female SMA – standard polarity Other RoHS Compliant DSTB-01 Copyright © 2022 CoreTigo Ltd. VSWR S 11 @ 2400MHz = -7.67dB S 11 @ 2440MHz = -8.2dB S 11 @ 2480MHz = -3.43dB Radiation Pattern Antenna Orientation DSTB-01 Copyright © 2022 CoreTigo Ltd. XY-Plane: DSTB-01 Copyright © 2022 CoreTigo Ltd. YZ Plane: DSTB-01 Copyright © 2022 CoreTigo Ltd. ZX Plane:

Report No.: GTS202205000181F01 Page 1 of 12 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) GFSK 2401 SISO 1 0.762 ≥0.5 PASS 2440 SISO 1 0.764 ≥0.5 PASS 2480 SISO 1 0.759 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) GFSK 2401 SISO 1 1.0330 Only for Report Use 2440 SISO 1 1.0329 Only for Report Use 2480 SISO 1 1.0337 Only for Report Use Report No.: GTS202205000181F01 Page 2 of 12 1.2 Test Graph - 6dB Bandwidth Report No.: GTS202205000181F01 Page 3 of 12 1.3 Test Graph - 99% Occupied Bandwidth Report No.: GTS202205000181F01 Page 4 of 12 Report No.: GTS202205000181F01 Page 5 of 12 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 GFSK 2401 SISO 9.54 30 PASS 2440 SISO 9.35 30 PASS 2480 SISO 8.44 30 PASS 2.2 Test Graph Report No.: GTS202205000181F01 Page 6 of 12 Report No.: GTS202205000181F01 Page 7 of 12 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 GFSK 2401 SISO -7.70 ≤8 PASS 2440 SISO -7.89 ≤8 PASS 2480 SISO -8.76 ≤8 PASS 3.2 Test Graph Report No.: GTS202205000181F01 Page 8 of 12 Report No.: GTS202205000181F01 Page 9 of 12 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict GFSK 2401 SISO 1 Refer to test graph -11.35 PASS 2440 SISO 1 Refer to test graph -11.35 PASS 2480 SISO 1 Refer to test graph -11.35 PASS 4.2 Test Graph Report No.: GTS202205000181F01 Page 10 of 12 Report No.: GTS202205000181F01 Page 11 of 12 Report No.: GTS202205000181F01 Page 12 of 12 ------End------

Radiated Emission Conducted Emission
