Huizhou Yinghai Digital Electronics Co., Ltd Add: Jiutan North Development Area, Yuanzhou Town, Boluo County Huizhou China Date: 2021-7-27 FCC ID: 2ATT8-SB2150 Dear Sir/Madam, We, Huizhou Yinghai Digital Electronics Co., Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Model no.: SB2150, SB2150B, SB2150RG, SB2150R, SB2150S, SB2150TE and SB2150XXXXX (where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Sincerely, Name/Title： huo yan yang/manger Company: Huizhou Yinghai Digital Electronics Co., Ltd Address: Jiutan North Development Area, Yuanzhou Town, Boluo County Huizhou China Phone: 0752-6915199 Fax: 0752-6915199 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ATT8-SB2150 SB2150 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： huo yan yang/manger Company: Huizhou Yinghai Digital Electronics Co., Ltd Address: Jiutan North Development Area, Yuanzhou Town, Boluo County Huizhou China Phone: 0752-6915199 Fax: 0752-6915199 E-Mail: [email protected]

Huizhou Yinghai Digital Electronics Co., Ltd Jiutan North Development Area, Yuanzhou Town, Boluo County Huizhou China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-7-27 To whom it may concern: We, Huizhou Yinghai Digital Electronics Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ATT8-SB2150 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： huo yan yang/manger Company: Huizhou Yinghai Digital Electronics Co., Ltd Address: Jiutan North Development Area, Yuanzhou Town, Boluo County Huizhou China Phone: 0752-6915199 Fax: 0752-6915199 E-Mail: [email protected]

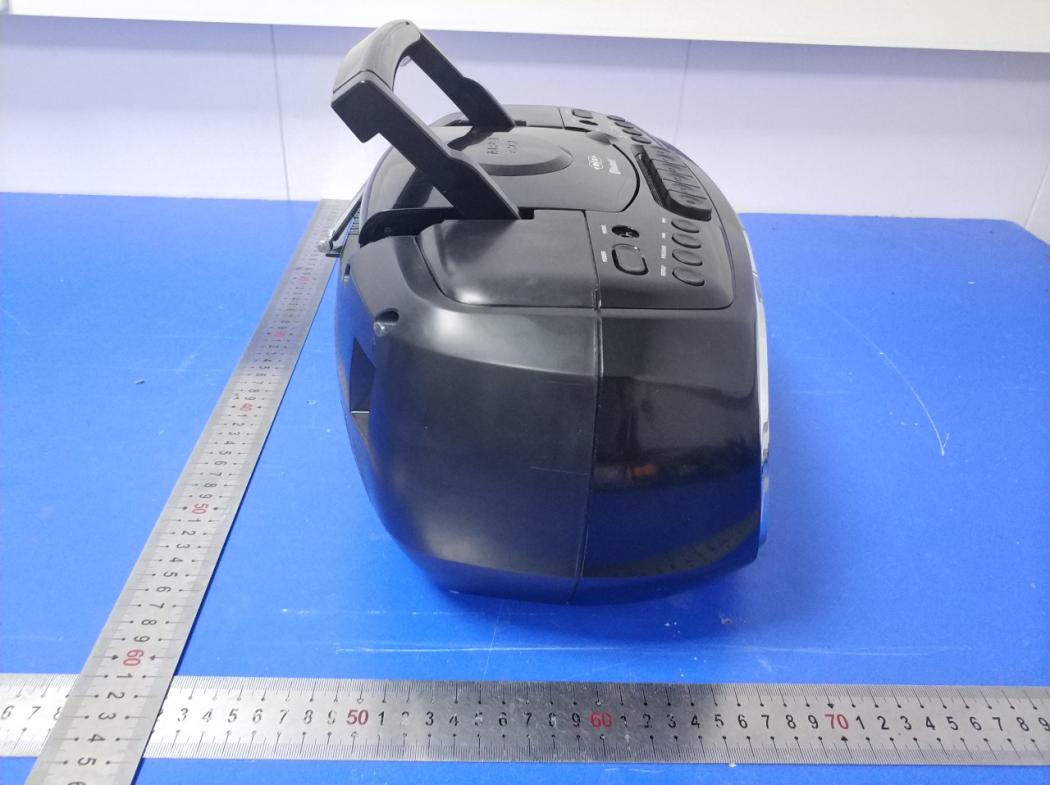

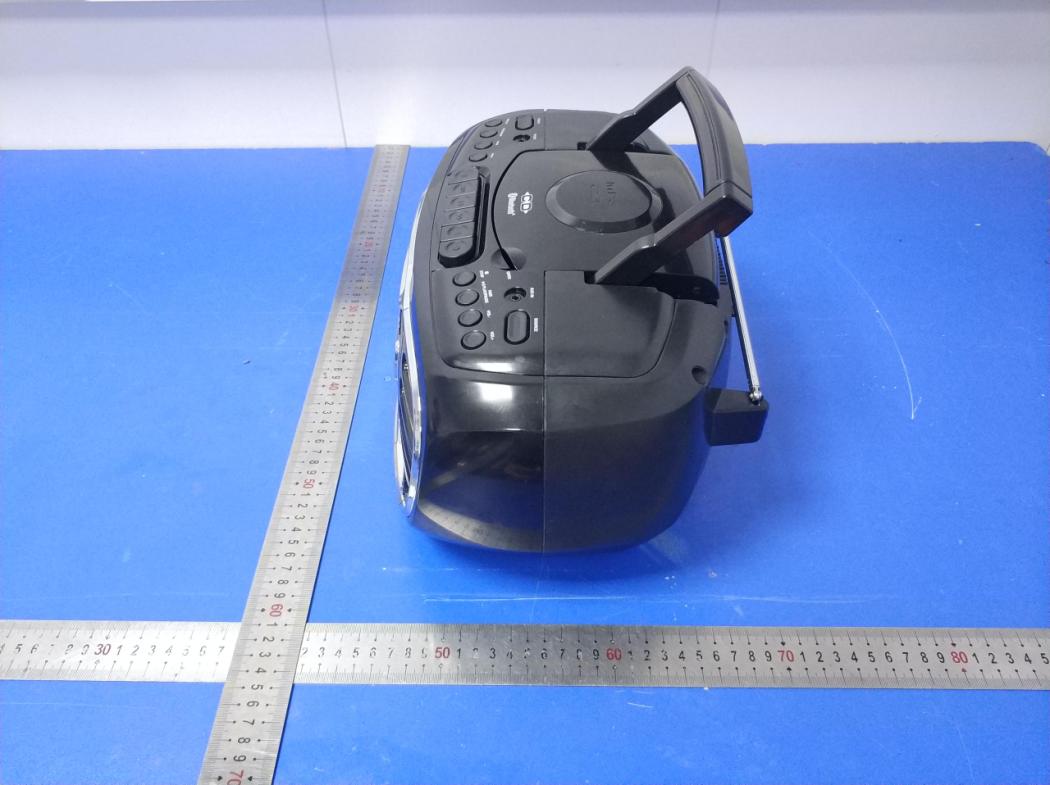

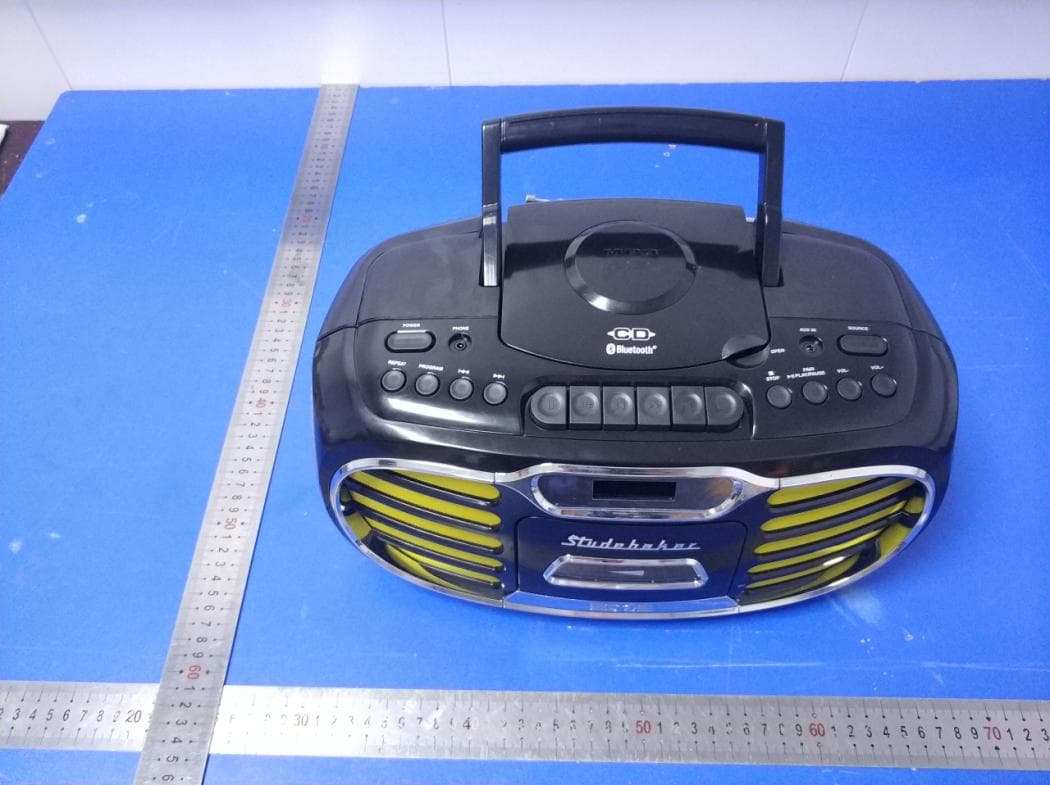

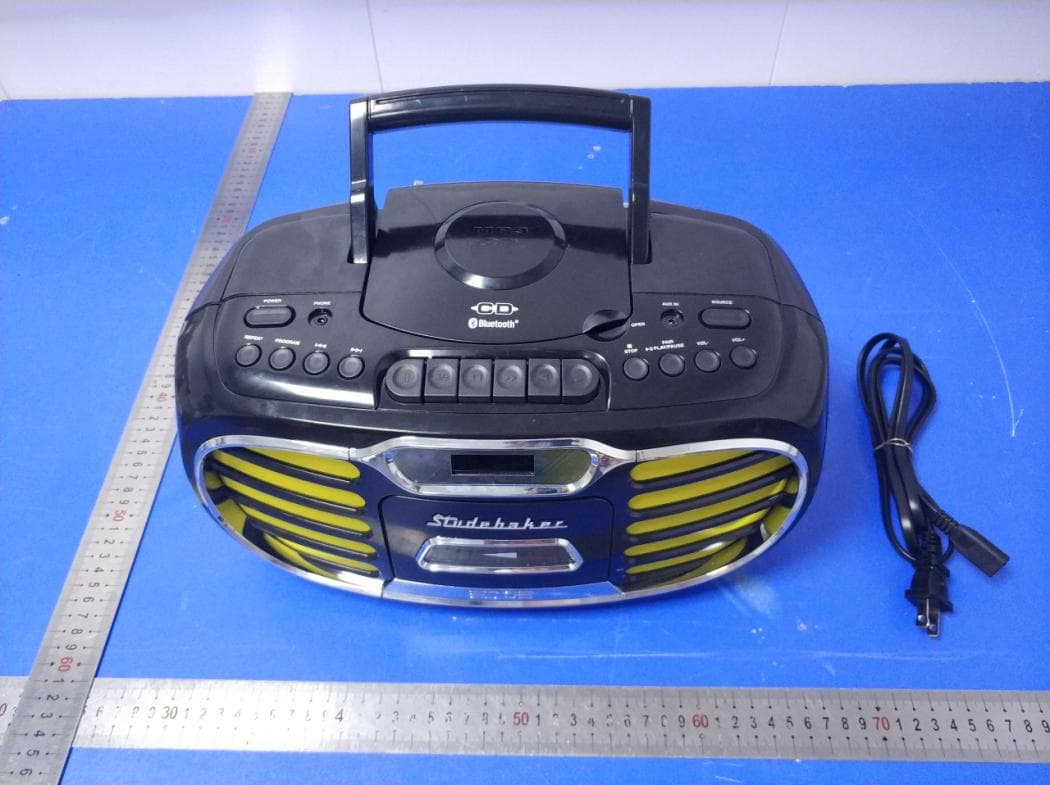

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L5.0m x 3.0cm) Material: Tagboard Glue: adhesive sticker Font color: Blue Label color: White Label Location Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Model No.: SB2150 FCC ID: 2ATT8-SB2150 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Internal Photos of the EUT Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID 2ATT8-SB2150 Product name Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Model number SB2150 Additional Model SB2150B, SB2150RG, SB2150R, SB2150S, SB2150TE and SB2150XXXXX (where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input: AC 120V, 60Hz Modulation Type GFSK , π/4-DQPSK for Bluetooth V5.1 (DSS) Antenna Type PCB Antenna Antenna Gain -0.58dBi Hardware version V1.0 Software version V1.0 FCC Operation frequency 2402MHz ~ 2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2402MHz ~ 2480MHz -0.58dBi BT Antenna 6. Conducted Power < BT Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) GFSK 0 2402 0.134 39 2441 -1.575 78 2480 -1.101 π/4DQPSK 0 2402 -0.830 39 2441 -2.277 78 2480 -2.015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [Antenna ] <BT> Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW GFSK 1.0 1.2589 -0.58 0.000219 1.0000 π/4DQPSK 1.0 1.2589 -0.58 0.000219 1.0000 Remark: 1. Output power including tu…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 1 of 34 Appendix A RF Test Data for BT V5.1(DSS) (Conducted Measurement) Product Name: Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Trade Mark: N/A Test Model: SB2150 Environmental Conditions Temperature: 21.6  C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.134 21 PASS MCH -1.575 21 PASS HCH -1.101 21 PASS π/4DQPSK LCH -0.830 21 PASS MCH -2.277 21 PASS HCH -2.015 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 2 of 34 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 3 of 34 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 4 of 34 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 5 of 34 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.037 Not Specified PASS MCH 1.026 Not Specified PASS HCH 1.039 Not Specified PASS π/4DQPSK LCH 1.287 Not Specified PASS MCH 1.307 Not Specified PASS HCH 1.317 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 6 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 7 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 8 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 9 of 34 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.170 0.693 PASS MCH 1.182 0.693 PASS HCH 1.000 0.693 PASS π/4DQPSK LCH 1.342 0.878 PASS MCH 0.952 0.878 PASS HCH 0.962 0.878 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 10 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 11 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 12 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 13 of 34 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 14 of 34 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 15 of 34 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 16 of 34 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 17 of 34 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 18 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.608 -37.426 -20.608 PASS MCH -1.876 -38.497 -21.876 PASS HCH -2.034 -36.872 -22.034 PASS π/4DQPSK LCH -2.115 -37.190 -22.115 PASS MCH -3.335 -36.295 -23.335 PASS HCH -3.017 -38.288 -23.017 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 19 of 34 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 20 of 34 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 21 of 34 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 22 of 34 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 23 of 34 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 24 of 34 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 25 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -0.429 Off -49.190 -20.43 PASS -0.152 On -48.755 -20.15 PASS HCH 2480 -1.564 Off -49.133 -21.56 PASS -0.242 On -48.997 -20.24 PASS π/4DQPSK LCH 2402 -1.988 Off -49.547 -21.99 PASS -1.916 On -48.535 -21.92 PASS HCH 2480 -3.044 Off -49.443 -23.04 PASS -1.821 On -48.688 -21.82 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 26 of 34 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 27 of 34 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA Page 28 of 34 π/4D…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Huizhou Yinghai Digital Electronics Co., Ltd. Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Test Model: SB2150 Additional Model No.: Please Refer to Page 6 Prepared for : Huizhou Yinghai Digital Electronics Co., Ltd. Address : Jiutan North Development Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province, 516129, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 09, 2021 Number of tested samples : 2 Sample No. : 210528059A-1, 210528059A-2 Serial number : Prototype Date of Test : June 09, 2021 ~ June 22, 2021 Date of Report : June 24, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210528059AEA Date of Issue ................................... : June 24, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Huizhou Yinghai Digital Electronics Co., Ltd. Address ........................................... : Jiutan North Development Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province, 516129, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Trade Mark ...................................... : N/A Test Model ...................................... : SB2150 Ratings ............................................ : Input: AC 120V, 60Hz Result ........................................... : Positive Tested by: Compiled by: Approved by: Vera Deng/ Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210528059AEA June 24, 2021 Date of issue Test Model.............................. : SB2150 EUT......................................... : Bluetooth Stereo Boombox with CD/ Cassette Player-Recorder/AM-FM Radio Applicant............................... : Huizhou Yinghai Digital Electronics Co., Ltd. Address................................... : Jiutan North Development Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province, 516129, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Huizhou Yinghai Digital Electronics Co., Ltd. Address................................... : Jiutan North Development Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province, 516129, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 June 24, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ATT8-SB2150 Report No.: LCS210528059AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ...................................................................................…
