2ATUK-BN-401GPS TRACKER

401CD-V1.2 GPS Tracker User Manual In order to protect the environment and provide timely up-to-date information about your tracker, we have made electronicuser manual. Todownload your electronicuser manual, please visit our website:www.baanooliot.com 1 Contents 1. SPECIFICATIONS ...................................................................................................................................... 3 2. TERMINAL INSTALLATION ................................................................................................................... 3 3. DEVICE STATUS LIGHT .......................................................................................................................... 4 4. MOBILE APP ............................................................................................................................................... 4 5. BAANOOL IOT’S WEB VERSION ........................................................................................................... 5 6. GPRS CONFIGURATION FOR LIVE REAL-TIME TRACKING ....................................................... 6 6.1 APN SETTING ............................................................................................................................................ 6 6.2 CONFIGURE USER NAME AND PASSWORD OF GPRS .................................................................... 7 6.3 CONFIGURE DOMAIN NAME AND PORT ........................................................................................... 7 6.4 GPRS MODE ............................................................................................................................................... 7 7. FUNCTION DETAILS ................................................................................................................................ 7 7.1 CHANGING PASSWORD ............................................................................................................................ 7 7.2 AUTHORIZATION ..................................................................................................................................... 8 7.3 SINGLE TRACKING .................................................................................................................................. 8 7.4 SLEEP TRACKING STRATEGY .................................................................................................................... 9 7.5 SMART ANGLE UPDATING ...................................................................................................................... 10 7.6 LOCATION BASED SERVICE (LBS) / CELL-ID TRACKING ........................................................................ 10 7.7 FORWARDING INCOMING SMS MESSAGES ............................................................................................. 10 7.8 SIM CARD BALANCE ENQUIRY............................................................................................................. 11 7.9 ACC ON/OFF ALERT ........................................................................................................................... 11 7.10 REMOTE IMMOBILIZING ........................................................................................................................ 11 7.11 CONFIGURE TIMES OF ALARM................................................................................................................ 12 7.12 ALARMS ................................................................................................................................................ 12 7.13 REMOTE CONTROLLER（FOR D MODEL） ............................................................................................ 13 7.14 ARMING ................................................................................................................................................ 14 7.15 SILENT ARMING .................................................................................................................................... 14 7.16 DISARMING ........................................................................................................................................... 15 7.17 ALARM FUNCTION IN ARMING STATE ..................................................................................................... 15 7.18 CHECK STATUS...................................................................................................................................... 16 7.19 CHECK IMEI ......................................................................................................................................... 16 7.20 LOCAL TIME SETTING ............................................................................................................................ 16 7.21 RESET HARDWARE ................................................................................................................................ 16 7.22 TCP / UDP SWITCH ............................................................................................................................... 17 7.23 SMS MODE ........................................................................................................................................... 17 7.24 CONFIGURE SMS MONITORING CENTER NUMBER ................................................................................. 17 7.25 CONFIGURE GPRS HEARTBEAT PACKAGE INTERVAL ............................................................................. 17 2 7.26 INITIALIZATION ..................................................................................................................................... 18 8. CAUTIONS ................................................................................................................................................. 18 9. TROUBLESHOOTING ............................................................................................................................. 18 3 1. Specificatio…

Text truncated - open the document above for the full version.

SHENZHEN COBAN ELECTRONICS CO.,LTD Address: 5/F, Block 22, Wisdomland Business Park, Guankou 2nd Road, Nantou, Nanshan District, Shenzhen, Guangdong, China.518052. Tel: +86-755-26509579 Email: [email protected] Date: 2023-01-09 FEDERALCOMMUNICATIONS COMMISSIONS AuthorizationandEvaluation Division 7435 OaklandMillsRoad Columbia,MD 21046 Dear Sir/Madam, We, SHENZHEN COBAN ELECTRONICS CO.,LTD, hereby authorize Shenzhen Accurate Technology Co., Ltd. to act as a laboratory for testing and test report generation for the following project(s): (Product name: GPS TRACKER, Model name: 401, 401A, 401B, 401C, 401D, GPS-401, GPS-401A, GPS-401B, GPS-401C, GPS-401D, BN-401, BN-401A, BN-401B, BN-401C, BN-401D; FCC ID: 2ATUK-BN-401) This chip ASR1603 used in this device for US only supports G SM850, PCS1900 and LTE Band 2/4/5/7/40 functions, other functions were disabled by software. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: MEIJIAN LIU General manager

ATTESTATION STATEMENT Applicant: SHENZHEN COBAN ELECTRONICS CO.,LTD Add: 5/F, Block 22, Wisdomland Business Park, Guankou 2nd Road,Nantou, Nanshan District, Shenzhen, Guangdong, China,518052 Tel: +86-755-26509579 Email: [email protected] Date: 2023-02-15 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i), (ii) Filing FCC ID: 2ATUK-BN-401 SHENZHEN COBAN ELECTRONICS CO.,LTD, (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And SHENZHEN COBAN ELECTRONICS CO.,LTD, (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed by (printed name): MEIJIAN LIU Signature:

SHENZHENCOBANELECTRONICSCO.,LTD Address:5/F,Block22,WisdomlandBusinessPark,Guankou2ndRoad,Nantou,NanshanDistrict,Shenzhen, Guangdong,China.518052. Tel:+86-755-26509579 Email:[email protected] QA-FR-170-B7/29/2014 FCCAuthorization Date:2023-01-09 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorization Towhomitmayconcern: WeSHENZHENCOBANELECTRONICSCO.,LTDtheundersigned,herebyauthorizes ShenzhenAccurateTechnologyCo.,Ltd.toactonitsbehalfinallmattersrelatingto applicationforEquipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters.AllactscarriedoutbyShenzhenAccurateTechnologyCo.,Ltd.onourbehalf shallhavethesameeffectasourownaction. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988, 21U.S.C.862. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, Signature: MEIJIANLIU Generalmanager

SHENZHENCOBANELECTRONICSCO.,LTD Address:5/F,Block22,WisdomlandBusinessPark,Guankou2ndRoad,Nantou,NanshanDistrict, Shenzhen,Guangdong,China.518052 Tel:+86-755-26509579 Email:[email protected] FCCConfidentialAuthorization Date:2023-01-09 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2ATUK-BN-401 InaccordancewithSections0.457and0.459oftheCommission’sRules,SHENZHEN COBANELECTRONICSCO.,LTDherebyrequestslong-termconfidentialtreatmentof informationaccompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription PartsList/Tuneupprocedure(forlicenseddevices) Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. SincerelyYours, Signature: MEIJIANLIU Generalmanager

SHENZHENCOBANELECTRONICSCO.,LTD Address: 5/F,Block22,WisdomlandBusinessPark,Guankou2ndRoad,Nantou, NanshanDistrict,Shenzhen,Guangdong,China.518052 Tel:+86-755-26509579 Email:[email protected] ProductSimilarityDeclaration 2023-01-09 DearSir/Madam, WeSHENZHENCOBANELECTRONICSCO.,LTD,herebydeclarethatwehavean GPSTRACKERasProductname(Model:401,FCCID:2ATUK-BN-401)wastested byShenzhenAccurateTechnologyCo.,Ltd.,meanwhile,wewouldliketoshowthe models(401，401A,401B,401C,401D,GPS-401,GPS-401A,GPS-401B,GPS-401C, GPS-401D,BN-401,BN-401A,BN-401B,BN-401C,BN-401D）onthereportand certificateforourmarketingpurpose,Theabovemodelsexceptfordifferentmodel name,everythingelseisthesame. Weconfirmthatallinformationaboveistrue,andwe’llberesponsibleforallthe consequences.Pleasecontactmeifyouhaveanyquestion. SincerelyYours, Signature: MEIJIANLIU Generalmanager

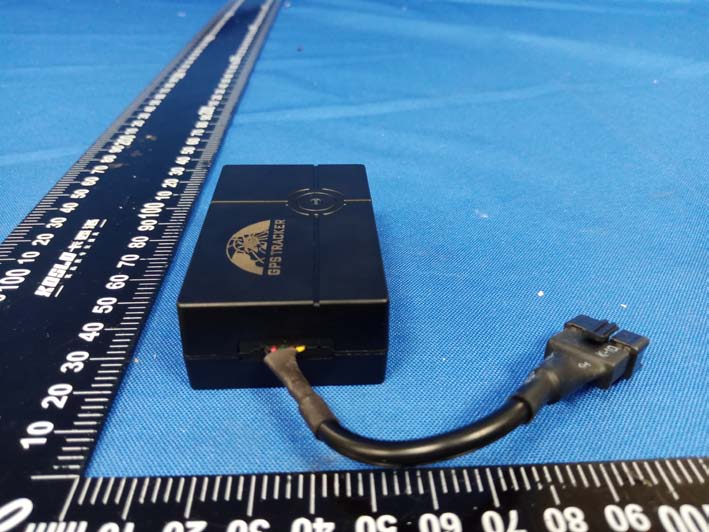

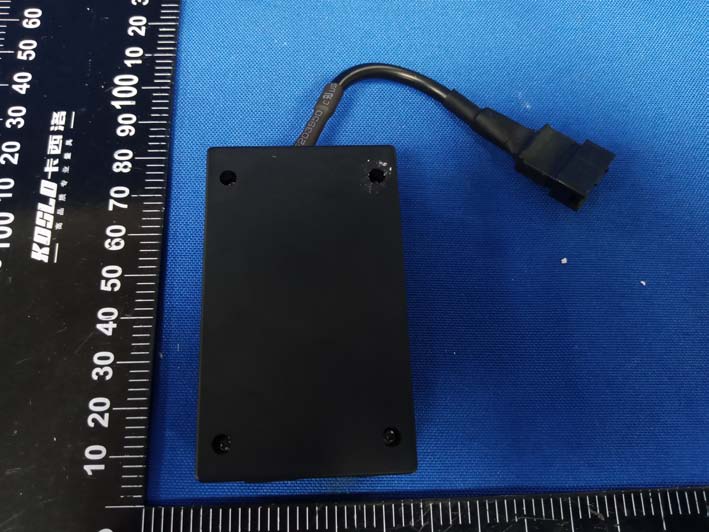

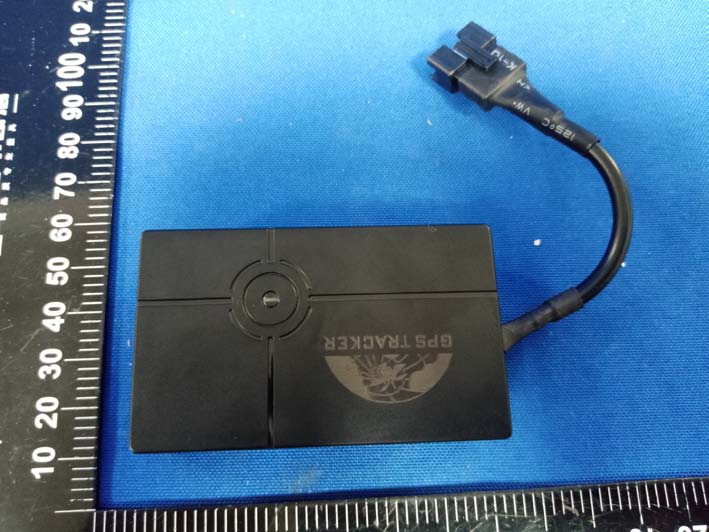

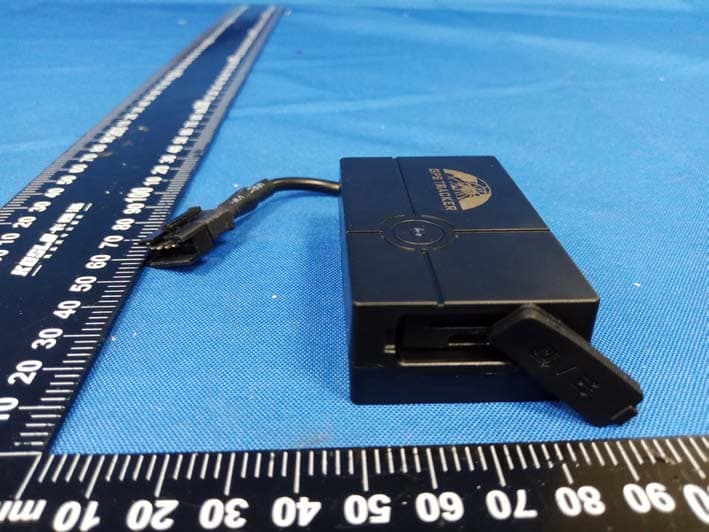

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 1 of 6 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 5 of 6 2G/4G Antenna GPS Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: RA221118-55124E-RF Internal Photos Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Version 2: 2021-11-09 Page 11 of 57 FCC -2G,3G,4G FCC § 1.1307(b) – RF EXPOSURE Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.3.1-SAR-Based Exemption: A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements and is detailed in Appendix C. Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Version 2: 2021-11-09 Page 12 of 57 FCC -2G,3G,4G Result For worst case: Mode Frequency Maximum Time based Average Power Antenna Gain ERP Distance SAR-Based Exclusion Threshold SAR-Based Exclusion (MHz) (dBm) (dBi) (dBd) (dBm) (m) (mW) (dBm) GSM850 824-849 33.5 -0.04 -2.19 31.31 0.2 1680 32.25 Yes PCS1900 1850-1910 31 0.50 -1.65 29.35 0.2 3060 34.85 Yes LTE B2 1850-1910 25 0.50 -1.65 23.35 0.2 3060 34.85 Yes LTE B4 1710-1755 25 -1.10 -3.25 21.75 0.2 3060 34.85 Yes LTE B5 824-849 23 -0.04 -2.19 20.81 0.2 1680 32.25 Yes LTE B7 2500-2570 25 0.60 -1.55 23.45 0.2 3060 34.85 Yes LTE B40 2305-2315 23.3 0.62 -1.53 21.77 0.2 3060 34.85 Yes 2350-2360 23.3 0.62 -1.53 21.77 0.2 3060 34.85 Yes Note 1: 0dBd=2.15dBi. Note 2: f = frequency in GHz. Note 3: The tune-up power was declared by the applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhen HongKongCooperationZone,Shenzhen,Guangdong 天线规格书 客户名称： CUSTOMERNAME 产品型号 PRODUCTNAME:401-4G-GSM 客户料号 CUSTOMERP/N: 电子料号 P/N: MANUFACTURERCUSTOMER SIGNATURESIGNATURE CHECKEDBY: APPROVEDBY: DATE: 2022.12.30 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong Contents ltemDescription 1.--------------------------------------------------------------- 2.--------------------------------------------------------------- 3.-------------------------------------------------------------- Antenna Photo: Product Photo Specification Test report 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong 1． 主要技术指标 Maintechnicalspecifications 频率范围 700-2700MHZ FrequencyRange 700-2700MHZ （MHZ） (MHZ) 特性阻抗(Ω)50Impedance(Ω)50 增益(dBi)1±0.5Gain(dBi)1±0.5 输出电压 ≤1.92 VSWR ≤1.92 驻波比 最大功率 10WAdmittedPower10W 极化方式 垂直极化 PolarizationLinear,Vertical 连接方式 顶针 ConnectorType 物理性能 PhysicalProperties 天线本体材料 FPC AntennaBase 工作温度 -20°C~+65°C OperatingTemp -20°C~+65°C 保存温度 -30°C~+75°C StorageTemp -30°C~+75°C Specification: Specification: Thimble FPC 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong 2、天线测试设备 天线输入特性测试使用AgilentE5071C矢量网络分析仪；天线辐 射特性测试使用SatimoStarlab3D近场微波暗室，使用仪器 AgilentCMW500综测仪。 暗室测试坐标如 Antenna testing equipment: Agilent E5071C vector network analyzer was used to test antenna input characteristics. The radiation characteristics of the antenna were measured using a Satimo Starlab 3D near-field microwave darkroom and the instrument Agilent CMW500 synthesizer. Test coordinate 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong Frequency (MHz) 82496017102170235024902690 VSWR2.553.532.602.361.921.772.06 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong Frequency(MHz)82096017102170230025002690 Efficiency(%)45.938.6436.658.159.9361.0154.93 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong Frequency (MHz) Efficiency(%)Gain(dBi) Frequency (MHz) Efficiency(%)Gain(dBi) 82045.90%-0.15206060.82%0.54 83046.88%-0.04208061.64%0.58 84043.52%-0.12210062.91%0.55 85043.95%-0.36212062.45%0.56 86042.48%-0.36214061.61%0.58 87043.91%-0.34216059.66%0.52 88044.23%-0.09218057.77%0.60 89043.30%-0.65222053.45%0.51 90043.76%-0.47224053.63%0.59 91040.78%-0.04226054.28%0.57 92041.27%-0.13228056.57%0.58 93040.94%0230059.93%0.57 94040.04%-0.33232061.48%0.6 95038.69%-0.58234063.48%0.59 96038.64%-0.54236064.97%0.62 170036.60%-1.08238065.28%0.61 172040.36%-1.14240064.56%0.61 174040.55%-1.1242064.98%0.58 176041.67%-0.84244064.93%0.52 178041.13%-0.49246062.51%0.57 180042.79%-0.28248061.17%0.51 182045.01%0.07250061.01%0.58 184045.58%0.58252061.18%0.52 186047.57%0.36254060.86%0.53 188047.46%0.42256060.65%0.6 190050.63%0.5258062.05%0.62 192052.66%0.59260060.95%0.61 194056.27%0.51262059.79%0.65 196058.98%0.48264057.97%0.64 198062.01%0.51266056.61%0.63 200064.69%0.53269054.93%0.67 202065.77%0.55 204064.20%0.50 深圳市芯亿无线科技有限公司 ShenzhenXEwirelesstechnologyco.LTD. 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad,QianhaiShenzhenHongKong CooperationZone,Shenzhen,Guangdong 地址：广东深圳市前海深港合作区前湾一路一号A栋201室 Address:Room201,BuildingA,No.1Qianwan1stRoad, QianhaiShenzhenHongKongCooperationZone, Shenzhen,Guangdong 产品图纸： Product drawing:

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 1 of 86 APPENDIX A - OCCUPIED BANDWIDTH Please refer to following plots: Cellular Band (Part 22H) 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, Low channel Date: 3.JAN.2023 17:15:32 Date: 3.JAN.2023 17:14:55 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 2 of 86 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, Middle channel Date: 3.JAN.2023 17:20:41 Date: 3.JAN.2023 17:20:03 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 3 of 86 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, High channel Date: 3.JAN.2023 17:24:27 Date: 3.JAN.2023 17:23:49 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 4 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, Low channel Date: 16.DEC.2022 16:55:10 Date: 16.DEC.2022 17:11:03 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 5 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, Middle channel Date: 16.DEC.2022 16:45:36 Date: 16.DEC.2022 17:12:10 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 6 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, High channel Date: 16.DEC.2022 16:30:30 Date: 16.DEC.2022 16:29:52 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 7 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, Low channel Date: 17.JAN.2023 10:33:28 Date: 17.JAN.2023 10:32:48 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 8 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, Middle channel Date: 17.JAN.2023 10:39:50 Date: 17.JAN.2023 10:39:11 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 9 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, High channel Date: 17.JAN.2023 10:36:33 Date: 17.JAN.2023 10:35:54 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 10 of 86 PCS Band (Part 24E) 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, Low channel Date: 6.JAN.2023 18:56:15 Date: 6.JAN.2023 18:55:37 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 11 of 86 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, Middle channel Date: 6.JAN.2023 18:35:29 Date: 6.JAN.2023 18:34:51 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 12 of 86 26 dB Emissions &99% Occupied Bandwidth for GSM(GMSK) Mode, High channel Date: 6.JAN.2023 18:52:31 Date: 6.JAN.2023 18:51:53 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 13 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, Low channel Date: 16.DEC.2022 17:34:26 Date: 16.DEC.2022 17:33:49 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 14 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, Middle channel Date: 16.DEC.2022 17:27:44 Date: 16.DEC.2022 17:27:07 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 15 of 86 26 dB Emissions &99% Occupied Bandwidth for GPRS(GMSK) Mode, High channel Date: 16.DEC.2022 17:41:45 Date: 16.DEC.2022 17:41:07 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 16 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, Low channel Date: 17.JAN.2023 10:56:27 Date: 17.JAN.2023 10:55:48 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 17 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, Middle channel Date: 17.JAN.2023 10:51:26 Date: 17.JAN.2023 10:50:47 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 18 of 86 26 dB Emissions &99% Occupied Bandwidth for EGPRS (8PSK) Mode, High channel Date: 17.JAN.2023 10:53:28 Date: 17.JAN.2023 10:52:49 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 19 of 86 LTE: Band 2_1.4 MHz_Low_QPSK_RB6#0 Band 2_1.4 MHz_Low_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 20 of 86 Band 2_1.4 MHz_Middle_QPSK_RB6#0 Band 2_1.4 MHz_Middle_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 21 of 86 Band 2_1.4 MHz_High_QPSK_RB6#0 Band 2_1.4 MHz_High_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 22 of 86 Band 2_3 MHz_Low_QPSK_RB15#0 Band 2_3 MHz_Low_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 23 of 86 Band 2_3 MHz_Middle_QPSK_RB15#0 Band 2_3 MHz_Middle_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 24 of 86 Band 2_3 MHz_High_QPSK_RB15#0 Band 2_3 MHz_High_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 25 of 86 Band 2_5 MHz_Low_QPSK_RB25#0 Band 2_5 MHz_Low_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 26 of 86 Band 2_5 MHz_Middle_QPSK_RB25#0 Band 2_5 MHz_Middle_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 27 of 86 Band 2_5 MHz_High_QPSK_RB25#0 Band 2_5 MHz_High_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 28 of 86 Band 2_10 MHz_Low_QPSK_RB50#0 Band 2_10 MHz_Low_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 29 of 86 Band 2_10 MHz_Middle_QPSK_RB50#0 Band 2_10 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 30 of 86 Band 2_10 MHz_High_QPSK_RB50#0 Band 2_10 MHz_High_1…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 36 of 86 Band 2_20 MHz_High_QPSK_RB100#0 Band 2_20 MHz_High_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 37 of 86 Band 4_1.4 MHz_Low_QPSK_RB6#0 Band 4_1.4 MHz_Low_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 38 of 86 Band 4_1.4 MHz_Middle_QPSK_RB6#0 Band 4_1.4 MHz_Middle_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 39 of 86 Band 4_1.4 MHz_High_QPSK_RB6#0 Band 4_1.4 MHz_High_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 40 of 86 Band 4_3 MHz_Low_QPSK_RB15#0 Band 4_3 MHz_Low_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 41 of 86 Band 4_3 MHz_Middle_QPSK_RB15#0 Band 4_3 MHz_Middle_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 42 of 86 Band 4_3 MHz_High_QPSK_RB15#0 Band 4_3 MHz_High_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 43 of 86 Band 4_5 MHz_Low_QPSK_RB25#0 Band 4_5 MHz_Low_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 44 of 86 Band 4_5 MHz_Middle_QPSK_RB25#0 Band 4_5 MHz_Middle_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 45 of 86 Band 4_5 MHz_High_QPSK_RB25#0 Band 4_5 MHz_High_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 46 of 86 Band 4_10 MHz_Low_QPSK_RB50#0 Band 4_10 MHz_Low_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 47 of 86 Band 4_10 MHz_Middle_QPSK_RB50#0 Band 4_10 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 48 of 86 Band 4_10 MHz_High_QPSK_RB50#0 Band 4_10 MHz_High_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 49 of 86 Band 4_15 MHz_Low_QPSK_RB75#0 Band 4_15 MHz_Low_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 50 of 86 Band 4_15 MHz_Middle_QPSK_RB75#0 Band 4_15 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 51 of 86 Band 4_15 MHz_High_QPSK_RB75#0 Band 4_15 MHz_High_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 52 of 86 Band 4_20 MHz_Low_QPSK_RB100#0 Band 4_20 MHz_Low_16QAM_RB27#0

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 53 of 86 Band 4_20 MHz_Middle_QPSK_RB100#0 Band 4_20 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 54 of 86 Band 4_20 MHz_High_QPSK_RB100#0 Band 4_20 MHz_High_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 55 of 86 Band 5_1.4 MHz_Low_QPSK_RB6#0 Band 5_1.4 MHz_Low_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 56 of 86 Band 5_1.4 MHz_Middle_QPSK_RB6#0 Band 5_1.4 MHz_Middle_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 57 of 86 Band 5_1.4 MHz_High_QPSK_RB6#0 Band 5_1.4 MHz_High_16QAM_RB6#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 58 of 86 Band 5_3 MHz_Low_QPSK_RB15#0 Band 5_3 MHz_Low_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 59 of 86 Band 5_3 MHz_Middle_QPSK_RB15#0 Band 5_3 MHz_Middle_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 60 of 86 Band 5_3 MHz_High_QPSK_RB15#0 Band 5_3 MHz_High_16QAM_RB15#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 61 of 86 Band 5_5 MHz_Low_QPSK_RB25#0 Band 5_5 MHz_Low_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 62 of 86 Band 5_5 MHz_Middle_QPSK_RB25#0 Band 5_5 MHz_Middle_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 63 of 86 Band 5_5 MHz_High_QPSK_RB25#0 Band 5_5 MHz_High_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 64 of 86 Band 5_10 MHz_Low_QPSK_RB50#0 Band 5_10 MHz_Low_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 65 of 86 Band 5_10 MHz_Middle_QPSK_RB50#0 Band 5_10 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 66 of 86 Band 5_10 MHz_High_QPSK_RB50#0 Band 5_10 MHz_High_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 67 of 86 Band 7_5 MHz_Low_QPSK_RB25#0 Band 7_5 MHz_Low_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 68 of 86 Band 7_5 MHz_Middle_QPSK_RB25#0 Band 7_5 MHz_Middle_16QAM_RB25#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 69 of 86 Band 7_5 MHz_High_QPSK_RB25#0 Band 7_5 MHz_High_16QAM_RB25#0

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 70 of 86 Band 7_10 MHz_Low_QPSK_RB50#0 Band 7_10 MHz_Low_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 71 of 86 Band 7_10 MHz_Middle_QPSK_RB50#0 Band 7_10 MHz_Middle_16QAM_RB27#0 Shenzhen Accurate Technology Co., Ltd. Report No.: RA221118-55124E-RF Appendix A Page 72 of 86 Band 7_10 MHz_High_QPSK_RB50#0 Band 7_10 MHz_…
