2ATV2-001ONN XL PARTY SPEAKER

XL PARTY SPEAKER USER GUIDE Contents & Information CONTENTS & INFORMATION IMPORTANT SAFETY INSTRUCTIONS ADDITIONAL SAFETY PRECAUTIONS WHAT'S IN THE BOX ? GET TO KNOW YOUR WIRELESS PARTY SPEAKER PLACEMENT CHARGING YOUR SPEAKER USING YOUR SPEAKER SPECIFICATIONS TROUBLESHOOTING 1 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions carefully. 2. Retain these instructions for future reference. 3. Observe all warnings. 4. Follow all instructions. 5. Do not use this product near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install this product near heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or ground-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the grounding prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Route the power cord so it will not be walked on or pinched, particularly at plugs, convenience receptacles, and where it exits the product. 11. Only use attachments/accessories specified by the manufacturer. 12. Use the product only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the product. If a cart is used, use caution when moving the cart and product together to prevent tip-over and potential injury. 13. Unplug this product during lightning storms or when unused for long periods of time. 14. All servicing must be performed by qualified service personnel. Service is required if the product has been damaged in any way, including damage to the power cord or plug, liquid spilled on the product, objects falling into the product, exposure to rain or moisture, abnormal operation, or if the product has been dropped. 2 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Built‑in Battery 1. Do not expose the battery pack or installed batteries to excessive heat, including direct sunlight, fire, or similar heat sources. 2. Do not replace the battery with an incorrect type, as this may disable built-in safety protections. 3. Do not dispose of batteries in fire or a hot oven, and do not crush or cut them, as this may result in an explosion. 4. Do not expose batteries to extremely high or low temperatures, as this may cause an explosion or the leakage of flammable liquid or gas. 5. Do not expose batteries to extremely low air pressure, as this may result in an explosion or the leakage of flammable liquid or gas. 4 AA Alkaline Batteries 1. The wireless microphone is supplied with AA alkaline batteries. If swallowed, a battery can pose a choking hazard. Even if it does not reach the stomach, a swallowed battery can cause severe internal burns and perforation of the esophagus within as little as two hours, potentially resulting in serious injury or death. 2. If the battery compartment on your device does not close securely, stop using the device immediately and keep it out of reach of infants and children. 3. Seek immediate medical attention if you think an infant or child has swallowed a battery or inserted one into any part of the body. Batteries must be removed immediately by qualified medical personnel to minimize the risk of serious injury or death. 4. Never attempt to recharge or open the batteries. Doing so may cause an explosion. 5. Never damage or deform the batteries. 6. Do not dispose of batteries in fire or a hot oven, and do not crush or cut them, as this may result in an explosion. 7. Do not expose batteries to extremely high or low temperatures, as this may cause an explosion or the leakage of flammable liquid or gas. 8. Do not expose batteries to extremely low air pressure, as this may result in an explosion or the leakage of flammable liquid or gas. Failure to follow these guidelines may result in battery fluid leakage, which can cause skin irritation. In case of contact: 9. Rinse the affected area with plenty of clean water. 10. Do not rub your eyes. If battery fluid comes into contact with the eyes, rinse immediat…

Text truncated - open the document above for the full version.

3/13 Fed Auth 7435 Colu USA AT T FCC Wal sou g purs Wal the a of its Wal sou g Kas inte g anti- Guid Sig n Prin Titl e Com Date Co 3/2026 eral Comm u horization a 5 Oakland M umbia, MD 2 A TN.: Review C ID: 2ATV2 mart, Inc. (“ ght is not “c suant to sec Note: If any of t h include mart, Inc. ( “ applicant is s subsidiarie mart, Inc. (“ ght does no persky Lab, grated Kas -virus softwa dance sectio ned: ted name: T e: Hardware mpany Name e: 3/13/2026 overed Eq unications C nd Evaluatio Mills Road 21046 wing Engin 2-001 “the applica covered” equ ction 2.903 o the equipm he entities id an explanat “the applica not identifi e es or affiliat “the applica ot include cy , Inc. or any persky Lab are pursuan on B(2a). Thomas Ng e Engineerin e: Walmart, 6 W quipment Commission on Division neer nt”) certifies uipment pro of the FCC ent for whi c dentified on tion on why nt”) certifies ed on the C tes) as an e nt”) certifie s ybersecurity y of its succe , Inc. (or an nt to DA-24- uyen ng Manager , Inc. Walmart, Inc t Certifica n s that the eq ohibited from rules. ch the applic n the current y the equipm s that, as of Covered List entity produc s that the eq y or anti-viru essors and y of its suc c -886 and KD rProject Fra c. ation Attes quipment fo m receiving cant seeks a t Covered L ment is not “ the date o f (as a speci cing “covere quipment fo us software assignees, cessors and DB 986446 anklin station Le r which auth an equipme authorizatio List, the app covered” eq f the filing of ifically name ed” equipme r which aut produced o including e d assignees D01 Covere etter horization is ent authoriz on is produc plicant shoul quipment. f the applica ed entity or ent. thorization i or provided equipment w s) cybersecu ed Equipme s zation ced by ld ation, any s by with urity or ent

* the ap en 3/13 Fed Auth 7435 Colu USA AT T FCC FRN Per equ i serv Co m FCC Phy Co n Age The The ter m proc Ap p Sign Print Title Co m Date e applicant m pplicant’s age ntity. An appli 3/2026 eral Comm u horization a 5 Oakland M umbia, MD 2 A TN.: Review C ID: 2ATV2 N of applican section 2.9 ipment for w vice of proc mpany Name C Registratio sical U.S. C ntact Person nt Email Ad above cont applicant a minated all m ceeding invo plicant Sign ned: ted name: Th : Hardware En mpany Name: e: 3/13/2026 must designat ent for service icant located U.S. Ag unications C nd Evaluatio Mills Road 21046 wing Engin 2-001 nt: 0028621 11(d)(7) of t which autho cess: e: Walmart, on Number Company Ad n: Thomas N ddress: TNg tact person accepts to m marketing an olving the eq ned: homas Nguye gineering Mana : Walmart, In te a contact lo e of process, in the Unite gent Des Certifi c Commission on Division neer 1381 the FCC rul orization is s , Inc. (FRN): 00 2 ddress: 74 K Nguyen guyen@walm accepts the maintain an a nd importati quipment. en ager Project Fr c. Walmart ocated in the , regardless o d States may ignation f cation Atte n les, Walmar sought is de 28621381 Kent St #2, mart.com e obligation agent for no ion or the co ranklin t, Inc. e United Stat of whether th y designate i for Servic estation L rt, Inc. (“the signated to Brooklyn, N for service o less than o onclusion of Agent Si Signed: Printed n Title: Hard Company Date: 3/1 es for purpos he applicant i itself as the a ce of Proc Letter applicant”) the follow i NY 11222, U of process. one year aft f any Comm gned (if dif ame: Thoma dware Enginee y Name: Wal 13/2026 ses of acting is a domestic agent for serv cess - certifies tha ing U.S. ag United State ter the gran mission-relat fferent from as Nguyen ring Manager P mart, Inc. as the c or foreign vice of proce at the ent* for es ntee has ted m Applican Project Franklin ess. nt): n

DATE Fed e Auth 7345 Colu On o Sant this des c each Com appr For i beha for c 1122 <Sig n Name Title： Applic : 3/19/2026 eral Commu horization & 5 Oakland M umbia, Mary our behalf, tun, Houjie, application cribe the dev h unit manuf mmission’s r roval with th instances w alf, I acknow certification, 22, United S nature> e：Thomas Hardware cant Compa 6 unications C Evaluation D Mills Road land 21046 I appoint E Dongguan, for equipm vice or syste factured, im regulations is applicati o where our au wledge that still resides States Nguyen Engineerin any：Walma ommission Division Author i EST Techno Guangdon ment certifica em for which ported or m will have a on. uthorized ag all responsi with Walm a g Manager art, Inc. ity to Act as ology Co., g, China to ation. I cert h equipment arketed, as affixed to it ent signs t h ibility for com art, Inc. Add Project Fra s Agent Ltd. Addre o act as our tify that sub t certification defined in t a label ide he applicatio mplying with dress: 74 Ke anklin ess:Chilingxi r agent in th bmitted doc n is sought. he Federal entical to th on for certific h the terms ent St #2, Br iang, Qisha he preparati cuments pro I also certify Communica hat submitte cation on ou and conditio rooklyn, NY antou, on of operly y that ations ed for ur ons Y

DATE : 3/1 Federal C o Authorizati 7345 Oakl a Columbia, RE: LETT E To Whom We, the u n relating to these matt We also h e benefits, in U.S.C.853( Sincerely, <Signatur e Name：Th Title：Hard Company： 19/2026 ommunicatio on & Evalua and Mills Ro Maryland 2 ER OF AGE It May Conc ndersigned, application ers. ereby certify ncluding FC (a). e> homas Nguy dware Engin Walmart, I ons Commis ation Divisio oad 21046 ENT AUTHO cern: hereby aut h for equipme y that no pa C benefits, yen neering Man Inc. ssion on ORIZATION horize Com ent authoriz rty to the ap pursuant to nager Proje N mpliance Tes zation, includ pplication au o Section 53 ect Franklin sting, LLC to ding the sig uthorized he 301 of the A o act on our ning of all d ereunder is nti-Drug A b r behalf in a documents r subject to t buse Act of 1 ll matters relating to the denial of 1988, 21 f

DATE : 3/19/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATV2-001 Product Name: ONN XL PARTY SPEAKER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Thomas Nguyen Title：Hardware Engineering Manager Project Franklin Company：Walmart, Inc.

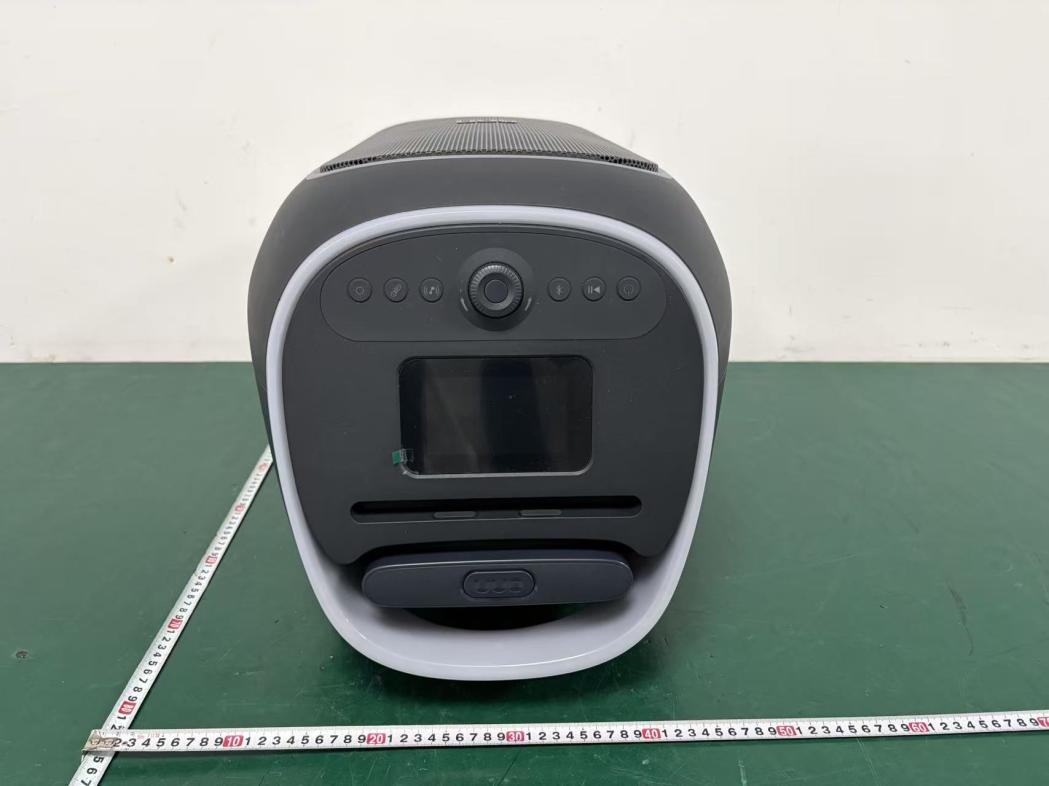

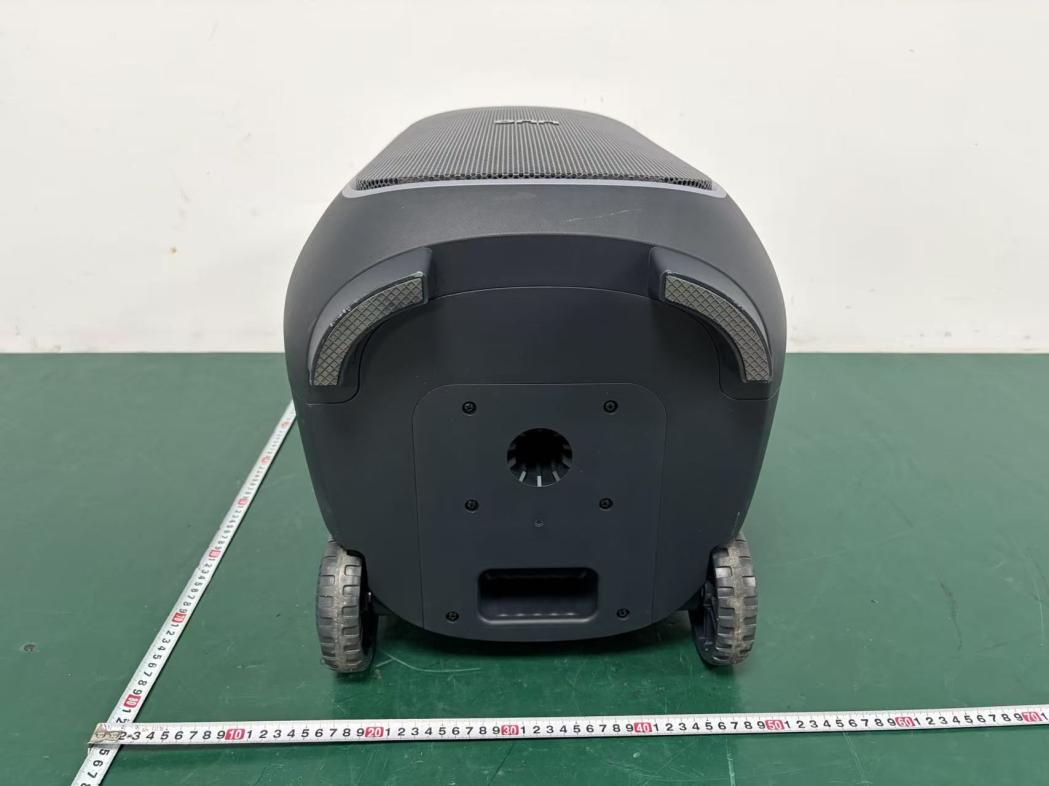

External Photos M/N: 36017625 External Photos M/N: 36017625 External Photos M/N: 36017625 External Photos M/N: 36017625

Walmart_SERIAL LABEL Changhua.yan Hongnian Dai Guohui Lin Debra Deng Andrea Tang Walmrt ABATS2503-KM01 Walmrt YLBTS2503-0501SERIAL LABELSERIAL LABEL 2026.02.27 AUDIO\VIDEO APPARATUS E228074 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN VIETNAM(VN) XL PARTY SPEAKER Model : 36017625 AC : 100 - 240V ~ 50/60Hz 65W USB Port output : 5V 2A FCC ID : 2ATV2-001 94.4mm 102.4mm

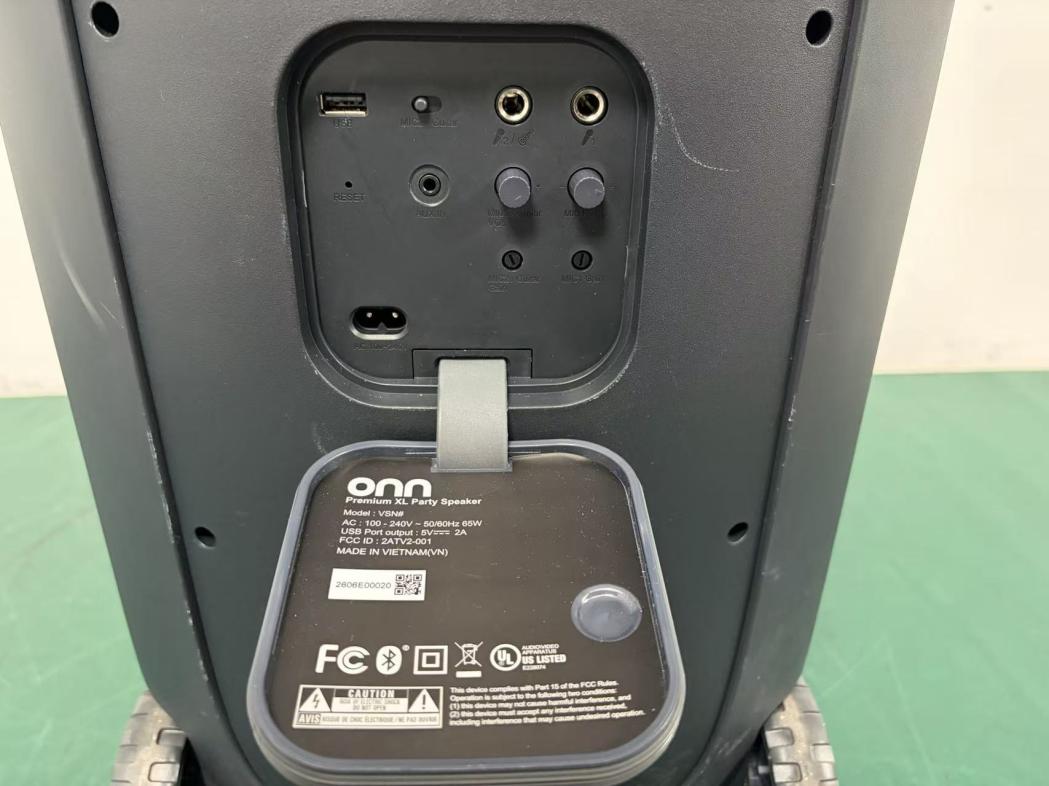

Label Location

Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Antenna Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625 Internal Photos M/N: 36017625

Page 1 of 4 Report No. ESTE-R2603088 FCC 47 CFR MPE REPORT Walmart, Inc. ONN XL PARTY SPEAKER Model Number: 36017625 FCC ID: 2ATV2-001 Applicant: Walmart, Inc. Address: 74 Kent St #2, Brooklyn, NY 11222, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603088 Date of Test: Feb. 06, 2026 to Mar. 04, 2026 Date of Report: Mar. 10, 2026 Page 2 of 4 Report No. ESTE-R2603088 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 & KDB 447498 D04 V01 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2603088 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2603088 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 11.24 13.305 2441 10.98 12.531 2480 10.36 10.864 π/4-DQPSK 2402 10.65 11.614 2441 10.44 11.066 2480 9.73 9.397 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 11.24 11±1 12 3.54 2.259 0.00712 1 Complies π/4-DQPSK 10.65 10±1 11 3.54 2.259 0.00566 1 Complies End of Test Report

Page 1 of 34 Report No. ESTE-R2603087 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.029 2401.514 2402.543 --- --- DH5 Ant1 2441 1.056 2440.475 2441.531 --- --- DH5 Ant1 2480 1.038 2479.490 2480.528 --- --- 2DH5 Ant1 2402 1.524 2401.196 2402.720 --- --- 2DH5 Ant1 2441 1.479 2440.265 2441.744 --- --- 2DH5 Ant1 2480 1.413 2479.307 2480.720 --- --- Page 2 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 3 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2402 2DH5-Ant1-2441 Page 4 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2480 Page 5 of 34 Report No. ESTE-R2603087 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 11.24 ≤20.97 PASS DH5 Ant1 2441 10.98 ≤20.97 PASS DH5 Ant1 2480 10.36 ≤20.97 PASS 2DH5 Ant1 2402 10.65 ≤20.97 PASS 2DH5 Ant1 2441 10.44 ≤20.97 PASS 2DH5 Ant1 2480 9.73 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 6 of 34 Report No. ESTE-R2603087 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 7 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 8 of 34 Report No. ESTE-R2603087 Page 9 of 34 Report No. ESTE-R2603087 Appendix C: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.002 ≥0.704 PASS DH5 Ant1 2441 1.029 ≥0.704 PASS DH5 Ant1 2480 0.879 ≥0.704 PASS 2DH5 Ant1 2402 1.089 ≥1.016 PASS 2DH5 Ant1 2441 1.188 ≥1.016 PASS 2DH5 Ant1 2480 1.314 ≥1.016 PASS Page 10 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 11 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 12 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2480-PASS Page 13 of 34 Report No. ESTE-R2603087 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.362 319 0.115 ≤0.4 PASS DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS DH5 Ant1 Hop 3.120 107 0.334 ≤0.4 PASS 2DH1 Ant1 Hop 0.377 319 0.120 ≤0.4 PASS 2DH3 Ant1 Hop 1.490 159 0.237 ≤0.4 PASS 2DH5 Ant1 Hop 2.860 107 0.306 ≤0.4 PASS Page 14 of 34 Report No. ESTE-R2603087 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 15 of 34 Report No. ESTE-R2603087 DH5-Ant1-Hop-PASS Page 16 of 34 Report No. ESTE-R2603087 2DH1-Ant1-Hop-PASS Page 17 of 34 Report No. ESTE-R2603087 2DH3-Ant1-Hop-PASS Page 18 of 34 Report No. ESTE-R2603087 2DH5-Ant1-Hop-PASS Page 19 of 34 Report No. ESTE-R2603087 Page 20 of 34 Report No. ESTE-R2603087 Appendix E: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Page 21 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Page 22 of 34 Report No. ESTE-R2603087 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 10.54 -30.65 ≤-9.46 PASS DH5 Ant1 High 2480 9.75 -33.55 ≤-10.25 PASS DH5 Ant1 Low Hop_2402 11.00 -28.17 ≤-9.00 PASS DH5 Ant1 High Hop_2480 10.08 -35.86 ≤-9.92 PASS 2DH5 Ant1 Low 2402 7.00 -31.31 ≤-13.00 PASS 2DH5 Ant1 High 2480 6.46 -45.68 ≤-13.54 PASS 2DH5 Ant1 Low Hop_2402 7.98 -30.68 ≤-12.02 PASS 2DH5 Ant1 High Hop_2480 10.28 -35.65 ≤-9.72 PASS Page 23 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 24 of 34 Report No. ESTE-R2603087 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Page 25 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Page 26 of 34 Report No. ESTE-R2603087 2DH5-Ant1-Hop_2480-PASS Page 27 of 34 Report No. ESTE-R2603087 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 10.54 -35.96 ≤-9.46 PASS DH5 Ant1 2441 30~26500 10.48 -35.23 ≤-9.52 PASS DH5 Ant1 2480 30~26500 9.75 -35.53 ≤-10.25 PASS 2DH5 Ant1 2402 30~26500 7.00 -41.29 ≤-13.00 PASS 2DH5 Ant1 2441 30~26500 9.18 -39.18 ≤-10.82 PASS 2DH5 Ant1 2480 30~26500 6.46 -41.89 ≤-13.54 PASS Page 28 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 29 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS Page 30 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2480-30~26500-PASS Page 31 of 34 Report No. ESTE-R2603087 Appendix H: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.03 10.54 DH5 Ant1 2441 2440.93 10.48 DH5 Ant1 2480 2479.86 9.75 2DH5 Ant1 2402 2402.07 7.00 2DH5 Ant1 2441 2440.88 9.18 2DH5 Ant1 2480 2480.05 6.46 Page 32 of 34 Report No. ESTE-R2603087 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 33 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 34 of 34 Report No. ESTE-R2603087 2DH5-Ant1-2480-PASS

Page 1 of 59 Report No. ESTE-R2603087 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Walmart, Inc. ONN XL PARTY SPEAKER Model Number: 36017625 FCC ID: 2ATV2-001 Applicant: Walmart, Inc. Address: 74 Kent St #2, Brooklyn, NY 11222, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603087 Date of Test: Feb. 06, 2026 to Mar. 04, 2026 Date of Report: Mar. 10, 2026 Page 2 of 59 Report No. ESTE-R2603087 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ........................................................................................................................................ 16 6.3. Spectrum Analyzer Setting .........................................…

Text truncated - open the document above for the full version.

2.4 GHz Inverted F Antenna spec. This document describes a printed-circuit board (PCB) design that can be used with all 2.4GHz BT transceivers and transmitters for F-6201 moudle series Soc. The gain is measured to be 3.54 dBi, and the overall size requirements for this antenna, this antenna is compact, low cost and high performance. 1 Description of inverted F Antenna Design Because the impedance of the inverted F Antenna is matched directly 50ohm,so it is no external matching components are required. 1.1 Dimensions. PCB layout Frequency ID 1 2 3 4 5 6 7 8 9 Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 Efficiency (dBi) -3.55 -3.48 -3.49 -3.44 -3.47 -3.39 -3.41 -3.50 -3.64 Gain (dBi) 3.32 3.50 3.54 3.52 3.41 3.42 3.35 3.30 3.27 Efficiency (%) 44.15 44.87 44.77 45.24 44.97 45.78 45.56 44.68 43.21 Directivity (dB) 6.88 6.98 7.03 6.96 6.88 6.82 6.77 6.80 6.91 Peak Gain Position (Theta) 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 30.00 Peak Gain Position (Phi) 180.00 180.00 180.00 180.00 180.00 180.00 180.00 180.00 180.00 Efficiency ThetaPol (%) 19.77 20.05 20.03 20.20 19.94 20.16 19.95 19.63 19.38 Efficiency PhiPol (%) 24.37 24.82 24.74 25.04 25.03 25.62 25.61 25.05 23.83 Upper Hem. Efficiency (%) 29.64 30.16 30.17 30.50 30.38 30.83 30.74 30.32 29.64 Lower Hem. Efficiency (%) 14.51 14.71 14.60 14.74 14.59 14.95 14.82 14.36 13.57 Empty 4.00 3.00 3.27 2.00 1.00 0.00 -1.00 -2.00 -3.00 -4.00 -5.00 100.00 90.00 80.00 70.00 60.00 50.00 Efficiency ThetaPol (%) Efficiency PhiPol (%) 40.00 30.00 20.00 10.00 0.00 100.00 90.00 80.00 70.00 60.00 50.00 Upper Hem. Efficiency (%) Lower Hem. Efficiency (%) 40.00 30.00 20.00 10.00 0.00 2400.0MHz Total, Eff: 44.1% 2410.0MHz Total, Eff: 44.9% 2420.0MHz Total, Eff: 44.8% 2430.0MHz Total, Eff: 45.2% 2440.0MHz Total, Eff: 45.0% 2450.0MHz Total, Eff: 45.8% 2460.0MHz Total, Eff: 45.6% 2470.0MHz Total, Eff: 44.7% 2480.0MHz Total, Eff: 43.2% Back View Back View Back View Back View Back View Back View Back View Back View Back View 2400.0MHz Total(E1-XZ), Max= 3.32dB 3.32 1.48 -0.36 -2.2 -4.04 -5.89 -7.73 -9.57 -11.41 -13.25 -15.1 -16.94 -18.78 -20.62 -22.47 -24.31 -26.15 -27.99 2410.0MHz Total(E1-XZ), Max= 3.50dB 3.5 1.66 -0.19 -2.03 -3.87 -5.71 -7.55 -9.4 -11.24 -13.08…
