2ATV8SP70XELED Controller

FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCCs RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Shenzhen Sperll Optoelectronic Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 3/31/2024 U.S. Agent Designation Sh enzhen Sperll Optoelectronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ATV8SP70XE): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Sperll Optoelectronic Technology Co., Ltd.. Shenzhen Sperll Optoelectronic Technology Co., Ltd. with the FRN 0028620987 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Since rely, Signature Derek Xie Manager Shenzhen Sperll Optoelectronic Technology Co., Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Phone: +86-18823863369 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-29 Name / Title: Derek Xie / Manager Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Phone: +86-18823863369 Fax: +86-755-89378380 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2ATV8SP70XE SP701E, SP703E, SP704E, SP705E, SP706E, SP707E, S708E, SP709E We, applicant Company Name: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Phone: +86-18823863369 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-29 Name / Title: Derek Xie / Manager Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Phone: +86-18823863369 Fax: +86-755-89378380 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2ATV8SP70XE SP701E, SP703E, SP704E, SP705E, SP706E, SP707E, S708E, SP709E For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • The Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-03-29 Name / Title: Derek Xie / Manager Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Phone: +86-18823863369 Fax: +86-755-89378380 E-Mail: [email protected]

Shenzhen Sperll Optoelectronic Technology Co., Ltd. 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Date: March 29, 2024 FCC ID: 2ATV8SP70XE Model Number: SP701E, SP703E, SP704E, SP705E, SP706E, SP707E, S708E, SP709E To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Sperll Optoelectronic Technology Co., Ltd. hereby declare that our product (LED Controller) Model Number: SP701E, SP703E, SP704E, SP705E, SP706E, SP707E, S708E, SP709E board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Derek Xie / Manager Company: Shenzhen Sperll Optoelectronic Technology Co., Ltd. Address: 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen 518108, China Tel: +86-18823863369 Fax: +86-755-89378380 E-Mail: [email protected]

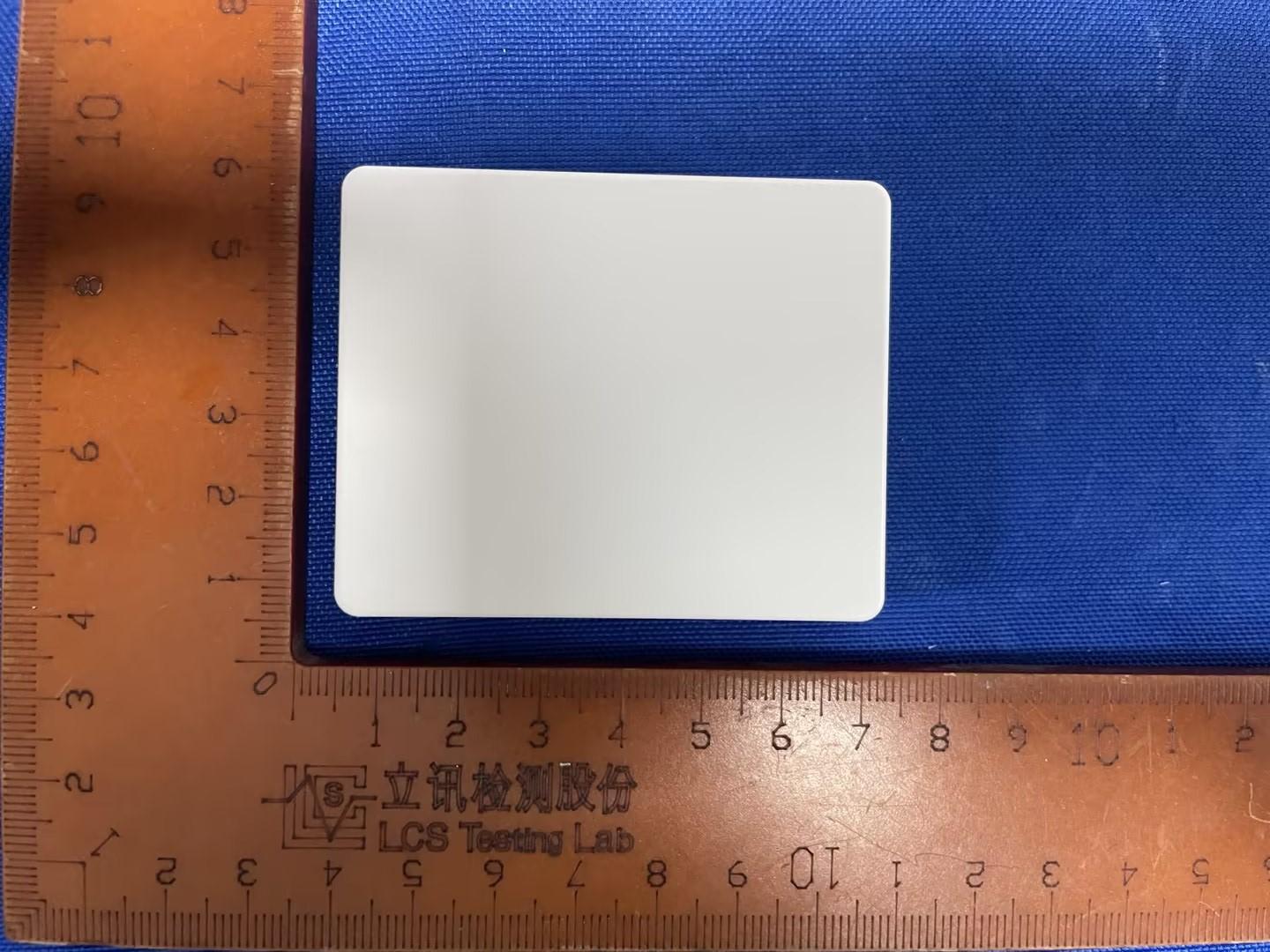

Page1of4FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page1of1FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L6.0cmxW4.5cm) LabelLocation LEDController Model:SP701E FCCID:2ATV8SP70XE

Page1of3FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 BluetoothAntenna0 Page3of3FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 BluetoothAntenna1

Page1of7FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation EUT:LEDController TestModel:SP701E AdditionalModelNo.:SP703E,SP704E,SP705E,SP706E,SP707E,S708E,SP709E ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethesame,Sono additionalmodelsweretested PowerSupply:Input:DC12V Output:DC5V HardwareVersion:V1.0 SoftwareVersion:V1.0 Bluetooth FrequencyRange:2402MHz~2480MHz ChannelNumber:40channelsforBluetoothV5.2(DTS) ChannelSpacing:2MHzforBluetoothV5.2(DTS) ModulationType:GFSKforBluetoothV5.2(DTS) BluetoothVersion:V5.2 AntennaDescription:Ant0:PCBAntenna,2.68dBi(Max.) Ant1:PCBAntenna,2.68dBi(Max.) Exposurecategory : Generalpopulation/uncontrolledenvironment EUTType : ProductionUnit DeviceType : MobileDevices Page2of7FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthe sumoftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoes notapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalent conditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimum testseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmission operations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic, andElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity Page3of7FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Notes InternalPCBAntenna2400-2500MHz2.68dBiBTAntenna Page4of7FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ConductedPower [BLE_1MAnt0] ModeChannel Frequency (MHz) PeakConductedOutputPower (dBm) GFSK 0024020.09 1924400.92 392480-0.11 [BLE_2MAnt0] ModeChannel Frequency (MHz) PeakConductedOutputPower (dBm) GFSK 0024020.00 1924400.70 392480-0.33 [BLE_1MAnt1] ModeChannel Frequency (MHz) PeakConductedOutputPower (dBm) GFSK 0024020.15 192440-0.82 392480-0.66 [BLE_2MAnt1] ModeChannel Frequency (MHz) PeakConductedOutputPower (dBm) GFSK 002402-0.04 192440-0.88 392480-0.84 Page5of7FCCID:2ATV8SP70XE ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 7.ManufacturingTolerance [BLE_1MAnt0] GFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)000 Tolerance±(dB)1.01.01.0 [BLE_2MAnt0] GFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)000 Tolerance±(dB)1.01.01.0 [BLE_1MAnt1] GFSK(Peak) ChannelChannel00Channel19Channel39 Target(dBm)000 Tolerance±(dB)1.01.01.0 [BLE_2MAnt1] GFSK(Peak) Ch…

Text truncated - open the document above for the full version.

S P 70 1EAn t e nn a S p ec ifi c at i o n s 1.Antennalocationandsize （ mm ）： 2.AntennasimulationReport ： 1)Antennasurfacecurrentdistribution: 2 ） 3DPolarplot ： Shenzhen Sperll Optoelectronic Technology Co., Ltd. 4th Floor, Building 3, NO.1059 Songbai Road, Nanshan District, Shenzhen, Guangdong 518108, China 3 ） Smithchart ： 4)S11 ： 5)VSWR ： 3.TestReport ： 1)Appearance ： 2)AntennaSmithchart,VSWRandReturnLoss ： 4.BasicCharacteristics ： A.ElectricalCharacteristics： Frequency2400～2500MHz S.W.R.<=2.5@2400～2500MHz Max.Gain2.68dBi@2400～2500MHz Efficiency40~50%@2400～2500MHz PolarizationLinear Impedance50Ohm B.Material&MechanicalCharacteristics： MaterialofRadiatorPCB CableTypeNONE ConnectorTypeNONE PullTest/ C.Environmental： OperationTemperature-20°C~+60°C StorageTemperature-40°C~+80°C 5.GainandEfficiency: frequency（GHz）2.42.412.422.432.442.452.462.472.482.492.5 efficiency（%）41.7642.4443.2652.3449.8749.9851.1247.2342.3243.3142.18 Gain（dBi）1.811.972.242.682.452.502.612.322.192.272.00

Page 1 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT LE (Conducted Measurement) Product Name: LED Controller Test Model: SP701E Environmental Conditions Temperature: 23.8  C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.664 2401.672 2402.336 0.5 PASS 2440 0.656 2439.680 2440.336 0.5 PASS 2480 0.684 2479.664 2480.348 0.5 PASS BLE_2M Ant1 2402 1.204 2401.360 2402.564 0.5 PASS 2440 1.132 2439.440 2440.572 0.5 PASS 2480 1.352 2479.328 2480.680 0.5 PASS Page 3 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 4 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 5 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2480 Page 6 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.09 ≤30 PASS 2440 0.92 ≤30 PASS 2480 -0.11 ≤30 PASS BLE_2M Ant1 2402 0.00 ≤30 PASS 2440 0.70 ≤30 PASS 2480 -0.33 ≤30 PASS Page 7 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 8 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 9 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2480 Page 10 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -16.41 ≤8.00 PASS 2440 -15.58 ≤8.00 PASS 2480 -16.68 ≤8.00 PASS BLE_2M Ant1 2402 -19.56 ≤8.00 PASS 2440 -18.66 ≤8.00 PASS 2480 -19.68 ≤8.00 PASS Page 11 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 12 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 13 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to …

Text truncated - open the document above for the full version.

Page 1 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B RF Test Data for BT LE (Conducted Measurement) Product Name: LED Controller Test Model: SP701E Environmental Conditions Temperature: 23.8  C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Paddi Chen Supervised by: Nick Peng Page 2 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.676 2402.320 0.5 PASS 2440 0.656 2439.676 2440.332 0.5 PASS 2480 0.660 2479.668 2480.328 0.5 PASS BLE_2M Ant1 2402 1.140 2401.424 2402.564 0.5 PASS 2440 1.336 2439.328 2440.664 0.5 PASS 2480 1.184 2479.408 2480.592 0.5 PASS Page 3 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 4 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 5 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2480 Page 6 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.15 ≤30 PASS 2440 -0.82 ≤30 PASS 2480 -0.66 ≤30 PASS BLE_2M Ant1 2402 -0.04 ≤30 PASS 2440 -0.88 ≤30 PASS 2480 -0.84 ≤30 PASS Page 7 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 8 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 9 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2480 Page 10 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.3 Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -16.48 ≤8.00 PASS 2440 -17.45 ≤8.00 PASS 2480 -17.28 ≤8.00 PASS BLE_2M Ant1 2402 -19.72 ≤8.00 PASS 2440 -20.71 ≤8.00 PASS 2480 -20.52 ≤8.00 PASS Page 11 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page 12 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 Page 13 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code …

Text truncated - open the document above for the full version.

Page 1 of 36 FCC ID: 2ATV8SP70XE Report No.: LCSA01184096EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-m…

Text truncated - open the document above for the full version.
