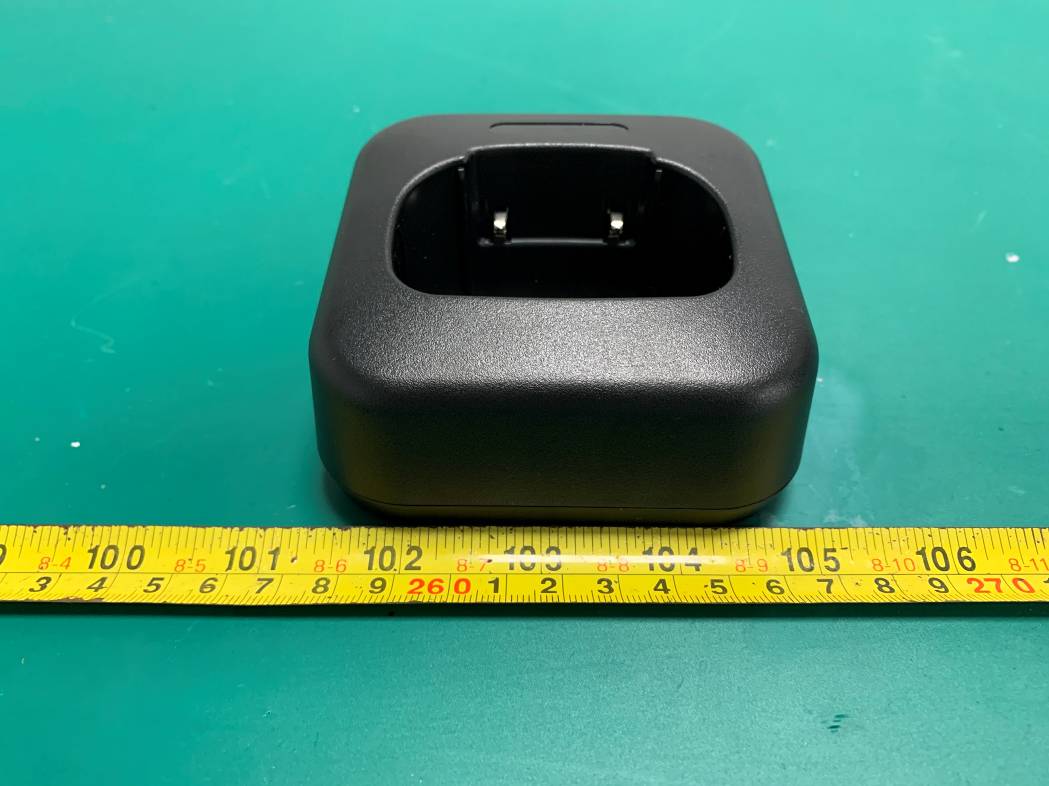

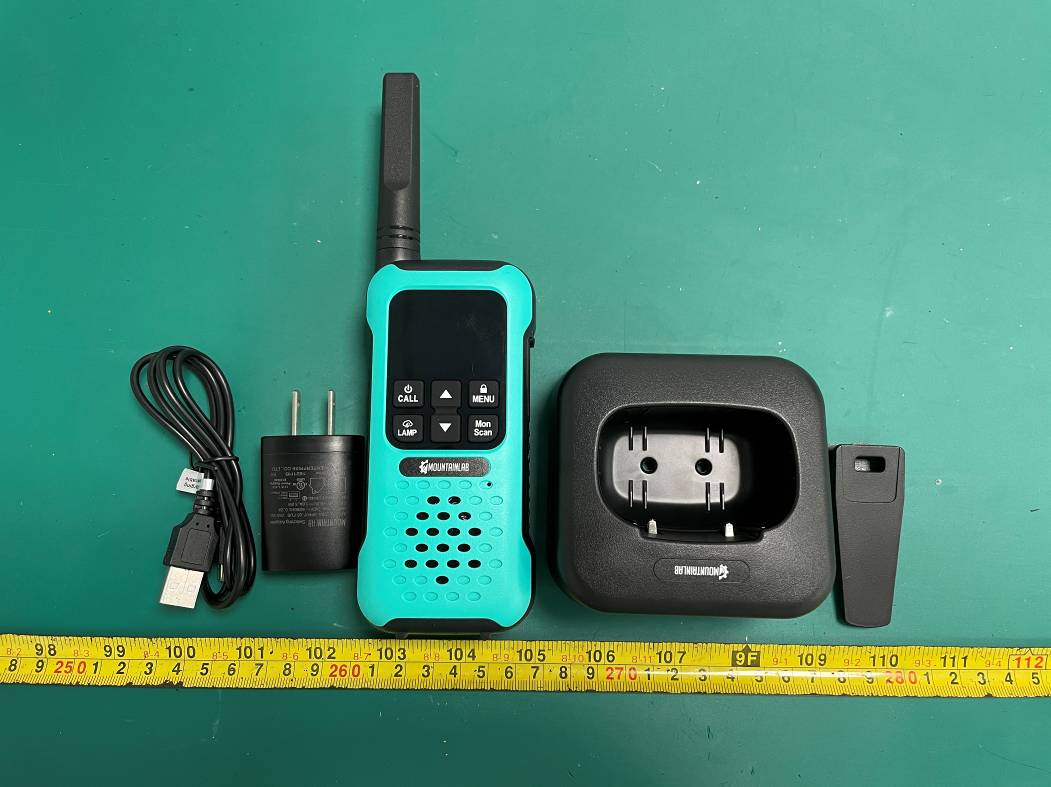

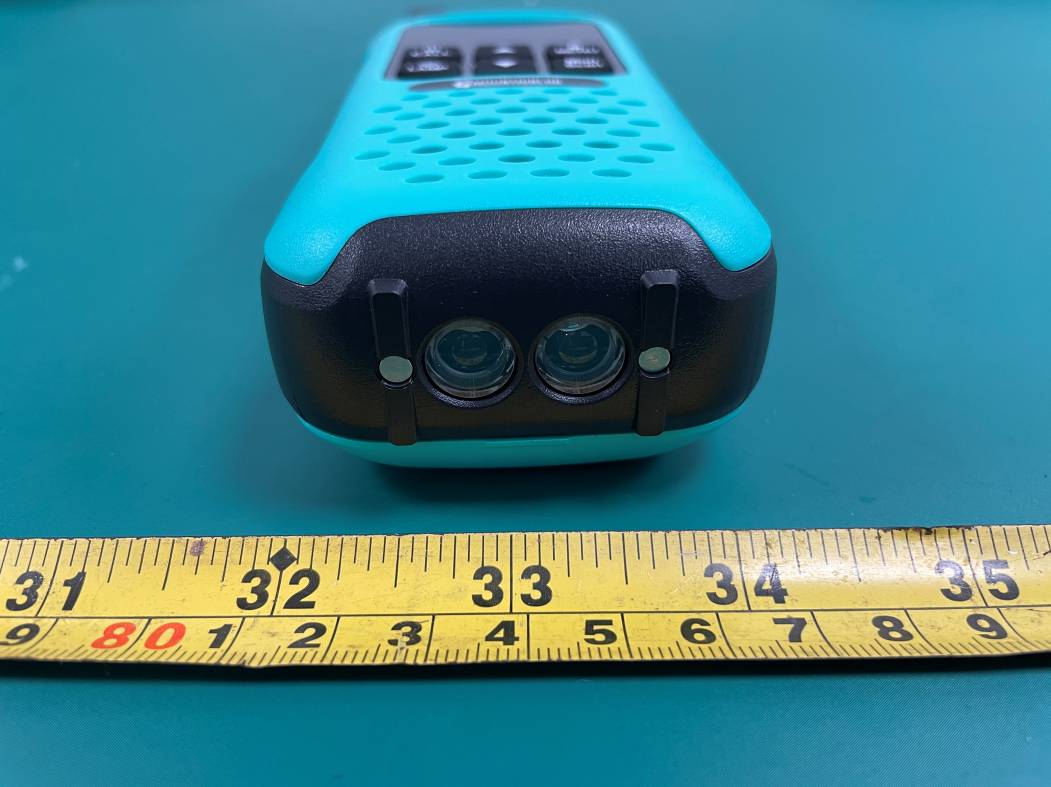

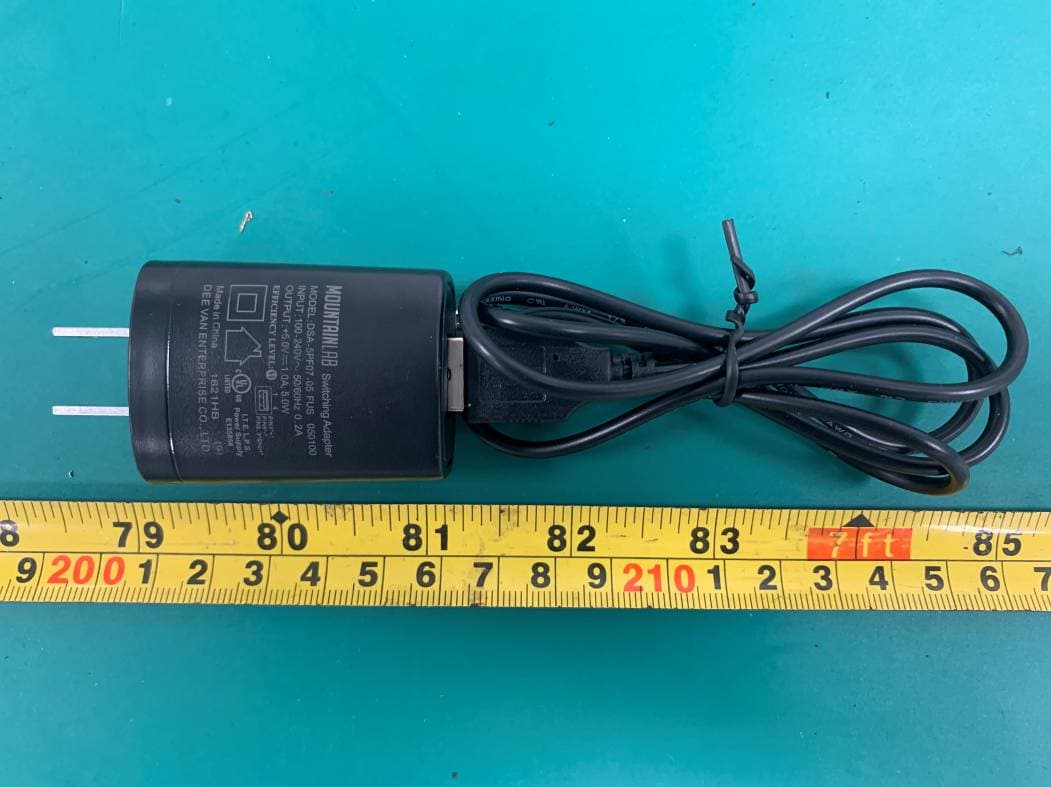

OPERATING INSTRUCTIONS MOUNTAIN LAB GEAR SCOUT 2W 2-WAY RADIO Note: Please read the operating instructions carefully before using the device. KEY FUNCTIONS 7 8 9 10 Speaker Microphone Monitor/Scan Lock/Menu Speaker Microphone Accessory Port 7 8 9 10 11 11 1 2 3 4 5 Push-To-Talk (PTT) Power/Call Tone Lamp/Weather Signal Light Button LED Light Signal Light 1 2 3 4 5 6 6 1 GETTING STARTED Install the AA NiMH Rechargeable Batteries 1. Remove the belt clip by inserting a finger under the tab at the top and sliding the belt clip up. 2. Remove the two screws on the back of the radio by turning them counter-clockwise to open the cover. DISPLAY SCREEN GUIDE Channel Number Sub-code Dual Channel Scan VOX Battery Life Status (Transmit/Receive) Volume Mut e Keypad Lock Weat her Alert Remove the battery cover. screws 2 Insert 3 AA NiMH batteries. Close the battery cover. Battery Life 3. Install the included AA NiMH batteries according to the orientation shown in the battery compartment. 4. Close the battery compartment cover and replace the screws, turning clockwise until snug. A fully charged battery is indicated by three solid bars . When the battery is low, the display will show one blinking bar and the radio will emit a low battery warning beep after each transmission. Note: • Remove the batteries from the radio prior to storage. Batteries left in the radio during storage may corrode over time and may cause permanent damage to your radio. • Do not mix old and new or alkaline and NiMH batteries. • Charge the supplied NiMH batteries once every three months when not in use. 3 1. Press to increase the volume (maximum volume is 7). Press to decrease the volume (minimum volume is 1). 2. When volume level 0 is selected, the radio is muted and is displayed. Using the Charging Dock The Micro-USB charging dock allows you to conveniently charge the NiMH battery of your SCOUT radio in the dedicated dock, using the included certified charging adaptor (5V, ≥1A). Note: Do not attempt to charge alkaline batteries. How To Charge the Battery 1. Ensure that your radio is turned OFF. 2. Plug the Micro-USB cable into the Micro-USB port on the charging dock. Insert the USB connector into the charging adapter. Plug the charging adapter into a household electrical outlet. 3. Place the radio into the charging dock. The battery meter on the display will cycle to indicate the battery is charging. The battery is fully charged when the display shows three solid bars. BASIC OPERATION Turning the Radio On and Off 1. Press and hold the power button to turn your radio on/off. 2. The display will show the current channel, sub-code and enabled features. Setting the Volume 4 1. Press the button. The channel number will start to flash. 2. Press or to change the channel number. 3. Press the PTT button to select the channel and exit the menu, or press again to proceed to the sub-code selection menu. Setting the Channel CH Frequency (MHz) Max Power Out put (MHz) Frequency Max Power Out put 1462.56252W12467.66250.5W 2462.58752W13467.68750.5W 3462.61252W14 467.71250.5W 4462.63752W15462.55002W 5462.66252W16462.57502W 6462.68752W17462.6000 2W 7462.71252W18462.62502W 8467.56250.5W19462.65002W 9467.58750.5W20462.67502W 10467.61250.5W21462.70002W 11467.63750.5W22462.72502W CH Channels and Frequencies 5 1. Press the button until the sub-code number starts to flash. 2. Press or to change the sub-code number. 3. Press the PTT button to exit the menu. Note: When sub-code “0” is selected, the radio can receive transmissions from any radio on the same channel, regardless of sub-code. However, only those radios also on sub-code “0” will be able to receive its transmissions. If the PTT button is held for longer than 60 seconds, radio will stop transmitting. This is to prevent accidental transmission. 1. To talk, press and hold the PTT button. When transmitting, the icon is shown. Release the PTT button when you are finished talking. Do not use the radios closer than two meters apart or the radios may experience feedback. 2. When receiving a transmission, the icon will be displayed. Note: With all radios, it is good practice to hold the PTT button for a half second longer before and after speaking to ensure your transmission is not cut off. PTT Timeout Timer Setting the Sub-Code Transmitting and Receiving 6 The scan function allows the user to listen for any activity on any channel and its matched sub-code (as is selected in the main menu). 1. Press the button to start scanning. The “SCAN” icon will show and the display will cycle through the channels and sub-codes being scanned for activity. 2. When activity is detected, the radio will stop scanning and receive the transmission. At the end of transmission, press the PTT button within five seconds to respond. Otherwise the radio will resume scanning. 3. If the PTT button is pressed while the device is scanning, the transmission will be sent on the main selected channel. 4. Press the button to exit scan mode. Note: If the device stops on an unintended/undesired transmission, press or to resume scan OR temporarily remove that channel from the scan list by pressing and holding or for three seconds. To restore removed channels to the scan list, press to exit and re-enter scan mode. To transmit a call tone, press the button. Setting the Call Tone 1. To select the call tone to be used, press the button until the call tone menu “CA” appears. The flashing number indicates the current call tone. 2. Press or to change the call tone. 3. Press the PTT button to exit the menu. Note: Call tone “0” mutes the call tone feature. No call tone will be sent, but they can still be received. Call Tone The keypad lock feature prevents accidental keypad button activation. This is especially useful when the radio is used with the included speaker microphone accessory and placed inside a backpack or otherwise secured. 1. To lock the keypad buttons, press and hold the button until the lock indicator is displayed. 2. Repeat the p…
