2ATW5-CB01Cydiance Bluetooth/USB data logger

User Guide Manual del Usuario B series Including B1/B2/B3 models Cydiance Bluetooth/USB data logger User Guide Version, ENES202002 Technical Support, [email protected] Official Website, www.cydiance.com Download App WARNING! KEEP AWAY from babies, children and pets, this device is not a toy. DO NOT place the device near fire, battery contained inside may cause danger. Considering our recycling program before dispose to environment. User Guide Online FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera- tion. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residen- tial installation. This equipment generates, uses and can radiate radio frequen- cy energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, The 20cm is the minimum distance that has to be maintained between your body and the device. FCC ID:2ATW5-CB01 How to USE the device ● START Press the button for 5 seconds till both LED light up, the LED will then flash every 3 seconds indicating the logger is working. ● MARK event Press the button once, the RUN LED will light up for 1 second, indicating a MARK has been made successfully. Total 8 MARKs can be made. ● STOP → Device will stop when it reaches to maximum of data capacity. → Device will stop when it’s USB plugged into computer. → Device manufactured before Dec 4th, 2019 can be stopped manually. ● GET REPORT → Download the Cydiance App and read with Bluetooth; → Remove the bag and plug USB into the computer. How to PLACE the device ● Place the device on top of the first and last pallet, or directly put into the package. ● DO NOT remove the plastic bag before getting report! Log Cycle Run Start/Mark Button Serial # Humidity Sensor(B2 only) Cómo usa el dispositivo ● ENCENDER Precione el botón durante 5 segundos hasta que am- bos LED se enciendan,el LED parpadeará cada 3 segundos indican- do que el registrador está funcionando. ● HACE una MARCA Precione el botón una vez,el LED RUN se ilu- minará durante 1 Segundo,indicando que se ha realizado una MAR- CA correctamente.Se pueden hacer 8 marcas. ● APAGADO → El dispositivo se detendrá cuando alcance la capacidad máxima de datos. → El dispositivo se detendrá cuando esté conectado por USB a la computadora. → El dispositivo fabricado antes del 4 de diciembre de 2019 se puede detener manualmente. ● REPORT → Descargue Cydiance App y lea con Bluetooth → Retire la bolsa plástica y conecta al Puerto usb de la compu- tadora. Cómo coloque el dispositivo ● Coloque el dispositivo encima del primer o ultimo palet,o co- lóque directamente en el paquete . ● NO retire la bosla de plástico a menos de que haya terminado su viaje y haya querido leer el informe. Alarm Led

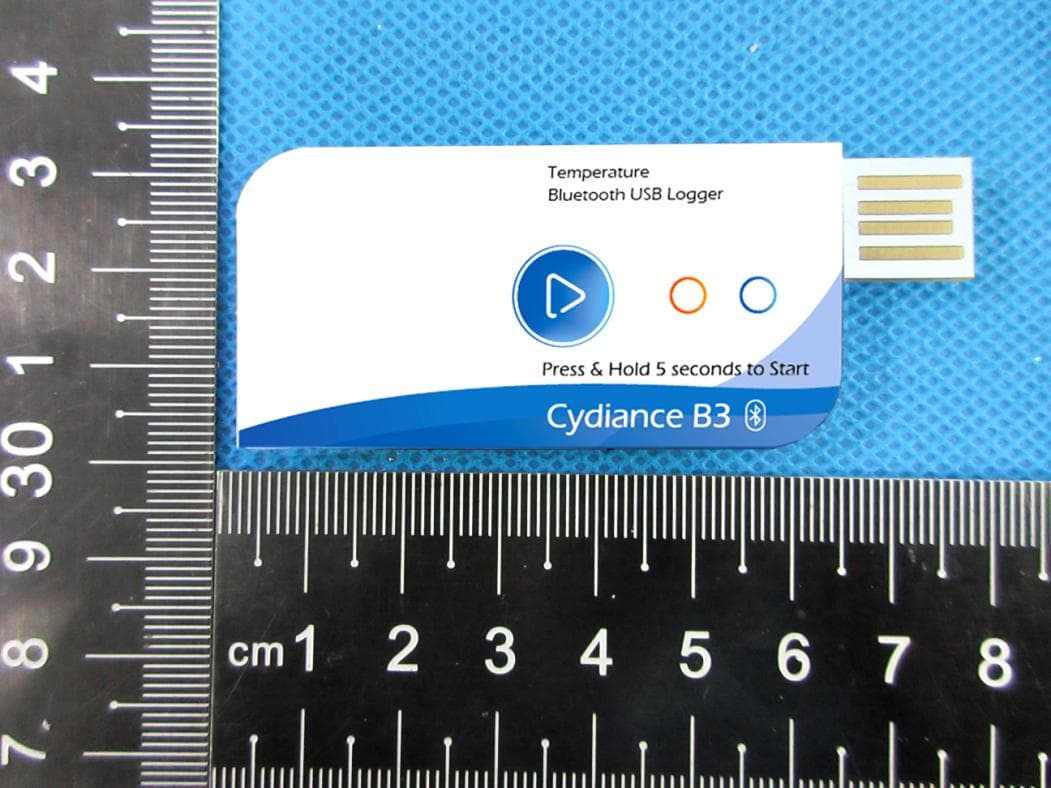

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 BT ANT

FCC ID: 2ATW5-CB01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 2402-8.275 -8±1-70.2003.002.000.00011 2440-9.518 -10±1-90.1263.002.000.000051 2480-10.883 -10±1-90.1263.002.000.000051 2402-8.542 -8±1-70.2003.002.000.00011 2440-9.49 -10±1-90.1263.002.000.000051 2480-10.798 -10±1-90.1263.002.000.000051 Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) GFSK-1M (mW/cm2) Antenna Gain Max tune-up pow er (mW/cm2 ) GFSK-2M Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB antenna Antenna gain: 3dBi, R=20cm Conclusion: For the max result : 0.0001≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2021-04-27 NAME AND TITLE (Please print or type): Alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S21032301602001 Version.1.3 Page 1 of 61 RADIO TEST REPORT FCC ID: 2ATW5-CB01 Product: Cydiance Bluetooth/USB data logger Trade Mark: Cydiance Model No.: B3 Family Model: B0, B1, B2, B4, B5, B6, B7, B8, B9 Report No.: S21032301602001 Issue Date: 19 Apr. 2021 Prepared for Shanghai Cydiance Technology Co.,Ltd A220, Building 6, No.407 Rongxing Road,Songjiang District, Shanghai City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.: S21032301602001 Version.1.3 Page 2 of 61 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 1M: ............................................................................................................................................................................. 34 8.1 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 34 8.2 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 36 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ................................................................................. 40 8.4 BAND EDGE ................................................................................................................................................. 42 8.5 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 44 2M: ............................................................................................................................................................................. 48 8.6 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 48 8.7 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 50 8.8 MAXIMUM POWER SPECTRAL DENSITY LEVEL ................................................................................. 54 8.9 BAND EDGE ................................................................................................................................................. 56 8.10 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 58 Report No.: S21032301602001 Version.1.3 Page 3 of 61 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shanghai Cydiance Technology Co.,Ltd Address ......…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
