FCC Software Configuration Control Declaration Rev1.1 SHENZHEN YUANGU TECHNOLOGY CO LTD FCC Software Configuration Control Declaration Date: 2022/04/07 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: Projector Model Number(s): APT04 Trademark: Jireno FCC ID: 2ATWG-APT04 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Certification Marvin Title: Certification Manager Signatureof applicant:

SHENZHEN YUANGU TECHNOLOGY CO LTD Agent Authorization Company: SHENZHEN YUANGU TECHNOLOGY CO LTD Address: No.101 1st Factory Building Hebei Industrial Park Ma’antang Community Hebeizhongxing Road Bantian Sub-district Longgang District Shenzhen, Guangdong, 518000 CN Product Name: Projector Model Number(s): APT04 Trademark: Jireno FCC ID: 2ATWG-APT04 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/04/07 Name: Certification Marvin Title: Certification Manager Company: SHENZHEN YUANGU TECHNOLOGY CO LTD

SHENZHEN YUANGU TECHNOLOGY CO LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/04/07 Subject; Request for Confidentiality FCC ID: 2ATWG-APT04 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Certification Marvin Title: Certification Manager

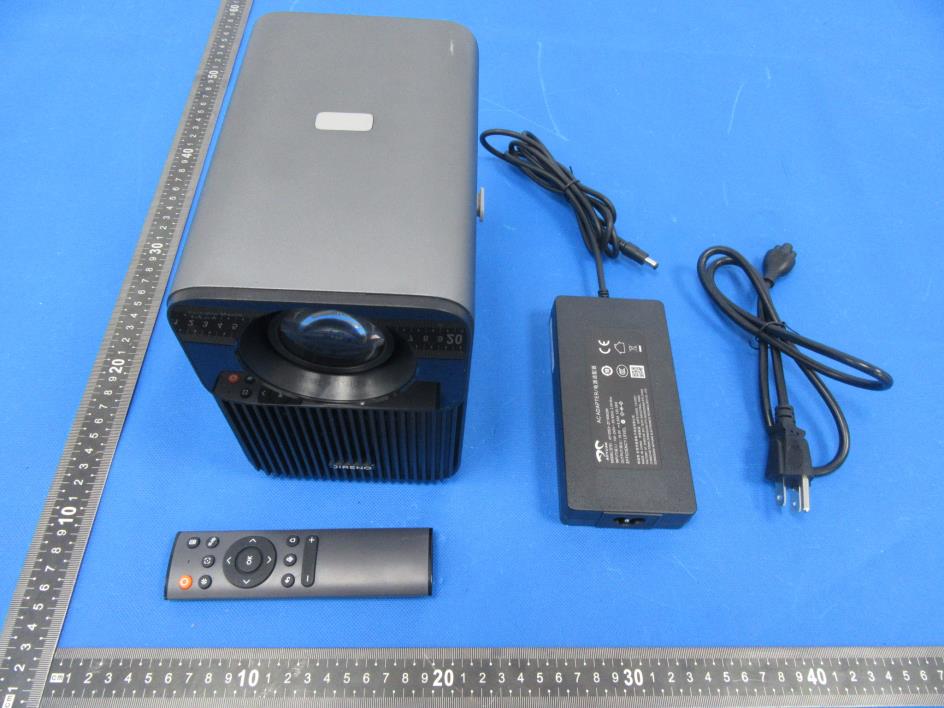

External Photos

Size:40*20mm FCC ID: 2ATWG-APT04 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Internal Photos BT Antenna WIFI Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2ATWG-APT04 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS For the Max simultaneous transmission MPE Conclusion: For the max Power Density: 0.04023＜1, the SAR testing is not required. Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result BT 2±1 3 2.00 1.26 (1dBi) 0.0005 1 Pass 802.11 b/g/n 21±1 22 158.49 1.26 (1dBi) 0.03973 1 Pass 802.11 U- NII-1 11±1 12 15.85 1.26 (1dBi) 0.00397 1 Pass 802.11 U- NII-3 9±1 10 10 1.26 (1dBi) 0.00251 1 Pass Evaluation mode Power Density/Limit Sum of the MPE rate Limit Result BT 0.0005 0.04023 1 Pass 802.11 b/g/n 0.03973 Evaluation mode Power Density/Limit Sum of the MPE rate Limit Result BT 0.0005 0.00447 1 Pass 802.11 U- NII-1 0.00397

Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 72 of 125 Edition：A.4 -6dB Bandwidth NVNT n40 5755MHz -6dB Bandwidth NVNT n40 5795MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 73 of 125 Edition：A.4 -6dB Bandwidth NVNT ac20 5745MHz -6dB Bandwidth NVNT ac20 5785MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 74 of 125 Edition：A.4 -6dB Bandwidth NVNT ac20 5825MHz -6dB Bandwidth NVNT ac40 5755MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 75 of 125 Edition：A.4 -6dB Bandwidth NVNT ac40 5795MHz -6dB Bandwidth NVNT ac80 5775MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 76 of 125 Edition：A.4 Test Graphs OBW NVNT a 5745MHz OBW NVNT a 5785MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 77 of 125 Edition：A.4 OBW NVNT a 5825MHz OBW NVNT n20 5745MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 78 of 125 Edition：A.4 OBW NVNT n20 5785MHz OBW NVNT n20 5825MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 79 of 125 Edition：A.4 OBW NVNT n40 5755MHz OBW NVNT n40 5795MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 80 of 125 Edition：A.4 OBW NVNT ac20 5745MHz OBW NVNT ac20 5785MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 81 of 125 Edition：A.4 OBW NVNT ac20 5825MHz OBW NVNT ac40 5755MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 82 of 125 Edition：A.4 OBW NVNT ac40 5795MHz OBW NVNT ac80 5775MHz Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 83 of 125 Edition：A.4 10. Maximum Conducted Output Power 10.1 Block Diagram Of Test Setup 10.2 Limit According to FCC §15.407 The maximum conduced output power should not exceed: Frequency Band(MHz) Limit 5150~5250 1W 5725~5850 1W 10.3 Test procedure Maximum conducted output power may be measured using a spectrum analyzer/EMI receiver or an RF power meter. 1. Device Configuration If possible, configure or modify the operation of the EUT so that it transmits continuously at its maximum power control level (see section II.B.). a) The intent is to test at 100 percent duty cycle; however a small reduction in duty cycle (to no lower than 98 percent) is permitted if required by the EUT for amplitude control purposes. Manufacturers are expected to provide software to the test lab to permit such continuous operation. b) If continuous transmission (or at least 98 percent duty cycle) cannot be achieved due to hardware limitations (e.g., overheating), the EUT shall be operated at its maximum power control level with the transmit duration as long as possible and the duty cycle as high as possible. 2. Measurement using a Spectrum Analyzer or EMI Receiver (SA) Measurement of maximum conducted output power using a spectrum analyzer requires integrating the spectrum across a frequency span that encompasses, at a minimum, either the EBW or the 99-percent occupied bandwidth of the signal.1 However, the EBW must be used to determine bandwidth dependent limits on maximum conducted output power in accordance with § 15.407(a). a) The test method shall be selected as follows: (i) Method SA-1 or SA-1 Alternative (averaging with the EUT transmitting at full power throughout each sweep) shall be applied if either of the following conditions can be satisfied: • The EUT transmits continuously (or with a duty cycle ≥ 98 percent). • Sweep triggering or gating can be implemented in a way that the device transmits at the maximum power control level throughout the duration of each of the instrument sweeps to be averaged. This condition can generally be achieved by triggering the instrument’s sweep if the duration of the sweep (with the analyzer configured as in Method SA-1, below) is equal to or shorter than the duration T of each transmission from the EUT and if those transmissions exhibit full power throughout their durations. (ii) Method SA-2 or SA-2 Alternative (averaging across on and off times of the EUT transmissions, followed by duty cycle correction) shall be applied if the conditions of (i) cannot be achieved and the Report No.: BCTC2201539112-2E No.：BCTC/RF-EMC-005 Page: 84 of 125 Edition：A.4 transmissions exhibit a constant duty cycle during the measurement duration. Duty cycle will be considered to be constant if variations are less than ± 2 percent. (iii) Method SA-3 (RMS detection with max hold) or SA-3 Alternative (reduced VBW with max hold) shall be applied if the conditions of (i) and (ii) cannot be achieved. b) Method SA-1 (trace averaging with the EUT transmitting at full power throughout each sweep): (i) Set span to encompass the entire emission bandwidth (EBW) (or, alternatively, the entire 99% occupied bandwidth) of the signal. (ii) Set RBW = 1 MHz. (iii) Set VBW ≥ 3 MHz. (iv) Number of points in sweep ≥ 2 Span / RBW. (This ensures that bin-to-bin spacing is ≤ RBW/2, so that narrowband signals are not lost between frequency bins.) (v) Sweep time = auto. (vi) Detector = RMS (i.e., power averaging), if available. Otherwise, use sample detector mode. (vii) If transmit duty cycle < 98 percent, use a video trigger with the trigger level set to enable triggering only on full power pulses. Transmitter must operate at maximum power control level for the entire duration of every sweep. If the EUT transmits continuously (i.e., with no off intervals) or at duty cycle ≥ 98 percent, and if each transmission is entirely at the maximum power control level, then the trigger shall be set to “free run”. (viii) Trace average at least 100 traces in power averaging (i.e., RMS) mode. (ix) Compute power by integrating the spectrum across the EBW (or, alternatively, the entire 99% occupied bandwidth) of the signal using the instrument’s band power measurement function with band limits set equal to the EBW (or occupied bandwidth) band edges. If the instrument does not have a band power function, sum the spectrum 10.4 EUT operating Conditions The EUT was configured for testing in a typical fashion (as a customer would normally use it). The EUT has been programmed to con…
