2ATWS2022AVSmart Rope

User Manual for the Smart Rope Thank You for Buying the 75PAI Smart Rope. This manual shows you how to use the smart rope. Please read this manual carefully before using the product and keep it properly. I. Download Paiactive APP Search and install the APP. II. Device Binding 1.Turn on Bluetooth on your cellphone； 2.Open the Paiactive APP to register/login, and then add “Smart Rope” in “Device-Add Device”. III. Buttons & Charging 1. Activate the Device: a short press on the left/right button to activate the device. 2. Main interface：Press the left key "mode" to enter the mode interface, and press the right key "record" to enterData recording interface; 3. Mode interface：Long press the left key "switch" to switch the mode, and press the right button to "return" to return to the main interface; 4. Motion interface：Long press the right button "end" to end the current movement and enter the data details interface; 5. Data detail interface:Simply press the left key "previous" and "next" to view the data details,Right click return to return to the previous interface, and long press return to return to the main interface; 6. Data recording interface:Press the left button to select the data to be viewed, and press the right button toReturn to the main interface, select the data to be viewed, and long press the left key "select" to view the data details affection; 7. Data manual saving:Long press "end" in the motion interface to save the data manually; 8. Automatic data saving:5 minutes after the device stops moving, the device will automatically save the current data and sleep automatically 9. Screen rest screen:When the device screen is lit for 15 seconds, the screen will automatically stop and light up by pressing the left and right keys; 10. Device restart:Right click on any interface and press for 8 seconds to restart the device; 11. Device shutdown:The device does not need to be shut down manually. It will automatically sleep 5 minutes after stopping movement; 12. Charging interface:When charging, the screen displays the "charging" interface for 2 seconds, and when fully charged, the "charging completed" interface is displayed, IV. Display 1. Battery icon: it shows the current battery status; when the icon flashes, please charge the device. 2. Exercise mode: it shows the current exercise mode, which includes free mode, time down (skipping time) and count down (skipping count). 3. Time: it shows the skipping time or remaining time. 4. Count: it shows the count of skips done or the count of remaining skips. 5. Main interface: display handle time and date 6. Rope mixing times: displays the times of rope skipping and tripping this time; 7. BPM: displays the beats per minute of this rope skipping. V. Installation Daily maintenance and matters need attention: 1. This product is not waterproof, so do not use it outdoors in rainy days. 2. Please use a piece of dry cloth when wiping the handles. Don’t use a wet one. 3. Please carefully evaluate your fi condition and have a warm-up before your start rope skipping, If the device doesn’t work, please try the following: 1. Please make sure the device has enough power. 2. Check your cellphone to make sure the Bluetooth is on. 3. Turn off the Bluetooth and turn on it again on your cellphone. 4. Restart your cellphone. 5. Restart the device and rebind it to your phone. Product model:LS-F20L Handle size: 170*23*23mm Weight: About 170g Material: ABS. Rope length: 2.8 meters Connectivity: Bluetooth Battery capacity:300mAh OS support: Andriod5.1 , iOS 11.0 and above Manufacturer: Shanghai Laisi Information Technology Co., Ltd. Address: No. 1158, Zhongxin Road, Songjiang District, Shanghai This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which canbedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment The devices has been evaluated to meet general RF exposure requirement，the device canbeused in portable exposure condition without estriction

DATE 2022-09-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATWS2022AV Pr oduct Name: Smart Rope Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ... ) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Yang yinghua Title: Manager Applicant Company: Shanghai Laisi Information technology Co.,Ltd.

Date：2022-09-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). <Signature> Name: Yang yinghua Title: Manager Applicant Company: Shanghai Laisi Information technology Co., Ltd.

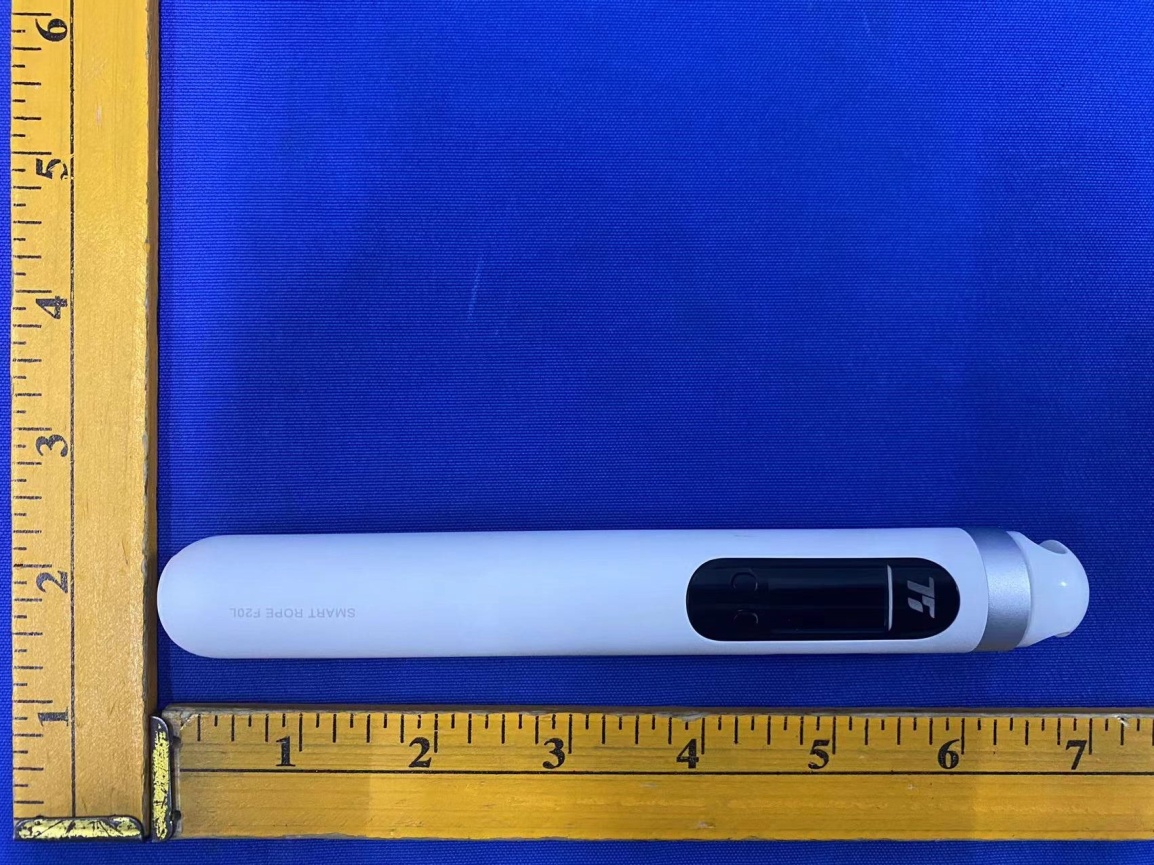

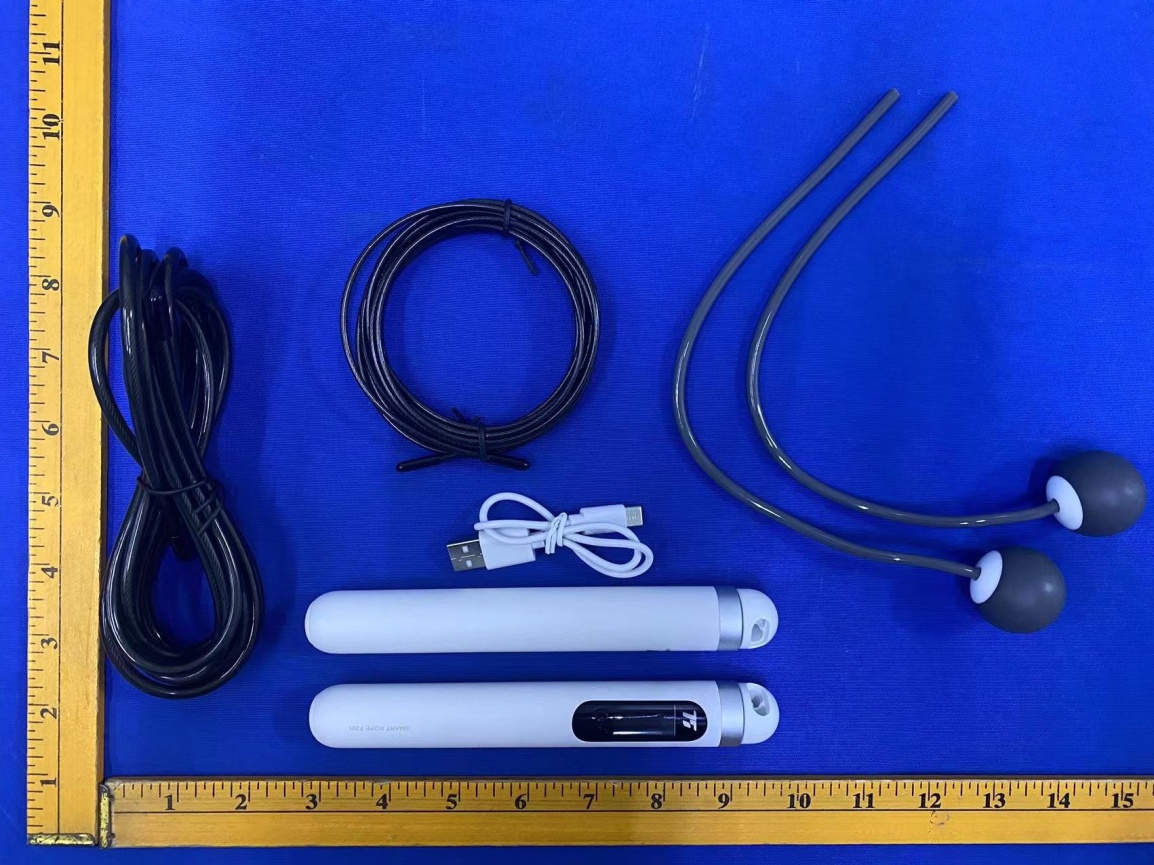

Page 1 of 3 FCC-ID: 2ATWS2022AV External photos Model No: LS-F20L Page 2 of 3 FCC-ID: 2ATWS2022AV Page 3 of 3 FCC-ID: 2ATWS2022AV

L P Label an Mo Page 1 of 1 nd label odel No: LS‐F2 locatio 20L FCC-ID: 2A n ATWS2022AAV

Page 1 of 4 FCC-ID: 2ATWS2022AV Internal Photos Model No: LS-F20L Page 2 of 4 FCC-ID: 2ATWS2022AV Antenna Page 3 of 4 FCC-ID: 2ATWS2022AV Page 4 of 4 FCC-ID: 2ATWS2022AV

FCC‐ID: 2ATWS2022AV Page 1 of 1 Report No.: NTC‐ER2209013 RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz 0.894dBm（1.23mW） output power] (1.23mW /5mm) ·[√2.402(GHz)]= 0.38<3.0 for 1‐g SAR Then SAR evaluation is not required

Report No.:NTCER1911011 Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808 DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 3F, No. 1 the 1st North Industry Road, Songshan Lake Science & Technology Park, Dongguan, Guangdong, China, 523808 Tel: +86-769-22212079 Web: http://www.ntc‐cert.com E-mail: [email protected] FCC TEST REPORT Report No. ...................................... : NTC-ER2209013 Applicant’s name ........................... : Shanghai Laisi Information technology Co.,Ltd. Address .......................................... : 901,21A No.1158 Zhongxin Road, Songjiang district Shanghai China DONGGUAN NEW TESTING CENTRE CO., LTD ◎Address: 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Tel: +86-769-22212079 Web: http://www.ntc‐cert.com E-mail: [email protected] Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 1 of 48 Report No.: NTC‐ER2209013 TABLE OF CONTENTS Test Report Declare ...................................................................................................................... 3 1. Summary Of Test Results ....................................................................................................... 4 2. General Test Information ......................................................................................................... 4 2.1. Description of EUT ................................................................................................................... 4 2.2. Assistant equipment used for test .......................................................................................... 6 2.3. Block diagram EUT configuration for test ............................................................................. 6 2.4. Test environment conditions ................................................................................................... 7 2.5. Measurement uncertainty ........................................................................................................ 8 3. Power Line Conducted Emission Test .................................................................................. 9 3.1. Test equipment ......................................................................................................................... 9 3.2. Block diagram of test setup ..................................................................................................... 9 3.3. Power line conducted emission limits (class B) ................................................................... 9 3.4. Test procedure ........................................................................................................................ 10 3.5. Test result ................................................................................................................................ 10 4. Radiated Emission Test ......................................................................................................... 13 4.1. Test equipment ....................................................................................................................... 13 4.2. Block diagram of test setup ................................................................................................... 14 4.3. Limit .......................................................................................................................................... 16 4.4. Test procedure ........................................................................................................................ 17 4.5. Test result ................................................................................................................................ 17 5. Maximum Peak Output Power .............................................................................................. 24 5.1. Applied procedures / limit ...................................................................................................... 24 5.2. Test procedure ........................................................................................................................ 24 5.3. Deviation from standard ......................................................................................................... 24 5.4. Test setup ................................................................................................................................ 24 5.5. Test Results ............................................................................................................................. 24 6. -6dB Bandwidth Test .............................................................................................................. 27 6.1. Applied procedures / limit ...................................................................................................... 27 6.2. Test procedure ........................................................................................................................ 27 6.3. Deviation from standard ......................................................................................................... 27 6.4. Test setup ................................................................................................................................ 27 6.5. Test results .............................................................................................................................. 27 7. Power Spectral Density ......................................................................................................... 30 Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic …

Text truncated - open the document above for the full version.

Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 40 of 51 Report No.: NTC-ER2209013 12. Test setup photograph Photos of power line conducted emission test Photos of radiated emission test 30MHz – 1GHz Photos of radiated emission test Dongguan New Testing Centre Co., Ltd E-mail： [email protected] 1F & 3F, No. 1 the 1st North Industry Road Songshan Lake Science & Technology Park Dongguan, People’s Republic of China 523808 Page 41 of 51 Report No.: NTC-ER2209013 Above 1GHz
