2ATXY-23300FlashLink

Extended Sensors : Pair With External BLE Sensors & External temperature sensor Usage Area Globa PositioningTechnology GNSS/CellID l Dimensions: 114mm × 69mm × 22.3mm Global connectivity Global 4G Cat.1 With 2G Fallback Temperature Accuracy : ±0.5 °C Battery types : Chargeable NI-MH 2200mAh Install Free PRODUCT SPEC 2 0 2 3 Sensors Temperture Humidity Motion Light Pressure IP65 Rugged Global Network LTE-FDD FCC:B2/B4/B12 CE: B3/B8/B20 TELEC:B1/B3/B8/B19/B26 GSM850/PCS1900 FEATURES General Specification Operating Temperature Dimensions Weight Firmware Upgrade Data Encryption* Stand-by Current Battery Life - 20°C~+50°C 114mm × 69mm × 22.3mm Approx. 165g USB interface, OTA TEA, AES or RSA*(optional) ≤80uA 62 days @ 1 report per 1 hour and GNSS ON for NI-MH 2200mAh 64 days @ 1 report per 1 hour and GNSS OFF for NI-MH 2200mAh General Specification Horizontal Position AccuracyAutonomous: <2.5m CEP Velocity AccuracyWithout Aid: <0.1m/s Acceleration AccuracyWithout Aid: <0.1m/s² Reacquisition Time<2s TTFF (Turn on AGNSS)@(Room temperature, satellite signal -130 dBm test.) Cold Start：5.5 s Hot Start：2 s OVERVIEW FlashLink NOW and FlashLink AIR GSM Variant for the Global Buffer Storage: 2330024000 messages@ basic data length is 43 bytes Waterproof Grade IP65 TTFF (Turn off AGNSS)@(High-precision antenna, open space.test) Cold Start：30 s Hot Start：2 s Light sensor External temperature sensor Temperature & humidity sensor & Pressure sensor Hardware Features USB (U)SIM Interface Cellular Antenna GNSS Antenna LED Temperature and Humidity Sensor Battery Capacity × 1, Type-c × 1, 1.8V,Nano SIM card eSIM (Optional) internal internal,GPS/ GLONASS/ BDS/ Galileo/ QZSS × 4, Power Light, Status Light Motion Sensor Gravity Measurement Range: ±2g/±4g/±8g/±16g ODR Bandwidths: 1Hz ~ 400Hz Light Sensor Measuring Range: 1~ 100Lux(adjustable levels) Humidity Measurement Accuracy: ±2% RH@- 40°C~+55°C Temperature Measurement Accuracy: ±0.5°C ,@- 40°C~+55°C 2200mAh(Optional ) Air Protocol LTE (Cat 1)LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL) GSMMax 85.6Kbps (DL)/Max 85.6Kbps (UL) Transmit Protocol TCP , UDP,MQTT,SMS Working ModesIdle mode Recording mode Flight mode Geo-fencesSupport up to 5 internal geo-fence regions(Plaform) Alarm function Low Power Alarm*Alarm when internal battery is low* Motion AlamMotion detection based on internal 3-axis accelerometer Light Alam Light detection based on phototransistor Temperature and humidity alarm Temperature and humidity detection based on temperature and humidity sensor * Under Development External temperature sensor Temperature Measurement Accuracy: ±0.5°C ,@- 100°C~+100°C FCC part This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body

DeltaTrak Inc. (2024/3/7) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID#2ATXY-23300) [DeltaTrak Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name)Kyle Hadley Tag-N-Trac Inc. (2023/8/15) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID#2A24I-V08G08J17) [Tag-N-Trac Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is notidentified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name)Venu Gutlapalli

DeltaTrakInc. (date)2024.03.07 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(FlashLink/FlashLinkNOWand FlashLinkAIR#ANDFCCID2ATXY-23300#) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(Schematics/BlockDiagram)requiredtobe submittedwiththisapplicationbepermanentlywithheldfrompublicreview. SPECIFYREASONFORREQUEST(i.e.theabovedocumentsarecompany proprietaryinformationthatcouldnevergetintothepossessionofyour competition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely,

DeltaTrak Inc. 2024.03.07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize(CVC Testing Technology ( s h e nzhen) Co., Ltd./Vicky Zhang)to act on our behalf in all matters relating to application for equipment authorization, incl uding the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

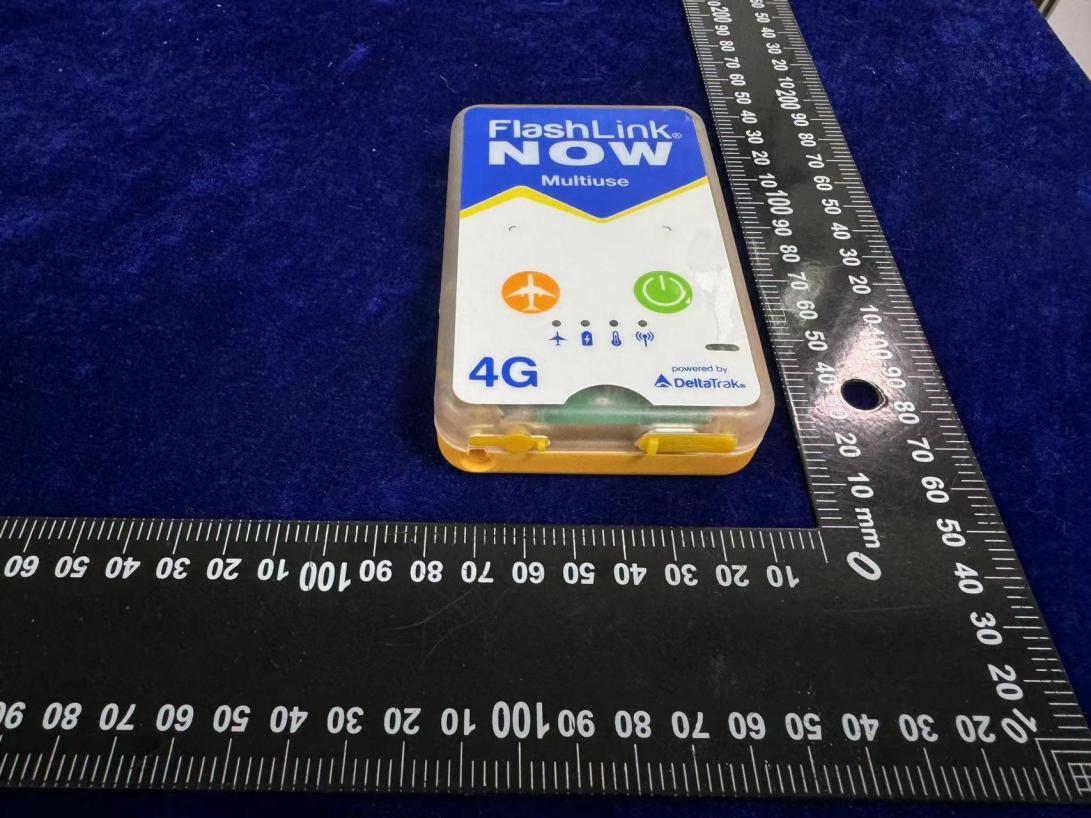

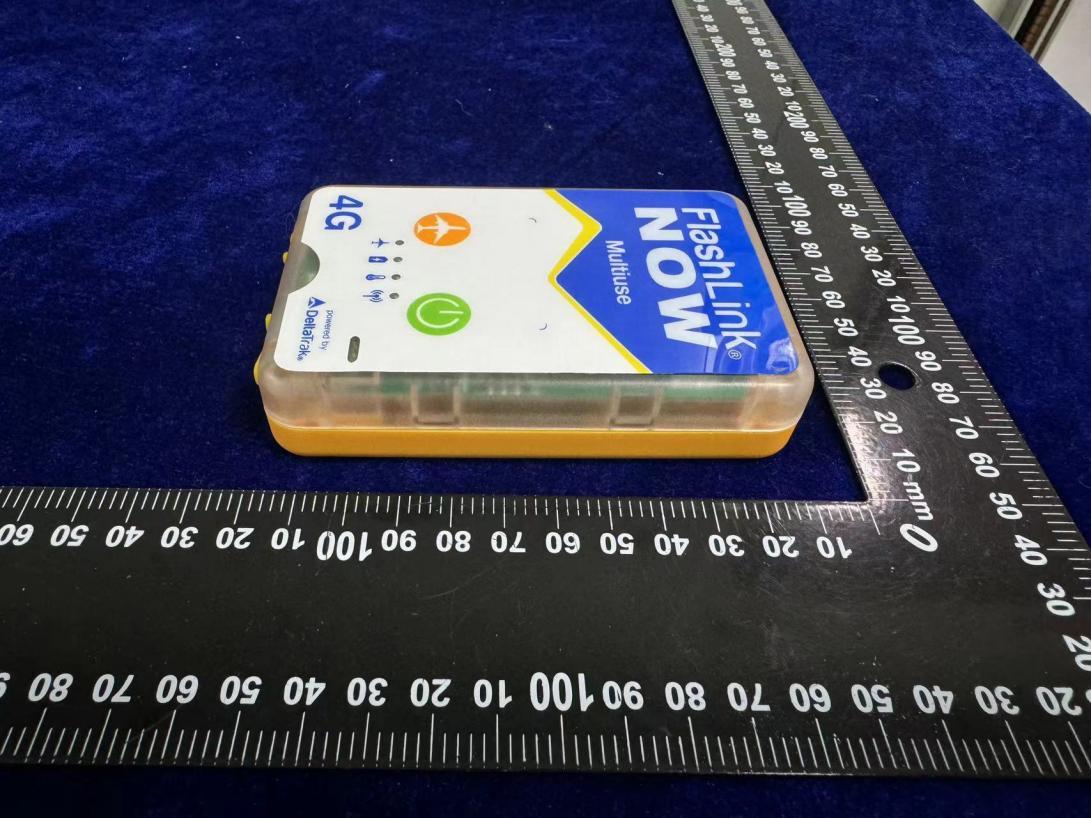

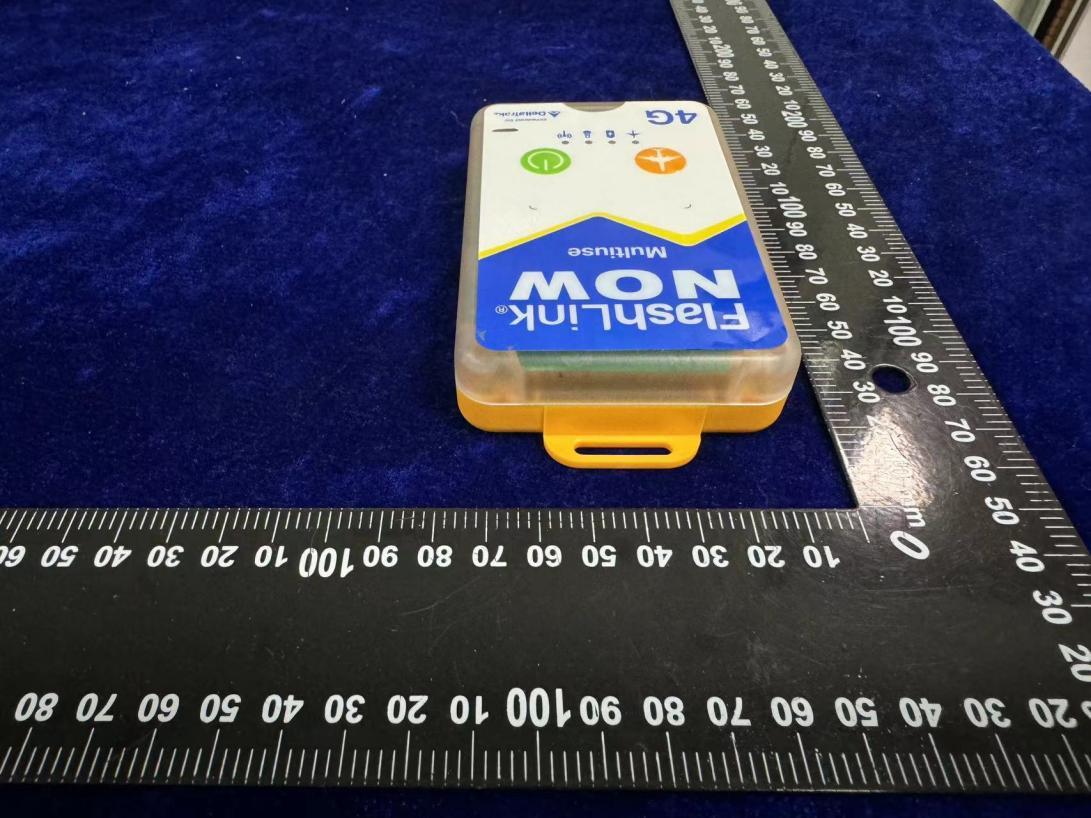

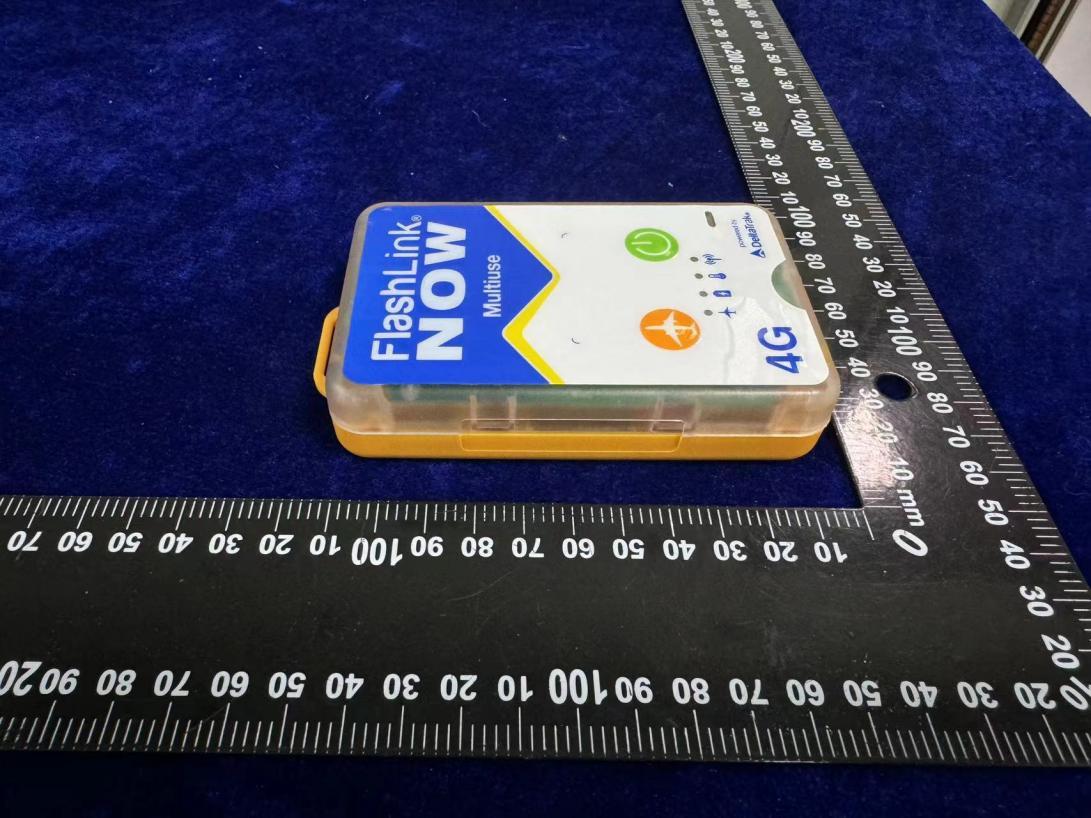

FCCSZ2024-0005-EUTPage1of4 PHOTOGRAPHSOFTHEEUT FCCSZ2024-0005-EUTPage2of4 FCCSZ2024-0005-EUTPage3of4 FCCSZ2024-0005-EUTPage4of4

23300 MDL 6730000 Feb/01/24 FCC ID:2ATXY-23300 Device ID:487060940433 Contain FCC ID:XMR2023EG912UGL Input: 5VDC,1A FlashLink NOW and FlashLink AIR

LabelLocation

FCCSZ2024-0005-EUTPage1of4 PHOTOGRAPHSOFTHEEUT GNSSANT FCCSZ2024-0005-EUTPage2of4 FCCSZ2024-0005-EUTPage3of4 FCCSZ2024-0005-EUTPage4of4 LTEANT

TESTREPORT FCCID: 2ATXY-23300 NAMEOFSAMPLE: FlashLink APPLICANT :DeltaTrakInc. CLASSIFICATIONOFTEST:N/A CVCTestingTechnology(Shenzhen)Co.,Ltd. No.: FCCSZ2024-0005-EMC CVCTestingTechnology(Shenzhen)Co.,Ltd. ReportNo.FCCSZ2024-0005-EMCPage2of22 LT13-R-1074-FCC/IC-EMC-A0 Applicant Name:DeltaTrakInc. Address:1236DokerDrive,Modesto,CA95351US Manufacturer Name:GoldStepElectronics(ShenZhen)Co.,Ltd. Address:No.12XiHuTang,PingDongCommunity,PingDi Street,LongGangDistrict,ShenZhen,Guangdong Province,China EquipmentUnderTest ProductName:FlashLink Model/Type:FlashLinkNOWandFlashLinkAIR BrandName:DeltaTrak SerialNO.:N/A SampleNO.:3-1 DateofReceipt.2024.01.22DateofTesting 2024.01.22～2024.02.02 TestSpecificationTestResult FCCPart15,SubpartB,ClassB PASS EvaluationofTestResult Theequipmentundertestwasfoundtocomplywiththe requirementsofthestandardsapplied. SealofCVC IssueDate:2024.02.02 Testedby: ZhuYulin NameSignature Reviewedby: HuangMeng NameSignature Approvedby: DongSanbi NameSignature OtherAspects:NONE. Abbreviations:OK,Pass=passedFail=failedN/A=notapplicableEUT=equipment,sample(s)undertested ThistestreportrelatesonlytotheEUT,andshallnotbereproducedexceptinfull,withoutwrittenapprovalofCVC. CVCTestingTechnology(Shenzhen)Co.,Ltd. ReportNo.FCCSZ2024-0005-EMCPage3of22 LT13-R-1074-FCC/IC-EMC-A0 TABLEOFCONTENTS RELEASECONTROLRECORD...........................................................................................................................................4 1.SUMMARYOFTESTRESULTS.....................................................................................................................................5 1.1LISTOFTESTANDMEASUREMENTINSTRUMENTS...................................................................................................5 1.2MEASUREMENTUNCERTAINTY..................................................................................................................................6 1.3TESTLOCATION...........................................................................................................................................................6 2.GENERALINFORMATION...........................................................................................................................................7 2.1GENERALPRODUCTINFORMATION...........................................................................................................................7 2.2DESCRIPTIONOFACCESSORIES..................................................................................................................................7 2.3INDEPENDENTOPERATIONMODES...........................................................................................................................8 2.4GENERALDESCRIPTIONOFAPPLIEDSTANDARDS......................................................................................................9 2.5DESCRIPTIONOFSUPPORTUNITS..............................................................................................................................9 3.EMISSION.................................................................................................................................................................10 3.1CONDUCTEDEMISSION............................................................................................................................................10 3.2RADIATEDEMISSION................................................................................................................................................13 4.PHOTOGRAPHSOFTESTSETUP...............................................................................................................................20 5.PHOTOGRAPHSOFTHEEUT.....................................................................................................................................21 CVCTestingTechnology(Shenzhen)Co.,Ltd. ReportNo.FCCSZ2024-0005-EMCPage4of22 LT13-R-1074-FCC/IC-EMC-A0 RELEASECONTROLRECORD ISSUENO.REASONFORCHANGEDATEISSUED FCCSZ2024-0005-EMCOriginalrelease2024.02.02 CVCTestingTechnology(Shenzhen)Co.,Ltd. ReportNo.FCCSZ2024-0005-EMCPage5of22 LT13-R-1074-FCC/IC-EMC-A0 1.SUMMARYOFTESTRESULTS EMISSION StandardTestItemResultRemarks FCCPart15,SubpartB, ClassB ConductedTestPASS Minimumpassingmarginis 21.0dBat4.866MHz RadiatedTest (30MHz~1GHz) PASS Minimumpassingmarginis 12.31dBat384.473MHz RadiatedTest (Above1GHz) PASS Minimumpassingmarginis 8.18dBat15732.673MHz 1.1ListofTestandMeasurementInstruments EquipmentManufacturerModelNo.SerialNumberCal.intervalCal.Due Conductedemission EMITestReceiverRohde&SchwarzESR31026941year2024.5.25 limiter （ 10dB ） Rohde&SchwarzESH3-Z21028241year2024.5.16 VoltageprobeRohde&SchwarzCVP9222C281year2024.5.16 CurrentprobeRohde&SchwarzEZ-171014421year2024.5.21 ISNnetworkRohde&SchwarzENV811004011year2024.5.16 ISNnetworkRohde&SchwarzENV81Cat61018961year2024.5.16 LISN （ single-phase ） Rohde&SchwarzENV2161025691year2024.4.11 #1ShieldingroomMORI854N/A3year2026.5.16 RadiationSpurious EMITestReceiverRohde&SchwarzESR26101718 1year2024.5.25 Loopantenna（8.3k~30MHz） Rohde&SchwarzHFH2-Z2E100951 1year2024.5.26 Antenna(30MHz~1000MHz)SCHWARZBECKVULB91681132 1year2024.2.14 Hornantenna(1GHz-18GHz)ETS31172276341year2024.3.25 Hornantenna(18GHz-40GHz)SCHWARZBECKBBHA9170010031year2024.3.25 3manechoicchamberMORI966CS02000193year 2026.5.18 Attenuator/SJ-5dB607684 1year2024.2.21 #1controlroomMORI433CS0300028 3year2026.5.16 Temperatureandhumiditymeter/C193561473CS0200071 1year2024.5.21 CVCTestingTechnology(Shenzhen)Co.,Ltd. ReportNo.FCCSZ2024-0005-EMCPage6of22 LT13-R-1074-FCC/IC-EMC-A0 1.2MeasurementUncertainty Whererelevant,thefollowingmeasurementuncertaintylevelshavebeenestimatedfortestsperformed ontheEUTasspecifiedinCISPR16-4-2: No.ItemMeasurementUncertainty 1Conductedemissiontest+/-2.7dB 2Radiatedemission30MHz-1GHz+/-4.6dB 3Radiatedemission1GHz-18GHz+/-4.4dB 4Volatagefluctuationsandflicker±1.4% Remark:95%ConfidenceLevels,k=2. 1.3TestLocation Thetestsandmeasurementsrefertothisreportwereperfor…

Text truncated - open the document above for the full version.

ReportNo.FCCSZ2024-0005-EUTPage1of2 SET-UPFORRADIATEDSPURIOUSEMISSIONTEST CONDUCTEDEMISSIONTEST-1 CONDUCTEDEMISSIONTEST-2 ReportNo.FCCSZ2024-0005-EUTPage2of2 RADIATEDEMISSIONTESTBELOW1GHz RADIATEDEMISSIONTESTABOVE1GHz
