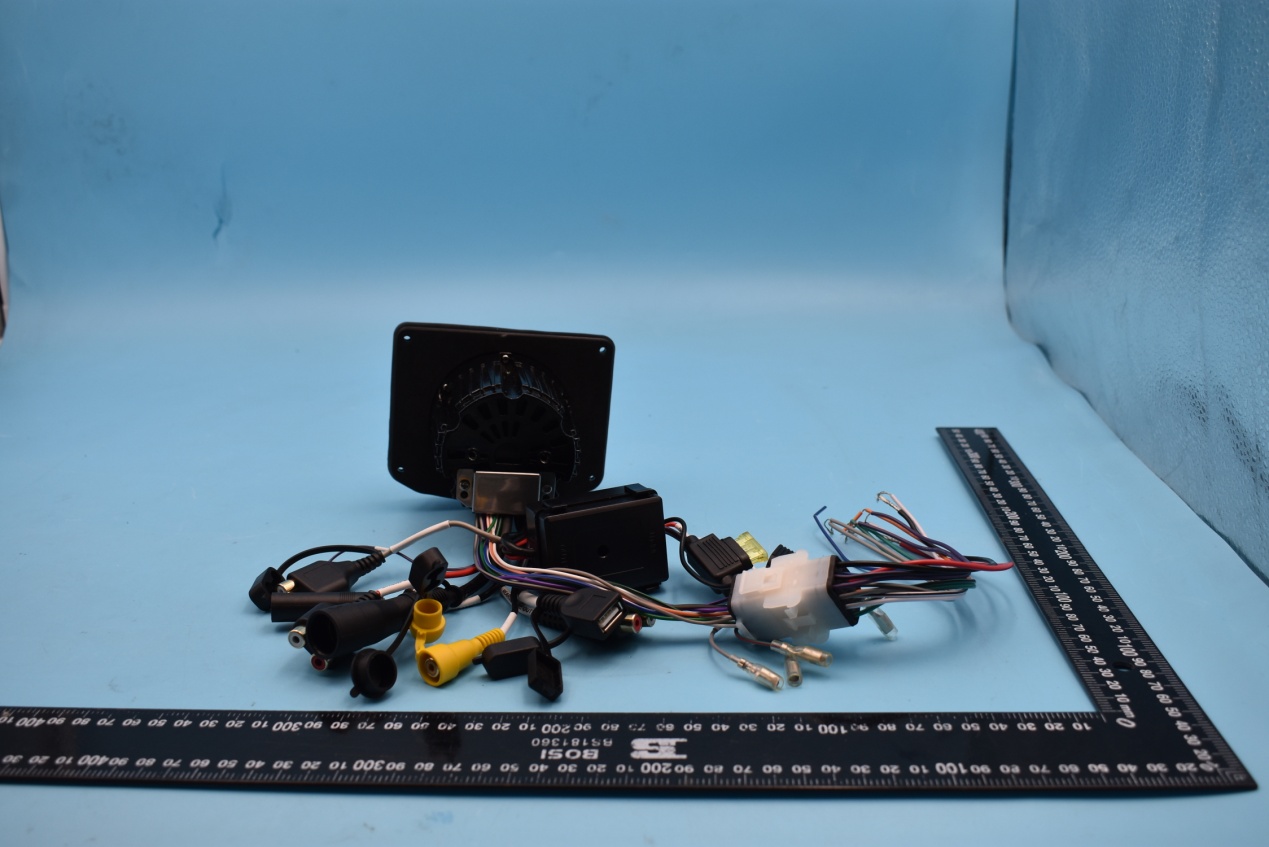

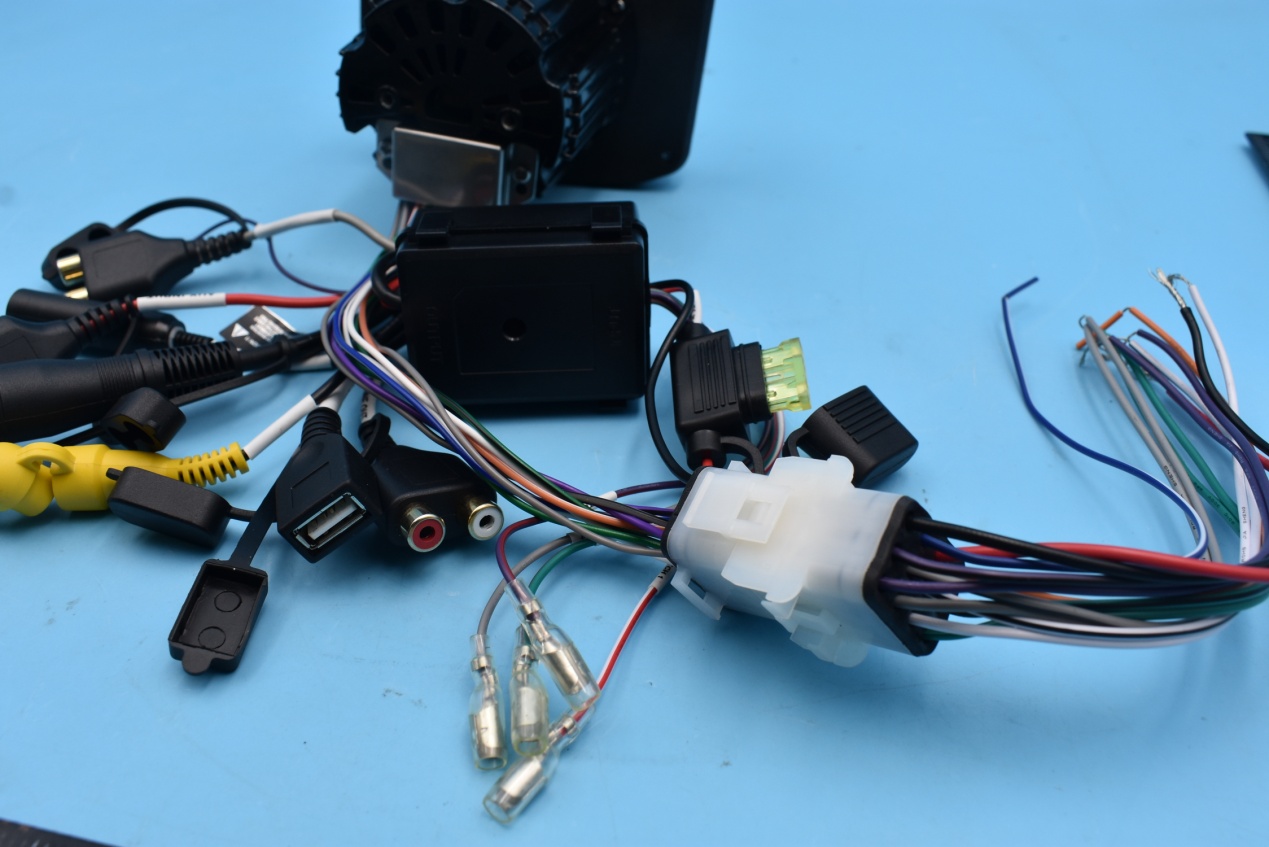

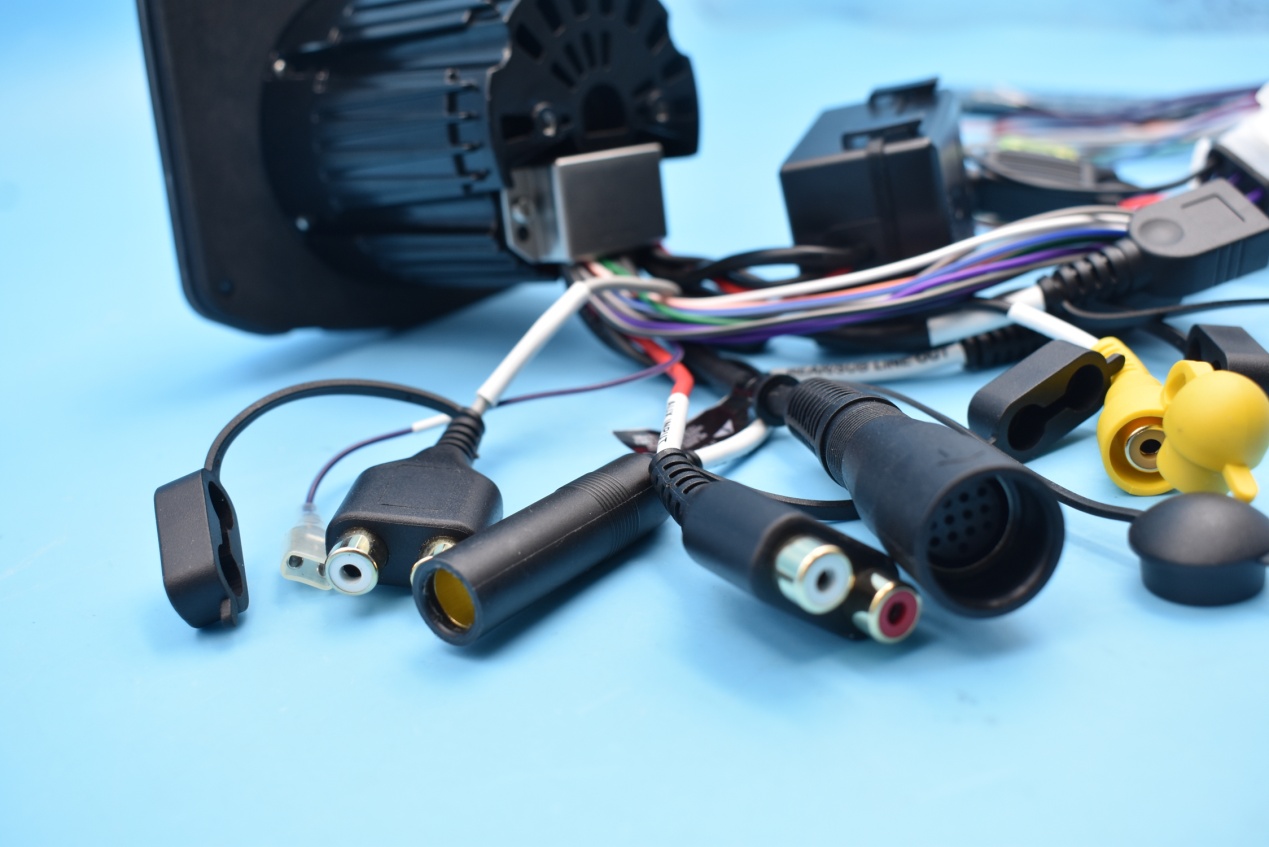

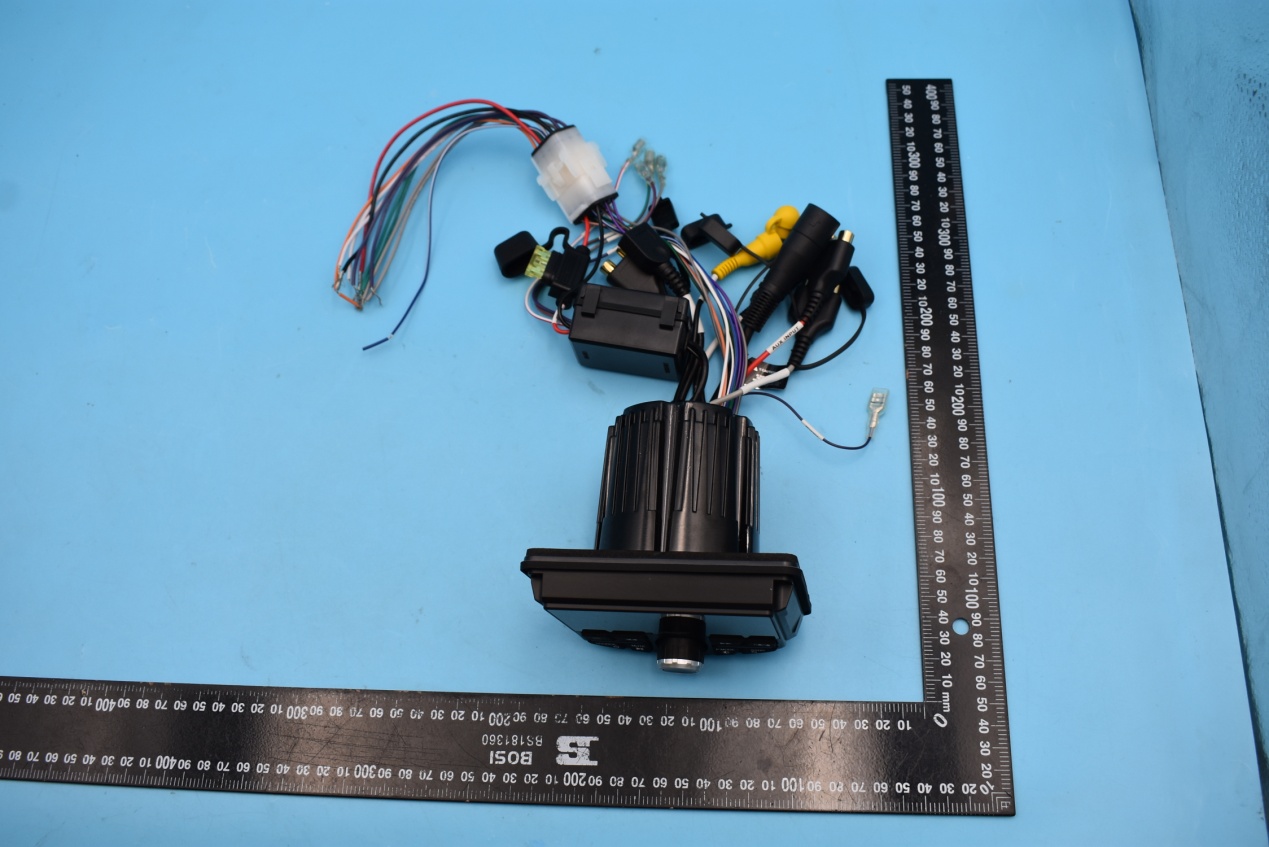

2ATYS-SPXM1Media Player (Bluetooth)

SPXM1 Marine Digital Media Receiver Installation Guide FCC ID:2ATYS-SPXM1 IC:10801A-SPXM1 Visit StingerElectronics.com for User Guide | Updates | Tech Tips Be sure to read this installation manual thoroughly before carrying out installation and making connections. Installation of this product requires technical skill and experience. It is recommended to have it professionally installed by an authorized Stinger or Phoenix Gold Dealer. AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product. If you do not agree, please discontinue use and contact STINGER. This product is intended for off-road use and passenger use only. TECHNICAL SUPPORT: 727-592-5991 Mon-Fri 9AM-8PM EST Sat 9AM-7PM EST [email protected] Stinger is a Power Brand of AAMP Global 15500 Lightwave Drive, Suite 202 Clearwater, Florida 33760 CUSTOMER SOLUTIONS: 800-477-2267 Mon-Fri 9AM-8PM EST [email protected] Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic. Do not install components in any location that will hinder vehicle operation, such as steering wheel, gearshift, air bags, hazard switch. Bundle cables and harnesses with electrical tape or wire ties to prevent them from interfering with moving parts. Never attempt to disassemble or modify the product. Otherwise, an accident, fire or electric shock may result. Exposed wires must be insulated with electrical tape. Otherwise, a short circuit, fire, or electric shock may result. To prevent damage to the vehicle, confirm the locations of hoses, electrical wiring, and the fuel tank prior to drilling holes to install this product. When it is necessary to replace the fuse, always use a fuse of the correct rating (number of amperes). Use of fuses with higher amperage ratings may cause a fire. PRECAUTIONS Parts List Recommended Tools SOURCE UNIT TRIM PLATE MOUNTING BRACKET POWER / SPEAKER WIRE HARNESS 3.5 X 25 MOUNTING SCREW (4) M4 X 35 THREADED STUD (2) M4 FLANGE NUTS (8) Multimeter Wire Strippers Wire Cutters Drill / Drill Bits Phillips Screwdriver Wire Crimpers Cutting Tool / 3” Hole Saw 8mm Wrench (Flange Nuts) Battery Terminal Wrench Soldering Iron Heat Gun Optional AccessoriesMounting Options SPXR2 Wired Marine Remote Control the SPXM1 from the swim deck or seating area. SPXSH440 Solid State Power Bank Control external accessories such as lighting, audio or any other 12V accessory right from the SPXM1 using the SPXSH440. SEADASH3 Universal Marine 3” Radio Kit Plastic bezel plate makes updating a single DIN to 3” gauge style head unit easy-peasy. Available in Black and White. SMRAUXUSB3 Marine USB & AUX Input Molded connectors with machined, nickel-plated, brass contacts offer superior connection integrity, signal transfer and maximum corrosion resistance. Using The Mounting Bracket Insert and tighten threaded studs into back of radio. Insert harness and chassis through mounting hole. Slide U Bracket onto both studs. Use supplied nuts to adjust and tighten bracket. SPXR2 SOURCE BAND VOLUME VOLUME Visit StingerElectronics.com for a full line of Marine speakers, amplifiers, lighting, batteries and accessories  The SPXM1 can be mounted using the Mounting Bracket or Mounting Screws.  When possible, it is recommended to use both the U Bracket AND Mounting Screws.  The mounting hole is 3" diameter. A 3” hole saw is recommended.  Mount on flat surface. Check for obstructions behind mounting location before cutting.  Ensure there is adequate space for the radio chassis and wire harness behind mounting surface.  When using the U Bracket and plastic dash kit, do not overtighten, as it may cause discoloration of the dash kit on the front face. Threaded Studs Wiring & ConnectionsWiring & Connections PURPLE/WHITE REVERSE CAMERA TRIGGER INPUT (+) 13PIN DIN FEMALE WIRED REMOTE BLACK GREY RED 20A USB RADIO ANTENNA RED (REAR LINE OUT RIGHT OR SUB-W OUT) WHITE (REAR LINE OUT LEFT OR SUB-W OUT) RED (FRONT LINE OUT RIGHT) WHITE (FRONT LINE OUT LEFT) RED (AUX IN RIGHT) WHITE (AUX IN LEFT) REAR/SUB LINE OUT FRONT LINE OUT AUX LINE IN ORANGE/WHITE GREEN/BLACK GREEN RED WHITE WHITE/BLACK GRAY GRAY/BLACK BLUE/WHITE PURPLE/BLACK PURPLE BLACK ANTENNA INPUT USB INPUT REVERSE INPUT VIDEO INPUT 1 23 4 56 78 9 101112 1 2 3 4 5 6 7 8 9 10 1112 YELLOW - CAMERA / VIDEO INPUT SWITCH 1 (12V+) WHITE/RED SWITCH 2 (12V+) GRAY/RED SWITCH 3 (12V+) GREEN/RED SWITCH 4 (12V+) PURPLE/RED PINWIRE COLORDESCRIPTION 1GREENREAR LEFT SPEAKER + 2GREEN/BLACKREAR LEFT SPEAKER - 3ORANGE/WHITEILLUMINATION + 4WHITEFRONT LEFT SPEAKER + 5WHITE BLACKFRONT LEFT SPEAKER - 6REDACC 12V+ 7GRAYFRONT RIGHT SPEAKER + 8GRAY/BLACKFRONT RIGHT SPEAKER - 9BLUE//WHITEREMOTE/AMP TURN ON 10PURPLEREAR RIGHT SPEAKER + 11PURPLE/BLACKREAR RIGHT SPEAKER - A A B B ACCESSORY CONTROL WIRING The SPXM1 has 4 switchable outputs/triggers (FIG. A) that can be used to control external accessories such as lighting, audio or any other 12V accessory, when used with the optional SPXSH440 Power Bank System. SWITCH 1-4 wires are 12V+ outputs and can activated individually by accessing the ACCESSORY CONTROL source. WARNING! Accessory control outputs are 100mA. Do not connect directly to any accessories or conven- tional relays. Failure to follow instructions may result in damage to equipment and void the device warranty. FIG. A  Solder and heat shrink or waterproof butt connectors are recommened for all wire connections  RCA, USB and Antenna connections should be secured with heat shrink  The SPXM1uses EEPROM memory, so there is no (Yellow) wire connected to the battery  The Red (ACC 12V+) wire should be connected to switched power, not directly to battery  The Camera/Video Input can be tri…
