2ATZUSOIMTZS11HA8SAColor Radio

MG ZS Owners HandbookOwners Handbook MG ZS Preface ................................................................................................................................. 1 Main Menu .............................................................................................................................. 5 1 ..... Special announcement ............................................................................................................. 3 Basic Operation ........................................................................................................................ 5 .... Radio .............................................................................................................................. 6 .............. Merdia .............................................................................................................................................. 6 USB Music .............................................................................................................................. 6 .... Bluetooth Music ........................................................................................................................... 8 Phone .............................................................................................................................. 8 .............. Use Help .............................................................................................................................. 9 ........... Setting .............................................................................................................................. 9 ............ Preparing before using ............................................................................................................ 4 Contents Navigation ...................................................................................................................... 12 ........ ............. Technical Parameter ............................................................................................................... 30 Contents .... .... ..... .... .... ... .......... ...... ...... ...... ...... ........ .. ........ .. .. .. .. .. Thank you for choosing and using our products. Please read this manual carefully before using the product to have a clear understanding of operation, so that you can get a better driving experience. Caution: In order to prevent fire or electric shock do not expose the machine to rain or humid Caution: Any change or modification to the machine To avoid injury or loss of property to users or other personnel, 1 Reading instruction: Before operating the machine, you must read and understand all the instructions. 2 Keeping the book in use: After carefully reading instruc- 3 Comply with all cautions and instructions for warning: All 4 Appendix: Please do not use the attachments unrecomm- 5 No Dismemberment or refit is permitting:Dismemberment 6 No foreign matter into the unit is allowed: Metal objects 1 environment. There are dangerous high vo- ltage parts in the machine,so don't open the cover.Qualified maintenanc personnel must will causes lot of inconvenience to the user without the company or the company auth- please read and observe the following use of attention. tion manual, you must keep it in a safe place for future cautions and instructions on the product and instructions must be strictly observed. or refit of the machine is strictly prohibited. Do not cut the power cord and link to other power sources.There is a risk coins, tools, etc.or flammables entering into the unit It should be kept properly for future use! orized by the company expressly. use. ended by the manufacturer.If improper attachment is used, of smoke, fire, electric shock ormalfunction. canmakeshort-circuit and may cause heat, fire, electric be entrusted to carry out maintenance. PrefacePreface it can cause an accident. shock and malfunction. PrefacePreface 7 When there are faults and abnormalities: When odor and other abnormal circumstances occur on the mach- 8 Avoiding heat sources: Do not install the unit near the place of direct sunlight and high temperature. 10 Safety-check: Please do not attempt to repair the machine on your own. Let maintenance personnel 11 Display screen: ①Do not heat the screenor use sharp to avoid appearing the phenomenon driving, you may cause a traffic accident because of distraction, and you have to park your car in a safe place 13 Washing car: Do not allow the unit, including speakers 14 Parking: Parking the car in the direct sunlight will make you open the unit. perform safety inspection to ensure the unit is functi- objects to scrstch the display. 12 No operating whiledriving: If you operate the unit while and other supporting equipment, to be subjected to excessive moisture. the car temperature too high.Please cool down when ②A small number of bright or dark spots may appear on LCD screens thatisa very common phenomenon in active matrix display technology. This does not indicate a failure or defect. ③Do not set the unit be too bright or ine, please immediately stop using and turn off the power supply, and contact the distributor,in order to avoid the risk of fire or electric shock. 9 Using proper power supply:Thisunit is designed to use 12V dc cathode grounding battery system. oning properly. of burning on the display screen (speckle in bright image). ④Although the effective pixel of the LCD panel is more than 99.99%,there is 0.01% of the pixel will not belight normally. ⑤At cooler temperatures, the brightness of the LCD screen is gradually on. before operating it. 15 Cleaning: If the native panel and LCD screen are dirty, alcohol and other volatile solvents to avoid damaging please turn off the power and usesoft cloth and neutral cleaner to scrub. Do not use hard cloth or paint thinner, the surface. play too bright video for a long time 2 Attention: Please follow the instruction manual when 2 The example of the picture used in this …

Text truncated - open the document above for the full version.

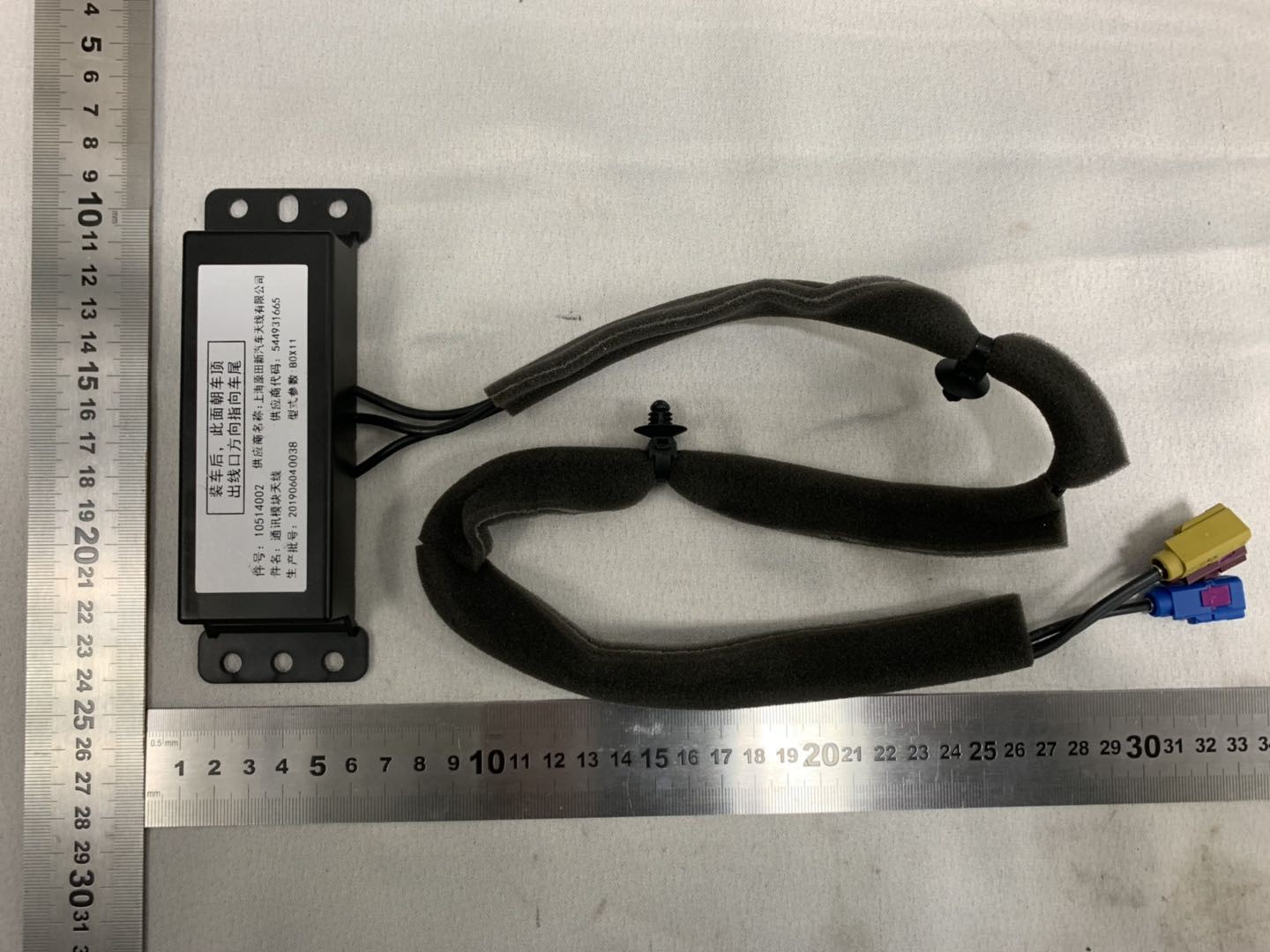

2/3/4G+GPS Antenna FM/AM Antenna

Label Label location

2.4G WIFI antenna 5G WIFI antenna BT antenna

MRT Technology (Suzhou) Co., Ltd Report No.: 1907WSU008-U6 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 02-02-2020 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 1 of 9 RF Exposure Evaluation Declaration FCC ID: 2ATZUSOIMTZS11HA8SA APPLICANT: SAIC MOTOR Overseas Intelligent Mobility Technology Co., Ltd. Product: Color Radio Model No.: 10682313/01 FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) PCS Licensed Transmitter (PCB) Test Procedure(s): KDB 447498 D01v06 Test Date: December 06, 2019 Reviewed By: ( Kevin Guo ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 2 of 9 Revision History Report No. Version Description Issue Date Note 1907WSU008-U6 Rev. 01 Initial report 02-02-2020 Valid Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 3 of 9 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Product Specification Subjective to this Report Product Name: Color Radio Model No.: 10682313/01 Wi-Fi Specification: 802.11a/b/g/n Bluetooth Version v4.1 single mode GSM Operation Band (s): GSM 850 / 1900 WCDMA Operation Band (s): Band II / IV / V LTE Operation Band (s): FDD Band 2 / 4 / 5 / 12 / 13 / 17 GNSS: GPS, GLODNASS, BDS Working Voltage: DC 12V Bluetooth Operating Frequency: 2402 ~ 2480MHz Type of modulation: FHSS Data Rate: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps (8DPSK) Antenna Type: Chip Antenna Antenna Gain: 4dBi Wi-Fi 2.4G Frequency Range: 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Channel Number: 802.11b/g/n-HT20: 11 802.11n-HT40: 7 Type of Modulation: 802.11b: DSSS 802.11g/n: OFDM Data Rate: 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps Antenna Type: Chip Antenna Antenna Gain: 4dBi Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 4 of 9 Wi-Fi 5G Frequency Range: For 802.11a/n-HT20: 5180~5240MHz, 5745~5825MHz For 802.11n-HT40: 5190~5230MHz, 5755~5795MHz Type of Modulation: 802.11a/n: OFDM Data Rate: 802.11a: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps Antenna Type: Chip Antenna Antenna Gain: 4.13dBi GSM/WCDMA T X Frequency Range: GSM850: 824.2 ~ 848.8MHz, PCS1900: 1850.2 ~ 1909.8MHz WCDMA Band II: 1852.4 ~ 1907.6MHz WCDMA Band IV: 1712.4 ~ 1752.6MHz WCDMA Band V: 826.4 ~ 846.6MHz R X Frequency Range: GSM850: 869.2 ~ 893.8MHz PCS1900: 1930.2 ~ 1989.8MHz WCDMA Band II: 1852.4 ~ 1907.6MHz WCDMA Band IV: 1712.4 ~ 1752.6MHz WCDMA Band V: 826.4 ~ 846.6MHz Type of Modulation: GSM / GPRS: GMSK EDGE: 8PSK WCDMA: QPSK Antenna Type: PIFA Antenna Antenna Gain: -3.37dBi Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 5 of 9 LTE Tx Frequency Range: LTE Band 2: 1850.7MHz ~ 1909.3MHz LTE Band 4: 1710.7MHz ~ 1754.3MHz LTE Band 5: 824.7MHz ~ 848.3MHz LTE Band 12: 699.7MHz ~ 715.3MHz LTE Band 13: 779.5MHz ~ 784.5MHz LTE Band 17: 706.5MHz ~ 713.5MHz Rx Frequency Range: LTE Band 2: 1930.7MHz ~ 1989.3MHz LTE Band 4: 2110.7MHz ~ 2154.3MHz LTE Band 5: 869.7MHz ~ 893.3MHz LTE Band 12: 729.7 ~ 745.3MHz LTE Band 13: 748.5 ~ 753.5MHz LTE Band 17: 736.5 ~ 743.5MHz Bandwidth: LTE Band 2: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz / 20MHz LTE Band 4: 1.4MHz / 3MHz / 5MHz / 10MHz / 15MHz / 20MHz LTE Band 5: 1.4MHz / 3MHz / 5MHz / 10MHz LTE Band 12: 1.4MHz / 3MHz / 5MHz / 10MHz LTE Band 13: 5MHz / 10MHz LTE Band 17: 5MHz / 10MHz Type of Modulation QPSK / 16-QAM Antenna Type: PIFA antenna Antenna Gain: -3.37dBi Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 6 of 9 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1907WSU008-U6 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 7 of 9 2.2. Test Result of RF Exposure Evaluation Product Color Radio Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum tune-up power (dBm) Maximum EIRP (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) CPD/LPD Bluetooth 2402 ~ 2480 12 16 0.00792 1 0.0079 Wi-Fi 2.4G 2412 ~ 2462 20 24 0.05000 1 0.0500 Wi-Fi 5G 5180 ~ 5240 5745 ~ 5825 16 20.13 0.02051 1 0.0205 GSM 850 824.2 ~ 848.8 31 27.63 0.11533 0.5495 0.2099 PCS 1900 1850.2 ~ 1909.8 26 22.63 0.03647 1 0.0365 WCDMA Band II 1852.4 ~ 1907.6 23 19.63 0.01828 1 0.0183 WCDMA Band IV 1712.4 ~ 1752.6 23 19.63 0.01828 1 0.0183 WCDMA Band V 826.4 ~ 846.6 23 19.63 0.01828 0.5576 0.0333 LTE Band 2 1850.7 ~ 1909.3 23 19.63 0.01828 1 0.0183 LTE Band 4 1710.7 ~ 1754.3 23 19.63 0.01828 1 0.0183 LTE Band 5 824.7 ~ 848.3 23.5 20.13 0.02051 0.5498 0.0373 LTE Band 12 699.7 ~ 715.3 23.5 20.13 0.02051 0.4665 0.0440 LTE Band 13 77…

Text truncated - open the document above for the full version.

FCC ID: FCC ID: APPLICANT: Applica Product Model No. FCC Classification: FCC Rule Part(s): Test Procedure(s): Test Date Reviewed By: Approved By: This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. FCC ID: 2ATZUSOIMTZS11HA8SA FCC ID: APPLICANT: Application Type: Product: Model No. FCC Classification: FCC Rule Part(s): Test Procedure(s): Test Date Reviewed By: Approved By: This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10 The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. 2ATZUSOIMTZS11HA8SA APPLICANT: tion Type: : Model No.: FCC Classification: FCC Rule Part(s): Test Procedure(s): Test Date: FCC PART 15.407 WLAN 802.11a/n Reviewed By: Approved By: This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified ANSI C63.10-2013. Test results reported The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) 2ATZUSOIMTZS11HA8SA 2ATZUSOIMTZS11HA8SA SAIC MOTOR Overseas Intelligent Mobility Technology Co., Ltd. tion Type: Certification Color Radio 10682313/01 FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part15 Subpart C (Section 15. Test Procedure(s): ANSI C63.10 August 1 MEASUREMENT FCC PART 15.407 WLAN 802.11a/n ( This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified . Test results reported The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) MRT Technology (Suzhou) Co., Ltd Phone: +86 Web: www.mrt 2ATZUSOIMTZS11HA8SA SAIC MOTOR Overseas Intelligent Mobility Technology Co., Ltd. Certification Color Radio 10682313/01 Unlicensed National Information Infrastructure (NII) Part15 Subpart C (Section 15. ANSI C63.10 August 16, 2019 ~ October 1 MEASUREMENT FCC PART 15.407 WLAN 802.11a/n ( Kevin Guo (Robin Wu This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified . Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) MRT Technology (Suzhou) Co., Ltd Phone: +86-512-66308358 www.mrt-cert.com 2ATZUSOIMTZS11HA8SA SAIC MOTOR Overseas Intelligent Mobility Technology 10682313/01 Unlicensed National Information Infrastructure (NII) Part15 Subpart C (Section 15. ANSI C63.10-2013, KDB 789033 D02v02r01 , 2019 ~ October 1 MEASUREMENT FCC PART 15.407 WLAN 802.11a/n uo ) Robin Wu) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) MRT Technology (Suzhou) Co., Ltd 66308358 cert.com 2ATZUSOIMTZS11HA8SA SAIC MOTOR Overseas Intelligent Mobility Technology Unlicensed National Information Infrastructure (NII) Part15 Subpart C (Section 15. KDB 789033 D02v02r01 , 2019 ~ October 14 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) MRT Technology (Suzhou) Co., Ltd Report No Report Version: Issue Date: SAIC MOTOR Overseas Intelligent Mobility Technology Unlicensed National Information Infrastructure (NII) Part15 Subpart C (Section 15.407) KDB 789033 D02v02r01 4, 2019 EPORT FCC PART 15.407 WLAN 802.11a/n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Report No.: 1907 Report Version: Issue Date: Page Number: SAIC MOTOR Overseas Intelligent Mobility Technology Unlicensed National Information Infrastructure (NII) KDB 789033 D02v02r01 EPORT FCC PART 15.407 WLAN 802.11a/n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) 907WSU008-U3 Report Version: V01 02-02-2020 Page Number: 1 of 90 SAIC MOTOR Overseas Intelligent Mobility Technology Unlicensed National Information Infrastructure (NII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified The test report shall not be reproduced except in full without the written approv…

Text truncated - open the document above for the full version.

Report No.: 1907WSU008-U3 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 46 of 90 Product Color Radio Temperature 26°C Test Engineer Dandy Li Relative Humidity 57 % Test Site AC1 Test Date 2019/08/18 Test Mode 802.11a Test Channel 157 Remark 1. Average measurement was not performed if peak level lower than average limit (54dBμV/m). 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 7715.0 38.9 11.7 50.6 74.0 -23.4 Peak Horizontal 8140.0 34.6 12.5 47.1 74.0 -26.9 Peak Horizontal * 8735.0 32.8 13.2 46.0 68.2 -22.2 Peak Horizontal * 9729.5 33.6 15.6 49.2 68.2 -19.0 Peak Horizontal 7715.0 38.1 11.7 49.8 74.0 -24.2 Peak Vertical 8165.5 33.8 12.4 46.2 74.0 -27.8 Peak Vertical * 8624.5 33.0 13.0 46.0 68.2 -22.2 Peak Vertical * 9678.5 32.7 15.4 48.1 68.2 -20.1 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1907WSU008-U3 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 47 of 90 Product Color Radio Temperature 26°C Test Engineer Dandy Li Relative Humidity 57 % Test Site AC1 Test Date 2019/08/18 Test Mode 802.11a Test Channel 165 Remark 1. Average measurement was not performed if peak level lower than average limit (54dBμV/m). 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 7766.0 39.2 11.7 50.9 68.2 -17.3 Peak Horizontal 8318.5 32.3 12.3 44.6 74.0 -29.4 Peak Horizontal * 8658.5 32.7 13.0 45.7 68.2 -22.5 Peak Horizontal * 9593.5 32.1 15.2 47.3 68.2 -20.9 Peak Horizontal 7434.5 33.9 11.9 45.8 74.0 -28.2 Peak Vertical 8199.5 33.6 12.4 46.0 74.0 -28.0 Peak Vertical * 8811.5 32.2 13.4 45.6 68.2 -22.6 Peak Vertical * 9772.0 32.0 15.9 47.9 68.2 -20.3 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1907WSU008-U3 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 48 of 90 Product Color Radio Temperature 26°C Test Engineer Dandy Li Relative Humidity 57 % Test Site AC1 Test Date 2019/08/18 Test Mode 802.11n-HT20 Test Channel 36 Remark 1. Average measurement was not performed if peak level lower than average limit (54dBμV/m). 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 7553.5 34.8 11.9 46.7 74.0 -27.3 Peak Horizontal 8293.0 34.1 12.1 46.2 74.0 -27.8 Peak Horizontal * 8760.5 33.5 13.3 46.8 68.2 -21.4 Peak Horizontal * 9542.5 34.4 15.1 49.5 68.2 -18.7 Peak Horizontal 7485.5 33.9 11.9 45.8 74.0 -28.2 Peak Vertical 8361.0 33.3 12.2 45.5 74.0 -28.5 Peak Vertical * 8667.0 32.7 13.0 45.7 68.2 -22.5 Peak Vertical * 9772.0 32.5 15.9 48.4 68.2 -19.8 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1907WSU008-U3 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 49 of 90 Product Color Radio Temperature 26°C Test Engineer Dandy Li Relative Humidity 57 % Test Site AC1 Test Date 2019/08/18 Test Mode 802.11n-HT20 Test Channel 44 Remark 1. Average measurement was not performed if peak level lower than average limit (54dBμV/m). 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 7579.0 33.8 11.8 45.6 74.0 -28.4 Peak Horizontal 8208.0 33.4 12.3 45.7 74.0 -28.3 Peak Horizontal * 8692.5 32.8 13.2 46.0 68.2 -22.2 Peak Horizontal * 9602.0 32.5 15.0 47.5 68.2 -20.7 Peak Horizontal 7604.5 33.9 11.8 45.7 74.0 -28.3 Peak Vertical 8327.0 34.2 12.2 46.4 74.0 -27.6 Peak Vertical * 8752.0 32.5 13.3 45.8 68.2 -22.4 Peak Vertical * 9636.0 31.6 15.6 47.2 68.2 -21.0 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 1907WSU008-U3 FCC ID: 2ATZUSOIMTZS11HA8SA Page Number: 50 of 90 Product Color Radio Temperature 26°C Test Engineer Dandy Li Relative Humidity 57 % Test Site AC1 Test Date 2019/08/18 Test Mode 802.11n-HT20 Test Channel 48 Remark 1. Average measurement was not performed if peak level lower than average limit (54dBμV/m). 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polar…

Text truncated - open the document above for the full version.

Report No.: 1907WSU008-UT Test Setup Photograph Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Above 1GHz
