2AU3L-MOB25Mobile Radio

HAM-UV25 Thank you for your purchase of the product. This multi-band radio will deliver instant reliable communication. Please read this manual carefully before use! BEFORE PROCEEDING INSURE: • Qualified technicians shall service this equipment only. Do not modify the radio for any reason. • Use only orginal supplied or approved accessories. • Turn off your radio prior to entering any area with explosive and flammable materials. Do NOT USE your trans- ceiver at a gas/fuel station. • For vehicles with an air bag, do not mount your radio in the area over an air bag or in the air bag deployment area. • Do not expose the radio to direct sunlight over a long time, nor place it close to a heating source. • If the unit emits smoke or an odor, you should immediately cut off the power supply. Then send the radio to the nearest service center or dealer. • Do not operate the mobile transceiver on high power unless it is necessary. Do not transmit for long periods of time, as it may overheat the transceiver. • Keep the unit away from dusty, damp and wet environments. • Use the correct power supply (~13.8V); do not use incorrect or higher voltage (e.g. 24V). Getting Started | 1 Getting Started „ Unpacking and Inspecting • Please check the packaging of your radio for any signs of damage. • Carefully open the box, and confirm your received the items listed below. • If you find the radio or the included accessories are damaged or lost, immediately contact your dealer. What?s in the Box Mobile Radio Mounting Screws and Fuse MicrophoneMounting BracketPower Cable Table of Contents Getting Started .....................................................1 Unpacking and Inspecting ....................................1 Overview of the Front Panel .................................2 Overview of the Rear Ports ..................................4 Hand Held MIC Keys and Description ..................5 Color Display and Icon Descriptions ....................7 Antenna Basics ....................................................9 Basic Shortcuts And Use ...................................11 Pound # Key (Keypad Lock) ...............................11 Star ✱ Key ..........................................................11 Turning the unit ON ............................................11 Turning the unit OFF ..........................................11 Adjusting the volume ..........................................11 Making a call ......................................................12 Channel selection ...............................................12 Monitor Both VFO & MR Modes .........................13 Menu Quick Review ..............................................14 Quick Menu Settings ..........................................14 Menu definitions .................................................21 Programming ........................................................28 Frequency Mode vs. Channel Mode ..................28 Other Settings .....................................................29 Toggle from High to Low Power .........................29 Storing an FM Radio Station and Scanning .......29 Keypad Lock-out ................................................29 PTT ID Setting ....................................................29 DTMF RX Settings .............................................29 DTMF TX Settings ..............................................29 Remote Stun ......................................................30 Remote Kill .........................................................30 Remote Revive ...................................................31 DTMF Receive Settings, Transmit Setting (Call Key) ............................................................31 2TONE Receive Settings, Transmit Setting (Call Key) ............................................................31 5Tone Receive Settings, Transmit Setting (Call Key) ............................................................32 Scanning modes .................................................32 Technical Specifications ...................................33 2 | Getting StartedGetting Started | 3 „ Overview of the Front Panel Model 1 a defhgi bc Data Input RPT CTRL MIC MIC Ground a b c d PTT GND +8V DC Out Null e f g h RJ45 Connector a. Power, On/Off Press + Volume Knob b. V/M Mode Switch (Channel/Frequency) c. Confirm Key Press +Main Selector (Menu Knob) d. Monitor function e. FM radio function key f. Display screen g. Call key h. Exit Menu + A/B/C/D signal switching + alarm function i. Microphone Connector [ ]: when in standby, press to send caller ID (ANI) in the selected signaling mode; while transmitting, press to send activate signaling. [ ]: press to turn on the squelch, repeat to turn off the squelch. [ ]: press to switch between channel mode and frequency mode. [ ]: press to choose between A,B,C or D frequencies --- Or exit function mode. [ ]: press to enter and exit FM radio. Model 2 a egihf bc d Data Input RPT CTRL MIC MIC Ground a b c d PTT GND +8V DC Out Null e f g h RJ45 Connector a. Power, On/Off Press + Volume Knob b. V/M Mode Switch (Channel/Frequency) c. Monitor function d. Confirm Key Press +Main Selector (Menu Knob) e. Exit Menu + A/B/C/D signal switching + alarm function f. Call key g. Display screen h. FM radio function key i. Microphone Connector [ ]: when in standby, press to send caller ID (ANI) in the selected signaling mode; while transmitting, press to send activate signaling. [ ]: press to turn on the squelch, repeat to turn off the squelch. [ ]: press to switch between channel mode and frequen- cy mode. [ ]: press to choose between A,B,C or D frequencies --- Or exit function mode. [ ]: press to enter and exit FM radio. 4 | Getting StartedGetting Started | 5 „ Overview of the Rear Ports a e bc d a. TRRS Line Out: Includes PTT/Microphone/Audio-out/GND b. DATA, Programming Jack c. Cooling Fan d. SO-239 RF Antenna Connector: Connects to PL-259 Antennas e. DC Power Input (13.8V–7A Peak) ac bd TRRS Line-Out Connector a. GN…

Text truncated - open the document above for the full version.

Quanzhou Shengxin Trade Co., Ltd ___________________________________________________________________________________________ Date: 2021-07-20 Declaration Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: 2AU3L-MOB25 Dear Sir/Madam, We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely Yours, Signature: ___________________________ Baoyu Xu

Quanzhou Shengxin Trade Co., Ltd July 22, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AU3L-MOB25 Model Number: HAM-UV25, HAM-TB25, KT-8900D To Whom It May Concern: We, The Quanzhou Shengxin Trade Co., Ltd hereby declare that the models are identical except the model and brand name. Except for the different above, no other modification is performed. Sincerely, Signature: Quanzhou Shengxin Trade Co., Ltd Contact person: Baoyu Xu

Quanzhou Shengxin Trade Co., Ltd Agent Authorization Company: Quanzhou Shengxin Trade Co., Ltd Address: # 910 Xingpu New Village, Xingpu Village, Xiamei Town, Nan'an City, Quanzhou, Fujian, China Product Name: Mobile Radio Model Number(s): HAM-UV25, HAM-TB25, KT-8900D Product Description: Mobile Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-22 Name: Baoyu Xu Company: Quanzhou Shengxin Trade Co., Ltd

Quanzhou Shengxin Trade Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-19 Subject; Request for Confidentiality FCC ID: 2AU3L-MOB25 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Quanzhou Shengxin Trade Co., Ltd Contact person: Baoyu Xu

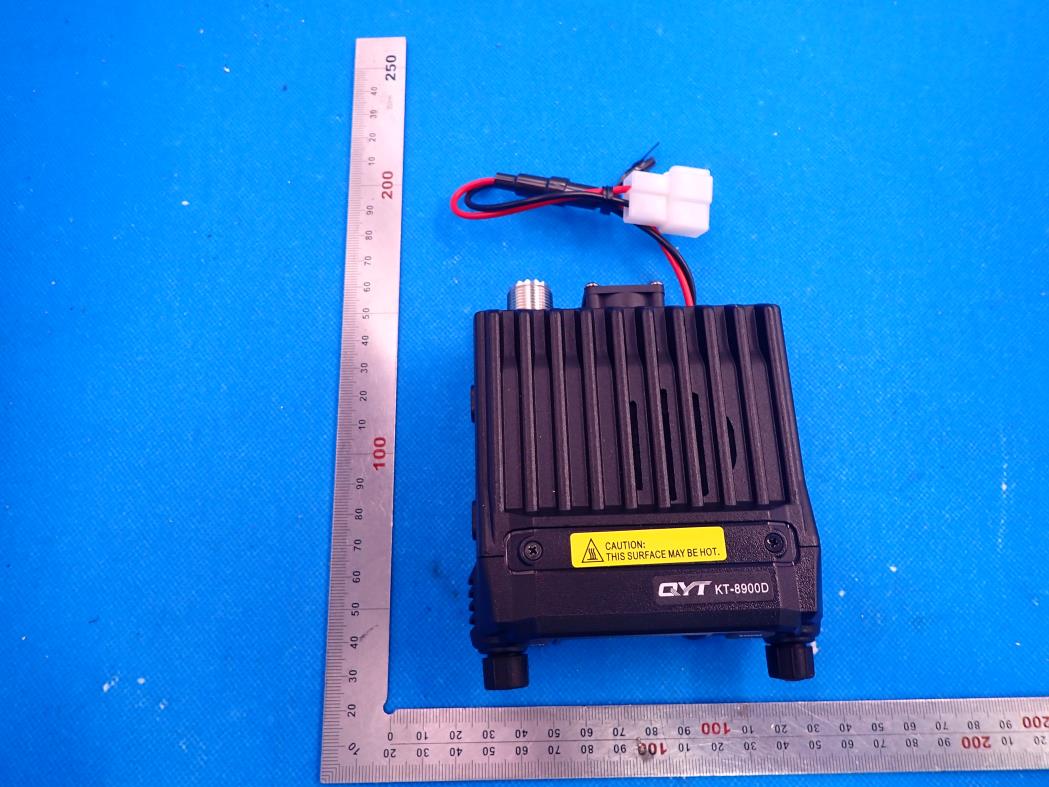

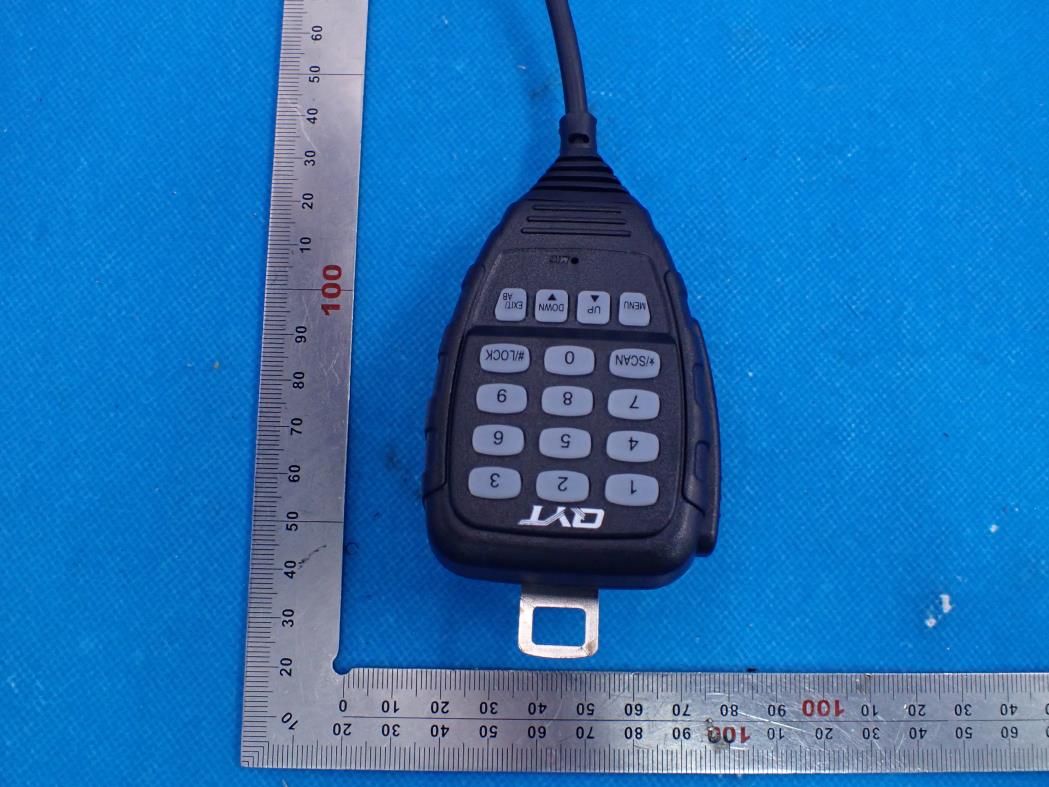

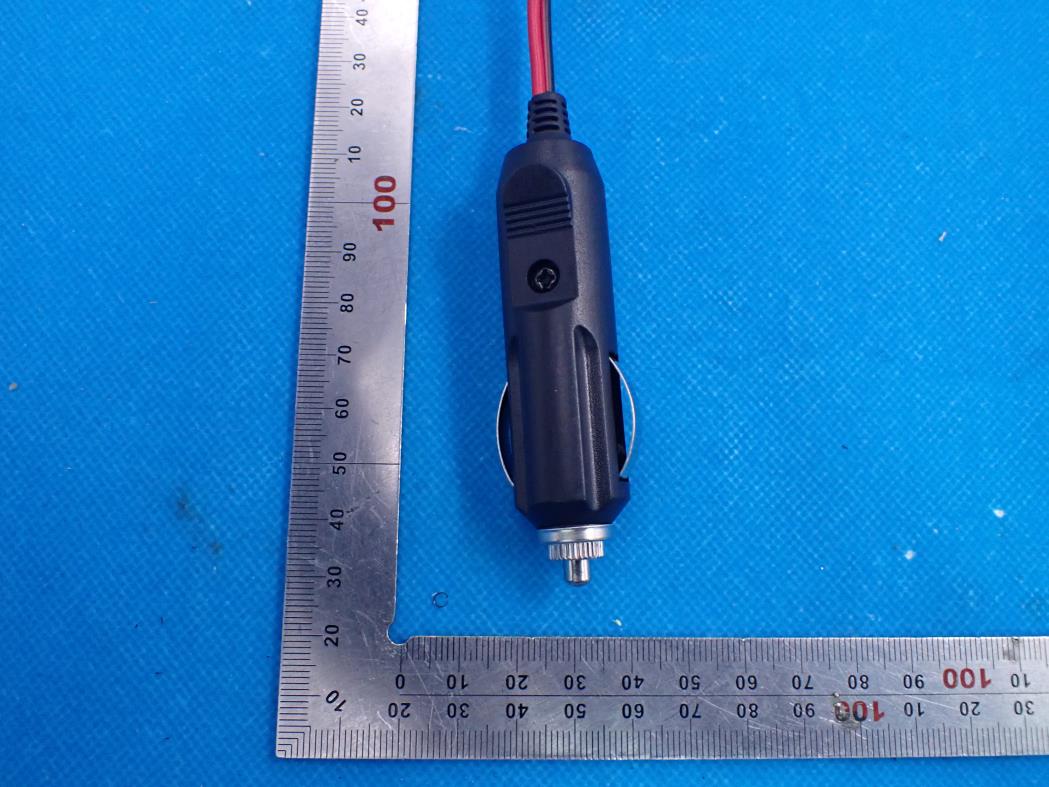

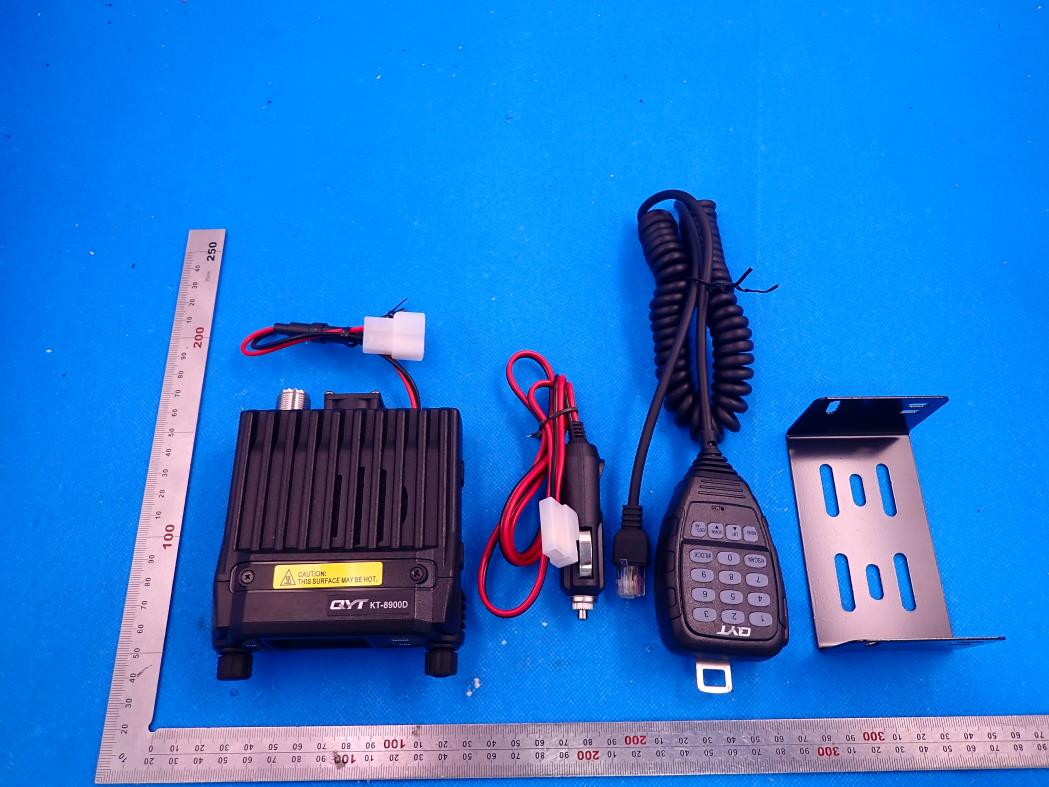

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Car Charger TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 40mm&50mm FCC ID: 2AU3L-MOB25

Internal Photos OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT Hand microphone OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Car Charger OPEN VIEW OF EUT

Page 1 of 19 Report No.:AGC08234210601AP01 PRODUCT DESIGNATION : Mobile Radio BRAND NAME : HESENATE, FONGHOO, QYT MODEL NAME : HAM-UV25, HAM-TB25, KT-8900D APPLICANT : Quanzhou Shengxin Trade Co., Ltd DATE OF ISSUE : Jul. 19, 2021 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd EUT PHOTO Report No.:AGC08234210601AP01 Page 2 of 19 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 19, 2021 Valid Initial Release Report No.:AGC08234210601AP01 Page 3 of 19 PHOTO GRAPHS OF EUT ALL VIEW OF EUT TOP VIEW OF EUT Report No.:AGC08234210601AP01 Page 4 of 19 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port Report No.:AGC08234210601AP01 Page 5 of 19 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.:AGC08234210601AP01 Page 6 of 19 RIGHT VIEW OF EUT OPEN VIEW-1 OF EUT Report No.:AGC08234210601AP01 Page 7 of 19 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Report No.:AGC08234210601AP01 Page 8 of 19 INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Report No.:AGC08234210601AP01 Page 9 of 19 INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT Report No.:AGC08234210601AP01 Page 10 of 19 INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT Report No.:AGC08234210601AP01 Page 11 of 19 INTERNAL VIEW-8 OF EUT Hand microphone TOP VIEW OF EUT BT Antenna Report No.:AGC08234210601AP01 Page 12 of 19 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.:AGC08234210601AP01 Page 13 of 19 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.:AGC08234210601AP01 Page 14 of 19 RIGHT VIEW OF EUT OPEN VIEW OF EUT Report No.:AGC08234210601AP01 Page 15 of 19 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Report No.:AGC08234210601AP01 Page 16 of 19 Car Charger TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.:AGC08234210601AP01 Page 17 of 19 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.:AGC08234210601AP01 Page 18 of 19 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.:AGC08234210601AP01 Page 19 of 19 OPEN VIEW OF EUT ---END OF REPORT--- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Page 1 of 24 FCC Test Report Report No.: AGC08234210601FE08 FCC ID : 2AU3L-MOB25 PRODUCT DESIGNATION : Mobile Radio BRAND NAME : HESENATE, FONGHOO, QYT MODEL NAME : HAM-UV25, HAM-TB25, KT-8900D APPLICANT : Quanzhou Shengxin Trade Co., Ltd DATE OF ISSUE : Jul. 19, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC08234210601FE08 Page 2 of 24 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 19, 2021 Valid Initial Release Report No.: AGC08234210601FE08 Page 3 of 24 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 7. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 8. FCC RADIATED EMISSION TEST .................................................................................................................. 9 8.1 PROVISIONS APPLICABLE ................................................................................................................... 9 8.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 9 8.3 TEST PROCEDURE .............................................................................................................................. 11 8.4 TEST RESULT ....................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ............................................................................................................ 16 9.1 PROVISIONS APPLICABLE ................................................................................................................. 16 9.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 16 9.4 TEST RESULT ....................................................................................................................................... 17 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................... 18 10.1 PROVISIONS APPLICABLE ............................................................................................................... 18 10.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 18 10.3 TEST PROCEDURE ............................................................................................................................ 18 10.4 TEST RESULT ..................................................................................................................................... 19 11. SCANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SCANNING RECEIVERS .. 21 11.1 PROVISIONS APPLICABLE ............................................................................................................... 21 11.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 21 11.3 TEST PROCEDURE ............................................................................................................................ 21 11.4 TEST RESULT ..................................................................................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................. 23 APPENDIX II: PHOTOGRAPHS OF TEST EUT................................................................................................ 24 Report No.: AGC08234210601FE08 Page 4 of 24 1. VERIFICATION OF COMPLIANCE Applicant: Quanzhou Shengxin Trade Co., Ltd Address: # 910 Xingpu New Village, Xingpu Village, Xiamei Town, Nan'an City, Quanzhou, Fujian, China Manufacturer: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Factory: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Designation: Mobile Radio Brand Name: HESENATE, FONGHOO, QYT Test Model: HAM-UV25 Series Model(s) HAM-TB25, KT-8900D Difference Description Only model and brand are different Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: Jun. 17, 2021~Jul. 07. 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Jul. 07, 2021 Reviewed By Calvin Liu (Reviewer…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
