2AU6QTK-100TOP KONTROL

Oznium LLC
TOP KONTROL - FCC ID 2AU6QTK-100 - Oznium LLC
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Mar 16, 2020
Application Purpose
Original Equipment
Date of Application
Mar 16, 2020
Equipment Note
TOP KONTROL
Frequency Range
315.00000000 - 315.00000000
Company
Oznium LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Page 1 of 4 User Manual Rev C Model No.: TK-100 FCC ID: 2AU6QTK-100 Compliance Statement This device complies with part 15C of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Introduction TOP KONTROL is a remote that can only use with specify receiver as an anti-carjack system that powered by the car battery. Once the car started-up, the whole set up will be ready to work. Page 2 of 4 Preparation Before using TOP KONTROL to operate the receiver, please follow the below wiring procedure of the receiver. Please refer the indicator stickers on each wire, and follow the below wire diagram to install the receiver to your car. If the car siren needs a pulsing 12V+ signal to operate, connect as below, If the car siren needs a pulsing GND to operate, connect as below, Note: You may connect [Trigger +12V] and/or [Trigger GND] to any device to activate the receiver, such as pin-switch, door or any sensor from the car. Page 3 of 4 How to use A. Activate the receiver by car key 1) Plug-in the car key and start-up the car battery. Or B. Activate the receiver by remote-control 1) Plug-in the car key and start-up the car battery. 2) Press and hold the remote button for 5 seconds. Or C. Activate the receiver by negative trigger 1) Plug-in the car key and start-up the car battery. 2) Negative trigger connects to Ground. Or D. Activate the receiver by positive trigger 1) Plug-in the car key and start-up the car battery. 2) Positive trigger connects to 12V+. Page 4 of 4 Then, the red-light indicator flashing and counting 15 seconds. After finished the countdown, the alarm starts operating. The car siren will ON and ignition will OFF. NOTE: The red-light indicator only flashing when counting down the 15 seconds. To cancel the alarm 1) Press the remote button once during the 15 seconds countdown. 2) The device stops operating, the car siren is OFF and the ignition is ON. Remove the car key when A) the device is operating, the car siren will OFF after 5 minutes. The alarm can cancel by pressing the remote button once during these 5 minutes. Car siren and ignition will OFF when alarm is OFF. B) the device is NOT operating, the car siren and ignition will OFF immediately. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

Cover Letter(s)

Date: 2019-12-15 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AU6QTK-100 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Jing Song in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Oznium LLC.

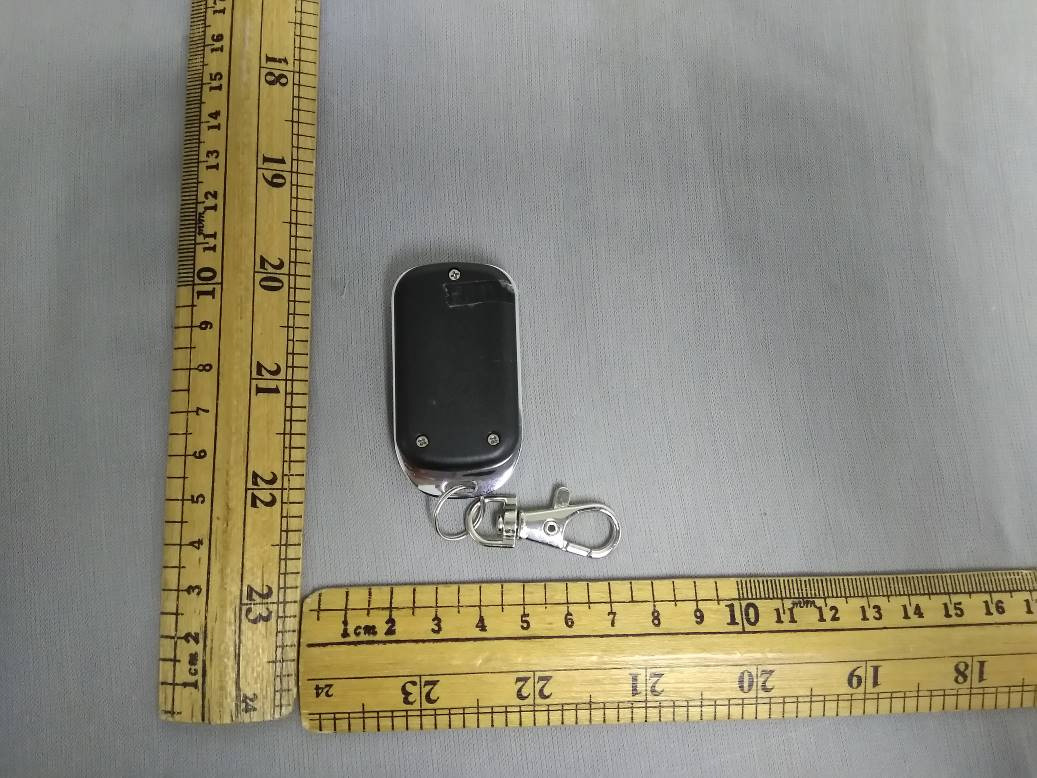

External Photos

Appendix Report Number: HKEM191000099702 External Photo

Internal Photos

Appendix for Report Number: HKEM191000099702 Internal Photo

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099702 Page: 1 of 28 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: HKEM1910000997AT Applicant: Oznium LLC Address of Applicant: : 140 Seminole Dr, Unit 4, Pagosa Springs, Colorado, 81147, United States Product Name: TOP KONTROL Model No.: TK-100 FCC ID: 2AU6QTK-100 Standards: 47 CFR Part 15, Subpart C 15.231(a):2019 Date of Receipt: 2019-12-17 Date of Test: 2020-01-06 to 2020-02-12 Date of Issue: 2020-02-12 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 2 of 28 Revision Record Version Chapter Date Modifier Remark 01 2020-02-12 Original Authorized for issue by: Tested by: Vincent Chen /Project Engineer Checked by: Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 3 of 28 2 Test Summary Test Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203:2019 N/A PASS Conducted Emissions at Mains Terminals (150 KHz to 30 MHz) 47 CFR Part 15, Subpart C 15.209:2019 ANSI C63.10 (2013) Section 6.2 N/A Occupied Bandwidth 47 CFR Part 15, Subpart C 15.231(c):2019 ANSI C63.10 (2013) Section 6.9 PASS Dwell Time 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C63.10 (2013) Section 7.6.3 PASS Field Strength of the Fundamental Signal 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C 63.10: Clasue 6.4, 6.5 and 6.6 PASS Radiated Emission 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C63.10 (2013) Section 6.4,6.5,6.6 PASS Remark : 1) N/A: Not applicable 2) ANSI C 63.10 is version ANSI C 63.10:2013 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 4 of 28 3 Content 2 TEST SUMMARY ............................................................................................................................................. 3 3 CONTENT ......................................................................................................................................................... 4 4 GENERAL INFORMATION ............................................................................................................................ 5 4.1 G ENERAL DESCRIPTION OF EUT ........................................................................................................................ 5 4.2 DETAILS OF EUT .............................................................................................................................................. 5 4.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 4.4 D EVIATION FROM STANDARDS .......................................................................................................................... 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................. 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 4.7 T EST LOCATION................................................................................................................................................ 5 4.8 TEST FACILITY ................................................................................................................................................. 6 4.9 M EASUREMENT UNCERTAINTY (95% CONFIDENCE LEVELS, K=2) ........................................................................ 7 5 EQUIPMENTS USED DURING TEST ............................................................................................................ 8 6 TEST RESULTS .............................................................................................................................................. 11 6.1 A NTENNA REQUIRMENT .................................................................................................................................. 11 6.1.1 Standard Requirement .......................................................................................................................... 11 6.1.2 EUT Antenna ....................................................................................................................................... 11 6.2 A VERAGE FACTOR.......................................................................................................................................... 12 6.2.1 Measurement Data ............................................................................................................................... 12 6.3 OCCUPIED BANDWIDTH .................................................................................................................................. 16 6.4 D WELL TIME .................................................................................................................................................. 18 6.5 FIELD STRENGTH OF THE FUNDAMENTAL SIGNAL ............................................................................................. 20 6.6 R ADIATED EMISSIONS ..................................................................................................................................... 22 7 PHOTOGRAPHS ............................................................................................................................................ 28 7.1 R ADIATED EMISSIONS TEST SETUP .................................................................................................................. 28 7.2 EUT CONSTRUCTIONAL DETAILS .................................................................................................................... 28 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM1910000997…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099702 Page: 1 of 26 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: HKEM1910000997AT Applicant: Oznium LLC Address of Applicant: : 140 Seminole Dr, Unit 4, Pagosa Springs, Colorado, 81147, United States Product Name: TOP KONTROL Model No.: TK-100 FCC ID: 2AU6QTK-100 Standards: 47 CFR Part 15, Subpart C 15.231(a):2019 Date of Receipt: 2019-12-17 Date of Test: 2020-01-06 to 2020-02-12 Date of Issue: 2020-02-12 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 2 of 26 Revision Record Version Chapter Date Modifier Remark 01 2020-02-12 Original Authorized for issue by: Tested by: Vincent Chen /Project Engineer Checked by: Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 3 of 26 2 Test Summary Test Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203:2019 N/A PASS Conducted Emissions at Mains Terminals (150 KHz to 30 MHz) 47 CFR Part 15, Subpart C 15.209:2019 ANSI C63.10 (2013) Section 6.2 N/A Occupied Bandwidth 47 CFR Part 15, Subpart C 15.231(c):2019 ANSI C63.10 (2013) Section 6.9 PASS Dwell Time 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C63.10 (2013) Section 7.6.3 PASS Field Strength of the Fundamental Signal 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C 63.10: Clasue 6.4, 6.5 and 6.6 PASS Radiated Emission 47 CFR Part 15, Subpart C 15.231(a):2019 ANSI C63.10 (2013) Section 6.4,6.5,6.6 PASS Remark : 1) N/A: Not applicable 2) ANSI C 63.10 is version ANSI C 63.10:2013 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 4 of 26 3 Content 2 TEST SUMMARY ............................................................................................................................................. 3 3 CONTENT ......................................................................................................................................................... 4 4 GENERAL INFORMATION ............................................................................................................................ 5 4.1 G ENERAL DESCRIPTION OF EUT ....................................................................................................................... 5 4.2 DETAILS OF EUT ............................................................................................................................................. 5 4.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 4.4 D EVIATION FROM STANDARDS .......................................................................................................................... 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................................ 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ....................................................................................... 5 4.7 T EST LOCATION ............................................................................................................................................... 5 4.8 TEST FACILITY................................................................................................................................................. 6 4.9 M EASUREMENT UNCERTAINTY (95% CONFIDENCE LEVELS, K=2) ....................................................................... 7 5 EQUIPMENTS USED DURING TEST ............................................................................................................ 8 6 TEST RESULTS .............................................................................................................................................. 11 6.1 A NTENNA REQUIRMENT ................................................................................................................................. 11 6.1.1 Standard Requirement ......................................................................................................................... 11 6.1.2 EUT Antenna ....................................................................................................................................... 11 6.2 A VERAGE FACTOR ......................................................................................................................................... 12 6.2.1 Measurement Data............................................................................................................................... 12 6.3 OCCUPIED BANDWIDTH .................................................................................................................................. 15 6.4 D WELL TIME.................................................................................................................................................. 17 6.5 FIELD STRENGTH OF THE FUNDAMENTAL SIGNAL ............................................................................................ 19 6.6 R ADIATED EMISSIONS .................................................................................................................................... 21 7 PHOTOGRAPHS ............................................................................................................................................ 26 7.1 R ADIATED EMISSIONS TEST SETUP .................................................................................................................. 26 7.2 EUT CONSTRUCTIONAL DETAILS.................................................................................................................... 26 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191000099701 Page: 5 of…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix Report Number: HKEM191000099702 Setup Photo

Contact Information

Applicant

Gallant Man
[email protected]85235680840Fax: 85235680840

Technical Contact

SecureTech Innovations Inc.Anthony Vang
[email protected]6513178990

2355 Highway 36 W · Roseville · United States

Non-Technical Contact

SecureTech Innovations Inc.Anthony Vang
[email protected]6513178990

Test Firm

SGS-CSTC Standards Technical Services Co., LtdDerek Yang
[email protected]+86 0135 6484 8721

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231315 MHz - 315 MHz-
Confidentiality
Long Term
