2AU8YREBE-TZ21KElectronic Shelf Label

Model Part Number Customer P/N 2.13” 3-Color Graphic REBE-TZ21K - CUSTOMER : Standard DATE : 2020. 06. 22 REV : Rev. 1.0 SPECIFICATIONS FOR APPROVAL RoHS Compliant REBE-TZ21K APPROVAL REMARK APPENDIX DESIGNED CHECKED APPROVED 2020.06.19 2020.06.19 2020.06.22 K.S.AN H.H.HAN I.U.KIM 1 / 26 Revision History SPECIFICATION MODEL REBE-TZ21K REV. No. Rev 1.0 REG. DATE 2020.06.22 PAGE 26 REV. DATE 2020.06.22 - - Revision Date Contents of Revision Change Remark 1.0 ’20.06.22 First release H.H.Han 2 / 26 TABLE OF CONTENTS 1. Application∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/26 2. Quality∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/26 3. Appearance and Characteristics∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/26 4. Overall Service Scenario ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4/26 5. General Features∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5/26 6. Absolute Maximum Rating∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7/26 7. Electrical Specification∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8/26 8. Mechanical Information∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9/26 9. Packaging ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15/26 10. User Quick Manual ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 18/26 11. R oHS Compliance ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 20/26 12.Related Certification ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 21/26 13. Disclaimers ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 25/26 14. O rdering Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 26/26 3 / 26 1. Application This Specification is applied to ATEC AP Wireless Electronic Shelf Label. (REBE-TZ21K) REBE-TZ21K is used by retailers for displaying product pricing on shelves. Typically, electronic display modules are attached to the front edge of retail shelving. These modules use Electrophoretic Display (EPD) or similar screen technologies to show the current product price to the customer. A communication network allows the price display to be automatically updated whenever a product price is changed. 2. Quality Quality should meet each condition which mentioned on this specification. However, the items which are not mentioned on this specification follow the inspection agreements and standards which are agree with both companies. 3. Appearance and Characteristics Appearance should not be contaminated by harmful materials and should not have cracks, etc. Mechanical dimensions should meet the contents of clause 9. 3.1. Appearance Electrical Characteristics should meet the contents of clause 7. 3.2. Characteristic 4 / 26 4. Overall Service Scenario •One Platform & Integrated Gateway Wired •WiFi / Ethernet •IEEE802.15.4 •2,000 Tags per GW ESL EMS (1) Server POS (1) EMS : ESL Management Software GATEWAY 2.4GHz Wireless Tags (Battery / Power Line) Wireless & Bi-Directional 5 / 26 5. General Features 5.1. Description Item Description Size 64.5 x 36.5 x 12.0 (mm) Weight Typ. 31g (Include Battery - Battery 13g) Digital Display Type : Electrophoretic Display Size / DPI : 48.55(H) x 23.8(V) (mm) / 111 Display Color 3- Color (Red/Black/White) (1) Power Rate : 3.0 V / 100 mA CR2450 Coin Battery 2in1 PKG (Removable) Battery Capacity : Max. 1,100 mAh Battery life time: 5 year at 23°C and 50% RH (2) (Image update 2 times per day) NFC Operating frequency of 13.56 MHz Network 802.15.4 2.4GHz IEEE802.15.4 compliant RF Transceiver Security Robust wireless network (ATEC AP own protocol) Protocol Compatible with ATEC AP protocol communication devices Comm. Range Max. 30m (Under LoS) (3)(4) [Notice] (1) If the background of display is red, display quality can be decreased. Generally, we recommend that the portion of red color has less than 50%. (2) The battery life time depends on operating conditions (Temperature, humidity, wireless environment, image update count...etc) (3) LoS (Line of Sight) : Without any sort of an obstacle between a gateway and end devices. (4) Communication Range depends on surrounding environment. 7 / 26 6. Absolute Maximum Rating 6.1. Environmental Conditions The normal operating environmental conditions are those as below. In such conditions, ESL must be in conformity with the present specification. The conformity to such requirement must be certified by the manufacturer. 6.2. Electrical Conditions The operating electrical conditions are those as below. In such conditions the ESL must be in conformity with the present specification. All devices can be damaged or non-operated over the specification as below. The conformity to such requirement must be certified by the manufacturer. Parameter Condition Min Typ. Max Unit Supply Voltage DC Power Supply 2.2 3.0 3.3 V Power Consumption @ 3.0~3.3V - - 100 mA ESD Protection Air Condition @Soft Fail -8 - +8 kV Parameter Condition Min. Typ. Max. Unit Operating Environment (1) Temperature 10 23 30 °C Humidity 35 50 65 %RH Storage Environment (2) Temperature 10 23 30 °C Humidity - - 55 %RH [Notice] (1) Tag can operate at 0~40°C. But only assure the image quality of EPD at 10~30°C. (2) After receiving the product, it should be installed within 3 months 8 / 26 7. Electrical Specification 7.1. IEEE802.15.4 The REBE-TZ21K supports IEEE802.15.4. 7.2. General Specification •Standard : Only IEEE802.15.4 PHY •Frequency : 2405 ~ 2480MHz •Channel : 16CH. (5MHz Spacing) •Modulation : DSSS/O-Q PSK •Max. Data Rate : 250Kbps 7.3. Electrical Specification •Channel power depend on each country regulations (EX. KC, etc) •The electrical specification which is shown below is ATEC AP internal specification. •All values depend on surrounding environment and current statement of access point RF Performance Parameter Condition Min Typ Max Unit Output Power - 0 - - dBm Receiver Sensitivity PER=1% (Required -85dBm) -85 - - dBm Maximum Input Level PER=1% (Required -20dBm) - - -20 dBm Frequency Tolerance Required Max. ± 75kHz -75 - 75 kHz Error Vector Magnitude Required Max. 35% - - 35 % 9 / 26 8. Mechanical Information 8.1. Mechanical Dimension Size 64.5 x 36.5 x 12.0 (mm) Weight Typ. 31g (Include Battery - Battery 13g) 6.0 12.0 64.5 36.5 10 / 26 8.2. Battery Dimension 11 / 26 unit : mm 8.3.1. Product Label Specification 8.3. …

Text truncated - open the document above for the full version.

ATECAP Co., LTD. 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, South Korea June 30, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ATECAP Co., LTD. FCC Application for FCC ID : 2AU8YREBE-TZ21K To whom it may concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier’s Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Sincerely, Maengcheol Park / Manager ATECAP Co., LTD.

ATECAP Co., LTD. 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, South Korea June 30, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AU8YREBE-TZ21K including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ATECAP Co., LTD. LTA Co.,LTD. (Contact Person) Contact name: Ja-Beom Koo Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Maengcheol Park / Manager ATECAP Co., LTD.

ATECAP Co., LTD. 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, South Korea June 30, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ATECAP Co., LTD. FCC ID : 2AU8YREBE-TZ21K Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), ATECAP Co., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ATECAP Co., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX 2AU8YREBE-TZ21K SCH DIA.pdf Parts list CONF APPENDIX 2AU8YREBE-TZ21K PL.pdf Block diagram CONF APPENDIX 2AU8YREBE-TZ21K BLK DIA.pdf Operational description CONF APPENDIX 2AU8YREBE-TZ21K OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF 2AU8YREBE-TZ21K EXT Photo.pdf Internal Photos SHORT-TERM CONF 2AU8YREBE-TZ21K INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF 2AU8YREBE-TZ21K Test Photo.pdf User’s Manual SHORT-TERM CONF 2AU8YREBE-TZ21K Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Maengcheol Park / Manager ATECAP Co., LTD.

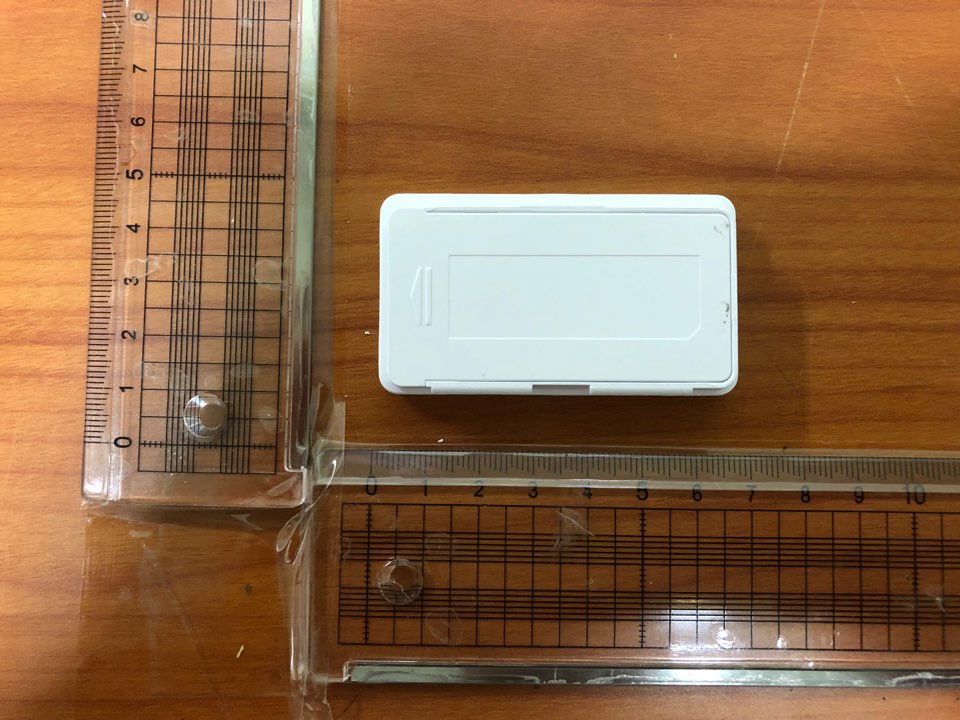

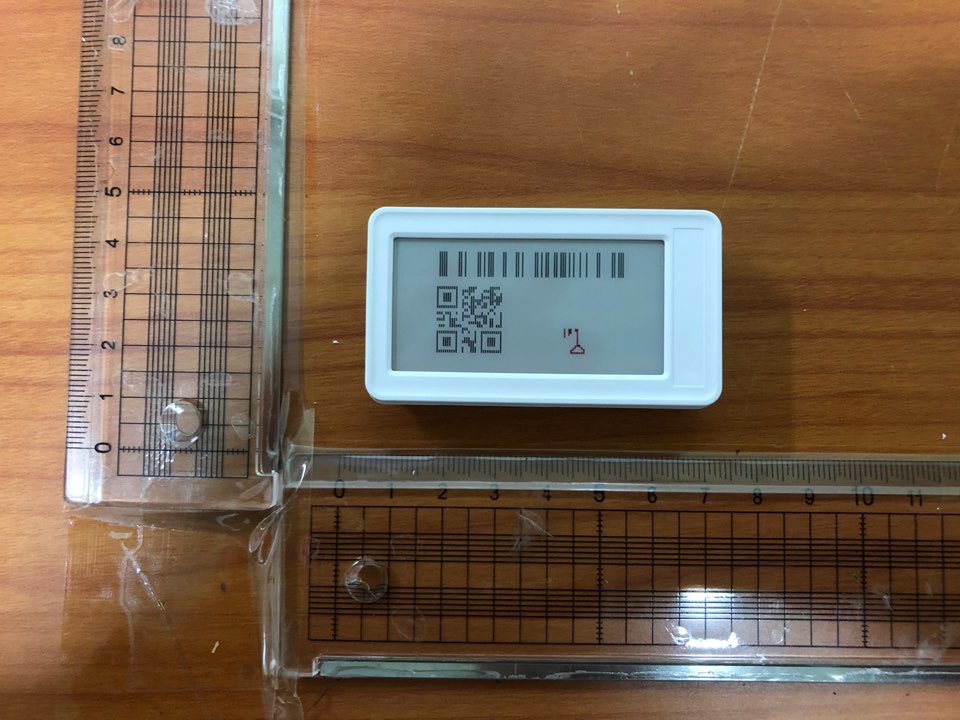

FCC ID: 2AU8YREBE-TZ21K Front Rear Copyright ○ c 2020, LTA Co., Ltd .Page 1 of 4 FCC ID: 2AU8YREBE-TZ21K To p Bottom Copyright ○ c 2020, LTA Co., Ltd .Page 2 of 4 FCC ID: 2AU8YREBE-TZ21K Left Right Copyright ○ c 2020, LTA Co., Ltd .Page 3 of 4 FCC ID: 2AU8YREBE-TZ21K ANTENNA Dibersity ANT Main Copyright ○ c 2020, LTA Co., Ltd .Page 4 of 4

FCC ID: 2AU8YREBE-TZ21K SAMPLE LABEL & LOCATION EUT Rear ATECAP Co., LTD. Model : REBE-TZ21K Rated Voltage : 3 V FCC ID : 2AU8YREBE-TZ21K Made in Korea Copyright Ⓒ 2020, LTA Co., Ltd.

FCC ID: 2AU8YREBE-TZ21K MainBoard–Front MainBoard–Rear Copyright ○ c 2020, LTA Co., Ltd. Page 1 of 2 FCC ID: 2AU8YREBE-TZ21K Total internal Copyright ○ c 2020, LTA Co., Ltd. Page 2 of 2

FCC ID: 2AU8YREBE-TZ21K ATTACHMENT RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength Magnetic field Strength Power density Averaging time 1.34 - 30....................................... 824/f 2.19/f *(180/ f²) 30 30 - 300....................................... 27.5 0.073 0.2 30 300 - 1500.................................... ............... ............... f/1500 30 1500 - 100.000................................. ............... ............... 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = (5.21 * 0.34) / (4 * 5 2 * π) S = 0.56 mW/cm 2 FCC ID: 2AU8YREBE-TZ21K ATTACHMENT 1.3 MAXIMUM PERMISSIBLE EXPOSURE Prediction - Calculated under the worst-case conditions of each mode. (Measured power 7.2 dBm ± 0.5dB) 3-1. 2.4 GHz Zigbee Mode Max Peak output Power at antenna input terminal 7.17 dBm Max Peak output Power at antenna input terminal 5.21 mW Prediction distance 5 cm Prediction frequency 2,480 MHz Antenna Gain(typical) -4.72 dBi Antenna Gain(numeric) 0.34 - Power density at prediction frequency( S) 0.56 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.28 mW/cm 2 WLAN SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [5.21 / 5 ] * [ √2.480 ] = 1.04 ≤ 7.5, for 1g SAR Thus, SAR for this device is not required.

Ref. No.: LR500112007C 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Jun 11, 2020 ~ Jun 30, 2020 Test Report S/N: LR500112007C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Electronic Shelf Label Manufacturer : ATECAP Co., LTD. Model name : REBE-TZ21K Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 - 2013 Frequency Range : Zigbee 2405 ~ 2480 MHz Max. Output Power : Max 7.17 dBm - Conducted Data of issue : July 01, 2020 This test report is issued under the authority of: The test was supervised by: Ja -Beom Koo, Manager Eun-Hwan Jung, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 2AU8YREBE-TZ21K ATECAP Co., LTD. Copyright ○ c 2020, LTA Co., Ltd. Page 1 of 34 Ref. No.: LR500112007C TAZigbee OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS ---------------------------------------------------------------------------- 3.2 TECHNICAL CHARACTERISTICS TEST ----------------- ----------------------------------- 3.2.1 6 dB BANDWIDTH -------------------------- ------------------------------------------------ 3.2.2 PEAK OUTPUT POWER -------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY ------------------------------------------------------------ 3.2.4 BAND EDGE ---------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------- 3.2.6 RADIATED SPURIOUS EMISSIONS ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 34 Copyright ○ c 2020, LTA Co., Ltd. Page 2 of 34 Ref. No.: LR500112007C 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji- Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2020-09-30 ECT accredited Lab. RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2021-04-11 FCC CAB VCCI J APA N C-4948, 2020-09-10 VCCI registration VCCI J APA N T-2416, 2020-09-10 VCCI registration VCCI J APA N R-4483(10 m), 2020-10-15 VCCI registration VCCI J APA N G-847 2021-12-13 VCCI registration IC CANADA 5799A-1 2021-06-16 IC filing KOLAS KOREA NO.551 2021-08-20 KOLAS accredited Lab. Copyright ○ c 2020, LTA Co., Ltd. Page 3 of 34 Ref. No.: LR500112007C 2. Information about test item 2-1 Client & Manufacturer Client Company name : ATECAP Co., LTD. Address : 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13488, South Korea Tel / Fax : +82-10-5790-6171 / +82-31-696-1534 Manufacturer ATECAP Co., LTD. Address 53-94 Jinwisandan-ro, jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, Korea Tel / Fax +82-10-5790-6171 / +82-31-696-1534 2-2 Equipment Under Test (EUT) Model name : REBE-TZ21K Serial number : Identical prototype Date of receipt : June 11, 2020 EUT condition : Pre-production, not damaged Antenna type : Pattern Antenna (Max Gain : - 4.72 dBi) Frequency Range : Zigbee 2405 ~ 2480 MHz RF output power : Max 7.17 dBm – Conducted Type of Modulation : Pi/4 DQPSK, 8DPSK Power Source : DC 3.0 V 2-3 Tested frequency LOW MID HIGH Frequency (MHz) Zigbee 2405 2440 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2020, LTA Co., Ltd. Page 4 of 34 Ref. No.: LR500112007C 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Te st Condition Status (note 1) 15.247(a) 6 dB Bandwidth Conducted C 15.247(b) Transmitter Peak Output Power C 15.247(e) Transmitter Power Spectral Density C 15.247(d) Band Edge & Conducted Spurious emission C 15.209 Transmitter emission Radiated C 15.207 AC Conducted Emissions Conducted N/A 15.203 Antenna requirement - C N/ A : This product is battery-enabled and excludes the test. The above equipment was tested by LTA Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. The tests were performed according to the method of measurements prescribed in KDB No.558074.  Antenna Requirement ATECAP Co., LTD. FCC ID: 2AU8YREBE-TZ21K unit complies with the requirement of §15.203. The antenna type is FPCB Antenna Copyright ○ c 2020, LTA Co., Ltd. Page 5 of 34 Ref. No.: LR500112007C 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6 dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in tr…

Text truncated - open the document above for the full version.

FCC ID: 2AU8YREBE-TZ21K Radiate Emission Copyright ○ c 2020, LTA Co., Ltd. Page 1 of 3 FCC ID: 2AU8YREBE-TZ21K Copyright ○ c 2020, LTA Co., Ltd. Page 2 of 3 FCC ID: 2AU8YREBE-TZ21K Copyright ○ c 2020, LTA Co., Ltd. Page 3 of 3
