2AU97-MATRIXPROTablet PC

1 User Manual No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of. The Company reserves the right to make modifications on print errors or update specifications in this guide without prior notice. Content 1.General Information ................................................................................................................................... 2 1.1 Profile and Safety Precaution ........................................................................................................................... 3 1.2 Safety warning and Attentions ......................................................................................................................... 3 2. Your phone .................................................................................................................................................. 4 2.1Phone overview ................................................................................................................................................. 4 2.2Functions of Keys .............................................................................................................................................. 5 2.3Functions of icons .............................................................................................................................................. 5 3.Getting started ............................................................................................................................................ 5 3.1Installing the SIM Card and the Battery ............................................................................................................ 5 3.2Charging the Battery .......................................................................................................................................... 6 3.3Linking to the Networks and devices ................................................................................................................ 6 3.4Using the touch screen ....................................................................................................................................... 7 3.5Using the onscreen keypad ................................................................................................................................ 8 3.6Dialing Calls ...................................................................................................................................................... 8 4.Using the Menus ......................................................................................................................................... 8 4.1Browser .............................................................................................................................................................. 8 4.2Calculator......................................................................................................................................................... 10 4.3Calendar ........................................................................................................................................................... 10 4.4Camera ............................................................................................................................................................. 11 4.5Clock ................................................................................................................................................................ 11 4.6Downloads ....................................................................................................................................................... 11 4.7Email ................................................................................................................................................................ 11 4.8File Explorer .................................................................................................................................................... 12 4.9FlashLight ........................................................................................................................................................ 12 4.10FM Radio ....................................................................................................................................................... 12 4.11Gallery ........................................................................................................................................................... 12 4.12Gmail ............................................................................................................................................................. 12 2 4.13Google ........................................................................................................................................................... 12 4.14Google Settings .............................................................................................................................................. 12 4.15History ........................................................................................................................................................... 12 You can see the recent call records ....................................................................................................................... 12 4.16Maps .............................................................................................................................................................. 12 4.17Messages ........................................................................................................................................................ 12 4.18Play Music ....................................................................................................................................................…

Text truncated - open the document above for the full version.

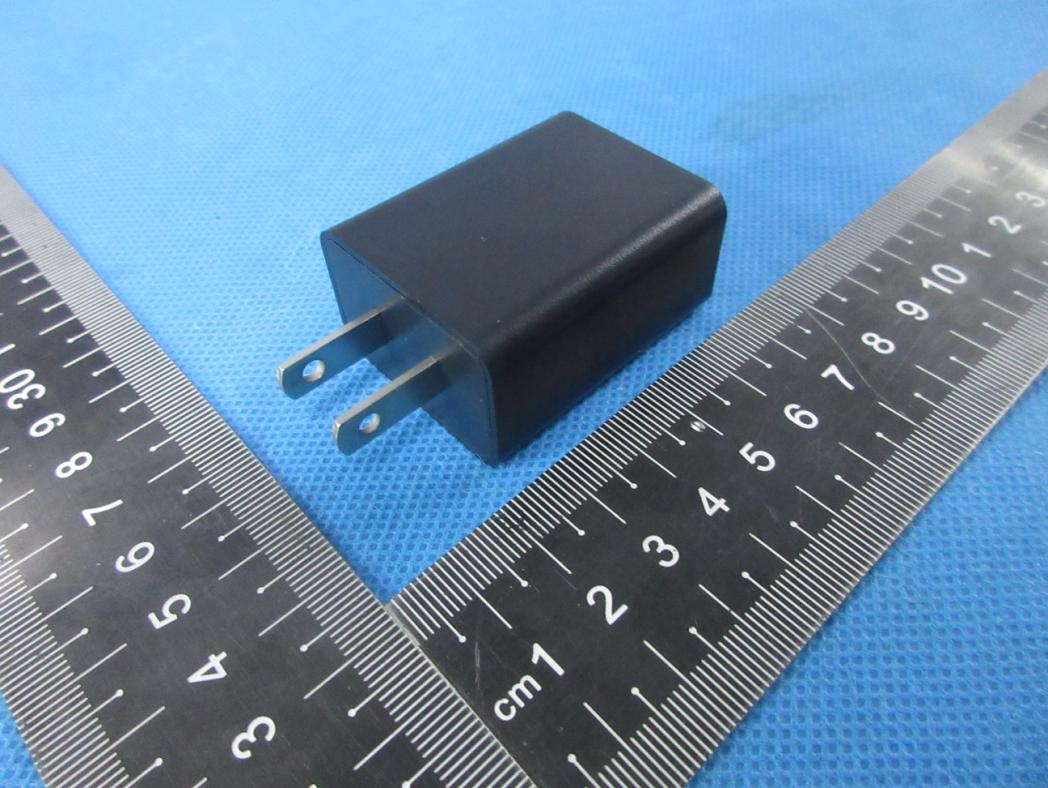

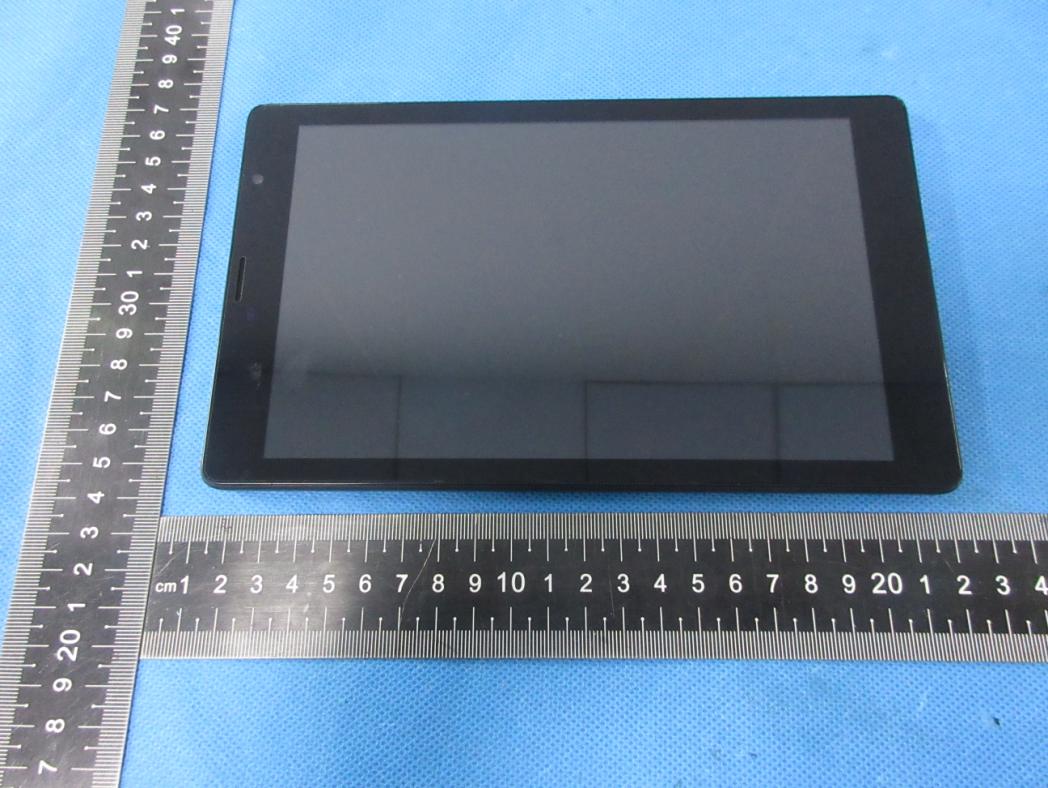

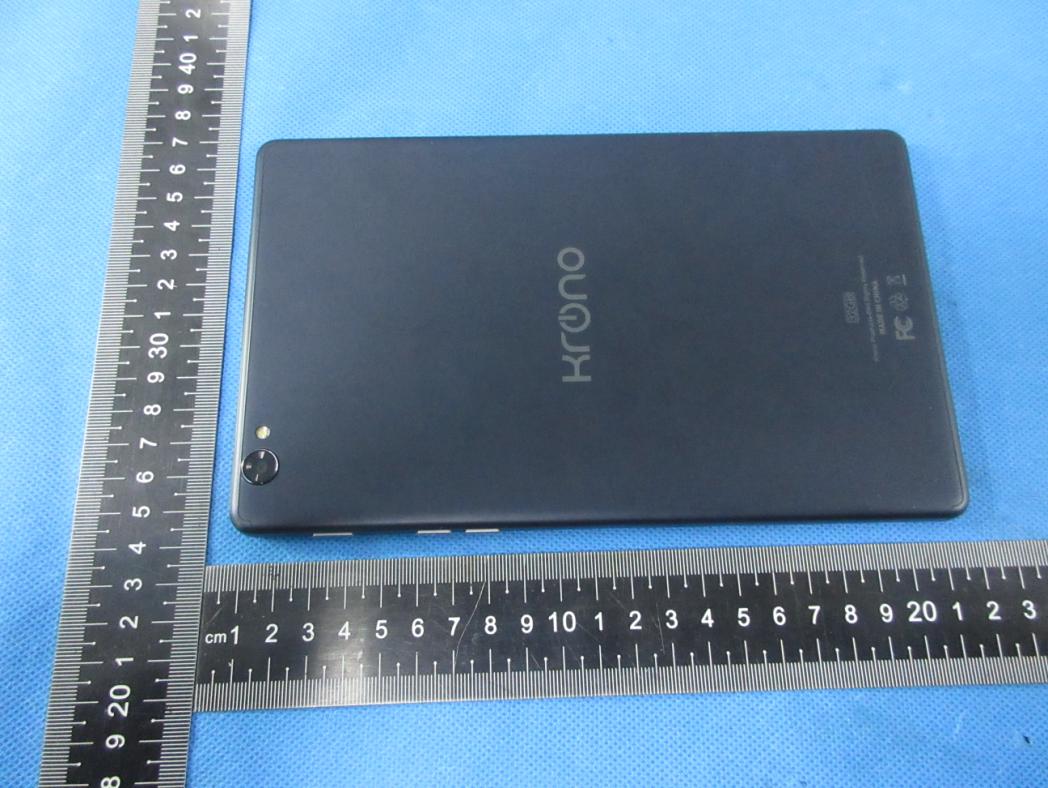

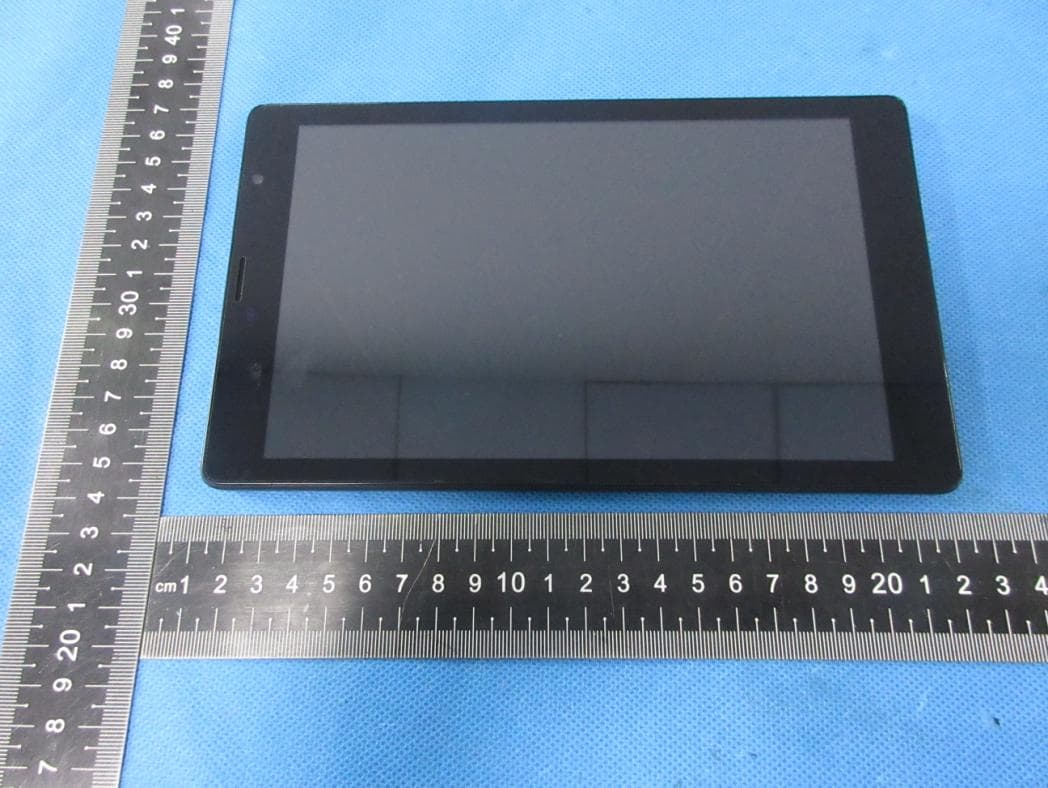

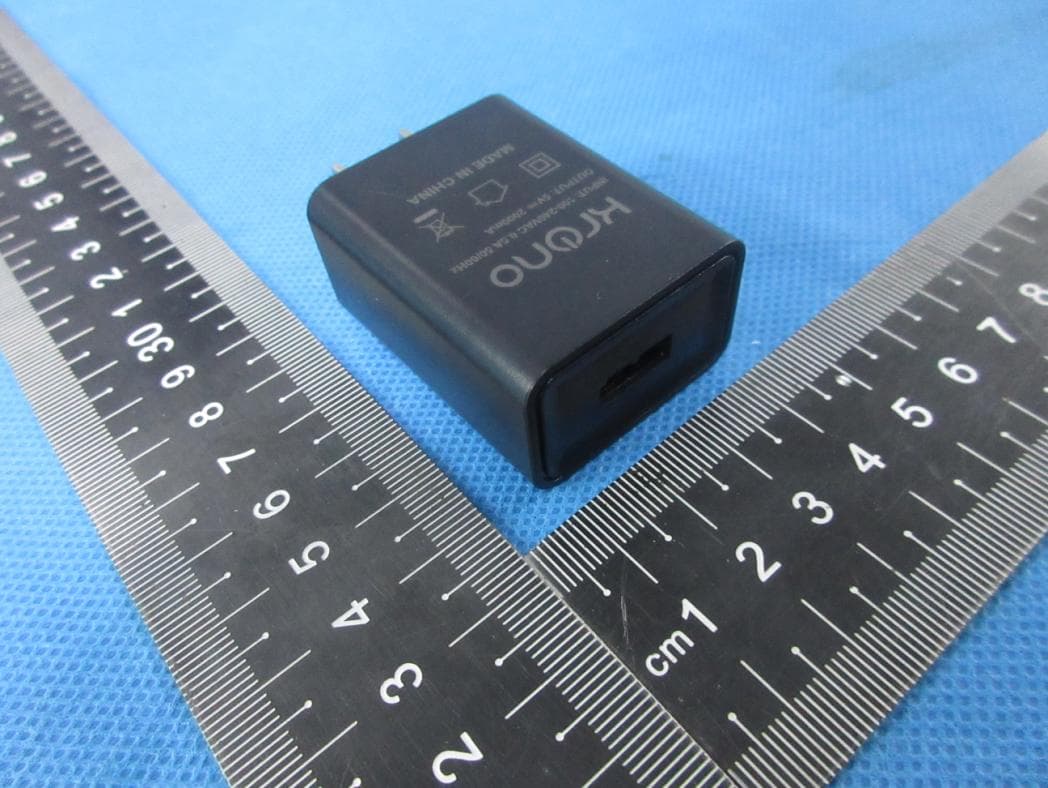

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 BT/WIFI ANT LTE AUX ANT Photo 9 Photo 10 GSM/WCDMA/LTE Main ANT

Page 1 of 157 Report No.: S21121500203001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Tablet PC Trademark： KRONO Model Name： MATRIX PRO Family Model： N/A Report No.： S21121500203001 FCC ID： 2AU97- MATRIXPRO Prepared for Shenzhen Krono Digital Co., Ltd. 1319, 13th Floor, SegPlaza, Huaqiangbei, Futian District,Shenzhen, Guangdong,China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 157 Report No.: S21121500203001 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Krono Digital Co., Ltd. Address .................................. : 1319, 13th Floor, SegPlaza, Huaqiangbei, Futian District,Shenzhen, Guangdong,China. Manufacturer's Name........... : ShenZhenTelconn Technology Co.,Ltd. Address .................................. : 41A Building 301C Room The 5th district of huaidecuigang industrial park ,fuyong town, Baoan district, Shenzhen, Guangdong,China. Product description Product name ......................... : Tablet PC Trademark ............................ : KRONO Model Name ......................... : MATRIX PRO Family Model .......................... : N/A Standards.............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Dec. 17, 2021 ~ Dec. 31, 2021 Date of Issue .......................................... : Jan. 11, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 157 Report No.: S21121500203001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jan. 11, 2022 Jacob Chen Page 4 of 157 Report No.: S21121500203001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Posi…

Text truncated - open the document above for the full version.

Page 121 of 157 Report No.: S21121500203001 Page 122 of 157 Report No.: S21121500203001 Page 123 of 157 Report No.: S21121500203001 Page 124 of 157 Report No.: S21121500203001 Page 125 of 157 Report No.: S21121500203001 Page 126 of 157 Report No.: S21121500203001 Page 127 of 157 Report No.: S21121500203001 Page 128 of 157 Report No.: S21121500203001 Page 129 of 157 Report No.: S21121500203001 Page 130 of 157 Report No.: S21121500203001 Page 131 of 157 Report No.: S21121500203001 Page 132 of 157 Report No.: S21121500203001 Page 133 of 157 Report No.: S21121500203001 Page 134 of 157 Report No.: S21121500203001 Page 135 of 157 Report No.: S21121500203001 Page 136 of 157 Report No.: S21121500203001 Page 137 of 157 Report No.: S21121500203001 Page 138 of 157 Report No.: S21121500203001 Page 139 of 157 Report No.: S21121500203001 Page 140 of 157 Report No.: S21121500203001 Page 141 of 157 Report No.: S21121500203001 Page 142 of 157 Report No.: S21121500203001 Page 143 of 157 Report No.: S21121500203001 Page 144 of 157 Report No.: S21121500203001 Page 145 of 157 Report No.: S21121500203001 Page 146 of 157 Report No.: S21121500203001 Page 147 of 157 Report No.: S21121500203001 Page 148 of 157 Report No.: S21121500203001 Page 149 of 157 Report No.: S21121500203001 Page 150 of 157 Report No.: S21121500203001 Page 151 of 157 Report No.: S21121500203001 Page 152 of 157 Report No.: S21121500203001 Page 153 of 157 Report No.: S21121500203001 Page 154 of 157 Report No.: S21121500203001 Page 155 of 157 Report No.: S21121500203001 Page 156 of 157 Report No.: S21121500203001 Page 157 of 157 Report No.: S21121500203001 _____________________________________ END_______________________________________

Report No.: S21121500202004 Page 1 of 40 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 24.97 PASS EGPRS1900 1 Slot 661 1880 24.67 PASS EGPRS1900 1 Slot 810 1909.8 24.31 PASS EGPRS1900 2 Slot 512 1850.2 24.02 PASS EGPRS1900 2 Slot 661 1880 24.68 PASS EGPRS1900 2 Slot 810 1909.8 24.56 PASS EGPRS1900 3 Slot 512 1850.2 22.74 PASS EGPRS1900 3 Slot 661 1880 23.36 PASS EGPRS1900 3 Slot 810 1909.8 22.83 PASS EGPRS1900 4 Slot 512 1850.2 20.41 PASS EGPRS1900 4 Slot 661 1880 20.53 PASS EGPRS1900 4 Slot 810 1909.8 20.20 PASS EGPRS850 1 Slot 128 824.2 24.76 PASS EGPRS850 1 Slot 189 836.4 24.59 PASS EGPRS850 1 Slot 251 848.8 24.74 PASS EGPRS850 2 Slot 128 824.2 24.56 PASS EGPRS850 2 Slot 189 836.4 24.81 PASS EGPRS850 2 Slot 251 848.8 24.88 PASS EGPRS850 3 Slot 128 824.2 23.40 PASS EGPRS850 3 Slot 189 836.4 23.85 PASS EGPRS850 3 Slot 251 848.8 23.24 PASS EGPRS850 4 Slot 128 824.2 21.03 PASS EGPRS850 4 Slot 189 836.4 21.08 PASS EGPRS850 4 Slot 251 848.8 20.71 PASS 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 7.493941606 13.00 PASS EGPRS1900 661 1880 6.740044944 13.00 PASS EGPRS1900 810 1909.8 7.505439739 13.00 PASS EGPRS850 128 824.2 10.23947316 13.00 PASS EGPRS850 189 836.4 10.13412488 13.00 PASS EGPRS850 251 848.8 10.2999212 13.00 PASS EGPRS1900 Channel=661 Report No.: S21121500202004 Page 2 of 40 EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S21121500202004 Page 3 of 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S21121500202004 Page 4 of 40 EGPRS850 Channel=189 16 Occupied bandwidth Report No.: S21121500202004 Page 5 of 40 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 233.897 301.236 PASS EGPRS1900 661 1880 238.217 289.325 PASS EGPRS1900 810 1909.8 237.841 292.618 PASS EGPRS850 128 824.2 236.548 299.627 PASS EGPRS850 189 836.4 240.853 279.109 PASS EGPRS850 251 848.8 231.126 279.789 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: S21121500202004 Page 6 of 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S21121500202004 Page 7 of 40 EGPRS850 Channel=251 EGPRS850 Channel=189 Report No.: S21121500202004 Page 8 of 40 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.98 -37.04 -13 PASS EGPRS1900 810 1909.8 1910.00 -37.34 -13 PASS EGPRS850 128 824.2 823.97 -36.44 -13 PASS EGPRS850 251 848.8 849.02 -38.33 -13 PASS EGPRS1900 Channel=512 Report No.: S21121500202004 Page 9 of 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S21121500202004 Page 10 of 40 EGPRS850 Channel=251 18 Out-of-band emissions Report No.: S21121500202004 Page 11 of 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25486.20 -18.58 -13 PASS EGPRS1900 661 1880 25656.27 -18.69 -13 PASS EGPRS1900 810 1909.8 25938.84 -18.49 -13 PASS EGPRS850 128 824.2 25978.54 -20.54 -13 PASS EGPRS850 189 836.4 26002.36 -19.65 -13 PASS EGPRS850 251 848.8 25931.56 -19.73 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=661 Report No.: S21121500202004 Page 12 of 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S21121500202004 Page 13 of 40 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S21121500202004 Page 14 of 40 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) high Limit (dBm) Verdict GPRS1900 1 Slot 512 1850.2 29.32 37 PASS GPRS1900 1 Slot 661 1880 29.00 37 PASS GPRS1900 1 Slot 810 1909.8 28.89 37 PASS GPRS1900 2 Slot 512 1850.2 27.03 37 PASS GPRS1900 2 Slot 661 1880 26.63 37 PASS GPRS1900 2 Slot 810 1909.8 26.27 37 PASS GPRS1900 3 Slot 512 1850.2 25.40 37 PASS GPRS1900 3 Slot 661 1880 24.94 37 PASS GPRS1900 3 Slot 810 1909.8 24.60 37 PASS GPRS1900 4 Slot 512 1850.2 23.38 37 PASS GPRS1900 4 Slot 661 1880 22.95 37 PASS GPRS1900 4 Slot 810 1909.8 22.60 37 PASS GPRS850 1 Slot 128 824.2 32.54 37 PASS GPRS850 1 Slot 189 836.4 32.33 37 PASS GPRS850 1 Slot 251 848.8 32.38 37 PASS GPRS850 2 Slot 128 824.2 30.52 37 PASS GPRS850 2 Slot 189 836.4 30.26 37 PASS GPRS850 2 Slot 251 848.8 30.32 37 PASS GPRS850 3 Slot 128 824.2 28.54 37 PASS GPRS850 3 Slot 189 836.4 28.30 37 PASS GPRS850 3 Slot 251 848.8 28.34 37 PASS Report No.: S21121500202004 Page 15 of 40 GPRS850 4 Slot 128 824.2 26.26 37 PASS GPRS850 4 Slot 189 836.4 26.05 37 PASS GPRS850 4 Slot 251 848.8 26.06 37 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.688906121 13.00 PASS GPRS1900 661 1880 2.667170166 13.00 PASS GPRS1900 810 1909.8 2.658985053 13.00 PASS GPRS850 128 824.2 2.648 13.00 PASS GPRS850 189 836.4 2.656007719 13.00 PASS GPRS850 251 848.8 2.66140884 13.00 PASS GPRS1900 Channel=661 GPRS1900 Channel=512 Report No.: S21121500202004 Page 16 of 40 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: S21121500202004 Page 17 of 40 GPRS850 Channel=251 GPRS850 Channel=189 Report No.: S21121500202004 Page 18 of 40 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 251.218 306.402 PASS GPRS1900 661 1880 244.875 318.512 PASS GPRS1900 810 1909.8 248.915 315.420 PASS GPRS850 128 824.2 241.101 317.705 PASS GPRS850 189 836.4 248.575 318.760 PASS GPRS850 251 848.8 250.265 316.597 PASS GPRS1900 Channel=661 Report No.: S21121500202004 Page 19 of 40 GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S21121500202004 Page 20 of 40 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S21121500202004 Page 21 of 40 GPRS850 Channel=189 11 Band edge Report No.: S21121500202004 Page 22 of 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1850.00 -29.19 -13 PASS GPRS1900 810 1909.8 1910.03 -29.80 -13 PASS GPRS850 128 824.2 824.00 -26.28 -13 PASS GPRS850 251 848.8 849.03 -27.46 -13 PASS GPRS1900 Channel=810 GPRS1900 Channel=512 Report No.: S21121500202004 Page 23 of 40 GPRS850 Chan…

Text truncated - open the document above for the full version.

Report No.: S21121500202004 Page 1 of 15 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 22.29 PASS WCDMA Band2 9400 1880 22.26 PASS WCDMA Band2 9538 1907.6 22.06 PASS WCDMA Band5 4132 826.4 22.21 PASS WCDMA Band5 4182 836.4 22.24 PASS WCDMA Band5 4233 846.6 22.24 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 2.82 13 PASS WCDMA Band2 9400 1880 2.91 13 PASS WCDMA Band2 9538 1907.6 2.86 13 PASS WCDMA Band5 4132 826.4 2.89 13 PASS WCDMA Band5 4182 836.4 2.87 13 PASS WCDMA Band5 4233 846.6 2.98 13 PASS WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9262 Report No.: S21121500202004 Page 2 of 15 WCDMA Band2 Channel=9538 WCDMA Band5 Channel=4132 Report No.: S21121500202004 Page 3 of 15 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: S21121500202004 Page 4 of 15 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4149.841 4679.625 PASS WCDMA Band2 9400 1880 4161.082 4663.383 PASS WCDMA Band2 9538 1907.6 4163.144 4668.313 PASS WCDMA Band5 4132 826.4 4169.177 4690.371 PASS WCDMA Band5 4182 836.4 4164.298 4674.308 PASS WCDMA Band5 4233 846.6 4141.088 4678.154 PASS WCDMA Band2 Channel=9400 Report No.: S21121500202004 Page 5 of 15 WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S21121500202004 Page 6 of 15 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S21121500202004 Page 7 of 15 WCDMA Band5 Channel=4182 05 Band edge Report No.: S21121500202004 Page 8 of 15 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -25.20 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -25.99 -13 PASS WCDMA Band5 4132 826.4 824.00 -25.52 -13 PASS WCDMA Band5 4233 846.6 849.00 -25.71 -13 PASS WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9262 Report No.: S21121500202004 Page 9 of 15 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S21121500202004 Page 10 of 15 06 Out-of-band emissions Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19987.52 -23.94 -13 PASS WCDMA Band2 9400 1880 19926.11 -23.55 -13 PASS WCDMA Band2 9538 1907.6 19857.71 -23.64 -13 PASS WCDMA Band5 4132 826.4 3154.35 -29.53 -13 PASS WCDMA Band5 4182 836.4 3162.32 -29.78 -13 PASS WCDMA Band5 4233 846.6 6404.07 -30.24 -13 PASS WCDMA Band2 Channel=9262 Report No.: S21121500202004 Page 11 of 15 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: S21121500202004 Page 12 of 15 WCDMA Band5 Channel=4182 WCDMA Band5 Channel=4132 Report No.: S21121500202004 Page 13 of 15 WCDMA Band5 Channel=4233 07 Conducted output power Report No.: S21121500202004 Page 14 of 15 Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 21.26 PASS HSDPA Band2 Subtest2 9262 1852.4 21.03 PASS HSDPA Band2 Subtest3 9262 1852.4 20.68 PASS HSDPA Band2 Subtest4 9262 1852.4 20.54 PASS HSDPA Band2 Subtest1 9400 1880 21.92 PASS HSDPA Band2 Subtest2 9400 1880 21.70 PASS HSDPA Band2 Subtest3 9400 1880 21.47 PASS HSDPA Band2 Subtest4 9400 1880 21.31 PASS HSDPA Band2 Subtest1 9538 1907.6 22.08 PASS HSDPA Band2 Subtest2 9538 1907.6 21.73 PASS HSDPA Band2 Subtest3 9538 1907.6 21.32 PASS HSDPA Band2 Subtest4 9538 1907.6 21.40 PASS HSDPA Band5 Subtest1 4132 826.4 21.80 PASS HSDPA Band5 Subtest2 4132 826.4 21.44 PASS HSDPA Band5 Subtest3 4132 826.4 21.06 PASS HSDPA Band5 Subtest4 4132 826.4 20.92 PASS HSDPA Band5 Subtest1 4182 836.4 21.52 PASS HSDPA Band5 Subtest2 4182 836.4 21.33 PASS HSDPA Band5 Subtest3 4182 836.4 20.92 PASS HSDPA Band5 Subtest4 4182 836.4 20.76 PASS HSDPA Band5 Subtest1 4233 846.6 21.19 PASS HSDPA Band5 Subtest2 4233 846.6 21.07 PASS HSDPA Band5 Subtest3 4233 846.6 20.66 PASS HSDPA Band5 Subtest4 4233 846.6 20.56 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 21.23 PASS HSUPA Band2 Subtest2 9262 1852.4 21.13 PASS HSUPA Band2 Subtest3 9262 1852.4 20.74 PASS HSUPA Band2 Subtest4 9262 1852.4 21.08 PASS HSUPA Band2 Subtest5 9262 1852.4 20.96 PASS HSUPA Band2 Subtest1 9400 1880 21.65 PASS HSUPA Band2 Subtest2 9400 1880 21.98 PASS HSUPA Band2 Subtest3 9400 1880 21.62 PASS HSUPA Band2 Subtest4 9400 1880 21.68 PASS HSUPA Band2 Subtest5 9400 1880 21.67 PASS HSUPA Band2 Subtest1 9538 1907.6 21.81 PASS HSUPA Band2 Subtest2 9538 1907.6 21.97 PASS HSUPA Band2 Subtest3 9538 1907.6 21.75 PASS HSUPA Band2 Subtest4 9538 1907.6 22.09 PASS HSUPA Band2 Subtest5 9538 1907.6 21.82 PASS HSUPA Band5 Subtest1 4132 826.4 21.67 PASS Report No.: S21121500202004 Page 15 of 15 HSUPA Band5 Subtest2 4132 826.4 21.73 PASS HSUPA Band5 Subtest3 4132 826.4 21.40 PASS HSUPA Band5 Subtest4 4132 826.4 21.55 PASS HSUPA Band5 Subtest5 4132 826.4 21.48 PASS HSUPA Band5 Subtest1 4182 836.4 21.33 PASS HSUPA Band5 Subtest2 4182 836.4 21.41 PASS HSUPA Band5 Subtest3 4182 836.4 21.12 PASS HSUPA Band5 Subtest4 4182 836.4 21.52 PASS HSUPA Band5 Subtest5 4182 836.4 21.20 PASS HSUPA Band5 Subtest1 4233 846.6 21.08 PASS HSUPA Band5 Subtest2 4233 846.6 21.24 PASS HSUPA Band5 Subtest3 4233 846.6 20.95 PASS HSUPA Band5 Subtest4 4233 846.6 21.12 PASS HSUPA Band5 Subtest5 4233 846.6 20.90 PASS

Report No.: S21121500202005 Page 1 of 256 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 22.94 PASS Band2 1.4 18607 1 #Mid QPSK 22.91 PASS Band2 1.4 18607 1 #Max QPSK 22.95 PASS Band2 1.4 18607 3 #0 QPSK 22.96 PASS Band2 1.4 18607 3 #Mid QPSK 23.00 PASS Band2 1.4 18607 3 #Max QPSK 22.97 PASS Band2 1.4 18607 6 #0 QPSK 21.84 PASS Band2 1.4 18607 1 #0 QAM16 22.85 PASS Band2 1.4 18607 1 #Mid QAM16 22.82 PASS Band2 1.4 18607 1 #Max QAM16 22.83 PASS Band2 1.4 18607 3 #0 QAM16 22.09 PASS Band2 1.4 18607 3 #Mid QAM16 22.10 PASS Band2 1.4 18607 3 #Max QAM16 22.11 PASS Band2 1.4 18607 6 #0 QAM16 21.05 PASS Band2 1.4 18900 1 #0 QPSK 22.82 PASS Band2 1.4 18900 1 #Mid QPSK 22.83 PASS Band2 1.4 18900 1 #Max QPSK 22.78 PASS Band2 1.4 18900 3 #0 QPSK 22.67 PASS Band2 1.4 18900 3 #Mid QPSK 22.76 PASS Band2 1.4 18900 3 #Max QPSK 22.72 PASS Band2 1.4 18900 6 #0 QPSK 21.76 PASS Band2 1.4 18900 1 #0 QAM16 21.82 PASS Band2 1.4 18900 1 #Mid QAM16 21.77 PASS Band2 1.4 18900 1 #Max QAM16 21.78 PASS Band2 1.4 18900 3 #0 QAM16 21.86 PASS Band2 1.4 18900 3 #Mid QAM16 21.76 PASS Band2 1.4 18900 3 #Max QAM16 21.75 PASS Band2 1.4 18900 6 #0 QAM16 21.01 PASS Band2 1.4 19193 1 #0 QPSK 22.76 PASS Band2 1.4 19193 1 #Mid QPSK 22.71 PASS Band2 1.4 19193 1 #Max QPSK 22.74 PASS Band2 1.4 19193 3 #0 QPSK 22.65 PASS Band2 1.4 19193 3 #Mid QPSK 22.65 PASS Band2 1.4 19193 3 #Max QPSK 22.67 PASS Band2 1.4 19193 6 #0 QPSK 21.65 PASS Band2 1.4 19193 1 #0 QAM16 21.75 PASS Band2 1.4 19193 1 #Mid QAM16 21.85 PASS Band2 1.4 19193 1 #Max QAM16 21.81 PASS Band2 1.4 19193 3 #0 QAM16 22.01 PASS Band2 1.4 19193 3 #Mid QAM16 21.93 PASS Band2 1.4 19193 3 #Max QAM16 21.97 PASS Report No.: S21121500202005 Page 2 of 256 Band2 1.4 19193 6 #0 QAM16 20.82 PASS Band2 3 18615 1 #0 QPSK 22.89 PASS Band2 3 18615 1 #Mid QPSK 22.93 PASS Band2 3 18615 1 #Max QPSK 22.85 PASS Band2 3 18615 8 #0 QPSK 21.84 PASS Band2 3 18615 8 #Mid QPSK 21.85 PASS Band2 3 18615 8 #Max QPSK 21.83 PASS Band2 3 18615 15 #0 QPSK 21.89 PASS Band2 3 18615 1 #0 QAM16 22.91 PASS Band2 3 18615 1 #Mid QAM16 22.91 PASS Band2 3 18615 1 #Max QAM16 22.80 PASS Band2 3 18615 8 #0 QAM16 20.86 PASS Band2 3 18615 8 #Mid QAM16 20.87 PASS Band2 3 18615 8 #Max QAM16 20.82 PASS Band2 3 18615 15 #0 QAM16 21.06 PASS Band2 3 18900 1 #0 QPSK 22.88 PASS Band2 3 18900 1 #Mid QPSK 22.83 PASS Band2 3 18900 1 #Max QPSK 22.88 PASS Band2 3 18900 8 #0 QPSK 21.71 PASS Band2 3 18900 8 #Mid QPSK 21.68 PASS Band2 3 18900 8 #Max QPSK 21.72 PASS Band2 3 18900 15 #0 QPSK 21.63 PASS Band2 3 18900 1 #0 QAM16 21.88 PASS Band2 3 18900 1 #Mid QAM16 21.74 PASS Band2 3 18900 1 #Max QAM16 21.73 PASS Band2 3 18900 8 #0 QAM16 21.10 PASS Band2 3 18900 8 #Mid QAM16 21.11 PASS Band2 3 18900 8 #Max QAM16 20.77 PASS Band2 3 18900 15 #0 QAM16 20.96 PASS Band2 3 19185 1 #0 QPSK 22.67 PASS Band2 3 19185 1 #Mid QPSK 22.70 PASS Band2 3 19185 1 #Max QPSK 22.73 PASS Band2 3 19185 8 #0 QPSK 21.52 PASS Band2 3 19185 8 #Mid QPSK 21.59 PASS Band2 3 19185 8 #Max QPSK 21.58 PASS Band2 3 19185 15 #0 QPSK 21.51 PASS Band2 3 19185 1 #0 QAM16 21.85 PASS Band2 3 19185 1 #Mid QAM16 21.82 PASS Band2 3 19185 1 #Max QAM16 21.88 PASS Band2 3 19185 8 #0 QAM16 20.61 PASS Band2 3 19185 8 #Mid QAM16 20.66 PASS Band2 3 19185 8 #Max QAM16 20.72 PASS Band2 3 19185 15 #0 QAM16 20.71 PASS Band2 5 18625 1 #0 QPSK 22.80 PASS Report No.: S21121500202005 Page 3 of 256 Band2 5 18625 1 #Mid QPSK 22.68 PASS Band2 5 18625 1 #Max QPSK 22.67 PASS Band2 5 18625 12 #0 QPSK 21.94 PASS Band2 5 18625 12 #Mid QPSK 21.86 PASS Band2 5 18625 12 #Max QPSK 21.92 PASS Band2 5 18625 25 #0 QPSK 21.81 PASS Band2 5 18625 1 #0 QAM16 22.07 PASS Band2 5 18625 1 #Mid QAM16 22.08 PASS Band2 5 18625 1 #Max QAM16 21.99 PASS Band2 5 18625 12 #0 QAM16 20.94 PASS Band2 5 18625 12 #Mid QAM16 20.83 PASS Band2 5 18625 12 #Max QAM16 20.80 PASS Band2 5 18625 25 #0 QAM16 20.92 PASS Band2 5 18900 1 #0 QPSK 22.88 PASS Band2 5 18900 1 #Mid QPSK 22.83 PASS Band2 5 18900 1 #Max QPSK 22.83 PASS Band2 5 18900 12 #0 QPSK 21.79 PASS Band2 5 18900 12 #Mid QPSK 21.81 PASS Band2 5 18900 12 #Max QPSK 21.76 PASS Band2 5 18900 25 #0 QPSK 21.69 PASS Band2 5 18900 1 #0 QAM16 21.43 PASS Band2 5 18900 1 #Mid QAM16 21.46 PASS Band2 5 18900 1 #Max QAM16 21.47 PASS Band2 5 18900 12 #0 QAM16 20.98 PASS Band2 5 18900 12 #Mid QAM16 20.91 PASS Band2 5 18900 12 #Max QAM16 20.66 PASS Band2 5 18900 25 #0 QAM16 21.10 PASS Band2 5 19175 1 #0 QPSK 22.33 PASS Band2 5 19175 1 #Mid QPSK 22.30 PASS Band2 5 19175 1 #Max QPSK 22.43 PASS Band2 5 19175 12 #0 QPSK 21.47 PASS Band2 5 19175 12 #Mid QPSK 21.52 PASS Band2 5 19175 12 #Max QPSK 21.48 PASS Band2 5 19175 25 #0 QPSK 21.52 PASS Band2 5 19175 1 #0 QAM16 21.46 PASS Band2 5 …
