2AUAN-1200SMHaws Electric Water Cooler

01/21 1210 Series Bottle Fillers Page 1 of 17 1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424 E-mail: [email protected]  website: www.hawsco.com No. 0510001059 (1) Bottle Filling Stations MODELS 1210S AND 1210SF INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS SAFETY PRECAUTIONS CAUTION: Disconnect electrical power to outlet before installing or servicing. NOTICE: A. The electrical receptacle must have code-approved ground-fault circuit interrupter (GFCI) protection for personnel. B. Care should be taken not to damage refrigeration system lines or electrical wires during installation. C. Installation must conform to all applicable codes and standards. D. Maintain 8 inches (20cm) separation from filter circuit board (antenna) at all times. NOTE TO INSTALLER: Please leave this information with the Maintenance Department. FULL-SCALE ROUGH-IN TEMPLATE (PN 0510001160) AVAILABLE UPON REQUEST. SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS MODEL PLEASE CALL: TECHNICAL SUPPORT: 1-800-766-5612 FOR CUSTOMER SERVICE: 1-888-640-4297 01/21 1210 Series Bottle Fillers Page 2 of 17 REQUIRED TOOLS (OR EQUIVALENT): □ Adjustable Wrench □ 1/4” Bit-holding screwdriver (7-3/4” max length) □ 1/4” Bit-holding screwdriver (4” max length, required for installs at Child ADA height only) □ #2 Phillips bit and a Flat-blade bit □ T20 Torx bit (supplied) □ 5/16” Nut driver bit (not necessary but will make some steps easier) □ Trimming tool for ABS pipe (necessary for some retrofits) □ Small bubble level □ Tape measure and tools for properly marking and measuring wall □ Clean cloth or paper towels □ Tubing cutter for polyethylene tubing □ Small diagonal cutting pliers □ Permanent Marker REQUIRED PARTS (NOT SUPPLIED): □ P-trap (1-1/4” such as Keeney 200W recommended) with appropriate seal for 1-1/4” OD tailpiece □ Suitable trap adapter (if not already installed – see installation drawing for details) □ Suitable angle stop valve with 3/8” compression outlet (if not already installed – see installation drawing for details) □ 1/4” fasteners suitable for fastening the unit into structural material in wall. □ Plastic cup (for bleeding air out of system following install) LOCATION OF UNIT: The Model 1210XX Series are suitable for indoor use only. These units are unsuitable for corrosive environments (such as enclosed chlorinated pool areas) or very dusty areas. The ambient air temperature must be maintained between 40°F and 94°F at all times. Installation into a location not meeting these limitations will void the warranty. SUPPLY LINE: The minimum recommended size is 1/2“IPS with 30-90 psig (2-6 ATM) flowing pressure. Where sediment or mineral content is a problem, an upstream water pre- filter is recommended. PLUMBING CONNECTIONS: Inlet is 3/8” OD polyethylene tubing. A suitable plastic ferrule and metal insert are provided to allow direct connection to a 3/8” compression water stop valve. Tailpiece is 1-1/4” OD ABS. ELECTRICAL CONNECTION: 120VAC/60HZ GFCI-Protected electrical receptacle, min 15A service. Use standard size 4.5” X 2.75” wall plate. Dedicated circuit recommended. INSTALLATION PROCEDURE GENERAL NOTES: • For all plastic push-in type fitting connections, only connect NSF-61 soft-copper or plastic tubing. These instructions must be followed to ensure a watertight connection: a. If tubing needs to be shortened, cut tubing square and clean. b. Mark from end of tube the depth of insertion (See table below). c. Push tube into the fitting until it bottoms out. d. To remove, depress collet and pull tubing out. Tube OD Size OD Tolerance Insertion Depth 1/4” ±.004” 11/16” 3/8” ±.004” 3/4” 01/21 1210 Series Bottle Fillers Page 3 of 17 A. INSTALLATION OF LOWER UNIT (CHILLING SYSTEM) 1. Verify that the electrical receptacle, water supply/valve, and drain locations are all in accordance with the installation drawing. a. NOTE: The installation drawing addresses new installations as well as retrofits. Consult the retrofit pages of the installation drawing if uncertain whether a retrofit will be possible in your case. 2. Remove the hanger bracket from the back of the unit by removing (1) screw. 3. Mount the hanger bracket on the wall using (4) 1/4” structural screws. a. NOTE: The screws must engage into structural material such as concrete, metal backing, wood blocking, etc. DO NOT use drywall anchors. b. NOTE: The hanger bracket has a notch indicating the centerline of the unit, as well as a second notch off- center indicating the ideal drain line location at the wall. If the centerline of the drain does not align with the second notch, consider moving the bracket location to accommodate. c. NOTE: It is recommended to mount the bottle filler bracket at this time. Refer to the applicable steps in those sections. 4. With the lower unit laying on its back, remove the (4) screws holding the skirt to the bottom of the frame. Then remove the skirt by sliding the skirt away. 5. Hang the lower unit onto the hanger bracket. a. NOTE: The hanger bracket must go through the holes in the frame that are shaped like a sideways letter “P”. b. NOTE: The bracket allows for some lateral adjustment of the unit’s location. Slide the unit laterally as needed at this time. 6. Secure both the lower right and lower left ends of the lower unit to the wall using at least (2) 1/4” or 3/8” structural screws. These screws should go through the holes which are approximately 5” from the bottom of the lower unit. Washers may be required. a. NOTE: The screws must engage into structural material such as concrete, metal backing, wood blocking, etc. DO NOT use drywall anchors. 7. Connect the water inlet line (attached to either the strainer or filter, as applicable), to the water stop by following the steps below. a. Cut the inlet line square and clean to the appropriate length, if needed. b. Install the compression nut (included with your supply valve), followed by the plastic ferrule (supplied), and the brass tube su…

Text truncated - open the document above for the full version.

U.S. HEADQUARTERS 1455 Kleppe Lane :: Sparks, NV 89431 p. 1.888.640.4297 :: f. 775.359.7424 :: [email protected] :: www.hawsco.com February 18, 2021 Attention: Application Examiner RE: Request for Confidentiality Applicant: Haws Corporation FCC ID: 2AUAN-1200SM To Whom It May Concern: Request is hereby submitted by Haws Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: Haws Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Sam Hong Senior Engineer Haws Compliance Manager Haws Corporation 1(1)

U.S. HEADQUARTERS 1455 Kleppe Lane :: Sparks, NV 89431 p. 1.888.640.4297 :: f. 775.359.7424 :: [email protected] :: www.hawsco.com January 26, 2021 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Haws Corporation FCC ID: 2AUAN-1200SM To Whom It May Concern: We, Haws Corporation, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AUAN-1200SM under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 01/29/2021. The Limited Agency Agreement expires on 01/29/2023, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Sam Hong Senior Engineer Haws Compliance Manager

1210SF External Pictures 1210SF FRONT 1210SF Left Side 1210SF RIGHT SIDE 1210SF REAR RFID Antenna 1210SF Bottom

Assembled in USA by: Haws Corporation 1455 Kleppe Lane Sparks, NV USA Model: 1210SF Volts 115VAC PH 1 Hz 60 Amps 5A Refrig. 4.09 oz (116g) R-134a Design Pressure - PSI: HS 330 / LS 120 CAUTION - SEE INSTALLATION INSTRUCTIONS. ATTENTION - CONSULTEZ LES INSTRUCTIONS D’INSTALLATION. C US NSF/ANSI 61 NSF/ANSI 372 0510001143 Rev 1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. HVIN: 12101A FCC ID: 2AUAN-1200SM IC: 25359-1200SM CAN ICES - 3(A)/NMB-3(A)

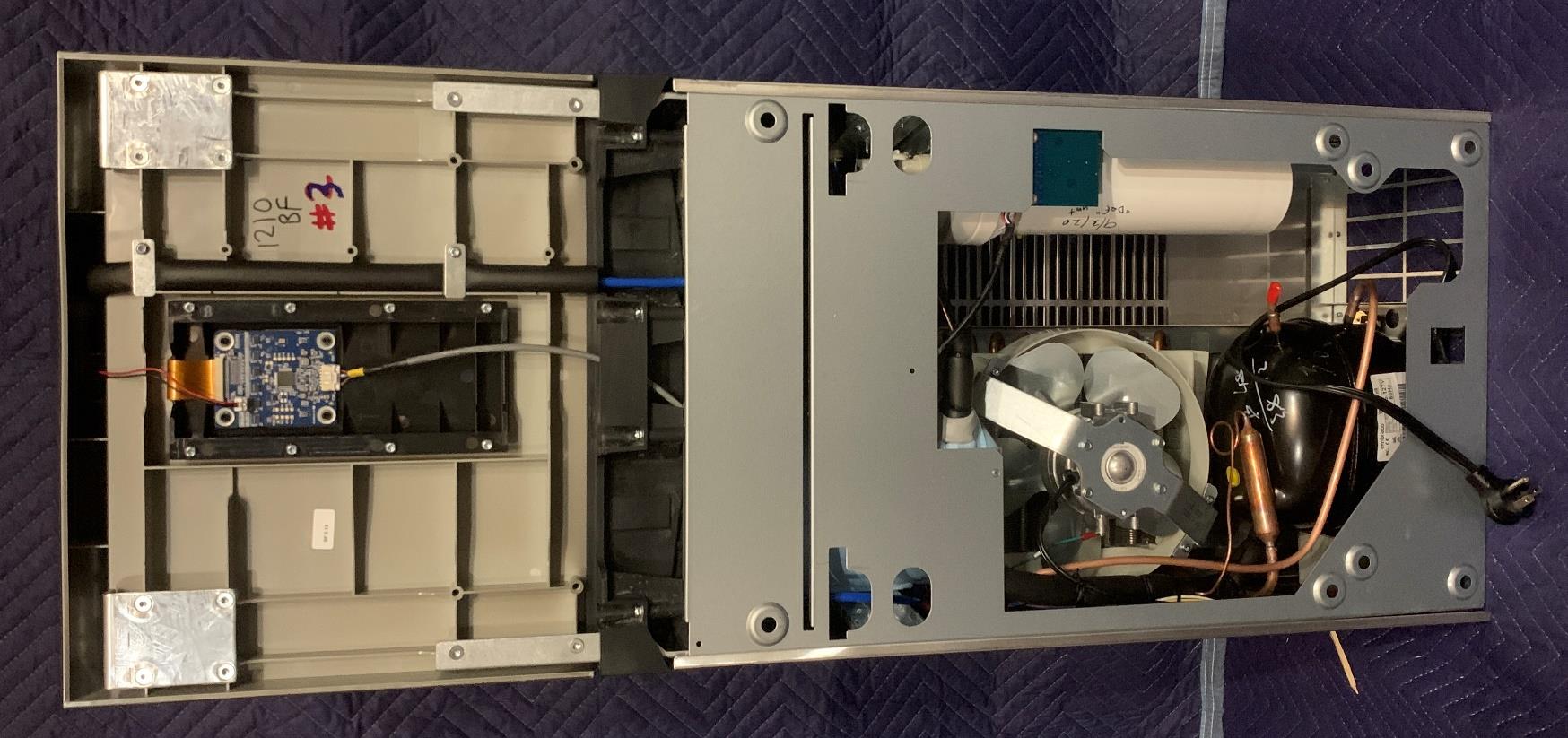

1210S Internal Pictures 1210S INTERIOR FRONT 1210SF INTERIOR RIGHT SIDE 1210S INTERIOR LEFT SIDE 1210SF INTERIOR MAIN BOARD Main Board 1210SF Bottom (Shown Without Nameplate) 1210SF Main Board (Shown Without Cover) 1210SF RFID Board From Left Side Front Antenna 1210SF RFID Board from Rear Antenna 1210SF Rear of Bottle Filler, Bottle Filler Board Shown Main Board Front (0210000743) Main Board Rear (0210000743) Bottle Filler Board Front (0210000744) Bottle Filler Board Rear (0210000744) Front (0210000745) Rear (0210000745)

EMC Report for Haws Corporation on the Haws Electronic Water Cooler File: 104568519MPK-001 Page 1 of 30 TEST REPORT Report Number: 104568519MPK-001 Project Number: G104568519 February 09, 2021 Testing performed on the Haws Electronic Water Cooler Model Number: 1210SF FCC ID: 2AUAN-1200SM IC: 25359-1200SM to FCC Part 15 Subpart C (15.225) ISED RSS-210 Issue 10 For Haws Corporation Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Haws Corporation 1455 Kleppe Ln Sparks, NV 89432 USA Prepared by: Date: February 09, 2021 Aaron Chang Reviewed by: Date: February 09, 2021 Krishna Vemuri This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this re port and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Haws Corporation on the Haws Electronic Water Cooler File: 104568519MPK-001 Page 2 of 30 Report No. 104568519MPK-001 Equipment Under Test: Haws Electronic Water Cooler Model Number: 1210SF Applicant: Haws Corporation Contact: Sam Hong Address: Haws Corporation 1455 Kleppe Ln Sparks, NV 89432 Country: USA Tel. Number: (775) 772-9235 Email: [email protected] Applicable Regulation: FCC Part 15 Subpart C (15.225) ISED RSS-210 Issue 10 Date of Test: January 27 – 29, 2021 We attest to the accuracy of this report: Aaron Chang Project Engineer Krishna K Vemuri EMC Manager EMC Report for Haws Corporation on the Haws Electronic Water Cooler File: 104568519MPK-001 Page 3 of 30 TABLE OF CONTENTS 1.0 Summary of Tests ....................................................................................................................... 4 2.0 General Description ................................................................................................................... 5 2.1 Product Description ............................................................................................................ 5 2.2 Related Submittal(s) Grants ................................................................................................ 6 2.3 Test Methodology ............................................................................................................... 6 2.4 Test Facility ......................................................................................................................... 6 2.5 Measurement Uncertainty ................................................................................................. 6 3.0 System Test Configuration ......................................................................................................... 7 3.1 Support Equipment ............................................................................................................. 7 3.2 Block Diagram of Test Setup ............................................................................................... 7 3.3 Justification ......................................................................................................................... 9 3.4 Software Exercise Program ................................................................................................. 9 3.5 Mode of Operation during test ........................................................................................... 9 3.6 Modifications required for Compliance .............................................................................. 9 3.7 Additions, deviations and exclusions from standards ........................................................ 9 4.0 Measurement Results .............................................................................................................. 10 4.1 Field Strength of Fundamental and Radiated Emissions Outside the band ..................... 10 4.2 Frequency Tolerance ........................................................................................................ 17 4.3 Occupied Bandwidth ......................................................................................................... 19 4.4 AC Line Conducted Emission ............................................................................................. 21 5.0 List of test equipment .............................................................................................................. 29 6.0 Document History .................................................................................................................... 30 EMC Report for Haws Corporation on the Haws Electronic Water Cooler File: 104568519MPK-001 Page 4 of 30 1.0 Summary of Tests TEST REFERENCE FCC 15.225 REFERENCE RSS-210 RESULTS Field Strength of Fundamental 15.225(a) B.6 Complies Radiated Emissions Outside the band 15.225(b), 15.225(c), 15.225(d), 15.209 B.6 Complies Frequency Tolerance of the Carrier 15.225(e) B.6 Complies Line Conducted Emissions 15.207 RSS-GEN Complies Occupied Bandwidth 15.215 RSS-GEN Complies Antenna requirement 15.203 RSS-GEN Complies 1 1 The EUT utilizes an internal Antenna. EMC Report for Haws Corporation on the Haws Electronic Water Cooler File: 104568519MPK-001 Page 5 of 30 2.0 General Description 2.1 Product Description Haws Corporation supplied the following d…
