2AUARTKMINIAutomotive Diagnostic Device

ThinkcarTechInc. * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 7/16/2024 ATTN.:ReviewingEngineer FCCID:2AUARTKMINI Persection2.911(d)(7)oftheFCCrules,THINKCARTECHCO.,LTD.(“theapplicant”)certifies thattheequipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S.agent* forserviceofprocess: CompanyName:ThinkcarTechInc. CompanyAddress:720SRochesterAveUnitB,Ontario,CA91761,UnitedStates Agentcontactname/Title:WinterZhao AgentEmailAddress:[email protected] TelNo.:(183)369-22766 FRNNo.:0029099298 Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferenttoApplicant): Signed:Signed: Printedname:JinyuanTangPrintedname:WinterZhao Title:ManagerTitle:Manager CompanyName:THINKCARTECHCO.,LTD.CompanyName:ThinkcarTechInc. Date:7/16/2024Date:7/16/2024

THINKCAR TECH CO., LTD. 2024-07-16 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AUARTKMINI) [THINKCAR TECH CO., LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Jiankuai Li THINKCAR TECH CO., LTD. 2024-04-28 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID:2AUARVENU5PRO) [THINKCAR TECH CO., LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Jiankuai Li

2024.04.26 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeSHENZHENSTSTESTSERVICESCO.,LTD./A1/F,Building B,ZhuokeSciencePark,No.190ChongqingRoad,HepingShequ,FuyongSub-District,Bao’anDistrict, Shenzhen,GuangDong,China/JiankuaiLi(NameofAgentcompanynameandaddress,NameofAgent) toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. ThisappointmentisvaliduntilfurtherDecember31,2024. Name:JiankuaiLi Title:PM E-mail:[email protected] Name:JinyuanTang Title:Manager E-mail:[email protected] Company:THINKCARTECHCO.,LTD. Signature:

THINKCAR TECH CO., LTD. 2024-07-16 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Automotive Diagnostic Device / TKD02, BT200,TKSA1,TCBD6 / FCC ID:2AUARTKMINI) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the •Schematics •Block diagram •Operation description required to be submitted with this application be permanently withheld from public review. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Please contact me if there is any information you may need. Sincerely, Jiankuai Li

THINKCAR TECH CO., LTD. 2024-07-16 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For(Automotive Diagnostic Device / TKD02, BT200,TKSA1,TCBD6 / FCC ID:2AUARTKMINI) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < THINKCAR TECH CO., LTD. >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < THINKCAR TECH CO., LTD.> considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < THINKCAR TECH CO., LTD.> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Jiankuai Li

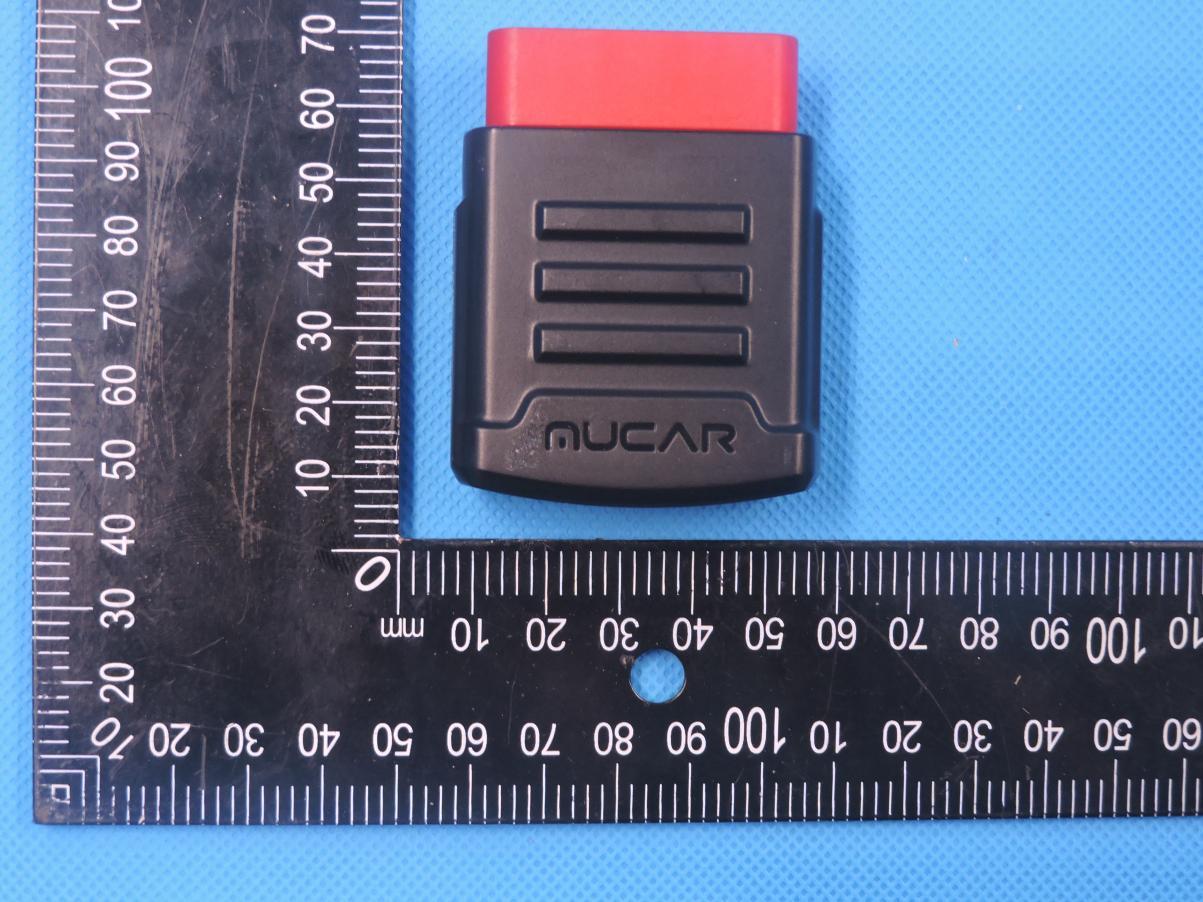

Page 1 of 3 Report No.: STS2406140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: TKD02 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2406140 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2406140 Photo 5 Photo 6 Page 1 of 3 Report No.: STS2406140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: BT200 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2406140 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2406140 Photo 5 Photo 6 Page 1 of 3 Report No.: STS2406140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: TKSA1 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2406140 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2406140 Photo 5 Photo 6 Page 1 of 3 Report No.: STS2406140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: TCBD6 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2406140 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2406140 Photo 5 Photo 6

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2406140H02 Issued for THINKCAR TECH CO., LTD. 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Name: Automotive Diagnostic Device Brand Name: THINKCAR, XHINKCAR, MUCAR Model Name: TKD02 Series Model(s): BT200,TKSA1,TCBD6 FCC ID: 2AUARTKMINI Test Standards: FCC 47CFR §2.1093 Page 2 of 9 Report No.: STS2406140H02 TEST REPORT Applicant’s Name ................. : THINKCAR TECH CO., LTD. Address ................................. : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Manufacturer's Name ........... : THINKCAR TECH CO., LTD. Address ................................. : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Description Product Name ........................ : Automotive Diagnostic Device Brand Name .......................... : THINKCAR, XHINKCAR, MUCAR Model Name .......................... : TKD02 Series Model(s) ...................... : BT200,TKSA1,TCBD6 Test Standards ..................... : FCC 47CFR §2.1093 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 28 June 2024 Date (s) of performance of tests ............. : 28 June 2024 ~ 04 July 2024 Date of Issue .......................................... : 04 July 2024 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2406140H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2406140H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 04 July 2024 STS2406140H02 ALL Initial Issue Page 5 of 9 Report No.: STS2406140H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Automotive Diagnostic Device Brand Name THINKCAR, XHINKCAR, MUCAR Model Name TKD02 Series Model(s) BT200,TKSA1,TCBD6 Model Difference Only difference in model name and appearance shape. Product Description The EUT is Automotive Diagnostic Device Operation Frequency: 2402~2480 MHz Modulation Type: BT: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK BLE: GFSK Antenna gain: 2.72 dBi Antenna Designation: Internal Antenna Rating Input: 9-18VDC 100mA Hardware version number V1.0 Software version number V1.0 SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2406140H02 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2406140H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2406140H02 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging …

Text truncated - open the document above for the full version.

TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 1 OF 7 KC.IA.00500(DIAGMINI) AntennaSpecification 1.Application: Thisapplicationshallapplyforantennaunitwhichshallbeusedsuchasautomotive, conventionalcommunications,smarthome,etc.. 2. ElectricalSpecification: Thosespecificationswerespeciallydefinedfor customer’s model,andall characteristicsweremeasuredunderthemodel’shandsettestingjig. 2-1.FrequencyBand: FrequencyBandMHz BT2400~2500MHz 2-2.Impedance 50ohmnominal 2-3.VSWR 2-3-1.MeasurementfrequencypointsandVSWRvalue FrequencyBand(MHz) 24002500 TypicalValue:（VSWR） 1.21.5 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 2 OF 7 2-3-4Measuring Method 1.A50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableis connectedtoanetworkanalyzertomeasuretheVSWR. 2.Keepingthisjigawayfrommetalatleast20cm 2-3-5Picture TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 3 OF 7 2-4.EfficiencyandGain 4-5.1Measuremethod 1.Usingalowlosscoaxialcabletolinkastandardhandsetjig 2.Fixedthishandsetjigonchamber’srotatorplane 3.Linkingjigintonetworkanalyzerportandusingaprobinghornantennato collectdata. 4.Usinganotherstandardgainhornantennatocalibratedthosedata 4-5.2Chamberdefinition 1.Ananechoicchamber(7mx4mx3m)whichsatisfiedfar-fieldconditionwasappliedto avoidmulti-patheffect 2.Thequiteroomregionis40cmx40cmx40cmatthecenterofrotator 3.ThedistancebetweenDUTandstandardantennais4.38m 4.Probingantenna(9120Dhornantenna)andstandardgainhornantenna(BBHA9120LPF 700MHz~6GHz) 4.38 m Rotatory controller Vector Network Aanlyzer Port 2Port 1 DUT Far-Field Chamber Std. Ant. TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 4 OF 7 2-4-1EfficiencyandGainand3DDate Frequency/MhzEfficiency/%MaxGain/dBi 2400 49.661.75 2410 50.352.36 2420 49.091.99 2430 49.432.5 2440 49.772.47 2450 49.552.29 2460 50.352.54 2470 49.092.13 2480 51.642.72 2490 52.362.32 2500 53.582.72 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 5 OF 7 3.Antennaenvironm 天线位置 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 1 OF 7 4.MechanicalSpecification: 3-1.MechanicalConfiguration(Unit:mm) Theappearanceoftheantennaisaccordingtodrawing TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X ＝ ±X.X ＝ ±X.XX ＝ ± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:Dewen APPROVEDBY:YS TITLE：KC.IA.00500AntennaSpecification SPECREV. P0 PAGE 2 OF 7 5.Packagingspecification： Productnumber ： xxxxx Productmodel：xxxxx 一、Labelrequirements： Customerxxx supplierxxxxx Materialcodingxx Productmodelxx NumberXXXPCSFactorydateXXX Remarks 二、Boxing： Jobdescription ： 1.Innerpackaging： XXpcsAbag 2.Externalpackaging ： XxPCS ； 3.Mattersneedingattention： a．Whethertoaddpartitionandpearlcotton； b ． Labelattachments,suchasROHS,etc. ； PE袋

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2406140W04 Issued for THINKCAR TECH CO., LTD. 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Name: Automotive Diagnostic Device Brand Name: THINKCAR, XHINKCAR, MUCAR Model Name: TKD02 Series Model(s): BT200,TKSA1,TCBD6 FCC ID: 2AUARTKMINI Test Standards: FCC Part15.247 S T L A B S Page 2 of 56 Report No.: STS2406140W04 TEST REPORT Applicant’s Name ................. : THINKCAR TECH CO., LTD. Address ................................. : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Manufacturer's Name .......... : THINKCAR TECH CO., LTD. Address ................................. : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Description Product Name ....................... : Automotive Diagnostic Device Brand Name .......................... : THINKCAR, XHINKCAR, MUCAR Model Name .......................... : TKD02 Series Model(s) .................... : BT200,TKSA1,TCBD6 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ..................... : 28 June 2024 Date (s) of performance of tests ............. : 28 June 2024 ~ 04 July 2024 Date of Issue .......................................... : 04 July 2024 Test Result.............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Chris Chen) Authorized Signatory : (Bovey Yang) Page 3 of 56 Report No.: STS2406140W04 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 16 4.1 RADIATED EMISSION LIMITS 16 4.2 TEST PROCEDURE 18 4.3 TEST SETUP 19 4.4 EUT OPERATING CONDITIONS 19 4.5 FIELD STRENGTH CALCULATION 19 4.6 TEST RESULTS 21 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 28 5.1 LIMIT 28 5.2 TEST PROCEDURE 28 5.3 TEST SETUP 28 5.4 EUT OPERATION CONDITIONS 28 5.5 TEST RESULTS 28 6. POWER SPECTRAL DENSITY TEST 29 6.1 LIMIT 29 6.2 TEST PROCEDURE 29 6.3 TEST SETUP 29 Page 4 of 56 Report No.: STS2406140W04 Table of Contents 6.4 EUT OPERATION CONDITIONS 29 6.5 TEST RESULTS 29 7. BANDWIDTH TEST 30 7.1 LIMIT 30 7.2 TEST PROCEDURE 30 7.3 TEST SETUP 30 7.4 EUT OPERATION CONDITIONS 30 7.5 TEST RESULTS 30 8. PEAK OUTPUT POWER TEST 31 8.1 LIMIT 31 8.2 TEST PROCEDURE 31 8.3 TEST SETUP 32 8.4 EUT OPERATION CONDITIONS 32 8.5 TEST RESULTS 32 9. ANTENNA REQUIREMENT 33 9.1 STANDARD REQUIREMENT 33 9.2 EUT ANTENNA 33 APPENDIX 1-TEST DATA 34 1. DUTY CYCLE 34 2. MAXIMUM AVERAGE CONDUCTED OUTPUT POWER 37 3. MAXIMUM PEAK CONDUCTED OUTPUT POWER 40 4. -6DB BANDWIDTH 43 5. MAXIMUM POWER SPECTRAL DENSITY LEVEL 46 6. BAND EDGE 49 7. CONDUCTED RF SPURIOUS EMISSION 52 APPENDIX 2- EUT TEST PHOTO 56 Page 5 of 56 Report No.: STS2406140W04 Revision History Rev. Issue Date Report No. Effect Page Contents 00 04 July 2024 STS2406140W04 ALL Initial Issue Page 6 of 56 Report No.: STS2406140W04 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-20120. Page 7 of 56 Report No.: STS2406140W04 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 10 Power Spectral Density, conducted ±1.245dB 11 Duty Cycle ±3.2% Page 8 of 56 Report No.: STS2406140W04 2. GENERAL INFORMATION 2.1 G…

Text truncated - open the document above for the full version.
