2AUARTKX16Advanced Vehicle Diagnostic Tool

THINKCAR TECH CO., LTD.
Advanced Vehicle Diagnostic Tool - FCC ID 2AUARTKX16 - THINKCAR TECH CO., LTD.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 05, 2026
Application Purpose
Original Equipment
Equipment Note
Advanced Vehicle Diagnostic Tool
Frequency Range
2402.00000000 - 2480.00000000
Company
THINKCAR TECH CO., LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC WARNING This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The mobile device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.911 W/kg. For body operation, this device has been tested and meets FCC RF exposure guidelines when used with any accessory that contains no metal and that positions a minimum of 0mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. ISED Warning This device complies with Innovation, Science and Economic Development Canada’s license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux normes RSS exemptées de licence d’innovation, sciences et développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1) ce dispositif ne peut pas causer d’interférence nuisible, (2) ce dispositif doit accepter toute interférence, y compris l’interférence qui peut causer un fonctionnement indésirable du dispositif. IC WARNING This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The mobile device is designed to meet the requirements for exposure to radio waves established by the Innovation, Science and Economic Development Canada (Canada). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0. 911W/kg. For body operation, this device has been tested and meets ISED RF exposure guidelines when used with any accessory that contains no metal and that positions a minimum of 0mm from the body. Use of other accessories may not ensure compliance with ISED RF exposure guidelines. Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. L'utilisateur final doit suivre les instructions d'utilisation spécifiques pour satisfaire la conformité d'exposition RF. Cet émetteur ne doit pas être co- localisé ou fonctionner en conjonction avec une autre antenne ou un autre émetteur. L'appareil mobile est conçu pour répondre aux exigences d'exposition aux ondes radio établies par Innovation, Sciences et Développement économique Canada (Canada). Ces exigences fixent une limite DAS de 1,6 W/kg en moyenne sur un gramme de tissu. La valeur SAR la plus élevée signalée dans le cadre de cette norme lors de la certifi cation du produit à utiliser lorsqu'il est correctement porté sur le corps est de 0,911W/kg. Pour le fonctionnement du corps, cet appareil a été testé et répond aux directives d'exposition RF ISED lorsqu'il est utilisé avec tout accessoire qui ne contient pas de métal et qui se positionne à au moins 0 mm du corps. L'utilisation d'autres accessoires peut ne pas garantir la conformité aux directives d'exposition RF ISED.

Attestation Statements

THINKCAR TECH CO., LTD. Covered Equipment Certification Attestation Letter 1/26/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AUARTKX16 THINKCAR TECH CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. THINKCAR TECH CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. THINKCAR TECH CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Jinyuan Tang Title: Manager Company Name: THINKCAR TECH CO., LTD. Date: 1/26/2026

Attestation Statements

THINKCARTECHCO.,LTD. U.S.AgentLetterofAttestation To:FederalCommunicationsCommission 7435OaklandMillsRoad,Columbia,MD21046,USA Date:Jan27,2026 Ref: AttestationStatement–Part 2.911(d)(7)filing FCCID:2AUARTKX16 THINKCARTECHCO.,LTD.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,ThinkcarTechInc.(“theagent”)isourdesignatedU.S.agentforserviceofprocessfor theabovereferenceFCCID.Theapplicantacceptstomaintainanagentforserviceofprocessin theUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminatedall marketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. TheapplicantfurtheracknowledgesitisourresponsibilitytoinformtheFCCwhenevertheagent informationchanges. ThinkcarTechInc.("theagent)understanditistheagent'sobligationtoacceptserviceofprocessin theUnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S.address andemailaddress. DesignatedU.S.Agent CompanyName:ThinkcarTechInc. FRN:0029099298 Address: 720SRochesterAveUnitB,Ontario,CA91761, UnitedStates Signature: ContactPerson:WinterZhao Tel:(183)369-22766Email:[email protected] Applicant THINKCARTECHCO.,LTD. FRN:0028727014 Address:2606,building4,phaseII,TiananYungu, Gangtoucommunity,Bantian,LonggangDistrict, Shenzhen,China Signature: ContactPerson:JinyuanTang Tel:86-0755-23760920Email:[email protected]

Cover Letter(s)

DATE: January 26, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CCUT Quality Technology Co., Ltd. (1F, Building 35, Changxing Technology Indstrl Park Changzhen Community, Yutang Street,Shenzhen,China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with THINKCAR TECH CO., LTD. (2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China). <Signature> Name: Jinyuan Tang Title: Manager Applicant Company: THINKCAR TECH CO., LTD.

Cover Letter(s)

Date: January 26, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Jinyuan Tang Title: Manager Company: THINKCAR TECH CO., LTD.

Cover Letter(s)

DATE: January 26, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AUARTKX16 Product Name: Advanced Vehicle Diagnostic Tool Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  SOFTWARE SECURITY DESCRIPTION These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Jinyuan Tang Title: Manager Company: THINKCAR TECH CO., LTD.

External Photos

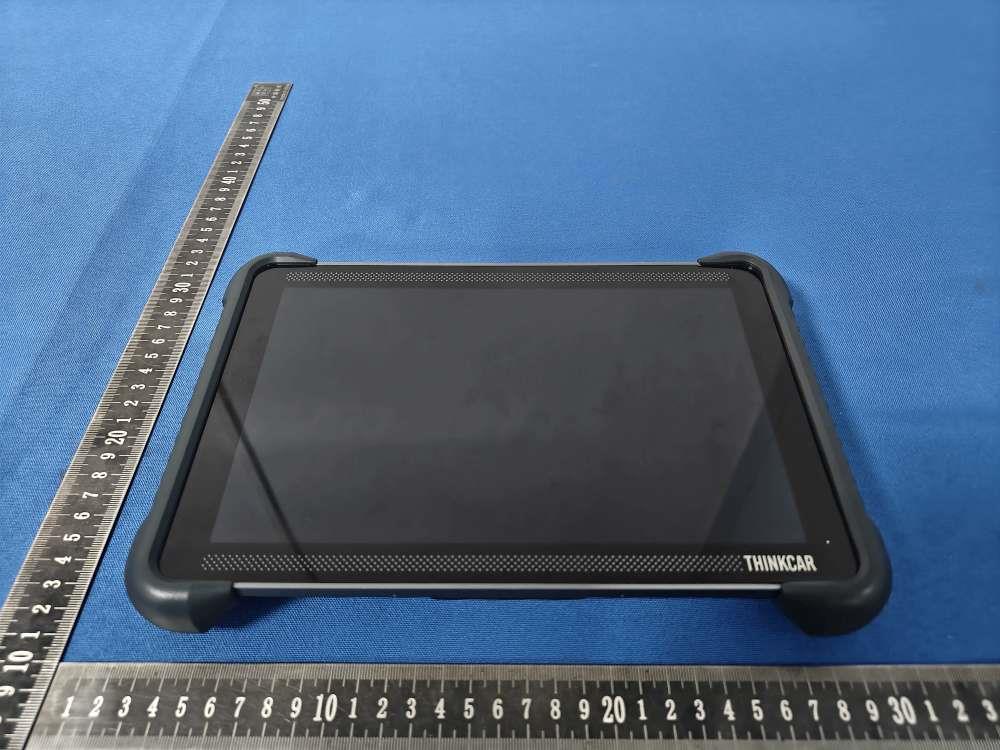

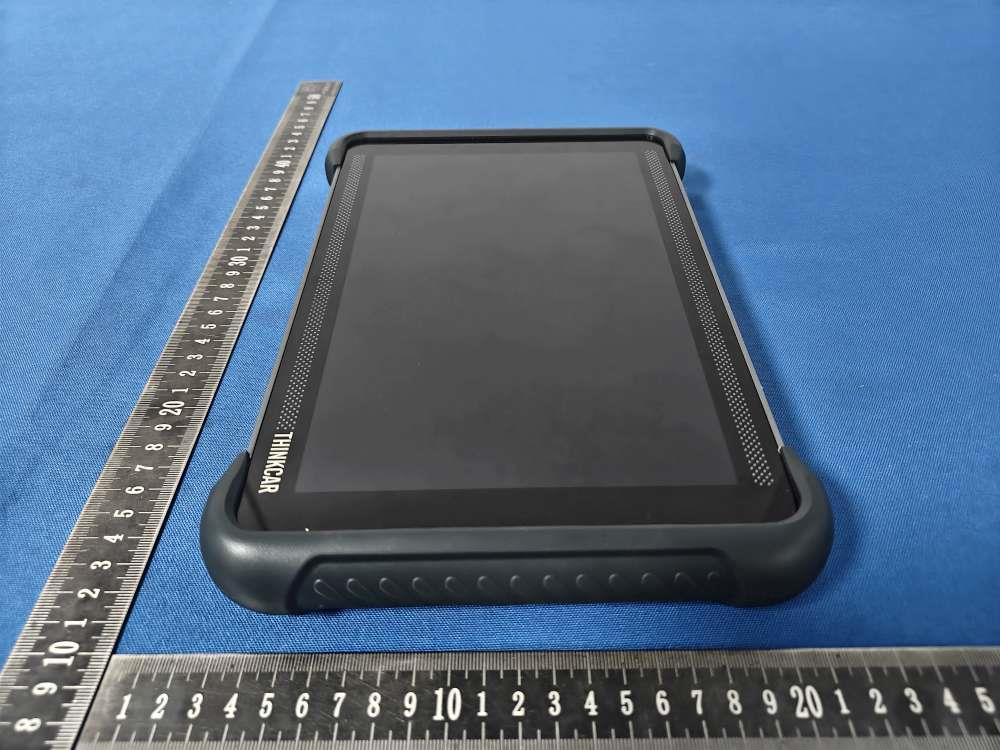

Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report Annex A. EUT External Photos Model : TKX16 EUT View 1 EUT View 2 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT View 7

ID Label/Location Info

Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample Label Size: 3cm*1.5cm FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

Internal Photos

Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report Annex B. EUT Internal Photos EUT Internal View 1 EUT Internal View 2 FPCB ANT Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT Internal View 3 EUT Internal View 4 NO USE Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT Internal View 5 EUT Internal View 6 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT Internal View 7 EUT Internal View 8 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT Internal View 9 EUT Internal View 10 Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report EUT Internal View 11 EUT Internal View 12

RF Exposure Info

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 47 TEST REPORT Reference No. .................... : WTX26X01004869W FCC ID ................................ : 2AUARTKX16 Applicant ........................... : THINKCAR TECH CO., LTD. Address.............................. : 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Manufacturer ..................... THINKCAR TECH CO., LTD. Address.............................. 2606, building 4, phase II, TiananYungu, Gangtou community, Bantian, Longgang District, Shenzhen, China Product Name ................... : Advanced Vehicle Diagnostic Tool Model No.. .......................... : TKX16 Standards .......................... : FCC Part 2.1093, IEEE Std C95.1: 2019 IEEE C95.3: 2021 Date of Receipt sample .... : 2025-01-07 Date of Test........................ : 2025-01-08 to 2025-01-21 Date of Issue ..................... : 2025-01-21 Test Report Form No. ....... : WTX_Part2_1093W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Lily Yang /Project Engineer Jason Su/Manager Reference No.: WTX26X01004869W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 47 TABLE OF CONTENTS 1. General Information ...................................................................................................................................................4 1.1 Product Description for Equipment Under Test (EUT) .........................................................................................4 1.2 Test Standards ....................................................................................................................................................6 1.3 Test Methodology ................................................................................................................................................6 1.4 Test Facility .........................................................................................................................................................6 2. Summary of Test Results ..........................................................................................................................................7 3. Specific Absorption Rate (SAR) ................................................................................................................................8 3.1 Introduction ..........................................................................................................................................................8 3.2 SAR Definition .....................................................................................................................................................8 4. SAR Measurement System ........................................................................................................................................9 4.1 The Measurement System ..................................................................................................................................9 4.2 Probe ...................................................................................................................................................................9 4.3 Probe Calibration Process ................................................................................................................................. 11 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 12 4.6 Test Equipment List ........................................................................................................................................... 13 5. Tissue Simulating Liquids ....................................................................................................................................... 14 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 14 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 15 5.3 Tissue Calibration Result ................................................................................................................................... 16 6. SAR Measurement Evaluation ................................................................................................................................ 17 6.1 Purpose of System Performance Check ............................................................................................................ 17 6.2 System Setup .................................................................................................................................................... 17 6.3 Validation Results .............................................................................................................................................. 18 7. EUT Testing Position ............................................................................................................................................... 19 7.1 Body Position .....................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Page: 1/10 Ref : ACR.49.6.25.BES.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD 1/F., ROOM 101, BUILDING 1, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD, BLOCK 70 BAO'AN DISTRICT, SHENZHEN, GUANGDONG, 518101 CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: 0725-EPGO-446 Calibrated at MVG Z.I. de la pointe du diable TechnopĂ´le Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/12/2025 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMO SAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report             COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Technical Manager 02/18/2025 Checked & approved by: Pedro Ruiz Technical Manager 02/18/2025 Authorized by: Geraldine Toutain Quality Manager Customer Name Distribution : WALTEK TESTING GROUP (SHENZHEN) CO., LTD Issue Name Date Modifications A Pedro Ruiz 2/18/2025 Initial release              COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 5 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 6 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9             COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number 0725-EPGO-446 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.248 M: Dipole 2: R2= 0.215 M: Dipole 3: R3=0.224 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz.             COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 LINEARITY The evaluatio…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report Annex C. Test Photos Conducted Emission Test View 1 Radiated Emission Test View Below 1GHz Report No: SSP25120277-1&2&3&4E FCC ID: 2AUARTKX16 Annex of Test Report Radiated Emission Test View Above 1GHz

Contact Information

Applicant

Jinyuan Tang(Manager)
[email protected]Fax: 86-0755-23760920

Technical Contact

Thinkcar Tech Inc.Winter Zhao
[email protected]

720 S Rochester Ave Unit B, Ontario · Ontario, California, 91761 · United States

Test Firm

Shenzhen CCUT Quality Technology Co., Ltd.Lahm Peng
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz510.00 µW
215C2.41 GHz - 2.47 GHz48.30 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device contains 20 and 40 MHz signal bandwidth. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 0 cm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for body-worn is 0.28W/kg.
