2AUBNA1776A1776 Flip Phone

Volume Key Earphone Google Voice/ Enter Key Receiver Open the Flip: USB Connector Navi Key Main Screen Front Camera Flip Microphone Dock Charging Connector LSK Key /Speaker RSK Key /Option Call Key Lock/ Unlock Browser End Call/ Power Key Vibration /Sound Camera INDEPENDENCE Phone Quick Guide Lan Global Inc. Microphone Flashlight Rear Camera Speaker SIM Card Micro SD Card Flip Key Front Screen LED Indicator SOS Key Remove Battery Door From Here 1. Flat size: 110*110mm, Folded size: 55*110mm, tolerance: ±0.5mm. 2. Paper: 128g coated paper. 3. Surface finished: matte varnishing. A1776_QSG 55mm 110mm FCC Regulatory Conformance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF Radiation Exposure Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

Lan Global Inc

Date: Feb 28, 2020 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: 2AUBNA1776 label location justification Gentlemen: Lan Global Inc requests acceptance of the labeling proposal described below for Smart Phone bearing FCC identifier 2AUBNA1776 The subject Smart Phone are compact handheld model, authorized under 47CFR Part 22H&24E for mobile services. Because the majority of the cell phone housing is composed of display, speaker, operating controls and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, Lan Global Inc proposes placing the label carrying the FCC identifier inside the battery compartment The consumer packaging for these models includes the battery pack as a separate item, not installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. Yours Sincerely, Wu Xuewen Certification manager Shenzhen BALUN Technology Co., Ltd.

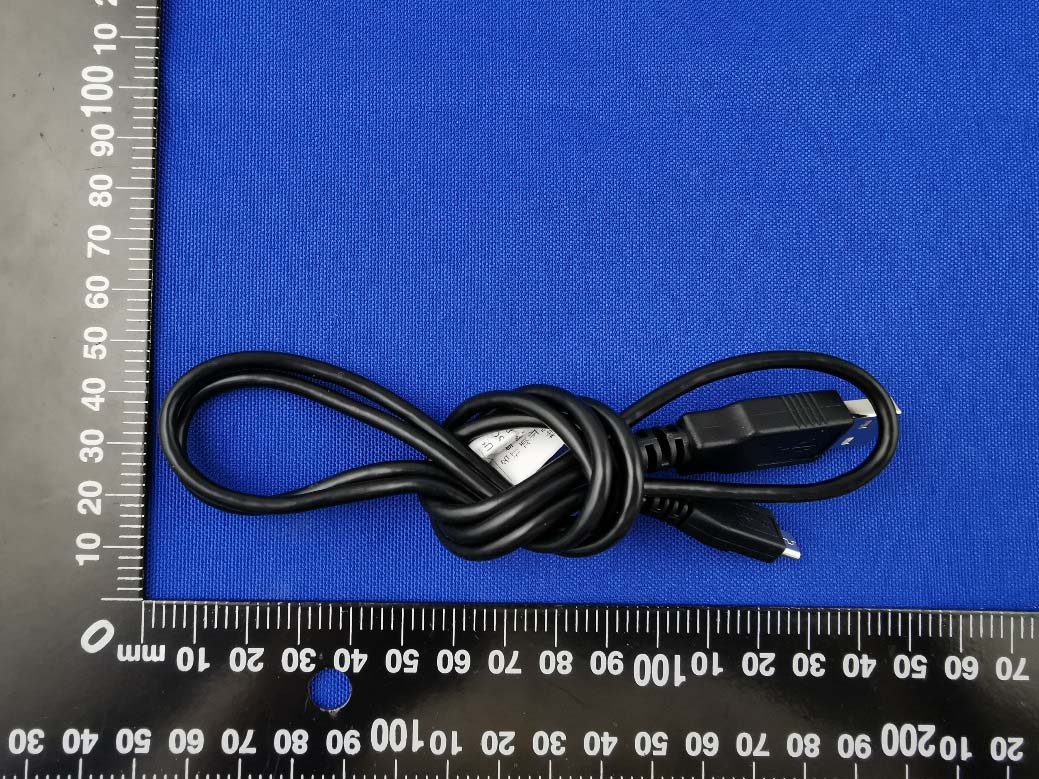

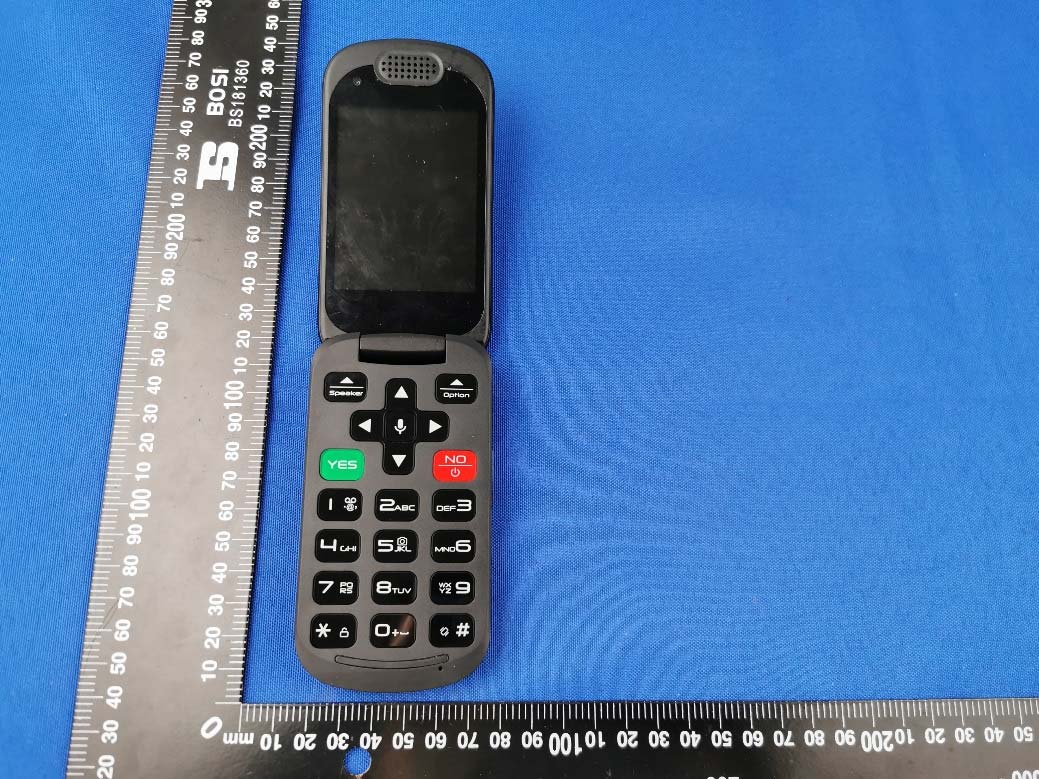

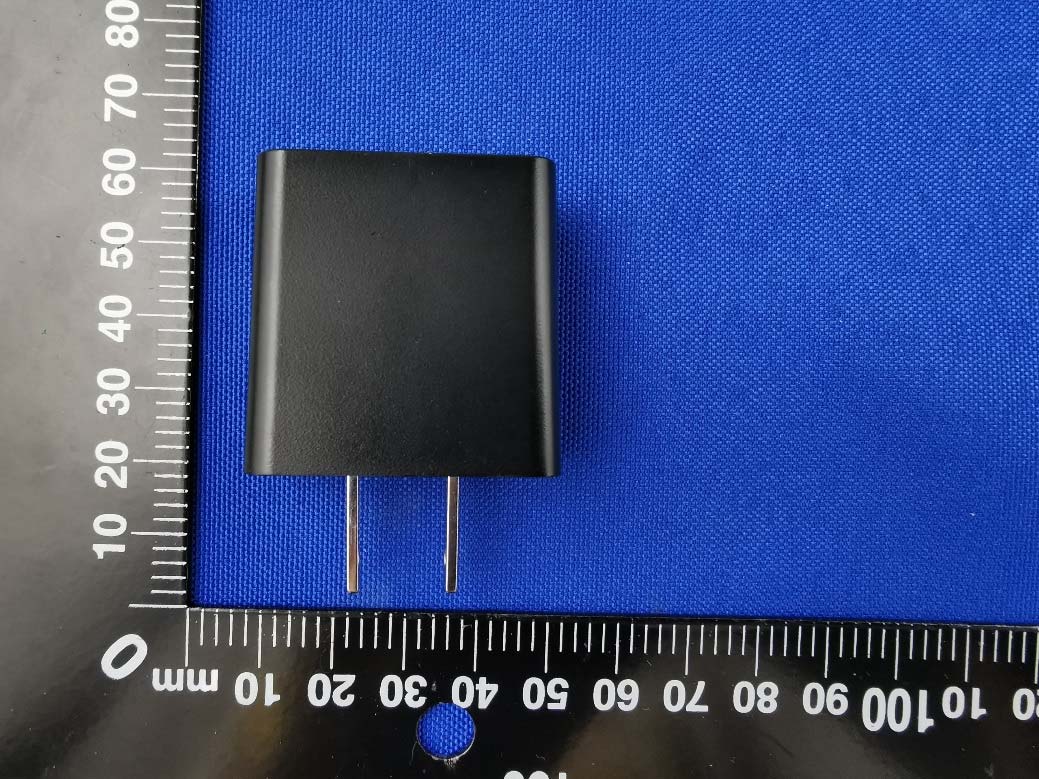

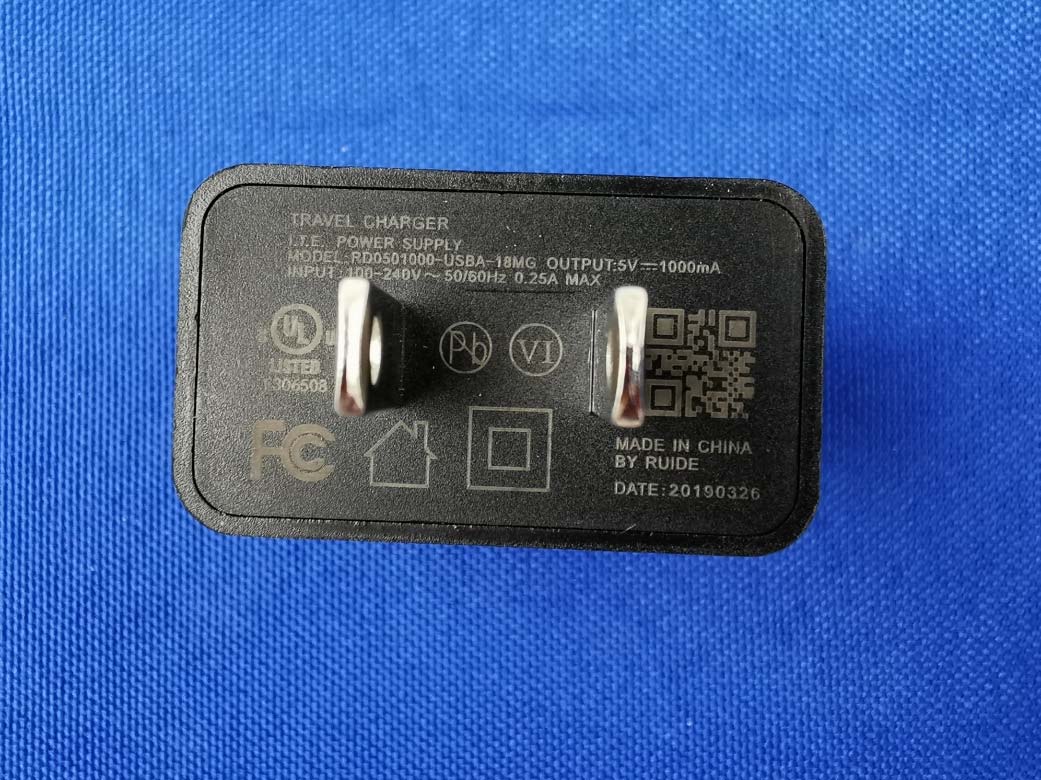

Annex No.: BL-SZ1990123-AW 1 / 6 ANNEX C EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ1990123-AW 2 / 6 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ1990123-AW 3 / 6 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ1990123-AW 4 / 6 OPEN Accessory-Power Adapter Annex No.: BL-SZ1990123-AW 5 / 6 CLOSE-UP Accessory- Charging Dock Annex No.: BL-SZ1990123-AW 6 / 6 CLOSE-UP Accessory-USB Cable

A1776_Device Label Size: 47.25*32.75mm Size: 28.8*26.25mm Device S/N: PA1776933000001 1 digit: P, mobile phone. 2-6 digit: model number, A1776 7 digit: last digit of Year. 8-9 digits: 2digits of Month. 10-15 digit: 6digits serial number, 000001~999999. Feature Phone Model: A1776 FCC ID: 2AUBNA1776 IMEI: 123456789012345 S/N: MPA177693300001 Lan Global Inc. | Made in China Feature Phone Model: A1776 FCC ID: 2AUBNA1776 IMEI: 123456789012345 S/N: MPA177693300001 Lan Global Inc. | Made in China

Annex No.: BL-SZ1990123-AI 1 / 5 ANNEX D EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW WLAN Antenna WWAN Antenna Annex No.: BL-SZ1990123-AI 2 / 5 EUT UNCOVER VIEW MAIN BOARD TOP VIEW (WITH SHIELDING) Annex No.: BL-SZ1990123-AI 3 / 5 MAIN BOARD REAR VIEW (WITH SHIELDING) MAIN BOARD TOP VIEW (WITHOUT SHIELDING) RF Chip Annex No.: BL-SZ1990123-AI 4 / 5 MAIN BOARD REAR VIEW (WITHOUT SHIELDING) Battery Photo (FRONT) Annex No.: BL-SZ1990123-AI 5 / 5 Battery Photo (REAR)

Report No.: BL-SZ1990123-701 2 / 103 Revision History Version Issue Date Revisions Content Rev. 01 Feb. 28, 2020 Initial Issue Rev. 02 Mar. 06, 2020 Added Bluetooth mode to Highest Simultaneous SAR in section 3.3.2. Revised description for wireless mode in section 8.1 Revised tune-up limit for LTE Band 13 in page 36. TABLE OF CONTENTS 1 GENERAL INFORMATION .................................................................................................................... 5 1.1 Identification of the Testing Laboratory ..................................................................................... 5 1.2 Identification of the Responsible Testing Location .................................................................... 5 1.3 Test Environment Condition ..................................................................................................... 5 1.4 Announce ................................................................................................................................. 6 2 PRODUCT INFORMATION ................................................................................................................... 7 2.1 Applicant Information ................................................................................................................ 7 2.2 Manufacturer Information .......................................................................................................... 7 2.3 Factory Information ................................................................................................................... 7 2.4 General Description for Equipment under Test (EUT) ............................................................... 7 2.5 Ancillary Equipment .................................................................................................................. 7 2.6 Technical Information ............................................................................................................... 8 3 SUMMARY OF TEST RESULT ............................................................................................................. 9 3.1 Test Standards ......................................................................................................................... 9 3.2 Device Category and SAR Limit ............................................................................................. 10 3.3 Test Result Summary ............................................................................................................. 11 3.4 Test Uncertainty ..................................................................................................................... 12 4 MEASUREMENT SYSTEM ................................................................................................................. 13 4.1 Specific Absorption Rate (SAR) Definition .............................................................................. 13 4.2 DASY SAR System ................................................................................................................ 14 5 SYSTEM VERIFICATION .................................................................................................................... 21 5.1 Purpose of System Check ...................................................................................................... 21 Report No.: BL-SZ1990123-701 3 / 103 5.2 System Check Setup .............................................................................................................. 21 6 TEST POSITION CONFIGURATIONS ................................................................................................ 22 6.1 Head Exposure Conditions ..................................................................................................... 22 6.2 Body-worn Position Conditions ............................................................................................... 24 6.3 Hotspot Mode Exposure Position Conditions .......................................................................... 25 7 MEASUREMENT PROCEDURE ......................................................................................................... 26 7.1 Measurement Process Diagram ............................................................................................. 26 7.2 SAR Scan General Requirement ............................................................................................ 27 7.3 Measurement Procedure ........................................................................................................ 28 7.4 Area & Zoom Scan Procedure ................................................................................................ 28 8 CONDUCTED RF OUPUT POWER .................................................................................................... 29 8.1 CDMA ..................................................................................................................................... 29 8.2 LTE......................................................................................................................................... 30 8.3 WIFI ........................................................................................................................................ 44 8.4 Bluetooth ................................................................................................................................ 44 9 TEST EXCLUSION CONSIDERATION ............................................................................................... 45 9.1 SAR Test Exclusion Consideration Table ............................................................................... 46 9.2 10g Extremity Exposure Consideration ................................................................................... 48 10 TEST RESULT .................................................................................................................................... 49 10.1 CDMA BC0 ...............................…

Text truncated - open the document above for the full version.

Document No: BL-SZ1990123 Page 1 of 124 Annex A.2 Peak to Average Ratio Document No: BL-SZ1990123 Page 2 of 124 CDMA 1. CDMA BC0_CH1013(FCC) 1.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 824.7 0.1 3.77 13 Pass Document No: BL-SZ1990123 Page 3 of 124 1. CDMA BC0_CH384(FCC) 1.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 836.52 0.1 3.68 13 Pass Document No: BL-SZ1990123 Page 4 of 124 1. CDMA BC0_CH777(FCC) 1.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 848.31 0.1 4.35 13 Pass Document No: BL-SZ1990123 Page 5 of 124 2. CDMA BC1_CH25 2.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1851.25 0.1 3.74 13 Pass Document No: BL-SZ1990123 Page 6 of 124 2. CDMA BC1_CH600 2.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1880 0.1 3.88 13 Pass Document No: BL-SZ1990123 Page 7 of 124 2. CDMA BC1_CH1175 2.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1908.75 0.1 3.68 13 Pass Document No: BL-SZ1990123 Page 8 of 124 3. CDMA BC10_CH450(part90) 3.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 817.25 0.1 3.65 13 Pass Document No: BL-SZ1990123 Page 9 of 124 3. CDMA BC10_CH560(part90) 3.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 820 0.1 3.42 13 Pass Document No: BL-SZ1990123 Page 10 of 124 3. CDMA BC10_CH670(part90) 3.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 822.75 0.1 3.48 13 Pass Document No: BL-SZ1990123 Page 11 of 124 EVDO 4. EVDO BC0_CH1013(FCC) 4.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 824.7 0.1 5.33 13 Pass Document No: BL-SZ1990123 Page 12 of 124 4. EVDO BC0_CH384(FCC) 4.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 836.52 0.1 4.99 13 Pass Document No: BL-SZ1990123 Page 13 of 124 4. EVDO BC0_CH777(FCC) 4.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 848.31 0.1 4.9 13 Pass Document No: BL-SZ1990123 Page 14 of 124 5. EVDO BC1_CH25 5.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1851.25 0.1 3.97 13 Pass Document No: BL-SZ1990123 Page 15 of 124 5. EVDO BC1_CH600 5.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1880 0.1 4.23 13 Pass Document No: BL-SZ1990123 Page 16 of 124 5. EVDO BC1_CH1175 5.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 1908.75 0.1 4.03 13 Pass Document No: BL-SZ1990123 Page 17 of 124 6. EVDO BC10_CH450(part90) 6.1. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 817.25 0.1 4.99 13 Pass Document No: BL-SZ1990123 Page 18 of 124 6. EVDO BC10_CH560(part90) 6.2. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 820 0.1 4.7 13 Pass Document No: BL-SZ1990123 Page 19 of 124 6. EVDO BC10_CH670(part90) 6.3. Peak to Average Ratio(NTNV) Center Frequency(MHz) PAR Percent (%) PAR (dB) Limit (dB) Verdict 822.75 0.1 4.72 13 Pass Document No: BL-SZ1990123 Page 20 of 124 LTE 7. LTE_Band2 7.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 3.39 13 Pass Document No: BL-SZ1990123 Page 21 of 124 7.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.49 13 Pass Document No: BL-SZ1990123 Page 22 of 124 7.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 4.14 13 Pass Document No: BL-SZ1990123 Page 23 of 124 7.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.45 13 Pass Document No: BL-SZ1990123 Page 24 of 124 7.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 3.48 13 Pass Document No: BL-SZ1990123 Page 25 of 124 7.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 4.49 13 Pass Document No: BL-SZ1990123 Page 26 of 124 7.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 4.43 13 Pass Document No: BL-SZ1990123 Page 27 of 124 7.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.45 13 Pass Document No: BL-SZ1990123 Page 28 of 124 7.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 3.45 13 Pass Document No: BL-SZ1990123 Page 29 of 124 7.10. LTE Peak to Average Ratio(NTNV)(Subtest:10, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (…

Text truncated - open the document above for the full version.

Document No: BL-SZ1990123 Page 1 of 284 Annex A.3 Occupied Bandwidth Document No: BL-SZ1990123 Page 2 of 284 1. CDMA BC0_CH1013(FCC) 1.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 824.7 99.00 26 0.03 Peak 1.48 1.272537 1.431637 Pass Document No: BL-SZ1990123 Page 3 of 284 1. CDMA BC0_CH384(FCC) 1.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 836.52 99.00 26 0.03 Peak 1.48 1.274159 1.439737 Pass Document No: BL-SZ1990123 Page 4 of 284 1. CDMA BC0_CH777(FCC) 1.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 848.31 99.00 26 0.03 Peak 1.48 1.270781 1.420146 Pass Document No: BL-SZ1990123 Page 5 of 284 2. CDMA BC1_CH25 2.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1851.25 99.00 26 0.03 Peak 1.48 1.272136 1.42437 Pass Document No: BL-SZ1990123 Page 6 of 284 2. CDMA BC1_CH600 2.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1880 99.00 26 0.03 Peak 1.48 1.275261 1.428491 Pass Document No: BL-SZ1990123 Page 7 of 284 2. CDMA BC1_CH1175 2.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1908.75 99.00 26 0.03 Peak 1.48 1.274481 1.435029 Pass Document No: BL-SZ1990123 Page 8 of 284 3. CDMA BC10_CH450(part90) 3.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 817.25 99.00 26 0.03 Peak 1.48 1.274993 1.432799 Pass Document No: BL-SZ1990123 Page 9 of 284 3. CDMA BC10_CH560(part90) 3.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 820 99.00 26 0.03 Peak 1.48 1.275712 1.432413 Pass Document No: BL-SZ1990123 Page 10 of 284 3. CDMA BC10_CH670(part90) 3.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 822.75 99.00 26 0.03 Peak 1.48 1.27703 1.430735 Pass Document No: BL-SZ1990123 Page 11 of 284 4. EVDO BC0_CH1013(FCC) 4.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detector Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdict 824.7 99.00 26 0.03 Peak 1.48 1.271431 1.429625 Pass Document No: BL-SZ1990123 Page 12 of 284 4. EVDO BC0_CH384(FCC) 4.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 836.52 99.00 26 0.03 Peak 1.48 1.273363 1.430643 Pass Document No: BL-SZ1990123 Page 13 of 284 4. EVDO BC0_CH777(FCC) 4.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 848.31 99.00 26 0.03 Peak 1.48 1.272702 1.432991 Pass Document No: BL-SZ1990123 Page 14 of 284 5. EVDO BC1_CH25 5.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1851.25 99.00 26 0.03 Peak 1.48 1.27279 1.430613 Pass Document No: BL-SZ1990123 Page 15 of 284 5. EVDO BC1_CH600 5.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1880 99.00 26 0.03 Peak 1.48 1.271303 1.428643 Pass Document No: BL-SZ1990123 Page 16 of 284 5. EVDO BC1_CH1175 5.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 1908.75 99.00 26 0.03 Peak 1.48 1.272703 1.426872 Pass Document No: BL-SZ1990123 Page 17 of 284 6. EVDO BC10_CH450(part90) 6.1. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 817.25 99.00 26 0.03 Peak 1.48 1.268132 1.434454 Pass Document No: BL-SZ1990123 Page 18 of 284 6. EVDO BC10_CH560(part90) 6.2. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 820 99.00 26 0.03 Peak 1.48 1.268624 1.431617 Pass Document No: BL-SZ1990123 Page 19 of 284 6. EVDO BC10_CH670(part90) 6.3. Occupied Bandwidth(NTNV) Center Frequency (MHz) OBW Power (%) XdB Down RBW (MHz) Detecto r Limit (MHz) OBW (MHz) XdB BandWidth (MHz) Verdic t 822.75 99.00 26 0.03 Peak 1.48 1.270111 1.429293 Pass Document No: BL-SZ1990123 Page 20 of 284 7. LTE_Band2 7.1. LTE Occupied Bandwidth(NTNV)(Subtest:1, Channel:18607, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.09 1.28 1.4 Pass Document No: BL-SZ1990123 Page 21 of 284 7.2. LTE Occupied Bandwidth(NTNV)(Subtest:2, Channel:18607, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1850.7 99 26 0.027 Peak 1.09 1.3 1.4 Pass Document No: BL-SZ1990123 Page 22 of 284 7.3. LTE Occupied Bandwidth(NTNV)(Subtest:3, Channel:18900, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.027 Peak 1.09 1.29 1.4 Pass Document No: BL-SZ1990123 Page 23 of 284 7.4. LTE Occupied Bandwidth(NTNV)(Subtest:4, Channel:18900, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Freq…

Text truncated - open the document above for the full version.

Document No: BL-SZ1990123 Page 1 of 284 Annex A.5 Spurious Emission at Antenna Terminals Document No: BL-SZ1990123 Page 2 of 284 CDMA 1. CDMA BC0_CH1013(FCC) 1.1. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.01-57.94-13 Pass 401 0.15 30 0.01 Peak 0.23-56.02-13 Pass 2985 30 500 0.1 Peak 367.472-44.49-13 Pass 4700 500 1000 0.1 Peak 824.66524.29-13 N/A 5000 1000 10000 1 Peak 7416.783-23.36-13 Pass 9000 Document No: BL-SZ1990123 Page 3 of 284 1. CDMA BC0_CH384(FCC) 1.2. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.014-57.82-13 Pass 401 0.15 30 0.01 Peak 0.28-54.93-13 Pass 2985 30 500 0.1 Peak 499.4-44.04-13 Pass 4700 500 1000 0.1 Peak 836.56724.11-13 N/A 5000 1000 10000 1 Peak 7212.758-23.4-13 Pass 9000 Document No: BL-SZ1990123 Page 4 of 284 1. CDMA BC0_CH777(FCC) 1.3. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.01-57.62-13 Pass 401 0.15 30 0.01 Peak 0.64-55.58-13 Pass 2985 30 500 0.1 Peak 418.283-44.19-13 Pass 4700 500 1000 0.1 Peak 848.2721.61-13 N/A 5000 1000 10000 1 Peak 7375.778-22.81-13 Pass 9000 Document No: BL-SZ1990123 Page 5 of 284 2. CDMA BC1_CH25 2.1. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.011-58.13-13 Pass 401 0.15 30 0.01 Peak 0.32-54.44-13 Pass 2985 30 1000 0.1 Peak 829.698-43.37-13 Pass 9699 1000 3000 1 Peak 1851.42626.66-13 N/A 2000 3000 20000 1 Peak 19407.037-16.04-13 Pass 17000 Document No: BL-SZ1990123 Page 6 of 284 2. CDMA BC1_CH600 2.2. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01-57.7-13 Pass 401 0.15 30 0.01 Peak 0.65-54.96-13 Pass 2985 30 1000 0.1 Peak 935.314-43.38-13 Pass 9699 1000 3000 1 Peak 1879.4426.83-13 N/A 2000 3000 20000 1 Peak 19383-16.19-13 Pass 17000 Document No: BL-SZ1990123 Page 7 of 284 2. CDMA BC1_CH1175 2.3. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.01-56.56-13 Pass 401 0.15 30 0.01 Peak 0.15-54.68-13 Pass 2985 30 1000 0.1 Peak 954.64-43.66-13 Pass 9699 1000 3000 1 Peak 1909.45526.54-13 N/A 2000 3000 20000 1 Peak 19965.945-15.95-13 Pass 17000 Document No: BL-SZ1990123 Page 8 of 284 3. CDMA BC10_CH450(part90) 3.1. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.009-58.86-13 Pass 401 0.15 30 0.01 Peak 0.15-54.93-13 Pass 2985 30 500 0.1 Peak 444.088-44.72-13 Pass 4700 500 1000 0.1 Peak 817.16323.27-13 N/A 5000 1000 10000 1 Peak 8229.883-23.31-13 Pass 9000 Document No: BL-SZ1990123 Page 9 of 284 3. CDMA BC10_CH560(part90) 3.2. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.01-57.39-13 Pass 401 0.15 30 0.01 Peak 0.27-55.56-13 Pass 2985 30 500 0.1 Peak 370.873-44.39-13 Pass 4700 500 1000 0.1 Peak 820.06423.4-13 N/A 5000 1000 10000 1 Peak 7623.809-22.93-13 Pass 9000 Document No: BL-SZ1990123 Page 10 of 284 3. CDMA BC10_CH670(part90) 3.3. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.009-56.44-13 Pass 401 0.15 30 0.01 Peak 0.16-53.5-13 Pass 2985 30 500 0.1 Peak 353.469-44.17-13 Pass 4700 500 1000 0.1 Peak 822.86522.97-13 N/A 5000 1000 10000 1 Peak 7233.761-23.58-13 Pass 9000 Document No: BL-SZ1990123 Page 11 of 284 EVDO 4. EVDO BC0_CH1013(FCC) 4.1. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.013-58.67-13 Pass 401 0.15 30 0.01 Peak 0.15-55.22-13 Pass 2985 30 500 0.1 Peak 496.099-44.52-13 Pass 4700 500 1000 0.1 Peak 824.36522.99-13 N/A 5000 1000 10000 1 Peak 7870.839-23.12-13 Pass 9000 Document No: BL-SZ1990123 Page 12 of 284 4. EVDO BC0_CH384(FCC) 4.2. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.009-58.05-13 Pass 401 0.15 30 0.01 Peak 0.18-54.13-13 Pass 2985 30 500 0.1 Peak 449.589-43.93-13 Pass 4700 500 1000 0.1 Peak 836.26722.92-13 N/A 5000 1000 10000 1 Peak 6683.694-23.06-13 Pass 9000 Document No: BL-SZ1990123 Page 13 of 284 4. EVDO BC0_CH777(FCC) 4.3. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.009-58.17-13 Pass 401 0.15 30 0.01 Peak 0.53-55.39-13 Pass 2985 30 500 0.1 Peak 490.898-44.47-13 Pass 4700 500 1000 0.1 Peak 848.5722.91-13 N/A 5000 1000 10000 1 Peak 7436.786-23.31-13 Pass 9000 Document No: BL-SZ1990123 Page 14 of 284 5. EVDO BC1_CH25 5.1. Spurious Emission at Antenna Terminals(NTNV) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.076-57.25-13 Pass 401 0.15 30 0.01 Peak 0.21-54.06-13 Pass 2985 30 1000 0.1 Peak 861.016-43.77-13 Pass 9699 1000 3000 1 Peak 1851.42627.12-13 N/A 2000 3000 20000 1 Peak 19663.454…

Text truncated - open the document above for the full version.

Document No: BL-SZ1990123 Page 1 of 430 Annex A.6 Band Edge Document No: BL-SZ1990123 Page 2 of 430 CDMA 1. CDMA BC0_CH1013(FCC) 1.1. Band Edge for Lower(NTNV) Center Frequency (MHz) Span (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Verdic t Sweep Point 824 2.000000 0.03 RMS 823.985-15.54 Pass 401 Document No: …
