2AUCA-808-4X8 inch Touchscreen Controller

1/2 ZonePad 8 8 zone touchscreen wall controller Controllers • 8-inch tempered glass touch panel • Durable and impact-resistant • Simple installation • Auto-detection of Zone controllers • Flexible mounting options ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user- friendly interface, providing users with the ability to operate complex audio systems effortlessly. ZonePad 8 enables easy selection and volume control of playback sources and microphones across eight zones from one central position, making it ideal for dynamic commercial environments. Its seamless integration with Optimal Audio Zone controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs. Power is delivered via POE from a compatible router or switch. For venues where the installer cannot run cables, ZonePad 8 can be powered remotely and connect to a Zone controller via WIFI using the optional accessory. CafesEducation Facilities Bars/ Restaurants Houses of Worship RetailCorporate Offices Wedding Venues MuseumsHotelsFitness StudiosResidential APPLICATIONS FEATURES 2/2 ZonePad 8 8 zone touchscreen wall controller Controllers SPECIFICATIONS TYPE 8 zone touchscreen wall controller DISPLAY 8-Inch, IPS, Capacitive, 10 multi touch points, tempered glass, impact resistant to IK2 standard RESOLUTION 1280 x 800, 189 DPI WEBAPP SYSTEM CONNECTION Ethernet via RJ45 adaptor / Wireless POWER POE or optional 12V adaptor COMPUTING Allwinner A133 Quad-Core Cortex-A53 @ 1.5GHz 2GB RAM OS – Android 14 ENCLOSURE Satin finished ABS, UL94, V0 rated material COLOUR Black MOUNTING SYSTEM Supplied with surface mount plate, compatible with single gang EU, US, and UK back boxes DIMENSIONS (W) 189mm x (H) 119mm x (D) 15mm (W) 7.44” x (H) 4.68” x (D) 0.59” WEIGHT 0.32kg (0.70 lbs) optimal-audio.co.uk © 2025. Optimal Audio Group Ltd. Finish Black 0.7 lbs 0.32 kg Weight FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 25mm between the radiator and your body.

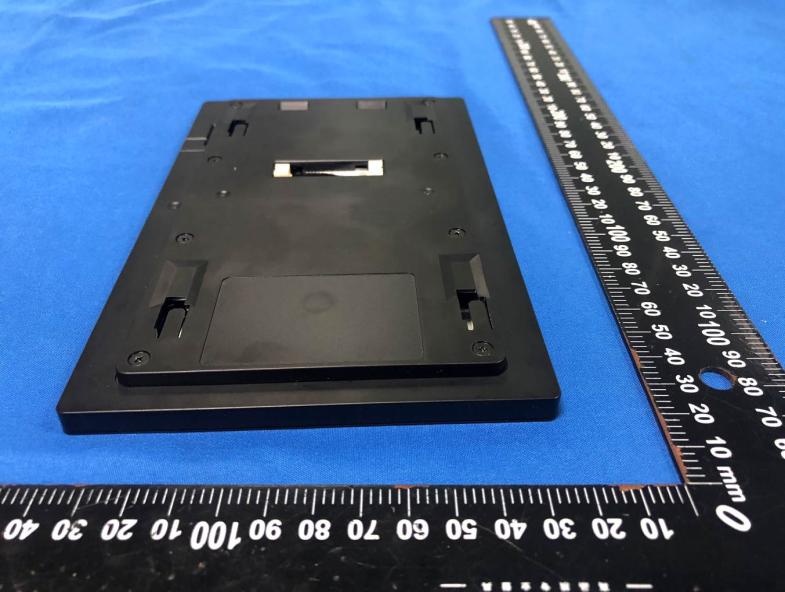

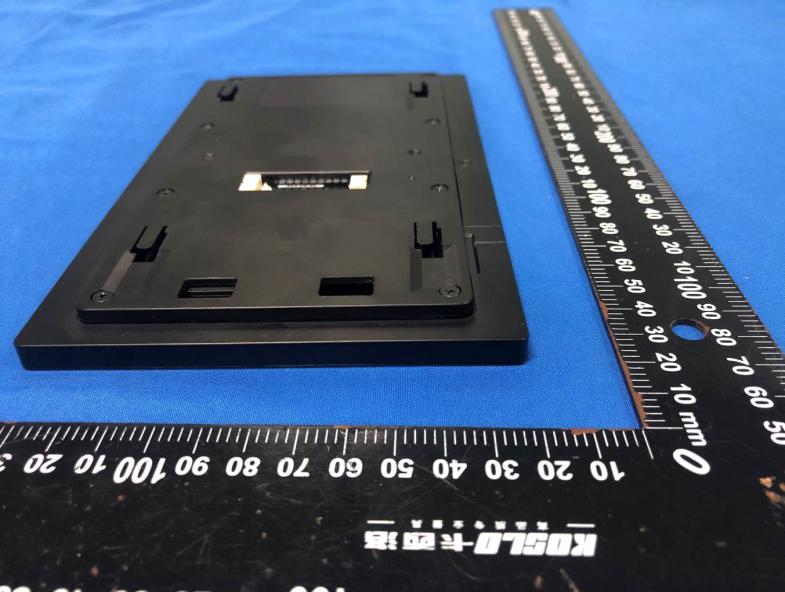

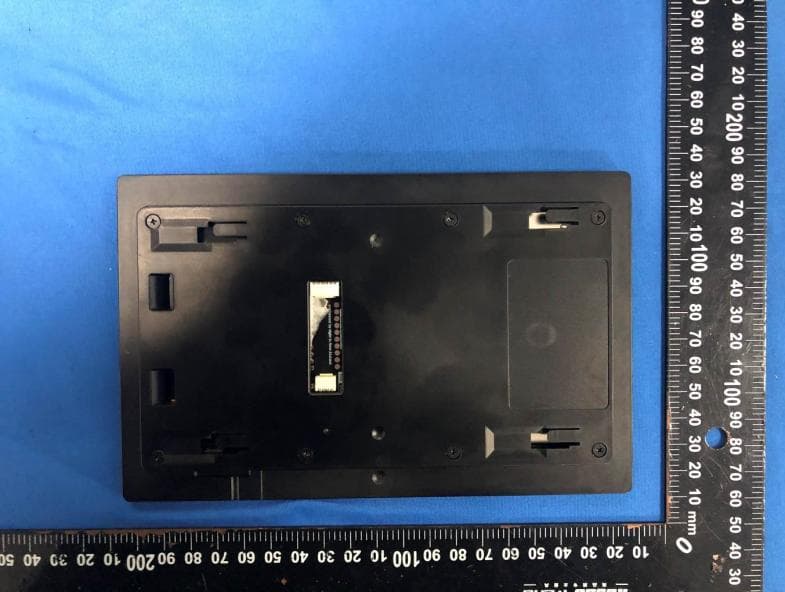

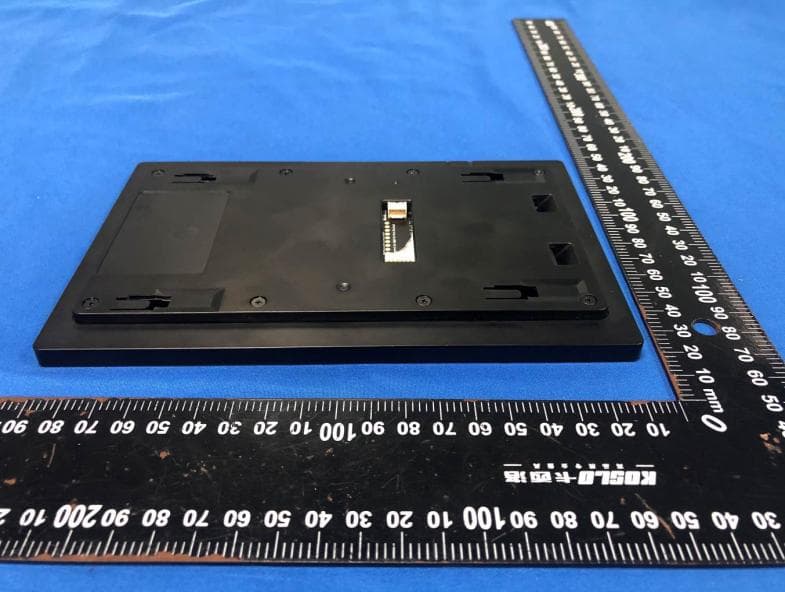

FCC ID:2AUCA-808-4X External Photos of the EUT FCC ID:2AUCA-808-4X FCC ID:2AUCA-808-4X

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2AUCA-808-4X

FCC ID:2AUCA-808-4X Internal Photos of the EUT FCC ID:2AUCA-808-4X ANT FCC ID:2AUCA-808-4X FCC ID:2AUCA-808-4X FCC ID:2AUCA-808-4X

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25090501005 2AUCA-808-4X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 12, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : 8 Limited Address............................................ : Unit AA, 16-18 Taylors Road Morningside, Auckland, New Zealand Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 8 inch Touchscreen Controller Trade Mark ........................................ TouchOne Gen4 8inch Manufacturer .................................... : 8 Limited Model/Type reference ...................... : 808-4x Listed Models ................................... : N/A Rating ............................................... : Input: 12V1.5A Result ............................................... : PASS Report No.: CTA25090501005 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 8 inch Touchscreen Controller Model /Type : 808-4x Listed Models : N/A Applicant : 8 Limited Address : Unit AA, 16-18 Taylors Road Morningside, Auckland, New Zealand Manufacturer : 8 Limited Address : Unit AA, 16-18 Taylors Road Morningside, Auckland, New Zealand Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25090501005 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance ........................................................................................ 10 4.4 Evaluation Result ................................................................................................... 10 4.5 Simultaneous Transmission for SAR Exclusion .................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA25090501005 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 Ge…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PIFA Antenna Model 808-4x Frequency range 2400-2500MHz, 5180-5240MHz, 5745-5825MHz Manufacturer 8 Limited Address Unit AA, 16-18 Taylors Road Morningside Auckland, 1025 New Zealand ANT Peak Gain 1.15 dBi for 2400-2500MHz 1.18 dBi for 5180-5240MHz 1.21 dBi for 5745-5825MHz 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz 5180MHz 5220MHz 5240MHz 5745MHz 5785MHz 5825MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25090501002 2AUCA-808-4X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 16, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : 8 Limited Address ............................................ : Unit AA, 16-18 Taylors Road Morningside Auckland, 1025 New Zealand Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 8 inch Touchscreen Controller Trade Mark ....................................... : TouchOne Gen4 8inch Manufacturer .................................... : 8 Limited Model/Type reference ...................... : 808-4x Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : Input: 12V1.5A Result ............................................... : PASS Report No.: CTA25090501002 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 8 inch Touchscreen Controller Model /Type : 808-4x Listed Models : N/A Applicant : 8 Limited Address : Unit AA, 16-18 Taylors Road Morningside Auckland, 1025 New Zealand Manufacturer : 8 Limited Address : Unit AA, 16-18 Taylors Road Morningside Auckland, 1025 New Zealand Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25090501002 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory............................................................................................................ 7 3.2 Test Facility ....................................................................................................................................... 7 3.3 Environmental conditions .................................................................................................................. 7 3.4 Summary of measurement results .................................................................................................... 8 3.5 Statement of the measurement uncertainty ..............................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2AUCA-808-4X Company : 8 Limited EUT : 8 inch Touchscreen Controller Model Number : 808-4x Report No. : CTA25090501002 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.939 2401.544 2402.483 --- --- 2441 0.954 2440.529 2441.483 --- --- 2480 0.960 2479.523 2480.483 --- --- 2DH5 Ant1 2402 1.449 2401.262 2402.711 --- --- 2441 1.473 2440.274 2441.747 --- --- 2480 1.452 2479.262 2480.714 --- --- 3DH5 Ant1 2402 1.479 2401.265 2402.744 --- --- 2441 1.488 2440.268 2441.756 --- --- 2480 1.563 2479.208 2480.771 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.89209 2401.5520 2402.4441 --- --- 2441 0.88435 2440.5548 2441.4391 --- --- 2480 0.87924 2479.5514 2480.4306 --- --- 2DH5 Ant1 2402 1.3580 2401.3128 2402.6708 --- --- 2441 1.3629 2440.3118 2441.6747 --- --- 2480 1.3602 2479.3107 2480.6709 --- --- 3DH5 Ant1 2402 1.3619 2401.3123 2402.6742 --- --- 2441 1.3624 2440.3138 2441.6762 --- --- 2480 1.3628 2479.3111 2480.6739 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -5.06 ≤20.97 PASS 2441 -3.47 ≤20.97 PASS 2480 -3.87 ≤20.97 PASS 2DH5 Ant1 2402 -1.57 ≤20.97 PASS 2441 -0.08 ≤20.97 PASS 2480 -0.40 ≤20.97 PASS 3DH5 Ant1 2402 -1.43 ≤20.97 PASS 2441 0.08 ≤20.97 PASS 2480 -0.21 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.292 ≥0.960 PASS 2DH5 Ant1 Hop 1.048 ≥0.982 PASS 3DH5 Ant1 Hop 1.128 ≥1.042 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.360 319 0.115 ≤0.4 PASS DH3 Ant1 Hop 1.610 160 0.258 ≤0.4 PASS DH5 Ant1 Hop 2.870 105 0.301 ≤0.4 PASS 2DH1 Ant1 Hop 0.370 320 0.118 ≤0.4 PASS 2DH3 Ant1 Hop 1.630 161 0.262 ≤0.4 PASS 2DH5 Ant1 Hop 2.870 115 0.33 ≤0.4 PASS 3DH1 Ant1 Hop 0.370 319 0.118 ≤0.4 PASS 3DH3 Ant1 Hop 1.620 159 0.258 ≤0.4 PASS 3DH5 Ant1 Hop 2.870 97 0.278 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -5.36 -55.03 ≤-25.36 PASS High 2480 -4.18 -60.6 ≤-24.18 PASS Low Hop_2402 -5.71 -52.52 ≤-25.71 PASS High Hop_2480 -2.56 -59.48 ≤-22.56 PASS 2DH5 Ant1 Low 2402 -5.50 -52.38 ≤-25.5 PASS High 2480 -4.34 -51.86 ≤-24.34 PASS Low Hop_2402 -4.79 -58.05 ≤-24.79 PASS High Hop_2480 4.42 -50.73 ≤-15.58 PASS 3DH5 Ant1 Low 2402 -4.44 -50.13 ≤-24.44 PASS High 2480 -3.16 -58.11 ≤-23.16 PASS Low Hop_2402 -0.26 -40.58 ≤-20.26 PASS High Hop_2480 4.84 -50.17 ≤-15.16 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -5.78 -5.78 --- PASS 30~1000 -5.78 -68.03 ≤-25.78 PASS 1000~26500 -5.78 -55.05 ≤-25.78 PASS 2441 Reference -4.14 -4.14 --- PASS 30~1000 -4.14 -68.2 ≤-24.14 PASS 1000~26500 -4.14 -55.63 ≤-24.14 PASS 2480 Reference -4.28 -4.28 --- PASS 30~1000 -4.28 -68.14 ≤-24.28 PASS 1000~26500 -4.28 -54.55 ≤-24.28 PASS 2DH5 Ant1 2402 Reference -5.07 -5.07 --- PASS 30~1000 -5.07 -67.61 ≤-25.07 PASS 1000~26500 -5.07 -55.19 ≤-25.07 PASS 2441 Reference -4.90 -4.90 --- PASS 30~1000 -4.90 -68.41 ≤-24.9 PASS 1000~26500 -4.90 -54.82 ≤-24.9 PASS 2480 Reference -4.71 -4.71 --- PASS 30~1000 -4.71 -68.39 ≤-24.71 PASS 1000~26500 -4.71 -55.47 ≤-24.71 PASS 3DH5 Ant1 2402 Reference -6.37 -6.37 --- PASS 30~1000 -6.37 -68.47 ≤-26.37 PASS 1000~26500 -6.37 -55.49 ≤-26.37 PASS 2441 Reference -3.92 -3.92 --- PASS 30~1000 -3.92 -67.63 ≤-23.92 PASS 1000~26500 -3.92 -54.74 ≤-23.92 PASS 2480 Reference -4.97 -4.97 --- PASS 30~1000 -4.97 -67.61 ≤-24.97 PASS 1000~26500 -4.97 -53.83 ≤-24.97 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000

36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.89 3.75 77.07 1.13 --- --- 2480 2.89 3.75 77.07 1.13 --- --- 2DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.89 3.75 77.07 1.13 --- --- 2480 2.89 3.75 77.07 1.13 --- --- 3DH5 Ant1 2402 2.89 3.75 77.07 1.13 --- --- 2441 2.89 3.75 77.07 1.13 --- --- 2480 2.90 3.75 77.33 1.12 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480

FCC ID:2AUCA-808-4X Test Setup Photos of the EUT FCC ID:2AUCA-808-4X
