2AUD6TS40Tws earbuds

Usermanual TWSBluetoothEarbuds Model:TS40 Specification Model:TS40 Bluetoothversion:V5.1 Transmissionfrequency:2.402G-2.480G Wirelessrange:≧10M Profiles:HSP,HFP,A2DP,AVRCP Playtime:7-8H Standbytime:about90H Earbudsbattery:3.7V40mAh Chargingcasebattery:3.7V300mAh Charginginput:5V500mA Chargingtime:about1H Workingtemperature:-10°C-50°C Pairing 1.Takeoutbothearbudsfromthechargingcase,the earbudswillautomaticallyturnon(orpressandholdthe multi-functionkeyfor2Satthesametime),andthe earbudsblueindicatorlightonwhenpoweredon. 2.Afterpoweron,theleftandrightearbuds automaticallyenterintothebinauralpairingmode.After thepairingissuccessful,themainearbudlightflashing redandbluealternately,andtheauxiliaryearbud indicatorlightshallbeoff. 3.TurnontheBluetoothfunctionofthemobilephone, searchfortheBluetoothdevicepairingname:TS40, clicktheconnection(ifyouneedapassword:please enter"0000"),theindicatorlightwillbeoffafterthe pairingissuccessful. Shutdown 1.Puttheleftandrightearbudsbackintothechargingcase simultaneouslywhileusing,theearbudswillautomatically shutdown;orpressandholdanyoftheearbuds multi-functionkeyuntiltheredlightisonandthenreleasethe buttontoshutdown. 2.Theearbudswillautomaticallypoweroffwhileawayfrom theconnectingdeviceorafter5minuteswithoutpairing successful. Earbudsmaster-slavefreeswitching Aftertheearstrapsaresuccessfullypairedwiththemobile phoneforthefirsttime,youcanuseanysingleearorboth earswhenyouuseitagain.Theearphonewillautomatically switchbetweentheprimaryandthesecondaryearwithout re-pairing. Useagain 1.Takeoutthesingleearbudorbothearbudsfromthe chargingcase,andtheearbudwillautomaticallyconnect backtothelasttimethephoneisconnected. 2.Iftheearbudsarepoweredoffornotinthechargingcase, puttheearbudsbackintothechargingcasetoactivatethem andthentakeoutagain;orpressandholdtheearbuds multifunctionkeytoturnthemon,theearbudswill automaticallyconnectbackwiththemobilephone. Charging 1.Chargetheheadset:Puttheheadsetintothecharging compartmentseparately,theredlightoftheheadsetandthe bluelightofthechargingcompartmentarealwayson, indicatingthatthechargingisinprogress,andtheindicator lightisoffafterthechargingiscompleted. 2. Chargethechargingcompartment:InserttheType Cchargingcabletochargethechargingcompartment. Duringthechargingprocess,theRedindicatorlight flashes,andtheRedlightisalwaysonafterthe chargingiscompleted. Buttonfunctioninstruction ClickontheL/Rear:answer/hangupthephone, play/pausemusic Doubleclickontheleftear:switchtotheprevioustrack Doubleclickontherightear:switchtothenextsong Threehitleftear:volume- Threehitstherightear:volume+ LongpressL/Rear2S:wakeupSirifunction(only supportIOSsystemandsomeAndroidsystem) LongpressL/Rear2S:On LongpressL/Rear5S:Off Tips 1.Pleasereadtheinstructionmanualcarefullybefore usingthisproduct. 2.Pleasegettheproductfullychargedforthefirsttime using. 3.Iftheproductisnotusingforalongtime,please chargeitineach15dayswhilenotusing. 4.Mustusethecorrectchargerproducedbyaregular manufacturerwithCE/CCCcertificateforcharging. NOTE:Thisequipmenthasbeentestedandfoundto complywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.This equipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,there isnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentand receiver. -Connecttheequipmentintoanoutletonacircuit differentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TV technicianforhelp Changesormodificationsnotexpresslyapprovedby thepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatetheequipment. FCC ID:2AUD6TS40

Shenzhen Shengna Technology., Ltd. Jun.07, 2022 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AUD6TS40 Model Number: TS40, Scorpio To Whom It May Concern: We, The Shenzhen Shengna Technology., Ltd. hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Shenzhen Shengna Technology., Ltd. Contact person: ANDY liu

Shenzhen Shengna Technology., Ltd. Agent Authorization Company: Shenzhen Shengna Technology., Ltd. Address: 3F west, Building 17, Longbi Industrial Town, Bantian, Longgang District, Shenzhen China Product Name: Tws earbuds Model Number(s): TS40, Scorpio Product Description: Tws earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-07 Name: ANDY liu Company: Shenzhen Shengna Technology., Ltd.

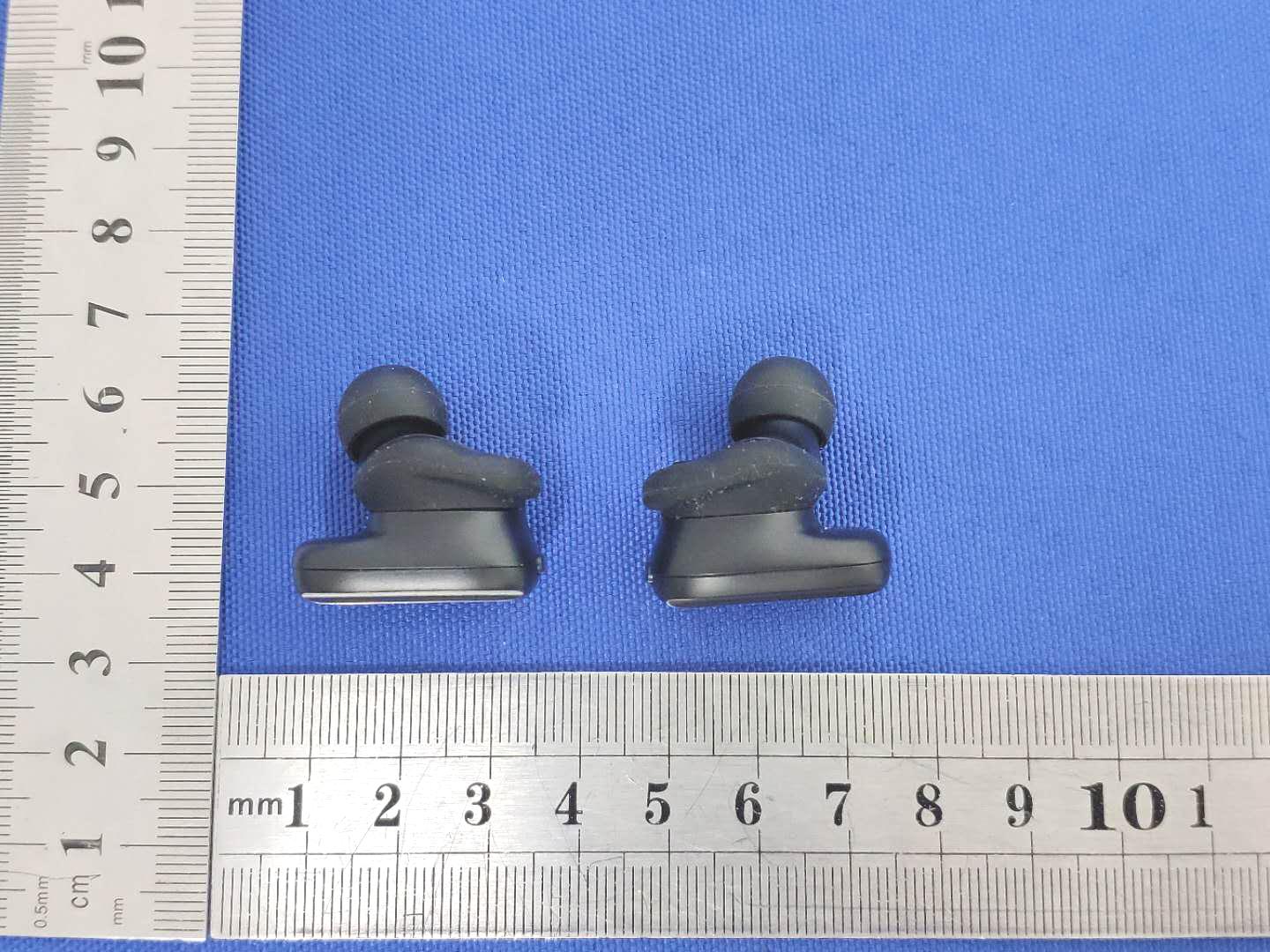

Report No.: AGC12867220501AP02 Page 1 of 4 EXTERNAL PHOTOS ALL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC12867220501AP02 Page 2 of 4 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC12867220501AP02 Page 3 of 4 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC12867220501AP02 Page 4 of 4 RIGHT VIEW OF EUT PORT VIEW OF EUT ****************************************End of Report****************************************

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Report No.: AGC12867220501AP02 Page 1 of 5 INTERNAL PHOTOS OPEN VIEW OF EUT (Right) BATTERY VIEW OF EUT Report No.: AGC12867220501AP02 Page 2 of 5 INTERNAL VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 2) BT Antenna Report No.: AGC12867220501AP02 Page 3 of 5 INTERNAL VIEW OF EUT (FIGURE 3) OPEN VIEW OF EUT (Left) Report No.: AGC12867220501AP02 Page 4 of 5 BATTERY VIEW OF EUT INTERNAL VIEW OF EUT (FIGURE 1) BT Antenna Report No.: AGC12867220501AP02 Page 5 of 5 INTERNAL VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 3) ****************************************End of Report****************************************

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Tws earbuds Model Name TS40 Series Model Scorpio FCC ID 2AUD6TS40 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION Right: P t = -3.629dBm=0.43mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR= (0.43mW / 5mm). [√2.480GHz)]=0.14<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Left: P t = -4.662dBm=0.34mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR= (0.34mW / 5mm). [√2.480GHz)]=0.11<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Report No.: AGC12867220501FE03 Page 63 of 72 EUT Tws earbuds Model Name TS40 Temperature 25°C Relative Humidity 55% Pressure 985hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC12867220501FE03 Page 64 of 72 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT Test Data of Number of Hopping Frequency Test Mode Number of Hopping Frequency Limits Pass or Fail GFSK Hopping 79 >=15 Pass Test Graphs of Number of Hopping Frequency Test_Graph_BR_HOP_ANT1_NA_1Mbps_Number of Hopping Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC12867220501FE03 Page 65 of 72 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time). 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Test Data of Dwell Time Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Pass or Fail 2402 2.874 22.0*4 252.912 400 Pass 2441 2.874 22.0*4 252.912 400 Pass 2480 2.873 30.0*4 344.760 400 Pass Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC12867220501FE03 Page 66 of 72 Test Graphs of Dwell Time Test_Graph_BR_HOP_ANT1_NA_1Mbps_2402_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2402_Time per Burst Report No.: AGC12867220501FE03 Page 67 of 72 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2441_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2441_Time per Burst Report No.: AGC12867220501FE03 Page 68 of 72 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Time per Burst Report No.: AGC12867220501FE03 Page 69 of 72 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT Test Data of Frequency Separation Test Mode Channel Separation (MHz) Limits Pass or Fail GFSK Hopping 0.973 >= 2/3 -20dB BW Pass Test Graphs of Number of Hopping Frequency Test_Graph_BR_HOP_ANT1_NA_1Mbps_Hopping Separation Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC12867220501FE03 Page 70 of 72 14. LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50MHz. 14.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC12867220501FE03 Page 71 of 72 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test co…

Text truncated - open the document above for the full version.

Page 1 of 72 FCC Test Report Report No.: AGC12867220501FE03 FCC ID : 2AUD6TS40 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Tws earbuds BRAND NAME : N/A MODEL NAME : TS40, Scorpio APPLICANT : Shenzhen Shengna Technology., Ltd. DATE OF ISSUE : May 16, 2022 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC12867220501FE03 Page 2 of 72 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 16, 2022 Valid Initial Release Report No.: AGC12867220501FE03 Page 3 of 72 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 24 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 24 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 24 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 25 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 30 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 30 Report No.: AGC12867220501FE03 Page 4 of 72 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 30 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 30 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 30 10. RADIATED EMISSION ................................................................................................................................. 51 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 51 10.2. TEST SETUP ......................................................................................................................................... 53 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 54 10.4. TEST RESULT........................................................................................................................................ 54 11. NUMBER OF HOPPING FREQUENCY .............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC12867220501AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC12867220501AP01 Page 2 of 2 RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
