2AUEH-DB133MU2

LINFINY CORPORATION

eNote

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 09, 2020
Application Purpose: Original Equipment
Date of Application: Apr 06, 2020
Equipment Note: eNote
Frequency Range: 2412.00000000 - 2462.00000000
Company: LINFINY CORPORATION
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

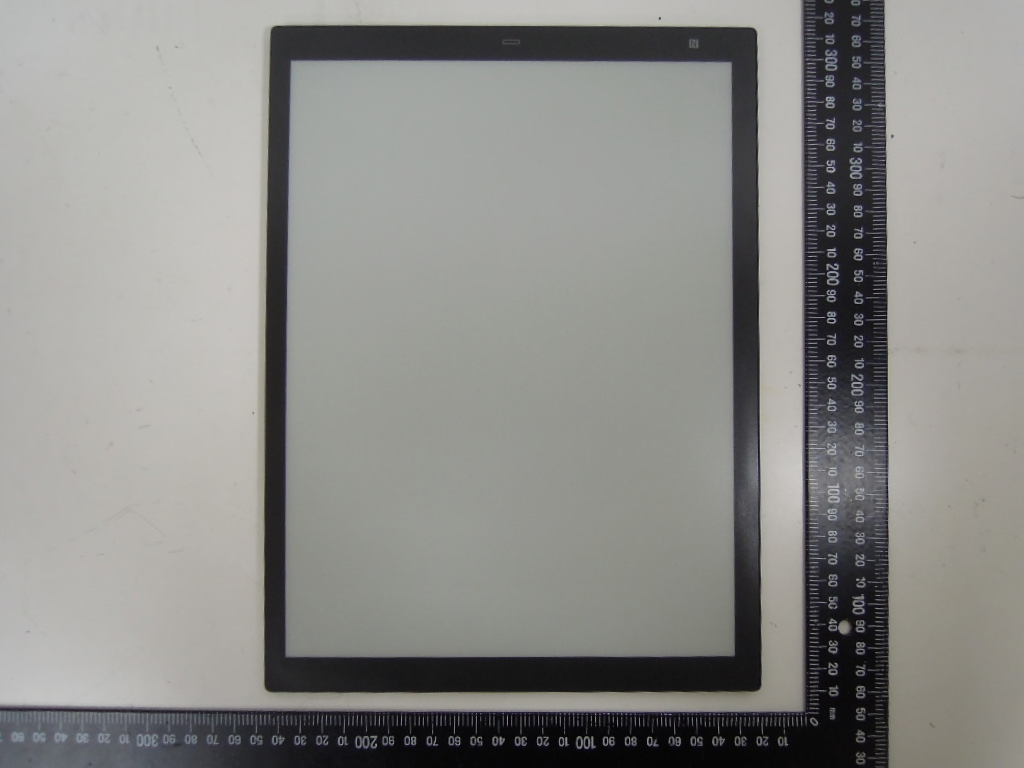

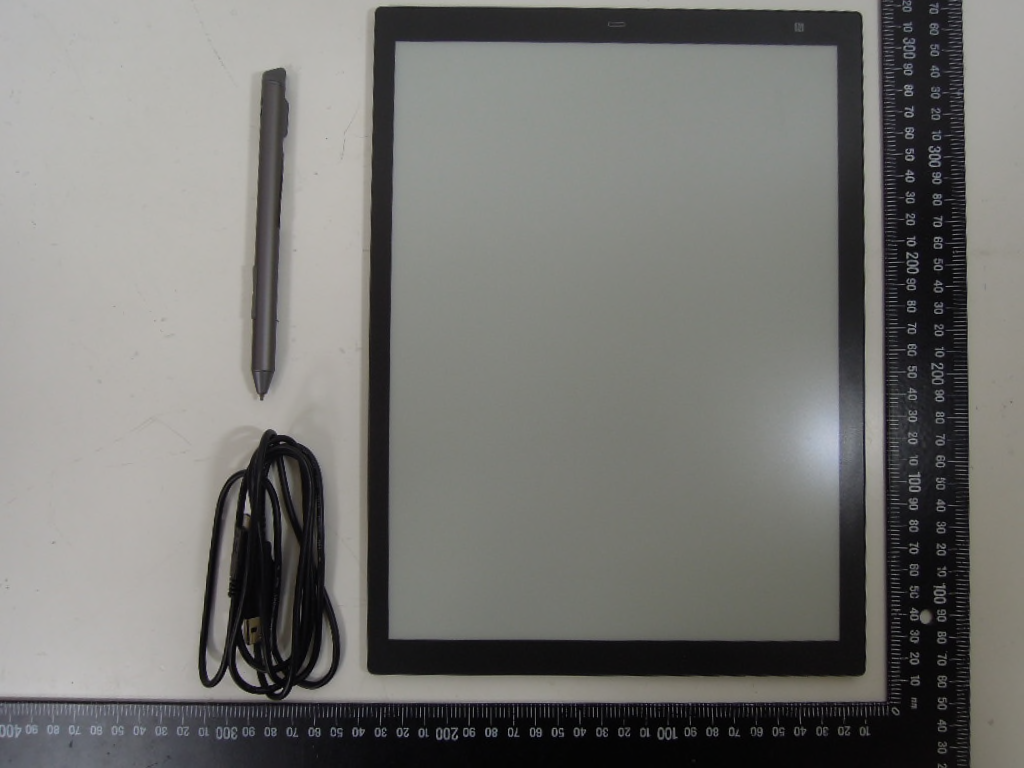

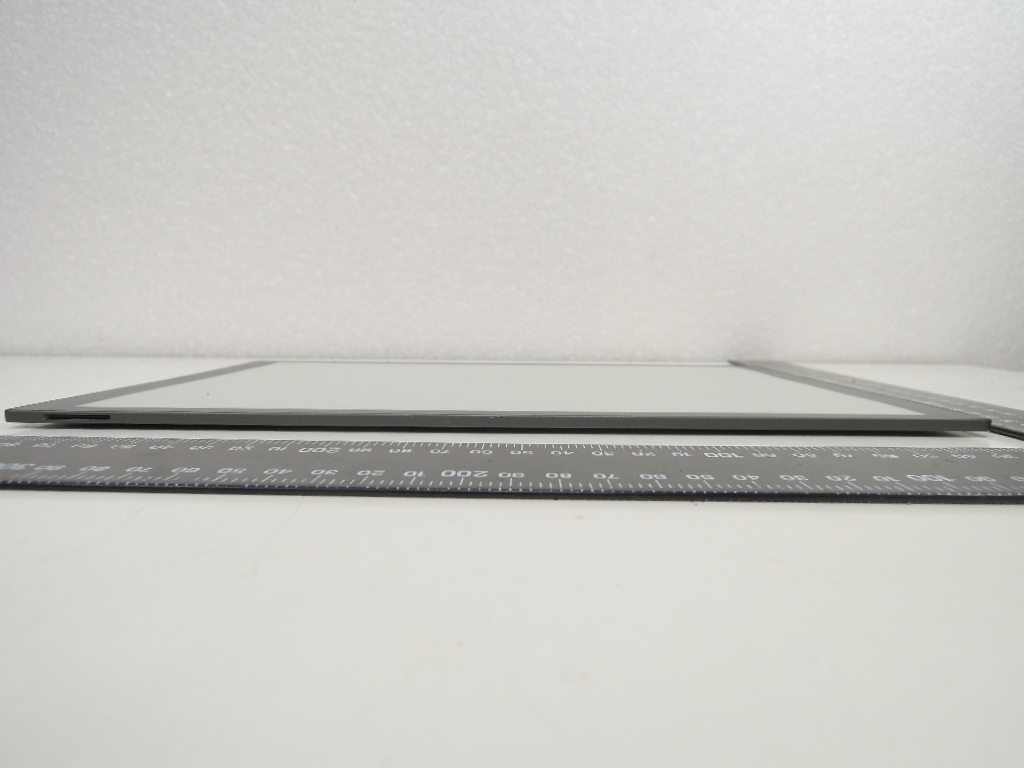

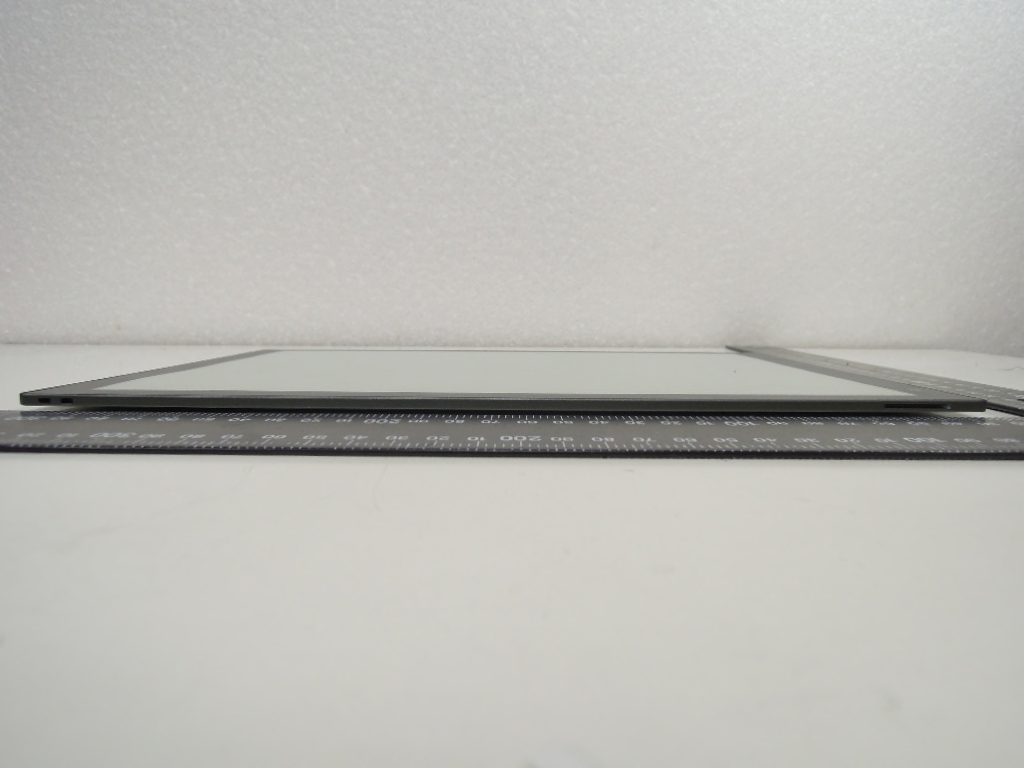

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Robin Yeh(Deputy Manager)

[email protected]8865643200Fax: NA

Technical Contact

SGS Taiwan Ltd.Jim Chang

[email protected]886222993279

134, Wu Kung Road, WuKu Industrial Zone · Taiwan

Non-Technical Contact

SGS Taiwan Ltd.Jim Chang

[email protected]886222993279

Test Firm

SGS Taiwan Ltd. Electronics & Communication LabRyan WANG

[email protected]+886-2-2299-3279Fax: +886-2-2299-2248

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	230.00 mW

Confidentiality

Long Term

Grant Notes

Power Output is conducted. SAR compliance for body worn operating conditions is limited to the specific configuration tested for this filing. Body worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the user's body, which includes use as hotspot. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for body and simultaneous transmission exposure conditions are 1.05 W/kg and 1.15 W/kg, respectively. This device has a 20 MHz bandwidth mode.
