智能跟拍云台 使用指南 简介 智能跟拍云台是一款具有人形跟随功能的云台，通过内置的摄像头 模组结合Ai芯片人形识别算法使云台正面始终指向人形目标。除自 动跟随功能外，使用遥控器可以实现手动控制云台自由旋转。 云台通过转接手机支架、三脚架等赋予手机、微单、运动相机等摄 影设备跟拍功能。可用于手机视频聊天、手机直播以及微单和运动 相机跟拍。 1/4”螺丝 旋转锁定平台 跟随状态指示灯 电源指示灯 摄像头模组 旋转基座 电源按键 USB C充电接口 1/4”螺母 电源按键 1/4”螺丝 1/4”螺母 USB C充电接口 关机状态下，短按按键开机； 开机状态下，短按按键开启关闭跟随模式； 开机状态下，长按3s关机。 转接手机、相机设备。 转接三脚架。 用于云台充电或作为网络摄像头的输出接口。 部件 功能 旋转锁定平台 通过旋转固定连接的支架。 充电中 蓝灯慢闪 满电或关机状态 低电时 开机状态 蓝灯熄灭 蓝灯快闪 蓝灯常亮 电源指示灯 状态 跟随开启时白灯常亮 跟随关闭时白灯熄灭 跟随状态指示灯状态 遥控器 指示灯 电源开关 按住左转按住右转 短按右转一周 短按停止转动 短按左转一周 短按开启关闭跟随功能 纽扣电池盖 *使用时请向上拨动遥控器电源开关来启动遥控器。 安装 1.与手机配合使用方法 手机手机夹 云台 2.与运动相机配合使用方法 3.与三脚架配合使用方法 运动相机云台 云台三脚架 最佳距离 >1m<8m *暂无多人识别模式，建议单人使用。 使用场景 产品参数 品 牌 TELESIN 产品名称 产品型号 电池容量 输入参数 最大承重 续航时间 产品净重 产品尺寸 智能跟拍云台 TE-GPYT-001 USB C 5V 800mA 500g 充电时间 2小时 5小时 193g 62mm*60mm*86mm 聚合物锂电池3.7V 1500mAh 无线连接2.4GHz 遥控距离0~10m 旋转角度 工作环境温度 360° 5 - 40 °C www.telesin.cn 1.Vlog制作 2.视频聊天：用于社交视频软件。实现QQ、微信、钉钉等视频聊 天时人脸跟随。 3.直播：可用于抖音、快手、YY、淘宝等直播平台。 4.全景照片：可实现全景照片拍摄以及视频跟随录制。 5.网络摄像头：连接电脑可实现网络摄像头的功能。 Smart Tracking Pan Tilt User Guide INTRODUCTION Smart Tracking Pan Tilt is a Pan Tilt with tracking function. The built-in camera module combined with Ai chip humanoid recognition algorithm makes the front of the Pan Tilt always point at the humanoid target. Besides that, you can also use the remote control to control it . The Pan Tilt can be connected to mobile phone bracket, tripod, etc. to make the mobile phone, action camera and other photographic equiped with tracking function. It can be used for video chatting, mobile phone live broadcast, and microphones and action cameras. 1/4”Screw Rotary Locking Platform Tracking Status Indicator Power Indicator Camera Module Rotary Base Power Button USB C Charging Port 1/4” Nut Power button 1/4”screw 1/4” nut USB C charging port In power off status, short press to turn on Pan Tilt. In power on status, short press to turn on/off tracking function, long press to turn off Pan Tilt. Adapter for mobile phone, camera device. Adapter for tripod. Used to charge pan tilt or as an interface of webcam. ComponentFunction Rotary Locking Platform Rotating fixed connection bracket。 ChargingBlue light flashes slowly. Full power or power off Low battery Power on Blue light is off. Blue light flashes fastly. Blue light is on. Power indicatorStatus Tracking Function is onWhite light is on. Tracking Function is offWhite light is off. Tracking status indicatorStatus REMOTE CONTROLS Indicator light Power switch Turn left Turn right Turn right a circle Stop rotation Turn left a circle Turn on/off tracking function Button cell cover *Toggle the power switch up to turn on the remote control when in use. INSTALLATION 1.How to use with mobile phone Phone Mobile Holder Pan Tilt 2.How to use with action camera 3.How to use with a tripod Action Camera Pan Tilt Pan Tilt tripod OPTIMAL DISTANCE >1m<8m USAGE SCENARIOS PRODUCT PARAMETERS Brand TELESIN Product Name Model Number Battery Capacity Input Parameter Maximum Load Endurance Time Product Net Weight Product Size Smart Tracking Pan Tilt TE-GPYT-001 USB C 5V 800mA 500g Charging Time2h 5h 193g 62mm*60mm*86mm Li-ion Battery 3.7V 1500mAh Wireless Connection 2.4GHz Remote Control Distance 0~10m Rotation Angle Operating Temperature 360° 5 - 40 °C www.telesin.cn 1.Vlog Production 2.Video Chat：Used for social video software. Realize QQ, WeChat, DING talk and other video chatting face following. 3.Live Broadcast：It can be used in Tiktok, Kuaishou, YY, Taobao and other live broadcast platform. 4.Panoramic Photo：Realize panoramic photo shooting and video following recording. 5.Webcam：Connecting a computer allows for webcam functionality FCC ID: 2AUEO-TE-GPYT-001 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN TELESIN DIGITAL CO.,LTD Add: J, 5th floor, Block B, Building 9, Baoneng Science and Technology Park, No. 1 Qingxiang Road, Longhua Street, Longhua District, Shenzhen, China Date: 2021-6-19 FCC ID: 2AUEO-TE-GPYT-001 Dear Sir/Madam, We, SHENZHEN TELESIN DIGITAL CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Smart Tracking Pan Tilt Model no.: TE-GPYT-001, TE-GPYT-002, TE-GPYT-003 Sincerely, Name/Title： Golden Gan/Product Manager Company: SHENZHEN TELESIN DIGITAL CO.,LTD Address: J, 5th floor, Block B, Building 9, Baoneng Science and Technology Park, No. 1 Qingxiang Road, Longhua Street, Longhua District, Shenzhen, China Phone: 17688783913 Fax: 0755-32947086 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-19> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AUEO-TE-GPYT-001 TE-GPYT-001, TE-GPYT-002, TE-GPYT-003 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-proprietaryandsecretstradeterm confidentiality exhibits contain our information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that sensitivebusiness information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Golden Gan/Product Manager Company: SHENZHEN TELESIN DIGITAL CO.,LTD Address: J, 5th floor, Block B, Building 9, Baoneng Science and Technology Park, No. 1 Qingxiang Road, Longhua Street, Longhua District, Shenzhen, China Phone: 17688783913 Fax: 0755-32947086 E-Mail: [email protected]

SHENZHEN TELESIN DIGITAL CO.,LTD J, 5th floor, Block B, Building 9, Baoneng Science and Technology Park, No. 1 Qingxiang Road, Longhua Street, Longhua District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-19 To whom it may concern: We, SHENZHEN TELESIN DIGITAL CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AUEO-TE-GPYT-001 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Golden Gan/Product Manager Company: SHENZHEN TELESIN DIGITAL CO.,LTD Address: J, 5th floor, Block B, Building 9, Baoneng Science and Technology Park, No. 1 Qingxiang Road, Longhua Street, Longhua District, Shenzhen, China Phone: 17688783913 Fax: 0755-32947086 E-Mail: [email protected]

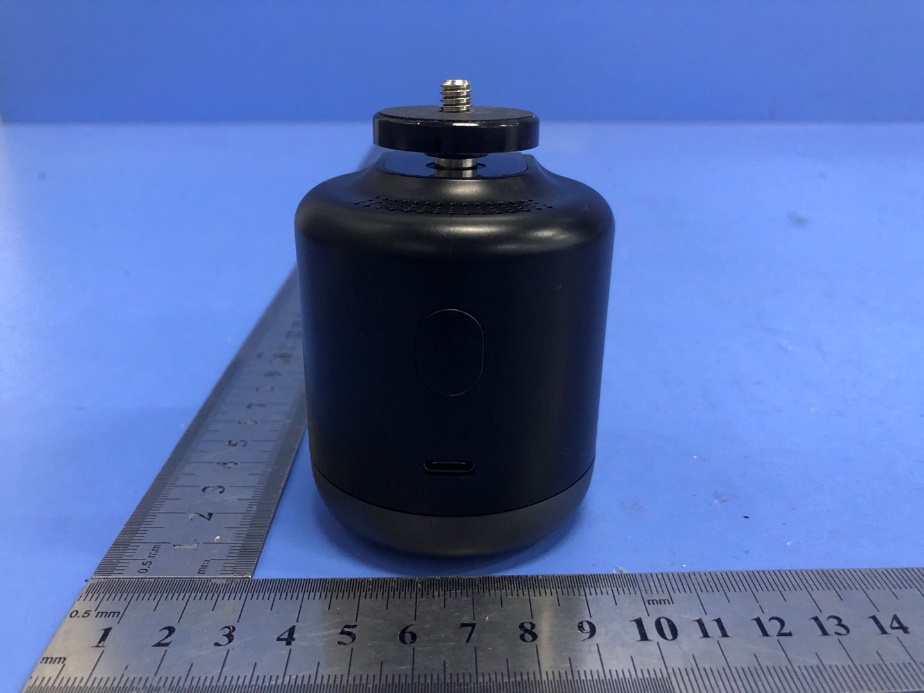

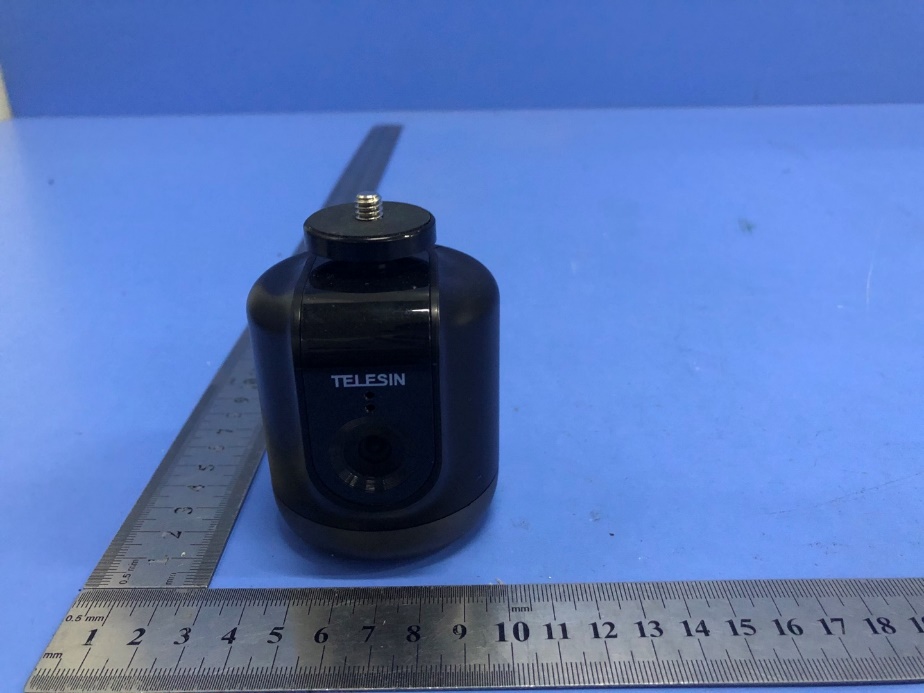

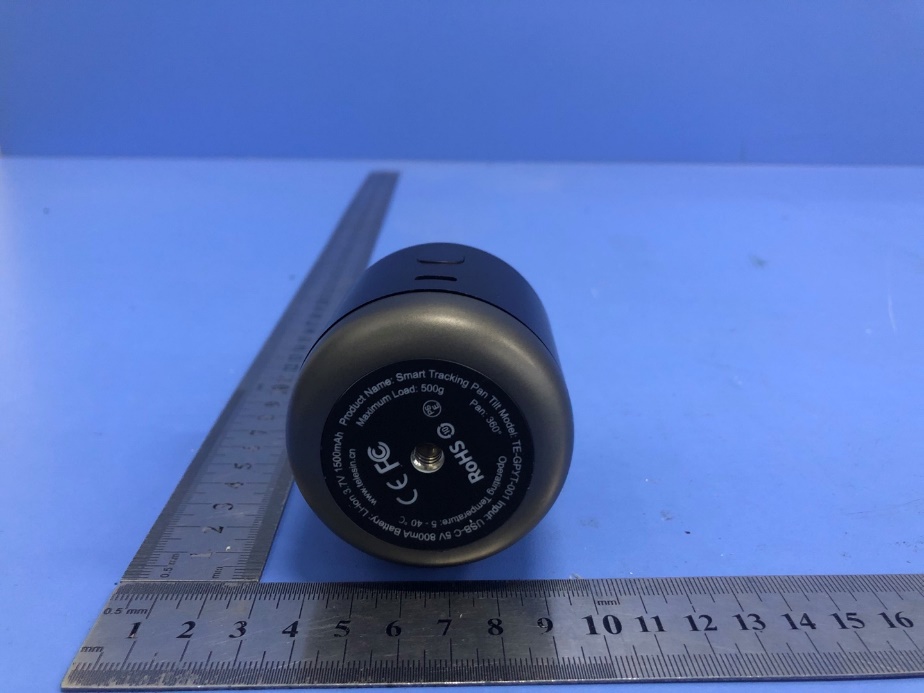

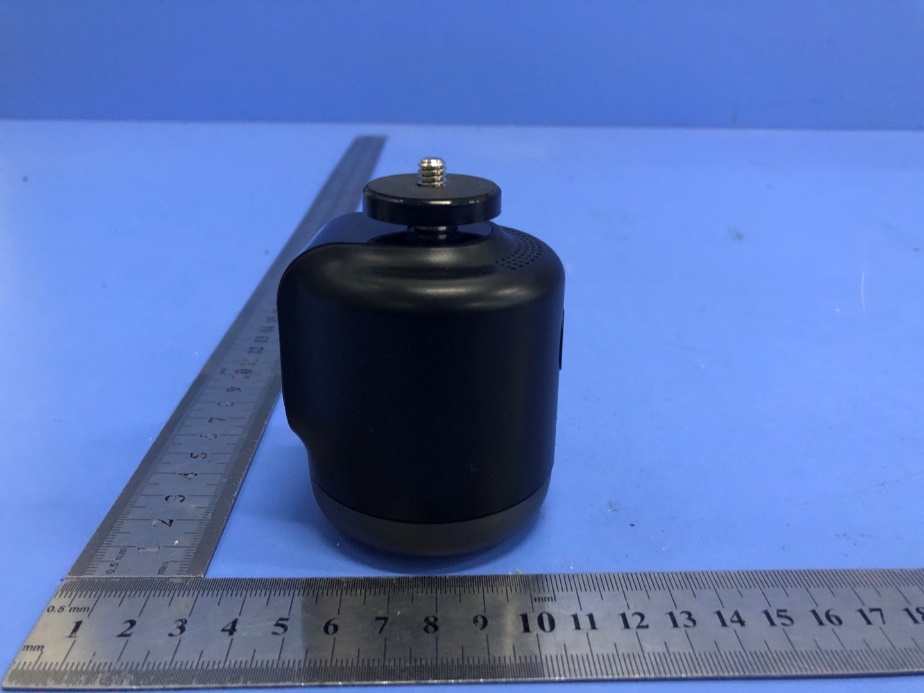

FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 AppendixIFCC ID Label Size for the label: 10mm X 10mm FCCID:2AUEO-TE-GPYT-001 Model:GPYT-001 FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of PCB Photo 8 Internal of PCB Antenna FCC ID:2AUEO-TE-GPYT-001 TB-RF-074-1.0 Photo 9 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC177518 Page: 1 of 36 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AUEO-TE-GPYT-001 Report No. : TB-FCC177518 Applicant : SHENZHEN TELESIN DIGITAL CO., LTD Equipment Under Test (EUT) EUT Name : Smart Tracking Pan Tilt Model No. : TE-GPYT-001 Series Model No. : TE-GPYT-002, TE-GPYT-003 Brand Name : TELESIN Sample ID : TBBJ-20200910-20-1#&TBBJ-20200910-20-2# Receipt Date : 2021-06-08 Test Date : 2021-06-08 to 2021-06-19 Issue Date : 2021-06-19 Standards : FCC Part 15, Subpart C 15.249 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Approved & Authorized : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC177518 Page: 2 of 36 TB-RF-074-1.1 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 5 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Measurement Uncertainty .................................................................................................. 7 1.8 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. TEST SOFTWARE ..................................................................................................................... 8 4. TEST EQUIPMENT .................................................................................................................... 9 5. CONDUCTED EMISSION TEST ........................................................................................... 10 4.1 Test Standard and Limit .................................................................................................... 10 4.2 Test Setup ........................................................................................................................... 10 4.3 Test Procedure ................................................................................................................... 10 4.4 EUT Operating Mode ........................................................................................................ 11 4.5 Deviation From Test Standard ......................................................................................... 11 4.6 Test Data ............................................................................................................................. 11 6. RADIATED EMISSION TEST ................................................................................................ 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 13 5.3 Test Procedure ................................................................................................................... 14 5.4 EUT Operating Condition ................................................................................................. 15 5.5 Deviation From Test Standard ......................................................................................... 15 5.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH TEST ................................................................................................................. 16 6.1 Test Setup ........................................................................................................................... 16 6.2 Test Procedure ................................................................................................................... 16 6.3 EUT Operating Condition ................................................................................................. 16 6.4 Deviation From Test Standard ......................................................................................... 16 6.5 Test Data ............................................................................................................................. 16 8. ANTENNA REQUIREMENT ................................................................................................... 17 7.1 Standard Requirement ...................................................................................................... 17 7.2 Antenna Connected Construction…
