2AUEPTYWFC3-25T5Smart WIFI Strip Light Kit

WIFI controller Voice and intelligent speaker control Timer switch Full range of W/ W + WW/RGB / RGBW/RGBW available 5-100% stepless dimming Remote controllable after connecting to internet Features WIFI controller LED strip Installation instructions Attentions 1. Use DC12-24V power supply. 2. Install the WIFI controller correctly. Use 3M tape to fix it 3. Please unfold the LED strip to avoid the overheat issues. Please connect the cables of LED strip with the right position on the controller. Test the APP to check if it can control the LED strip correctly. If everything goes well, just keep going. 4. Check and ensure the power supply, WIFI controller and LED strip are connected correctly. 1. Do not put any metal around the WIFI controller, which could blocked WiFi signal 2. Ensure power supply and controller are connected correctly. 3. The power supply output voltage should be same as LED strip working voltage. 4. Do not cover anything on the surface of power supply, WIFI controller and LED strip. 5. Ensure the connection is correct before powering. APP function introduction Third party control In the Smart Life APP: Find more service in "Me" menu, click to enter “voice service” (Alexa/ Google Assistant) and other services, click on the service you need. Connect to the third-party service device according to the operation guide. Remote control: The LED strip can be controlled anywhere after the smart device is successfully connected. Timer function: Set the timer to turn on and turn off the LED strip. Intelligent scene: The system sets a variety of intelligent scenes, and different scenes correspond to different lighting atmospheres. Group: Group control is available (only for the same type of product). Family room management. Device Sharing: The device is shared with other user control devices in the home. Click the interface to control it according to the specific mode of the specific LED strip.The following is public function introduction. User Manual 1. Please confirm that the phone and controller are in the same WIFI environment; 2. Please confirm that WIFI is in 2.4G signal mode; 3. If the WIFI signal is in 5G mode, please click "compatibility mode" in the upper right corner of the "confirm the light is flashing" page. For any product and APP updating,please contact with customer service. Log in / Register account number Open the Smart Life APP, sign up for a new account or log in with an existing account. 1. Preparation: Turn on the LED strip and enter the home of APP while ensure the WIFI signal is good and stable. 2. LED strip will flashing when turn on the power supply. Add all devices on the APP and enter adding lighting device interface, match LED strips. 3. If the LED strip is not flashing when turn on the power supply, long press the Reset button for more than 5 seconds. While LED strip flashing, enter the APP adding lighting device interface, match LED strips. 4. Select the Wi-Fi connected to the smart device, input the WiFI password, and then click "OK" to wait for the matching to succeed.(Make sure smart devices share the same WiFi) 1:DC12-24V input connection port 2:Output connection port to connect to LED strip(4-6PIN female bracket/5PIN male PIN connector) 3: Function buttons: Switch on Switch off Long press for more than 5 seconds to reset 45 mm 195 mm 130 mm 150 mm Product functions diagram Music :External microphone receives sound Item.NO TYWFC3-41 TYWFC3-42 TYWFC3-43 TYWFC3-44 TYWFC3-45 CCT W Colour RGB RGB+W RGB+CCT Input Voltage 12-24Vdc 12-24Vdc 12-24Vdc 12-24Vdc 12-24Vdc Power Max.48W Max.48W Max.48W Max.48W Max.48W Current 2A*1CH Max.2A 2A*2CH Max.2A 2A*3CH Max.2A 2A*4CH Max.2A 2A*5CH Max.2A FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ÿ Reorient or relocate the receiving antenna. ÿ Reorient or relocate the receiving antenna. ÿ Reorient or relocate the receiving antenna. ÿConsult the dealer or an experienced radio/TV technician for help important announcement Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-05-21> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AUEPTYWFC3-25T5 TYWFC3-25T5 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Cailan Zhang / CEO Company: SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address: Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Tel: 15218748584 Fax: 15218748584 E-mail: [email protected]

SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Date: May 21, 2020 FCC ID: 2AUEPTYWFC3-25T5 Model Number: TYWFC3-21T1, TYWFC3-21T2, TYWFC3-21T3, TYWFC3-21T4, TYWFC3-21T5, TYWFC3-22T1, TYWFC3-22T2, TYWFC3-22T3, TYWFC3-22T4, TYWFC3-22T5, TYWFC3-23T1, TYWFC3-23T2, TYWFC3-23T3, TYWFC3-23T4, TYWFC3-23T5, TYWFC3-24T1, TYWFC3-24T2, TYWFC3-24T3, TYWFC3-24T4, TYWFC3-2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD declare that this EUT (FCC ID: 2AUEPTYWFC3-25T5) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Cailan Zhang / CEO Company: SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address: Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Tel: 15218748584 Fax: 15218748584 E-mail: [email protected]

SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Labeling Declaration Letter FCC ID: 2AUEPTYWFC3-25T5 Model Number: TYWFC3-25T5 DATE: 2020-05-21 Following the KDB 784748 D01 General labeling and Notification, the information related to Labeling implementation for the Smart WIFI Strip Light Kit, FCC ID: 2AUEPTYWFC3-25T5 Information On Product On Product Packaging In Online User Guide In Printed User Guide FCC ID Number Yes Yes No No 15.19 Statement “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” No Yes No Yes Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment No No No Yes Product Packaging Label is shown below: FCC ID: 2AUEPTYWFC3-25T5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, The product is packaged individually. SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Should you have any questions or comments regarding this matter, please have my best attention. Best Regards! (Signed) Name/Title: Cailan Zhang / CEO Company: SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address: Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Tel: 15218748584 Fax: 15218748584 E-mail: [email protected]

SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Tel: 15218748584 Fax: 15218748584 Date: 2020-05-21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AUEPTYWFC3-25T5 Dear Sir/Madam, We, SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Smart WIFI Strip Light Kit Model no.: TYWFC3-21T1, TYWFC3-21T2, TYWFC3-21T3, TYWFC3-21T4, TYWFC3-21T5, TYWFC3-22T1, TYWFC3-22T2, TYWFC3-22T3, TYWFC3-22T4, TYWFC3-22T5, TYWFC3-23T1, TYWFC3-23T2, TYWFC3-23T3, TYWFC3-23T4, TYWFC3-23T5, TYWFC3-24T1, TYWFC3-24T2, TYWFC3-24T3, TYWFC3-24T4, TYWFC3-2 Sincerely, Client’s name / title : Cailan Zhang / CEO Contact information / address : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD / Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Tel: 15218748584 Fax: 15218748584 E-Mail: [email protected]

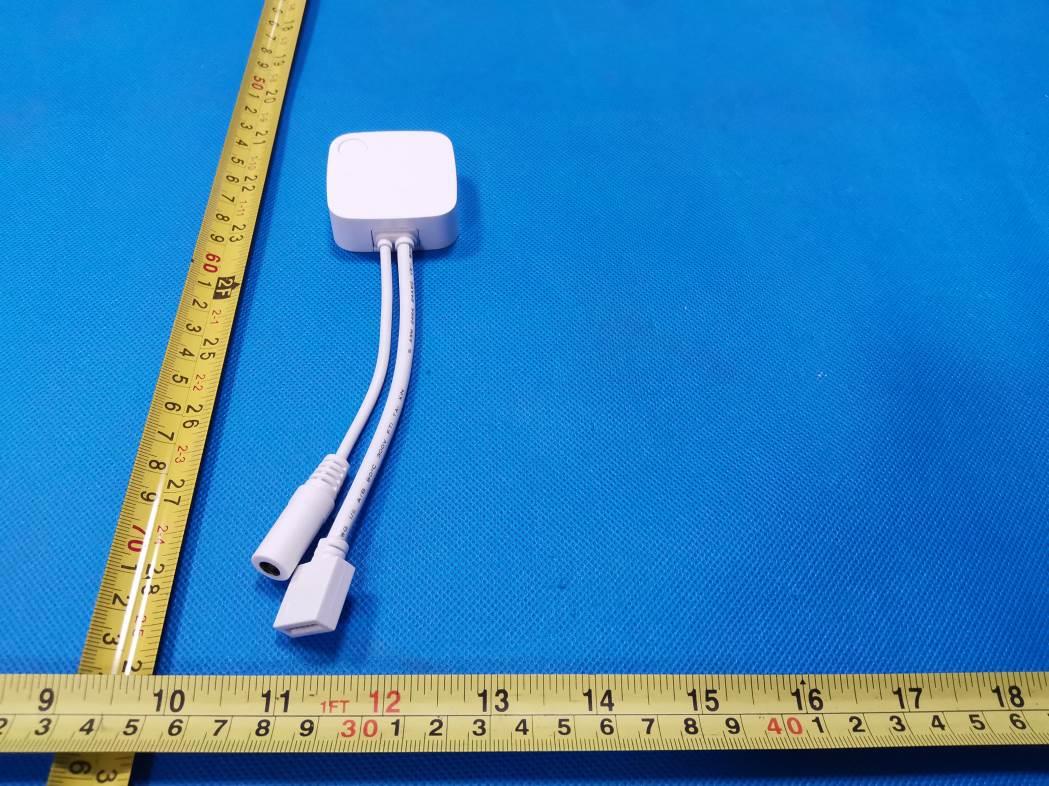

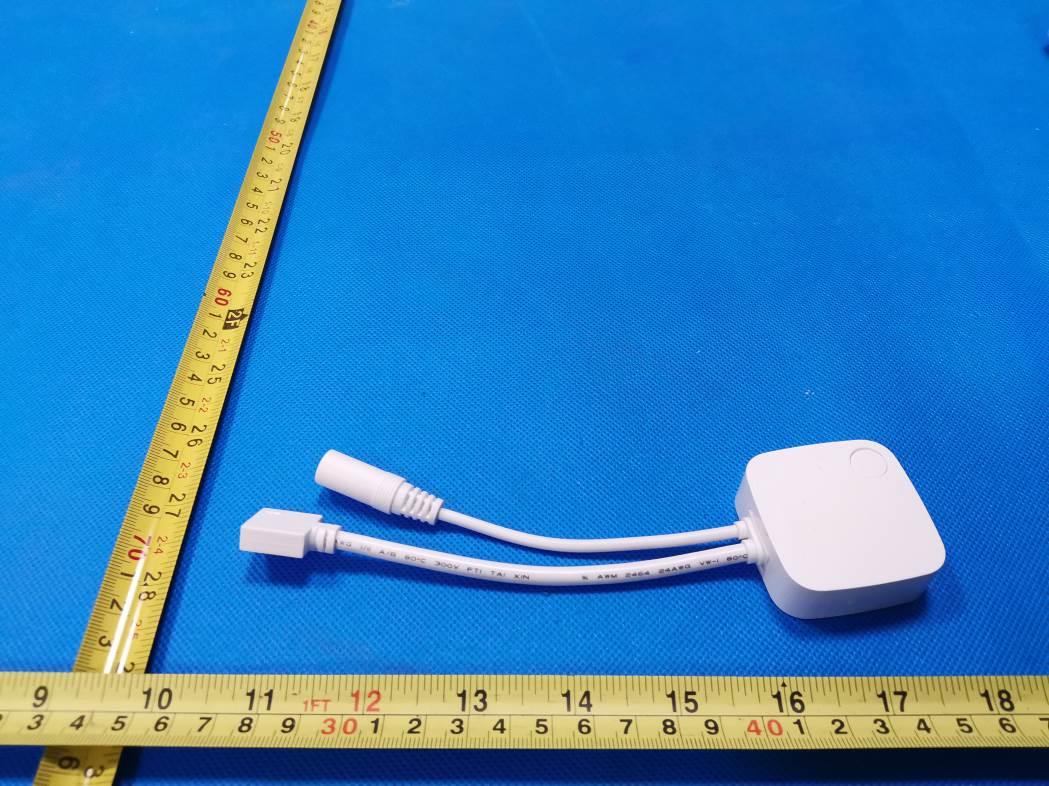

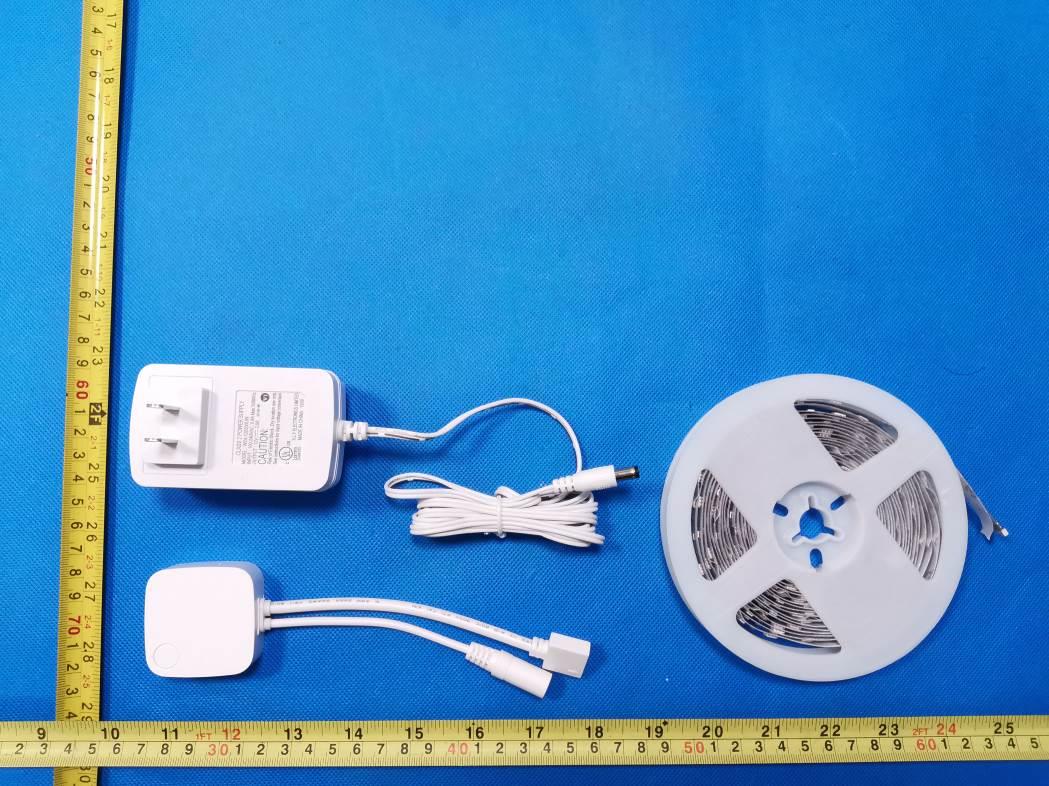

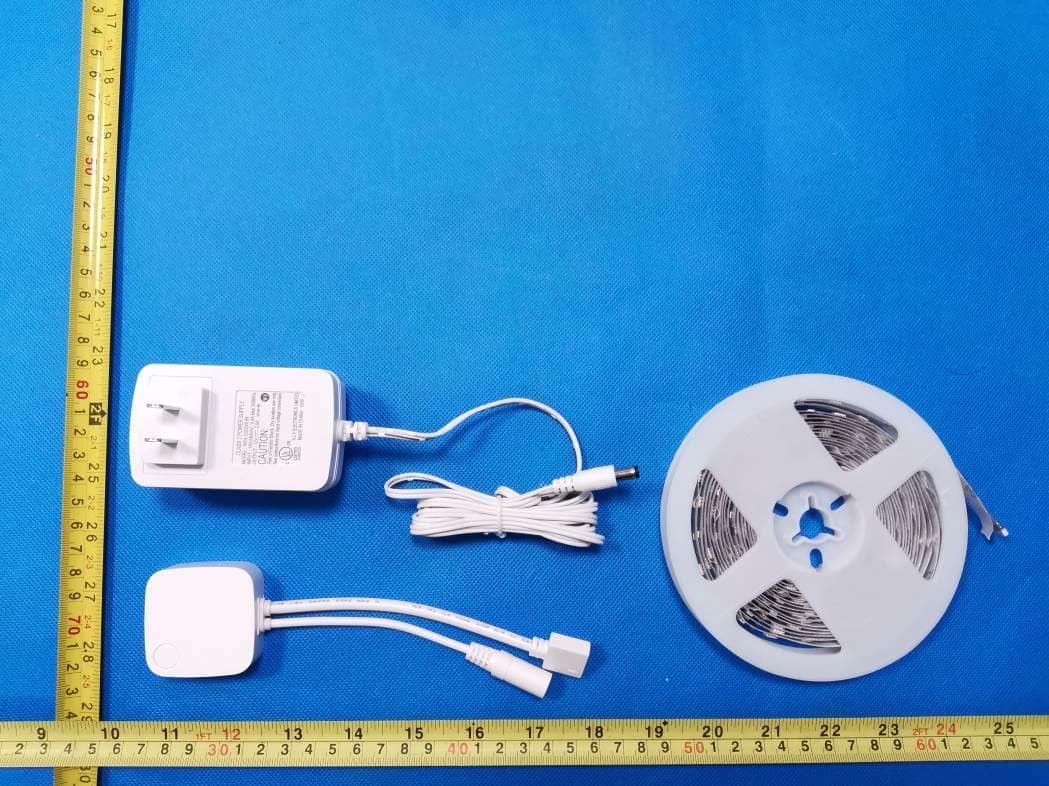

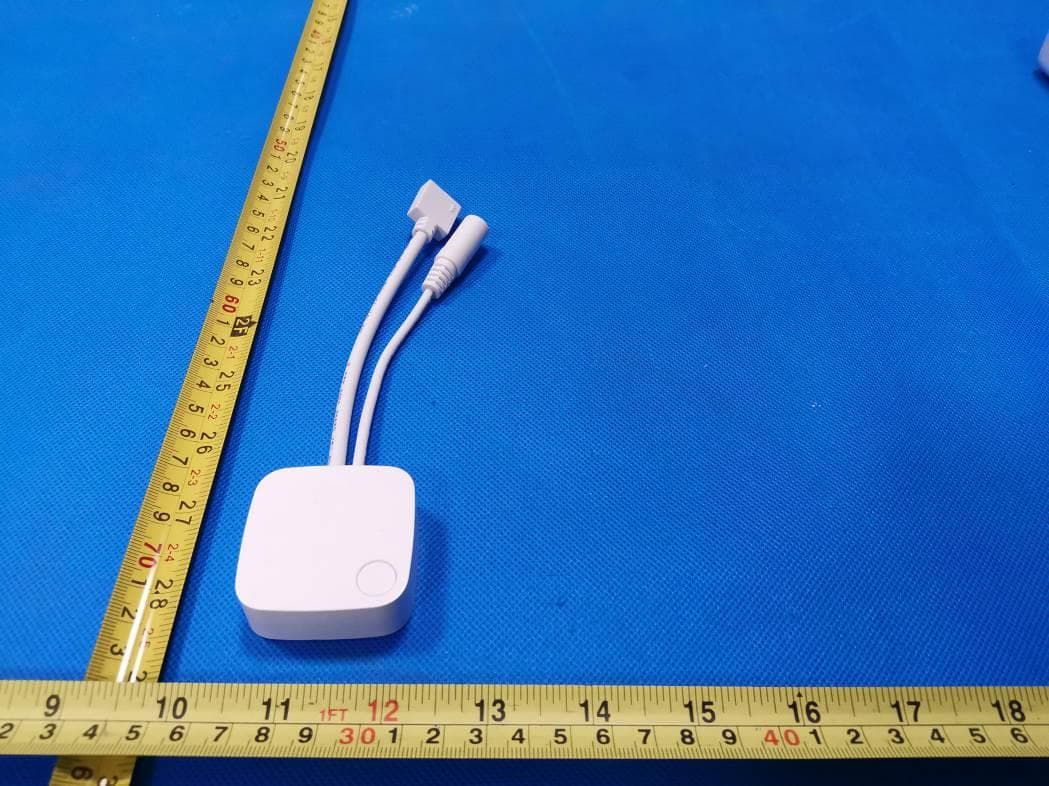

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 1. XTERIOR PHOTOGRAPHS Fig. 1 W24-120200UW Fig. 2 XY24SH-120200VQ-UW SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 3 GQ24-120200-AU Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 11 W24-120200UW Fig. 12 W24-120200UW SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 13 W24-120200UW Fig. 14 XY24SH-120200VQ-UW SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 15 XY24SH-120200VQ-UW Fig. 16 XY24SH-120200VQ-UW SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 17 GQ24-120200-AU Fig. 18 GQ24-120200-AU

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0 cm*W0.5cm Material: Silk-screen Font color: Black Label color: White Label Location FCC ID: 2AUEPTYWFC3-25T5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 1. TERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Fig. 9 Fig. 10 WIFI Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID 2AUEPTYWFC3-25T5 Product name Smart WIFI Strip Light Kit Model Number TYWFC3-25T5 Power supply Adapter 1(W24-120200UW): Input: 100-240VAC, 0.6A Max, 50/60Hz Output: DC 12V, 2.0A Adapter 2(GQ24-120200-AU): Input: 100-240VAC, 1.0A Max, 50/60Hz Output: DC 12V, 2.0A Adapter 3(XY24SH-120200VQ-UW): Input: 100-240VAC, 0.6A Max, 50/60Hz Output: DC 12V, 2.0A Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) for 2.4G WLAN(DTS) IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) for 2.4G WLAN(DTS) Antenna Type Internal Antenna for 2.4G WLAN(DTS) Antenna Gain 2.5 dBi (maximum) for 2.4G WLAN(DTS) Hardware version KZ-WF96W24V-3&4&5-1 V0.1 Software version 3.10.1 2.4G WLAN Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Equipment 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information TYWFC3-25T5 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 0 External Antenna 2412 MHz – 2462 MHz 2.5dBi 6. Conducted Power 2.4G WLAN Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) 1 2412 15.544 6 2437 14.978 IEEE 802.11b 11 2462 14.912 1 2412 16.967 6 2437 16.789 IEEE 802.11g 11 2462 16.548 1 2412 17.488 6 2437 17.120 IEEE 802.11n HT20 11 2462 16.856 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance 2.4G WLAN IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.5 16.5 16.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE Evaluation As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 1 of 35 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart WIFI Strip Light Kit Trade Mark: Test Model: TYWFC3-25T5 Environmental Conditions Temperature: 23.6  C Relative Humidity: 53% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 2 of 35 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 3 of 35 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 4 of 35 A.2 Maximum Conducted Output Power Mode Channel Meas. Peak Level [dBm] Limit [dBm] Verdict 11B LCH 15.544 30 PASS MCH 14.978 30 PASS HCH 14.912 30 PASS 11G LCH 16.967 30 PASS MCH 16.789 30 PASS HCH 16.548 30 PASS 11N20SISO LCH 17.488 30 PASS MCH 17.120 30 PASS HCH 16.856 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 5 of 35 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Limit [dBm/3KHz] Verdict 11B LCH -1.317 8 PASS MCH -1.563 8 PASS HCH -1.613 8 PASS 11G LCH -6.536 8 PASS MCH -6.647 8 PASS HCH -6.825 8 PASS 11N20SISO LCH -5.812 8 PASS MCH -5.825 8 PASS HCH -6.018 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 6 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 7 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 8 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 9 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 10 of 35 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.098 ≥0.5 PASS MCH 8.079 ≥0.5 PASS HCH 8.087 ≥0.5 PASS 11G LCH 16.29 ≥0.5 PASS MCH 15.80 ≥0.5 PASS HCH 15.80 ≥0.5 PASS 11N20SISO LCH 17.58 ≥0.5 PASS MCH 16.27 ≥0.5 PASS HCH 15.80 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 11 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 12 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 13 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 14 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 15 of 35 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH 2.107 -48.056 -17.89 PASS MCH 1.865 -49.059 -18.13 PASS HCH 1.698 -48.523 -18.30 PASS 11G LCH -1.247 -48.638 -21.25 PASS MCH -1.529 -48.116 -21.53 PASS HCH -1.388 -52.636 -21.39 PASS 11N20 SISO LCH -1.061 -48.479 -21.06 PASS MCH -1.332 -47.790 -21.33 PASS HCH -1.494 -47.824 -21.49 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 16 of 35 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 17 of 35 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 18 of 35 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 19 of 35 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 20 of 35 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 21 of 35 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 22 of 35 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 23 of 35 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 24 of 35 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 25 of 35 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH 2.108 -55.674 -17.89 PASS HCH 1.715 -53.907 -18.28 PASS 11G LCH -1.021 -56.358 -21.02 PASS HCH -1.463 -47.442 -21.46 PASS 11N20SISO LCH -0.930 -56.013 -20.93 PASS HCH -1.308 -45.159 -21.46 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 26 of 35 Test Graphs 11B/LCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 27 of 35 11G/LCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 28 of 35 11N20SISO/LCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Page 29 of 35 B.7 Restrict-band band-edge measurements Test Mode Test Channel Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBu V/m] Verdict 11B 2412 Ant1 2310.0 -48.868 2.5 0 48.89 PEAK 74 PASS 2412 Ant1 2310.0 -58.942 2.5 0 38.82 AV 54 PASS 2412 Ant1 2390.0 -47.363 2.5 0 50.40 PEAK 74 PASS 2412 Ant1 2390.0 -57.169 2.5 0 40.59 AV 54 PASS 2462 Ant1 2483.5 -48.126 2.5 0 49.63 PEAK 74 PASS 2462 Ant1 2483.5 -59.322 2.5 0 38.44 AV 54 PASS 2462 Ant1 2500.0 -47.119 2.5 0 50.64 PEAK 74 PASS 2462 Ant1 2500.0 -59.211 2.5 0 38.55 AV 54 PASS 11G 2412 Ant1 2310.0 -48.207 2.5 0 49.55 PEAK 74 PASS 2412 Ant1 2310.0 -58.985 2.5 0 38.78 AV 54 PASS 2412 Ant1 2390.0 -31.881 2.5 0 65.88 PEAK 74 PASS 2412 Ant1 2390.0 -49.488 2.5 0 48.27 AV 54 PASS 2…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Report No.: LCS200414103AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 48 FCC TEST REPORT For SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Smart WIFI Strip Light Kit Test Model: TYWFC3-25T5 Additional Model: Please Refer to Page 6 Prepared for : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address : Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 14, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 14, 2020 ~ May 08, 2020 Date of Report : May 08, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Report No.: LCS200414103AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 48 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2017 Report Reference No. ................. : LCS200414103AEA Date of Issue .................................. : May 08, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address .......................................... : Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247): 2017 Test Report Form No.................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Smart WIFI Strip Light Kit Trade Mark ..................................... : Test Model ..................................... : TYWFC3-25T5 Ratings ........................................... : Please Refer To Page 6 Result ........................................... : Positive Compiled by: Supervised by: Approved by: Dera Deng / File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Report No.: LCS200414103AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 48 FCC -- TEST REPORT EUT......................................... : Smart WIFI Strip Light Kit Test Model............................... : TYWFC3-25T5 Applicant............................... : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address.................................. : Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Telephone............................... : Fax.......................................... : Manufacturer........................ : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address................................... : Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Telephone............................... : Fax.......................................... : Factory................................... : SHEN ZHEN CL LIGHTING TECHNOLOGY CO.,LTD Address................................... : Floor 4, Bldg.B, #1, 3rd Indl.Zone, Shiyan, Bao’an, Shenzhen, China Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200414103AEA May 08, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUEPTYWFC3-25T5 Report No.: LCS200414103AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 48 Revision History Revision Issue Date Revisions Revised By 000 May 08, 2020 Initial Issue…
