2AUG3-MCD114Wireless Charging Cradle

Wireless Charging Cradle User Manual Product Wireless Charging Cradle Model Name MC-D 114 Variant Model Name None Manufacturer CELLRETURN CO.,LTD Ver. V0.1 Wireless Charging Cradle 1. Read me first Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. • Before using the wireless charger, make sure it is compatible with your device. 2. Device layout 서식 있음: 글꼴: (영어) Times New Roman, 11 pt Wireless Charging Cradle 3. Using the wireless charger Charging your LED MASK PLATINUM Connect the charger to the wireless charger. When the LED MASK PLATINUM is correctly placed on the wireless charger, the indicator light turns on blue. Check the charging LED indicator on the MASK for charging status.. When the LED MASK is fully charged, removed the MASK from the wireless charger. Indicator light identification The indicator light alerts you to the wireless charger’s status. Colour Status Off When connected to a power outlet Blue When the LED MASK PLATINUM is correctly placed on the wireless charger Off When the MASK is removed from the wireless charger or when the wireless charger is not connected to a power outlet Wireless Charging Cradle 4. Precautions for LED MASK PLATINUM charging • Do not place the MASK on the wireless charger with a credit card or radiofrequency identification (RFID) card (such as a transportation card or a key card). • Do not place the MASK on the wireless charger when conductive materials, such as metal objects and magnets, are placed between the MASK and the wireless charger • Do not connect a charger to the MASK during wireless charging at the same time, When the MASK is charged both way wired and wireless at the same time, it might be able to make problem. • When charging for LED MASK PLATINUM, should keep a distance more than 15 cm between wireless charging cradle and human body. • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. 5. Specifications Model Name MC-D 114 Input power d.c. 5 V/2 A Wireless charging Qi (Tx) Weight 662 g Size 26.8 x 18.2 x 24.0 cm (W x H x D) Wireless Charging Cradle FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Cellreturn Co., Ltd. 237, Namdongseo-ro, Namdong-gu, Inchon, Republic of Korea Date: January 20, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. TIMCO ENGINEERING Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 To whom it may concern: I, the undersigned, hereby authorize Hyeonsu, Jang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyeonsu, Jang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Cellreturn Co., Ltd. 237, Namdongseo-ro, Namdong-gu, Inchon, Republic of Korea f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Daesung Kim / Manager Cellreturn Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Cellreturn Co., Ltd. 237, Namdongseo-ro, Namdong-gu, Inchon, Republic of Korea Date: January 20, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AUG3-MCD114 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List MC-D114_Part List.pdf Schematics Diagram(s) MC-D114_Schematics.pdf Block diagram MC-D114_Block diagram.pdf Operation description MC-D114_Operation description.pdf And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Daesung Kim / Manager Cellreturn Co., Ltd. .

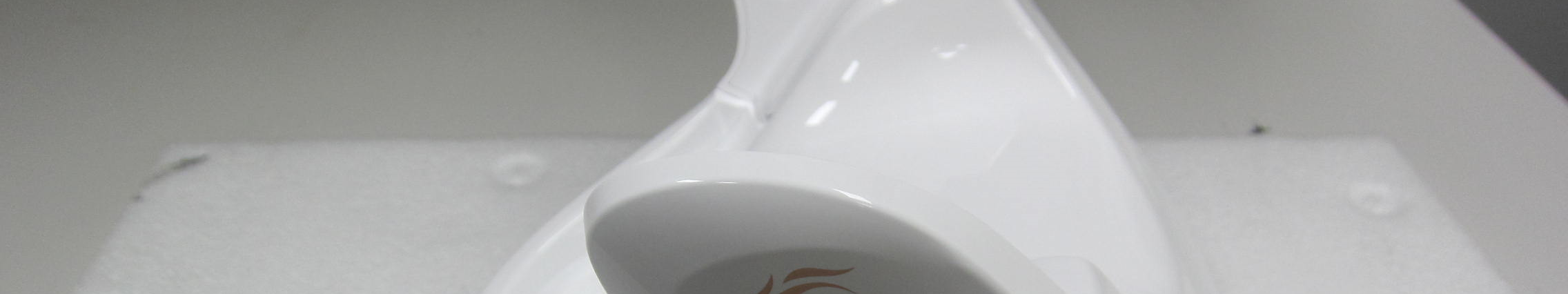

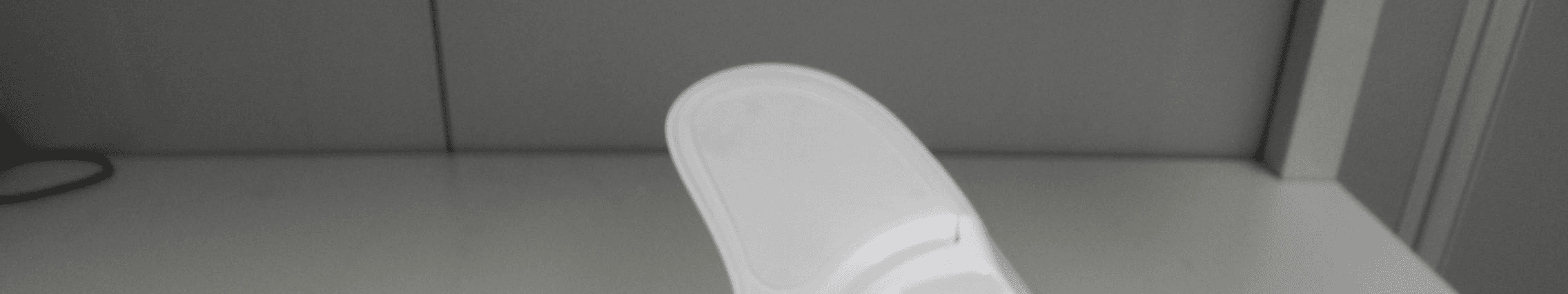

FCC ID: 2AUG3-MCD114 Page 1 of 1 External photos

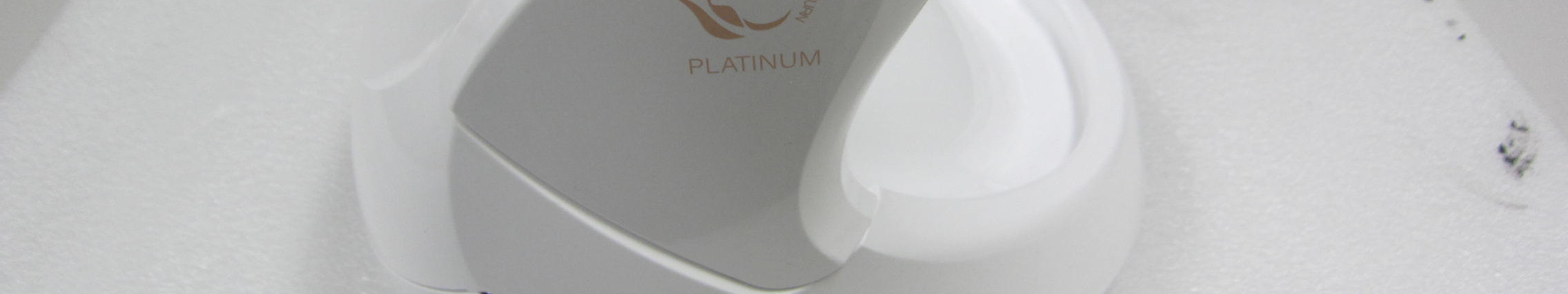

FCC ID: 2AUG3-MCD114 Page 1 of 1 Label photo

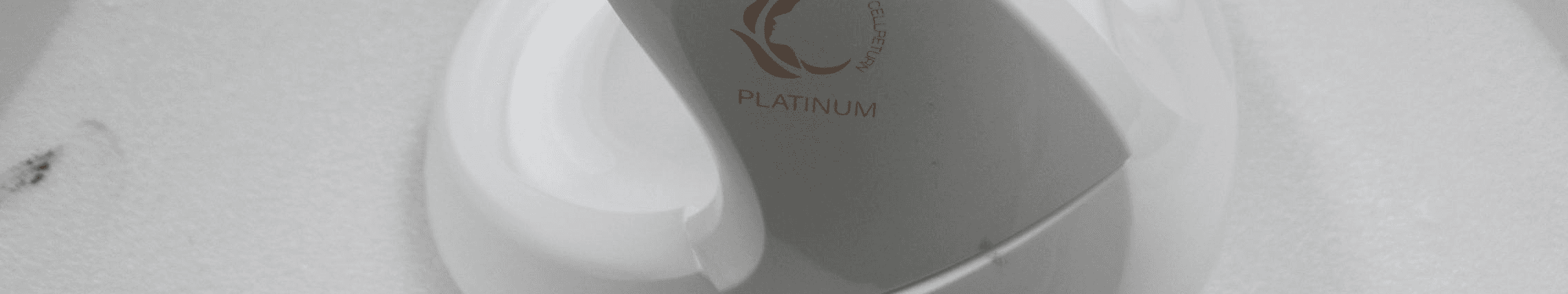

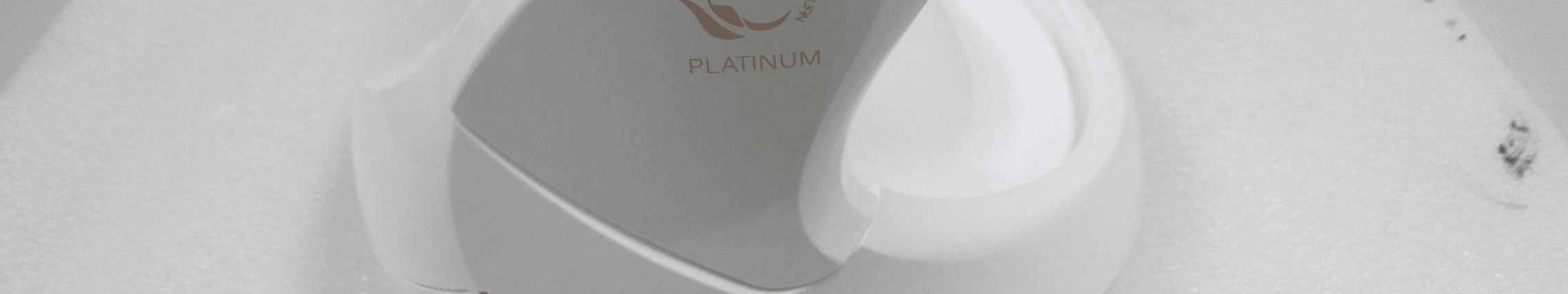

FCC ID: 2AUG3-MCD114 Page 1 of 2 Internal photos FCC ID: 2AUG3-MCD114 Page 2 of 2 Coil Antenna
