2AUKHWHIS-02WHIS

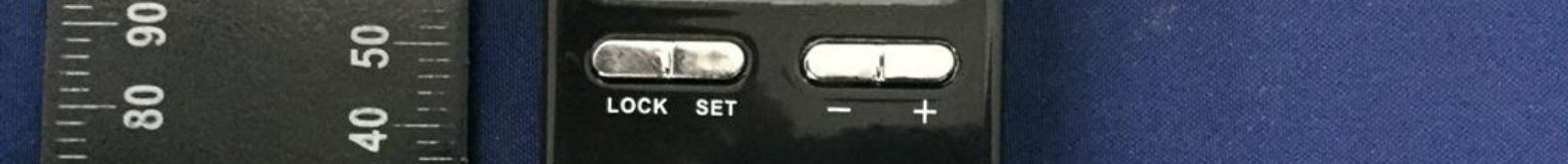

Wireless Audio Transceiver (WAT) 01 Operation Manual Transmitter Receiver 1. DCIN (+5V) 2. OFF/On Switch 3. Lock Button (together with <) 4. Set Button 5. Function Key 1 6. Function Key2 7. Line&MIC Input 8. Lock Display 9. Battery Display 10. Power Display 11. Input Gain Display 12. Channel Display 13. Set Display Operation: 1. Switch On/Off: Switch up is on, switch down is off. When switching on, the device is locked. 2. Unlock/Lock: Keep pushing Lock and - (or just Lock for receiver and newest transmitter) for 3 seconds to unlock/lock. Device is locked when display showing a Lock. Note: If no operation in 10 seconds after unlocking, the device will turn to locked mode automatically. 3. Change Channel: When device is unlocked, push - or + to change channels, the display will show channel number (1-99). When the transmitter and receiver are in the same channel, they will be working. 4. Input Gain Selection (volume adjustment for transmitter): When unlocked, push set to choose Input Gain according to your input source. For example, choose 1-3 for microphone input, 3 will transmit a larger sound; choose 0 for audio data input such as mp3 player. 5. Transmitter Mute: When transmitter is locked. You can Press “SET” for 2-3 seconds to mute or un-mute the microphone. When mute, the left figure will flash on the screen. 6. Receiver volume Control: When receiver is on and locked, use - and + to adjust volume. At the same time, the display will show (1-15) volume number. 7. Receiver Squelch on/off Adjustment: To reduce noise at different location, you can adjust receiver squelch (0-9) off level. When the signal to receiver is too weak and noise is large, receiver will automatically stop receiving signal according to this setting. When receiver is on and unlocked, push set to adjust. 0 means receiver keep receiving signal at any location and gets maximal distance, 9 means even slight noise will shut off the receiver. Usually 0-1 is a good level. If two transmitters are working on the same channels at same location, this function will automatically 1. DCIN (+5V) 2. OFF/On Switch 3. Lock Button (together with <) 4. SetButton 5. Function Key1 6. Function Key2 7. Output 8. Lock Display 9. Battery Display 10. Power Display 11. Input Squelch Display 12. Vol/ch Display 13. Set Display 14. Receiver frequency switch shut off the receivers. 8. 76MHz and UHF switch. The receiver can be switch between 76MHz and UHF. When receiver is unlocked, push “Lock” and “SET” together for 3 seconds. The Receiver will show GROP and only work at 76MHz. Push “Lock” and “SET” again to switch back to UHF. 9. Charging: Please use DC5Vcharger. When charging, the red light on the back of the display is on. When charging is finished, the red light will be off. We supply charging station for large amount of device to be charged at the same time. Hints for application: If two groups are located in a very short distance, nearby channels might generate an interference. In this case, in stead of using two close channels, for example, CH1 and CH2, please use channels with more difference, for example, CH1 and CH5, to eliminate the interference between groups. If the receiver volume is over 10, you can hear a slight noise. In this case, please adjust the transmitter volume to maximal level, then you can reduce the receiver volume to avoid the noise. Specifications: Parmater Value Wave band 902.5-927.25MHz Sensitivity -115 dBm Distance >280 m (Open ground/without interference) S/N ratio >60 db Input 3.5mm microphone/audio Output 3.5mm earphone/audio No. of Channels 50-100 (adjustable) Ant. gain 1dBi Hardware version V1.1 Power supply 3.7 V Rechargeable Lithium battery Dimension 50mm x 65mm x 17mm Caution: the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this devices must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

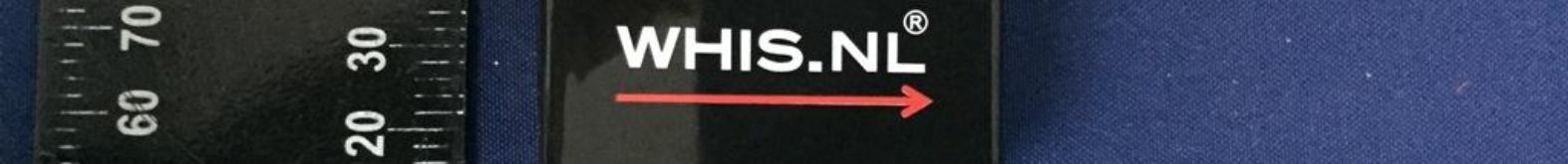

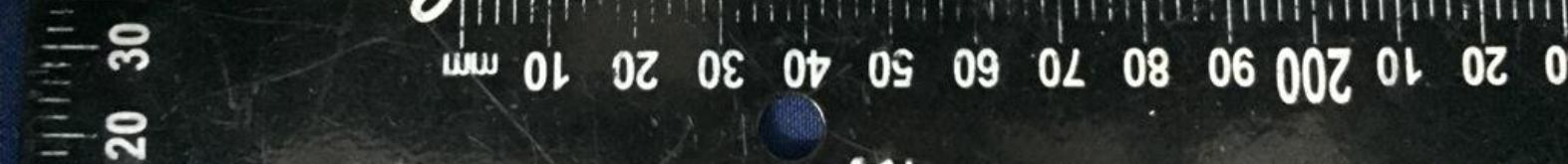

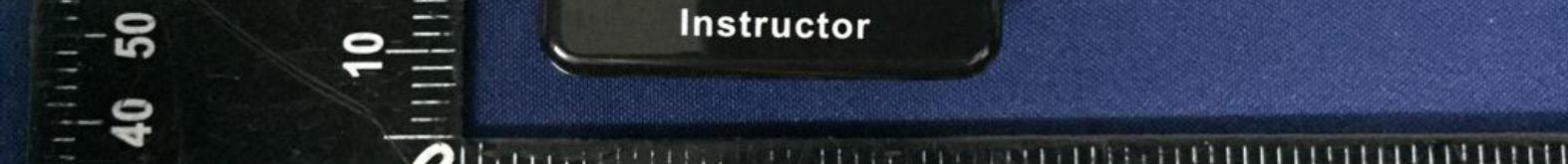

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 30 of 35 9. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 31 of 35 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 32 of 35

Label FCC ID：2AUKHWHIS-02 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this devices must accept any interference received, including interference that may cause undesired operation.

Location:

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 33 of 35 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 34 of 35 Antenna Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 35 of 35 END OF REPORT

Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 1 of 42 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, SongshanLake Sci&Tech, IndustryPark, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-38826678, E-mail: [email protected], http://www.dgddt.com Applicant : EQUITATION HOLDING B.V. Address : Van Heemstraweg 25, 6657 KD, Boven- Leeuwen, Netherlands Equipment under Test : WHIS Model No. : WHIS-02 Trade Mark : WHIS FCC ID : 2AUKHWHIS-02 Manufacturer : EQUITATION HOLDING B.V. Address : Van Heemstraweg 25, 6657 KD, Boven- Leeuwen, Netherlands ■Report No.: DDT-R19082808-1E3 ■Issued Date: Jan. 15, 2020 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 2 of 42 TABLE OF CONTENTS Test report declares.......................................................................................................4 1. Summary of test results ................................................................................................. 6 2. General test information ................................................................................................. 7 2.1. Description of EUT ......................................................................................................... 7 2.2. Accessories of EUT ........................................................................................................ 8 2.3. Assistant equipment used for test .................................................................................. 8 2.4. Block diagram of EUT configuration for test .................................................................. 8 2.5. Test environment conditions .......................................................................................... 8 2.6. Deviations of test standard............................................................................................. 8 2.7. Test laboratory ............................................................................................................... 9 2.8. Measurement uncertainty ............................................................................................... 9 3. Equipment used during test ......................................................................................... 10 4. 20dB Bandwidth ........................................................................................................... 11 4.1. Block diagram of test setup .......................................................................................... 11 4.2. Limits ............................................................................................................................ 11 4.3. Test Procedure ............................................................................................................. 11 4.4. Test Result ................................................................................................................... 11 4.5. Original test data .......................................................................................................... 12 5. Radiated emission ........................................................................................................ 13 5.1. Block diagram of test setup .......................................................................................... 13 5.2. Limit .............................................................................................................................. 14 5.3. Test Procedure ............................................................................................................. 15 5.4. Test result ..................................................................................................................... 16 6. Band Edge Compliance ............................................................................................... 25 6.1. Block diagram of test setup .......................................................................................... 25 6.2. Limit .............................................................................................................................. 25 6.3. Test Procedure ............................................................................................................. 25 6.4. Test result ..................................................................................................................... 25 7. Power Line Conducted Emission ................................................................................. 30 7.1. Block diagram of test setup .......................................................................................... 30 7.2. Power Line Conducted Emission Limits ...................................................................... 30 7.3. Test Procedure ............................................................................................................. 30 7.4. Test Result ................................................................................................................... 31 8. Antenna Requirements ................................................................................................ 34 8.1. Limit .............................................................................................................................. 34 8.2. Result ........................................................................................................................... 34 9. Test setup photograph ................................................................................................. 35 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 3 of 42 10. Photos of the EUT ........................................................................................................ 37 Dongguan Dongdian Testing Service Co., Ltd. Report No.: DDT-R19082808-1E3 Page 4 of 42 TEST REPORT DECLARE Test Standard Used: FCC Rules and Regulation…
