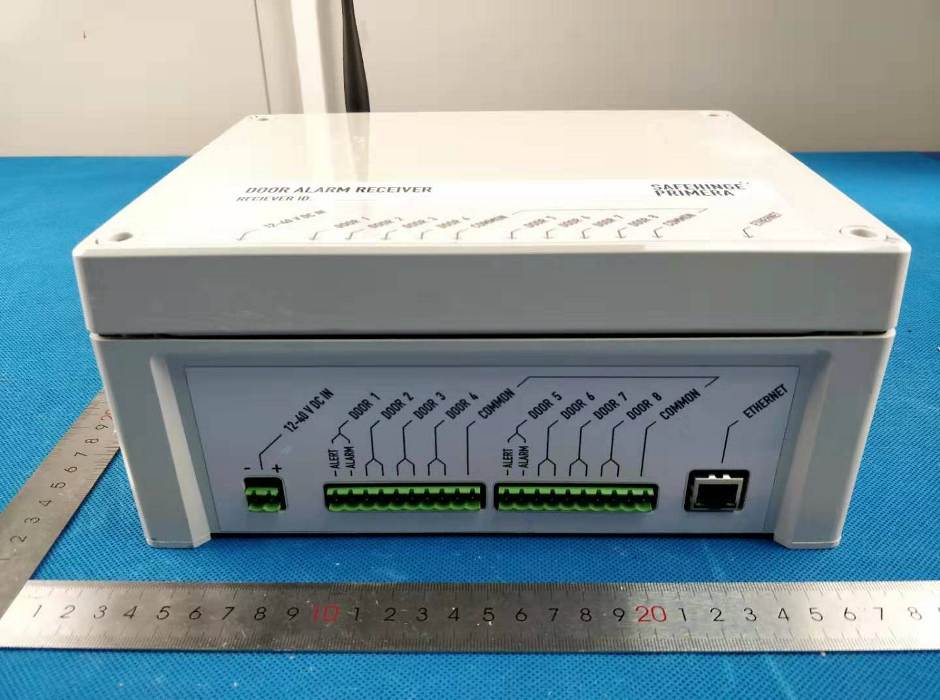

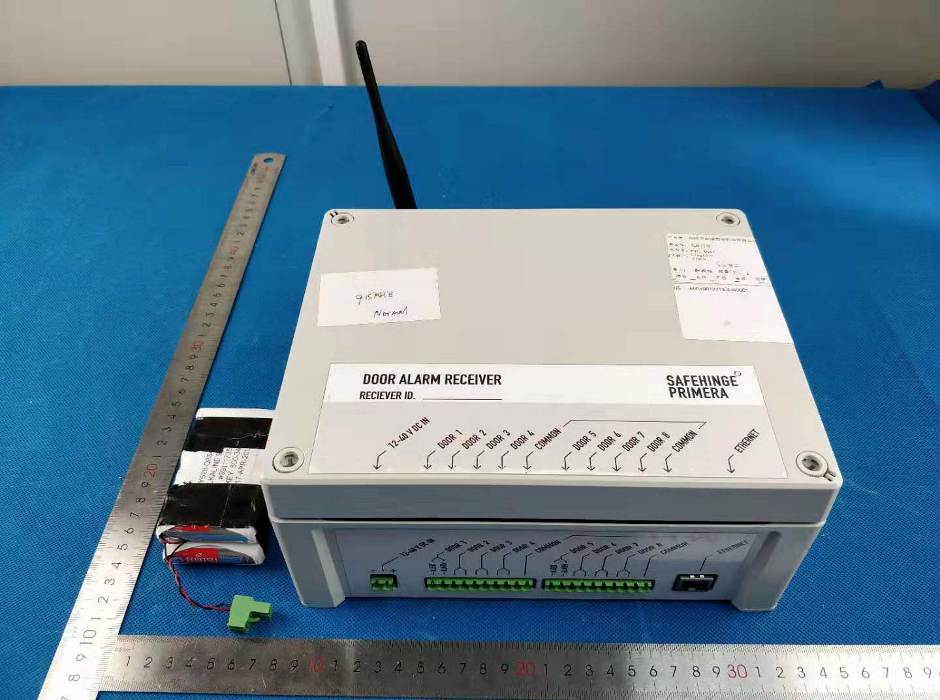

2AULI-FDLAFull Door Ligature Alarm

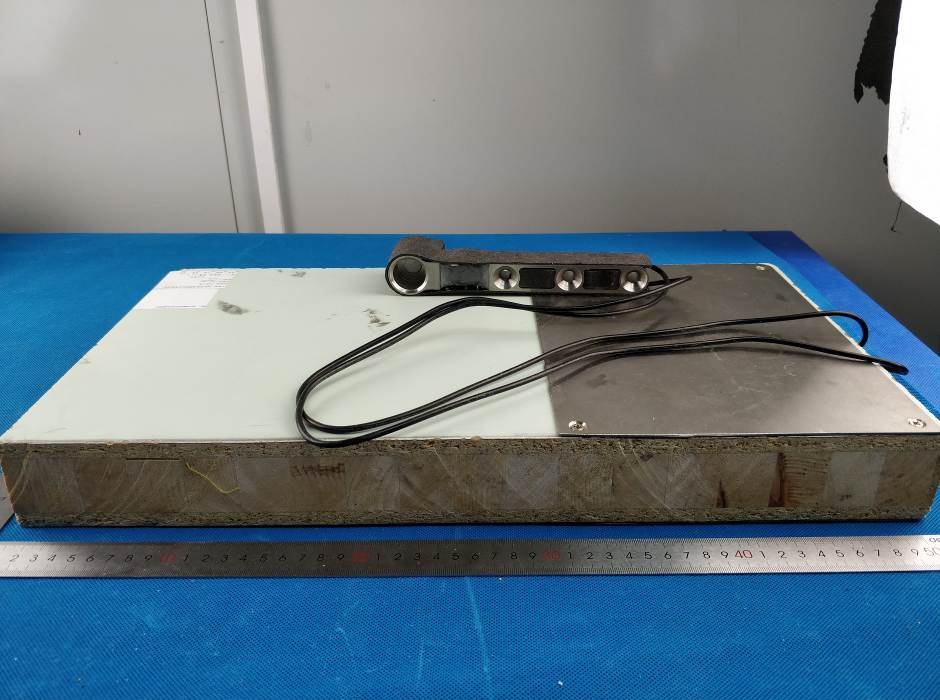

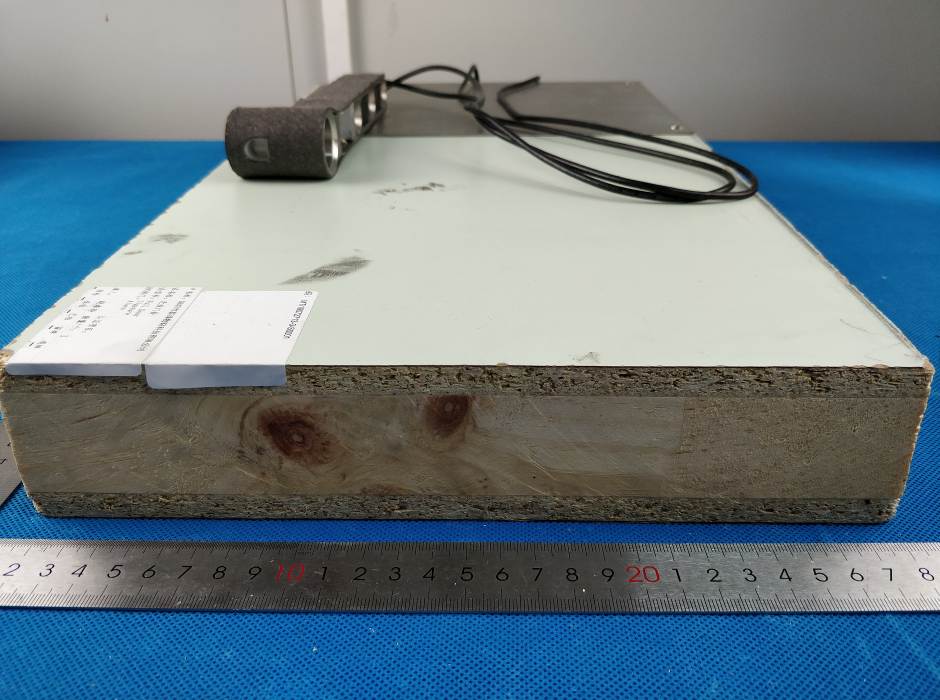

Clinical Staff User Manual Full-door Ligature Alarm STG028 REV: 1 (20200731) Door Alarm Overview3 What Does It Do?3 Which Doors Is It Installed On?3 Ligature Alarms3 What Conditions Will Trigger a Ligature Alarm?3 How Does the Alarm Look and Sound?3 Response to a Ligature Alarm4 Door Alarm Testing4 Test tools4 Ligature Test Tool - SHC96-2034 Magnet Test Tool - SHC96-2174 Door Alarm Weekly Test (No Audible Alarm)5 Full System Door Alarm Test (Audible Alarm)6 Door Alarm Testing Schedule7 Automatic Fault Detection8 Possible Door Alarm Faults8 Fault Alerts8 Responding to a Fault Alert9 Door Alarm Dashboard10 Accessing the Dashboard10 Dashboard Status Explained11 Appendix12 Appendix A - Site Details12 Alarm Names12 Floor Plans12 Fault Alert Configuration12 Appendix B - Alarm System Integration Configuration13 STG028 REV:1 (20200731) 2 Door Alarm Overview The Full-door Ligature Alarm has been developed specifically for Mental Health inpatient environments to alert staff of ligature attempts made on doors. What Does It Do? Integrating seamlessly into Safehinge Primera (SHP) bedroom doorsets, the alarm turns the door into a large ‘weighing scale’ sensing additional weight applied during a ligature attempt. If a ligature is detected an alarm will sound alerting staff to the emergency. Which Doors Is It Installed On? See “​Appendix A - Site Details​” for a floor plan detailing which doors feature a Door Alarm as well as Alarm System labels for each Door Alarm. Ligature Alarms What Conditions Will Trigger a Ligature Alarm? The door must be closed (within 8 degrees of the latched position) Vertical load applied that exceeds trigger threshold Load above threshold for 5 seconds (up to 15 seconds if door has been closed for 20 secs) How Does the Alarm Look and Sound? When a Ligature is detected the Door Alarm will trigger an Alarm through the staff attack alarm system. On most systems this will result in an audible alarm and a Room ID displayed on the alarm panel. Some system configurations may also include Over Door Lights to ease identification of the correct room. The Door Alarm will continue to trigger an Alarm every 15 seconds until the door has been opened fully. You must open the door before cancelling the alarm or it will continue to re-trigger for up to 3 minutes. For details on your ward’s specific configuration see “​Appendix B - Alarm System Integration Configuration​”. STG028 REV:1 (20200731) 3 Response to a Ligature Alarm 1.Check alarm display / over door lights to identify which Door Alarm is alarming 2.Go to room and evaluate the situation (Fully open the door to stop alarm re-triggering). 3.Cancel alarm using staff attack alarm system interface Door Alarm Testing Regular testing of the Full-door Ligature Alarm is essential to ensure that the system continues to work as intended throughout its service life. Test tools Ligature Test Tool - SHC96-203 The Ligature Test Tool is used to apply ligature loads to the door during testing. Magnet Test Tool - SHC96-217 The Magnet Test Tool is used to enable Test mode and to mute the door buzzer. STG028 REV:1 (20200731) 4 Door Alarm Weekly Test (No Audible Alarm) This test does not trigger an alarm through the Staff Alarm system. Used to test that the Door Alarm system is working, ​but does not test the connection to the Staff Alarm system. STG028 REV:1 (20200731) 5 Full System Door Alarm Test (Audible Alarm) Triggers an audible alarm through the Staff Alarm system, used to prove that the entire system is working as intended. STG028 REV:1 (20200731) 6 Door Alarm Testing Schedule We recommend that you perform the Door Alarm Only Test on every Door Alarm at least once a week. The dashboard will remind you to complete these tests. We also recommend that you complete Full System Tests at regular intervals to flush through the entire system. Your clinical management team is responsible for setting a schedule for these tests. STG028 REV:1 (20200731) 7 Automatic Fault Detection The Full-door Ligature Alarm continually monitors itself for faults that may prevent it detecting a ligature event. It is possible that a fault could occur that the system is not able to detect automatically. Routine testing of the system is critical to ensuring that any undetected faults are noticed and corrected. Possible Door Alarm Faults Fault Name Fault Description Re-Trigger Period Battery Low Battery has reached 30% capacity. Will re-trigger every 5% drop in battery capacity. Connection to Alarm System The Door Alarm can not confirm it’s connection the Alarm System This fault alert will trigger every 6 hours until it has been resolved. Sensor Fault There is a problem with the sensor. This fault alert will trigger every 6 hours until it has been resolved. Fault Alerts If a fault has been detected an alert will be raised through a combination of the staff alarm system, door buzzer, email alerts, and the Dashboard depending on the configuration of your system. Please see “​Appendix A - Site Details: Fault Alert Configuration​” for details.. STG028 REV:1 (20200731) 8 Responding to a Fault Alert STG028 REV:1 (20200731) 9 Door Alarm Dashboard The Dashboard has been developed to support the Full-door Ligature Alarms and provide Clinical and Estates teams with an immediate insight into the status of each Alarm. The Dashboard should only be viewed from an area where Service Users cannot see the screen​. Each room fitted with a Door Alarm is listed on the Dashboard and the rows are RAG rated (Red, Amber, Green) to provide a quick, visual indication of the status. The Dashboard automatically refreshes and updates every 60 seconds, providing near real-time insights. Accessing the Dashboard The Dashboard can be accessed from any device with an internet connection and web browser by visiting: dashboard.shp.help It is recommended that the Dashboard is displayed permanently on a dedicated screen located in the Staff Office. This set-up will ensure that any member of the Clinical team can no…
