2AUMGMS1812sound card

FCC Statement:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:1) Reorient or relocate the receiving antenna.2) Increase the separation between the equipment and receiver.3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4) Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

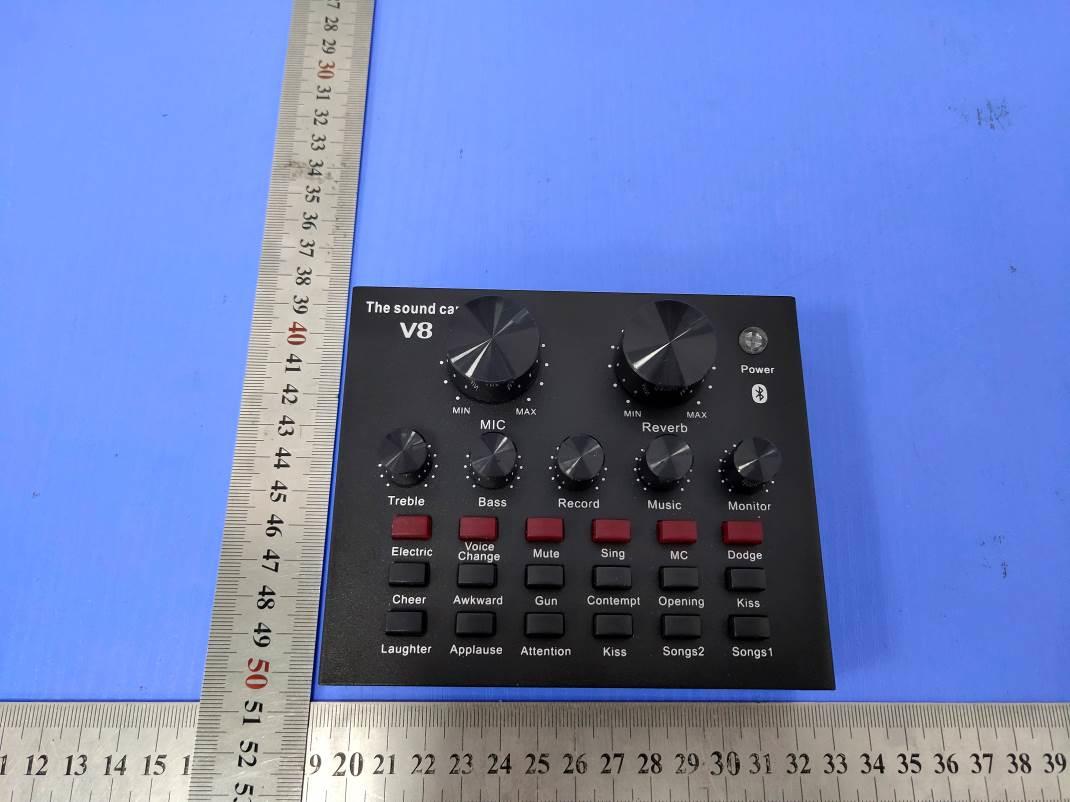

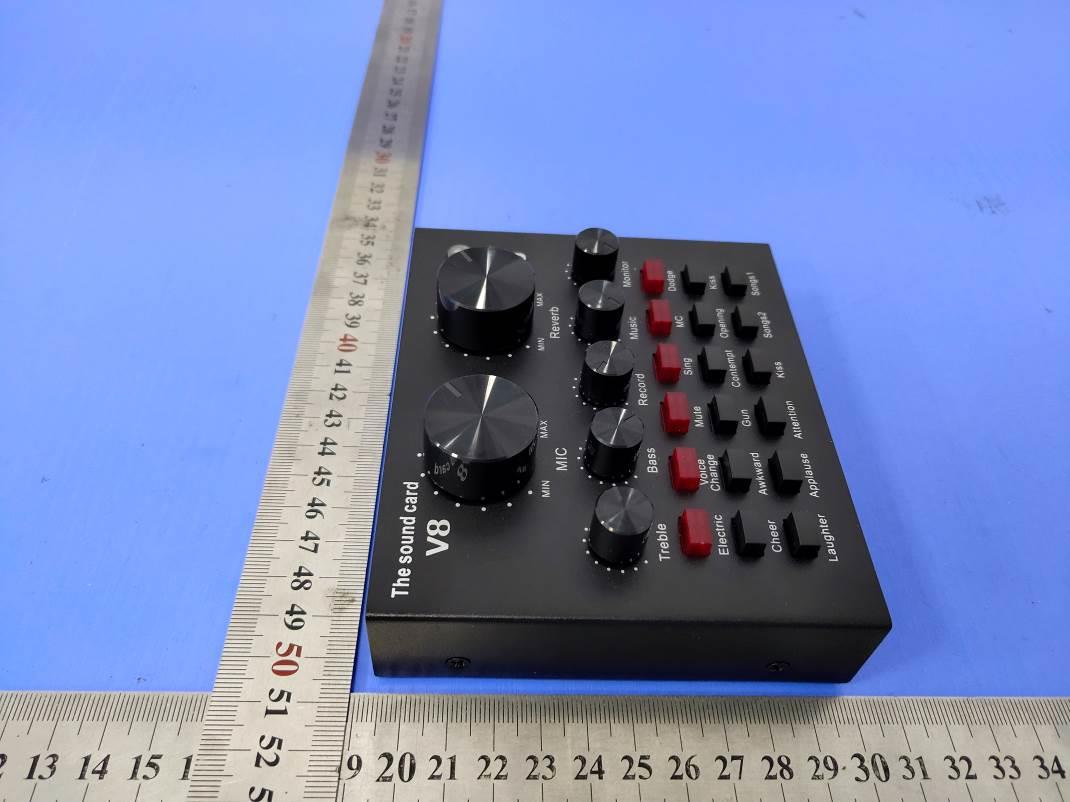

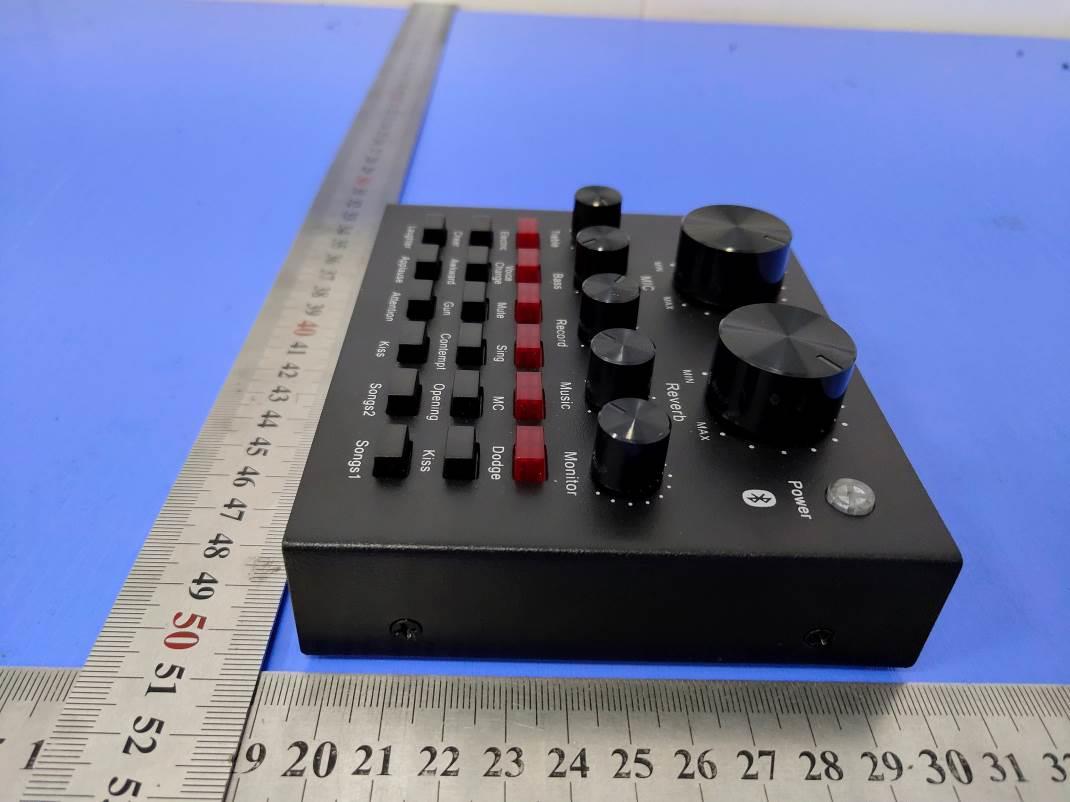

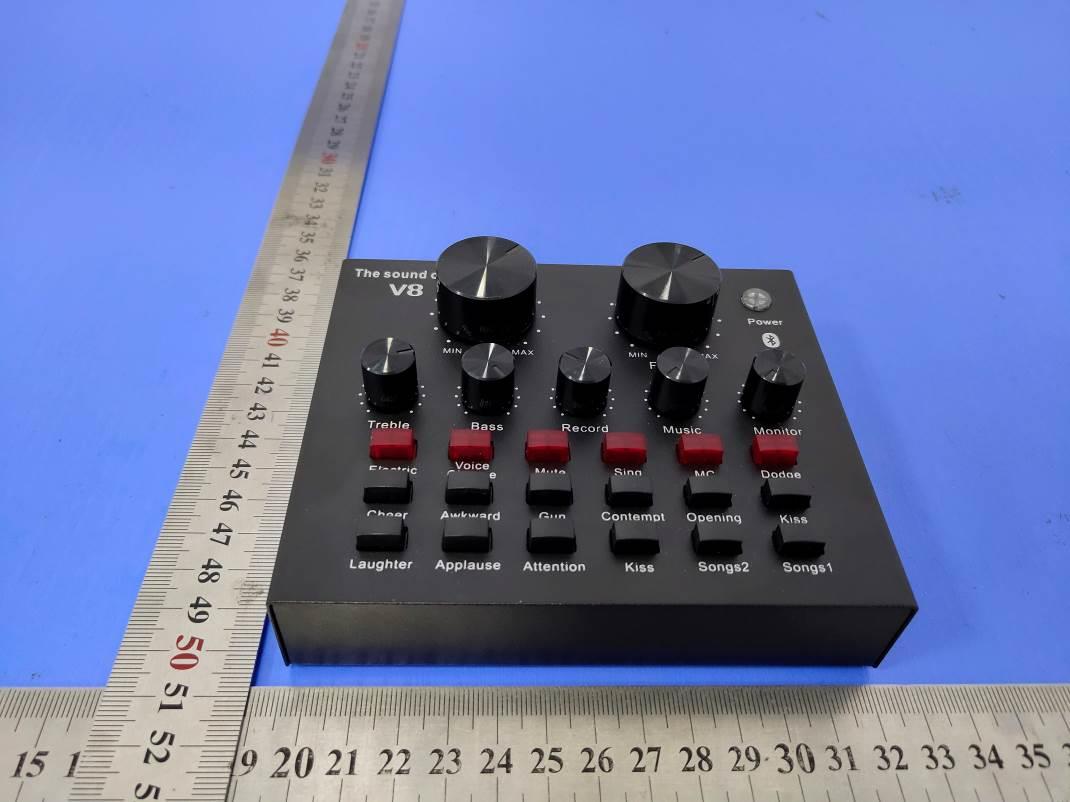

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERNAL PHOTOGRAPHS OF THE EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm FCC ID: 2AUMGMS1812 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6 Bluetooth Antenna

iDance Distribution Ltd. Add: 6/F Unit i, MG Tower, No. 133 Hoi Bun Road, Kwun Tong, Hong Kong, China Declaration concerning Antenna Specification Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/10/22 TO WHOM IT MAY CONCERN It is hereby declared that the product Model No.: MS1812 FCC ID: 2AUMGMS1812 Fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Fixed Internal antenna type(s) described below: Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: Internal Antenna MS1812 Internal antenna 2.81 dBi 2.402 GHz – 2.4835 GHz The Antenna is printed directly on the PCB and cannot be separated, and no other antennas not listed above should be used. Sincerely, Name: Mr YingTung Wong / Merchandiser Company: iDance Distribution Ltd. Address: 6/F Unit i, MG Tower, No. 133 Hoi Bun Road, Kwun Tong, Hong Kong, China Phone: 852 26222068 Fax: 852 26222113 E-Mail: [email protected]

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AUMGMS1812 Product name sound card Model number MS1812 Power supply DC 3.7V By Battery(1200mAh) Recharged By DC 5V 1A Modulation Type GFSK, π/4-DQPSK and 8-DPSK for V5.0 (BT Classics) GFSK for Bluetooth V5.0 (BT LE) Antenna Type Internal Antenna Antenna Gain 2.81 dBi (maximum) Hardware version V8P REV:2.2 Software version V8P V2.1 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results BT Classsics Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -3.930 39 2441 -4.551 78 2480 -5.036 π/4-DQPSK 0 2402 -4.100 39 2441 -4.678 78 2480 -5.146 8-DPSK 0 2402 -4.086 39 2441 -4.597 78 2480 -5.084 BT LE Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -4.263 19 2440 -4.938 39 2480 -5.472 5. Manufacturing Tolerance GFSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -4.0 -4.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -4.0 -4.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -4.0 -4.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK –BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -4.0 -4.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 This report shall not be reproduced except in full, without the writ…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: sound card Trade Mark: iDance Test Model: MS1812 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: JAY LI Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -3.930 21 PASS MCH -4.551 21 PASS HCH -5.036 21 PASS π/4DQPSK LCH -4.100 21 PASS MCH -4.678 21 PASS HCH -5.146 21 PASS 8DPSK LCH -4.086 21 PASS MCH -4.597 21 PASS HCH -5.084 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9872 Not Specified PASS MCH 0.9895 Not Specified PASS HCH 0.9824 Not Specified PASS π/4DQPSK LCH 1.317 Not Specified PASS MCH 1.311 Not Specified PASS HCH 1.311 Not Specified PASS 8DPSK LCH 1.300 Not Specified PASS MCH 1.298 Not Specified PASS HCH 1.299 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.342 0.660 PASS MCH 1.348 0.660 PASS HCH 1.004 0.660 PASS π/4DQPSK LCH 1.356 0.878 PASS MCH 1.300 0.878 PASS HCH 1.048 0.878 PASS 8DPSK LCH 1.110 0.867 PASS MCH 0.916 0.867 PASS HCH 1.084 0.867 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.91 106.7 0.31 0.4 PASS DH5 MCH 2.91 106.7 0.31 0.4 PASS DH5 HCH 2.91 106.7 0.31 0.4 PASS π/4DQPSK 2DH5 LCH 2.91 106.7 0.31 0.4 PASS 2DH5 MCH 2.91 106.7 0.31 0.4 PASS 2DH5 HCH 2.91 106.7 0.31 0.4 PASS 8DPSK 3DH5 LCH 2.91 106.7 0.31 0.4 PASS 3DH5 MCH 2.91 106.7 0.31 0.4 PASS 3DH5 HCH 2.91 106.7 0.31 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -4.384 -38.229 -24.384 PASS MCH -5.045 -38.416 -25.045 PASS HCH -5.556 -38.364 -25.556 PASS π/4DQPSK LCH -4.541 -37.871 -24.541 PASS MCH -5.133 -38.287 -25.133 PASS HCH -5.744 -37.550 -25.744 PASS 8DPSK LCH -4.582 -37.625 -24.582 PASS MCH -5.027 -37.142 -25.027 PASS HCH -5.565 -37.245 -25.565 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR iDance Distribution Ltd. sound card Test Model: MS1812 Prepared for : iDance Distribution Ltd. Address : 6/F Unit i, MG Tower, No. 133 Hoi Bun Road, Kwun Tong, Hong Kong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 14, 2020 Number of tested samples : 2 Sample No. : LCS201014031A-1, LCS201014031A-2 Serial number : Prototype Date of Test : October 14, 2020 ~ October 22, 2020 Date of Report : October 22, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201014031AEA Date of Issue ................................... : October 22, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : iDance Distribution Ltd. Address ........................................... : 6/F Unit i, MG Tower, No. 133 Hoi Bun Road, Kwun Tong, Hong Kong, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : sound card Trade Mark ...................................... : iDance Test Model ...................................... : MS1812 Ratings ............................................ : DC 3.7V By Battery(1200mAh) Recharged By DC 5V 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201014031AEA October 22, 2020 Date of issue Test Model........................... : MS1812 EUT......................................... : sound card Applicant............................... : iDance Distribution Ltd. Address.................................. : 6/F Unit i, MG Tower, No. 133 Hoi Bun Road, Kwun Tong, Hong Kong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : EnPing SenQi Sound Factory Address................................... : 2/f, building 2(No. 1 Factory), F46, zone F, foreign trade and People's investment industrial zone, Enping, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : EnPing SenQi Sound Factory Address................................... : 2/f, building 2(No. 1 Factory), F46, zone F, foreign trade and People's investment industrial zone, Enping, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 October 22, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 Report No.: LCS201014031AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ............................................................................................................................ 6 1.2 SUPPORT EQUIPMENT LIST ..................................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ...............................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig.1 (Below 1GHz) Fig.2 (Above 1GHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AUMGMS1812 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo of Line Conducted Emissions Measurement Fig.3
