2AUR9P5-MYX2Power Meter Crank

Power Meter Location Before use, take out the battery insulation sheet Replace battery * LED Flash colors: Battery install successful * Green LED flash 3 seconds : Bluetooth connected * Battery type: CR2032 coin battery ❶ Use your finger or nail to align the battery door paddle and turn the battery door in the direction indicated by the arrow; ❷ After removing the battery insulation sheet, put the battery cover (including the battery) into the battery compartment; ❸ Pay attention to the alignment of the battery door paddle as shown below; While pressing the battery door inward, align your finger or nail on the battery door paddle and reverse the direction indicated by the arrow,push, the LED light on the side of the sensor flashes to indicate that the installation is correct. Power Meter Location Battery Metal battery bracket Battery door Align the triangle arrow and put it in take out the battery insulation sheet Do not allow children to touch the battery to avoid danger, The product has a built-in battery. Do not throw the product into a fire. ❷ Take out the battery door, find the metal battery bracket in the battery door, remove the bracket, you can take out the old battery and turn the positive side of the new battery toward the metal bracket.and put it into the battery door, and install battery door into battery compartment as the steps above. ❶ Use your finger or nail to align the battery door paddle and turn the battery door in the direction indicated by the arrow. LED flash keep pressing battery door with your finger Align the side of slot and press ❸ Pay attention to the alignment of the battery door paddle as shown below; While pressing the battery door inward, align your finger or nail on the battery door paddle and reverse the direction indicated by the arrow,push, the LED light on the side of the sensor flashes to indicate that the installation is correct. LED flash keep pressing battery door with your finger Align the side of slot and press NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation.

Myx Fitness, LLC May 21, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AUR9P5-MYX2 Model Number: P5-MYX2, PW217, PW218 To Whom It May Concern: We, The Myx Fitness, LLC hereby declare that the model : PW217, PW218 are identical with the model : P5-MYX2, except the mode, item No., or color, or decorations. Except for the different above, no other modification is performed. Sincerely, Signature: Myx Fitness, LLC Contact person: Heberto Calves

Myx Fitness, LLC Agent Authorization Company: Myx Fitness, LLC Address: 19 West Elm St Greenwich Connecticut United States Product Name: Power Meter Crank Model Number(s): P5-MYX2, PW217, PW218 Product Description: Power Meter Crank We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-21 Name: Heberto Calves Company: Myx Fitness, LLC

Myx Fitness, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-19 Subject; Request for Confidentiality FCC ID: 2AUR9P5-MYX2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Myx Fitness, LLC Contact person: Heberto Calves

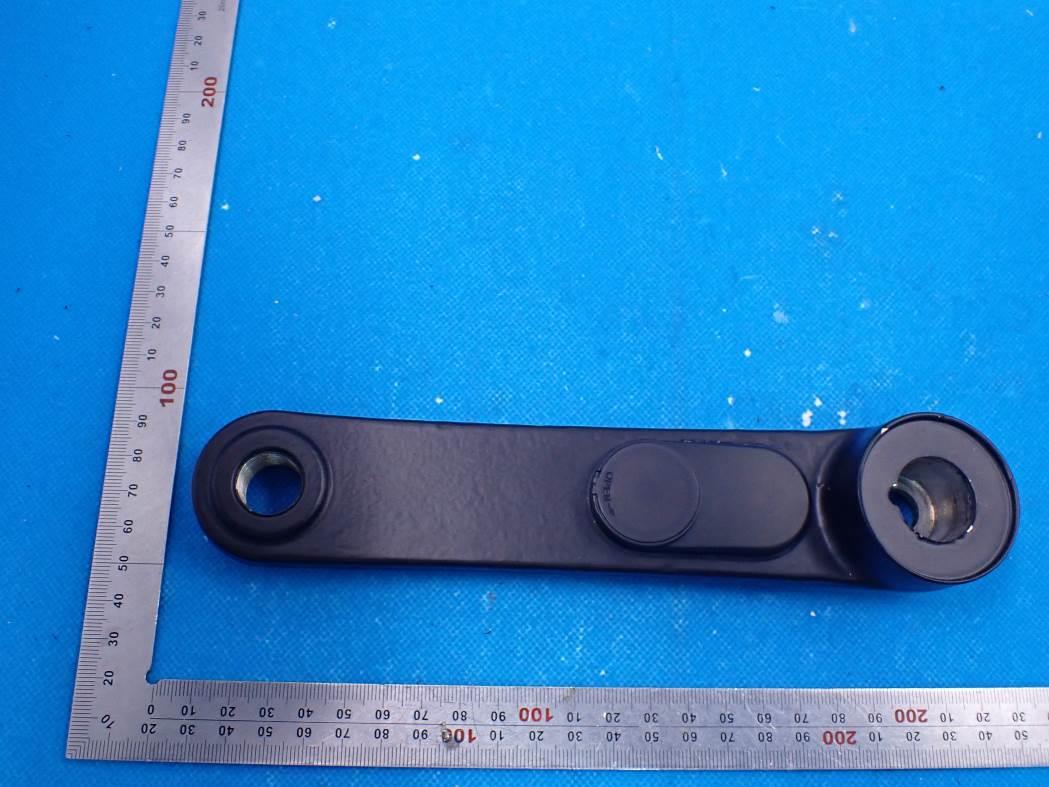

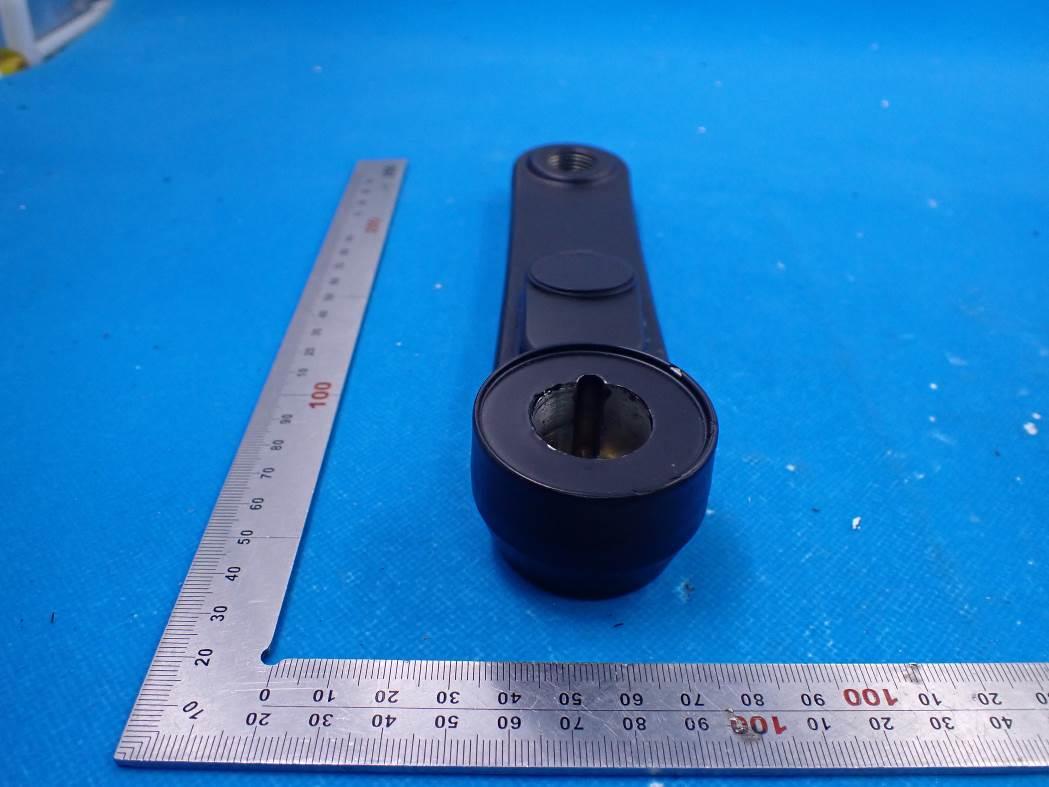

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 20mm&50mm FCC ID: 2AUR9P5-MYX2

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 3 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Power Meter Crank Model Name P5-MYX2, PW217, PW218 FCC ID 2AUR9P5-MYX2 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION FCC 2.4G: P t =-1.336dBm=0.74mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.74mW /5mm) .[√2.457(GHz)]= 0.23<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE GFSK 1Mbps: P t = -0.125dBm=0.97mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.97mW /5mm) .[√2.402GHz)]= 0.30<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE GFSK 2Mbps: P t = -0.063dBm=0.99mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.99mW /5mm) .[√2.402GHz)]= 0.30<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 46 FCC Test Report Report No.: AGC01040210502FE02 FCC ID : 2AUR9P5-MYX2 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Power Meter Crank BRAND NAME : N/A MODEL NAME : P5-MYX2, PW217, PW218 APPLICANT : Myx Fitness, LLC DATE OF ISSUE : May 18, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01040210502FE02 Page 2 of 46 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2021 Valid Initial Release Report No.: AGC01040210502FE02 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. 6 DB BANDWIDTH ......................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 16 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 16 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 24 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 24 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 24 11. RADIATED EMISSION ................................................................................................................................. 26 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 11.2. TEST SETUP .......................................................................................................................................... 27 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 28 11.4. TEST RESULT .....................…

Text truncated - open the document above for the full version.

Report No.: AGC01040210502FE02 Page 41 of 46 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC01040210502FE02 Page 42 of 46 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC01040210502FE02 Page 43 of 46 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC01040210502FE02 Page 44 of 46 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC01040210502FE02 Page 45 of 46 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC01040210502FE02 Page 46 of 46 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- BT Antenna Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Page 1 of 46 FCC Test Report Report No.: AGC01040210502FE04 FCC ID : 2AUR9P5-MYX2 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Power Meter Crank BRAND NAME : N/A MODEL NAME : P5-MYX2, PW217, PW218 APPLICANT : Myx Fitness, LLC DATE OF ISSUE : May 18, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01040210502FE04 Page 2 of 46 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2021 Valid Initial Release Report No.: AGC01040210502FE04 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. 6 DB BANDWIDTH ......................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 16 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 16 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 24 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 24 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 24 11. RADIATED EMISSION ................................................................................................................................. 26 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 11.2. TEST SETUP .......................................................................................................................................... 27 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 28 11.4. TEST RESULT .....................…

Text truncated - open the document above for the full version.

Report No.: AGC01040210502FE04 Page 40 of 46 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC01040210502FE04 Page 41 of 46 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC01040210502FE04 Page 42 of 46 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC01040210502FE04 Page 43 of 46 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC01040210502FE04 Page 44 of 46 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC01040210502FE04 Page 45 of 46 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC01040210502FE04 Page 46 of 46 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- BT Antenna Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Page 1 of 37 FCC Test Report Report No.: AGC01040210502FE03 FCC ID : 2AUR9P5-MYX2 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Power Meter Crank BRAND NAME : N/A MODEL NAME : P5-MYX2, PW217, PW218 APPLICANT : Myx Fitness, LLC DATE OF ISSUE : May 18, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01040210502FE03 Page 2 of 37 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 18, 2021 Valid Initial Release Report No.: AGC01040210502FE03 Page 3 of 37 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.3. TEST METHODOLOGY ............................................................................................................................. 6 2.4. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.5. EQUIPMENT MODIFICATIONS …

Text truncated - open the document above for the full version.
